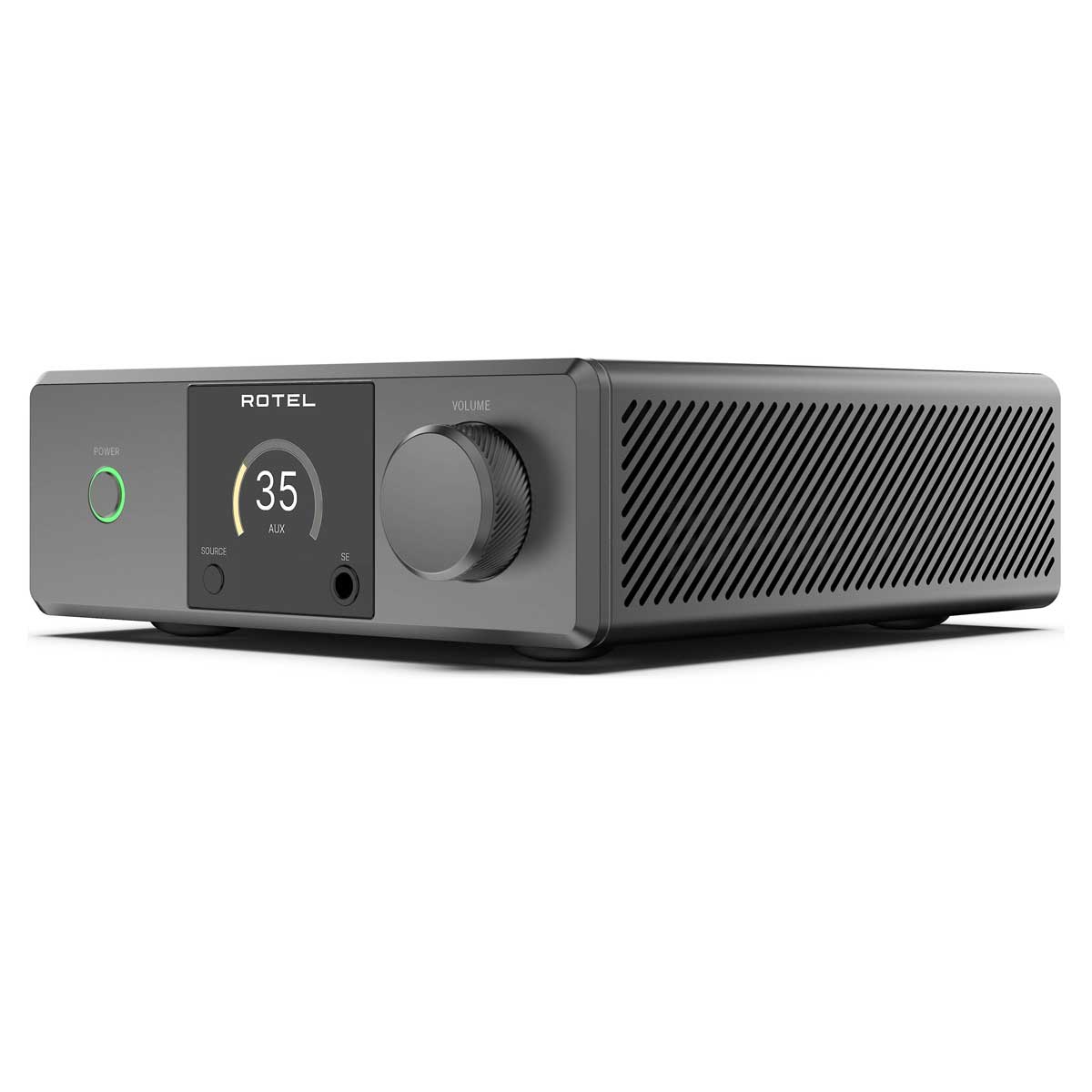

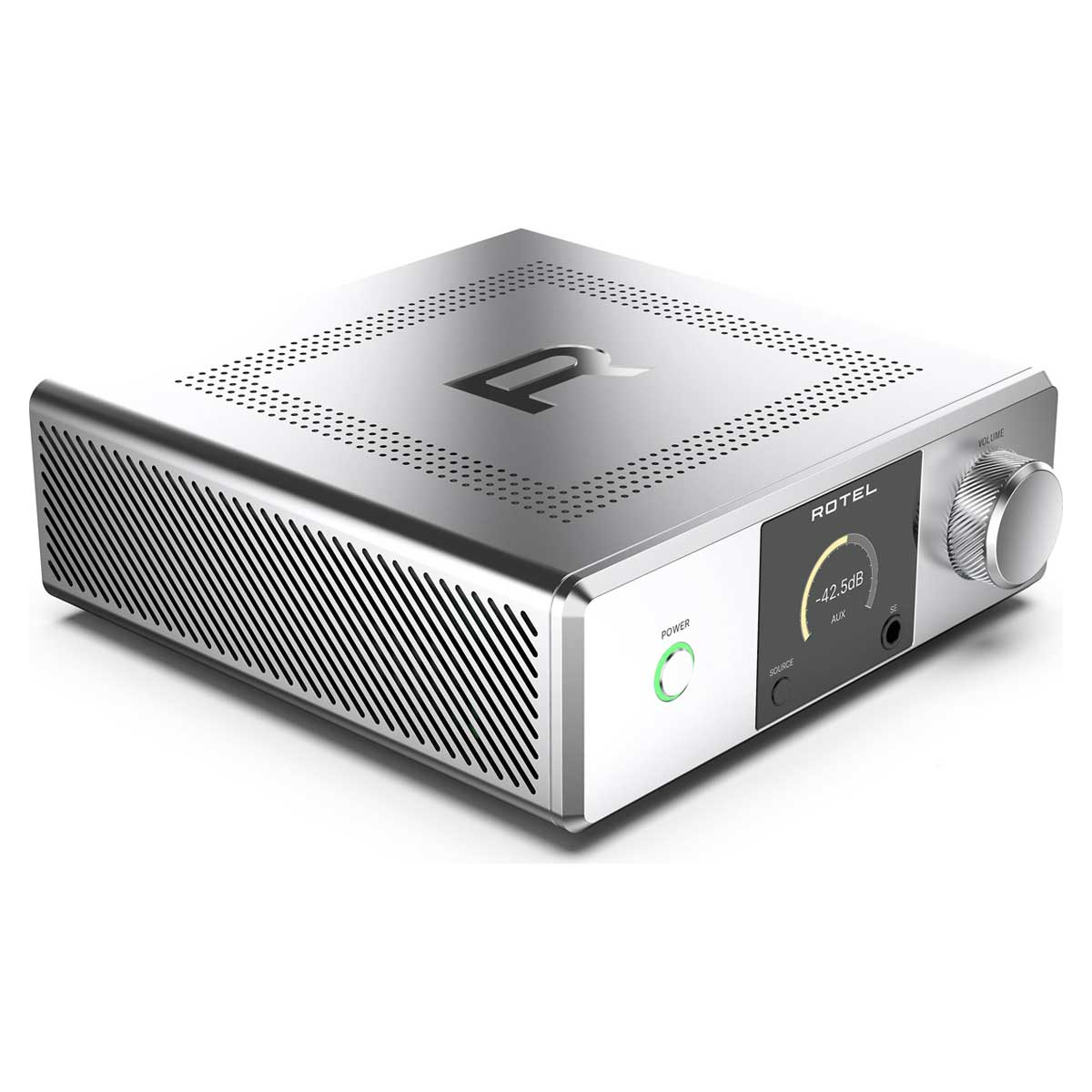

Rotel DX-5 Integrated Amplifier
The Rotel DX-5 Integrated Amplifier is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design.
Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
View Owners Manual >> View Specifications >> View Rotel >>
Product Reviews
Features
- Certified Roon Tested
- ICESS premium 32-bit Digital to Analog Converter
- Bluetooth with aptX™ HD and AAC
- 2 x 33 Watts of Robust Class AB power, 4 Ohms
- Includes Remote Control

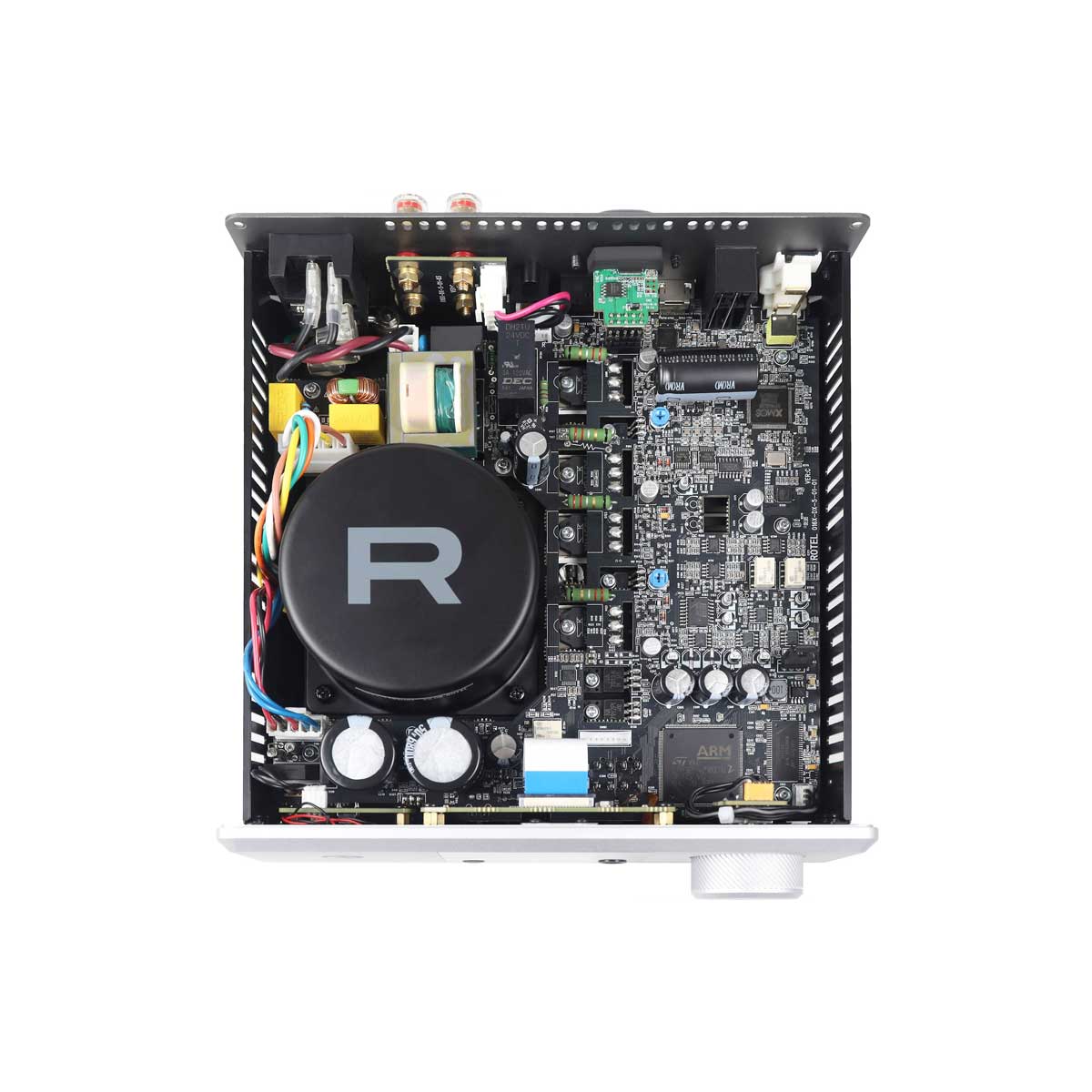

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).

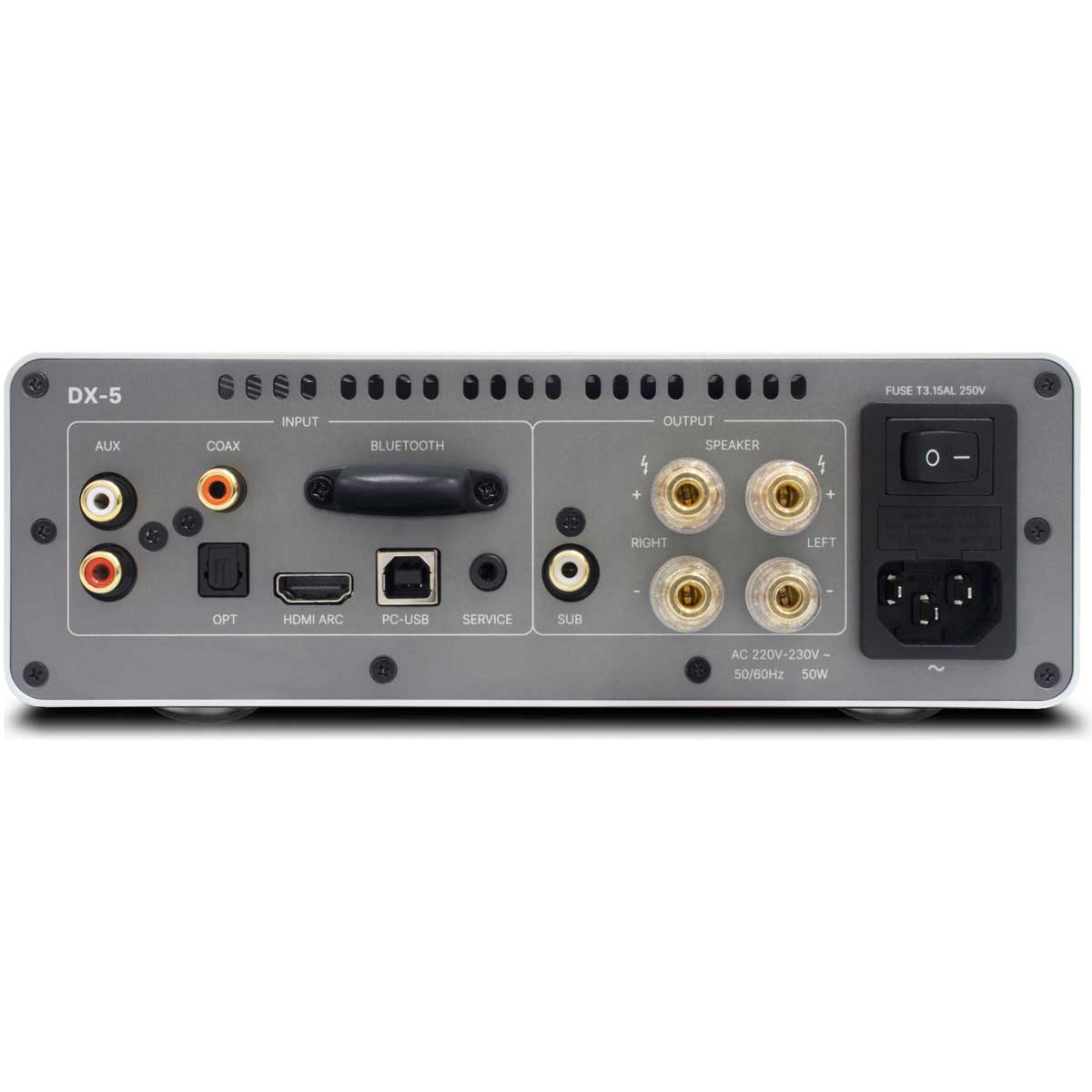

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

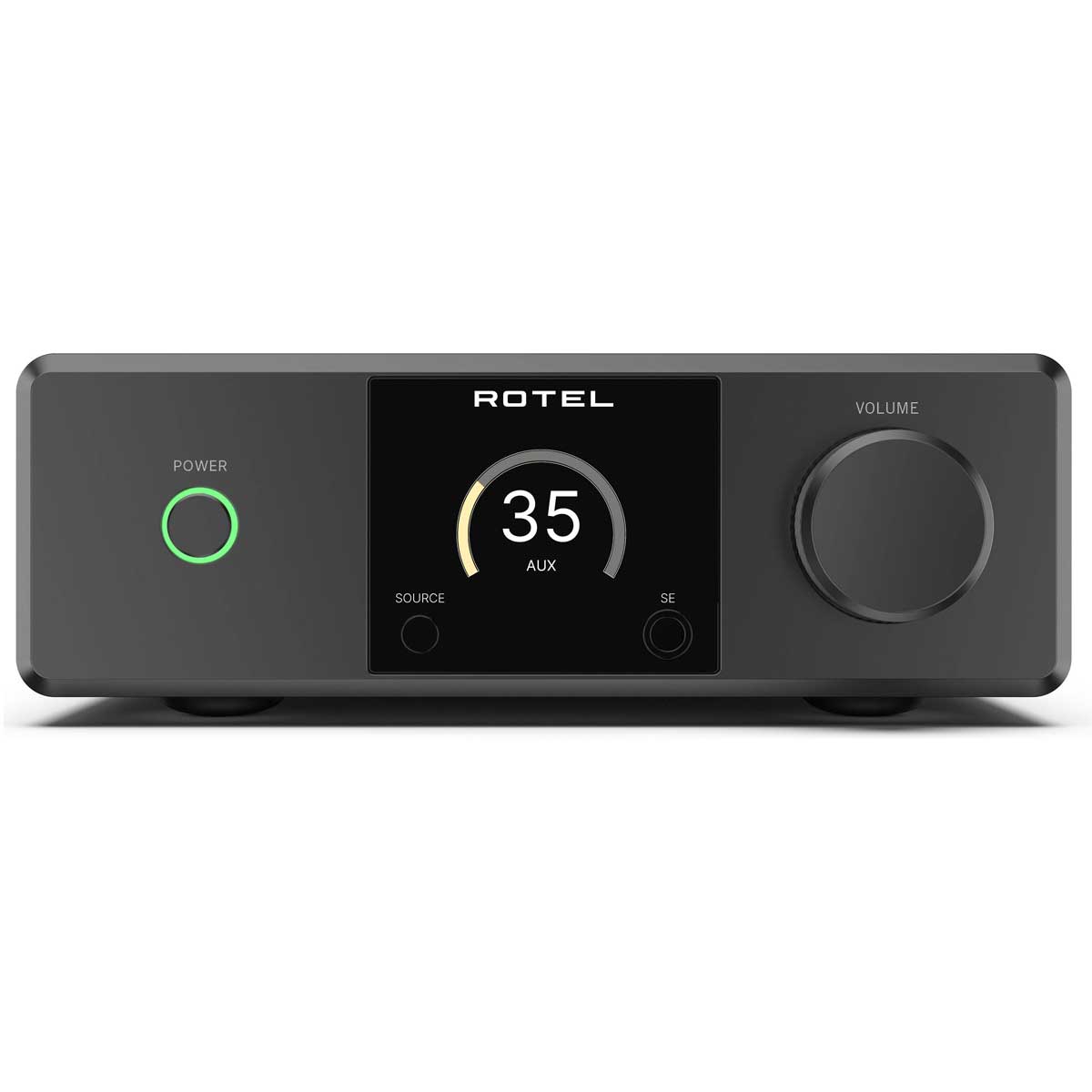

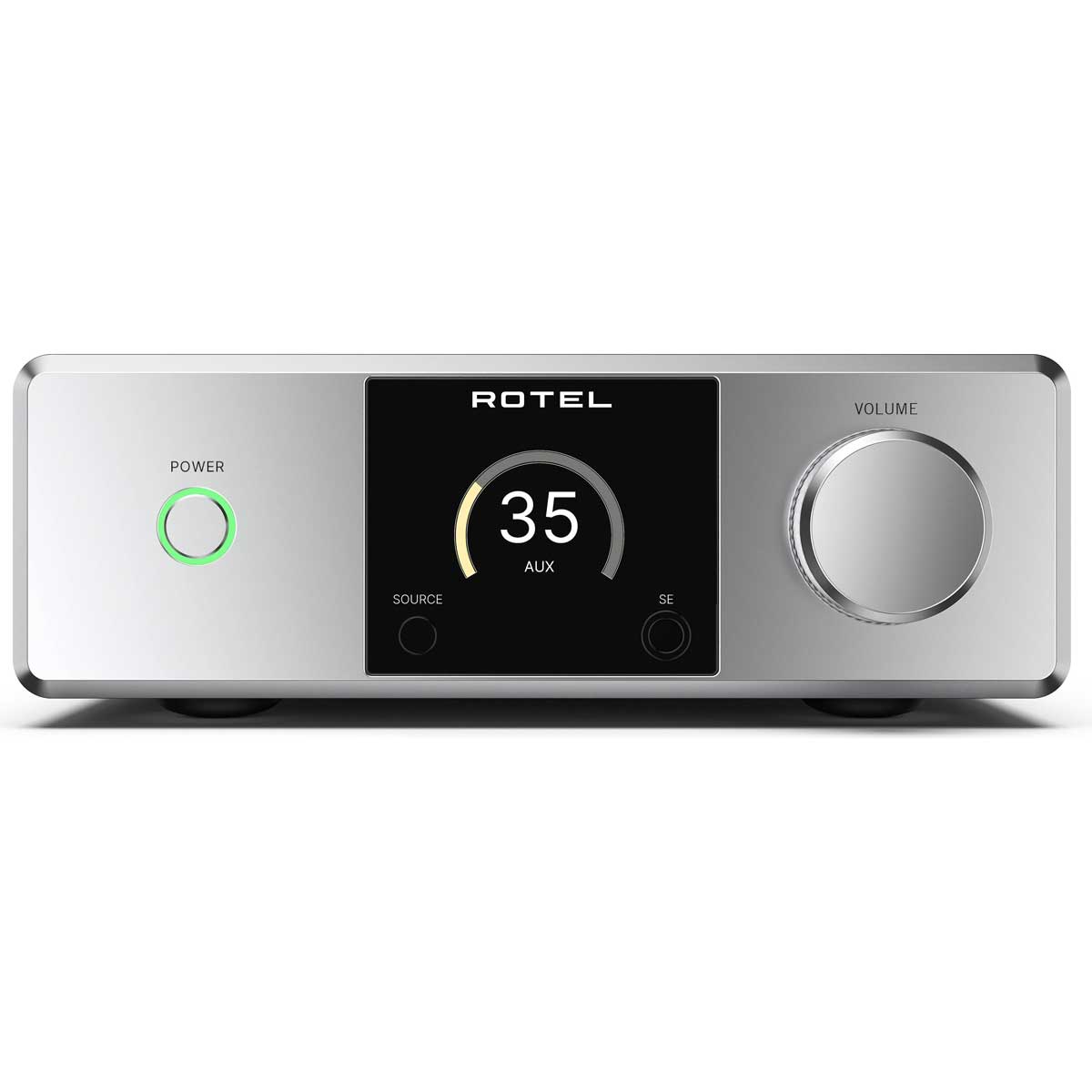

The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Specifications
- Dimensions (W × H × D): 215 x 76 x 251mm
- Front Panel Height: 70 mm (2 3/4″)
- Power Requirements: 230 V, 50 Hz
- Power Consumption: 80 W
- Standby Power Consumption: <0.5 W
- Net Weight: 4.1 kg (9.1 lbs.)
- BTU: 241 BTU/h
- Power Output (FTC): 25 W / ch
- Maximum Power Output (Non FTC): 33 W / ch, (1k Hz, 4 Ω)
- Continuous Power Output (Non FTC): 25 W / ch, (1k Hz, 8 Ω)
- Total Harmonic Distortion: < 0.03%
- Frequency Response: 10 Hz – 100k Hz (0 ± 0.19 dB)
- Damping Factor (20 Hz – 20k Hz, 8 Ω): 140
- Input Sensitivity / Impedance: 680 mV / 100k Ω
- Input Overload: 4.2V
- S/N Ratio (IHF “A” Weighted): >100 dB
- Intermodulation Distortion (60 Hz : 7k Hz, 4:1): < 0.03%
- Frequency Response (10 Hz – 80k Hz):
- 10 Hz – 80k Hz
- (0 ± 2 dB, Max)
- Input Sensitivity / Impedance: -10.3 dBFS / 75 Ω
- S/N Ratio (IHF “A” Weighted): >100 dB
HDMI
- Support ARC function
Digital Inputs
- SPDIF LPCM (up to 24-bit / 192k Hz)
PC-USB
- USB Audio Class 2.0 (up to 32-bit / 384k Hz )*Driver installation required
- Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz)
- Roon Tested
