Description
Atoll Electronique IN300 Integrated Amplifier
The Atoll Electronique IN300 Integrated Amplifier is from the brand that has been acclaimed by audiophiles for decades. Atoll offers a wide range of electronics for hi-fi and home cinema. Integrated amplifiers, stereo power amps, home cinema power amps, preamps, DACs, DLNA amps, RIAA preamps… no device is missing for those who wish to equip themselves qualitatively.
View Owners Manual >>
Features
- Audiophile components
- Very high current capacity
- Asahi Kasei AK4490 DAC
- Double pre-out output
- Bluetooth with dedicated I2S DAC
Atoll IN300SE: DSD-compatible DAC
Atoll did things very well with the Atoll Electronique IN300 Integrated Amplifier. Not content with installing the star of DACs, the Asahi Kasei Velvet AK4490, the French manufacturer has associated it with quality S/PDIF and USB controllers. Better still, the software part of the XMOS USB controller has been specifically developed for the AmplI’s AKM DAC. DSD signals are thus supported from any Mac OS and Windows computer (driver to download for free). A Bluetooth receiver is present, connected to a specific Burr Brown PCM5102 DAC operating in I2S mode (high quality).
Atoll IN300SE: double mono and enormous current capacity
TheAtoll Electronique IN300 Integrated Amplifier benefits from a symmetrical diagram and uses discrete components for its preamplification and output stages, in particular Mos-Fet transistors (2 pairs per channel). These electronic chips have always been renowned for their great musicality, in particular their ability to deliver robust and fluid sound. The Atoll IN300 SE stereo integrated amplifier is also equipped with two 440 VA toroidal transformers and a current capacity of more than 86,000 µF. If these figures do not necessarily speak for themselves, they express the ability of the amp to keep pace at high volume and in the low register, especially when the speakers have a low impedance. By comparison, the Atoll IN300 SE amplifier has a much higher current capacity than most multi-channel home cinema amplifiers: that is to say that its design is serious.
The Atoll IN300 SE stereo amplifier develops up to 2×150 watts into 8 ohms – and 2×260 watts into 4 ohms – from bass to treble. It also benefits from electronic protection and switches off automatically if its capacities were to be exceeded. It can therefore be associated with distorted impedance speakers with confidence. The Atoll IN300 SE stereo hi-fi amplifier has 6 stereo analog inputs, 5 digital, a headphone output and two pre-out outputs for power amp or active subwoofer.
The Atoll Electronique IN300 Integrated Amplifier can be combined with the Atoll CD200 SE-2 CD player to form a coherent whole. Musicality and pleasure guaranteed.
Technical Specifications
DIGITAL BOARD:
– converter: AK4490: S/N: 120 dB dynamic 120dB.
– DSD: 2.8MHz and 5,6MHz.
– PCM from 16 bits to 32bits up to 384 kHz on USB (asynchronous).
– Up to 24Bits 192kHz on optical and coaxial.
– USB converter XMOS: XUF208 with specific program for PCM and DSD specially developed for ATOLL.
LINK CAPACITORS:
Analog stages: Mundorf MKP in a armored shell.
Digital stages: Vishay MKP high sound quality.
POWER STAGES:
Double mono with 2x440VA toroidal transformers.
Specific low consumption supply (5VA) for display and logic circuits.
Capacitors: 12x6800uF low ESR high quality designed specifically for ATOLL.
Soft starter stage to avoid current peek.
Internal Supply High End cable (wired according to AC recommendation).
INPUT STAGES:
2 volume attenuators: 1 per channel.
High quality Silver Mica capacitors for soft low pass filter (very fast reaction on pulse).
Symmetrical bipolar stages (discrete components).
OUTPUT STAGES:
6 MOS FET per channel: 150Wrms/8Ohm, 260Wrms/4Ohm.
Very low feed global back stages that brings dynamic and natural sound.
Very low distortion due to a specific control stage of the driver transistors.

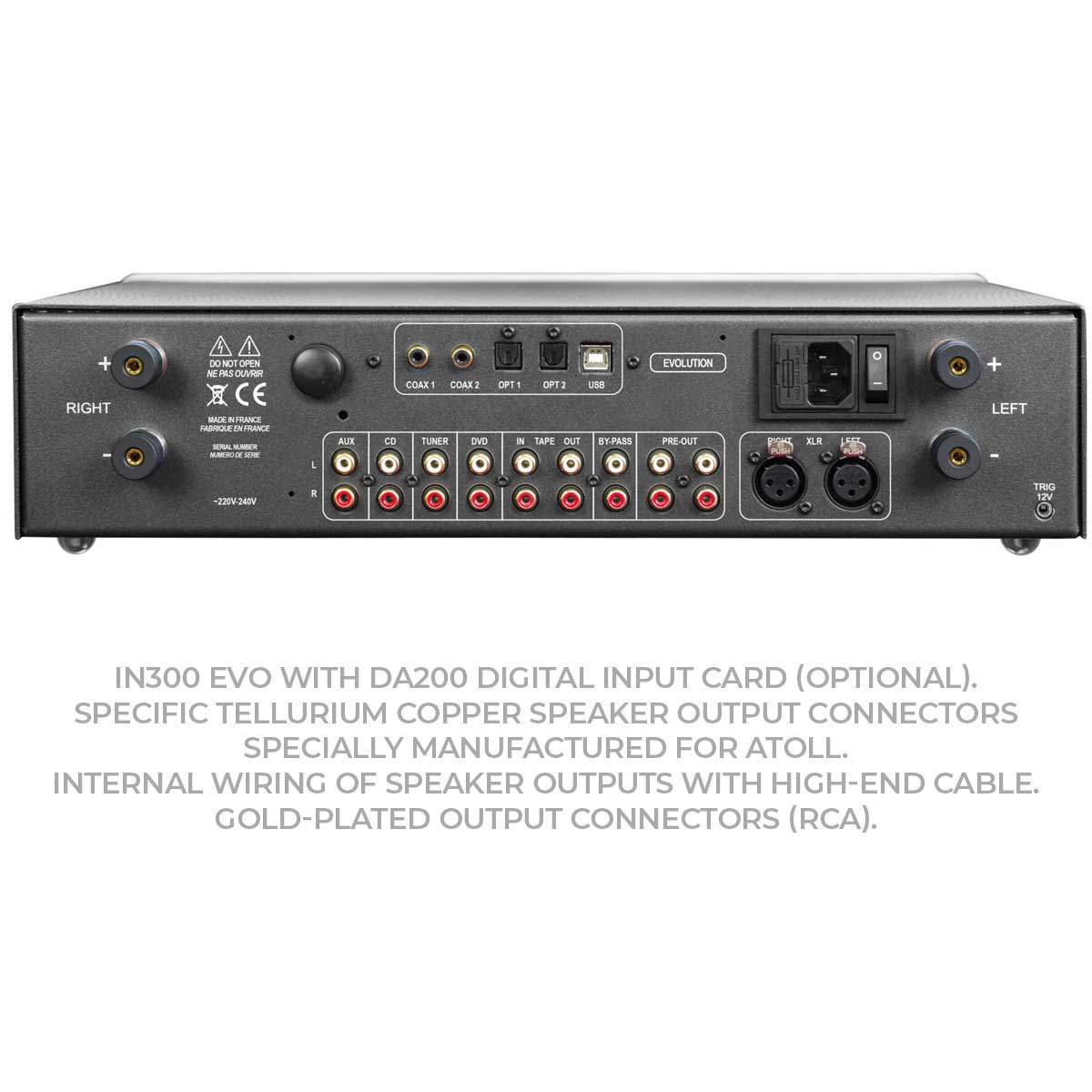

CONNECTIVITY:
High quality tellurium copper speakers terminals (ATOLL exclusive design).
High End Speaker cable link.
Gold plated RCA inputs.
INPUTS:
Analog:
– 5 Inputs (with AUX for optional phono stage)
– 1 BY-PASS Input
– 1 XLR Input
Digital:
– 2 Coaxial Inputs
– 2 Optical Inputs
– 1 Bluetooth receiver
– 1 USB-B asynchronous Input
OUTPUTS:
1 pair of speakers OUT
2 Pre-out (for sub or additional power amp.)
1 Trigger Output
1 Headphones jack 6.35mm
Specifications
Power Wrms/channel: 150 Wrms/8Ω // 260 Wrms/4Ω
Power Supply: 880 VA
Total of capacitors: 86400 µF
Input impedance: 220 kΩ
Dimensions: 440x320x100 mm
Weight: 15 Kg
