Atoll Electronique PR300 Evolution Preamplifier

Description

Atoll Electronique PR300 Evolution Preamplifier

The Atoll Electronique PR300 Evolution Preamplifier embodies their expertise.

This model is specifically designed to meet the needs of discerning audiophiles, offering unparalleled modularity and remarkable musicality. They have chosen to equip it with XLR input/output and fully balanced, dual-mono audio stages.

Features

• Front face in 8 mm brushed, micro-bead blasted
  and anodized aluminum, high-precision engraving.
• 1.5 mm steel chassis.
• Two 10 VA toroidal transformers each for the audio stages.
• A 3.2 VA linear transformer (digital audio).
• A low power consumption 5 VA transformer (control logic).
• High-quality, shielded MKP coupling capacitors.
• Dual mono and fully symmetrical structure:
  • Two independent symmetrical stages for each channel.
  • One stereo attenuator per channel (with switched resistors).
• Bipolar transistor audio stages with perfectly symmetrical structure, biased in class A, very low negative feedback.
• Precise balance adjustment, possibility to memorize it.
• Option to rename entries.
• Option to choose standby mode: Low power consumption or preheating.
• High contrast OLED display (on or off mode after 5 seconds of inactivity).
• ATOLL global remote control supplied as standard.
• The PR300 EVO can receive the following optional cards:
  • DAC cards: DA100 and DA200.
  • PHONO cards: P50 and P100 (can be combined with DAC cards).

CONNECTIVITY

Inputs:

• 1 XLR input.
• 5 Line inputs: AUX or PHONO (optional), CD, TUNER, DVD, TAPE
• BY-PASS input.

Outputs:

• 2 Line Outputs
• 1 XLR Output.
• 1 12V Trigger Output
• 1 Headphone Jack Output Ø 6.35 mm.

Miscellaneous:

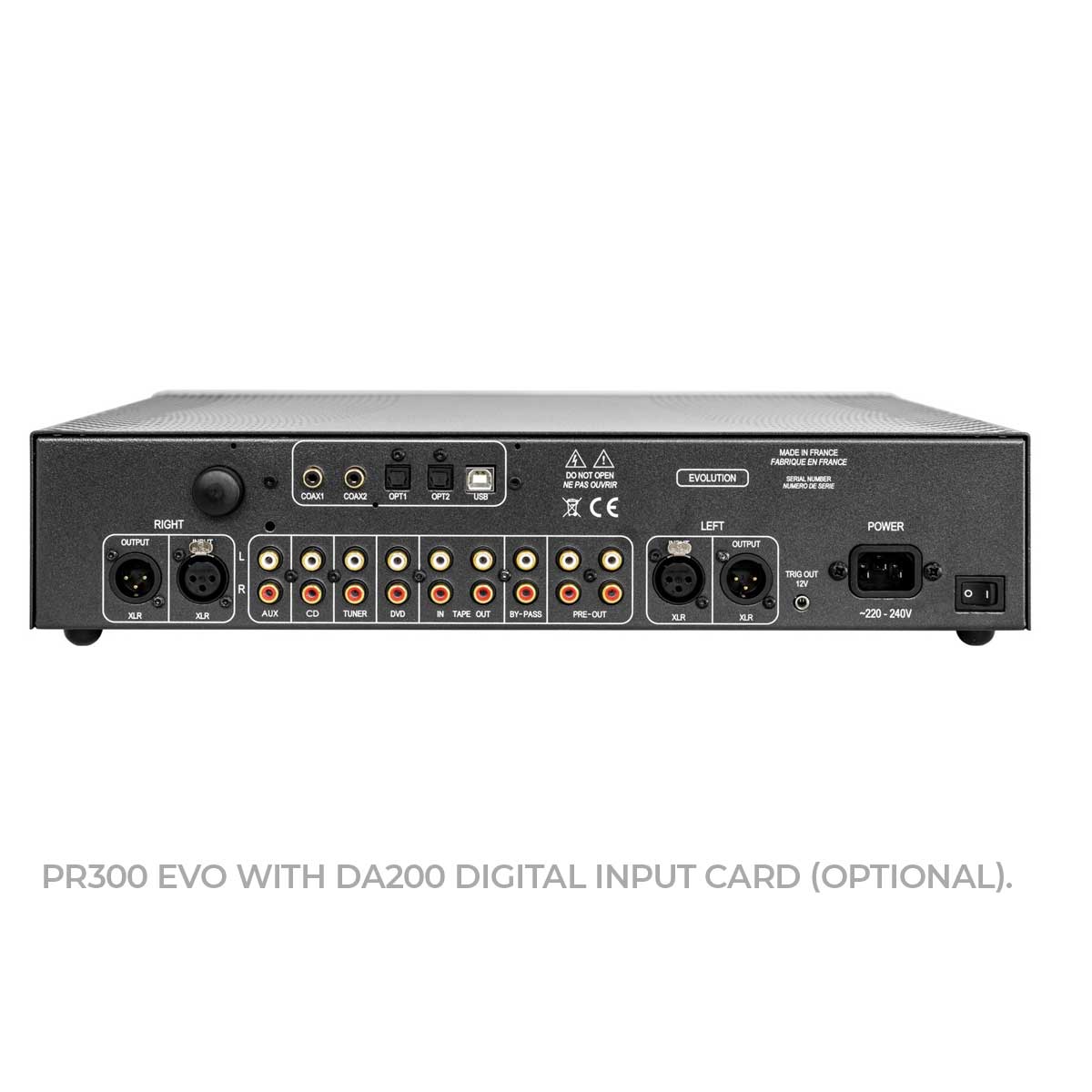

• Possibility of adding DA100 or DA200 digital cards (optional).

Technical Specifications

• Power supply: 2×10 VA (audio) + 10 VA + 3.2 VA
• Total capacitance: 89,000 µF
• Bandwidth (-3 dB) : 5 Hz – 100 kHz
• Rise time: 1.3 µs
• Input impedance: 357 kΩ
• Sensitivity: 3 V
• Signal-to-noise ratio: 100 dB
• Distortion at 1 kHz: 0.005%
• Standby power consumption (low power): <0.5 W
• Dimensions: 440×342×95 mm
• Weight: 6.8 kg

OPTIONAL CARDS AVAILABLE

• DA200:
  2 coaxial inputs (24-bit/192 kHz),
  2 optical inputs (24-bit/192 kHz),
  1 Bluetooth receiver,
  1 USB-B input: PCM & DSD.
• DA100:
  2 coaxial inputs (24-bit/192 kHz),
  2 optical inputs (24-bit/192 kHz).
• P100 (configurable MM or MC).
• P50 (MM).
