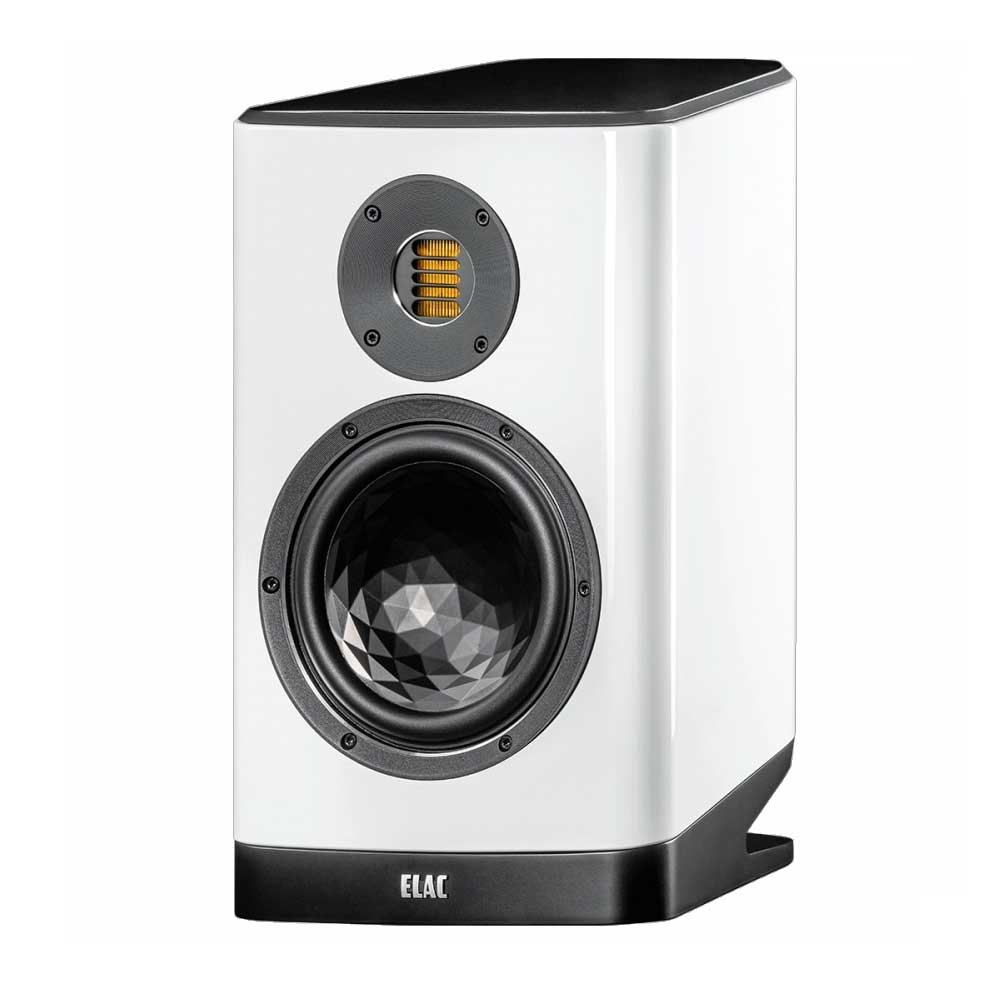

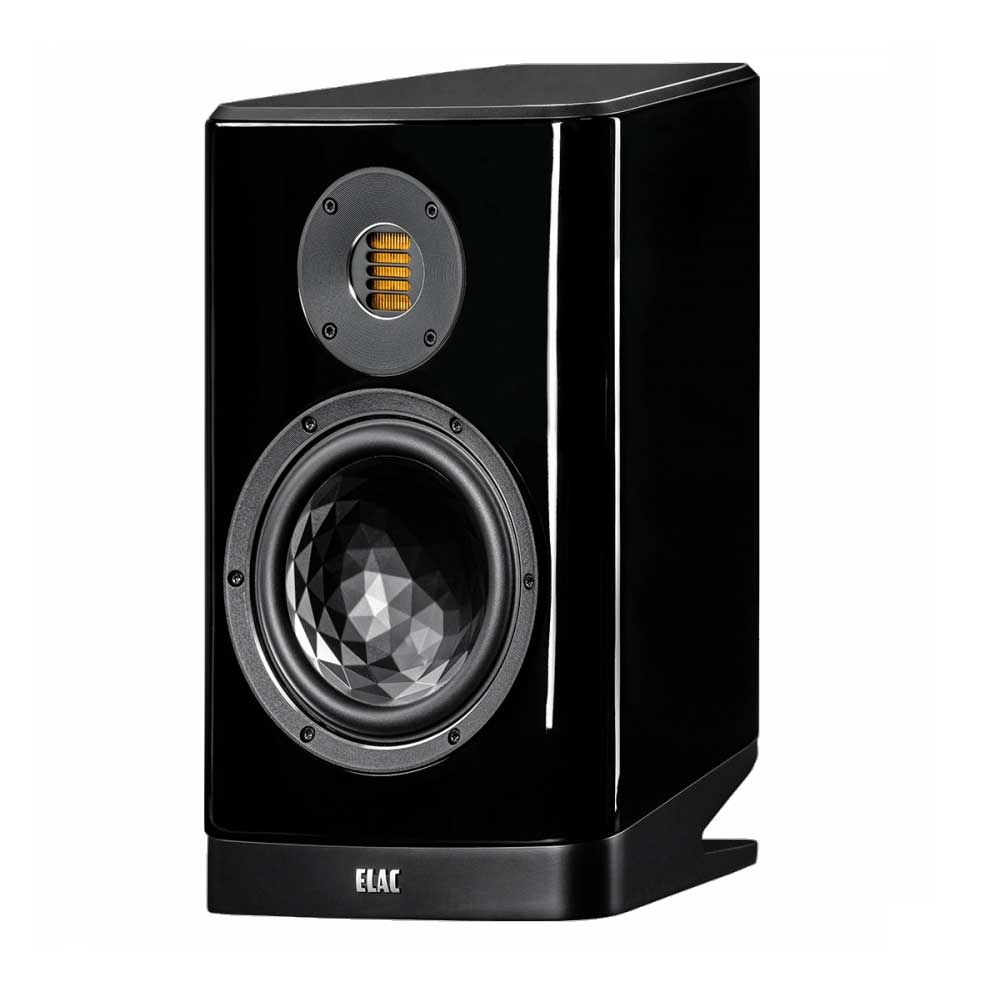

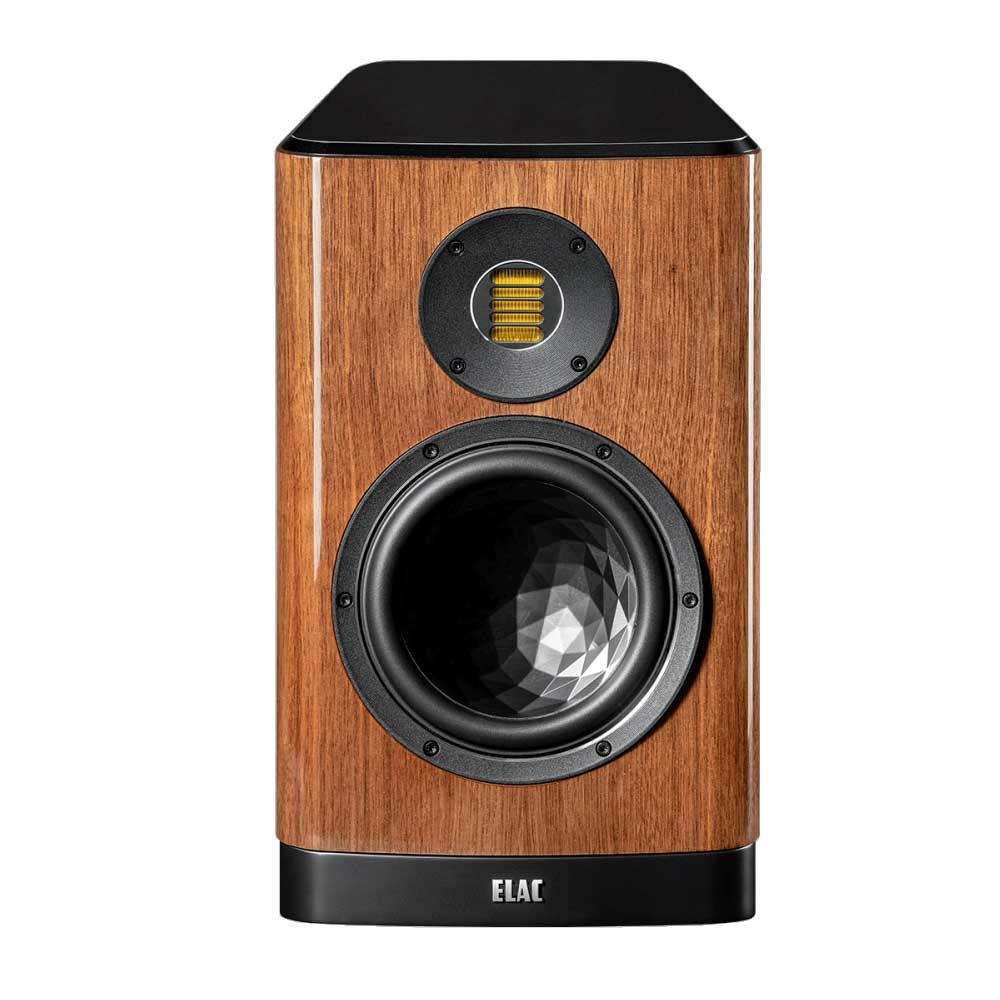

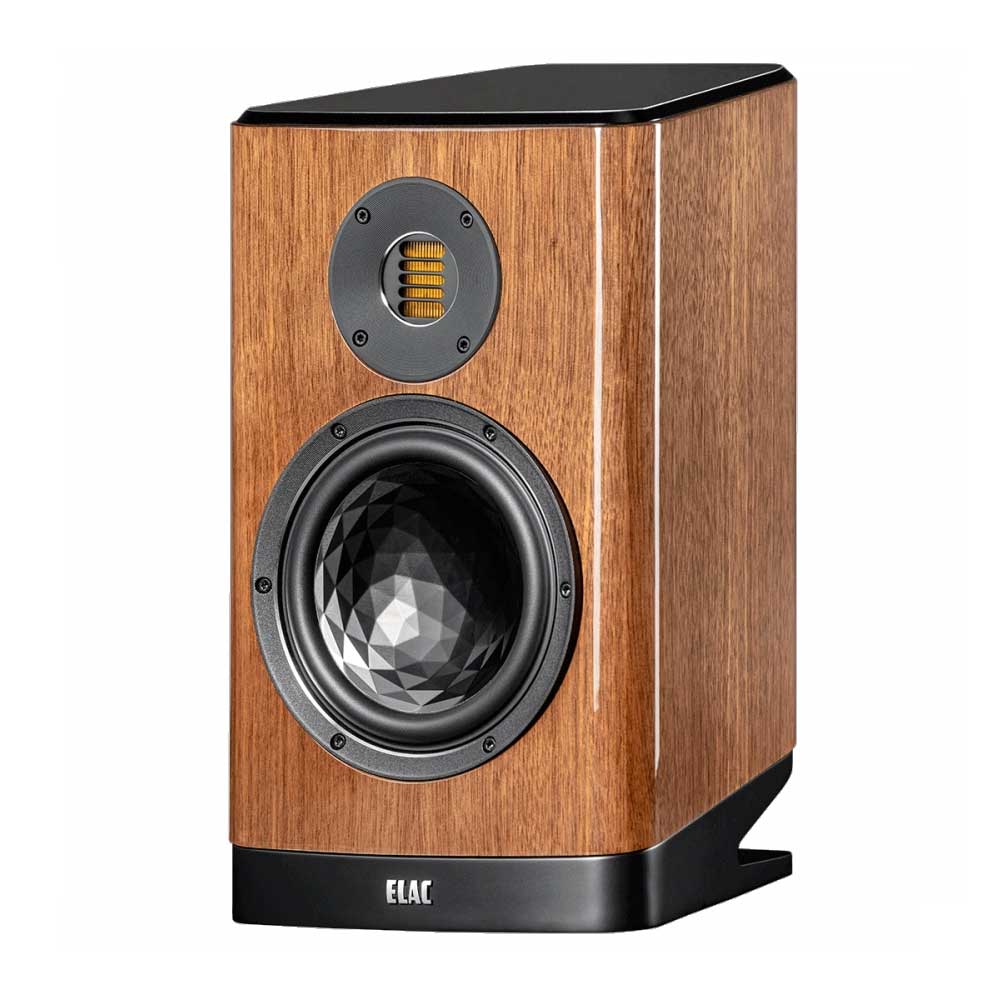

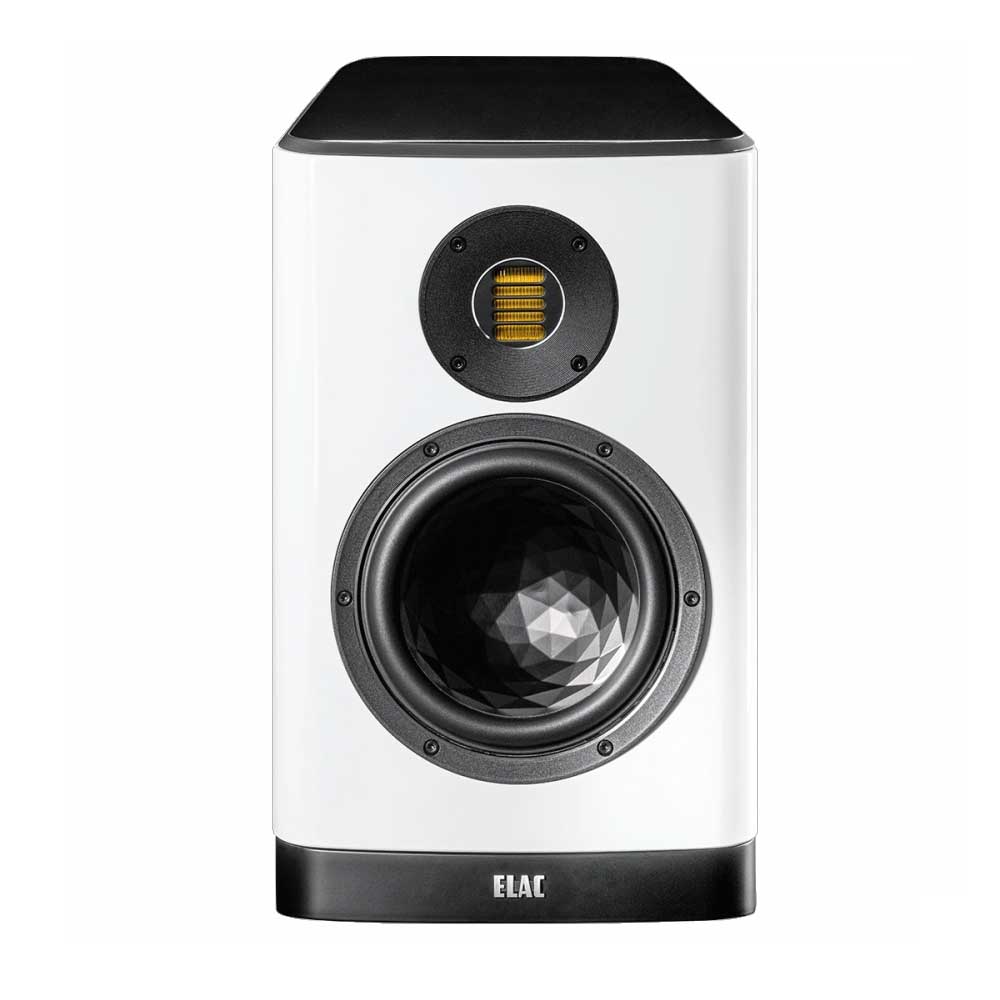

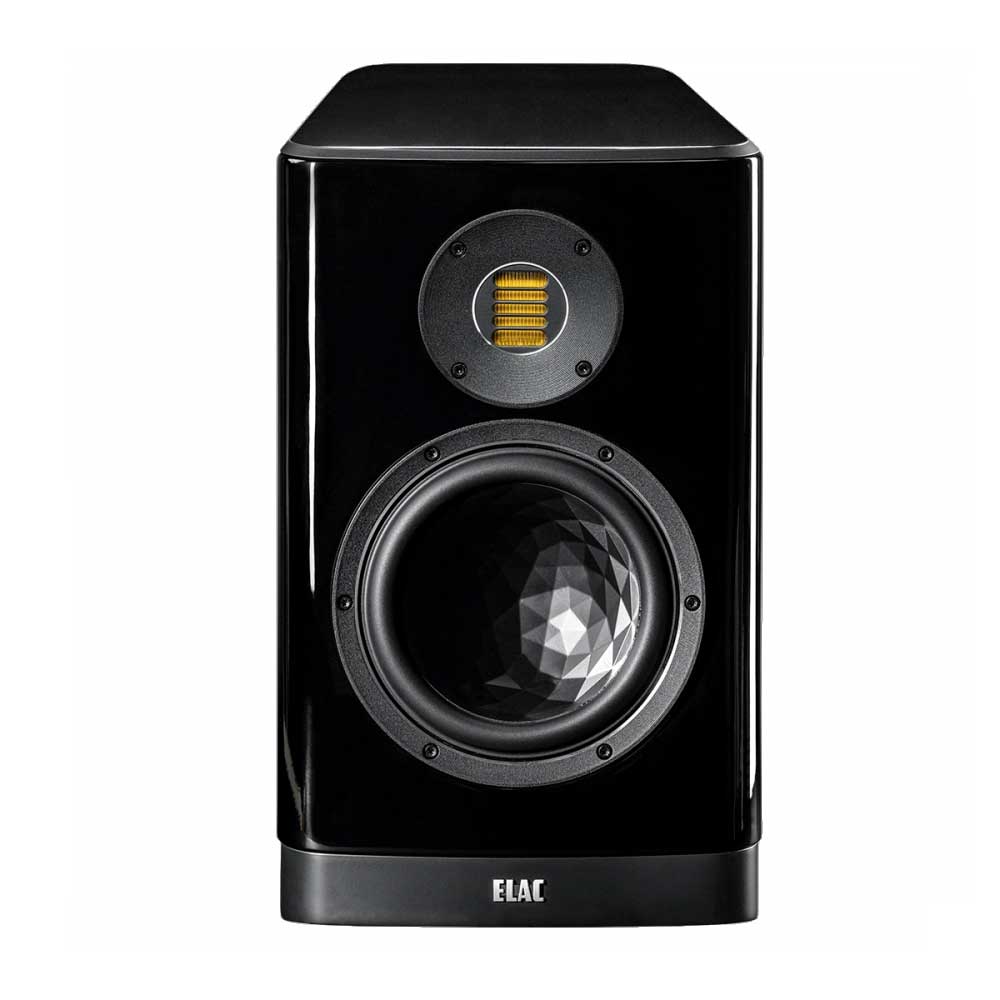

ELAC Vela BS404.2 Bookshelf Speakers
The ELAC Vela BS404.2 Bookshelf Speakers are part of the Vela 2.0 range.
They are a striking illustration of how design and function can be harmonized. Decorative aluminum elements transform the technical components of the loudspeakers into visual highlights. Sight and sound combined into a duality of delight.
The VELA builds on the highly successful and high-performing Series 400 while improving stereo definition and multi-channel audio in modern furnishings.
But the advantages are distinct. Combining a newly designed cabinet in combination with the crystal aluminum-sandwich woofer—and ELAC’s inimitable JET 6 tweeter—this speaker is bound to make an impact.
View Product Specifications >> View ELAC Products >>
Features
Meet VELA
Built upon 95 Years Acoustic Design and Engineering
- Crystal membrane woofer with extended frequency range
- Jet 6 tweeter offering wide dynamic range
- Bi-wiring configuration to enhance midrange
- Die cast bottom plate with integrated double flanged down-firing bass reflex port
- Convex baffle shape reducing reflections

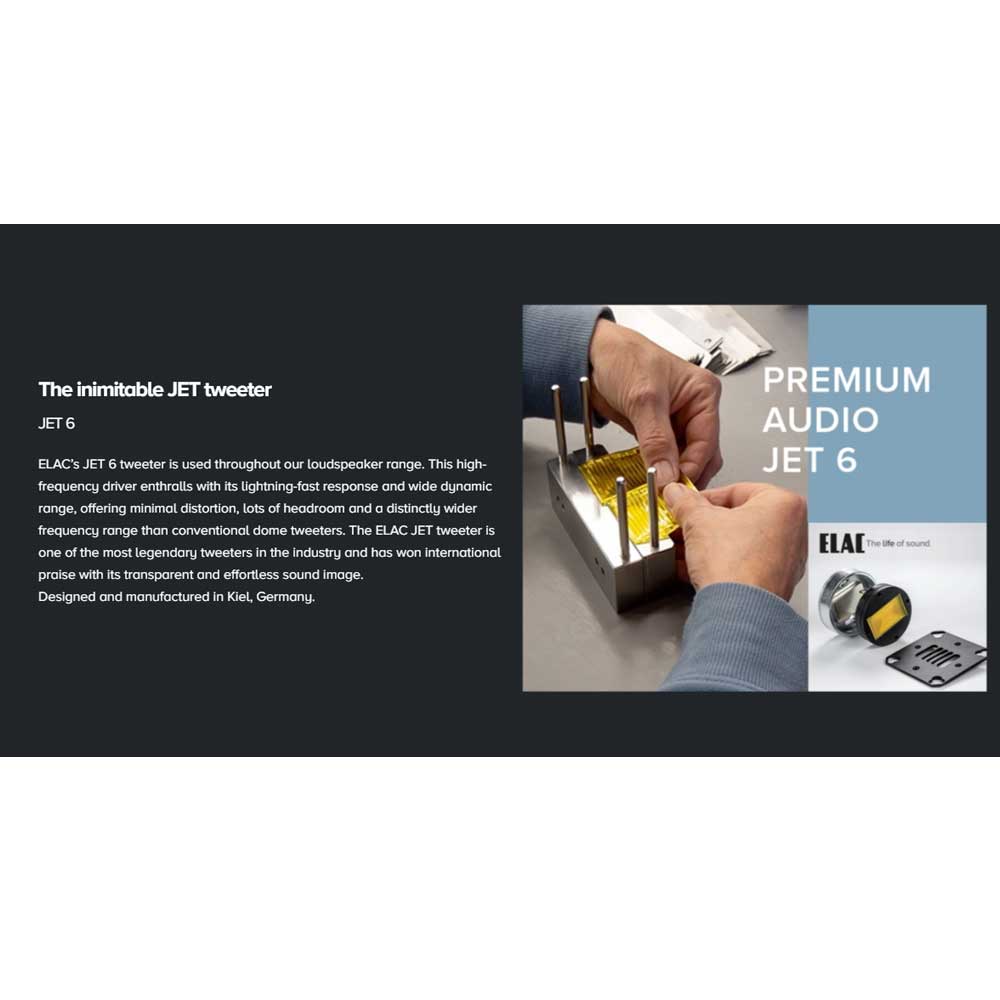

The inimitable JET 6 tweeter
ELAC’s JET 6 tweeter is used throughout their loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters.
The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image. Designed and manufactured in Kiel, Germany.

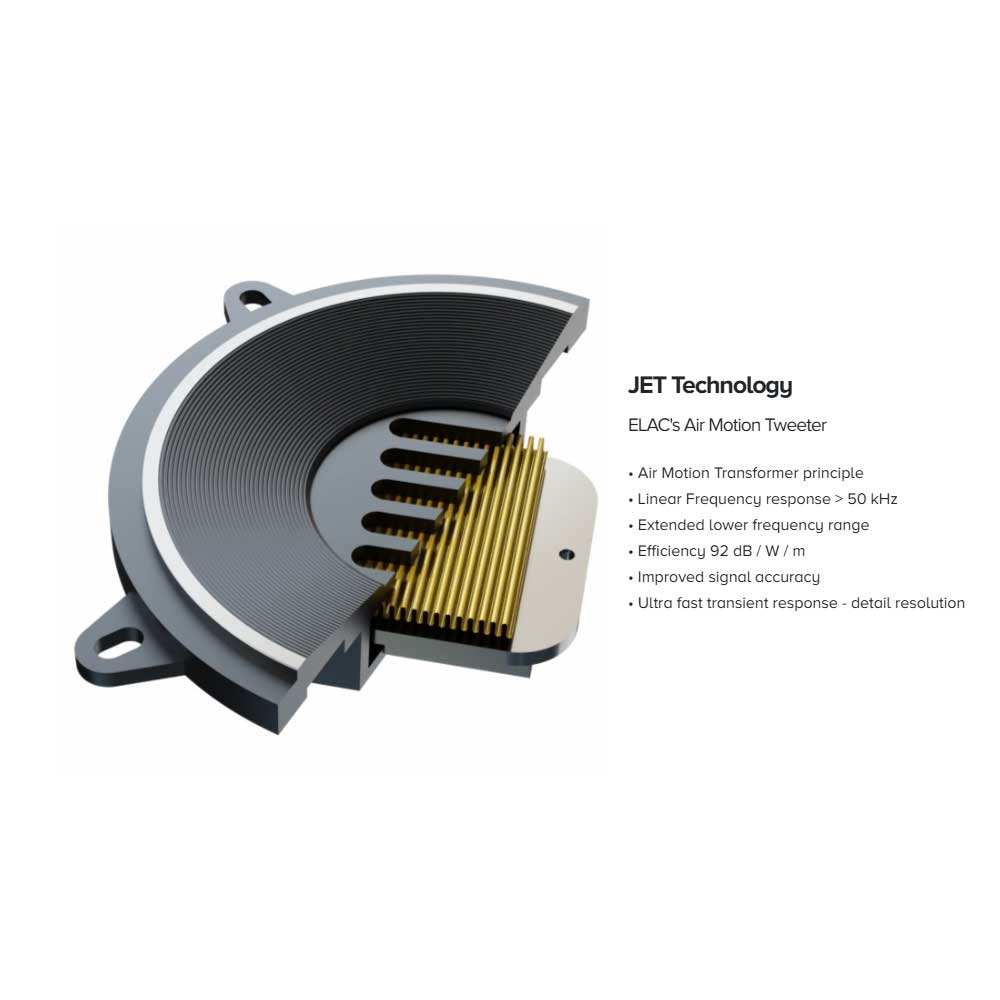

ELAC’s Air Motion Tweeter
- Air Motion Transformer principle
- Linear Frequency response > 50 kHz
- Extended lower frequency range
- Efficiency 92 dB / W / m
- Improved signal accuracy
- Ultra fast transient response – detail resolution

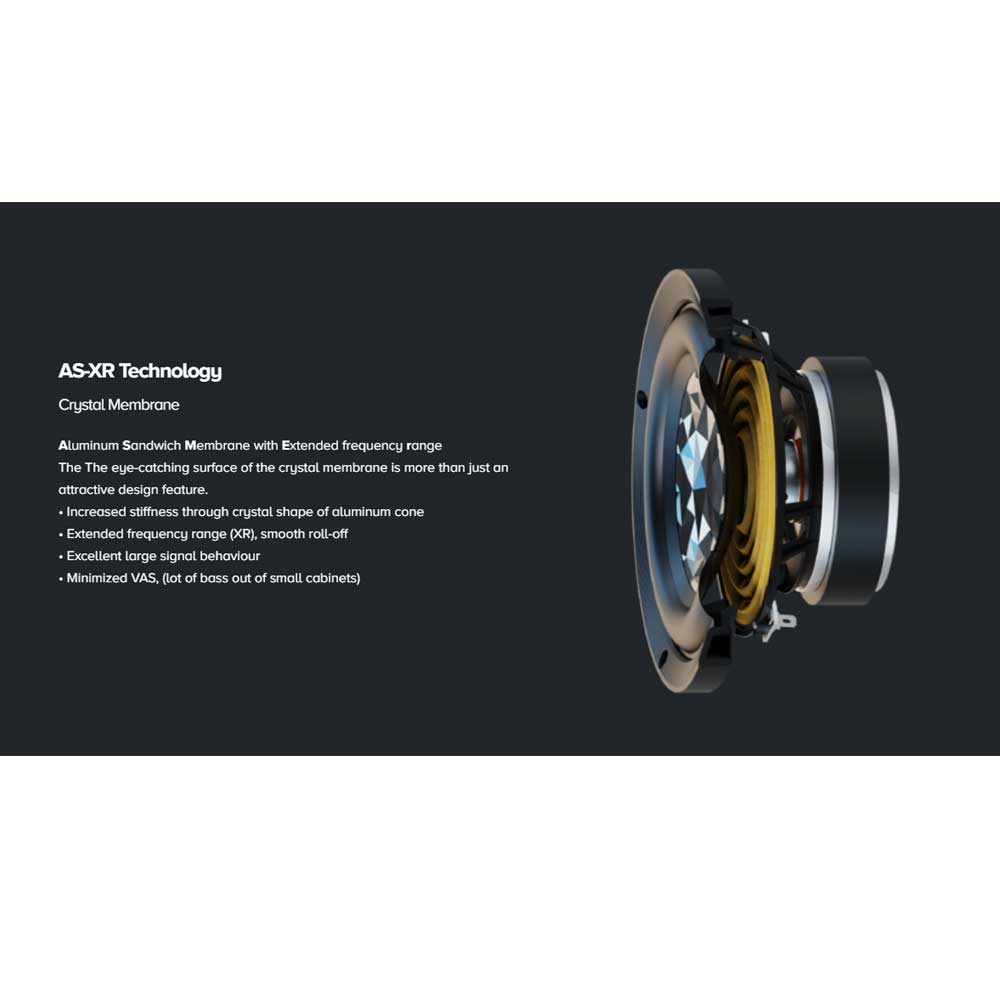

AS-XR Technology – Crystal Membrane
Aluminum Sandwich Membrane with Extended frequency range. The The eye-catching surface of the crystal membrane is more than just an attractive design feature.
- Increased stiffness through crystal shape of aluminum cone
- Extended frequency range (XR), smooth roll-off
- Excellent large signal behaviour
- Minimized VAS, (lot of bass out of small cabinets)
Specifications
- Type: 2-way, Bass Reflex
- Woofer: 1 × 180 mm Ø, AS-XR Cone
- Tweeter: JET 6
- Magnetic Shielding: No
- Crossover Frequency: 2400 Hz
- Frequency Range (IEC 268-5): 38-50000 Hz
- Sensitivity: 87 dB at 2.83 V/m
- Suitable for amplifiers from: 4Ω – 8Ω
- Recommended Amplifier Power: 40 – 200 W/channel
- Nominal | Peak Power Handling: 80 W | 120 W
- Nominal | Minimum Impedance: 4Ω | 3.2Ω at 240 Hz
- Finishes: Black High Gloss, White High Gloss, Walnut High Gloss
- Accessories Included: Bi-Wiring Set
- Optional Accessory: Speaker Grilles
- Height x Width x Depth: 412 x 276 x 332 mm
- Weight: 9.7 kg
