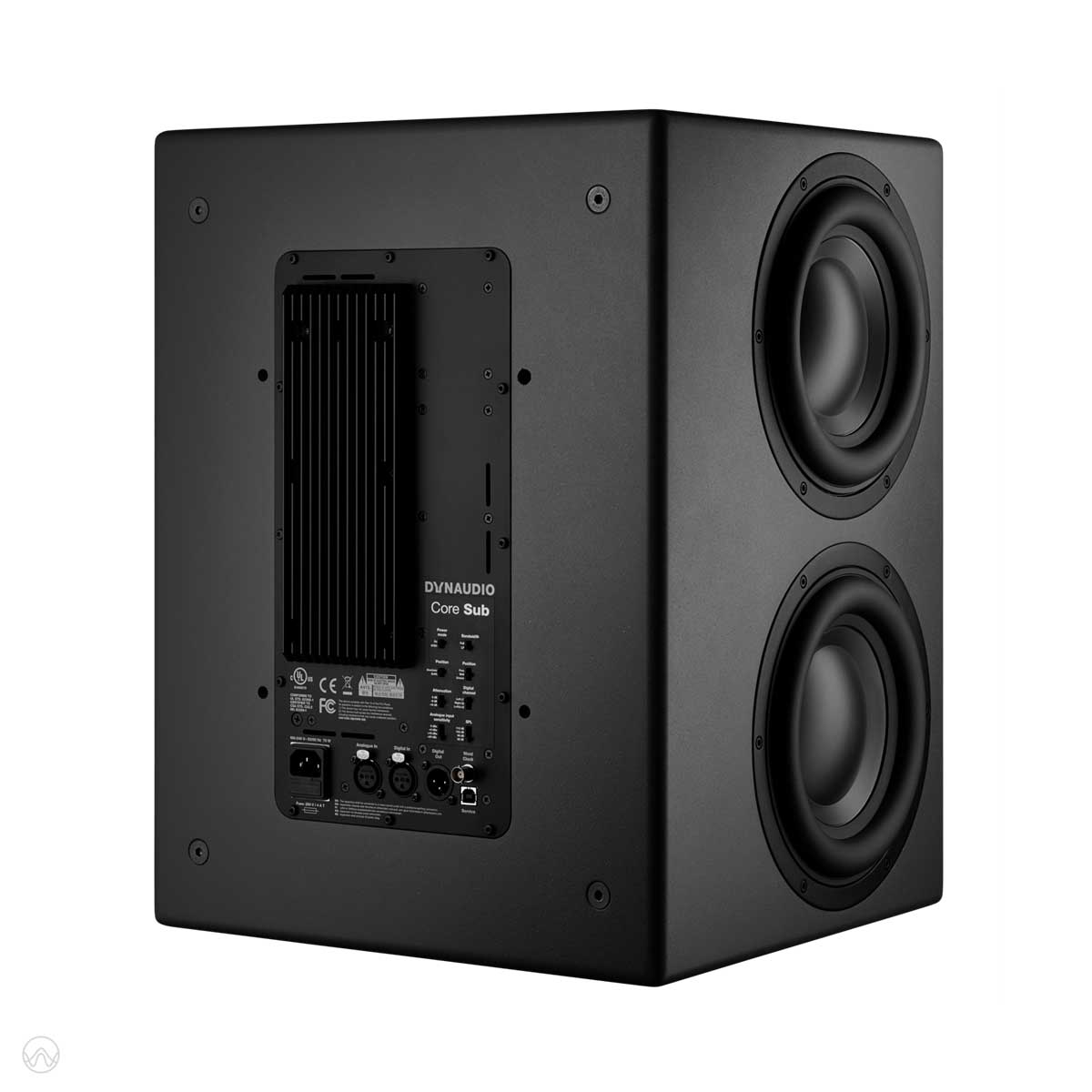

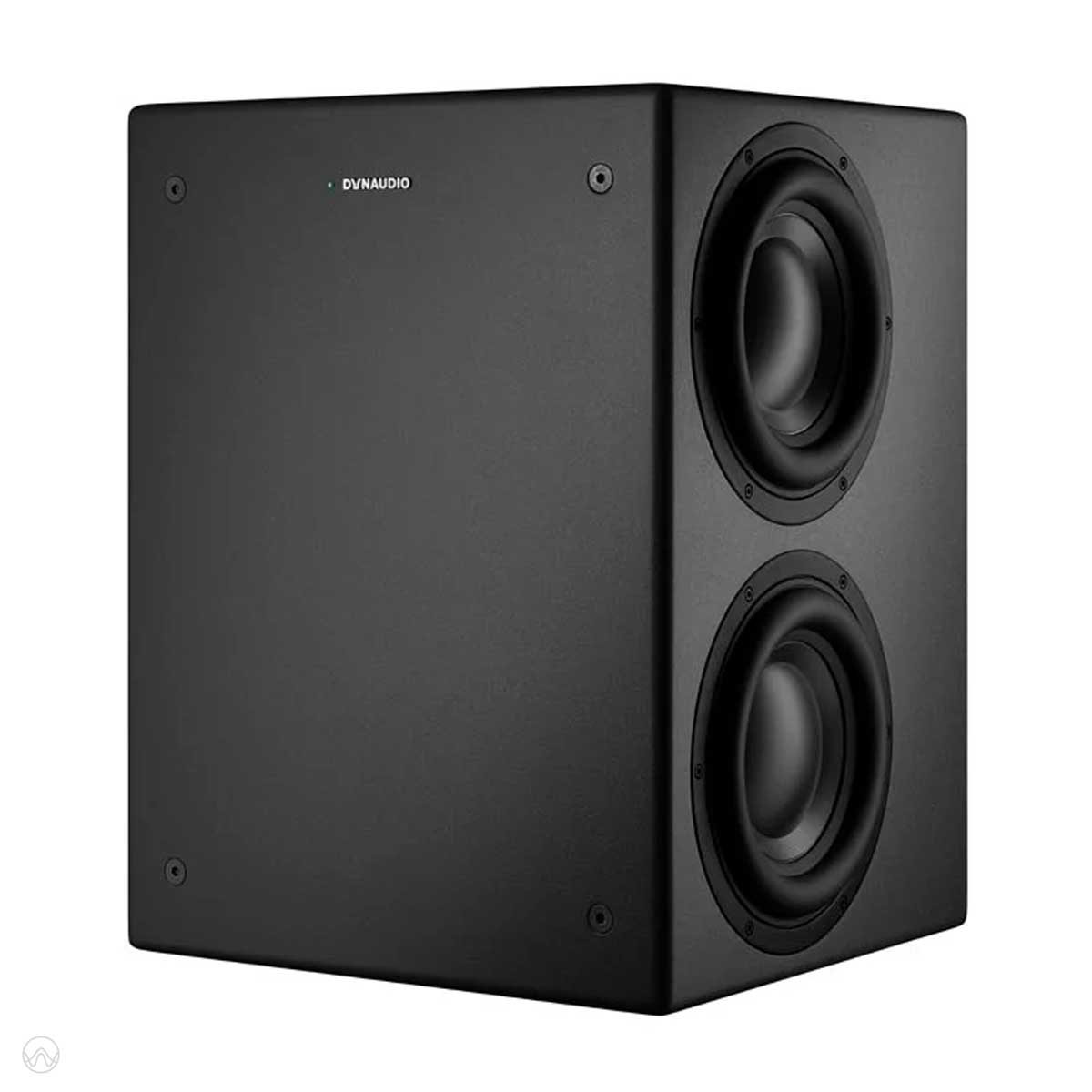

Dynaudio CORE SUB Subwoofer

Description

About the Dynaudio CORE SUB Subwoofer

The Dynaudio CORE SUB Subwoofer uses four 9-inch side-firing Dynaudio MSP+ Hybrid Drive woofers, a sealed enclosure, 2 x 500W Pascal Class-D amplification, analogue XLR input, AES3 digital input, AES pass-through, BNC word clock, DSP control and Core Series integration. Dynaudio states that Core Sub reaches down to 15Hz at ±3dB, with 13.5Hz to 200Hz at -6dB on the official one-page specification sheet.

The Core Sub is not a normal home subwoofer. It is a professional low-frequency reference tool designed for accuracy, headroom, calibration and integration with active studio monitors.

What We Think

The Dynaudio Core Sub is the subwoofer we would recommend when a studio system needs real low-frequency extension, not just more bass.

The key point is control. A studio subwoofer needs to reveal low-end problems, not hide them. The Core Sub is designed for that job. It uses a sealed enclosure, four 9-inch drivers, powerful Class-D amplification and the same DSP platform used in the Core monitor range. As a result, it is built to integrate with Core 47, Core 59, Core 7 and other Core Series setups.

We also like the flexibility. It has both analogue and AES3 digital input, plus AES pass-through and BNC word clock. That makes it suitable for modern studio workflows where digital monitoring, calibrated systems and immersive layouts matter. Dynaudio also notes that multiple Core Subs can be stacked, and the top panel includes alignment indentations for Core monitors.

Dynaudio’s product page lists 106dB maximum SPL in the specification table, while the one-page datasheet lists 111dB CTA-2010-B half-space and 120dB broadband peak SPL, half-space.

For NZ studios, the Core Sub makes sense when the room is treated, the monitors are calibrated, and the low end needs to be trusted.





View Manual >> View Datasheet >> View Brochure >> View Dynaudio Professional >>



The Dynaudio CORE SUB Subwoofer Is Ideal For

• Professional recording studios
• Mixing rooms
• Mastering suites
• Post-production rooms
• Broadcast facilities
• Sound design rooms
• Game audio studios
• Dolby Atmos and immersive audio systems
• Core Series monitor owners
• Engineers who need reliable low-end translation
• Studios needing bass extension below typical nearfield monitor range



Frequently Asked Questions

1. What is the Dynaudio Core Sub?
   The Dynaudio Core Sub is a professional active studio subwoofer designed to extend the low-frequency performance of Dynaudio Core Series monitors.
2. Is the Core Sub active or passive?
   The Core Sub is active. It has built-in Pascal Class-D amplification rated at 2 x 500W.
3. How many drivers does the Core Sub use?
   It uses four 9-inch Dynaudio MSP+ Hybrid Drive woofers.
4. How low does the Core Sub go?
   Dynaudio’s one-page specification sheet lists frequency response at 15Hz to 165Hz, ±3dB, and 13.5Hz to 200Hz at -6dB.
5. Is the Core Sub designed for music production?
   It is designed for professional monitoring, mixing, mastering, post-production, sound design and immersive audio systems.
6. Can I use the Core Sub with Core 47 monitors?
   The Core Sub is designed to integrate with the Core Series, including Core 47 monitors.
7. Can I use the Core Sub with Core 59 monitors?
   It is a strong match with Core 59 monitors, especially in larger studios or rooms needing deeper bass extension.
8. Can the Core Sub be used in Dolby Atmos systems?
   It can be used in immersive audio systems as part of a properly designed and calibrated monitoring setup.
9. Does the Core Sub support digital input?
   It includes AES3 digital input, AES pass-through and BNC word clock.
10. Does the Core Sub have analogue input?
    It includes a balanced XLR analogue input.
11. Is the Core Sub ported or sealed?
    It is sealed. This supports tight, controlled low-frequency performance and avoids port noise.
12. Can multiple Core Subs be stacked?
    Dynaudio states that up to three Core Subs can be stacked, with cabinet indentations designed to help align Core monitors.
13. How heavy is the Core Sub?
    The Core Sub weighs 48kg, so careful handling and solid placement are required.
14. Is the Core Sub suitable for home theatre?
    It can be used in high-end playback rooms, but it is primarily a professional studio subwoofer. For normal home theatre systems, a home cinema subwoofer will be easier to integrate.
15. Who is the Dynaudio Core Sub best suited to?
    It is best for professional studios, engineers, post-production facilities and immersive audio rooms that need accurate low-frequency monitoring and Core Series integration.



Key Features

Professional Reference Subwoofer

The Core Sub is designed as the low-frequency extension for Dynaudio Core studio monitors. It is built for accurate monitoring, not exaggerated bass.

Four 9-Inch MSP+ Hybrid Drive Woofers

The Core Sub uses four side-firing 9-inch Dynaudio MSP+ Hybrid Drive woofers. Dynaudio says these drivers combine aluminium stiffness with damping technology using paper damping and Magnesium Silicate Polymer material to control ringing.

2 x 500W Pascal Class-D Amplification

The subwoofer uses 2 x 500W Pascal Class-D amplifiers, giving the Core Sub the power needed for deep, controlled bass output in professional rooms.

Deep 15Hz Low-Frequency Extension

Dynaudio’s one-page specification sheet lists frequency response at 15Hz to 165Hz, ±3dB, and 13.5Hz to 200Hz at -6dB. That gives the Core Sub serious extension for mix decisions, sound design and immersive audio work.

Sealed Enclosure

The Core Sub uses a sealed cabinet. This helps avoid port noise and supports faster, more controlled low-frequency behaviour, which is important in studio monitoring.

Same DSP Engine as Core Monitors

Dynaudio states that the Core Sub uses the same DSP engine as the rest of the Core range. This allows its response to be customised based on room placement and helps it behave consistently with Core monitors.

Analogue and AES3 Digital Inputs

The Core Sub includes one balanced analogue XLR input and one AES3 XLR digital input. This allows it to work in analogue and digital studio monitoring systems.

AES Pass-Through and Word Clock

The Core Sub includes AES XLR pass-through and BNC word clock. This is useful in professional digital monitoring chains where synchronisation and signal routing are important.

24-Bit / 192kHz Support

The official one-page specification sheet lists support up to 24-bit / 192kHz, depending on the input signal. It also notes support for 32, 44.1, 48, 96 and 192kHz sample rates, with analogue running at 192kHz.

Core Series Physical Integration

The cabinet is designed to stack with Core monitors and other Core Subs. Dynaudio notes that up to three Core Subs can be stacked, and the top panel has indentations to align Core monitors.

Designed and Made in Denmark

Dynaudio states that Core products are designed, developed, tested and made in Denmark, with hand-made drivers and individual calibration before leaving the factory.

---

System Match Idea

A strong match would be the Dynaudio Core Sub with a pair of Dynaudio Core 47 or Core 59 monitors in a treated studio.

For a compact 2.1 system, use one Core Sub with Core 47 monitors and a professional monitor controller. For a larger room, use Core 59 monitors and one or more Core Subs for deeper extension and more headroom.

For immersive audio systems, multiple Core Subs can be used as part of a calibrated Core Series monitoring setup. The key is correct placement, measurement and integration. Bass management should be set carefully so the subwoofer extends the system without masking detail.



Specifications

Brand: Dynaudio

Model: Core Sub

Product Type: Active Professional Studio Subwoofer

Series
Core

Configuration
Active professional reference subwoofer

Woofer
4 x 9-inch MSP+ Hybrid Drive woofers

Amplifier Type
Pascal Class-D amplification

Amplifier Power
2 x 500W

Frequency Response, ±3dB
15Hz to 165Hz, official one-page specification sheet

Frequency Response, -6dB
13.5Hz to 200Hz, official one-page specification sheet

Official Product Page Cutoff Specification
Lower cutoff: 15Hz at 85dB, ±3dB
Upper cutoff: 160Hz at 85dB, ±3dB
Dynamic lower cutoff: 14Hz at -6dB
Dynamic upper cutoff: 165Hz at -6dB

Maximum SPL
106dB, official product page specification table
111dB CTA-2010-B half-space, official one-page specification sheet
120dB broadband peak SPL, half-space, official one-page specification sheet

Box Principle
Sealed enclosure

DSP
Core Series DSP engine
Position-based response control
Integration with Core monitors

Analogue Input
1 x balanced XLR

Digital Input
1 x AES3 XLR
No sample-rate conversion

Digital Output
1 x AES XLR pass-through

Word Clock
BNC word clock

Digital Resolution
Up to 24-bit / 192kHz, depending on input signal

Supported Sample Rates
32kHz
44.1kHz
48kHz
96kHz
192kHz

Auto On / Off
Yes

AC Power Input
100 to 120V / 200 to 240V
50 / 60Hz

Standby Power Consumption
0.5W maximum

Mounting / Stacking
Stackable Core Series cabinet design

Dimensions (W x H x D)
390 x 514 x 365mm

Dimensions (W x D x H)
390 x 365 x 514mm, as listed in one-page specification sheet

Weight
48kg
105.8lb

Finish
Dark Grey / Black professional finish

Speakers Per Box
1
