Dynaudio CORE 59 3-Way Monitor

Description

About the Dynaudio CORE 59 3-Way Monitor

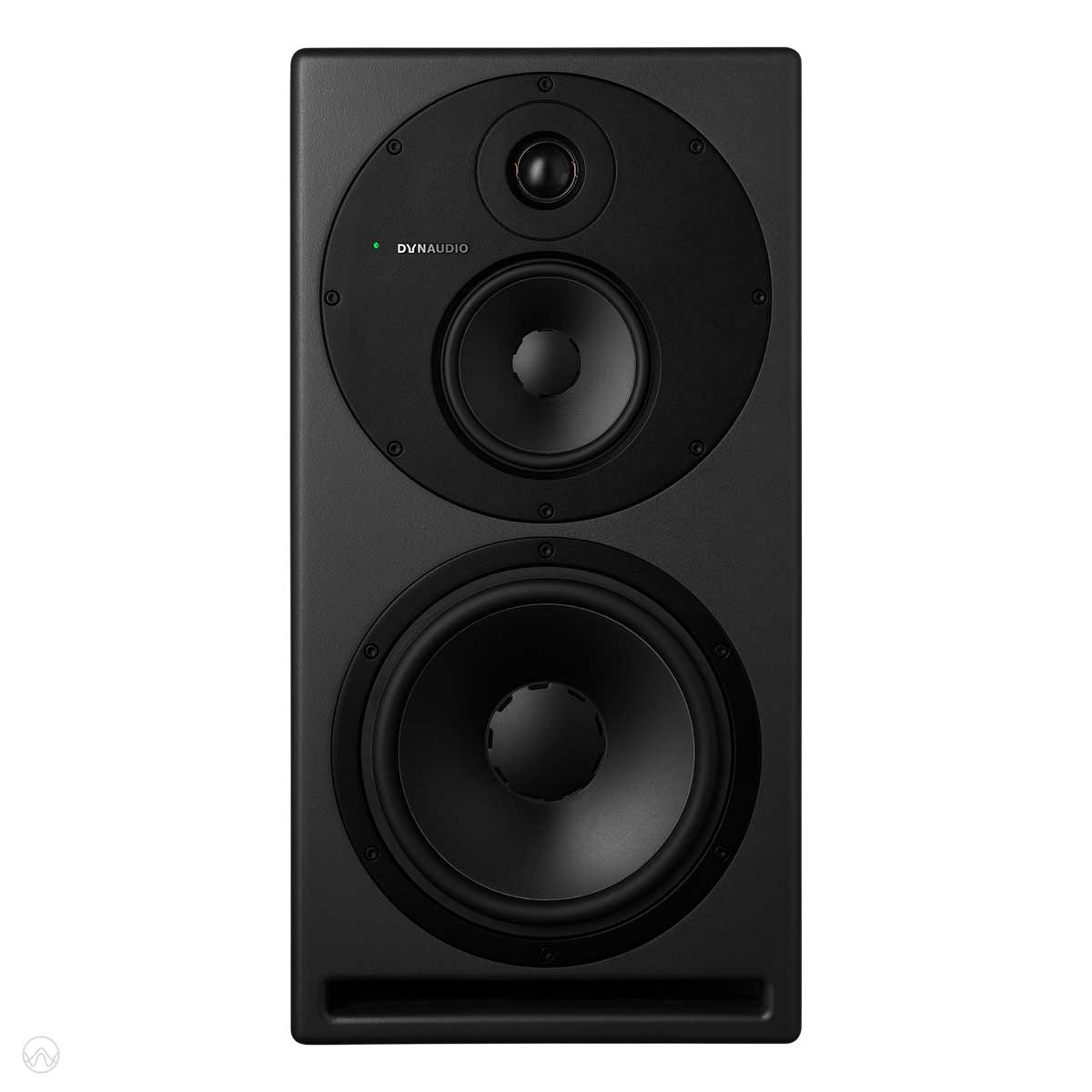

The Dynaudio CORE 59 3-Way Monitor is the flagship model in Dynaudio’s Core Series and uses a 1.1-inch Esotar Pro soft dome tweeter with Hexis, a 5-inch MSP midrange driver, and a 9-inch MSP woofer.

Each driver has its own dedicated Pascal Class-D amplifier, with 150W for the tweeter, 500W for the midrange, and 500W for the woofer. Dynaudio lists the Core 59 with DSP-based 3-way crossover, analogue XLR input, AES3 digital input and output, front-loaded bass reflex cabinet, and a maximum SPL of 113dB anechoic / 119dB half-space at 1m.

The Core 59 is not a lifestyle hi-fi speaker. It is a serious active reference monitor for professional rooms where accuracy, repeatability, placement flexibility and long-session listening comfort matter.

What We Think

The Dynaudio Core 59 is the monitor we would look at for customers building a proper studio, production room, editing suite, or mastering space.

The biggest strength is control. Each driver has its own amplifier, the crossover is handled by DSP, and the monitor includes filter options for placement, boundary conditions, sound balance and subwoofer integration. This gives installers and engineers more control than a passive speaker and amplifier combination. Dynaudio says the Core 59’s DSP can compensate for desk placement, soffit mounting, wall placement, corner placement and tonal balance.

We also like the flexible orientation. The Core 59 uses Dynaudio’s rotating Orbit baffle, so it can be used vertically, horizontally, inverted, or as a centre-channel monitor in an LCR array. It is also compatible with VESA mounting brackets and Dynaudio’s custom K&M bracket, which makes it useful for multichannel and immersive audio systems such as Dolby Atmos studio setups.

For studios, the Core 59 makes sense when the room, monitoring controller, acoustic treatment and workflow justify this level of speaker. It has the SPL, bass extension, DSP control and build quality for serious work, but it also needs proper placement, calibration and a treated room to show what it can really do.





View Manual >> View Datasheet >> View Brochure >> View Dynaudio Professional >>



The Dynaudio CORE 59 3-Way Monitor Is Ideal For

• Professional recording studios
• Mixing rooms
• Mastering suites
• Post-production rooms
• Broadcast and editing suites
• Game audio and sound design
• Dolby Atmos and immersive audio systems
• High-SPL nearfield or midfield monitoring
• Engineers who need accurate long-session monitoring
• Studios needing vertical, horizontal or LCR placement flexibility



Frequently Asked Questions

1. What is the Dynaudio Core 59?
   The Dynaudio Core 59 is a professional 3-way active studio monitor. It is the flagship model in Dynaudio’s Core Series and is designed for mixing, mastering, post-production, sound design and high-end studio monitoring.
2. Is the Core 59 active or passive?
   The Core 59 is active. It has built-in Class-D amplification, with a dedicated amplifier for each driver.
3. How much amplifier power does the Core 59 have?
   It has 150W for the tweeter, 500W for the midrange driver and 500W for the woofer.
4. What drivers does the Core 59 use?
   It uses a 1.1-inch Esotar Pro soft dome tweeter with Hexis, a 5-inch MSP midrange driver and a 9-inch MSP woofer.
5. What is the frequency response of the Core 59?
   Dynaudio’s data sheet lists frequency response at 42Hz to 27kHz, ±3dB, and 36Hz to 31kHz, ±6dB.
6. How loud can the Core 59 play?
   Dynaudio lists maximum SPL at 113dB anechoic and 119dB half-space at 1m on the official product page.
7. Does the Core 59 have DSP?
   Yes. It uses DSP for crossover, placement compensation, boundary compensation, sound balance and subwoofer integration.
8. Can the Core 59 be used horizontally?
   Yes. The rotating Orbit baffle allows the Core 59 to be used vertically, horizontally, inverted or as a centre-channel monitor.
9. Can the Core 59 be used in Dolby Atmos studios?
   Yes. Dynaudio states that the Core 59 can be used in multichannel and immersive audio reference systems, including Dolby Atmos, with suitable mounting and room design.
10. Does the Core 59 support digital input?
    Yes. It has AES3 digital input and AES3 digital output, with support up to 24-bit / 192kHz depending on the input signal.
11. Can I use the Core 59 with a subwoofer?
    Yes. It includes an 80Hz Linkwitz-Riley cutoff for subwoofer integration and can be paired with Dynaudio Core Sub or another professional studio subwoofer.
12. Is the Core 59 suitable for hi-fi listening?
    It can be used for high-end critical listening, but it is primarily a professional studio monitor. It needs a proper monitor controller or balanced source, careful placement and ideally a treated room.
13. How heavy is the Core 59?
    Each monitor weighs 24.6kg, so heavy-duty stands or suitable mounting hardware are recommended.
14. Who is the Dynaudio Core 59 best suited to?
    It is best for recording engineers, mixing engineers, mastering engineers, post-production editors, sound designers and studios needing a powerful, accurate and flexible active reference monitor.



Key Features

Professional 3-Way Active Monitor

The Core 59 is a true 3-way active monitor with separate high-frequency, midrange and low-frequency drivers. This allows the monitor to keep the critical vocal and midrange area clean, while the woofer handles bass and the tweeter handles detail and imaging.

Dedicated Amplification for Each Driver

Each driver has its own Class-D Pascal amplifier. The tweeter receives 150W, the midrange receives 500W, and the woofer receives 500W. This gives the Core 59 serious headroom and allows the amplifier, DSP and driver system to work together as one integrated design.

Esotar Pro Soft Dome Tweeter with Hexis

The 1.1-inch Esotar Pro tweeter is designed for professional use and includes Dynaudio’s Hexis inner dome device. Dynaudio says Hexis helps optimise airflow, smooth the frequency response and reduce unwanted internal resonances.

Dedicated 5-Inch MSP Midrange Driver

The 5-inch MSP midrange driver is designed to cover a large part of the critical vocal range. Dynaudio notes that the 385Hz and 5kHz crossover points allow the midrange driver to handle important vocal balance and dialogue detail with confidence.

9-Inch MSP Woofer

The 9-inch woofer uses Dynaudio’s MSP cone material, an improved copper voice coil, glass-fibre former and ceramic magnets. It is powered by a 500W Class-D Pascal amplifier for strong low-frequency control.

Flat Bass Extension

Dynaudio describes the Core 59 as having flat bass response down to 36Hz at -6dB. The official specification also lists 42Hz to 27kHz at ±3dB and 36Hz to 31kHz at ±6dB.

High SPL Capability

Dynaudio lists maximum SPL at 113dB anechoic at 1m and 119dB half-space at 1m. This makes the Core 59 suitable for high-level nearfield, midfield and main monitoring applications.

Advanced DSP Control

The Core 59 uses DSP to manage crossover, placement compensation, sound balance and system behaviour. Dynaudio designed the DSP system to be powerful but simple to use, with switches for position, boundary and tonal response.

Desk, Soffit, Wall and Corner Compensation

The Core 59 includes Position 1 and Position 2 DSP filters. These help compensate for desk reflections, soffit mounting, wall placement and corner placement. This is very useful in real studios where perfect speaker placement is not always possible.

Sound Balance Filter

The Sound Balance filter lets users select Neutral, Bright or Dark voicing. Instead of simply boosting or cutting the tweeter, Dynaudio uses a full-spectrum tilt filter that gently changes the overall balance while maintaining phase behaviour between drivers.

Subwoofer Integration

The Core 59 includes an 80Hz Linkwitz-Riley low-frequency cutoff that can be engaged when using a subwoofer. This is useful when pairing Core 59 monitors with Dynaudio Core Sub or other professional subwoofers.

Analogue and AES3 Digital Inputs

The Core 59 includes analogue XLR input, AES3 digital input and AES3 digital output. The official data sheet lists support up to 24-bit / 192kHz, with supported sample rates including 32, 44.1, 48, 96 and 192kHz.

64-Bit DSP Processing

Dynaudio states that analogue signals are processed at 192kHz sampling rate and 64-bit resolution inside the DSP, after conversion through a 24-bit analogue-to-digital converter.

Rotating Orbit Baffle

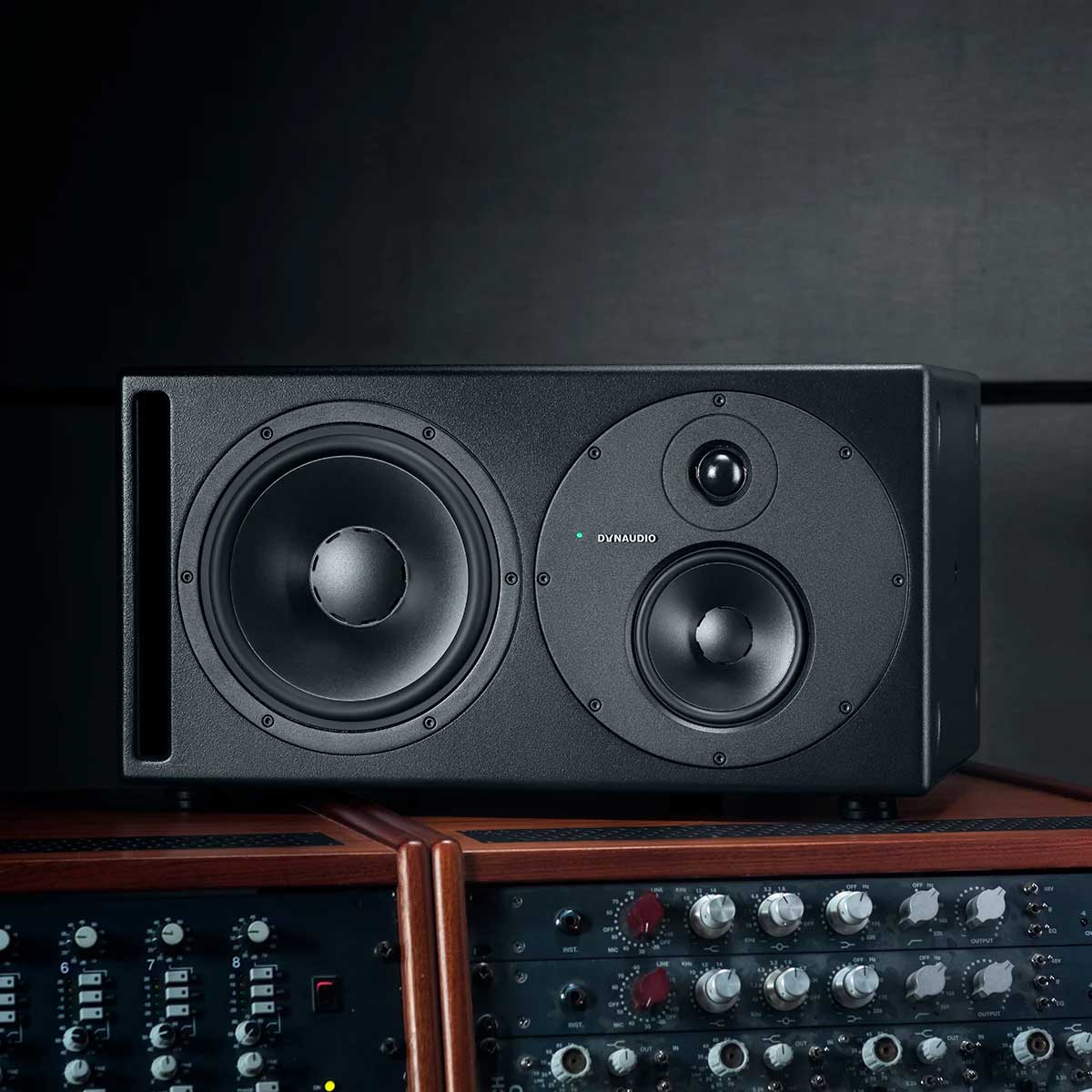

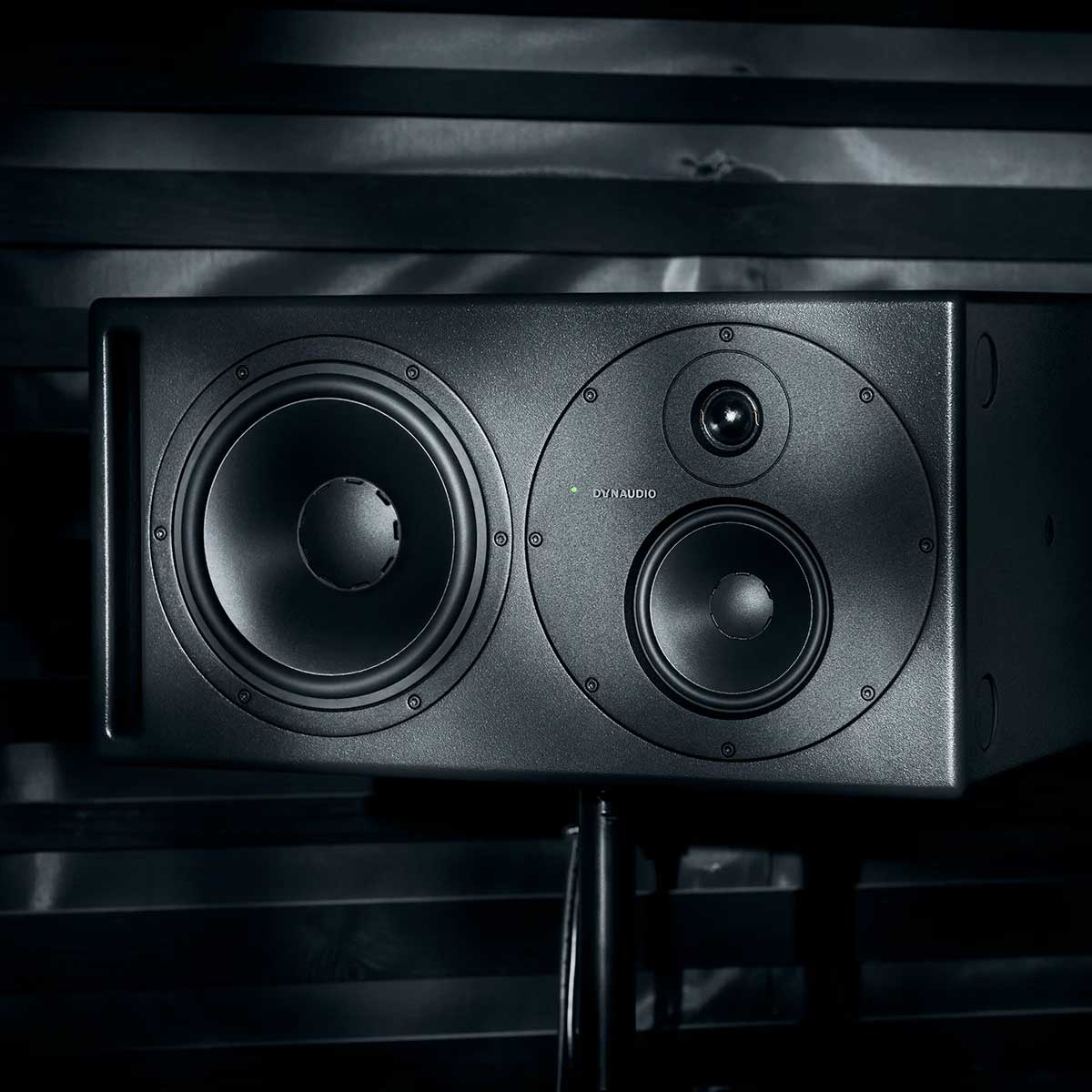

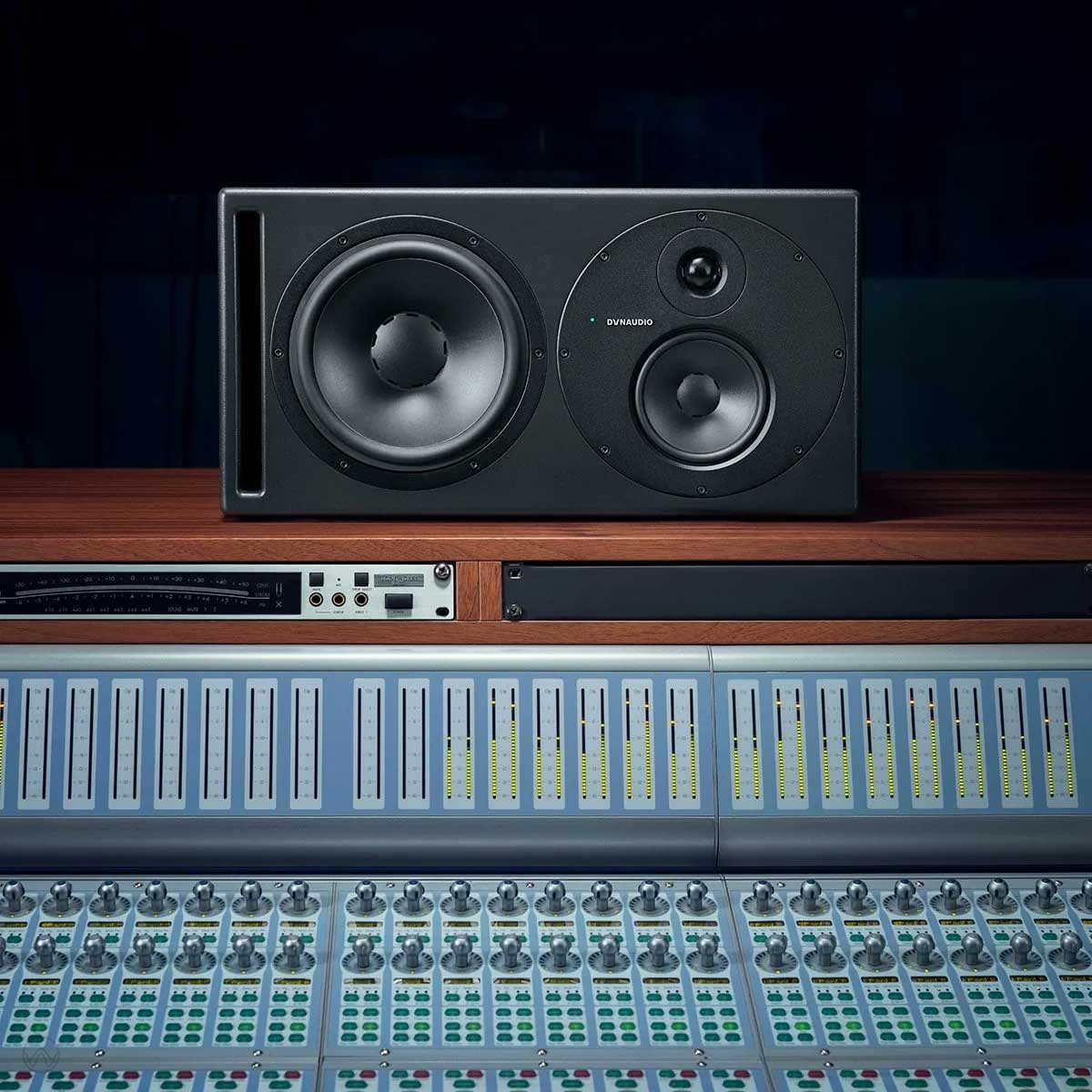

The Orbit baffle can be rotated, allowing the Core 59 to be used vertically, horizontally, inverted, or as a centre-channel speaker in an LCR setup. This is especially useful for studio installations and immersive audio systems.

Designed and Made in Denmark

Dynaudio states that Core monitors are designed, developed, tested and made in Denmark. The drivers are hand-made at Dynaudio HQ, and each speaker is individually calibrated before leaving the factory.



Specifications

Brand: Dynaudio

Model: Core 59

Product Type: 3-Way Active Studio Monitor

Monitor Type
Professional active main monitor

Configuration
3-way active monitor

Tweeter
1.1-inch Esotar Pro soft dome tweeter with Hexis

Midrange Driver
5-inch MSP midrange driver

Woofer
9-inch MSP woofer

Amplifier Type
Pascal Class-D amplification

Amplifier Power
HF: 150W
MF: 500W
LF: 500W

Crossover
DSP-based 3-way crossover

Crossover Frequencies
385Hz
5000Hz

Frequency Response, ±3dB
42Hz to 27kHz, data sheet
39Hz lower cutoff at 85dB ±3dB, official product specification

Frequency Response, ±6dB
36Hz to 31kHz, data sheet
36Hz lower dynamic cutoff at -6dB, official product specification

Maximum SPL
113dB anechoic at 1m, official product page
119dB half-space at 1m, official product page

Box Principle
Front-loaded bass reflex

DSP Features
Position filters
Boundary filters
Sound Balance filter
80Hz Linkwitz-Riley low-frequency cutoff for subwoofer use
Maximum SPL / DSP bit-depth optimisation
Input sensitivity adjustment

Analogue Input
XLR

Digital Input
AES3 XLR

Digital Output
AES3 XLR

Digital Resolution
Up to 24-bit / 192kHz, depending on input signal

Analogue DSP Processing
192kHz sampling rate
64-bit DSP resolution, according to Dynaudio product information

Input Sensitivity Range
0dBu to +24dBu, according to Dynaudio product information

Placement Options
Vertical
Horizontal
Inverted
LCR centre orientation
Soffit use
Desk / console use
Wall / ceiling mounting with suitable brackets

Mounting Compatibility
VESA mounting brackets
Dynaudio custom K&M bracket, model dependent

Power Input
100V to 240V AC
50 / 60Hz

Dimensions
280mm (W) x 365mm (D) x 545mm (H), official product page
280mm (W) x 380mm (D) x 550mm (H), data sheet

Weight
24.6kg
54.2lb

Finish
Black

Speakers Per Box
1

Rapallo Product Data

MPN: Core 59

SKU: DYNAUDIO-CORE-59

EAN / UPC / GTIN: Not publicly confirmed
