Dynaudio CORE 7 2-Way Monitor

Description

About the Dynaudio CORE 7 2-Way Monitor

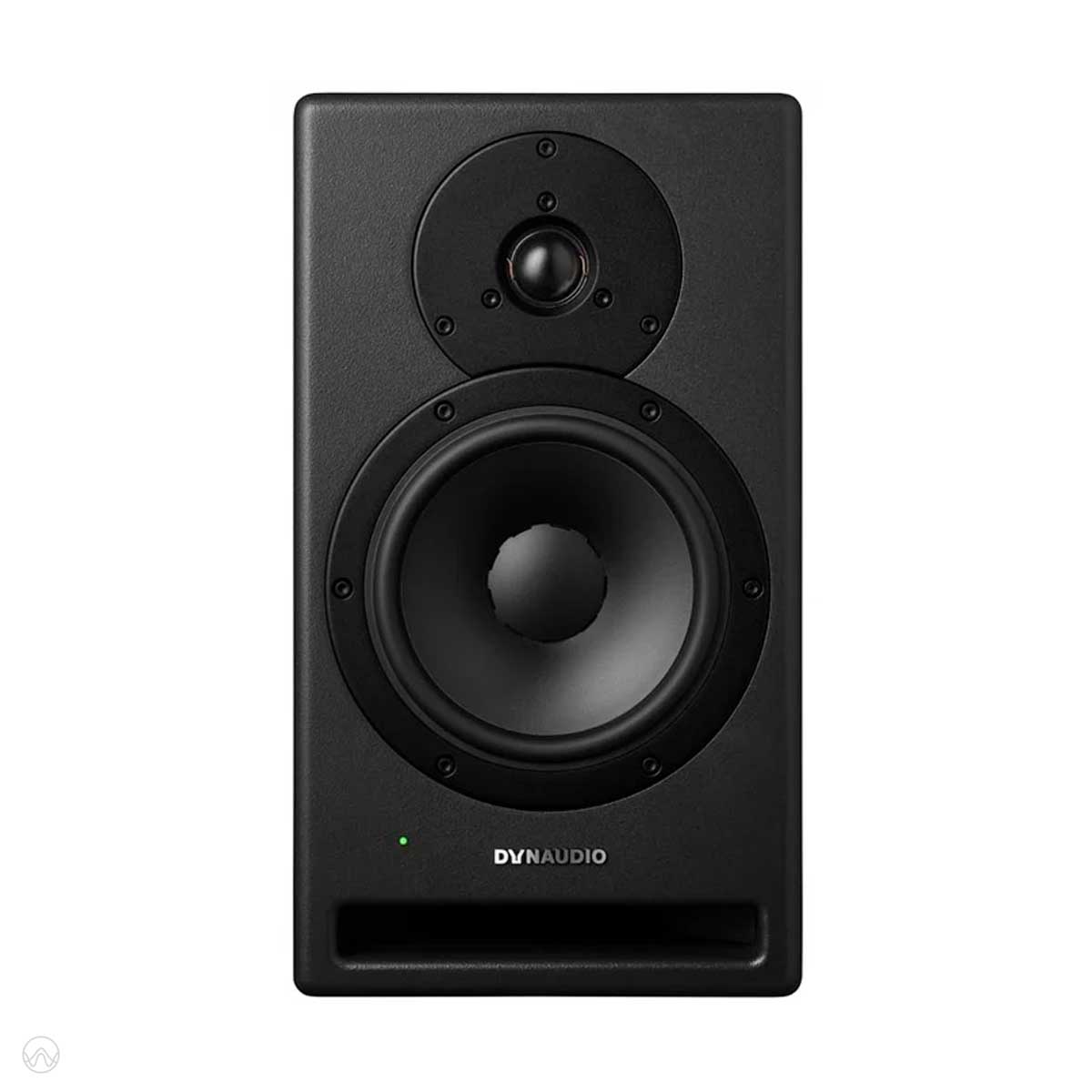

The Dynaudio CORE 7 2-Way Monitor uses a 1-inch Esotar Pro soft dome tweeter and a 7-inch MSP woofer, each powered by its own Pascal Class-D amplifier. The tweeter receives 150W, while the woofer receives 500W. Dynaudio lists the Core 7 with DSP-based control, analogue XLR input, AES3 digital input and output, front-loaded bass reflex loading, and a professional signal path supporting up to 24-bit / 192kHz digital audio.

The Core 7 is the smallest full-size model in the Core monitor range, but it is still built for serious professional work. It is ideal when you need Dynaudio’s reference monitor accuracy in a more compact cabinet than the Core 47 or Core 59.

What We Think

The Dynaudio Core 7 is the model we would recommend when a customer wants the accuracy and DSP flexibility of the Core range, but in a more compact 2-way format.

It has a lot more power and control than many typical nearfield monitors. The 500W woofer amplifier gives the 7-inch driver strong grip, while the 150W tweeter amplifier gives plenty of headroom for detail and transient clarity. This matters for mixing, editing and long sessions where the monitor needs to stay clean and consistent.

We also like the Core 7’s placement flexibility. It includes Dynaudio’s Core Series DSP controls, so it can be adjusted for desk placement, wall proximity, boundary conditions and tonal balance. That makes it useful in real studio spaces where perfect monitor positioning is not always possible.

For NZ studios, podcast rooms, editing suites and production spaces, the Core 7 is a very strong compact reference monitor. It is also a logical match when you want to build a full Dynaudio Core system with Core Sub, Core 47 or Core 59 monitors.





View Manual >> View Datasheet >> View Brochure >> View Dynaudio Professional >>



The Dynaudio CORE 7 2-Way Monitor Is Ideal For

• Professional recording studio
• Project studios
• Mixing rooms
• Editing suites
• Broadcast rooms
• Podcast and voiceover studios
• Game audio and sound design
• Nearfield monitoring
• Compact midfield monitoring
• Engineers wanting Core Series accuracy in a smaller monitor
• Studios needing DSP-adjustable monitoring



Frequently Asked Questions

1. What is the Dynaudio Core 7?
   The Dynaudio Core 7 is a professional 2-way active studio monitor. It is designed for nearfield and midfield monitoring in recording, mixing, editing, broadcast and post-production environments.
2. Is the Core 7 active or passive?
   The Core 7 is active. It has built-in Pascal Class-D amplification, with one amplifier for the tweeter and one amplifier for the woofer.
3. How much amplifier power does the Core 7 have?
   It has 150W for the tweeter and 500W for the woofer.
4. What drivers does the Core 7 use?
   It uses a 1-inch Esotar Pro soft dome tweeter and a 7-inch MSP woofer.
5. What is the frequency response of the Core 7?
   Data-sheet sources list the Core 7 at 44Hz to 21kHz, ±3dB, and 38Hz to 24kHz, ±6dB.
6. How loud can the Core 7 play?
   Specifications list maximum SPL at 112dB at 1m in anechoic conditions and 118dB half-space.
7. Does the Core 7 have DSP?
   Yes. It uses DSP for crossover, placement compensation, boundary compensation, sound balance and input sensitivity.
8. Can the Core 7 be used with a subwoofer?
   Yes. It can be paired with the Dynaudio Core Sub or Core Sub Compact for deeper bass extension and greater low-frequency headroom.
9. Does the Core 7 support digital input?
   Yes. It has AES3 digital input and AES3 digital output, with support for high-resolution digital studio workflows.
10. Can the Core 7 be used for home listening?
    It can be used for critical listening, but it is primarily a professional studio monitor. It needs a suitable source, balanced connection, proper placement and ideally a treated room.
11. What listening distance suits the Core 7?
    The Core 7 is intended for use between 1 and 3 metres from the listener.
12. Is the Core 7 suitable for Dolby Atmos rooms?
    Yes, it can be used in immersive audio systems when installed and calibrated correctly. It is especially useful where compact Core Series monitors are needed across multiple channels.
13. Is the Core 7 sold as a pair?
    Core 7 monitor is usually sold individually.
14. Who is the Dynaudio Core 7 best suited to?
    It is best for engineers, producers, editors, post-production users and studios that need compact, powerful and accurate active monitoring with DSP adjustment.



Key Features

Compact 2-Way Active Monitor

The Core 7 is a professional 2-way active studio monitor. It is designed for engineers, producers and content creators who need accurate monitoring in a compact nearfield or midfield setup.

1-Inch Esotar Pro Soft Dome Tweeter

The Core 7 uses Dynaudio’s 1-inch Esotar Pro soft dome tweeter. This tweeter is designed for clean high-frequency detail, accurate imaging and long-session listening comfort.

7-Inch MSP Woofer

The 7-inch woofer uses Dynaudio’s MSP cone material. This gives the Core 7 strong low-frequency control and helps it deliver accurate bass in a compact cabinet.

Dedicated Amplification for Each Driver

Each driver has its own Pascal Class-D amplifier. The tweeter is powered by 150W, while the woofer is powered by 500W. This gives the Core 7 serious headroom for professional monitoring.

DSP-Based Control

Dynaudio applies its Core Series DSP platform to the Core 7. The DSP helps manage the monitor’s response, placement compensation and tonal balance in a simple, studio-friendly way.

Sound Balance Adjustment

The Sound Balance control allows the tonal presentation to be adjusted for the room or workflow. This helps engineers match monitoring behaviour to the space without making large external EQ changes.

Strong Frequency Response

The official data sheet lists the Core 7 at 44Hz to 21kHz, ±3dB, and 38Hz to 24kHz, ±6dB. This gives the Core 7 useful low-frequency reach for a compact professional monitor.

High SPL Capability

Specifications list maximum SPL at 112dB at 1m in anechoic conditions and 118dB half-space. This gives the Core 7 enough output for serious nearfield and small-to-medium studio work.

Analogue and AES3 Digital Inputs

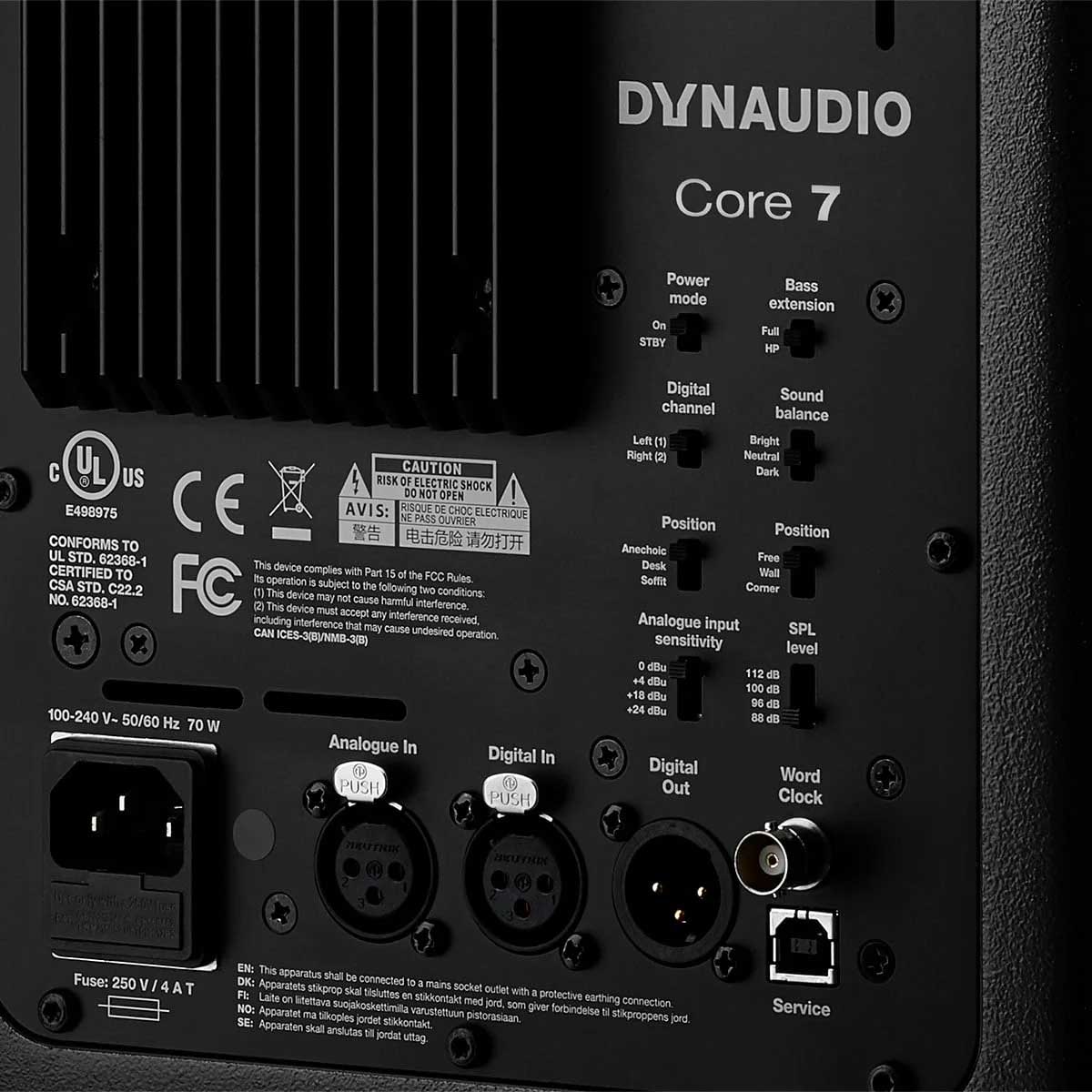

The Core 7 includes balanced analogue XLR input, AES3 digital input and AES3 digital output. This makes it suitable for modern professional studio workflows, including monitor controllers, audio interfaces and digital routing.

24-Bit / 192kHz Signal Path

The Core 7 supports a 24-bit / 192kHz digital signal path, making it suitable for high-resolution professional audio systems.

Front-Loaded Bass Reflex Cabinet

The front-loaded bass reflex design helps with placement flexibility compared with rear-ported monitors. This is useful in studios where monitors may sit closer to walls, desks or consoles.

Core Series Integration

The Core 7 can be used on its own, paired with the Core Sub, or integrated into larger Core Series monitoring systems with models like Core 47 and Core 59.

---

System Match Suggestion

A strong match would be a pair of Dynaudio Core 7 monitors, a professional monitor controller and a treated room.

For music production, pair the Core 7 with a high-quality audio interface that has balanced XLR outputs. For post-production or digital studio workflows, use AES3 where appropriate.

For deeper low-frequency monitoring, add a Dynaudio Core Sub. This gives the system more bass extension and headroom while keeping the same Core Series design approach. It is especially useful for electronic music, film work, game audio and immersive production.



Specifications

Brand: Dynaudio

Model: Core 7

Product Type: 2-Way Active Studio Monitor

Monitor Type
Professional active nearfield / midfield monitor

Configuration
2-way active monitor

Tweeter
1-inch Esotar Pro soft dome tweeter

Woofer
7-inch MSP woofer

Amplifier Type
Pascal Class-D amplification

Amplifier Power
HF: 150W
LF: 500W

Crossover
DSP-based 2-way crossover

Frequency Response, ±3dB
44Hz to 21kHz

Frequency Response, ±6dB
38Hz to 24kHz

Maximum SPL
112dB at 1m, anechoic, listed by retailer source
118dB half-space, listed by retailer source

Box Principle
Front-loaded bass reflex

DSP Features
Position filters
Boundary filters
Sound Balance filter
Subwoofer integration settings
Input sensitivity adjustment

Analogue Input
XLR balanced input

Digital Input
AES3 XLR input

Digital Output
AES3 XLR output

Digital Resolution
Up to 24-bit / 192kHz

Word Clock
BNC word clock, listed by retailer sources

USB
USB for service, listed by retailer sources

Input Sensitivity Range
0dBu to +24dBu, listed by retailer sources

Recommended Listening Distance
1m to 3m, noted in Sound On Sound review

Power Input
100V to 240V AC
50 / 60Hz

Dimensions (W x D x H)
220 x 370 x 390mm

Dimensions (W x H x D)
220 x 390 x 370mm

Weight
14.7kg
32.4lb

Finish
Dark Grey / Black professional finish

Speakers Per Box
1

Rapallo Product Data

MPN: Core 7

SKU: DYNAUDIO-CORE-7

EAN / UPC / GTIN: Not publicly confirmed
