Atoll Electronique IN200 Evolution Integrated Amplifier

Description

Atoll Electronique IN200 Evolution Integrated Amplifier

The Atoll Electronique IN200 Evolution Integrated Amplifier is a meticulously engineered French-built integrated amplifier that combines a dual-mono Class A/B design with high-quality components and a robust power supply to deliver 120 W per channel into 8 Ω and 200 W into 4 Ω for dynamic, detailed, and distortion-free sound reproduction.

Handcrafted with precision circuitry, versatile analog connectivity, optional DAC and phono upgrades, and thoughtful features like balance memorization and a high-contrast OLED display, it serves as a powerful and flexible centerpiece for serious hi-fi systems seeking clarity, musical nuance, and broad speaker compatibility.

Features

• Front face in 8 mm brushed, micro-bead blasted and anodized aluminum, high-precision engraving.
• 1.5 mm steel chassis.
• Power 2×120 Wrms / 8Ω.
• Two 340 VA toroidal transformers for the audio stages plus 10 VA for the digital stages.
• High-quality, shielded MKP coupling capacitors.
• Bipolar transistor current sources and LEDs to ensure perfect voltage stability.
• New tellurium copper speaker outlets.
• Dual push-pull MOS-FET power stage.
• Class A/B output stage polarization.
• Option to choose standby mode: Low power consumption or preheating.
• Two volume attenuators: 1 per channel to preserve the
  dual mono architecture.
• Ability to manage and save the balance.
• Option to rename entries.
• High contrast OLED display (on or off mode after
  5 seconds of inactivity).
• Double-sided printed circuit boards with nickel/gold finish.

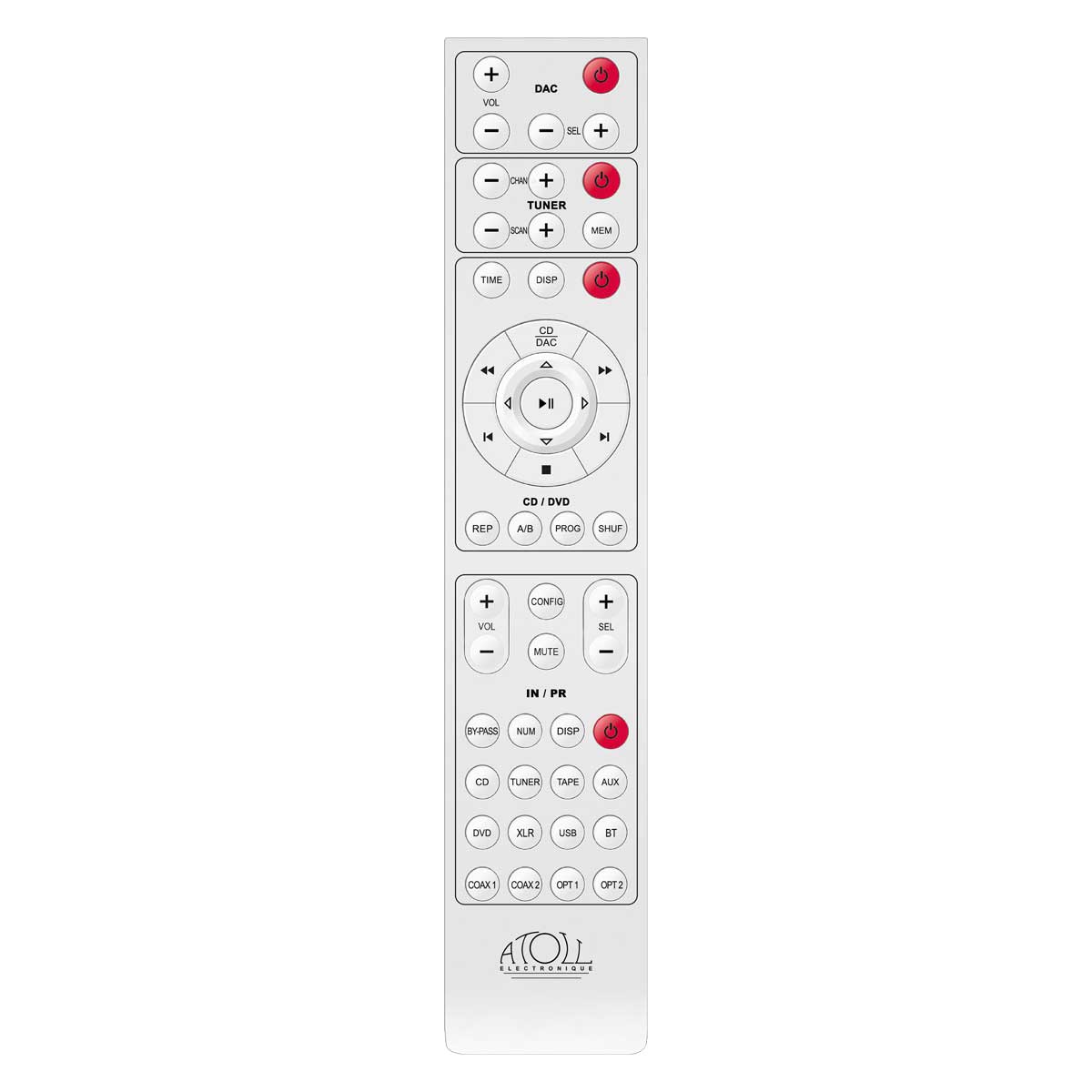

• ATOLL global remote control supplied as standard.
• The IN200 EVO can receive the following optional cards:
  1. DAC cards: DA100 and DA200.
  2. PHONO cards: P50 and P100 (can be combined with DAC cards).

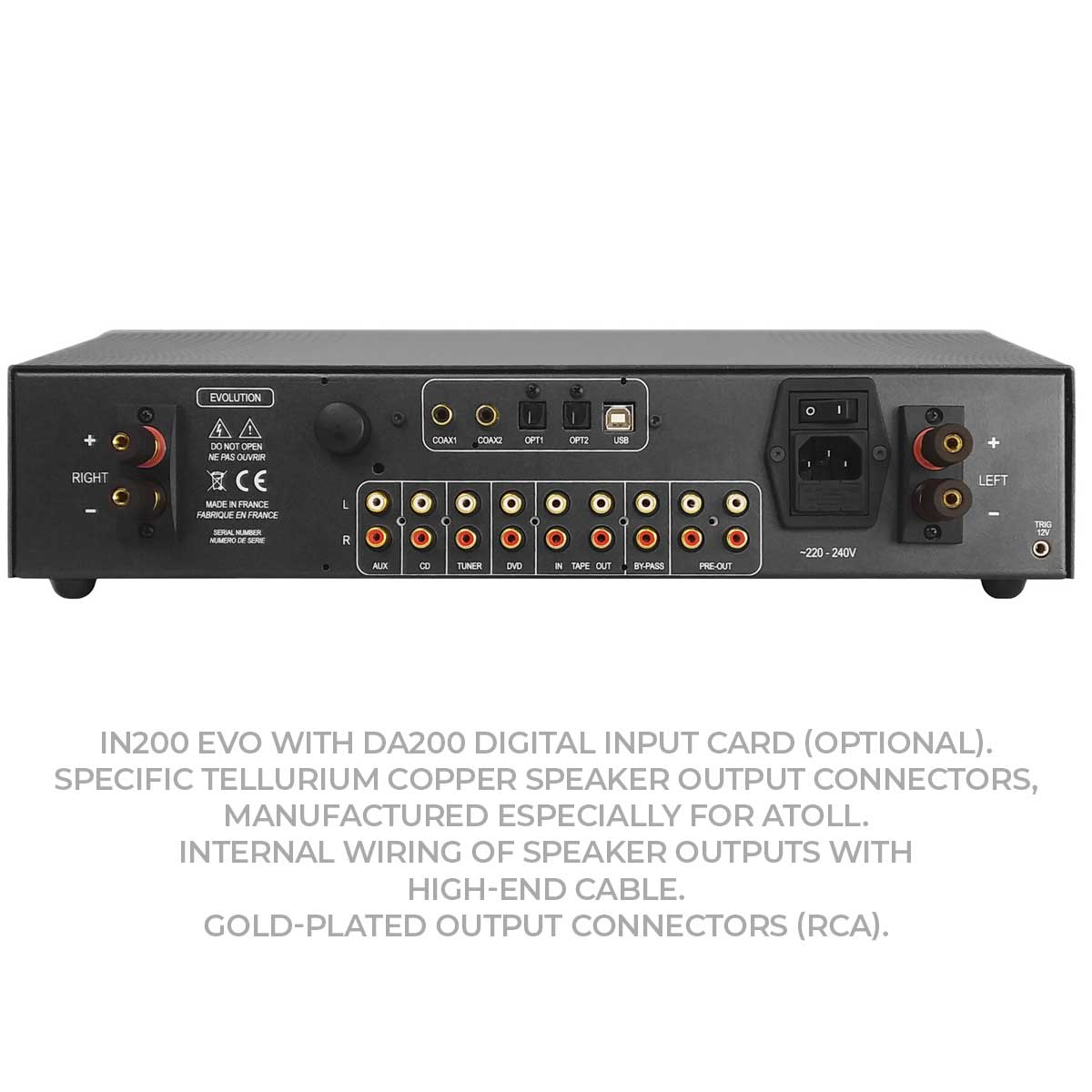

CONNECTIVITY

• Inputs
  5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
  1 BY-PASS input (used as a power amplifier).
• Outputs:
  2 Analog preamp outputs (for bi-amping
  or connecting a subwoofer).
  1 Trigger output (12V).
  1 Headphone jack output Ø 6.35 mm.
• Miscellaneous:
  Possibility of adding DA100 or DA200 digital cards (optional).

The symmetrical MOSFET amplifier circuits offer excellent harmonic degradation, have no memory effect, and deliver current instantly to your speakers at every loud passage. This is one of the secrets to the musicality of ATOLL amplifiers.

Specifications

• Power output in Wrms/channel/8Ω : 120 W
• Power output in Wrms/channel/4Ω : 200 W
• Power supply : 2×340 VA + 10 VA
• Total capacitance : 59,220 µF
• Number of inputs : 5+1 BY-PASS
• Power consumption with switch off : 0 W
• Power consumption in standby mode (low power) : <0.5 W
• Power consumption in warm-up mode : 18 W
• Power consumption in operation : 19 W – 600 W
• Input impedance : 220 kΩ
• Maximum input level : 3.5 Vrms
• Sensitivity : 350 mV
• Signal-to-noise ratio : 100 dB
• Distortion at 1 kHz : 0.05% / (10 W)
• Bandwidth : 5 Hz – 100 kHz
• Rise time : 2.5 µs
• Dimensions : 440×309×95 mm
• Weight : 12 kg

OPTIONAL CARDS AVAILABLE

• DA200
  2 Coaxial Inputs (24 bits/192 kHz).
  2 Optical Inputs (24 bits/192 kHz).
  1 Bluetooth Receiver.
  1 USB-B Input: PCM & DSD.

• DA100
  2 Coaxial Inputs (24 bits/192 kHz).
  2 Optical Inputs (24 bits/192 kHz).

• P100 (configurable MM or MC).
• P50 (MM).
