Onkyo TX-RZ30 9.2-Channel AV Receiver
The Onkyo TX-RZ30 9.2-Channel AV Receiver delivers ultra-wide bandwidth and is packed with the latest technology for the home theare of your dreams.
Bring blockbuster sound home with the Onkyo TX-RZ30, a powerful 9.2-channel AV receiver built for immersive, room-filling audio that pulls you into every movie, show, and game.
With support for Dolby Atmos and DTS:X, sound moves around and above you with stunning realism, while Dirac Live room correction fine-tunes performance to your space so everything sounds clear, balanced, and impactful—no matter where you sit.
The TX-RZ30 is also ready for the future of entertainment, offering advanced HDMI connectivity with 8K and high-frame-rate 4K support for ultra-smooth, crystal-clear visuals. Whether you’re streaming music, gaming on the latest consoles, or building a serious home theatre, this receiver delivers the power, precision, and flexibility to elevate every experience.
View User Manual >> View Specifications >> View Onkyo >>
Features
For nearly 80 years, Onkyo has been providing audiophiles with sounds that no other company can match. Thanks to unique analogue circuitry and high-end amplifier technology, the 9.2-channel Onkyo TX-RZ30 delivers your favorite content with out-of-this-world sound – with soaring highs and deeper bass.
Fan favorite features like Dirac Live, Dolby Atmos, and IMAX Enhanced come standard with the Onkyo RZ Series AVRs to make it the heartbeat of your entertainment system.
ULTRA-WIDE BANDWIDTH VIA CUSTOM HIGH-CURRENT CIRCUITRY
Thanks to custom low-noise power transformers and smoothing capacitors, the TX-RZ30 hits rumbling lows (5 Hz) and stunning highs (100 kHz) for an expansive audio experience our competitors just can’t match.
PERFECTLY CALIBRATED TO YOUR SPACE WITH DIRAC LIVE
Dirac Live is an essential part of building an impressive home entertainment system.
With a Dirac Live Room Correction Full Bandwidth license included right out of the box – and optional Bass Control upgrade available – you will experience user-friendly, perfectly calibrated audio from the get-go.
Dirac Live Room Correction Full Bandwidth is capable of calibrating the full frequency range (20 Hz to 20 kHz) of music and movie sound. With optional Bass Control, subwoofer output is calibrated with all your other speakers to provide additional bass refinement and fine details, while enhancing mid and high frequencies that were previously inaudible.
MAX ENHANCED FOR VIBRANT, LIFELIKE EXPERIENCE
IMAX Enhanced is a vital part of the premium home theater experience, delivering object-based audio for precisely placed sound and movement in 3D space. Meanwhile their exceptional video quality comes from a proprietary algorithm that optimizes color accuracy, contrast, and detail for a more vibrant and lifelike visual experience
IMMERSIVE AV WITH DOLBY TECHNOLOGY
Dolby Atmos transports you into the heart of the action by creating a 3D sound environment via object-based audio, allowing sounds to move freely in space, including overhead, for a truly immersive experience. Dolby Vision enhances every frame by dynamically adjusting brightness, contrast, and color levels on a scene-by-scene basis. This ensures that every detail is rendered with astonishing accuracy, from the deepest shadows to the brightest highlights.
HOME THEATRE-APPROVED WITH 9.2-CHANNELS
Onkyo’s 9.2-Channel TX-RZ30 allows you to create the home theater of your dreams with plenty of inputs for all your speakers.
BUILT-IN STREAMING WORKS WITH SONOS®
The Onkyo TX-RZ30 includes all your favorite streaming apps for seamless playback of digital content through all 9.2 channels. Plus, with the addition of a Sonos port, high quality sound can be distribution through your Sonos wireless network.
BETTER SOUND WITH KLIPSCH OPTIMIZE MODE
Klipsch and Onkyo teamed up to implement the precise crossover values for specific Reference Premiere speakers, allowing you to easily integrate their legendary products with your TX-RZ30.
FAQ’s
- What makes the Onkyo TX-RZ30 good for home theater sound? The TX-RZ30 supports Dolby Atmos and DTS:X, creating immersive, three-dimensional sound that places audio all around and above you for a true cinema-style experience.
- Is the TX-RZ30 suitable for gaming and next-gen consoles? Yes, it supports 8K and high-frame-rate 4K passthrough, delivering smooth visuals and low-latency performance ideal for PlayStation, Xbox, and high-end PC gaming.
- Do I need professional calibration to get great sound? Not necessarily. Dirac Live room correction automatically optimizes sound for your room layout, making it easy to achieve balanced, high-quality audio without expert setup.
- Can I stream music wirelessly to the receiver? Yes, the TX-RZ30 supports popular wireless streaming options, letting you enjoy music from your smartphone, tablet, or streaming services with high-quality sound.
- How many speakers can I connect to the TX-RZ30? The receiver supports up to a 9.2-channel speaker configuration, allowing for flexible surround setups including overhead or height speakers for immersive audio.
Specifications
POWER AND AMPLIFICATION:
- 9*170 W (6ohms, 1 kHz, 1% THD, 1-ch driven, IEC)
- 9 channels amplifier
- Class AB Amplifier
- 5Hz-100kHz (+1/-3dB)
- 2ch Processing
HDMI AND VIDEO INPUTS
- 6 In / 2 Out (eARC)
- 8K/4K Ultra HD
- Dolby Vision, HDR10+, HDCP2.3, HDMI2.1a VRR, QFT, ALLM, SBTM
- 1 component, 2 composites

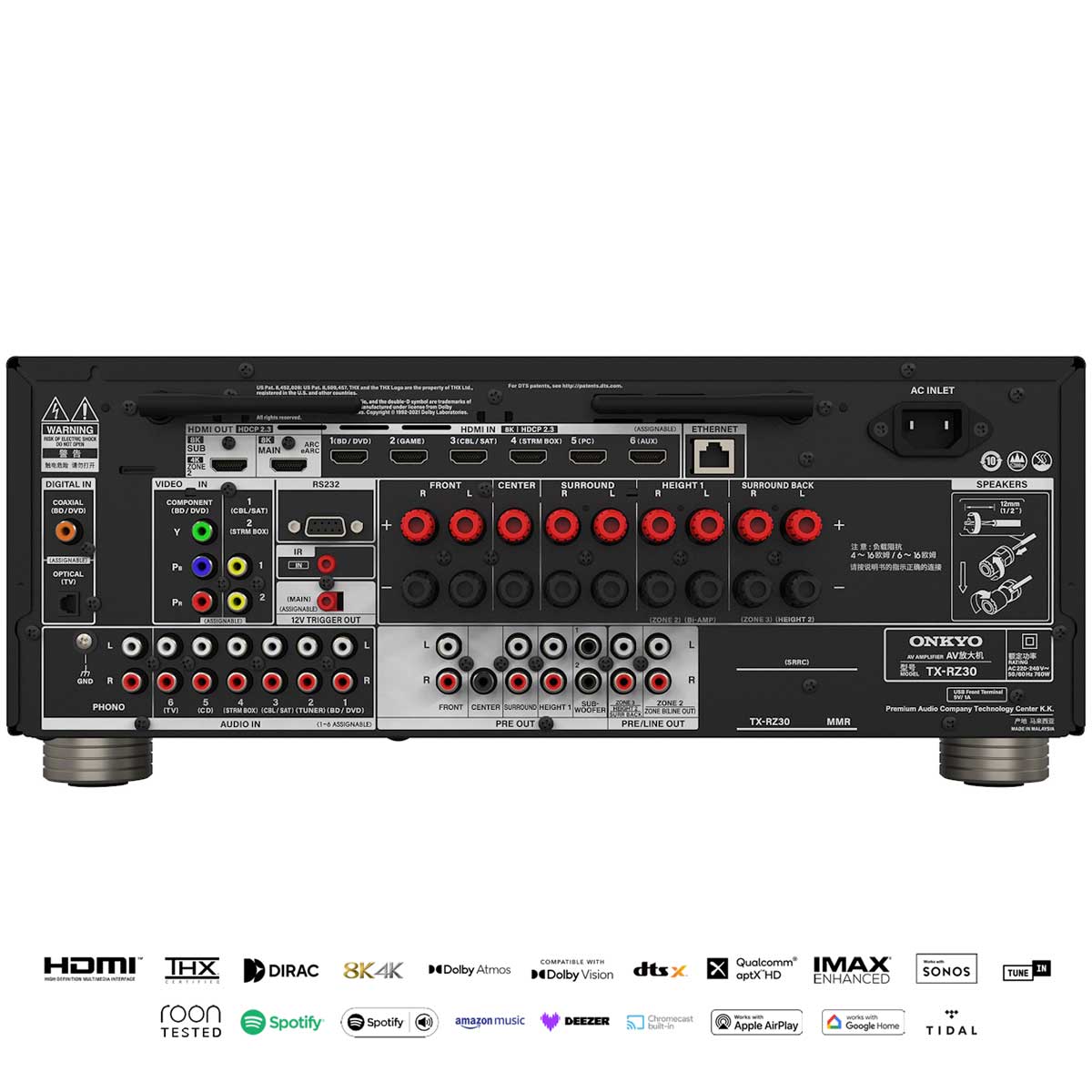

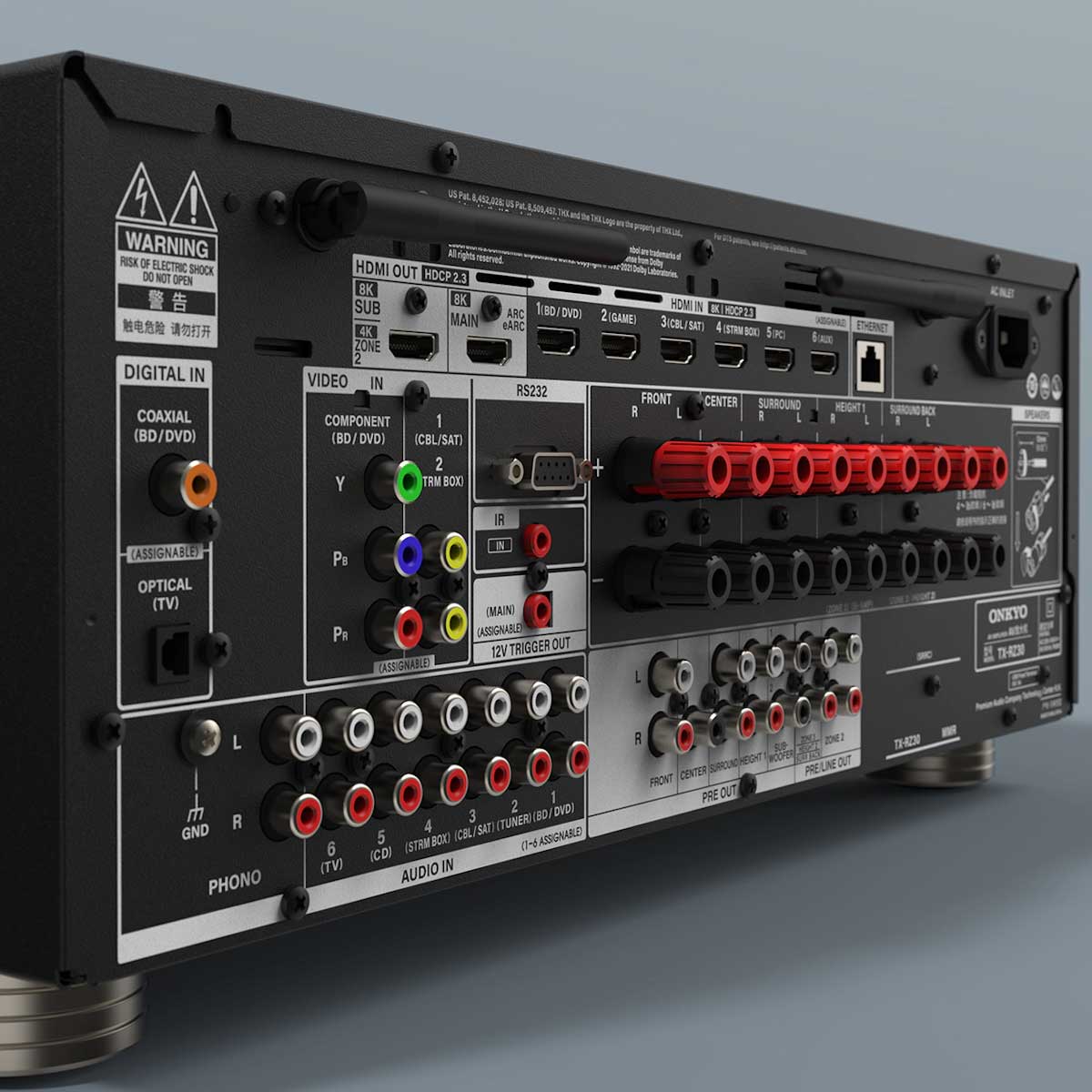

AUDIO IN/OUT
- 6 RCA, 1 RCA Phono
- 1 Opt, 1 Coax
- 2 ch preouts (2 Independent subwoofer outputs)
- Zone 2 Stereo
RCA SURROUND MODES
- Dolby Atmos, Dolby Surround
- DTS:X, Neural:X
- IMAX Enhanced
STREAMING
- Roon Tested
- Chromecast built-in
- AirPlay 2
- Spotify
- Amazon Music HD
- Tidal
- Deezer
- TuneIn
KEY FEATURES
- Wi-Fi/Bluetooth®
- Dirac Live® Room Correction Full Bandwidth License Included
- Optional Dirac Live® Bass Control
- Works with Sonos – w/Volume Pass-Through
- THX® Certified for Theater Reference Sound
- Klipsch Optimized Mode
GENERAL INFORMATION
- Product Dimension (WxHxD) 435 x 17.5 x 382.5 mm / 17.1 x 7 x 15.1 inch
- Packaging Dimension (WxHxD) 540 x 270 x 467 mm / 21.3 x 10.6 x 18.4 inch
- Net Weight of product 11,5 kg / 25,4 lbs
- Gross Weight of product 14.5 kg / 32 lbs
POWER COMSUMPTION
- 760W 50W Idle <2W Network standby
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. Some services are not selectable or not available in some areas. Specifications may vary by region.
