Description

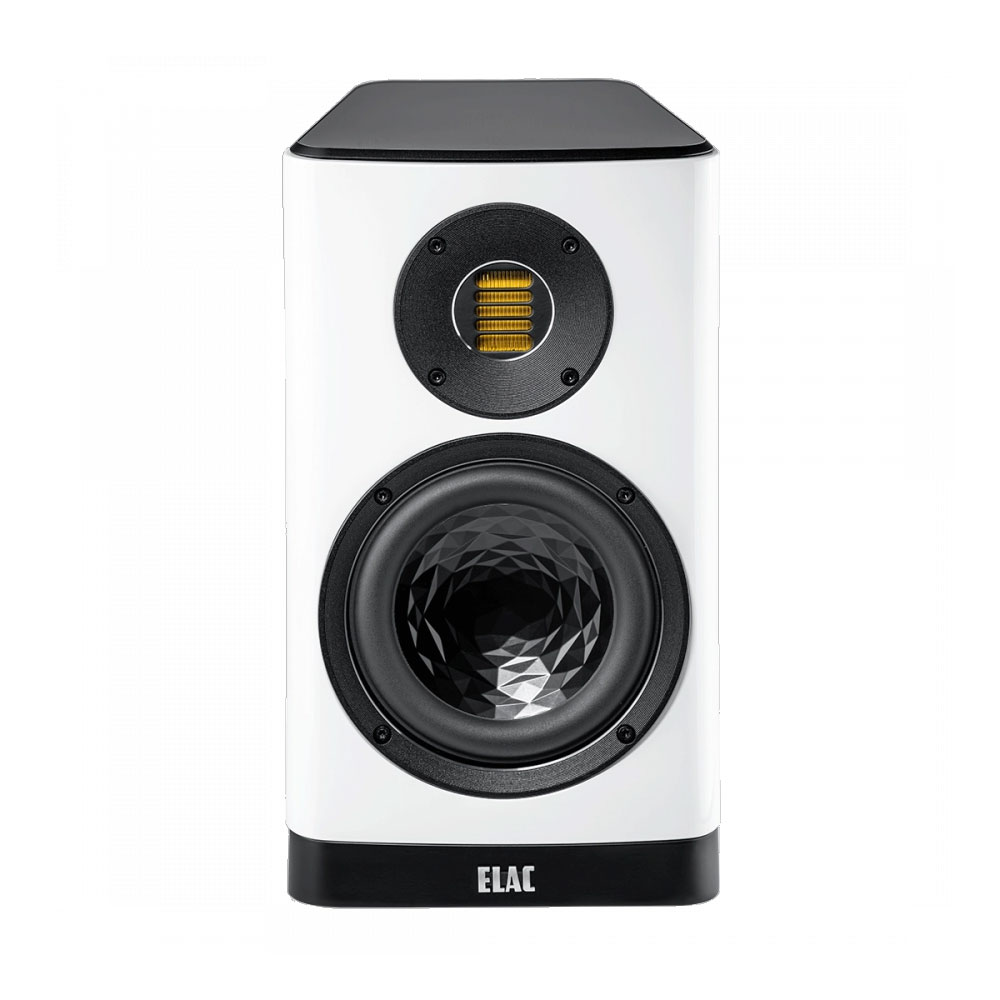

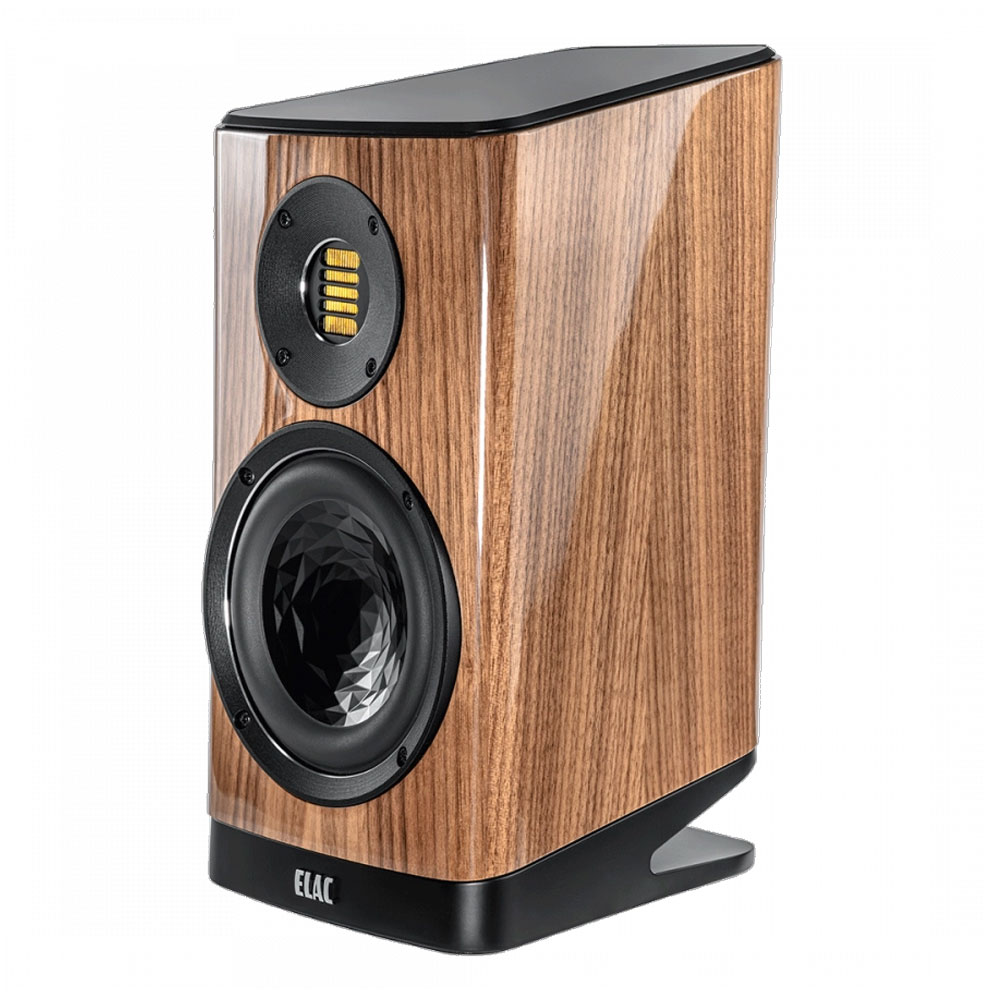

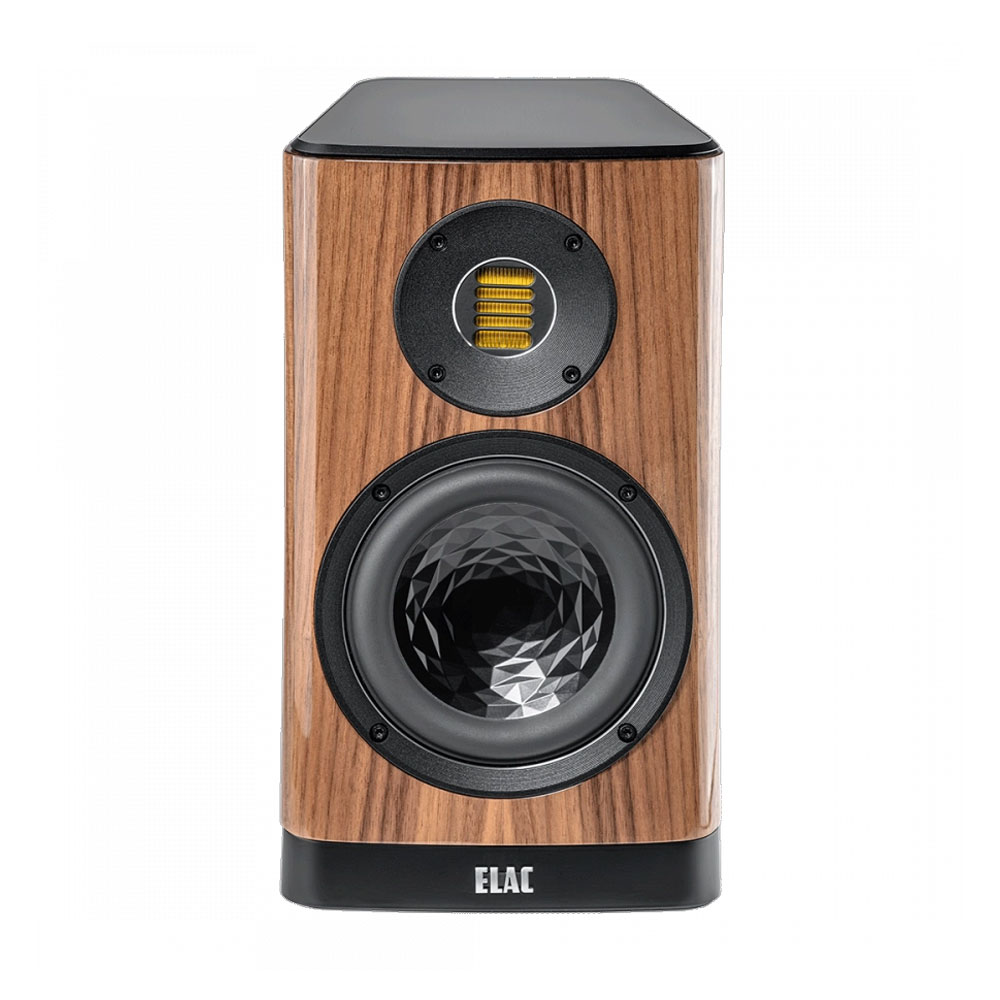

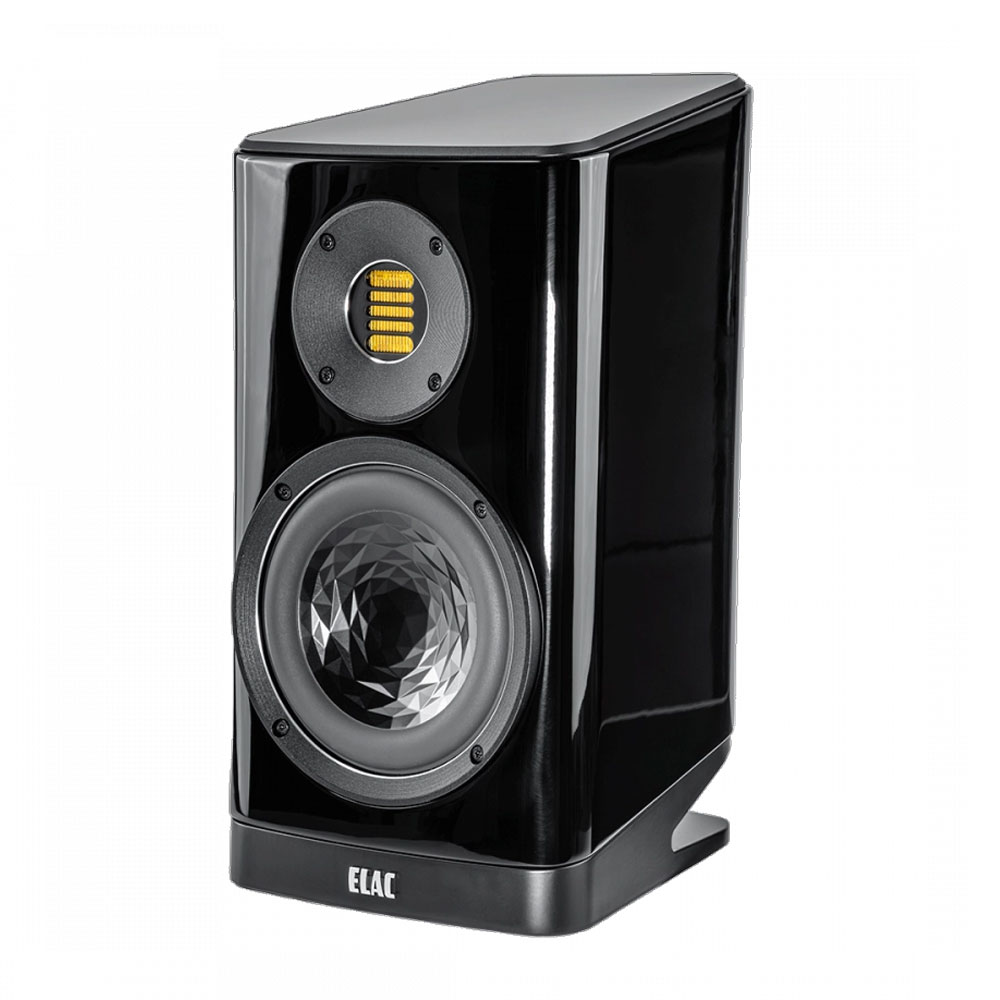

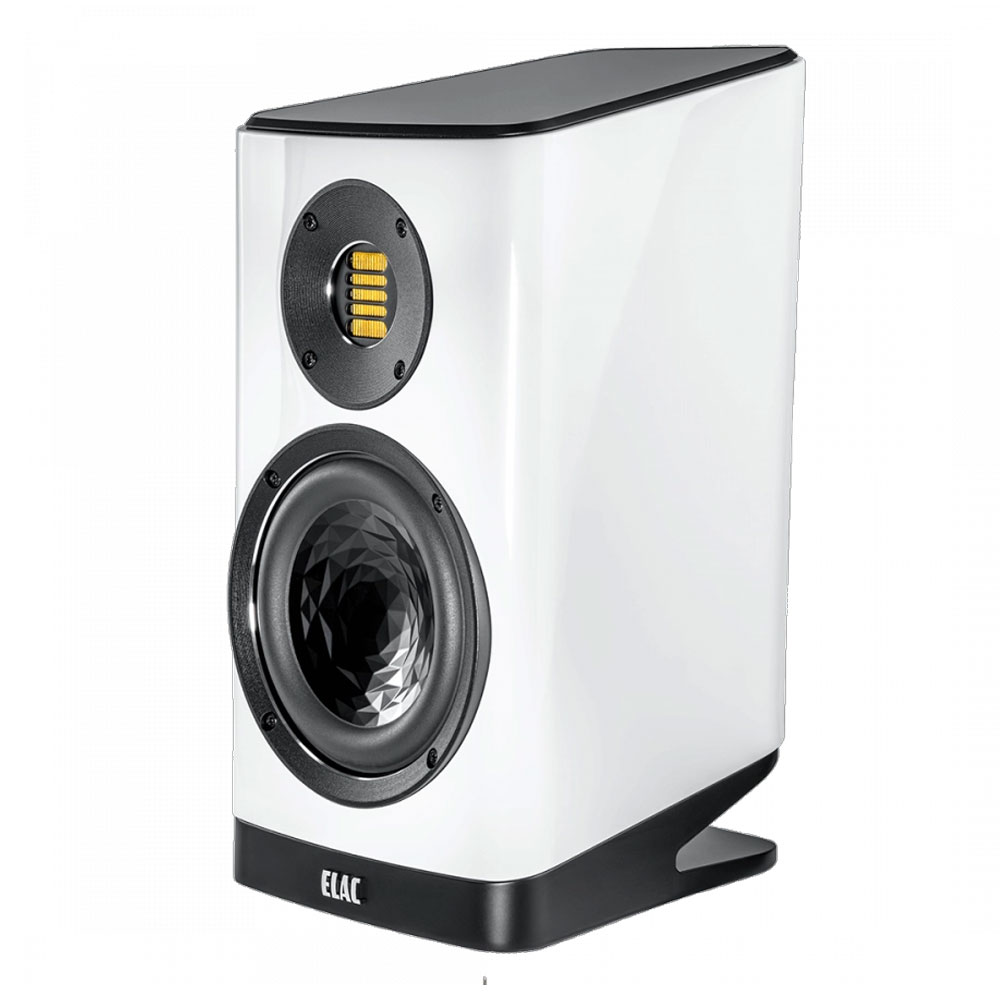

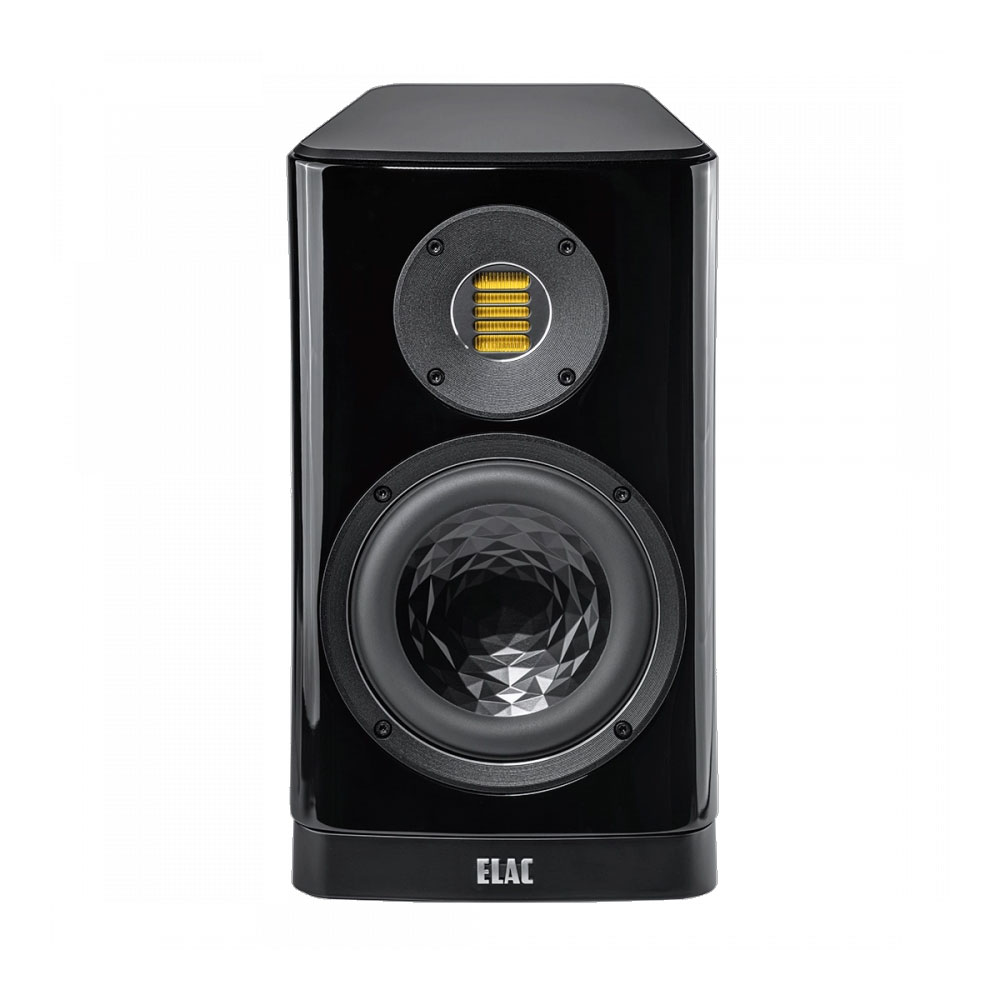

ELAC Vela BS403.2 Bookshelf Speakers
The ELAC Vela BS403.2 Bookshelf Speakers are part of the Vela 2.0 range.
They are a striking illustration of how design and function can be harmonized. Decorative aluminum elements transform the technical components of the loudspeakers into visual highlights. Sight and sound combined into a duality of delight.
The most striking acoustic innovation is the JET 6 tweeter. A hallmark of ELAC for over three decades, the current version offers fast, detailed and refined performance.
Combined with a newly developed Crystal Membrane woofer with custom designed cast chassis, the new Vela series further solidifies ELACs commitment to excellence in audio.
View Product Specifications >> View ELAC Products >>
Features
Meet VELA
Built upon 95 Years Acoustic Design and Engineering
- Crystal membrane woofer with extended frequency range
- Jet 6 tweeter offering wide dynamic range

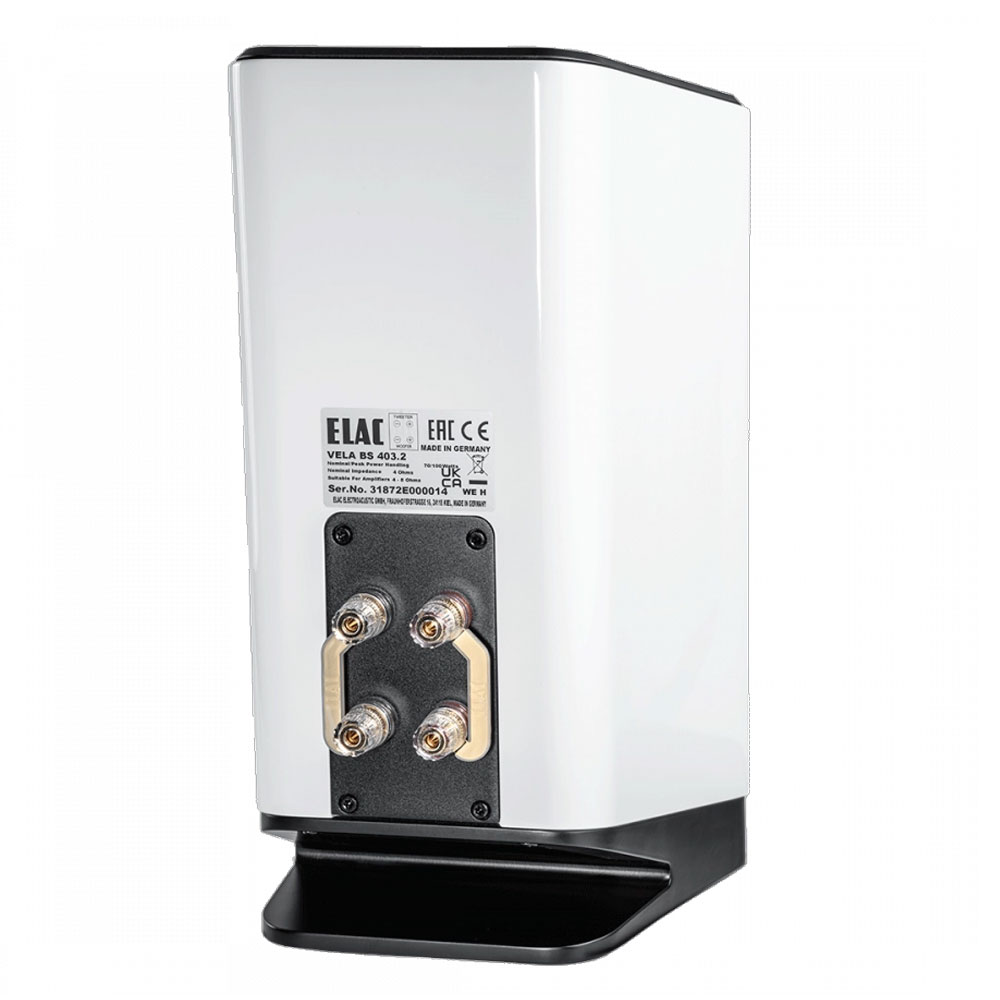

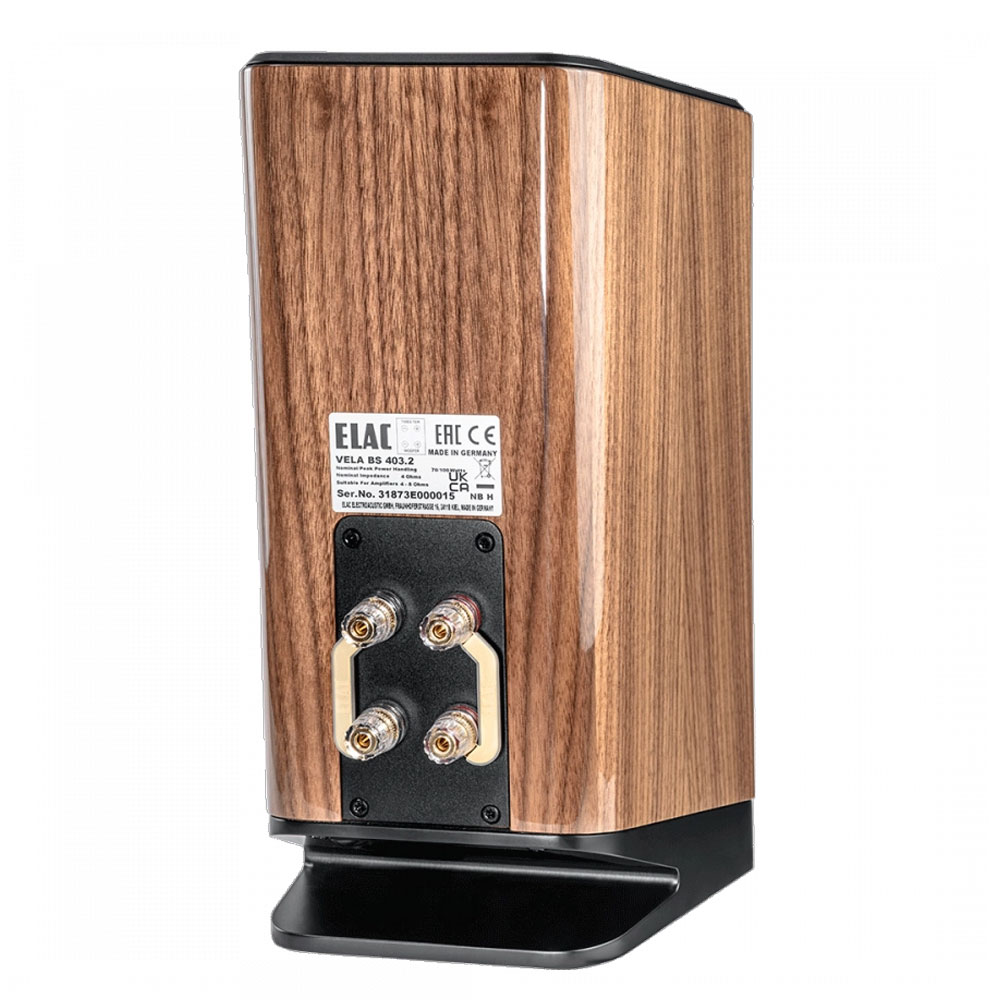

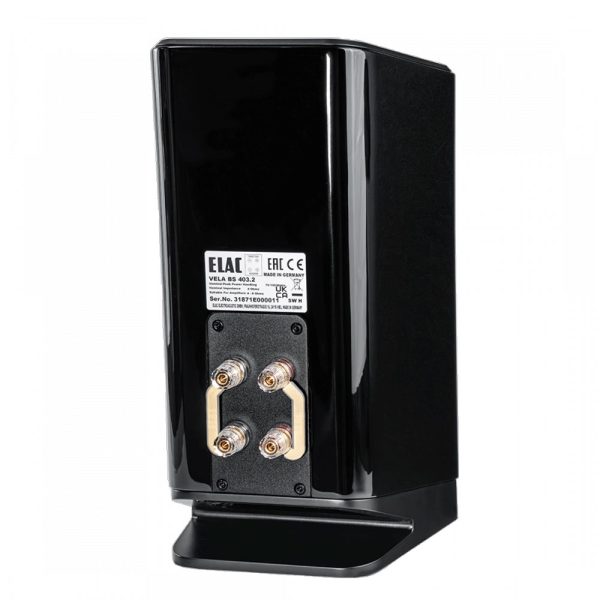

- Bi-wiring configuration to enhance midrange
- Die cast bottom plate with integrated double flanged down-firing bass reflex port
Convex baffle shape reducing reflections
The inimitable JET 6 tweeter
ELAC’s JET 6 tweeter is used throughout their loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters.
The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image. Designed and manufactured in Kiel, Germany.

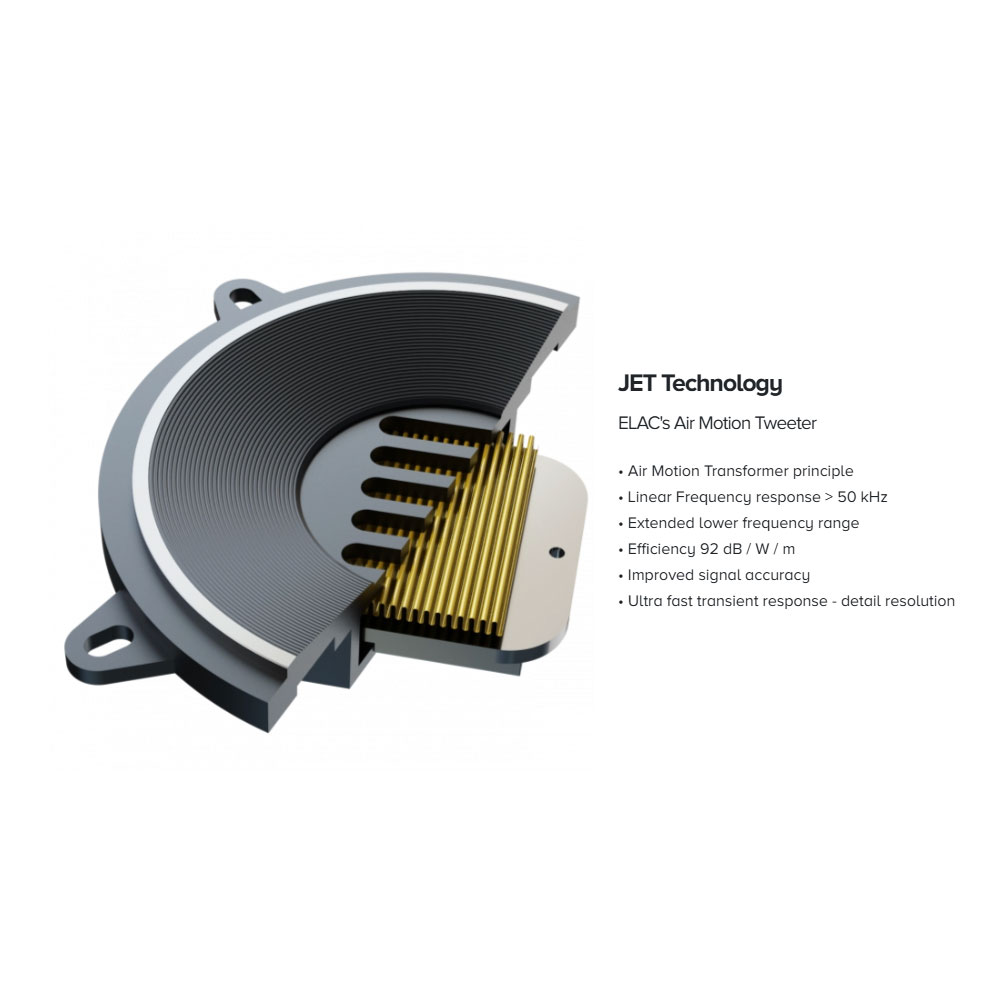

ELAC’s Air Motion Tweeter
- Air Motion Transformer principle
- Linear Frequency response > 50 kHz
- Extended lower frequency range
- Efficiency 92 dB / W / m
- Improved signal accuracy
- Ultra fast transient response – detail resolution
AS-XR Technology – Crystal Membrane
Aluminum Sandwich Membrane with Extended frequency range. The The eye-catching surface of the crystal membrane is more than just an attractive design feature.
- Increased stiffness through crystal shape of aluminum cone
- Extended frequency range (XR), smooth roll-off
- Excellent large signal behaviour
- Minimized VAS, (lot of bass out of small cabinets)
Specifications
- Type: 2-way, Bass Reflex
- Woofer: 1 × 150 mm Ø, AS-XR Cone
- Tweeter: JET 6
- Magnetic Shielding: No
- Crossover Frequency: 2400 Hz
- Frequency Range (IEC 268-5): 41-50000 Hz
- Sensitivity: 86 dB at 2.83 V/m
- Suitable for amplifiers from: 4Ω – 8Ω
- Recommended Amplifier Power: 40 – 200 W/channel
- Nominal | Peak Power Handling: 70 W | 100 W
- Nominal | Minimum Impedance: 4Ω | 3.2Ω at 260 Hz
- Finishes: Black High Gloss, White High Gloss, Walnut High Gloss
- Optional Accessory: Speaker Grilles
- Height x Width x Depth: 362 × 191 × 240 mm
- Weight: 7.1 kg
