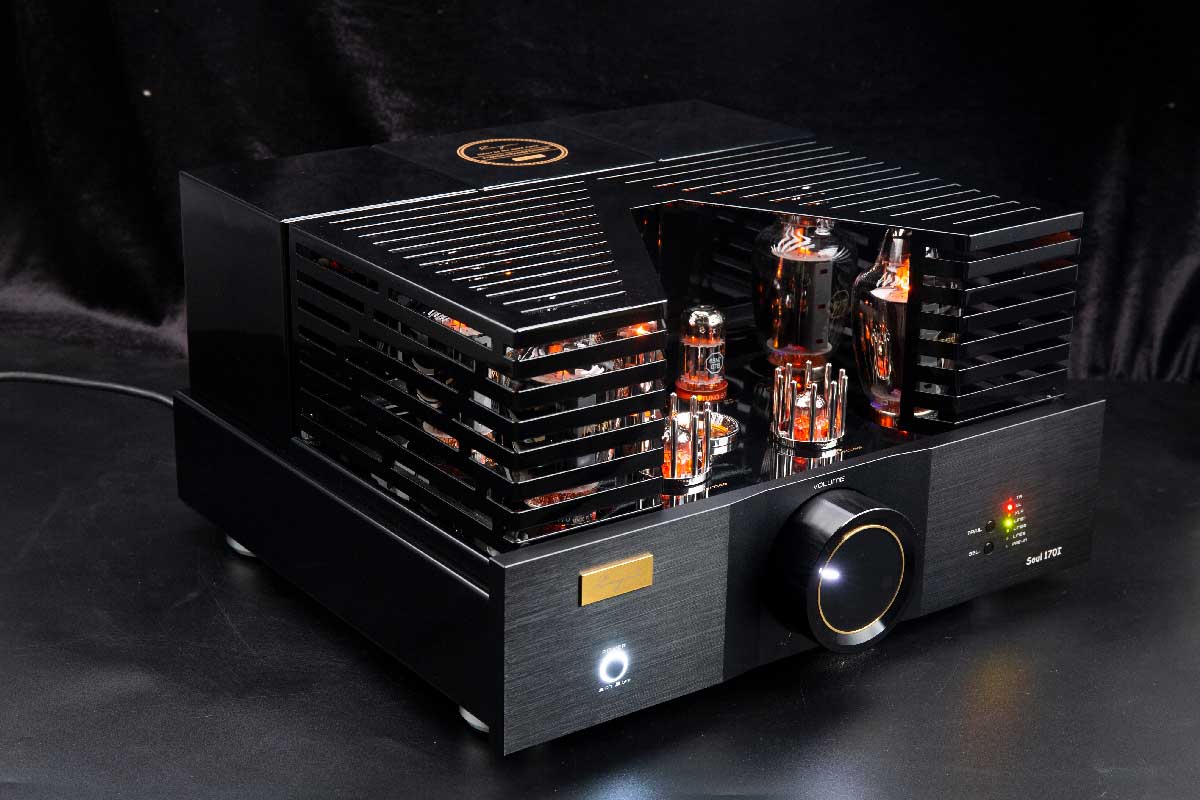

Cayin Soul 170I Tube Integrated Amplifier
The Cayin Soul 170I Tube Integrated Amplifier is a tube integrated amplifier that redefines the standards of its category.
Born from the expertise gained during the development of Cayin’s prestigious A-845 Pro 25th Anniversary model, it delivers a remarkable power output of 2 x 130 watts in ultralinear mode or 2 x 75 watts in triode mode.
Its class AB design uses the latest Tungsol KT170 power tubes, allowing it to combine the characteristic warmth of tube amplifiers with the sonic authority usually reserved for transistor amplifiers.
View Owners Manual >> View Cayin Audio Products >>
Features

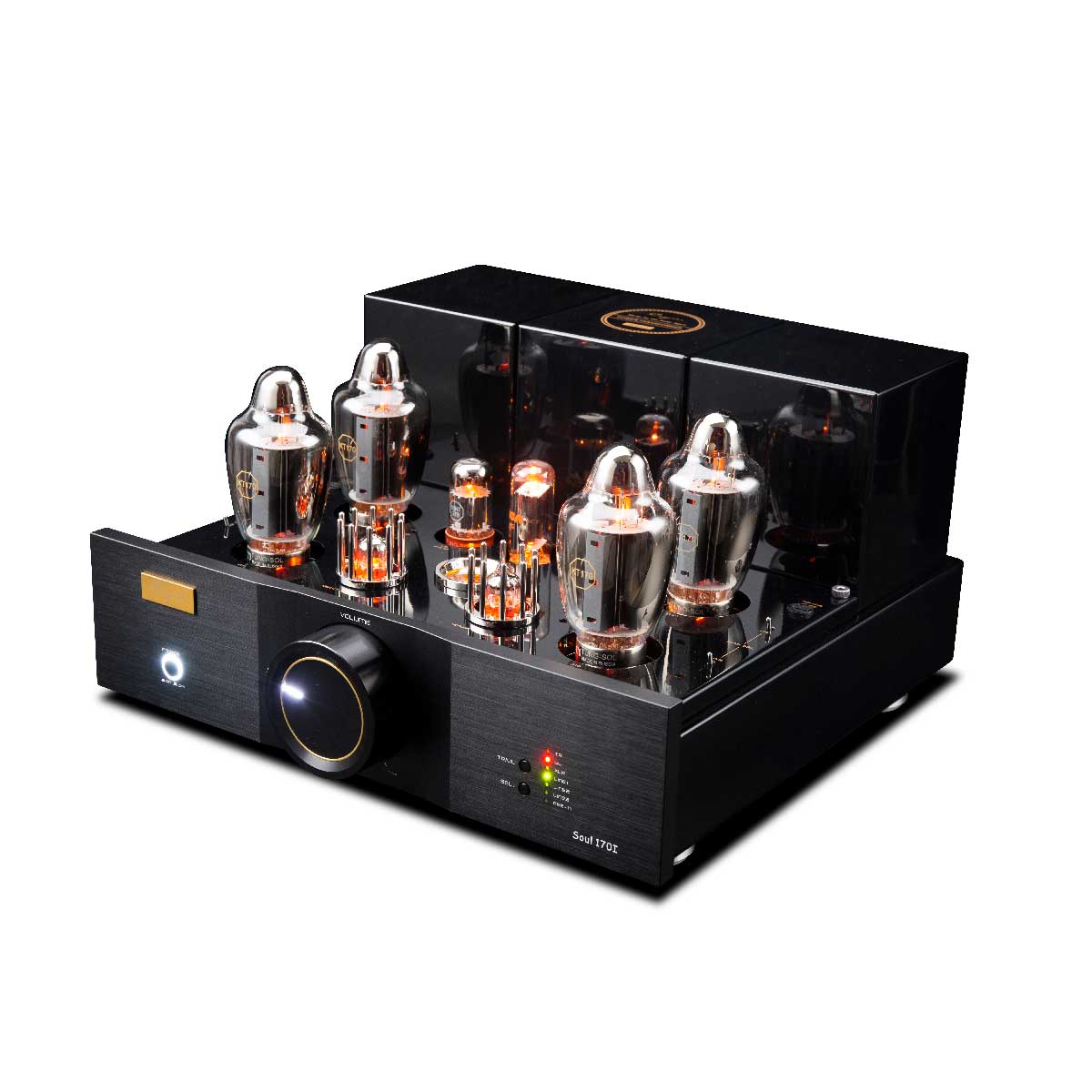

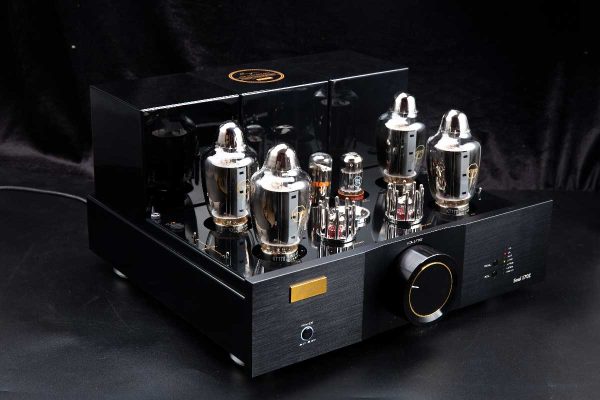

The Soul 170i stands out for its carefully orchestrated tube configuration. At the heart of the device are four Tungsol KT170 tubes (two per channel) for the power stage, selected for their ability to deliver warm, rich sound and impressive amplification power. The preamplification stage uses 6SN7 tubes, while voltage amplification relies on ECC83S tubes. A 22DE4 rectifier tube completes the power supply section.
The device is built with hand-crafted point-to-point wiring, an artisanal method that ensures signal integrity. Every component is meticulously selected for its sonic qualities: ALPS potentiometer, porcelain tube sockets, audiophile-grade capacitors, and carbon film resistors. The toroidal power transformer ensures stable energy output with extremely low noise levels.
The output transformers, crucial elements in a tube amplifier, are developed and manufactured in-house by Cayin. Their complex multi-winding design and optimized impedance allow for balanced and natural reproduction across the entire audio spectrum.

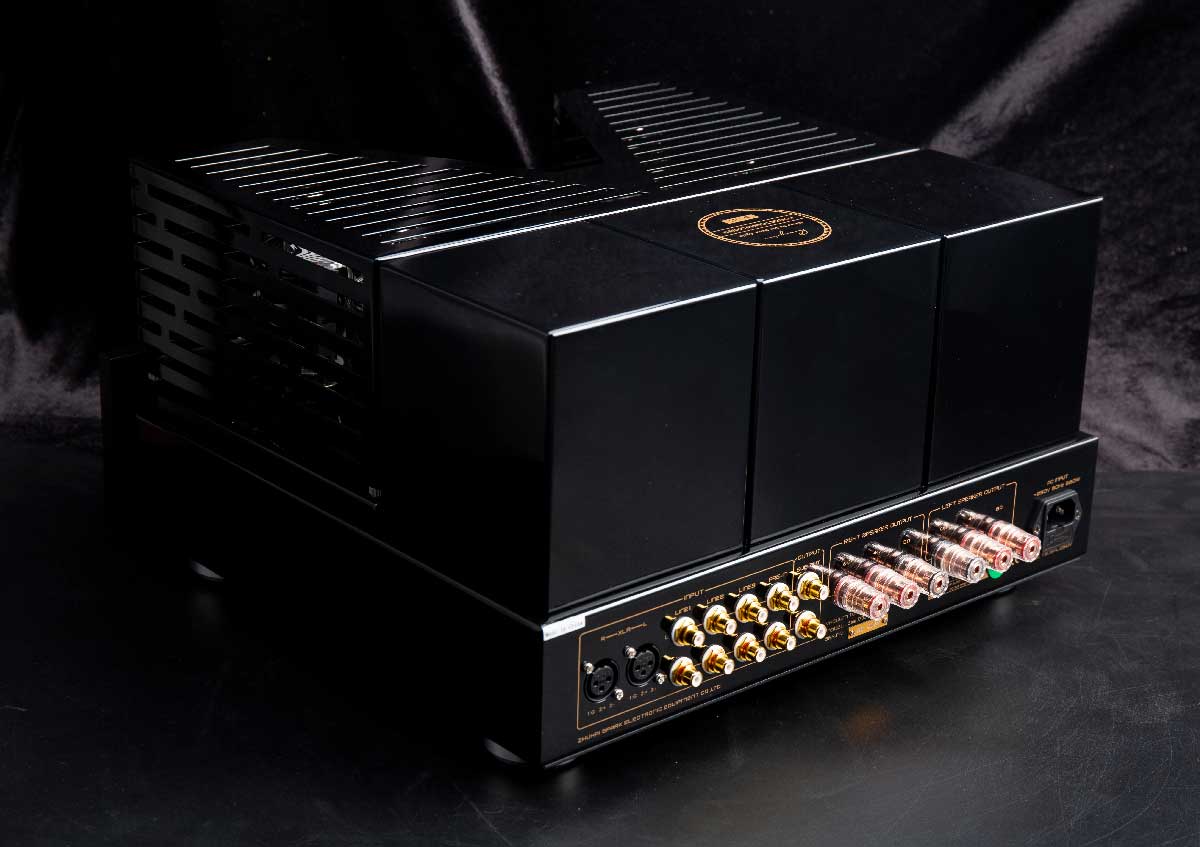

- Speaker terminals for 4 and 8 ohm speakers are located on the rear panel of the Amplifier.
- User bias controls for KT170 Power Tubes have been used for bias adjustment and one meter has been added to the top plate to allow you to monitor bias with ease.

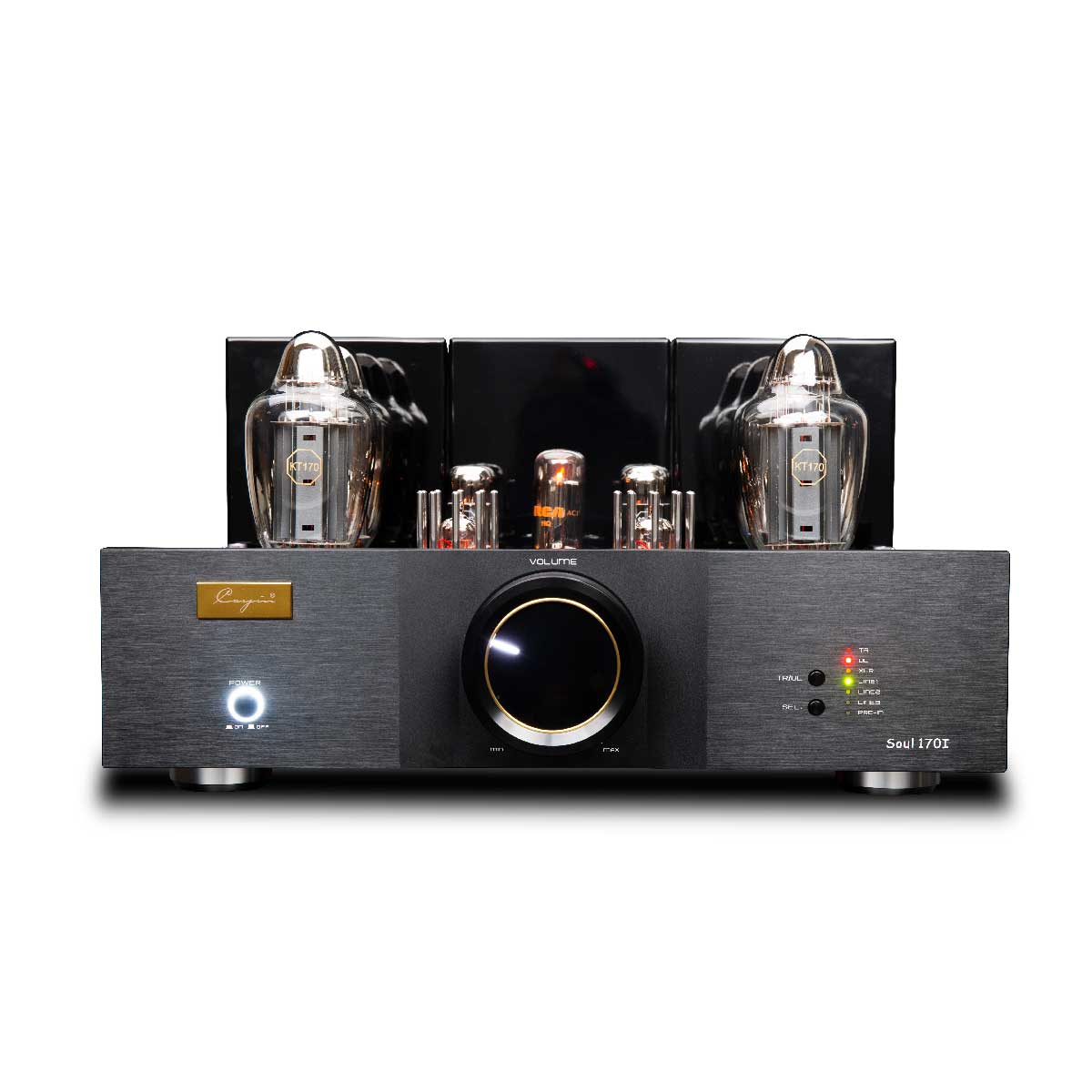

- Anodized aluminum front, fully vented chassis with excellent gorgeous finish, and wood side panels give you a product of art in front of your eyes.
- Soul 170I, same as other products from Cayin emplys Point to Point wiring.
- The entire circuitry including signal path is painstakingly hand wired with heavy-gauge cable by craftsman.
- Soft-start circuit and High Voltage Delay to protect the amplifier for extended life of sensitive components.
- High Voltage Fuses are used in the amplifier for protection which are located on the top plate close to the Power tubes.
- In case there were failure of tubes the Fuse will react first that you can know easily where the issue is.
- Premium Parts: Alps volume control, Porcelain Tube Sockets, Audio grade capacitors and carbon film resistors,
- Toroid transformer for power supply, Wide bandwidth EI output transformer, etc.
- Output transformers are the most important part of any tube amp.
- They determine how low the bass will reach and how high the top end goes.
- Cayin output transformers are custom-designed, wound in-house, and massive.
- Enable complicated multi-layer winding and multiple impedance output to match with different needs.
- Carefully matched output will sound Balanced, natural and realistic across the complete audio spectrum.
- Custom designed Toroid Power transformer with strong power production and extreme low hum level provides a reliable performance and extraordinary control.
- Standard with remote control, Soul 170I can memorize last operation of the unit once switched off.
FAQ’s
- What kind of amplifier is the Cayin Soul 170I? The Soul 170I is a high-power Class AB tube integrated amplifier, combining the warmth of tubes with excellent control and dynamics.
- How much power does it produce? It delivers enough power to drive a wide range of speakers, providing clear, impactful sound even at higher volumes.
- Can I connect multiple devices to it? Yes – it has multiple analog and balanced inputs, allowing you to connect CD players, DACs, turntables (with a phono preamp), and more.
- Is it easy to maintain a tube amplifier? Tube replacement and bias adjustment are straightforward, and the unit is built for long-term reliability and stable performance.
- Is it suitable for all music genres? Absolutely – its rich, musical sound works beautifully with jazz, rock, classical, electronic, and any genre you love.
Specifications
Features
- Built-in stereo amplifier
- Bias adjustment
- Remote control included
Tubes and Components
- Tubes used
- JJ ECC83S × 2 – voltage amplification
- TUNG-SOL 6SN7GTB × 2 – preamplification
- TUNG-SOL KT170 × 4 – output tubes
- RCA 22DE4 × 1 – power supply
Audio Performance
- Output power
- Triode mode (TR): 75 W + 75 W (RMS)
- Ultralinear mode (UL): 130 W + 130 W (RMS)
- Frequency response
- RCA input: 5 Hz ~ 50 kHz (-3 dB)
- XLR input: 5 Hz ~ 35 kHz (-3 dB)
- Total harmonic distortion (THD)
- 0.2% (1 W / 1 kHz)
- 5% at full power
- Signal-to-noise ratio (S/N): 97 dB (A-weighted)
Connectivity
- Input sensitivity
- 330 mV (integrated mode)
- 1000 mV (preamplifier input)
- Impedance
- Input: 100 kΩ
- Output: 4 Ω, 8 Ω
- Connections
- Inputs: XLR, LINE1, LINE2, LINE3, PRE-IN
- Output: SUB OUT
Physical Characteristics
- Dimensions (W × D × H): 430 × 448 × 238 mm
- Net weight: 38.7 kg
Power Supply
- Power consumption
- Minimum: 290 W
- Maximum: 680 W
