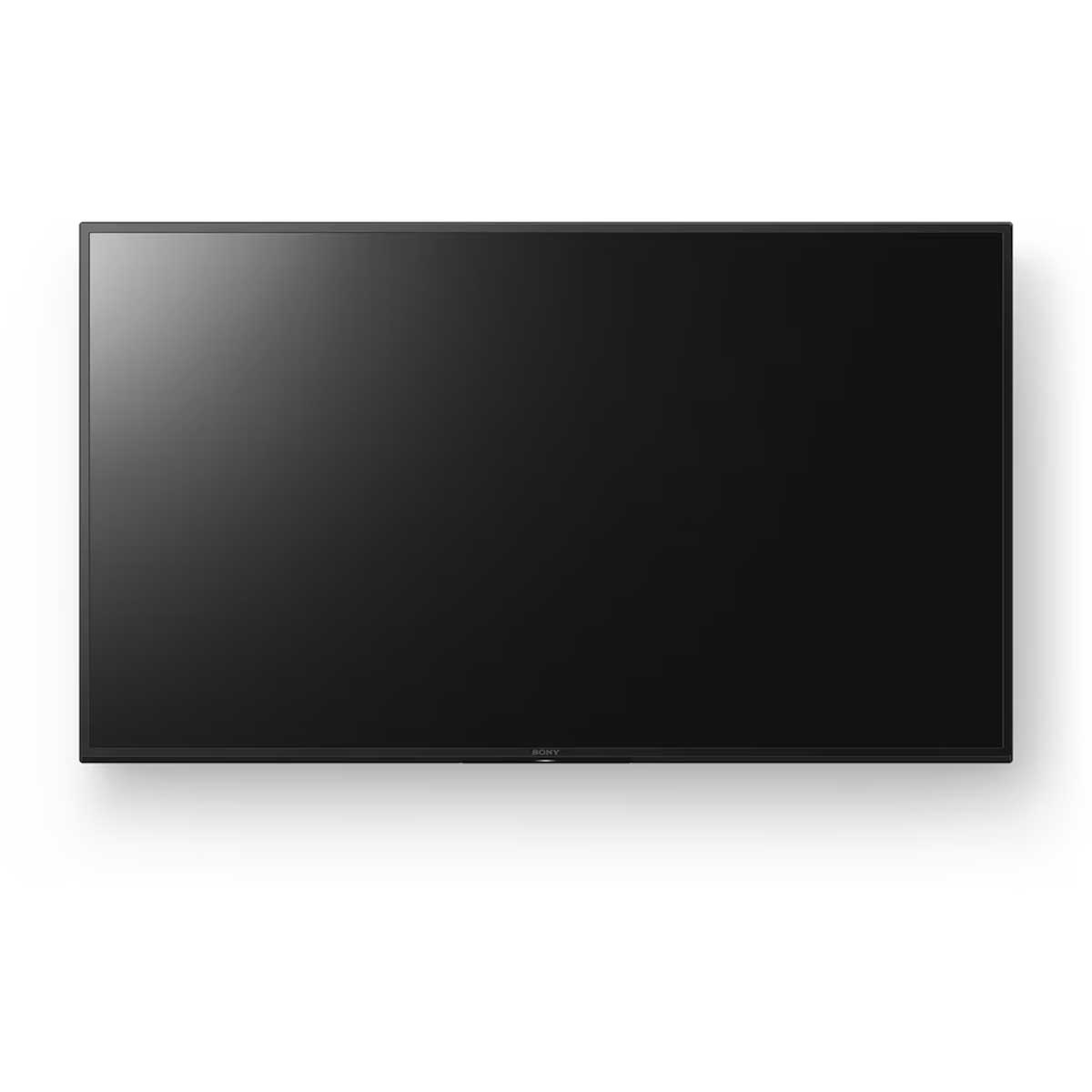

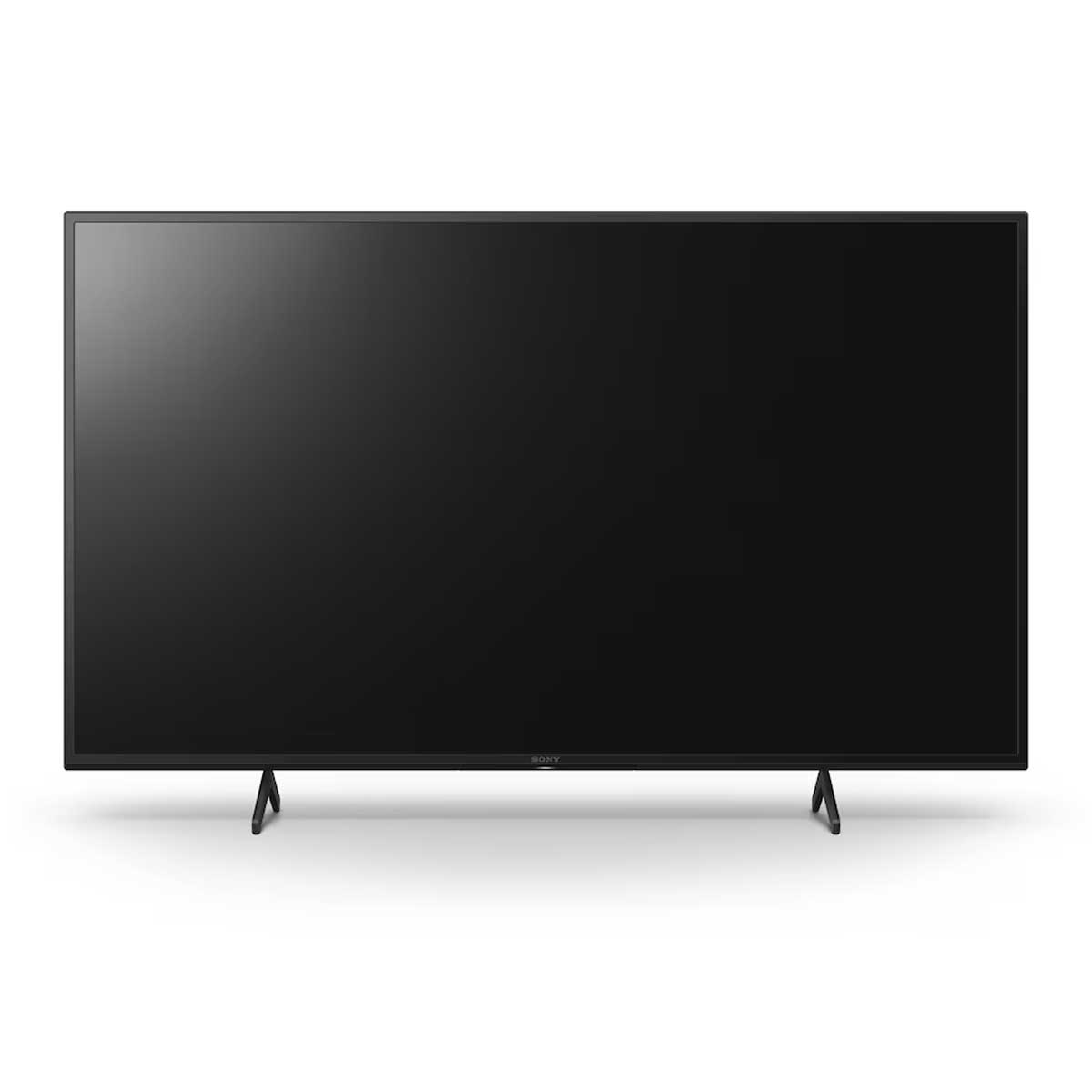

Sony BRAVIA EZ20L Series 4K HDR Display
The Sony BRAVIA EZ20L Series 4K HDR Display rated for 16/7 operation with essential professional functions; available in a full range of screen sizes.
Ideal for digital signage and corporate applications, slim, easy-to-use BRAVIA EZ20L Series professional displays add impact to all your visual communications.
Very high 4K picture quality is complemented by simple setup, content sharing and networked control in today’s connected AV environments.
⇒ Available in screen sizes 50″ 55”, 65”, and 75”.
View Brochure >> View Product Manuals >> View Sony Products >>
Features
Advanced picture technologies for brilliant 4K image quality
Available in screen sizes from 50”-75”, BRAVIA EZ20L Series features advanced Sony picture processing technologies ensure your content looks its best with fine detail, brilliant colours and smooth movement.
The panel offers 350 nit brightness for high visibility in indoor environments, with a wide viewing angle to ensure everyone in the room enjoys crisp, clear images wherever they’re positioned.
- Vivid colour – Live Color technology brings images alive with a brilliant palette of vibrant, natural colours.
- Fine detail – 4K X-Reality PRO upscales pictures closer to true 4K quality. Images are sharpened and refined in real time, revealing extra detail from lower-resolution content.
- Smooth movement – Motionflow XR ensures smoother, more natural reproduction of rapidly-moving on-screen images.
Great pictures deserve brilliant sound
The slim design of BRAVIA EZ20L incorporates an X-Balanced Speaker™, offering clear voice quality to enhance video conferences and digital signage.

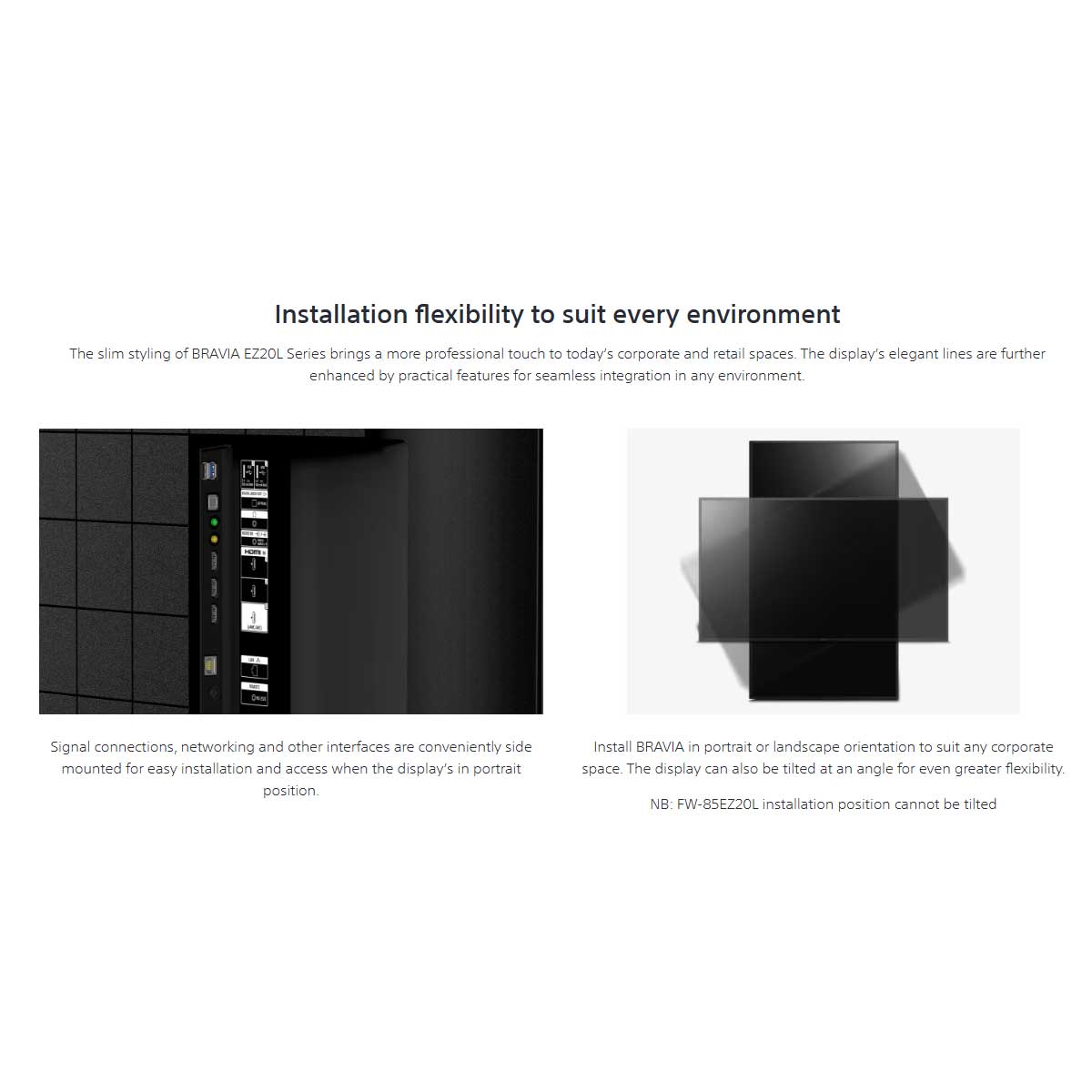

Installation flexibility to suit every environment
The slim styling of BRAVIA EZ20L Series brings a more professional touch to today’s corporate and retail spaces. The display’s elegant lines are further enhanced by practical features for seamless integration in any environment.

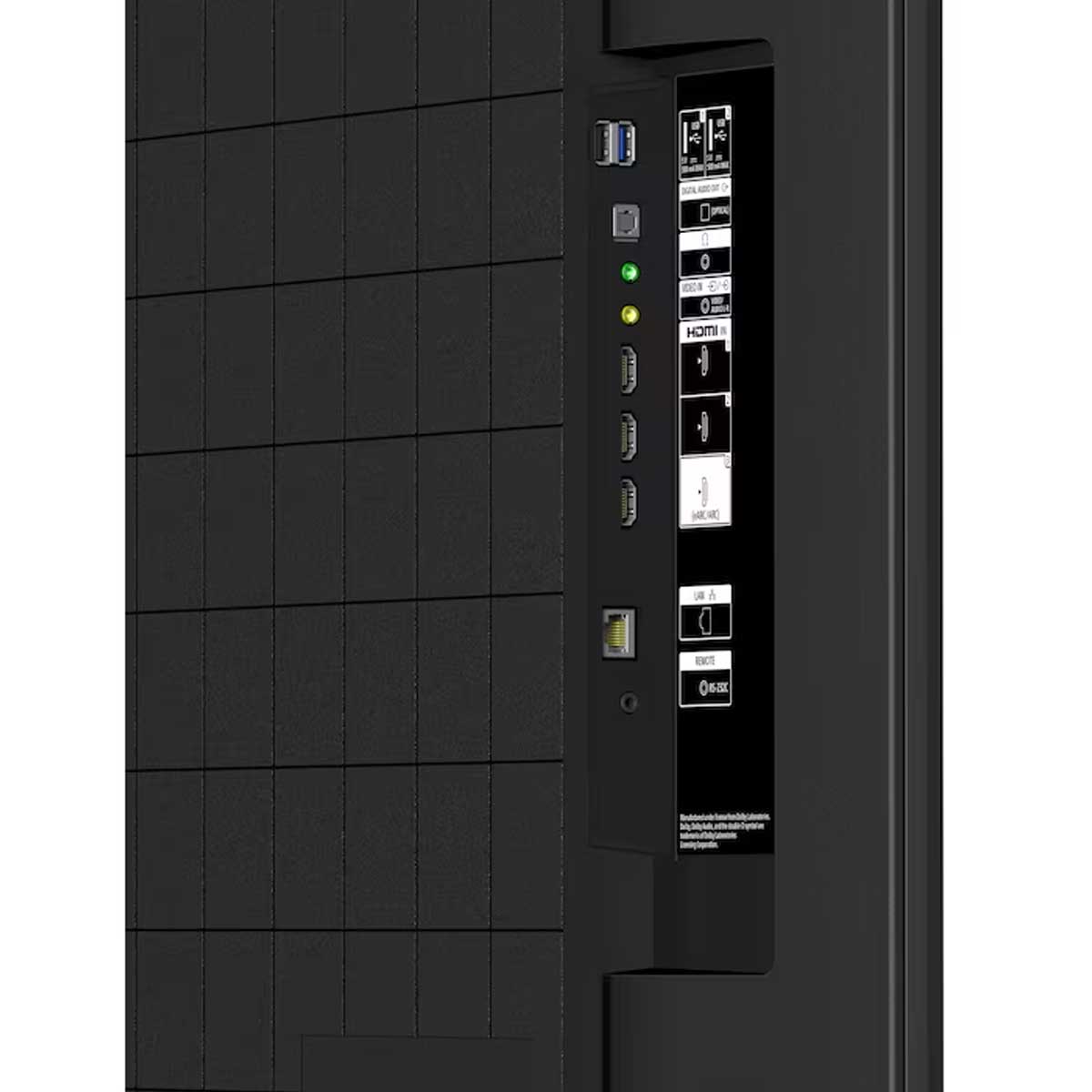

- Signal connections, networking and other interfaces are conveniently side mounted for easy installation and access when the display’s in portrait position.
- Install BRAVIA in portrait or landscape orientation to suit any corporate space. The display can also be tilted at an angle for even greater flexibility. (NB: FW-85EZ20L installation position cannot be tilted.)

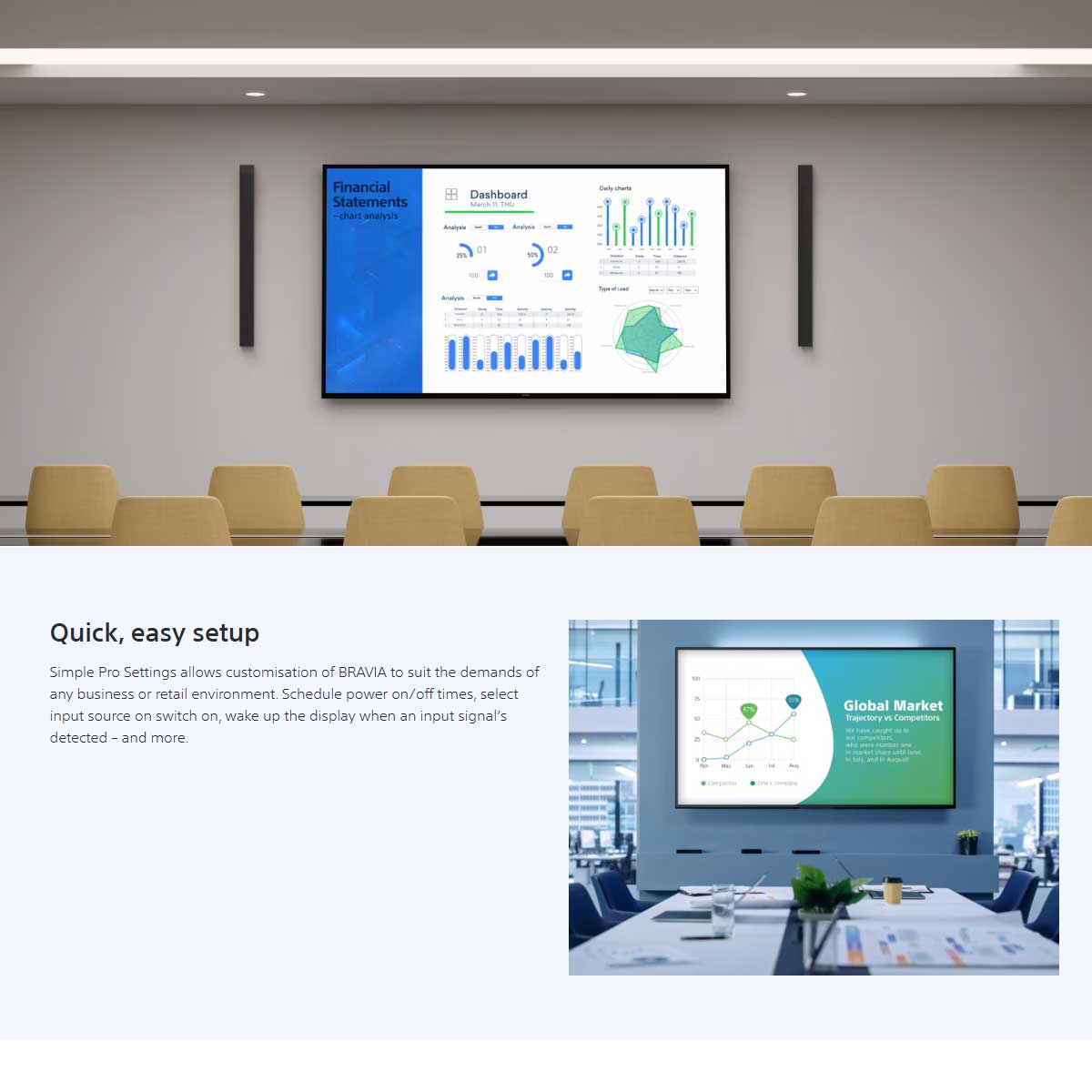

Quick, easy setup
Simple Pro Settings allows customisation of BRAVIA to suit the demands of any business or retail environment. Schedule power on/off times, select input source on switch on, wake up the display when an input signal’s detected – and more.
Networked control
Remotely control BRAVIA display functions – like power on/off, input source and volume – over IP networks or using familiar RS-232C protocols.

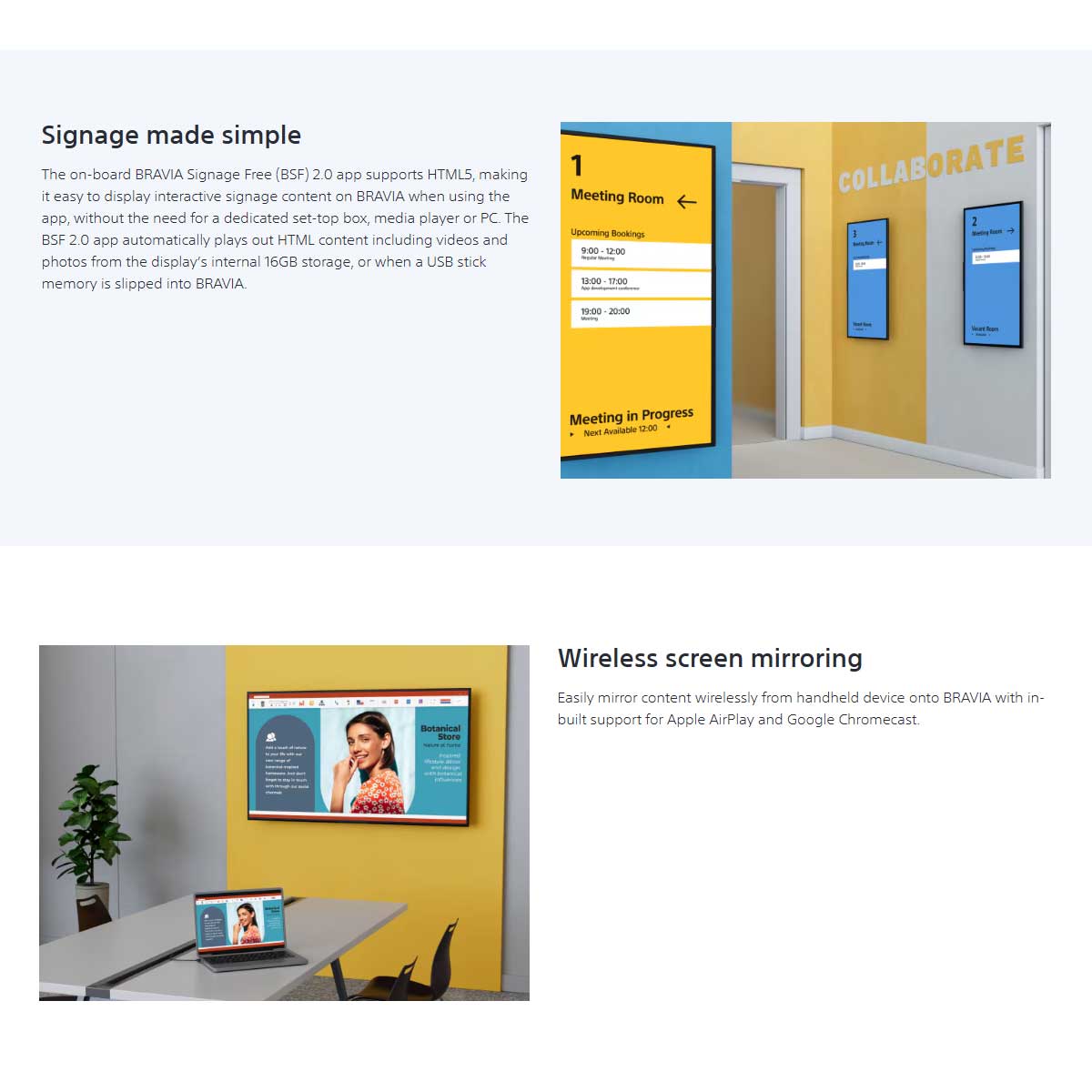

Signage made simple
The on-board BRAVIA Signage Free (BSF) 2.0 app supports HTML5, making it easy to display interactive signage content on BRAVIA when using the app, without the need for a dedicated set-top box, media player or PC.
The BSF 2.0 app automatically plays out HTML content including videos and photos from the display’s internal 16GB storage, or when a USB stick memory is slipped into BRAVIA.
Wireless screen mirroring
Easily mirror content wirelessly from handheld device onto BRAVIA with in-built support for Apple AirPlay and Google Chromecast.
Specifications
General Features
- Screen Size
-
- 75″
- 65″
- 55″
- 50″
- Brightness (cd/m²): 350
- Contrast Ratio
-
- 75″: 1200:1
- 65″: 1200:1
- 55″: 1200:1
- 50″: 5000:1
- Dynamic Contrast Ratio: 400,000:1
- Response Time (Gray to gray, Typical, ms)
-
- 75″: 8.0
- 65″: 8.0
- 55″: 8.0
- 50″: 6.0
- Display Resolution (H x V, pixels): 3840 x 2160
- HDR (High Dynamic Range) Compatibility: Yes(HDR10,HLG)
- Aspect Ratio : 16:9
- Portrait/Tilt Compatibility: Yes
Display Features
- Dimming Type: Frame Dimming
- Display Device: LCD
- Panel Type
-
- 75″: IPS
- 65″: IPS
- 55″: IPS
- 50″: VA
- Backlight Type: Direct LED
- TRILUMINOS Display: TRILUMINOS PRO
- Colour Gamut (DCI-P3)
-
- 75″: 75%
- 65″: 75%
- 55″: 75%
- 50″: 75%
- Picture Processor: 4K Processor X1
- Operation Time: 16/7
- Deep Black Non-Glare Coating: No
- Haze (%)
-
- 75″ Screen: 1%,
- 65″ Screen: 1%,
- 55″ Screen: 1%,
- 50” Screen: 3%,
- Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
- Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)
Video Specification
- Video Processing: 4K X-Reality PRO
- Motion Enhancer: Motionflow XR 240 (Native 60Hz)
- HDMI Signal: 4096 x 2160p (24, 50, 60 Hz),3840 x 2160p (24, 25, 30, 50, 60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i 480p, 480i
Audio Specification:
- Speaker Position: Down Firing
- Audio Power Output: 10W + 10W
Professional Features
- Pro Mode: Yes (Simplified)
- HDMI Auto Wake-Up: Yes
- Operating System: Android TV
- On-board Storage (GB): 16GB
Network Specification
- Wi-Fi Certified: Yes
- Wireless LAN: Integrated
Convenience Features
- USB Playback Codecs: MPEG1:MPEG1/MPEG2 PS:MPEG2/MPEG2 TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC,AV1/AVI:MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4/MKV:AVC,MPEG4,VP8,HEVC/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG
- On Screen Clock: Yes
- Sleep Timer: Yes
- On/Off Timer: Yes
- Chromecast Built-In: Yes
- Apple AirPlay: Yes
Control Specifications
- IP Control: Yes
- RS-232C Control: Yes
- HDMI-CEC: Yes
Inputs and Outputs
- HDCP: HDCP2.3 (for HDMI1/2/3)
- Composite Video Input (s): 1 (Side, Mini jack)
- HDMI Inputs Total: 3 (3 Side)
- Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
- Digital Audio Output (s): 1 (Side)
- USB Ports: 2 (Side)
- Ethernet Inputs: 1 (Side)
Design Features

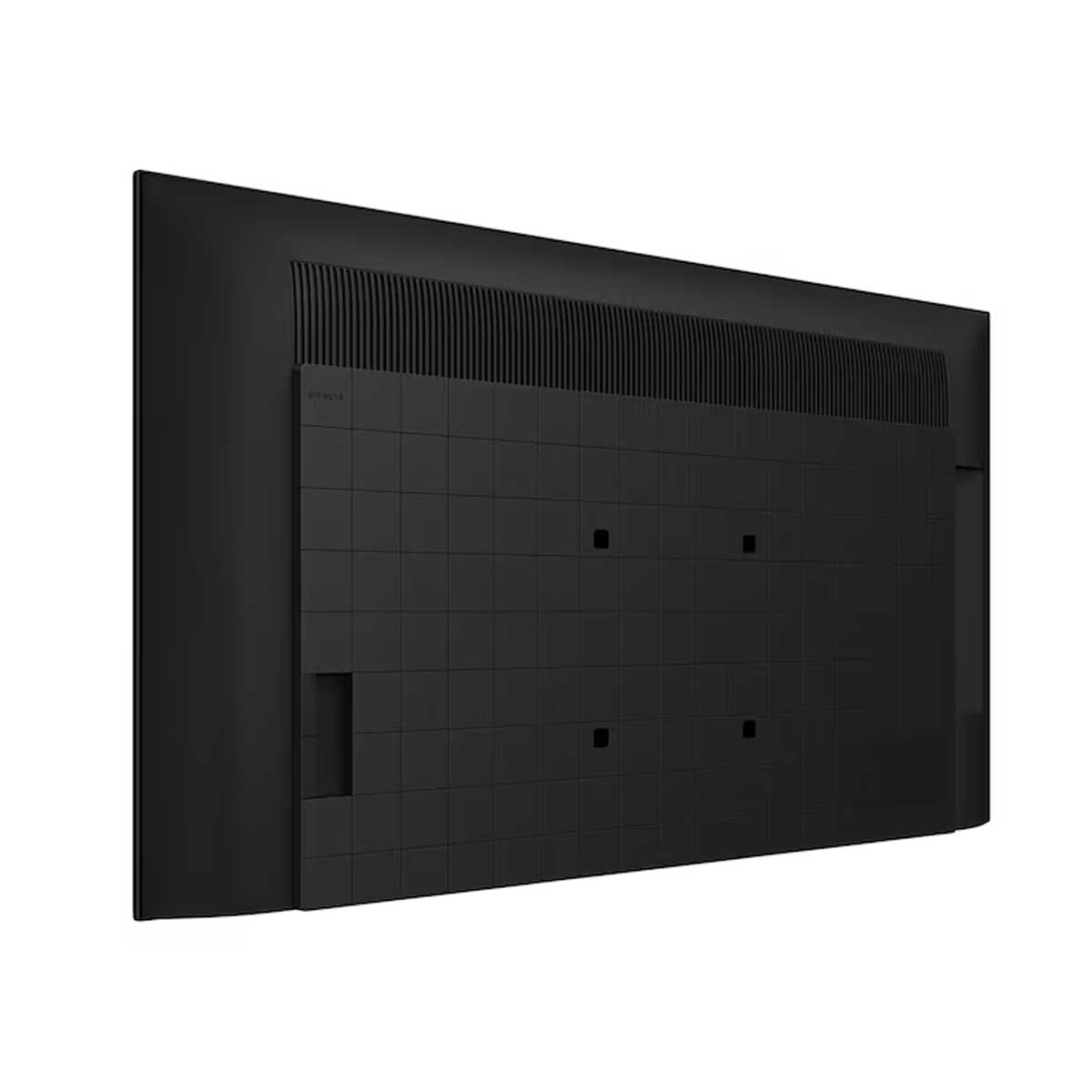

- VESA® Hole Spacing Compatible: Yes
- VESA® Hole Pitch (W x H)
-
- 75″: 300 x 300 mm / 11 7/8 x 11 7/8 inch
- 65″: 300 x 300 mm / 11 7/8 x 11 7/8 inch
- 55″: 300 x 300 mm / 11 7/8 x 11 7/8 inch
- 50″: 200 x 200 mm / 7 7/8 x 7 7/8 inch
Environment Specifications
- Rated Power Consumption
-
- 75″ Screen: 315 W,
- 65″ Screen: 226 W,
- 55″ Screen: 191 W,
- 50″ Screen: 146 W,
- Power Consumption (in Standby): 0.5 W
- Dynamic Backlight Control: Yes
- Power Saving Mode: Yes
Measurements
- Dimension of TV without Stand (W x H x D)
-
- 75″: 1686 x 969 x 72 mm / 66 1/2 x 38 1/4 x 2 7/8 inch
- 65″: 1462 x 842 x 71 mm / 57 5/8 x 33 1/4 x 2 7/8 inch
- 55″: 1243 x 721 x 71 mm / 49 x 28 1/2 x 2 7/8 inch
- 50″: 1126 x 653 x 70 mm / 44 3/8 x 25 3/4 x 2 7/8 inch
- Dimension of TV with Stand (W x H x D)
-
- 75″: No stand
- 65″: 1462 x 912 x 338 mm / 57 5/8 x 36 x 13 3/8 inch
- 55″: 1243 x 787 x 338 mm / 49 x 31 x 13 3/8 inch
- 50″: 1126 x 718 x 286 mm / 44 3/8 x 28 3/8 x 11 3/8 inch
- Dimension of Package Carton (W x H x D)
-
- 75″: 1824 x 1114 x 187 mm / 71 7/8 x 43 7/8 x 7 3/8 inch
- 65″: 1588 x 965 x 184 mm / 62 5/8 x 38 x 7 1/4 inch
- 55″: 1362 x 840 x 160 mm / 53 5/8 x 33 1/8 x 6 3/8 inch
- 50″: 1240 x 782 x 141 mm / 48 7/8 x 30 7/8 x 5 5/8 inch
Weight
- Weight of TV without Stand
-
- 75″: 30.4 kg / 67 lb
- 65″: 20.4 kg / 45 lb
- 55″: 15.3 kg / 33.8 lb
- 50″: 12.1 kg / 26.7 lb
- Weight of TV with Stand
-
- 75″: No stand
- 65″: 21.3 kg / 47 lb
- 55″: 16.2 kg / 35.7 lb
- 50″: 12.7 kg / 28 lb
- Weight of Package Carton (Gross)
-
- 75″: 45 kg / 99.2 lb
- 65″: 28 kg / 61.7 lb
- 55″: 21 kg / 46.3 lb
- 50″: 16 kg / 35.3 lb
