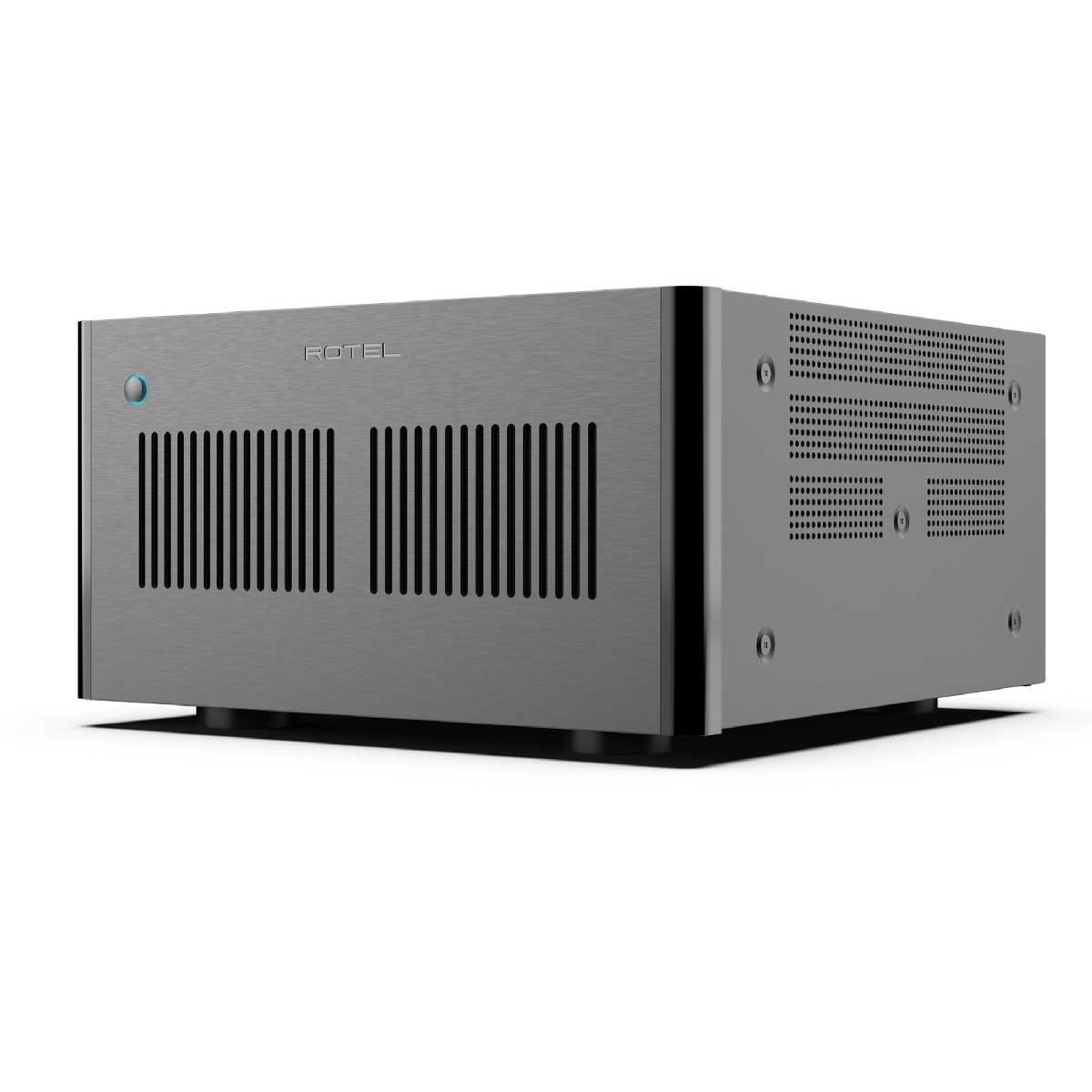

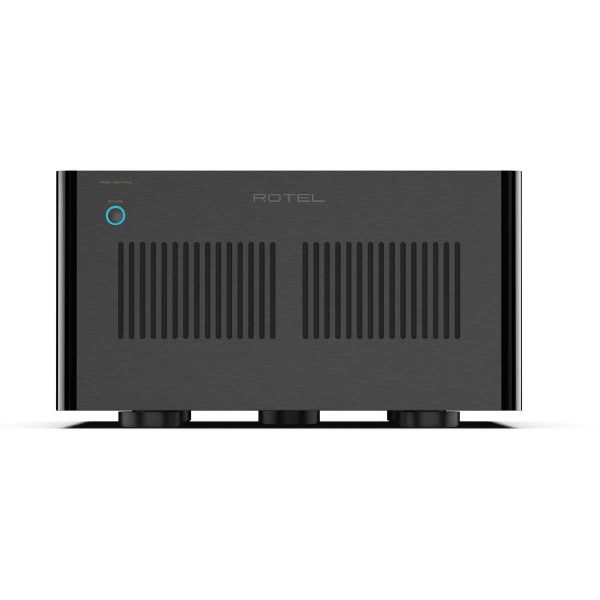

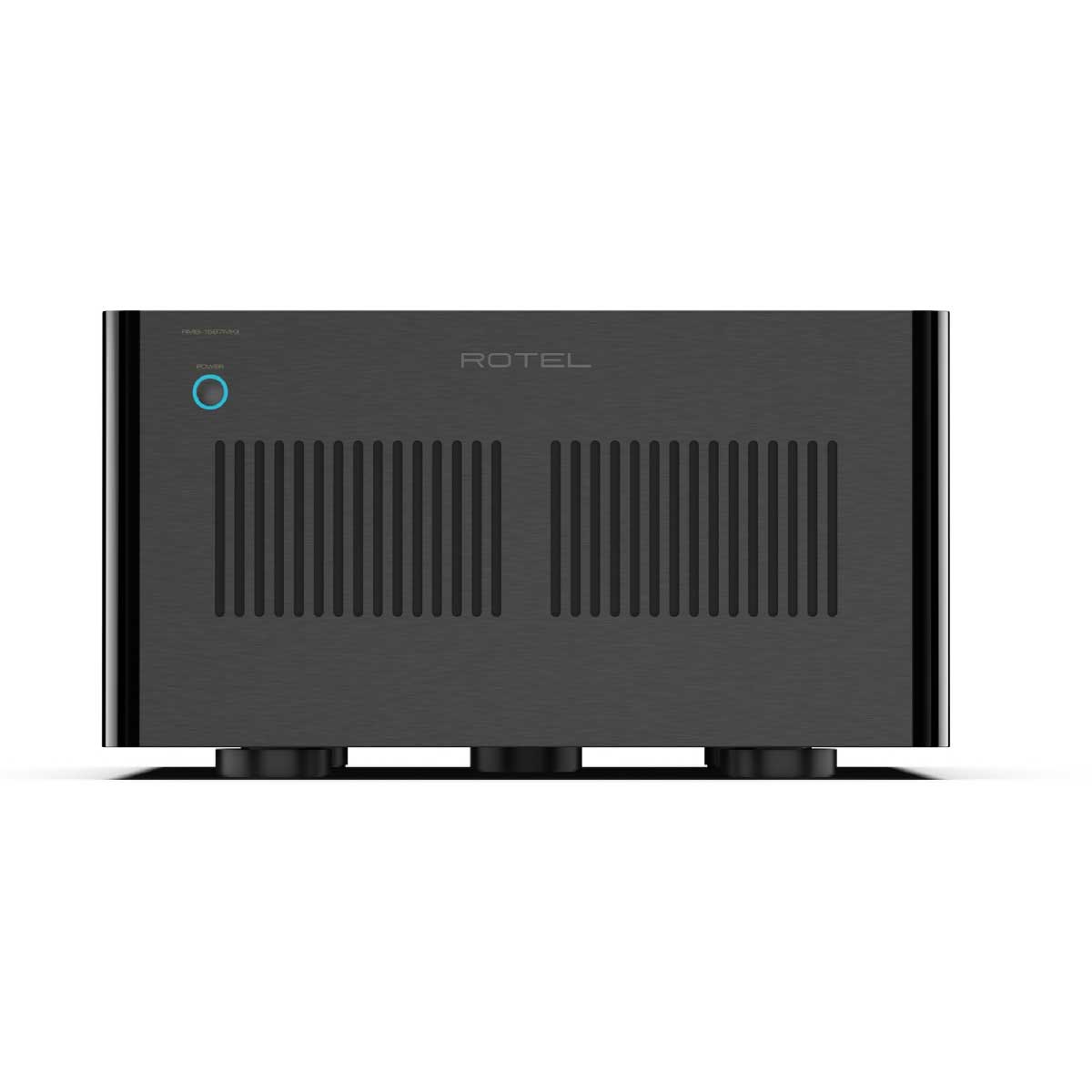

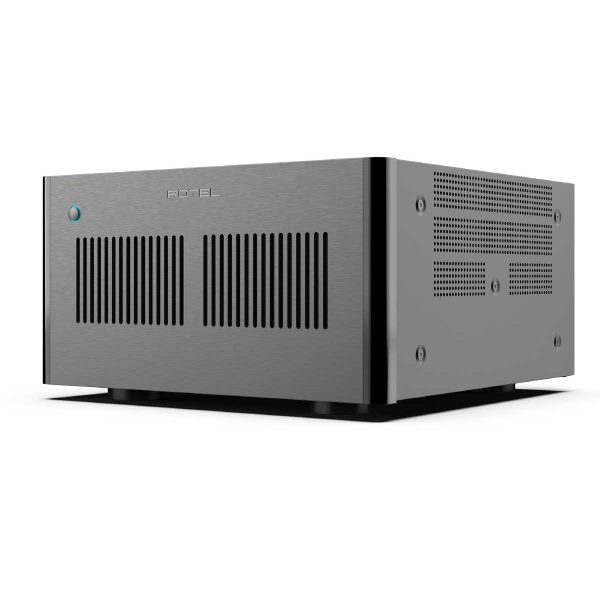

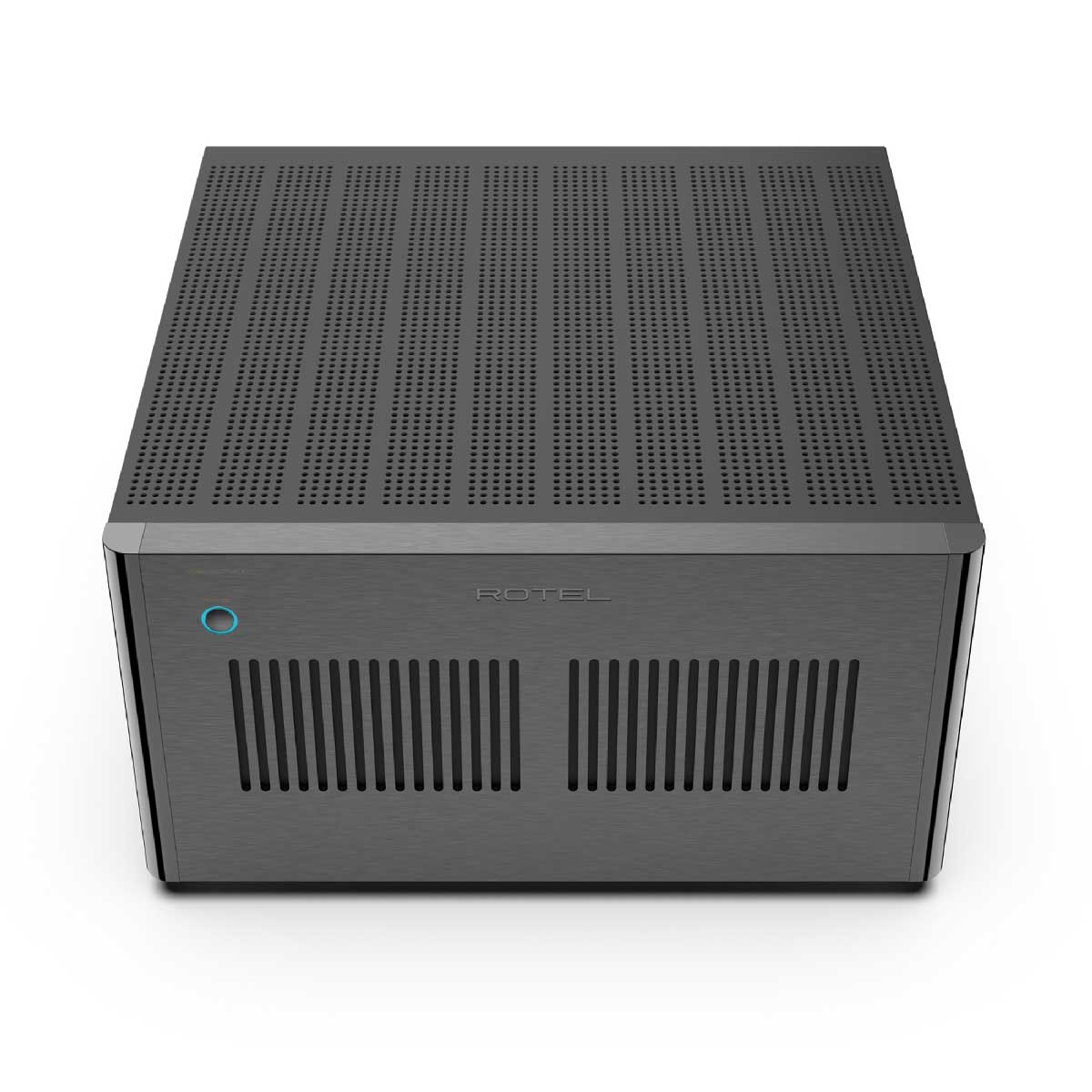

Rotel RMB-1585 MKII Multi-Channel Power Amplifier
The Rotel RMB-1585 MKII Multi-Channel Power Amplifier continues their heritage of producing high power, audiophile performance amplifiers for multi-channel systems.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
View Owners Manual >> View Info Sheet >> View Rotel >>
Features
- 5 x 340 Watts of robust Class AB power, 4 Ohms

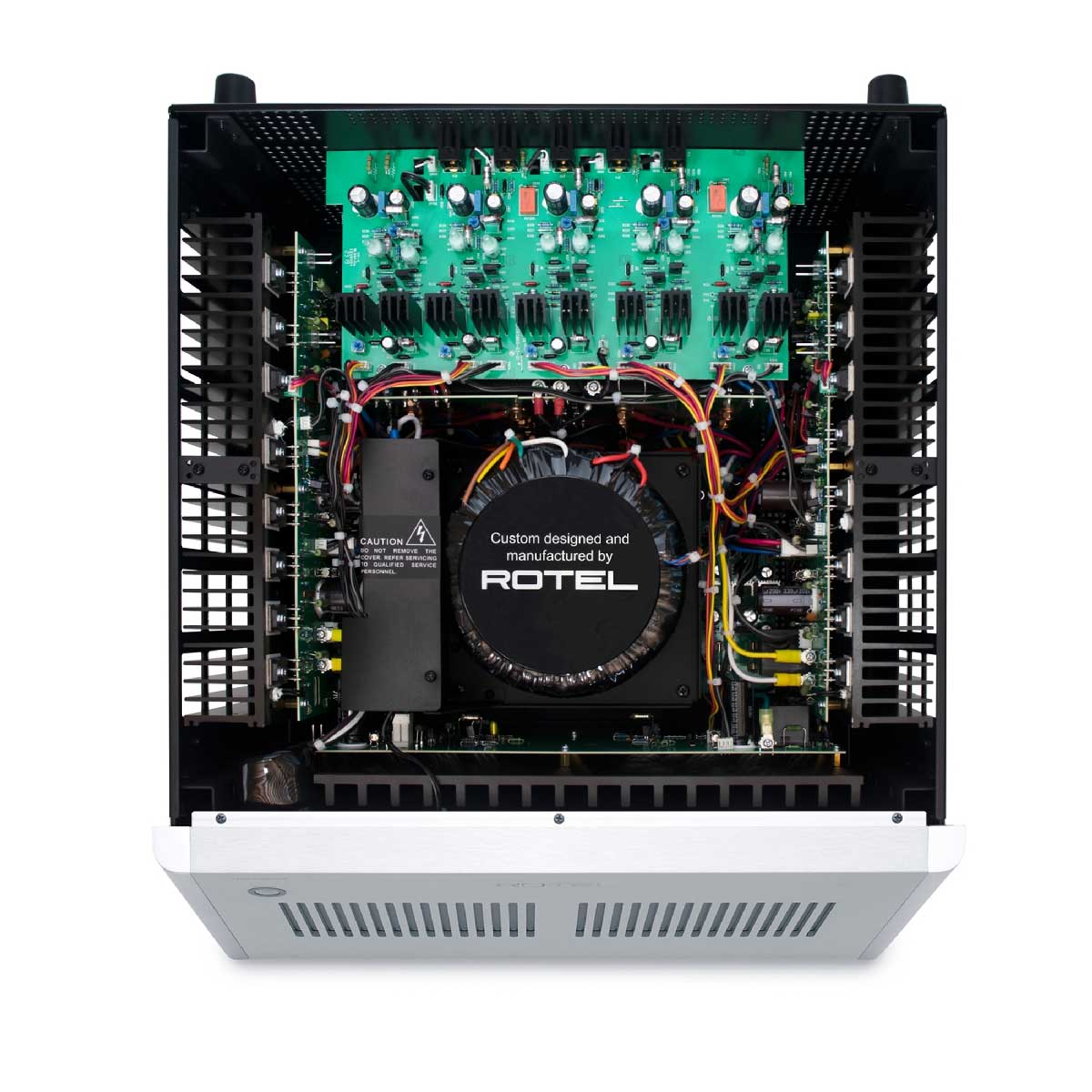

- Massive power supply using Dual Toroidal Transformers

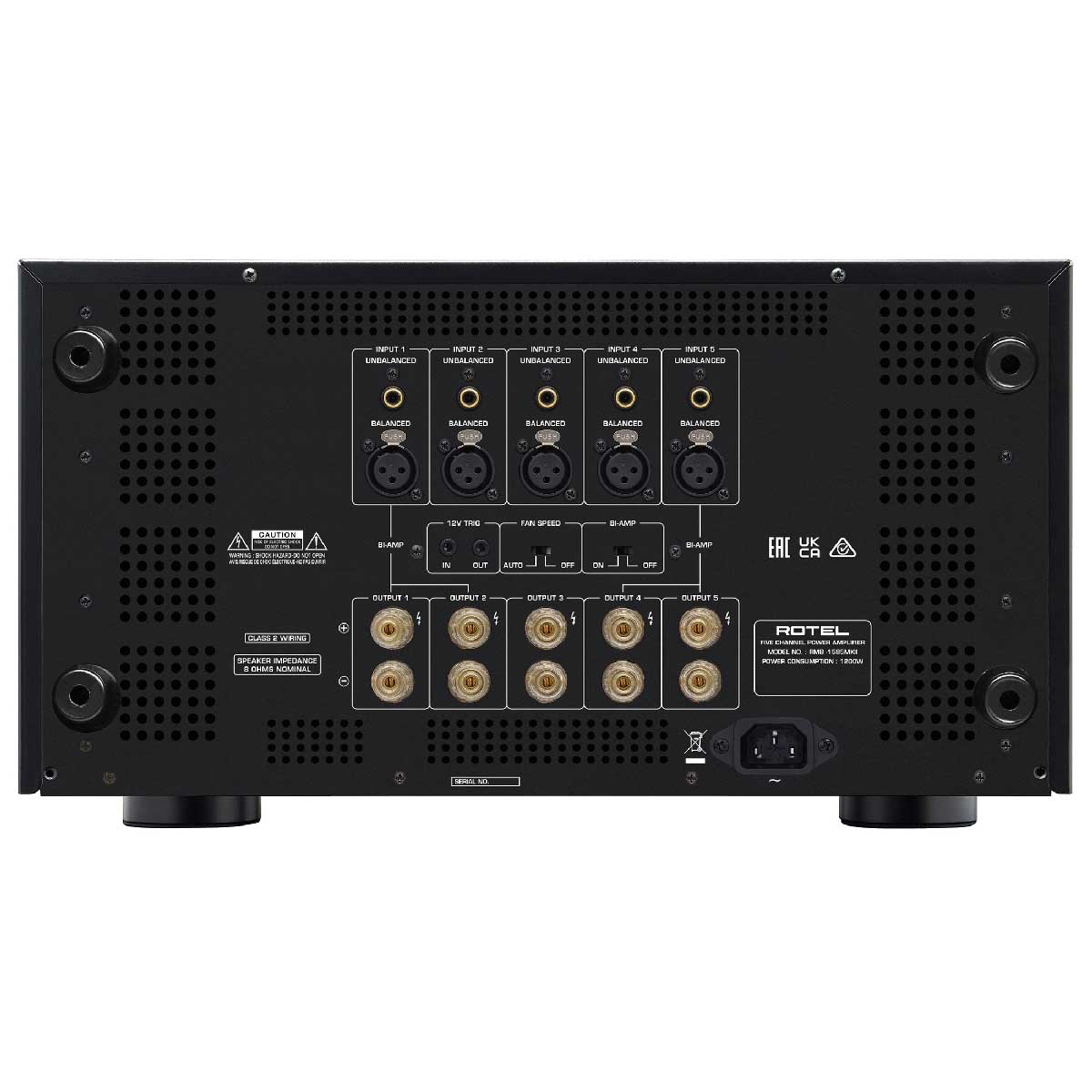

- Balanced XLR inputs
- 12 volt trigger input and output
- High quality slit foil capacitors
- Optional rack ears available
Following Rotel’s updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

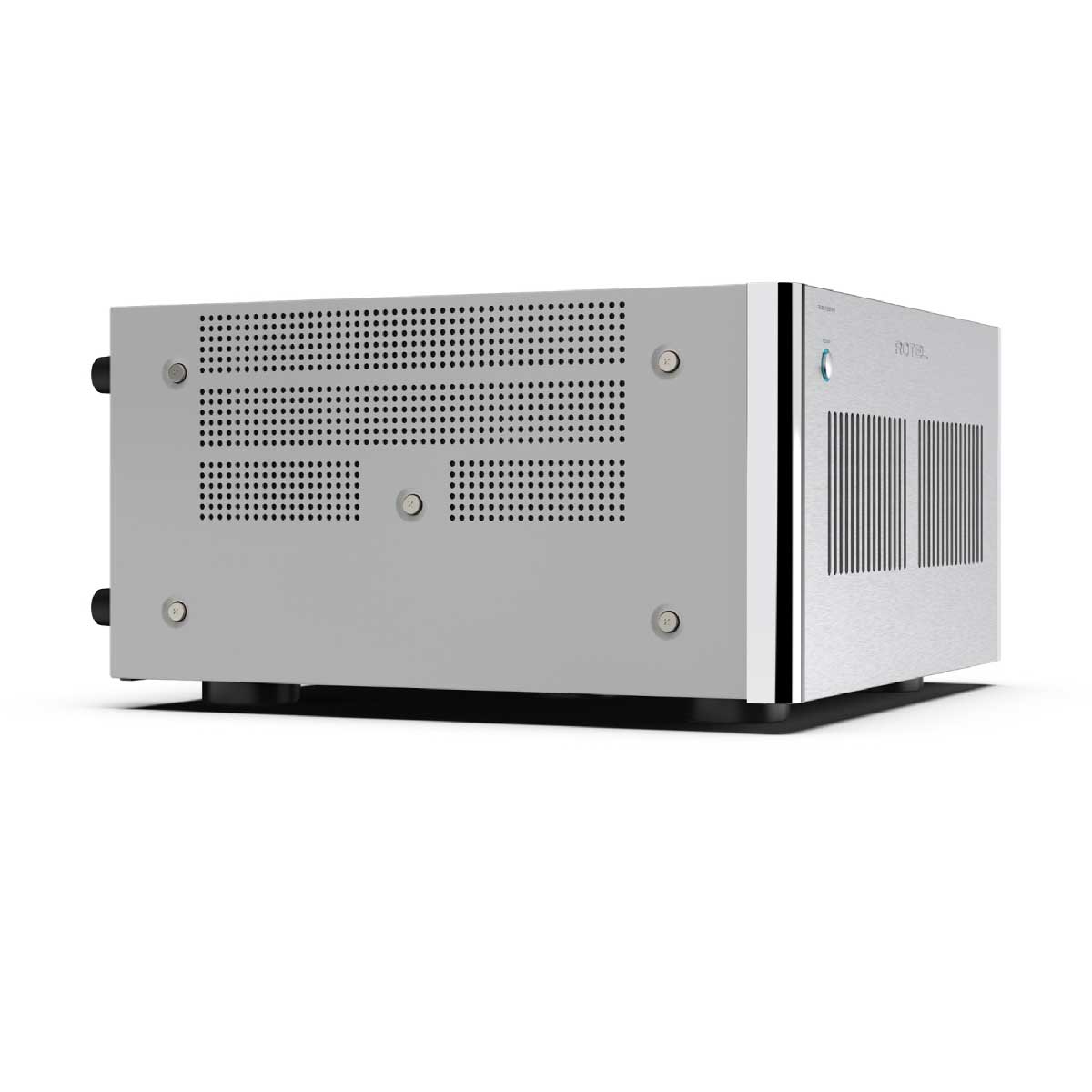

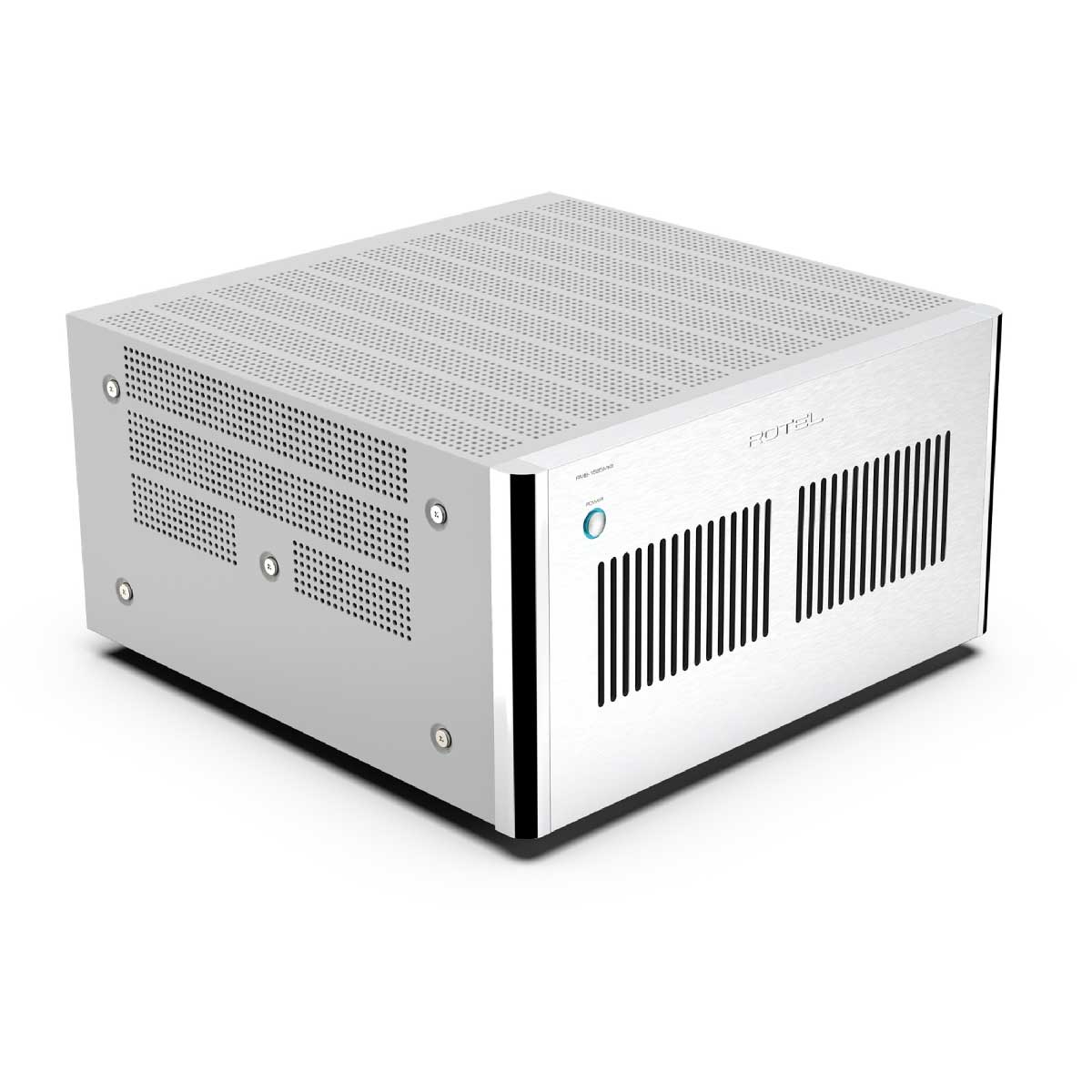

The RMB-1585MKII is available in both black and silver colors.
Specifications
- DIMENSIONS (W × H × D): 431 × 237 × 456 mm
- FRONT PANEL HEIGHT: 5U / 221 mm (8.75″)
- POWER REQUIREMENTS: 120 V, 60 Hz
- POWER CONSUMPTION: 1200 W
- NET WEIGHT: 37.4 kg (82 lbs.)
- BTU RATING (4 Ω, 1/8th power): 3317 BTU/h
- FTC POWER OUTPUT
- 230 W/Ch (5 channels driven, 8Ω)
- 270 W/Ch (2 channels driven, 8Ω)
- POWER OUTPUT
- 210 W/Ch (5 channels driven, 8Ω)
- 340 W/Ch (5 channels driven, 4Ω)
- 440 W/Ch (2 channels driven, 4Ω)
- TOTAL HARMONIC DISTORTION (THD): <0.03%
- FREQUENCY RESPONSE: 10H z – 100 kHz, +0.1 dB, -0.3 dB
- SIGNAL TO NOISE RATIO (A Weighting): 120 dB
- GAIN: 26.9 dB
- INTERMODULATION DISTORTION (60 Hz:7 kHz, 4:1): <0.03%
- DAMPING FACTOR (1kHz, 8Ω): 223
- CROSSTALK/ SEPARATION: > 55 db
- INPUT SENSITIVITY
- Unbalanced: 1.89 V
- Balanced: 4.7 V
- INPUT IMPEDANCE
- Unbalanced: 12 kΩ
- Balanced: 50 kΩ
