Description
Rotel CD11 Tribute CD Player
The Rotel CD11 Tribute CD Player is a long legacy of CD players. Rotel has been designing and manufacturing CD players since the RCD-855 was launched in 1989 and has never looked back since.
View Owners Manual >> View Specifications >>
Features

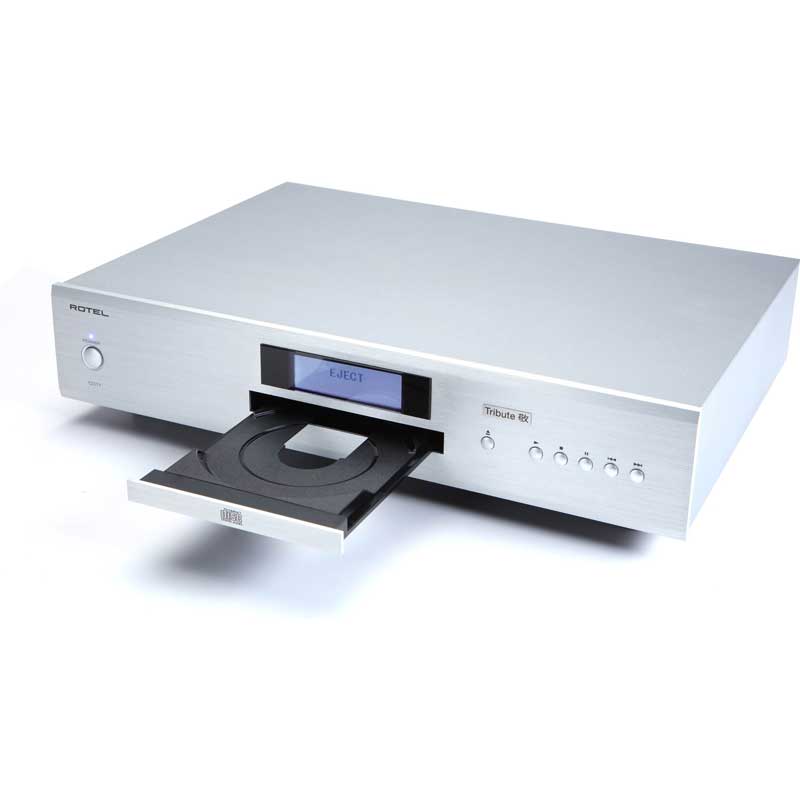

- Tray loading CD mechanism

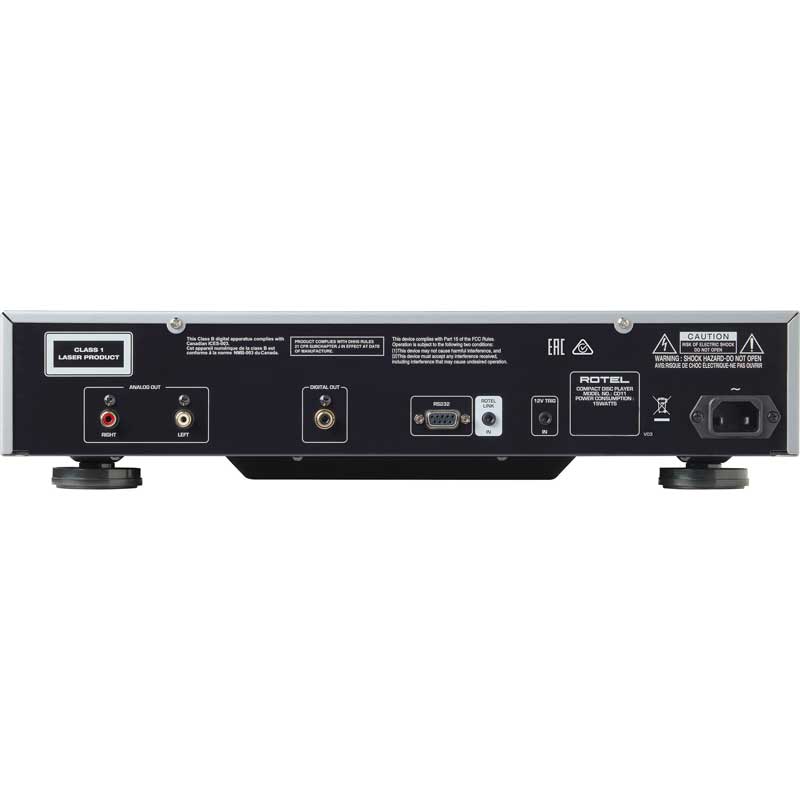

- Outputs including RCA analogue and Coaxial digital
- Texas Instruments 24 bit 192kHz DAC
- RS232 and 12V trigger input
- Front panel display and IR Remote
The opportunity of engaging with audio legend Ken Ishiwata to create an even higher performance model of the successful CD11 was eagerly accepted by the Rotel design teams. With over 40 years of audio engineering experience Ken’s collaboration with Rotel created something truly special – the CD11 Tribute edition.
The CD11 Tribute includes critical changes to the power supply, DAC circuits and precise selection of components in the audio signal path delivering an increased sense of space, improved accuracy, detail, and genuineness of the audio.
Supporting RCA analog and coaxial digital outputs, front panel display and a remote control, the CD11 Tribute continues the proud tradition of Rotel and is reflective of the legacy of Ken and his tireless efforts delivering audio products preforming well beyond their price point.
Specifications
DIMENSIONS (W × H × D)
430 × 98 × 314mm
17″ × 3.8″ × 12.4″
FRONT PANEL HEIGHT
80mm (3.15″)
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
15W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
5.8kg (12,7lbs.)
BTU RATING
40 BTU/h
TOTAL HARMONIC DISTORTION (THD)
0.009% @ 1kHz
FREQUENCY RESPONSE
20Hz – 20kHz ±0.5dB
S/N RATIO (IHF “A” Weighted)
>125dB
DYNAMIC RANGE
>99dB
DIGITAL TO ANALOG CONVERTERS
Texas Instruments
CHANNEL BALANCE
±0.5dB
CHANNEL SEPARATION
>115dB @ 10kHz
