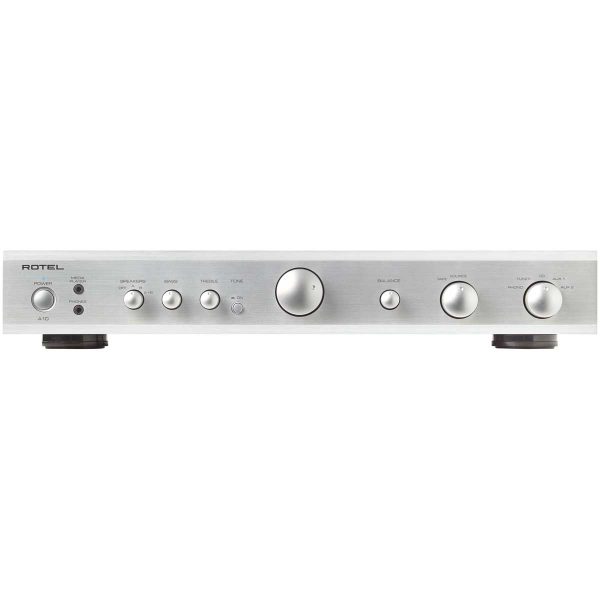

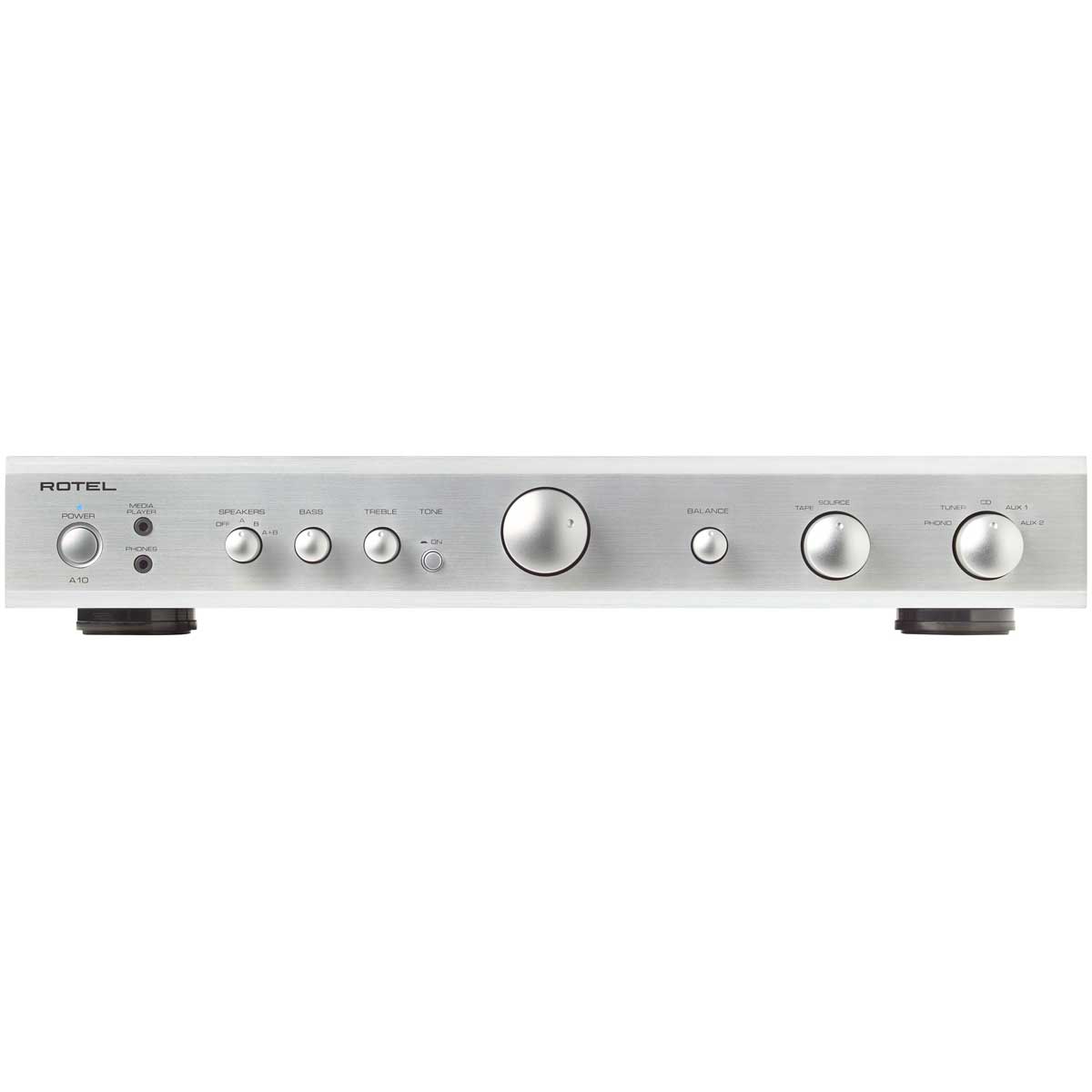

Rotel A10 Integrated Amplifier
The Rotel A10 Integrated Amplifier is based on the classic Rotel Class AB analog integrated amplifier, designed for music lovers everywhere.
The architecture of the A10 is a perfect match for turntables, with an MM phono input being available on all Rotel amplifier models. This efficiently designed amplifier is all about performance – processing audio entirely in the analog domain to provide hours of listening enjoyment.
View Owners Manual >> View Specifications >> View Rotel >>
Review
Stereonet Australia & New Zealand
“An impressive little bit of kit… Indeed, I was in no rush to swap it out – and found myself forgetting the amplifier’s price tag as soon as I cued up the music. That’s honestly not something you can say about most sub-$1,000 AUD designs. ”
– Mark Gusew
Features
- 2 × 40 Watts of robust power
- Class AB amplifier design
- High current power supply
- Moving magnet phono input for turntable connection
The Rotel A10 Integrated Amplifier is great if you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the A10 integrated amplifier.
If you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the A10 integrated amplifier. The A10 is all about maximum performance for the price. Its design strips away added features that increase the overall cost and can detract from your musical enjoyment.

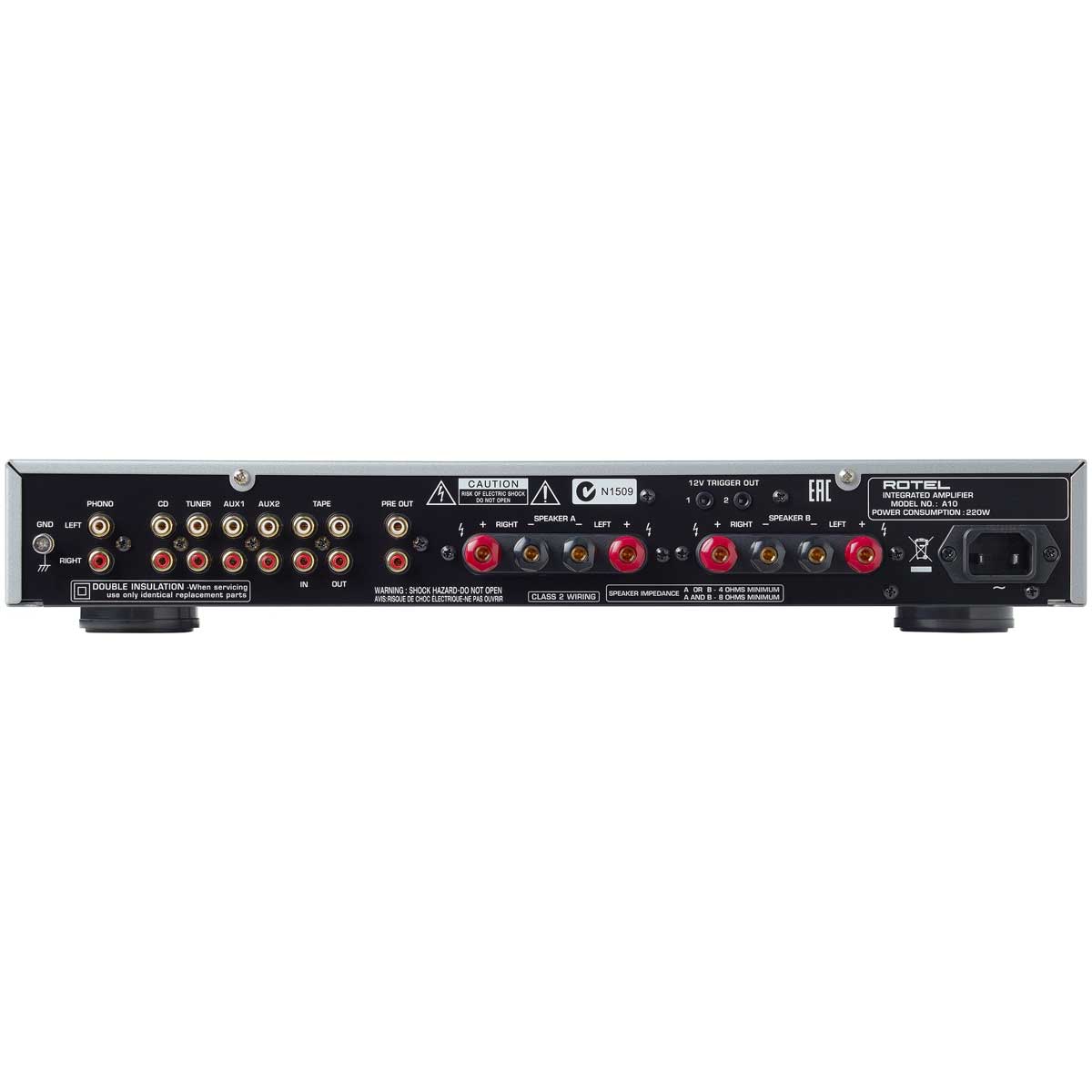

Simple to operate and a pleasure to listen to, the A10 has connectivity for all your listening sources including an analogue media input (3.5mm mini-jack) for iOS devices or other media players, a CD input, a MM phono input in case your taste runs to classic LPs, a Tuner input to listen to your favourite radio stations and two auxiliary inputs for other analogue source devices.
Specifications
- Dimensions (W × H × D): 430 × 72 × 342mm
- Front Panel Height: 60mm (2.36″)
- Power Requirements: 230V, 50Hz
- Power Consumption: 220W
- Net Weight: 5.9kg (13lbs.)
- BTU Rating (4Ω, 1/8th power): 311 BTU/h
- Continuous Power Output: 40W/Ch (All channels driven, 8Ω)
- Total Harmonic Distortion (THD): (20Hz–20kHz) <0.03%
- Frequency Response
- Line Level Inputs: 10Hz – 40kHz ±1dB
- Phono Input: 20Hz – 15kHz ±0.3dB
- S/N Ratio (IHF “A” Weighted)
- Line Level Inputs: 100dB
- Phono Input: 80dB
