The Chassis
Starting with the chassis, Pro-Ject have crafted the X1 from MDF, rather than standard particle boards resulting in a better sounding and feeling turntable. This chassis is then finished with 8 layers of painting and a hand-polished finish, designed to look good and remain looking good, especially when compared to the commonly used foil painting techniques.
The Motor
The chassis houses a sophisticated DC/AC generator board which, combined with the convenient speed control board, delivers clean and stable power to the quiet-running motor. For improved performance the motor is decoupled from the main plinth using a new motor suspension system.
The Sub-platter
In the X1, the motor drives a new, heavy, non-resonant Acryl platter via a sub-platter drive system and a premium grade main bearing for liquid smooth rotation. This is the perfect platform on which to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.

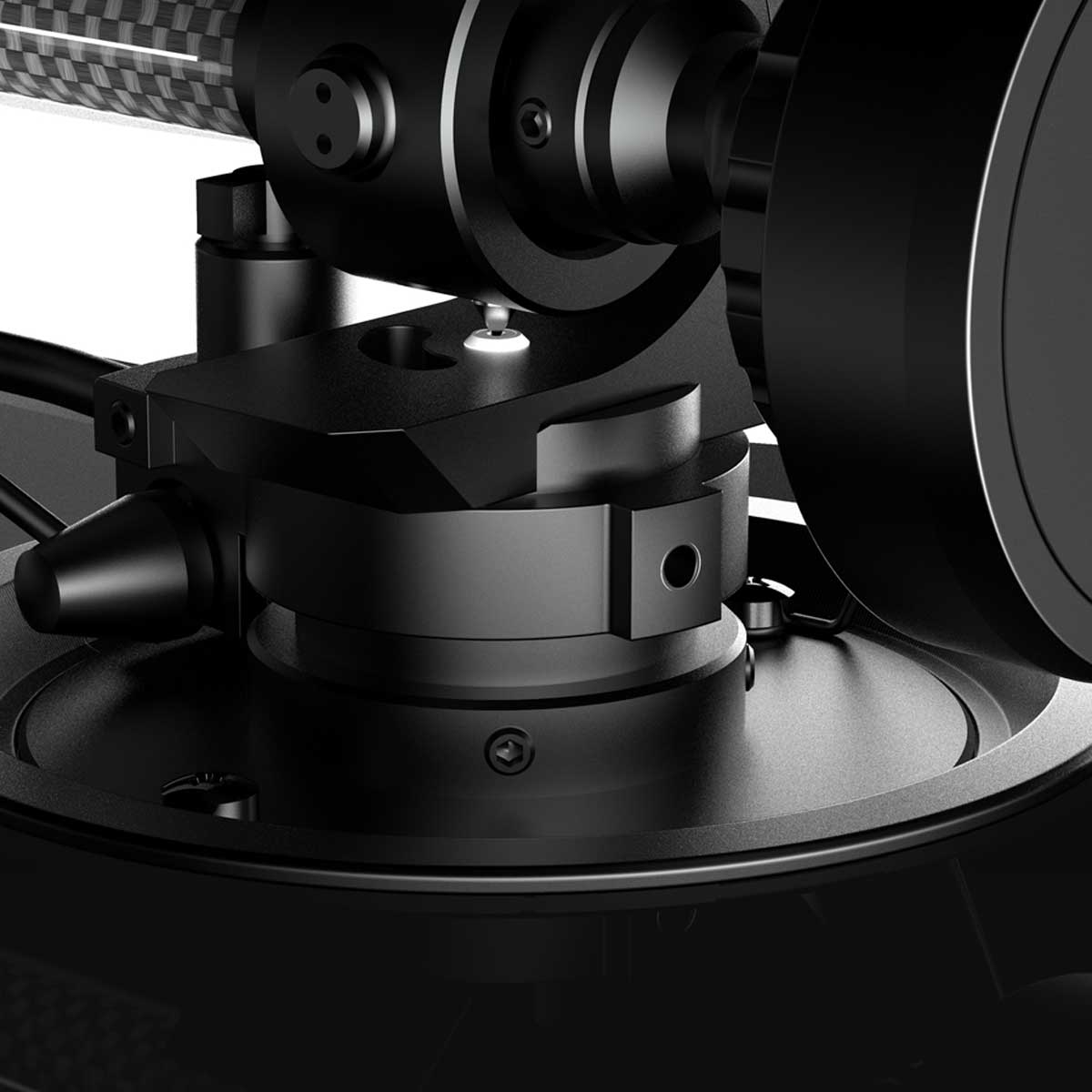

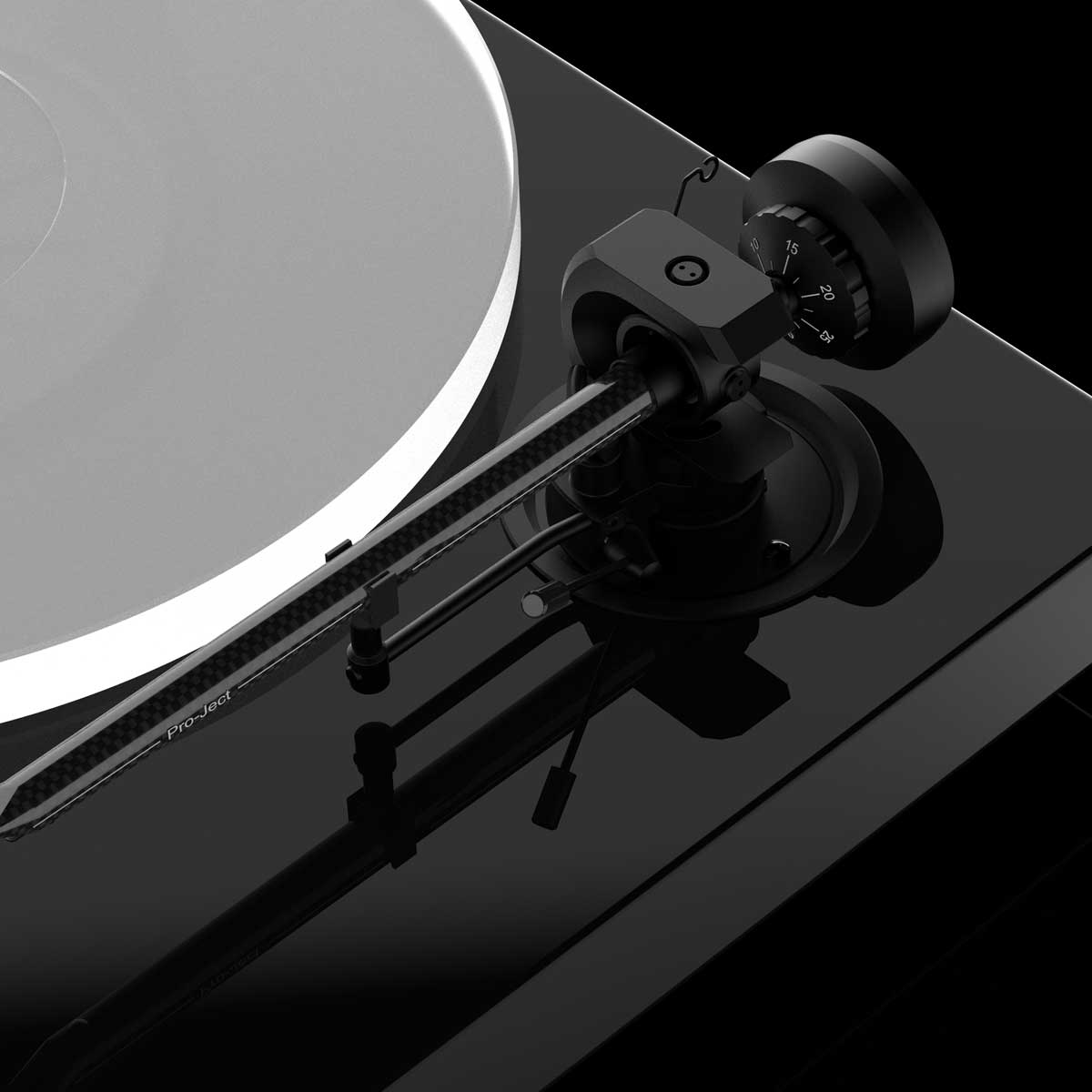

The Tonearm
The X1 is also better than its predecessors thanks to the super-stiff, perfectly tempered Carbon/Alu sandwich construction tonearm. This new 8.6” tonearm design is incredibly light and stiff, with improved resistance to external interference. Finished as one-piece, with a non-resonance-inducing headshell, the X1 tonearm can also be set for azimuth and VTA adjustment, offering the flexibility that so many people are asking for. The tonearm is then supplied with a TPE-damped counterweight, further reducing cartridge-tonearm resonances.
WHATS IN THE BOX
- T1 with Ortofon OM 5E cartridge
- Directly soldered Connect it E Phono Cable
- Felt mat
- Dust cover
- Adapter for 7“ singles
- Power supply
- Allen key, stylus pressure gauge
FEATURES

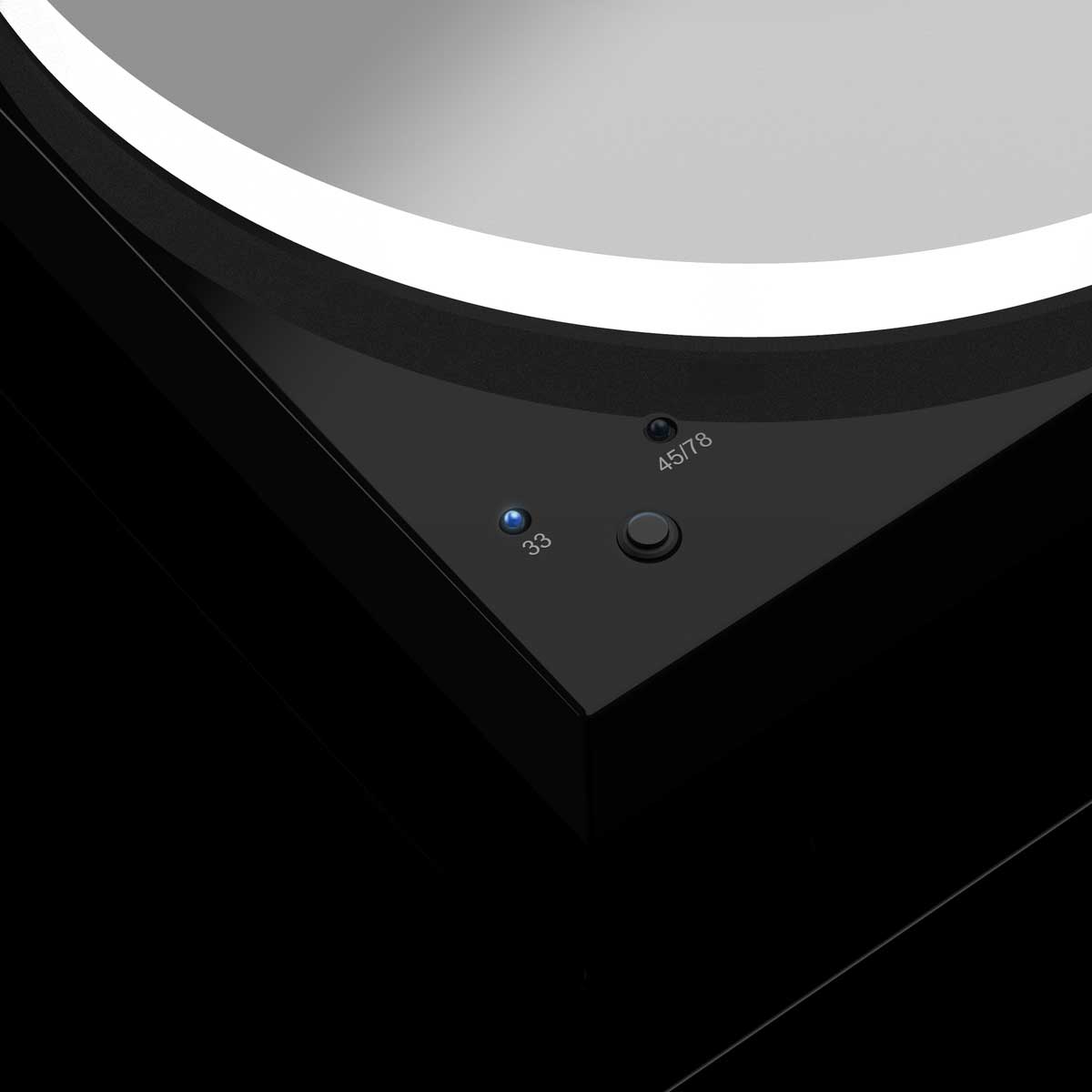

- Speed control with electronic speed switch, delivering the ultimate speed stability
- Resonance free, 1.5 kg heavy acrylic platter
- 8.6” carbon/alu sandwich tonearm with internal damping and TPE damped counterweight
- Carefully isolated motor for less vibration and noise
SPECIFICATIONS
| Speed | 33, 45, 78 (electronic speed change) |
| Principle | belt drive |
| Speed variance | 33: 0.30% 45: 0.25% |
| Wow & flutter | 33: 0.15% 45: 0.13% |
| Platter | 20mm thick, 1.5 kg heavy acryl |
| Main bearing | stainless steel/brass |
| Tonearm | 8,6” carbon/aluminium sandwich |
| Effective arm length | 218,5 mm |
| Overhang | 18 mm |
| Effective tonearm mass | 10,0g |
| Tracking force range | 0 – 30mN |
| Included accessories | 15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltmat |
| Power consumption | 5,0 watts max /< 0.3 watt standby |
| Dimensions | 415 x 125 x 335 mm (WxHxD) |
| Weight | 7 kg net / 9.5 kg gross weight |
