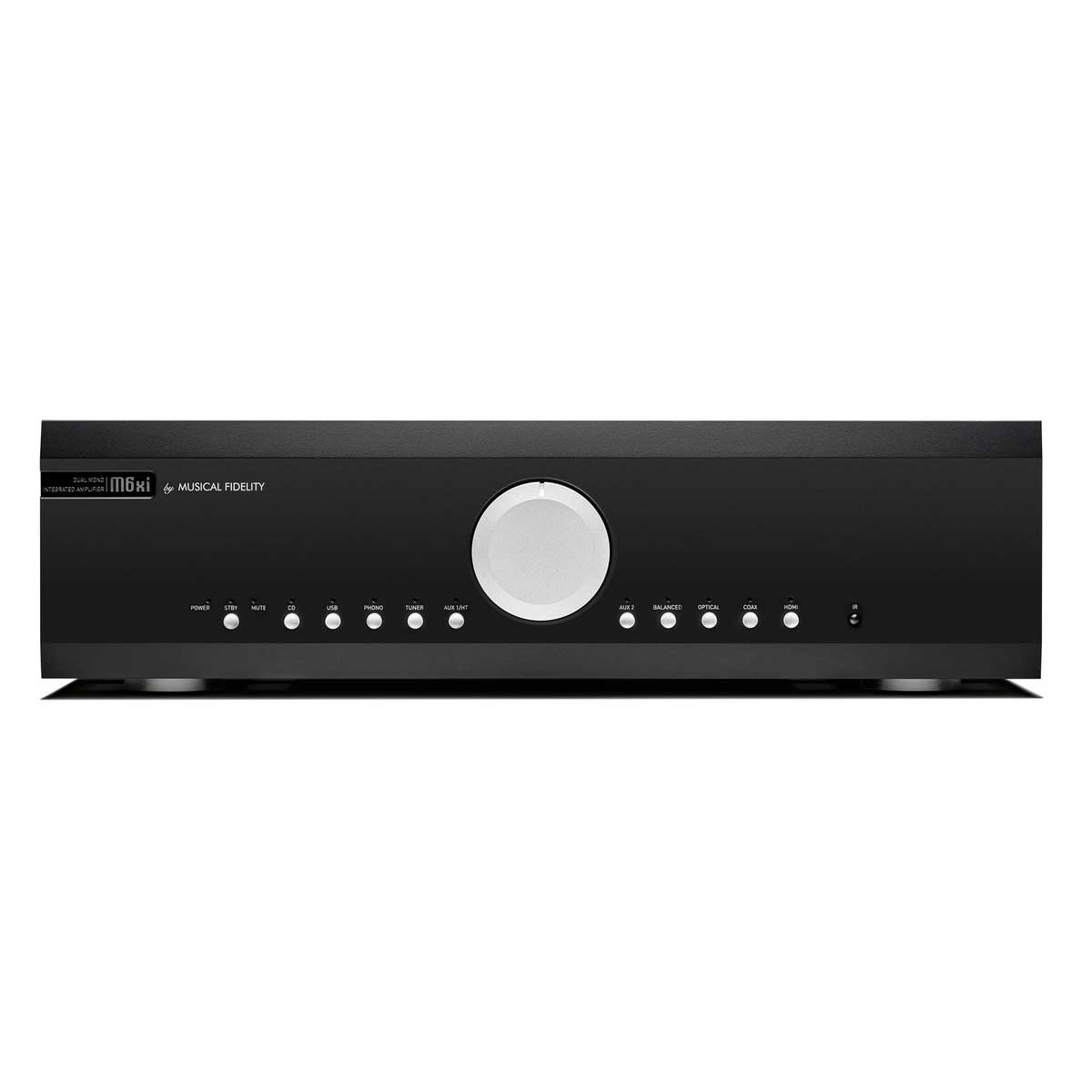

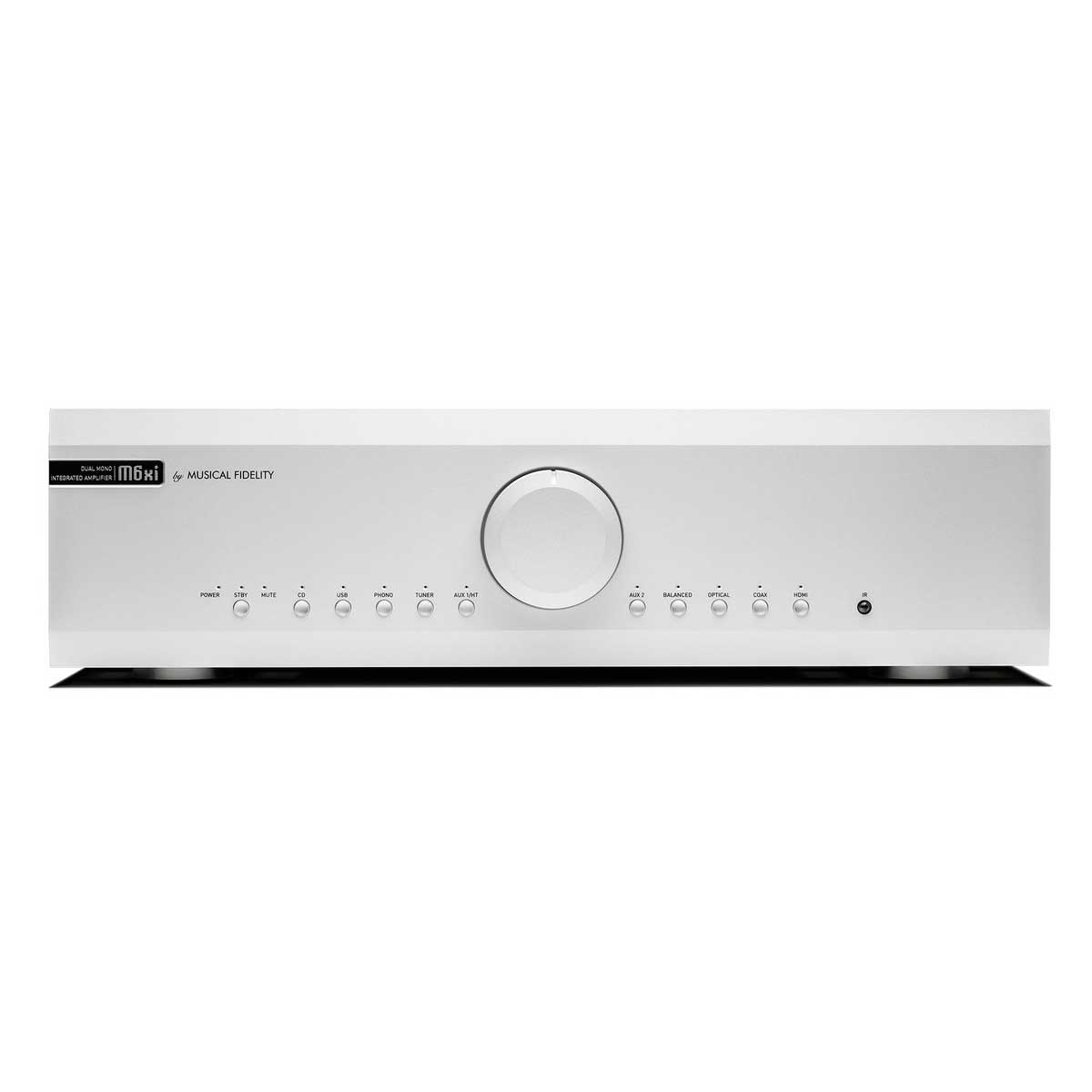

Musical Fidelity M6xi Integrated Amplifier

Description

About the Musical Fidelity M6xi Integrated Amplifier

The Musical Fidelity M6xi Integrated Amplifier uses two independent monobloc power amplifiers with a separate preamp stage in one chassis. It also includes a built-in MM/MC phono stage, USB-C 24-bit/192kHz input, HDMI eARC, optical, coaxial, balanced XLR, four RCA inputs, pre-out, fixed line out, RS232, and a 5V/2A USB-A power output for streamers.

At Rapallo, the Musical Fidelity M6xi is exactly the sort of integrated amplifier we like for customers who want serious drive, but do not want a rack full of separates.

The power output is the first thing you notice on paper. However, the real appeal is control. The M6xi has the current and headroom needed for more demanding speakers. As a result, it suits larger rooms, floorstanding speakers, and customers who enjoy dynamic listening.

We also like how practical it is. The HDMI eARC input makes TV sound simple. The MM/MC phono stage supports both moving-magnet and moving-coil cartridges. Plus, the USB-C, optical, and coaxial inputs cover digital sources without needing a separate DAC for many systems.

The design still stays true to Musical Fidelity’s core strengths. It is not a streaming amplifier. Instead, it is a powerful analogue amplifier with useful digital access built in. Therefore, it is a great match for customers who want to choose their own streamer, turntable, DAC source, or TV connection.

For NZ customers building a premium stereo system, the M6xi is a strong amplifier choice. It pairs especially well with speakers that benefit from current, grip, and scale.



View Product Brochure >> View Owners Manual >>



The Musical Fidelity M6xi Integrated Amplifier is ideal for

• Premium stereo systems
• Larger rooms
• Demanding floorstanding speakers
• Vinyl and digital source systems
• TV and music systems in one
• Customers wanting separates-level power in one chassis



What the Experts Say

• Gear Patrol covered the M6xi launch and described it as an upgraded successor to the M6si, combining a power amplifier, preamplifier, phono stage, DAC, and broad connection set in one all-metal chassis.
• eCoustics reported that the M6xi builds on the proven analogue circuit design of Musical Fidelity’s award-winning “si” series while adding expanded digital inputs and stronger system integration.



Frequently Asked Questions

1. What is the Musical Fidelity M6xi?
   The Musical Fidelity M6xi is a high-power integrated amplifier with a built-in preamp, dual-mono power amplifier design, MM/MC phono stage, DAC inputs, HDMI eARC, and analogue connectivity.
2. How powerful is the Musical Fidelity M6xi?
   Musical Fidelity rates the M6xi at 220W per channel into 8 ohms and 320W into 4 ohms at 1kHz. It is also rated at 210W per channel into 8 ohms and 300W into 4 ohms from 20Hz to 20kHz at lower distortion.
3. Does the M6xi have a built-in DAC?
   Yes, it includes digital inputs. These include USB-C, optical, coaxial, and HDMI eARC. The USB-C input supports up to 24-bit/192kHz audio.
4. Does the M6xi have a phono stage?
   Yes, it includes a built-in MM and MC phono stage. This means you can connect many moving-magnet and moving-coil turntables directly.
5. Can I connect the Musical Fidelity M6xi to my TV?
   Yes, the M6xi includes HDMI eARC. This allows compatible TVs to send audio to the amplifier through a single HDMI connection.
6. Does the M6xi have Bluetooth or built-in streaming?
   No, the M6xi does not include Bluetooth or built-in streaming. However, it includes a 5V/2A USB-A power output that can power many external streamers.
7. Can I use the M6xi in a home theatre system?
   Yes, it includes a Home Theatre bypass input. This lets the amplifier power your front left and right speakers while an AV receiver or processor controls volume for surround sound.
8. What speakers pair well with the M6xi?
   The M6xi pairs well with demanding bookshelf and floorstanding speakers. Good matches include Focal Aria Evo X, Paradigm, Triangle, ELAC, and Klipsch Heritage models.
9. Who is the Musical Fidelity M6xi best suited to?
   It is best for customers who want a powerful premium integrated amplifier for music, vinyl, digital sources, TV sound, and demanding speakers, without moving into separate preamp and power amp components.



Key Features

Serious High-Power Performance

The M6xi delivers 220W per channel into 8 ohms and 320W into 4 ohms at 1kHz. It is also rated at 210W per channel into 8 ohms and 300W into 4 ohms from 20Hz to 20kHz at 0.09% THD. Therefore, it has the power reserves needed for demanding loudspeakers and larger rooms.

Dual-Mono Amplifier Architecture

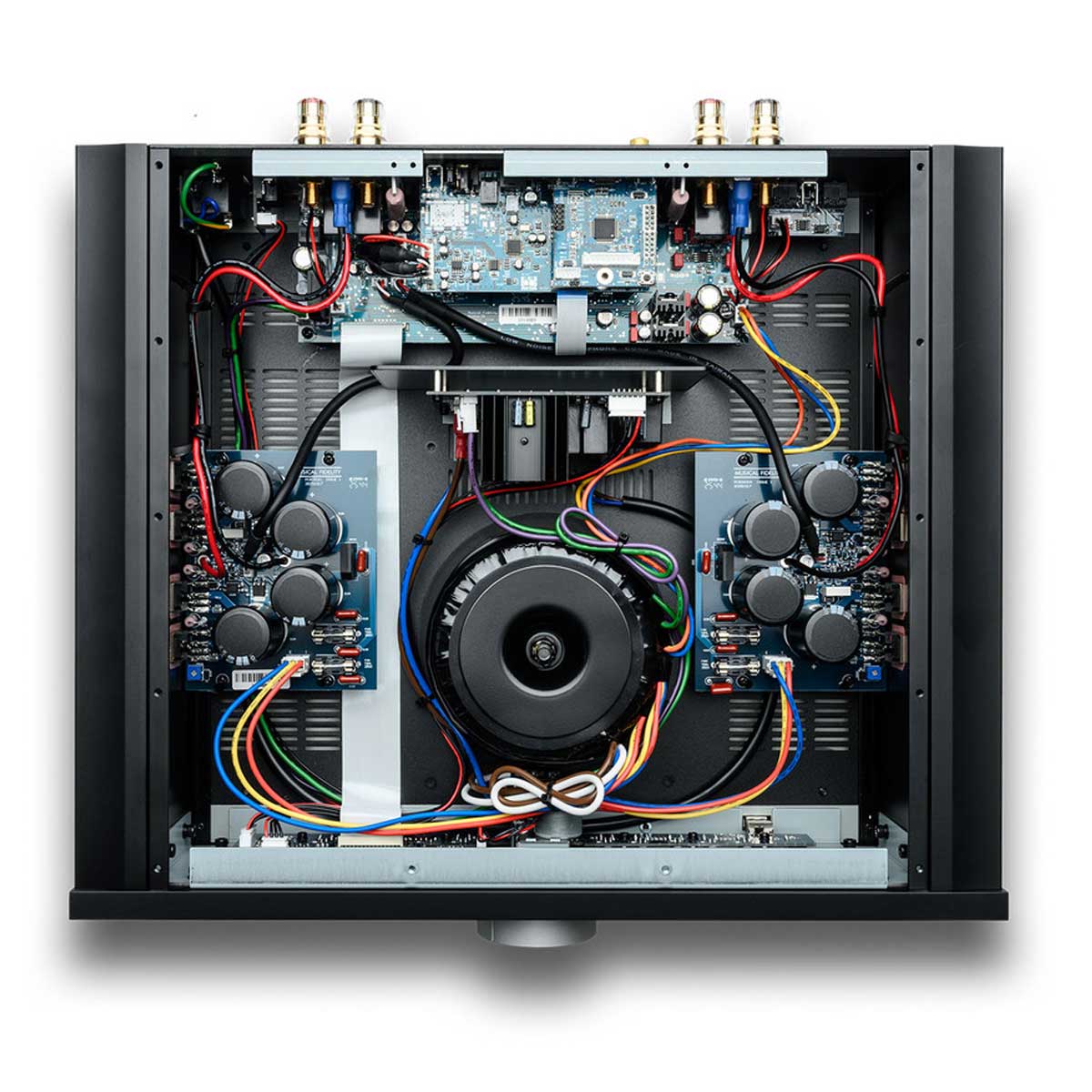

Musical Fidelity configures the M6xi as two independent monobloc power amplifiers with a separate preamp stage in the same case. This helps improve channel separation, stability, and authority.

Circuitry Derived from TITAN

The amplifier uses technology derived from Musical Fidelity’s TITAN power amplifier. It includes a low-distortion Darlington output stage designed to avoid crossover artefacts while preserving musical detail.

Built-In MM/MC Phono Stage

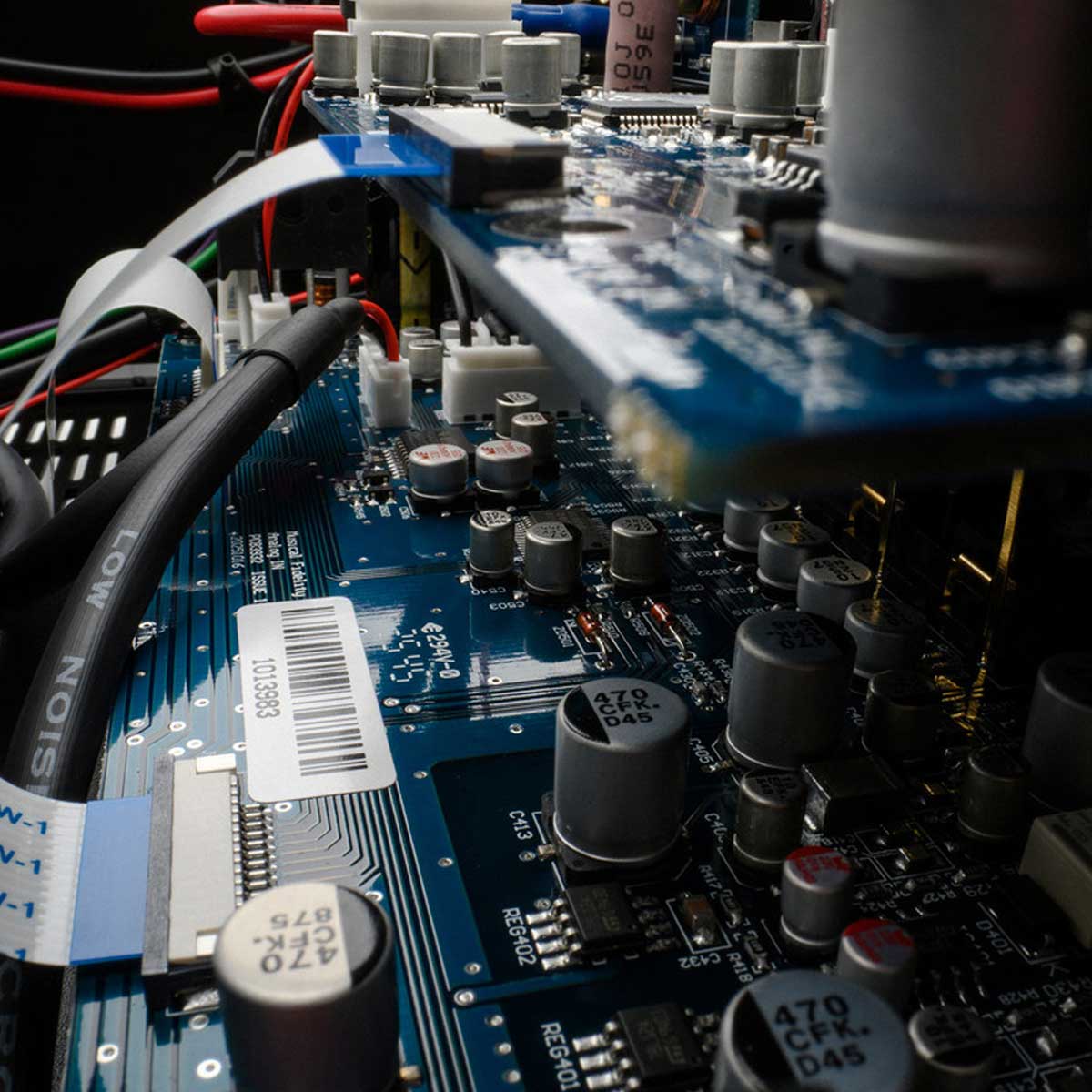

The M6xi includes an upgraded MM and MC phono stage with improved PCB layout, shielding, and isolation. As a result, vinyl listeners can connect a quality turntable directly without needing an external phono preamp straight away.

HDMI eARC for TV Audio

The HDMI eARC input makes it easy to connect a compatible TV. Therefore, the M6xi can work as the heart of a premium stereo TV and music system, especially when paired with capable floorstanding speakers.

High-Resolution Digital Inputs

The M6xi includes USB-C, optical, and coaxial digital inputs. The USB-C input supports up to 24-bit/192kHz audio, making it suitable for computers, streamers, and compatible digital sources.

Balanced XLR Input

A balanced XLR input is included for compatible DACs, streamers, and source components. This gives the amplifier extra flexibility in premium hi-fi systems.

Home Theatre Bypass

The HT input bypasses the preamp stage. This lets the M6xi act as a high-performance front left/right amplifier inside a multichannel home theatre system.

USB-A Power Output for Streamers

A 5V/2A USB-A power output can power modern external streamers. Musical Fidelity states this output has its own transformer winding and linear power supply stage, helping simplify setup and reduce power supply clutter.

Heavy Aluminium Chassis

The front and side panels are milled from extruded aluminium profiles. Musical Fidelity also describes the chassis as helping protect the internal circuits from electromagnetic interference.



Suggested System Pairing

• Speakers: Focal Aria Evo X N°3, Focal Aria Evo X N°4, Paradigm Founder, ELAC Vela, or Klipsch Heritage models
• Streamer: Eversolo, WiiM Ultra, Bluesound, or Naim
• Turntable: Dual, Pro-Ject, Denon, or Audio-Technica with MM or MC cartridge
• Subwoofer: SVS SB-2000 Pro, SVS SB-3000, or Focal Sub 1000 F
• TV: HDMI eARC connection for a premium stereo TV system



Product Comparison Snapshot

Model	Best For	Key Difference
Musical Fidelity M5xi	Smaller premium systems	Lower power output, similar modern connectivity
Musical Fidelity M6xi	Larger rooms and demanding speakers	More power, stronger drive, higher system authority
Musical Fidelity M6si	Earlier M6 integrated systems	Older platform without the same modern connectivity
Separate pre/power system	Maximum system flexibility	More boxes, more cabling, higher upgrade complexity





Specifications

Brand: Musical Fidelity
Model: M6xi
Product Type: Integrated Amplifier

Amplifier Design
Fully analogue amplifier design
Dual-mono architecture
2 independent monobloc power amplifiers with separate preamp stage

Amplifier Platform
Circuitry derived from Musical Fidelity TITAN amplifier

Output Power, 1kHz, 1% THD
220W per channel into 8 ohms
320W per channel into 4 ohms

Output Power, 20Hz–20kHz, 0.09% THD
210W per channel into 8 ohms
300W per channel into 4 ohms

Peak Power, 1kHz, 1% THD
280W per channel into 8 ohms
450W per channel into 4 ohms

Peak Current
45A peak-to-peak

Damping Factor
49 into 8 ohms

Output Devices
2 pairs per channel

Line Input Performance
THD+N: <0.007% typical, 20Hz–20kHz
Signal-to-noise ratio: >107dB, A-weighted
Input impedance: 40k ohms
Frequency response: +0 / -0.1dB, 10Hz–20kHz

Phono Stage
MM and MC phono input
Improved PCB layout, isolation, and shielding

Phono Sensitivity
3mV MM
0.4mV MC
For 300mV nominal output

Phono Gain
40dB MM
60dB MC

Phono Signal-to-Noise Ratio

87dB, A-weighted

Phono Input Capacitance
220pF

Phono Input Impedance
50k ohms MM
1k ohm MC

Phono Frequency Response
RIAA / IEC ±0.4dB, 20Hz–20kHz

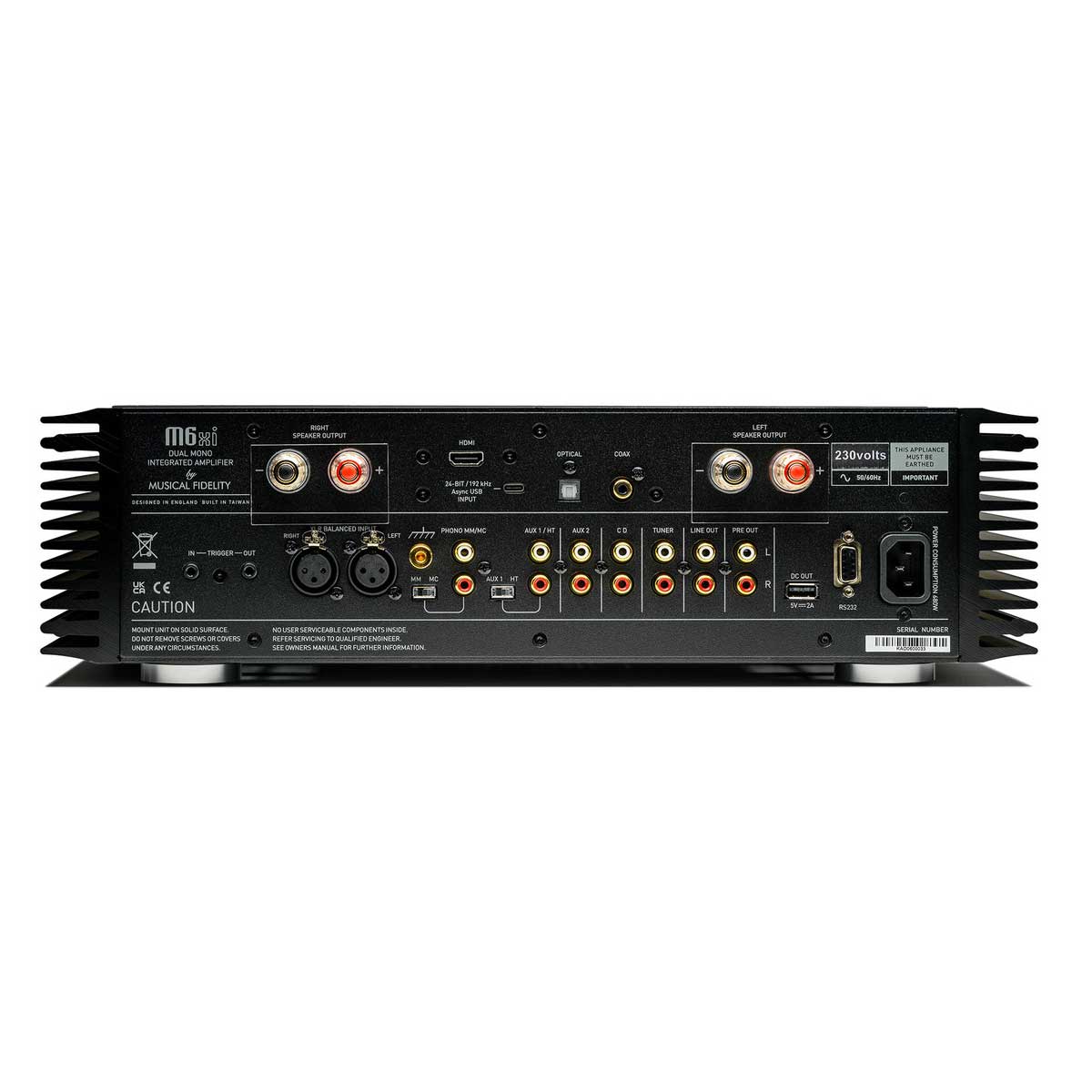

Analogue Inputs
4 x RCA line-level inputs
1 x balanced XLR line-level input
1 x MM/MC phono input
Home Theatre bypass input

Digital Inputs
1 x HDMI eARC input
1 x coaxial digital input
1 x optical digital input
1 x USB-C input, up to 24-bit/192kHz

Outputs
1 x fixed RCA line output / tape output
1 x variable RCA preamp output
2 pairs speaker outputs, 4mm banana / binding posts

Streamer Power Output
1 x USB-A 5V/2A power output

Control
RS232 D-sub connector
Trigger control noted in launch coverage

Power Supply
Oversized encapsulated toroidal transformer
Analogue power supplies during operation
Separate digital and ARC boards with separate power supply stages

Power Requirement
115 / 230V AC, 50 / 60Hz, factory preset
100V AC, 50 / 60Hz alternative

Maximum Power Consumption
680W

Dimensions
440mm (W) x 125mm (H) x 400mm (D)

Weight
18.5kg unpacked
22kg packed

Finish
Black
Silver

MPN: M6XI

SKU: MF-M6XI

EAN / UPC / GTIN: Not publicly published
