Integra DRX-8.4 11.4 Channel Network AV Receiver

Description

About the Integra DRX-8.4 11.4 Channel Network AV Receiver

The Integra DRX-8.4 11.4 Channel Network AV Receiver combines 11 channels of built-in amplification, 11.4-channel processing, 150 watts per channel, Dirac Live Full Bandwidth room correction, HDMI 2.1, 8K/60Hz and 4K/120Hz video support, Dolby Atmos, DTS:X, IMAX Enhanced, Auro-3D, Roon Ready, AirPlay 2, Chromecast built-in, Works with Sonos, XLR connectivity, and a full suite of custom-integration tools.

Integra lists the DRX-8.4 with 11 amplifier channels, 11.4-channel RCA pre-outs, two independent subwoofer channels plus two parallel subwoofer outputs, and 7.2.4 system capability.

What We Think

The Integra DRX-8.4 is the AVR for customers who want serious home theatre power, advanced room correction, and strong custom-install flexibility in one box.

The biggest strength is the combination of 11 powered channels and 7.2.4 capability. That means the DRX-8.4 can power a complete Dolby Atmos or DTS:X theatre layout with front, centre, surround, rear surround, and four height channels. It is a proper step up from 9-channel AV receivers that need an extra power amp for 7.1.4 or 7.2.4.

We also like the room correction platform. Dirac Live Full Bandwidth is included, covering 20Hz to 20kHz. Dirac Live Bass Control is also ready as an optional upgrade, which is important for customers running more than one subwoofer. Integra specifies two independent subwoofer channels plus two parallel subwoofer outputs, so the DRX-8.4 is well suited to properly managed multi-sub cinema rooms.

The DRX-8.4 also makes sense for professional installs. It has IP control, web setup, onboard HDMI diagnostics, OvrC, Domotz, Luxul Pro Watch support, a robust API, and control drivers developed from integrator feedback. For Rapallo cinema projects, that matters because setup, servicing, diagnostics, and long-term support are just as important as the spec sheet.

For NZ customers building a premium cinema room, the DRX-8.4 is a strong option if you want a powerful AVR with HDMI 2.1, Dirac, high-end DACs, XLR connectivity, streaming, and custom installation control.



View Specifications >> View Integra >>



The Integra DTM-7.4 Is Ideal For

• Premium home theatre rooms
• Full 7.2.4 immersive audio systems
• Dolby Atmos and DTS:X systems
• IMAX Enhanced playback
• Multi-subwoofer cinema rooms
• Customers wanting Dirac Live Full Bandwidth included
• Custom AV installations
• Rack-mounted home theatre systems
• 8K-ready and 4K/120Hz gaming systems
• Customers wanting XLR pre-outs and serious AVR flexibility



Frequently Asked Questions

1. What is the Integra DRX-8.4?
   The Integra DRX-8.4 is a flagship 11.4-channel network AV receiver with 11 amplifier channels, HDMI 2.1, Dirac Live room correction, ESS Sabre DACs, immersive audio support, streaming and custom-install control.
2. How many channels does the DRX-8.4 power?
   The DRX-8.4 has 11 built-in amplifier channels. This allows it to power up to a 7.2.4 immersive speaker layout without needing an extra amplifier.
3. What speaker layout can the DRX-8.4 run?
   It supports up to 7.2.4 configurations. That means front left / centre / right, side surrounds, rear surrounds, four height speakers and subwoofers.
4. How much power does the DRX-8.4 have?
   Integra rates it at 150 watts per channel into 8 ohms, from 20Hz to 20kHz, at 0.08% THD, with 2 channels driven.
5. Does the DRX-8.4 include Dirac Live?
   Yes. Dirac Live Full Bandwidth is included and covers 20Hz to 20kHz.
6. Does the DRX-8.4 include Dirac Live Bass Control?
   Dirac Live Bass Control is ready as an optional user upgrade. It is not listed as included in the official Integra spec sheet.
7. How many subwoofers can I connect?
   The DRX-8.4 has four subwoofer outputs. Integra specifies two independent subwoofer channels plus two parallel outputs for connection convenience.
8. Does the DRX-8.4 support HDMI 2.1?
   Yes. It has HDMI 2.1 signal paths with six 40Gbps inputs capable of 8K/60Hz and 4K/120Hz, plus 7 total HDMI inputs, 3 HDMI outputs and eARC.
9. Does the DRX-8.4 support Dolby Atmos and DTS:X?
   Yes. It supports Dolby Atmos, DTS:X, IMAX Enhanced, Dolby Atmos Music and Auro-3D firmware support.
10. Does the DRX-8.4 support Roon?
    Yes. Integra lists the DRX-8.4 as Roon Ready.
11. Does the DRX-8.4 have XLR connections?
    Yes. It has a stereo XLR input and XLR pre-outs for left, centre, right, subwoofer 1 and subwoofer 2.
12. Can I use external power amplifiers with the DRX-8.4?
    Yes. The DRX-8.4 includes 11.4-channel RCA pre-outs, plus selected XLR pre-outs. This makes it easy to add external power amplification.
13. Is the DRX-8.4 good for custom installation?
    Yes. It is built for custom integration with web setup, IP control, HDMI diagnostics, EDID / HDCP tools, OvrC Pro, Domotz, Luxul Pro Watch, API control and custom drivers.
14. Who is the Integra DRX-8.4 best suited to?
    It is best for customers building a premium 7.2.4 home theatre system who want strong built-in amplification, Dirac Live, HDMI 2.1, XLR connectivity, high-quality DACs and custom-install support.



Key Features

11 Channels of Built-In Amplification

The DRX-8.4 includes 11 amplifier channels. Integra rates the amplifier section at 150 watts per channel into 8 ohms, from 20Hz to 20kHz, at 0.08% THD, with 2 channels driven. This gives it serious power for a full immersive speaker layout.

7.2.4 Home Theatre Capability

The DRX-8.4 supports 11.4-channel processing for up to 7.2.4 configurations. That makes it ideal for Dolby Atmos, DTS:X, IMAX Enhanced, Dolby Atmos Music, and Auro-3D home theatre layouts.

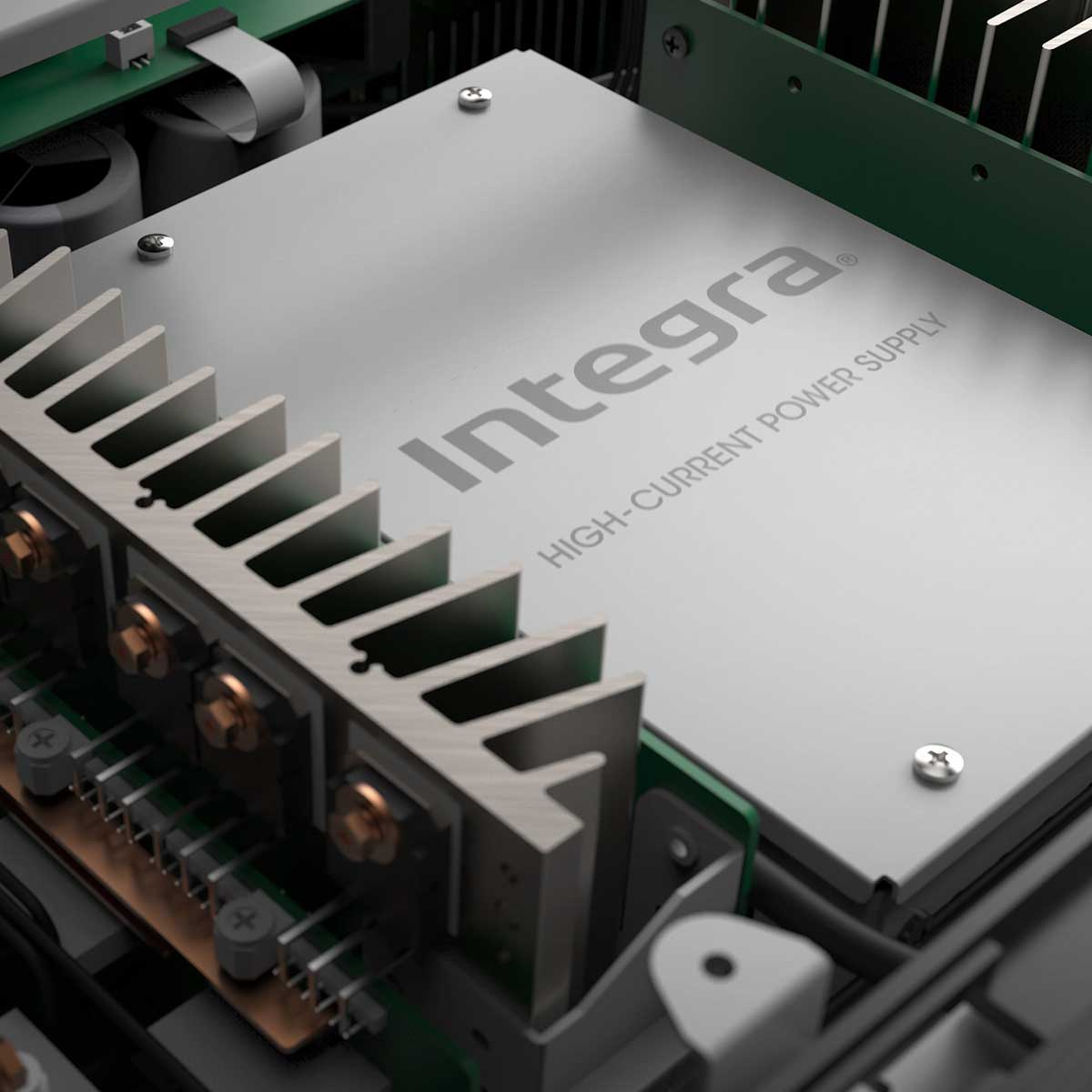

Symmetric Class A/B Amplifier Design

Integra uses an all-new symmetric Class A/B amplifier design, with an engineered chassis and audio signal path designed for lower noise and improved signal clarity. This gives the DRX-8.4 a more serious amplifier platform than many mainstream AV receivers.

Dual ESS Sabre DACs

The DRX-8.4 uses two precision 32-bit ESS ES9026PRO Hyperstream audiophile DACs. Integra positions this as part of its studio-grade processing platform, designed for wide dynamic range and low distortion.

Dirac Live Full Bandwidth Included

Dirac Live Premium Full Bandwidth is included and covers 20Hz to 20kHz. It can be set up using the Dirac PC / Mac app with an optional USB microphone, or through the Integra mobile app with the included wired microphone.

Dirac Live Bass Control Ready

Dirac Live Bass Control is available as an optional user upgrade. It is designed to improve bass integration, crossover blending, and subwoofer behaviour, especially in rooms using multiple subwoofers.

Four Subwoofer Outputs

The DRX-8.4 has two independent subwoofer channels plus two parallel outputs. This gives useful connection flexibility for larger cinema rooms and multi-subwoofer systems.

HDMI 2.1 with 8K/60 and 4K/120

Integra lists newly designed HDMI 2.1 signal paths with six 40Gbps inputs capable of 8K/60Hz and 4K/120Hz. The receiver has a total of 7 HDMI inputs and 3 HDMI outputs, with eARC support.

Modern Gaming and Video Support

The DRX-8.4 supports HDMI 2.1 video features that suit modern gaming and home theatre systems. Audioholics notes support for HDR10, HDR10+, Dolby Vision, VRR, ALLM and HDCP 2.3.

Dolby Atmos, DTS:X, IMAX Enhanced and Auro-3D

The DRX-8.4 supports major immersive formats, including Dolby Atmos, DTS:X, IMAX Enhanced, Dolby Atmos Music and Auro-3D through firmware support. This makes it suitable for premium theatre rooms and immersive music playback.

XLR Connectivity

The DRX-8.4 includes XLR pre-outs for left, centre, right, subwoofer 1 and subwoofer 2, plus a stereo XLR input. This is useful for long cable runs, premium power amps, high-end processors, and larger installation projects.

Roon Ready and Network Streaming

The DRX-8.4 supports Roon Ready, Chromecast built-in, AirPlay 2, Spotify, Amazon Music HD, TIDAL, Deezer, Pandora and TuneIn. It is also Works with Sonos Certified.

aptX HD Bluetooth Transmitter

The DRX-8.4 includes aptX HD Bluetooth transmitter support for personal listening. This is useful when sending audio to compatible Bluetooth headphones.

Custom Integration Tools

The DRX-8.4 includes an advanced web app, backup and recall of AVR settings, IP responsiveness through a quad-core network processor, OvrC, Domotz, Luxul Pro Watch, VPN monitoring compatibility, onboard diagnostics, EDID / HDCP adjustment, virtual remote, API control and custom drivers.

Optional Rack Mounting

Integra lists the optional IRK-180-4C rack kit for the DRX-8.4. This makes it suitable for rack-based home theatre and custom AV installations.

---

Perfect System Match

A strong match would be the Integra DRX-8.4, a full 7.2.4 speaker system, and two quality subwoofers.

For a high-performance cinema system, pair the DRX-8.4 with Paradigm, Focal, Bowers & Wilkins, Klipsch or SVS Ultra Evolution speakers. Add one or two SVS, REL, Paradigm or Klipsch subwoofers, then run Dirac Live Full Bandwidth room correction.

For larger rooms, use the DRX-8.4 as the system hub and add external amplification through the XLR or RCA pre-outs. This is especially useful for the front left, centre and right speakers.

---

Product Comparison Snapshot

Model	Best For	Key Difference
Integra DRX-3.4	Smaller Atmos systems	9.2-channel AVR platform with fewer amplifier channels
Integra DRX-5.4	Mid to premium home theatre systems	Strong step-up model with Dirac support and custom-install features
Integra DRX-8.4	Premium 7.2.4 cinema systems	11 powered channels, 150W/ch, ESS DACs, XLR, Dirac Full Bandwidth included
Anthem MRX 1140 8K	Premium ARC Genesis theatre systems	15.2 processing, 11 amplifier channels and ARC Genesis room correction
Marantz CINEMA 40	Premium lifestyle theatre systems	9 amplified channels, Marantz tuning, Dirac optional depending market / upgrade



Specifications

Brand: Integra

Model: DRX-8.4

Product Type: Network AV Receiver

Amplifier Channels
11 channels

Processing Channels
11.4 channels

Maximum Speaker Layout
Up to 7.2.4

Power Output
150 watts per channel
8 ohms
20Hz to 20kHz
0.08% THD
2 channels driven
FTC rating

Amplifier Design
Integra symmetric Class A/B amplifier design

DAC
Two precision 32-bit ESS ES9026PRO Hyperstream audiophile DACs

Room Correction
Dirac Live Room Correction Full Bandwidth included
20Hz to 20kHz

Bass Management Upgrade
Dirac Live Bass Control ready
Optional user upgrade

Subwoofer Outputs
4 subwoofer outputs total
2 independent subwoofer channels
2 parallel outputs

Audio Formats
Dolby Atmos
DTS:X
IMAX Enhanced
Dolby Atmos Music
Auro-3D, firmware supported
Other major formats, source dependent

THX Certification
THX Certified Select

HDMI Platform
HDMI 2.1

HDMI Inputs
7 total HDMI inputs
6 x 40Gbps HDMI inputs capable of 8K/60Hz and 4K/120Hz

HDMI Outputs
3 HDMI outputs
eARC supported

Video Support
8K/60Hz
4K/120Hz
HDR10
HDR10+
Dolby Vision
VRR
ALLM
HDCP 2.3
Source, cable and display compatibility required

Pre-Outs
11.4-channel RCA pre-outs

XLR Connectivity
XLR pre-outs for left, centre, right, subwoofer 1 and subwoofer 2
Stereo XLR input

Network Streaming
Roon Ready
Chromecast built-in
Apple AirPlay 2
Spotify
Amazon Music HD
TIDAL
Deezer
Pandora
TuneIn

Smart Ecosystem
Works with Sonos Certified
Google Assistant control through Chromecast ecosystem, device dependent

Bluetooth
aptX HD Bluetooth transmitter for personal listening

Custom Integration
Advanced Web App
Backup and recall of AVR settings
IP control
Onboard HDMI diagnostics
EDID / HDCP adjustment
Virtual remote
Quad-core network processor
OvrC Pro
Domotz
Luxul Pro Watch
VPN and monitoring platform support
Robust API
Custom control drivers

Zone Support
Assignable amps for Zone 2 and Zone 3
Passive subwoofer assignment support

Rack Mount Kit
IRK-180-4C, optional

Dimensions
435mm (W) x 198mm (H) x 470mm (D)
17 1/8 inches x 7 13/16 inches x 18 1/2 inches

Weight
22.5kg
49.6lb

Finish
Black

Rapallo Product Data

MPN: DRX-8.4

SKU: INTEGRA-DRX-8-4

EAN / UPC / GTIN: Not publicly confirmed
