Name: InnuOS STREAM3 Music Streaming Server
SKU: Stream3
Availability: InStock

Description

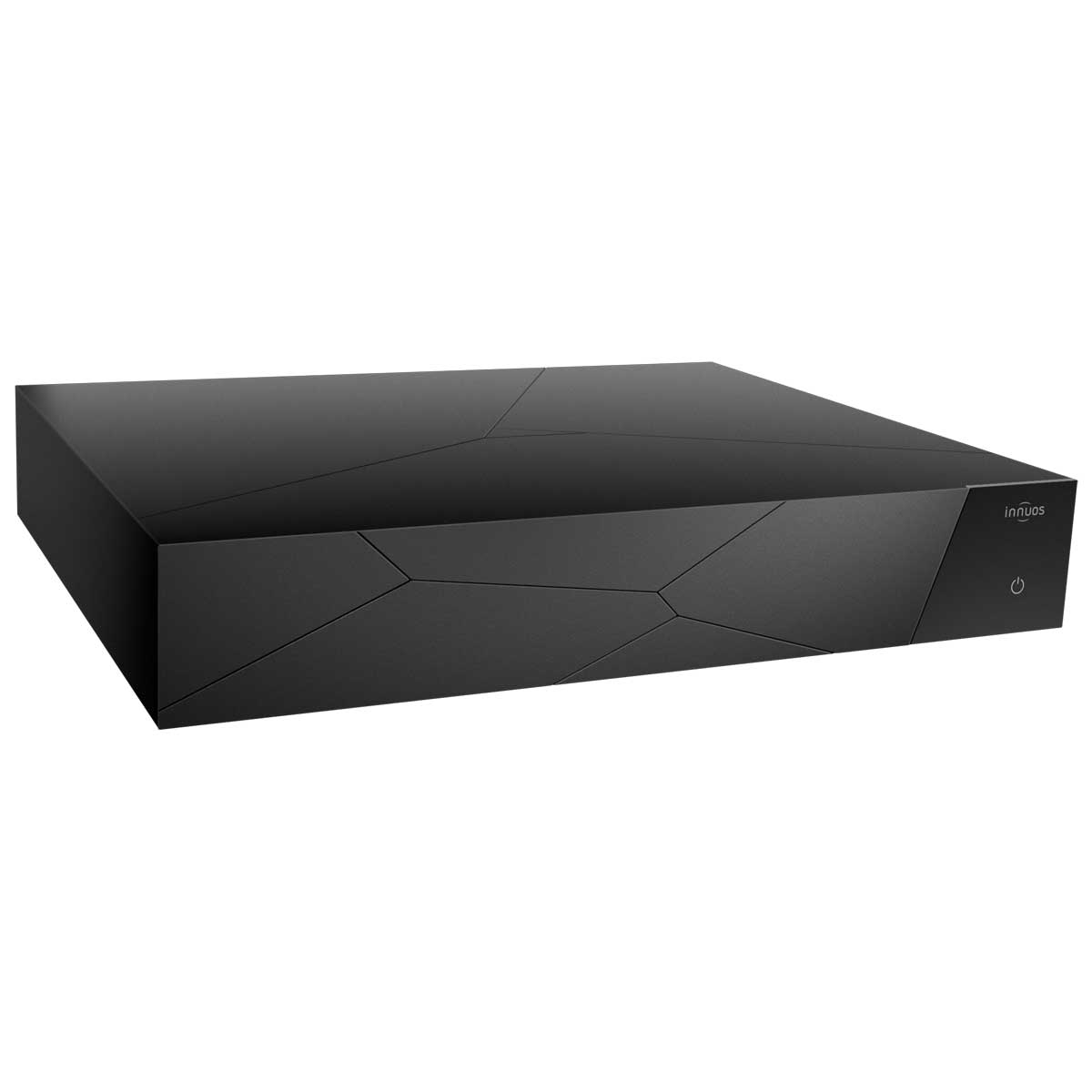

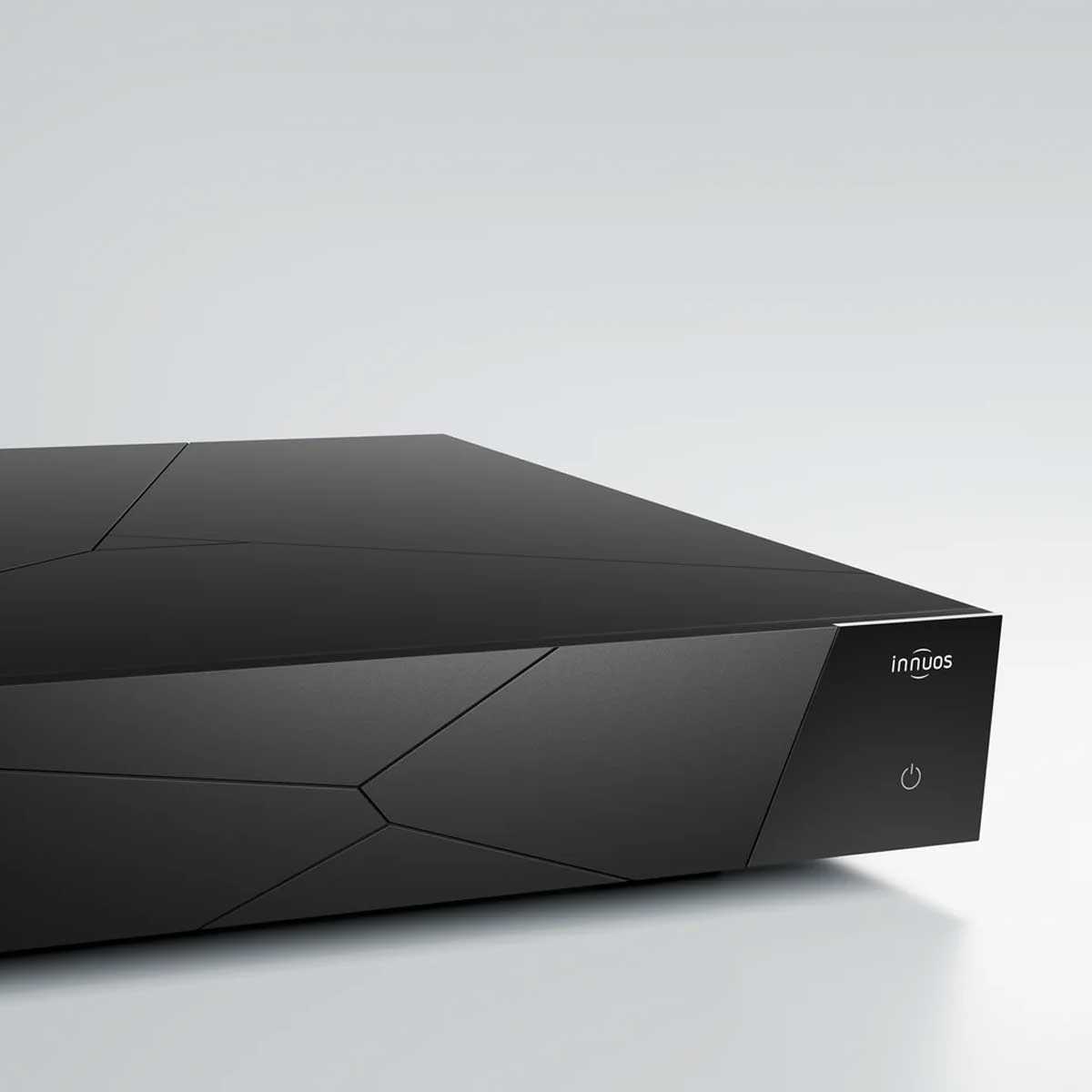

InnuOS STREAM3 Music Streaming Server

The InnuOS STREAM3 Music Streaming Server is Innuos’ new top-performance Hi-Fi music streamer and server, designed for those who demand reference-grade performance. Whether you pair it with a world-class DAC or prefer an elegant all-in-one solution, STREAM3 is the ultimate foundation for your high-fidelity journey.

Also fully capable as a server with optional storage and CD ripping via external USB optical drive – it is the defining element of your system. It delivers an uncompromised, pristine signal, meticulously timed and free of sonic artifacts, allowing your DAC to perform at its absolute best, revealing the full depth, texture, and emotion of every note. And for those who embrace simplicity, its intuitive, streamlined architecture provides effortless access to your entire music library.

Equipped with state-of-the-art clocking, ultra-low noise power architecture, 10mm thick CNC-machined bead-blasted and anodized aluminium premium chassis, and further enhanced by the in-house developed software, this streamer takes complete control over your digital audio.

Introducing an expansive modular design, STREAM3 is built for those who, in the pursuit of perfect sound, are willing to move to a level of advanced versatile and flexible architecture.

Choose the optimized Digital Output Module that best suits your needs and take your streaming quality to a new level.

STREAM3 is more than just a streamer; it’s a portal to a world where music transcends the physical realm. A private concert in your home, where every note weaves a personal narrative and the artist’s soul resonates with yours.

Bond with your music on a deeper level with STREAM 3.

View Owners Manual >> View InnuOS Products >>

Features

High-precision chassis: A substantial chassis of 10mm thick CNC-machined Aluminium provide shielding and vibration control in a high-quality enclosure
High-quality power: Featuring an ARC6-CX active-rectification LPSU and large bank of Mundorf capacitors, the STREAM3 benefits from high-end power architecture designed in collaboration with Dr. Sean Jacobs
Audiophile analogue: Choose the optional PhoenixDAC Board for a high-end, dual-mono internal DAC with RCA and XLR outputs, utilising OCXO and FEMTO clocks and powered by an independent analogue regulation stage
Output modules: Use the built-in USB audio outputs, or maximise performance with a dedicated output module, including PhoenixUSB Board, PhoenixI2S Board, SPDIF Board, or the PhoenixDAC Board s a t

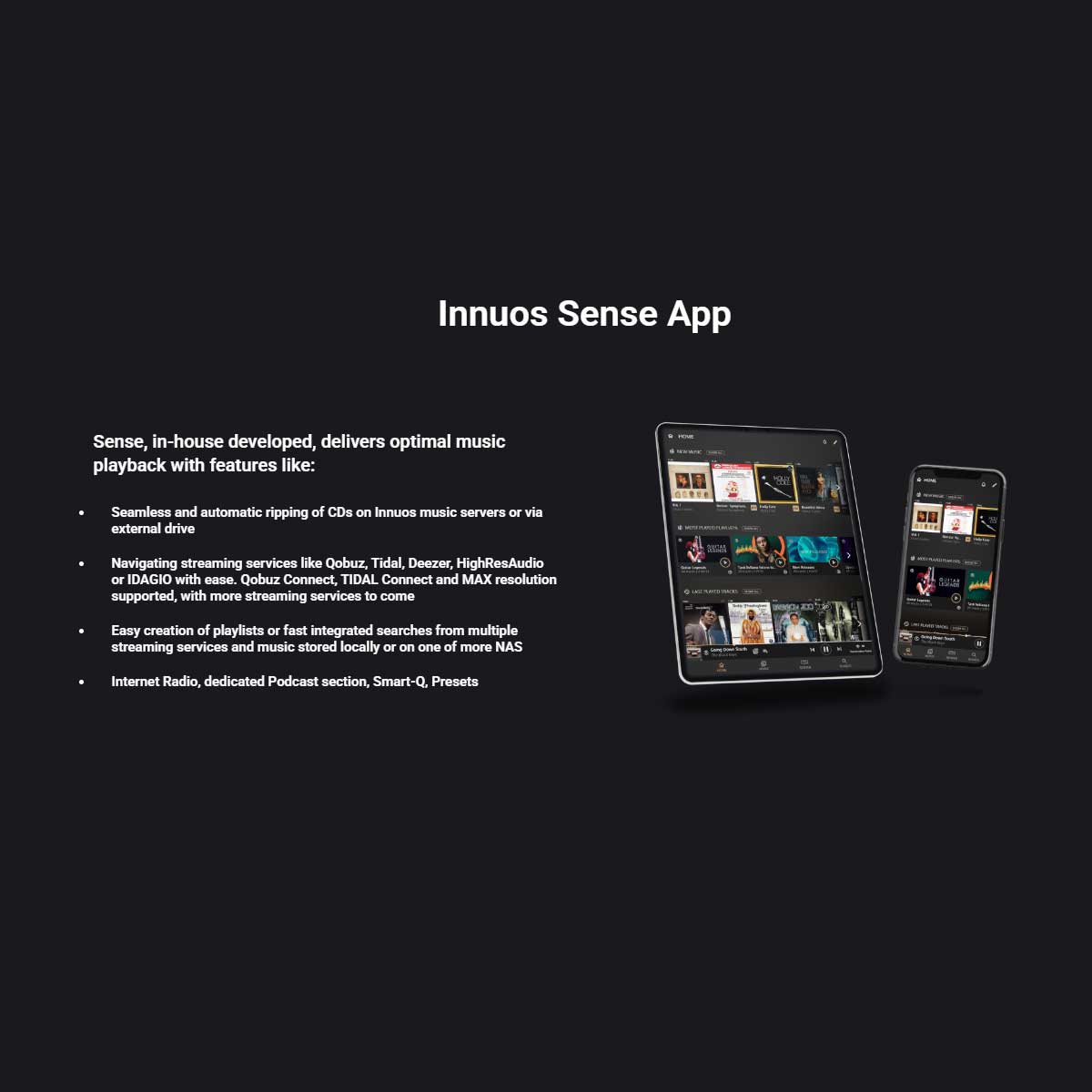

Innuos Sense

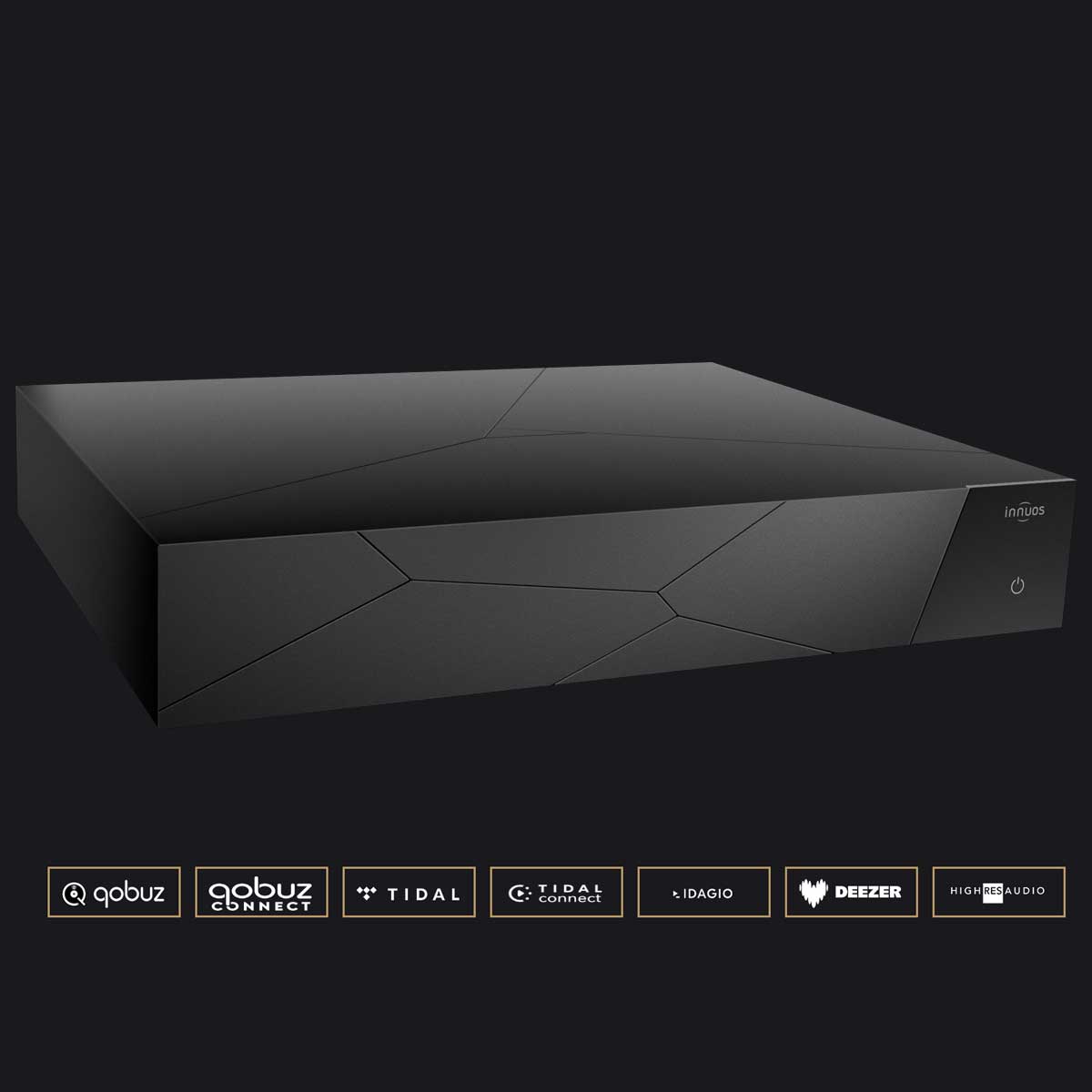

A unifying music library capable of combining local music files with high-quality streaming services including Qobuz, TIDAL, Deezer, HighResAudio, IDAGIO, and also offering support for Spotify Connect, TIDAL Connect, and Qobuz Connect.

Fully manage your library, build playlists out of multiple sources, and enjoy quality Internet Radio and podcasts. A bespoke operating system designed for ultra-low latency, including Real-time Kernel technology trickled-down from ZEN Next-Gen. +Read More

Digital Output Module

Choose from a range of high-performance output modules to maximize the very best connection in your Hi-Fi system, including the reclocked PhoenixUSB board, SPDIF module, or from a range of integrated DACs.

Storage

An accessible SSD bay to add your own internal M2 storage for your library of music files. Play music from an existing music server or NAS drive or connect a USB drive to play music files from directly.

CD Ripping

Leverage our time-proven CD ripping engine to extract the most from your existing CD collection (USB optical drive required).

Powerful Music Server

With or without storage, STREAM1 and STREAM3 offer Logitech Media Server, UPnP server, and Roon Core functionality. Using a TLC SSD for the operating system including power-loss protection circuitry, 13th-gen Intel Quad-Core processing and 8GB of industrial-grade DDR5 RAM, the Stream series offer a dependable platform with rapid performance that is 200% faster than the Mk3 predecessors.

Multiroom

Play music through your entire home – place your Innuos streamer into Endpoint mode as a receiver to an existing standalone Innuos Music Server.

Remote Control

Use a universal IR remote control for playback controls and easily start playing your favourite music using Sense-configured presets that can be assigned to playlists, radio stations, and smart mixes.

Upgradeable

Configure your output module and storage options over time, add one of our dedicated Phoenix-series reclockers, or take the STREAM1 sound quality further through the matching LPS1 linear power supply upgrade.

Optional Output Modules

The STREAM1 comes with a range of optional output modules, allowing you to choose the one that best suits your system requirements, and to ensure the very best audio performance from that specialized output choice. It also gives you scope to change this module as your needs may change when connecting to your choice of DAC, amplifier, active speakers, or more.

PerformanceDAC Board

Latest AKM DAC chip and high-quality TCXO clocks
Support PCM up to 32bit/768KHz, Native DSD up to DSD512
Independent power supplies for digital and analogue stages ]
High-Quality Gold-plated RCA Connectors

PhoenixDAC Board

Dual Mono AKM DAC Chips with OCXO Clock plus FemtoClocks for Audio
Support PCM up to 32bit/768KHz and Native DSD
Independent Power Supply for Digital and Analogue Stages
High-Quality Gold-plated RCA and XLR Connectors

PhoenixUSB Board

Regenerated and Reclocked USB signal to your Class 2 USB DAC, greatly increasing sound quality
High-precision 3ppb 24MHz OCXO clock for greatly improved timing and signal integrity
Ultra-low noise LT3045 linear regulators for each independent voltage, no switching regulators on main USB chip
Provides a pristine 5V line for the USB connection on your DAC

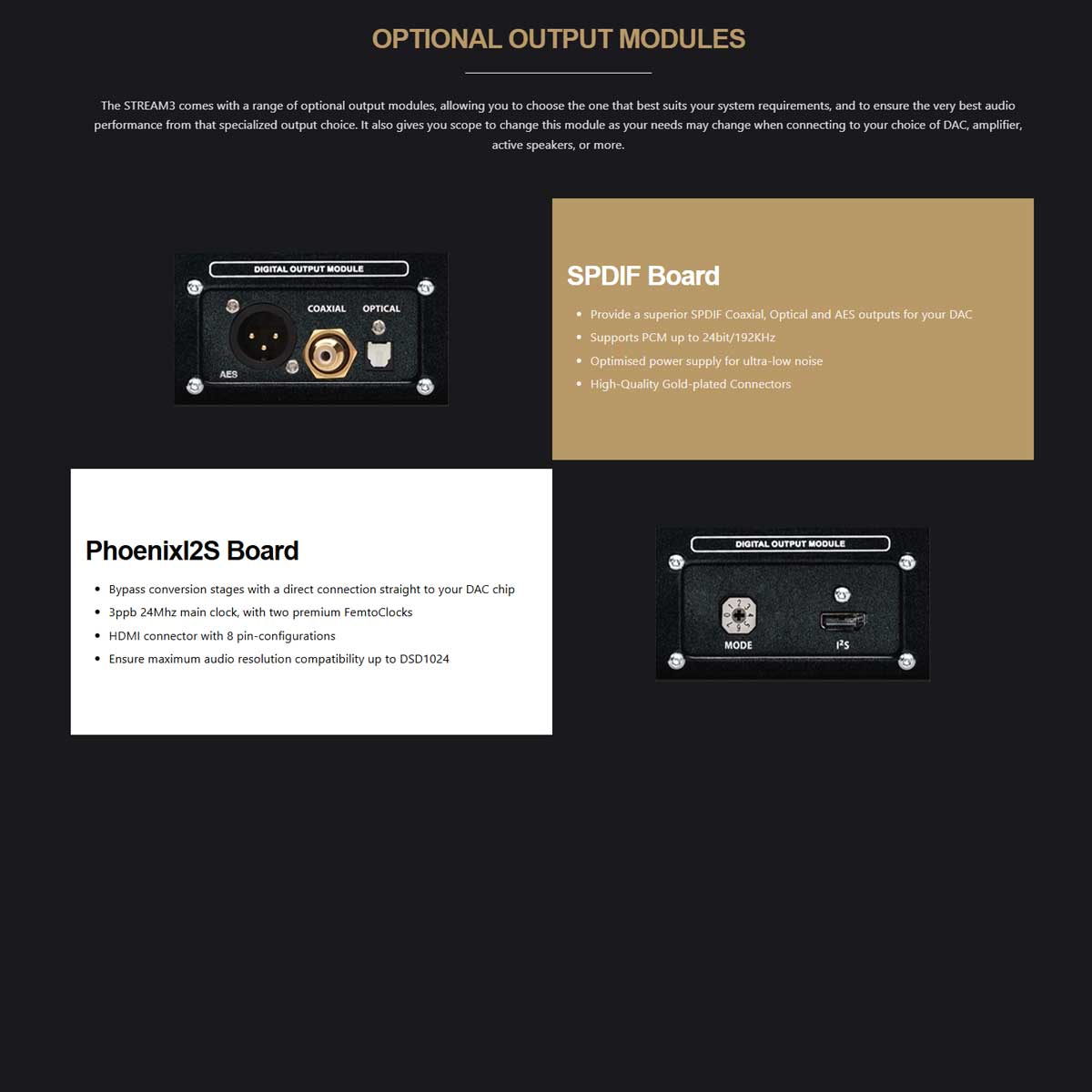

SPDIF Board

Provide a superior SPDIF Coaxial, Optical and AES outputs for your DAC
Supports PCM up to 24bit/192KHz
Optimised power supply for ultra-low noise
High-Quality Gold-plated Connectors

PhoenixI2S Board

Bypass conversion stages with a direct connection straight to your DAC chip
3ppb 24Mhz main clock, with two premium FemtoClocks
HDMI connector with 8 pin-configurations
Ensure maximum audio resolution compatibility up to DSD1024 is

FAQ’s

What is the difference between STREAM1 and STREAM3? The STREAM3 builds on the STREAM1 with a similar feature set but benefits from a superior power supply for a significant step up in sound quality and is still an improvement over the LPS1 also. It has a more substantial chassis for shielding and vibration control, and due to its larger size can accommodate a wider range of output modules including the PhoenixI2S board and the PhoenixDAC.
Are these streamers, or servers? Both – the modular nature of the internal storage, digital output modules or analog output modules allow many variations or combinations for the product to be a music server, a digital network player, or fully integrated streamer for direct connection to an amplifier. Tailor the system to what you want it to be.
How does ZEN Next-Gen series improve over STREAM series? ZEN Next-Gen and STREAM offer the same Sense app experience and overall features, but ZEN Next-Gen delivers superior sound with a more advanced power supply, PreciseAudio mainboard, and enhanced chassis. It also has more processing power to allow AudioCore technology and handles larger libraries with dual SSDs.
How does STREAM series differ from earlier Innuos products? STREAM series carries on the successful legacy of ZEN Mk3 music servers and PULSE network players and combines them into a versatile, single product thanks to its flexible modular design. With the latest generation in design and premium components, our gateway product range sounds and performs better than ever.
Can I still rip CDs? Yes! The powerful CD ripping engine is still available in Sense app, you simply need to add a USB optical drive of your choice and make sure there is internal storage fitted in your system. This will behave just as if it were an internal CD ripper from our earlier products with the same automated process, and choice of FLAC or WAV ripping.
Which output module is right for me? The best output module is the one that makes the most sense for your current system, and our modular design means that you can change your optimal output type in the future if your HiFi setup changes. We offer internal DAC modules for direct connection to amplifiers or powered speakers, and a variety of digital output modules to cater for what is best suited to your DAC.
What are the upgrade paths for the STREAM series? The STREAM1 can be improved with the dedicated LPS1, or moving up to the STREAM3 would be an even further step up in sound. From the STREAM3, the ZEN Next-Gen would be the next step up in the range. Both units can initially be used with the on-board USB audio output, then upgraded with a dedicated output module at a later date, and adding an audiophile-grade network switch such as the PhoenixNET will improve sound quality for all streamers.
