Description

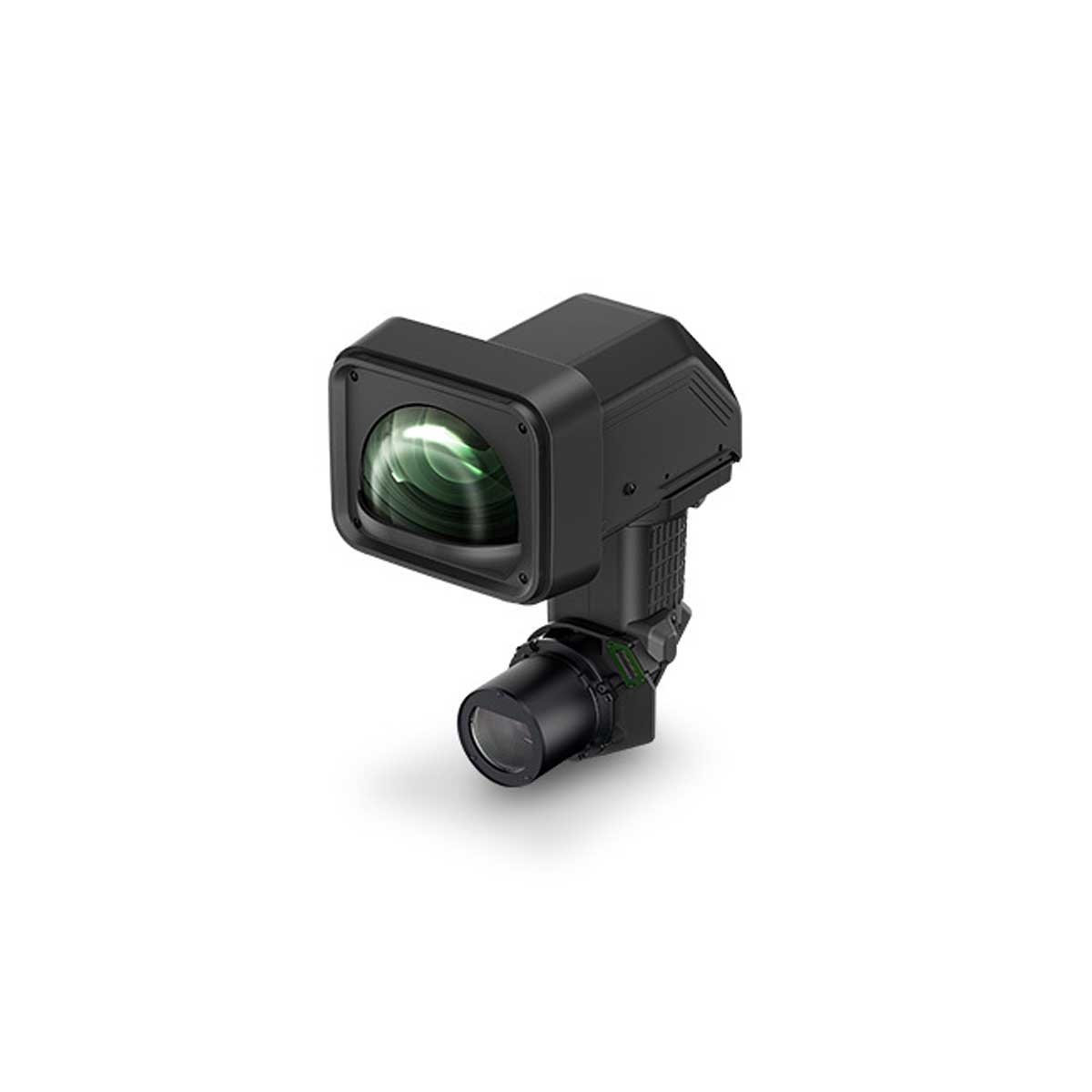

Epson ELPLX02S Ultra Short Throw Lens
The Epson ELPLX02S Ultra Short Throw Lens is the flexible ultra short-throw lens for Epson Pro Series projectors 9,000 to 20,000 lumens.
Project supersized images at a short distance with the ELPLX02S ultra short-throw lens. Designed for use with Epson Pro Series projectors from 9,000 lumens to 20,000 lumens, this convenient lens makes it easy to display bright, larger-than-life images up to 1000″ in narrow or space-constrained environments.

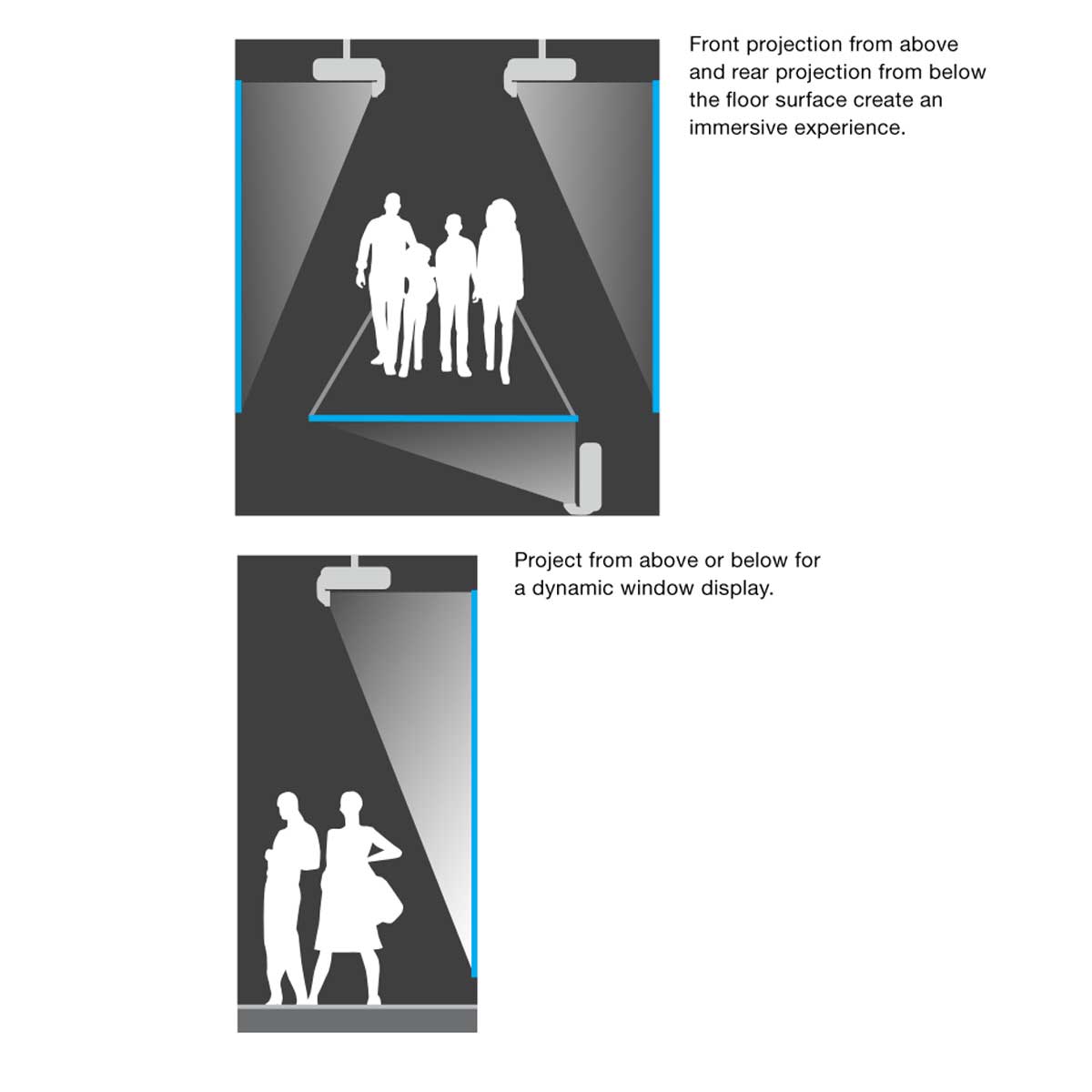

Featuring a .35 throw ratio, wide lens shift and unique zero offset design, the ELPLX02S offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications.
And, with an integrated mount point for Epson’s optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto color calibration, screen matching of multiple projectors, tiling assist for edge blends, a stacking assist6 function and more.
Ultra Short Throw Lens for the Epson L Series & PU Series projectors.
View Data Sheet >> View Epson Products >>
Features
- Project large images at a short distance — lens makes it easy to display larger-than-life images while minimizing shadows and light path obstructions
- Flexible installation — .35 throw ratio, wide lens shift and zero offset for enhanced convenience
- Perfect for space-constrained environments — ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
- Engineered for versatility — bring bright, bold projection to locations where you previously could not utilize a projector
- Mount point for optional ELPEC01 external camera — access powerful tools such as auto color calibration3, screen matching of multiple projectors4, tiling assist5 for edge blends and a stacking assist6 function

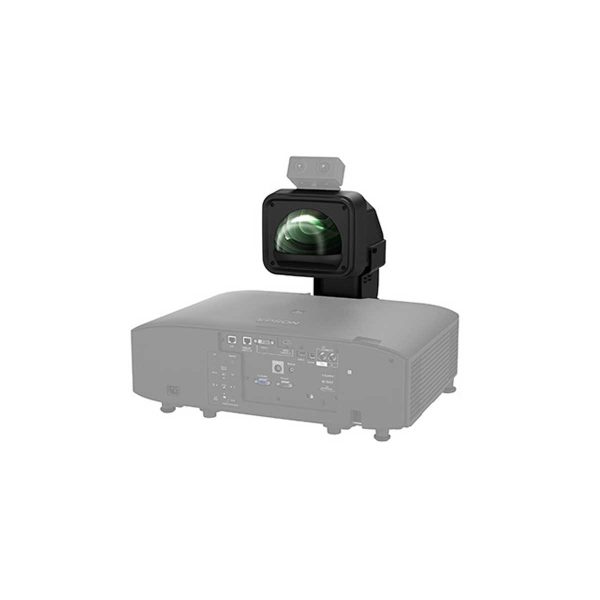

- Compatible with Epson Pro Series1 projectors — works with Epson laser projectors1 from 9,000 to 20,000 lumens2
- Large screen size — project 100″ to 1000″; F-number: 1.9; Focal Length: 8 mm
- WUXGA throw ratio — .35 Lens Shift: Vertical: +45% to +70% (H Center) Horizontal: -15% to +15% (V Center)
- Native 4K throw ratio — .34 Lens Shift: Vertical: +45% to +68% (H Center) Horizontal: -10% to +10% (V Center)
- Designed for stealth installations — can easily mount in the ceiling with just the lens protruding for discreet installation
- Lens neck cover included — for a sleek, seamless look
