Epson ELPLX01S Ultra Short Throw Lens

Description

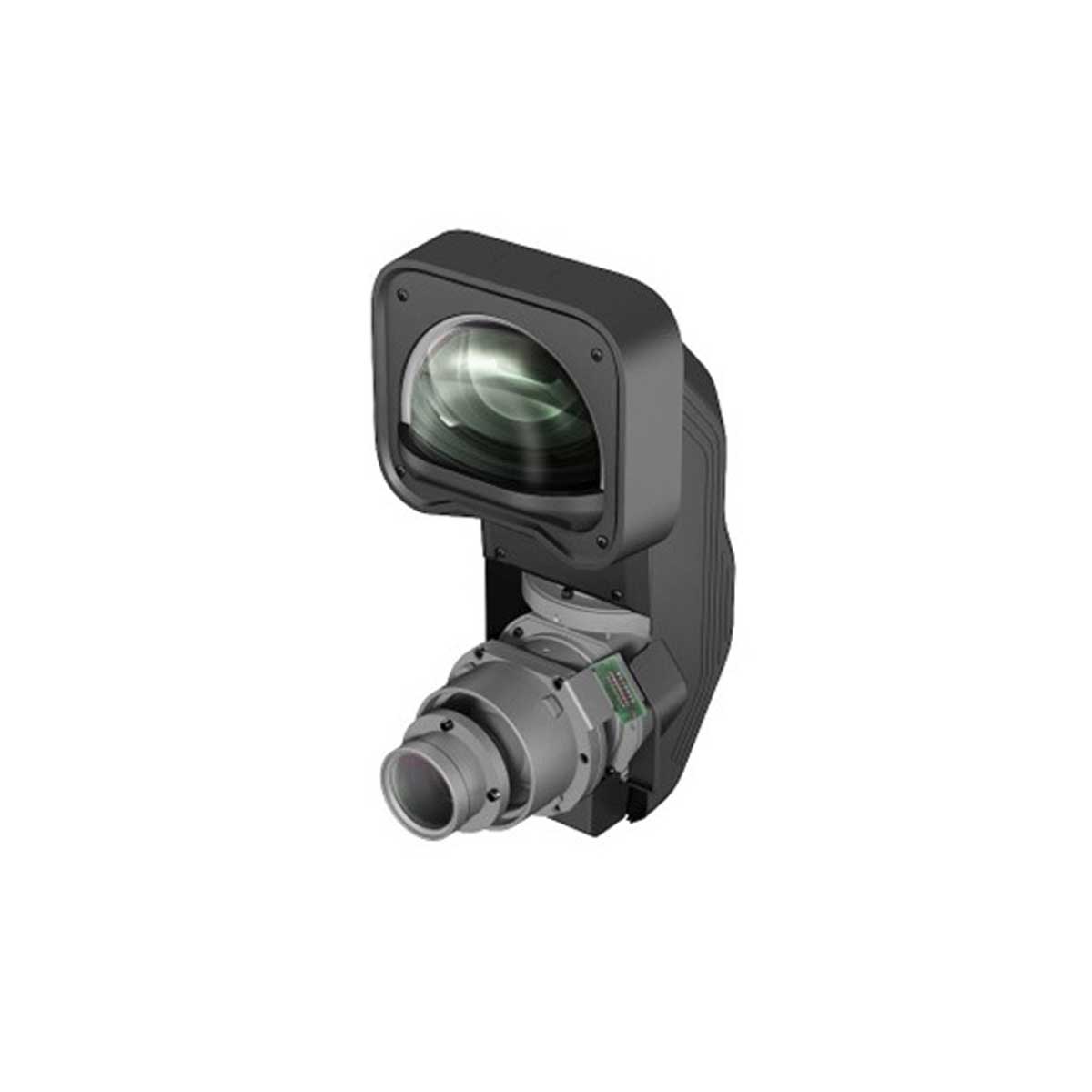

Epson ELPLX01S Ultra Short Throw Lens

The Epson ELPLX01S Ultra Short Throw Lens is the flexible ultra short-throw lens for Epson interchangeable lens projectors up to 8,500 lumens.

Project supersized images at a short distance with the ELPLX01S ultra short-throw lens. Designed for use with Epson Pro Series projectors up to 8,500 lumens, this convenient lens makes it easy to display bright, larger-than-life images up to 300″ in narrow or space-constrained environments.

Featuring a .35 throw ratio, wide lens shift and unique zero offset design, the ELPLX01S offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications.

And, with an integrated mount point for Epson’s optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto color calibration, screen matching of multiple projectors4, tiling assist5 for edge blends, a stacking assist6 function and more.

Ultra Short Throw Lens for the Epson G Series, L Series & PU Series projectors.

Features

• Project large images at a short distance — lens makes it easy to display larger-than-life images while minimizing shadows and light path obstructions
• Flexible installation — .35 throw ratio, wide lens shift and zero offset for enhanced convenience

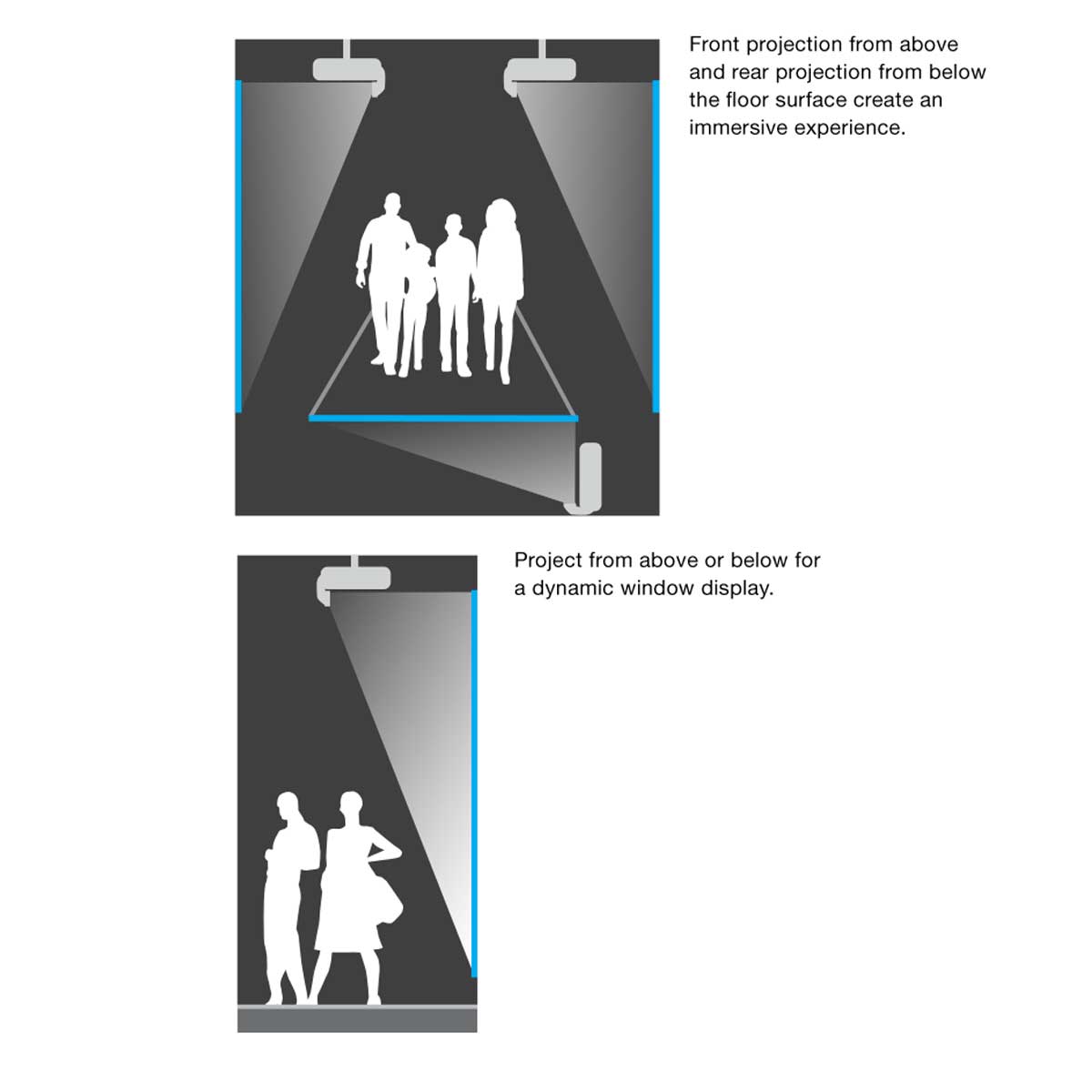

• Perfect for space-constrained environments — ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
• Engineered for versatility — bring bright, bold projection to locations where you previously could not utilize a projector
• Mount point for optional ELPEC01 external camera — access powerful tools such as auto color calibration³, screen matching of multiple projectors⁴, tiling assist⁵ for edge blends and a stacking assist6 function

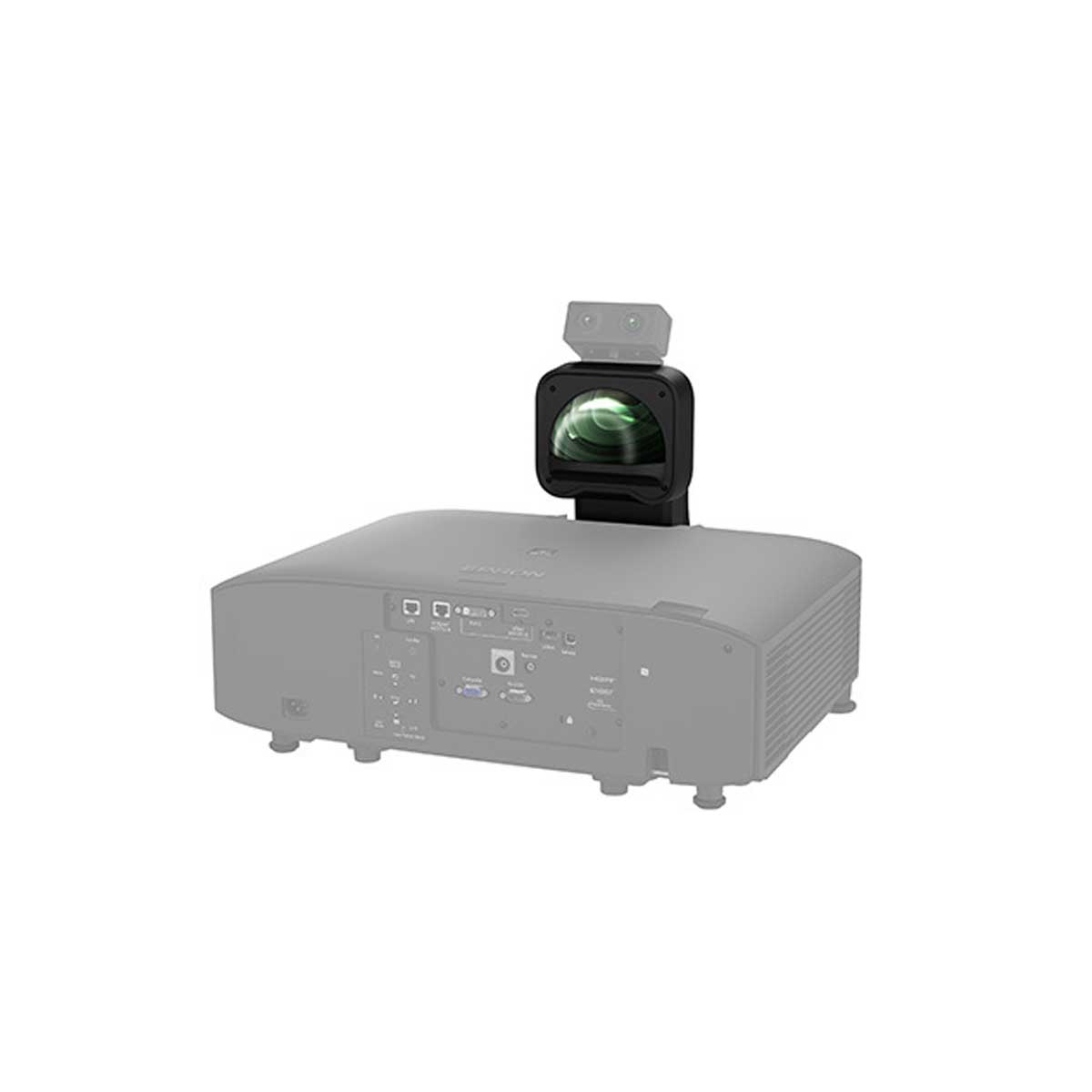

• Compatible with Epson Pro Series¹ projectors — works with Epson interchangeable lens projectors up to 8,500 lumens²
• Large screen size — project 100″ to 300″; F-number: 1.9; Focal Length: 5.8mm
• WUXGA/WXGA throw ratio — .35 Lens Shift: Vertical: +50% to +67% (H Center) Horizontal: -10% to +10% (Vertical +50%)

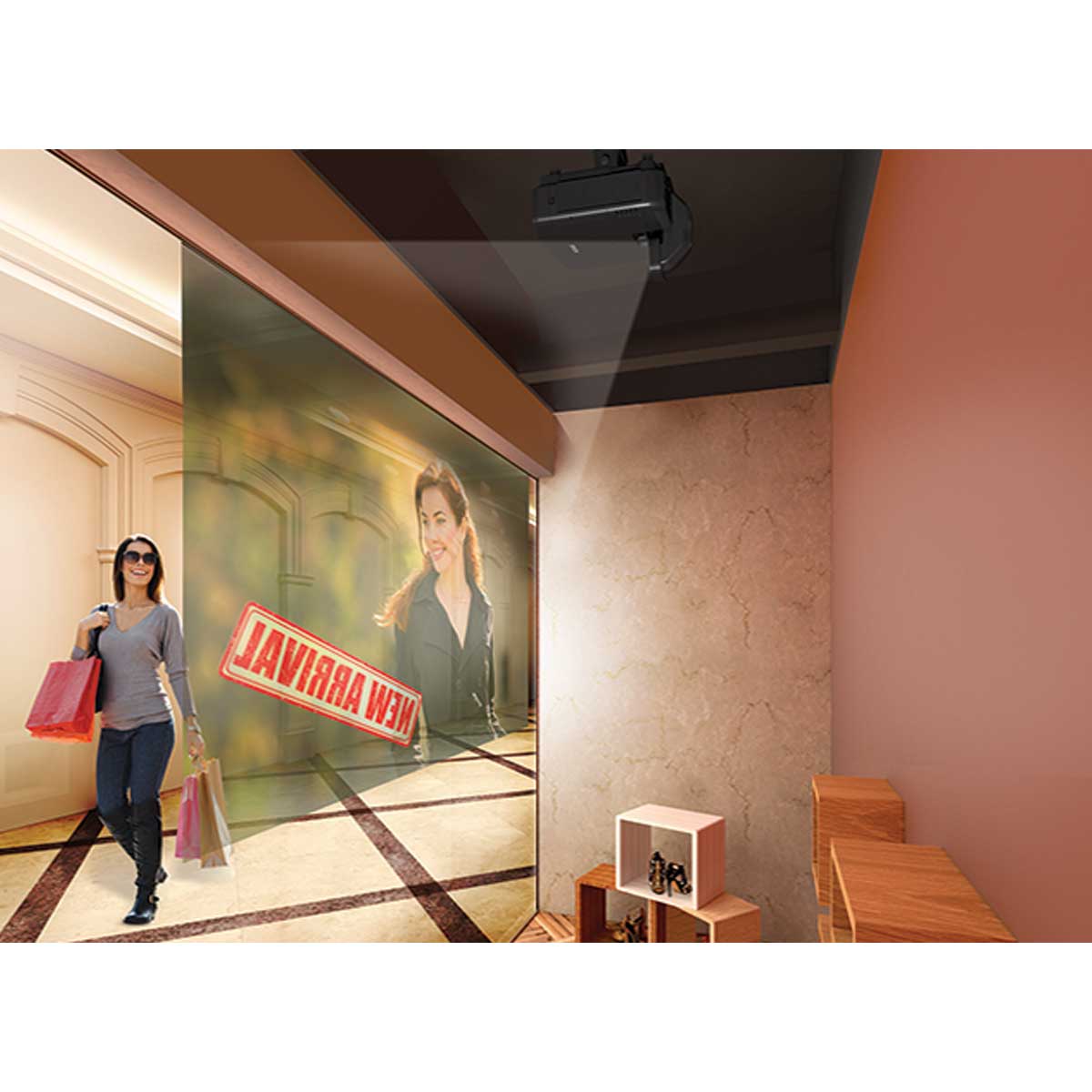

• Designed for stealth installations — mount in the ceiling with just the lens protruding for a discreet installation
• XGA throw ratio — .36 Lens Shift: Vertical: +50% to +57% (H Center) Horizontal: -8% to +8% (Vertical +50%)
