Epson EH-QL3000B Home Theatre Laser Projector

Description

Epson EH-QL3000B Home Theatre Laser Projector

The Epson EH-QL3000B Home Theatre Laser Projector, developed specifically for creating immersive big screen entertainment experiences with an unprecedented level of picture brightness, colour and detail, the Epson QL3000 produces a stunning 4K HDR picture up to 300″.

Perfect for today’s active multipurpose and dedicated entertainment spaces, the Epson QL3000 cuts through ambient light with up to 6,000 lumens1 of colour brightness (IDMS-rated) and up to 6,000 lumens of white brightness (ISO-rated)2.

Incorporating our most advanced projection technologies to date, the QL3000 combines proprietary 4K Display Technology3 with HDR104 and our true 3-chip 3LCD thermal-controlled and Double Micro-Lens Array technologies to produce a full 8.29 million pixels on-screen—resulting in a picture with stunning clarity and colour brightness.

And like all Epson QL-Series projectors, the QL3000 comes as “Body Only”—without a lens—giving you the option to use our entire family of high-precision Epson lenses to design an optimal projection solution for virtually any application.

Epson continues to set the industry benchmark for projection picture quality. And with the all-new QL-Series generation of high-lumen 4K HDR projectors, Epson has once again reset expectations for big screen entertainment.

Features

• 4K Display Technology³ with HDR10⁴ for Stunning Picture Quality
• Up to 6,000 Lumens¹ of Equal Colour and White Brightness²
• Produces an Immersive Picture up to 300″
• True 3-Chip 3LCD Technology for Exceptional Colour
• Compatible with a Wide Range of Optional Epson Precision Lenses

Stunning Picture Quality

4K Display Technology3 with HDR104 produces a full 8.29 million pixels on-screen for an exceptionally clear 4K UHD experience.

Immersive Big Screen Entertainment

Up to 6,000 lumens1 of colour brightness (IDMS-rated) and up to 6,000 lumens of white brightness (ISO-rated)2 produce an immersive picture up to 300″ in a variety of lighting environments

Exceptional Colour Brightness

Unique 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB colour signal for every frame. This allows for an outstanding colour gamut while maintaining excellent brightness without any rainbowing or colour brightness issues seen with other projection technologies

Impressive HDR

Full 10-bit HDR colour processing accepts 100% of the HDR source information to faithfully reproduce HDR, HDR104 and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Dynamic Tone Mapping automatically adjusts to the optimal HDR level according to the scene

Powerful Picture Processing

Proprietary 32-bit QZX Picture Processor handles real-time colour, contrast, frame interpolation and dynamic tone mapping to faithfully reproduce content with exceptional picture detail and black contrast.

Flexible Lens Options

Compatible with a wide range of powered Epson Precision Lenses, including short and long throw options, to maximize installation flexibility

High Frame Rate Support

Supports gaming up to 4K HDR at 120 Hz; Auto Low Latency Mode helps minimize input lag and advanced frame interpolation optimizes content below 120 Hz

Enhanced Connectivity

Dual 40 Gbps HDMI® 2.1 ports support up to 120 Hz at 4:2:2 in 8-, 10- and 12-bit colour modes, including 10- and 12-bit “Deep Colour” signals

Smart Home Control

Easily integrates into home automation and remote monitoring systems, including Control4® and Crestron® control systems

Virtually Maintenance-Free

20,000-hour solid-state laser light source5 with an advanced vapor-cooled thermal transfer design provides instant Power-On with no bulbs to be replaced

Outstanding Service & Support

Includes a 3-year limited warranty with full-unit replacement and free technical phone support for the life of the product

ISF® Certified

The Imaging Science Foundation has been setting standards for the display industry since 1994 and has been dedicated to improving the quality of electronic imaging. Epson shares this passion for image quality and has developed technologies to allow an ISF Certified Technician to professionally calibrate the Epson QL3000 projector to the highest level of image quality

Specifications

PROJECTOR

What’s in the Box: EH-QL3000B projector, 3 m power cable, remote control, 2 x AA batteries, cable cover, top cover, user guide

TECHNOLOGY

• Projection System: 3LCD
• LCD Panel: 1.04-inch panel
• Light Source: Laser diode
• Interchangable Lenses: Yes


• Colour Light Output: 6,000 lumens
• White Light Output: 6,000 lumens
• Resolution: 4K1 (3840 x 2160) (8.3 M pixels on screen)
• Native Aspect Ratio: 16:9
• Contrast Ratio: 5,000,000:1
• Native Contrast Ratio: 3,000:1
• Colour Reproduction: Up to 1.07 billion colours
• Colour Processing: 10 bit
• Keystone Correction: vertical: ±45°
• horizontal ±30°
• Lens Shift (Powered): Yes
• Vertical: ±64%
• Horizontal ±16%
• Refresh Rate: 384 Hz – 480 Hz

OPTICAL

• Zoom Ratio: 1 – 1.61 (Optical)
• Screen Size: 60″ to 1000″ [1.98 m to 55.28 m]
• Projection Distance: 100″ screen – 3.35 m
• Throw Ratio: 1.52 (digital zoom: wide)
• 47 (digital zoom: tele)
• Lens F Number: 1.8 – 2.3
• Lens Focal Length: 36.0 mm – 57.3 mm
• Focus Method: Powered

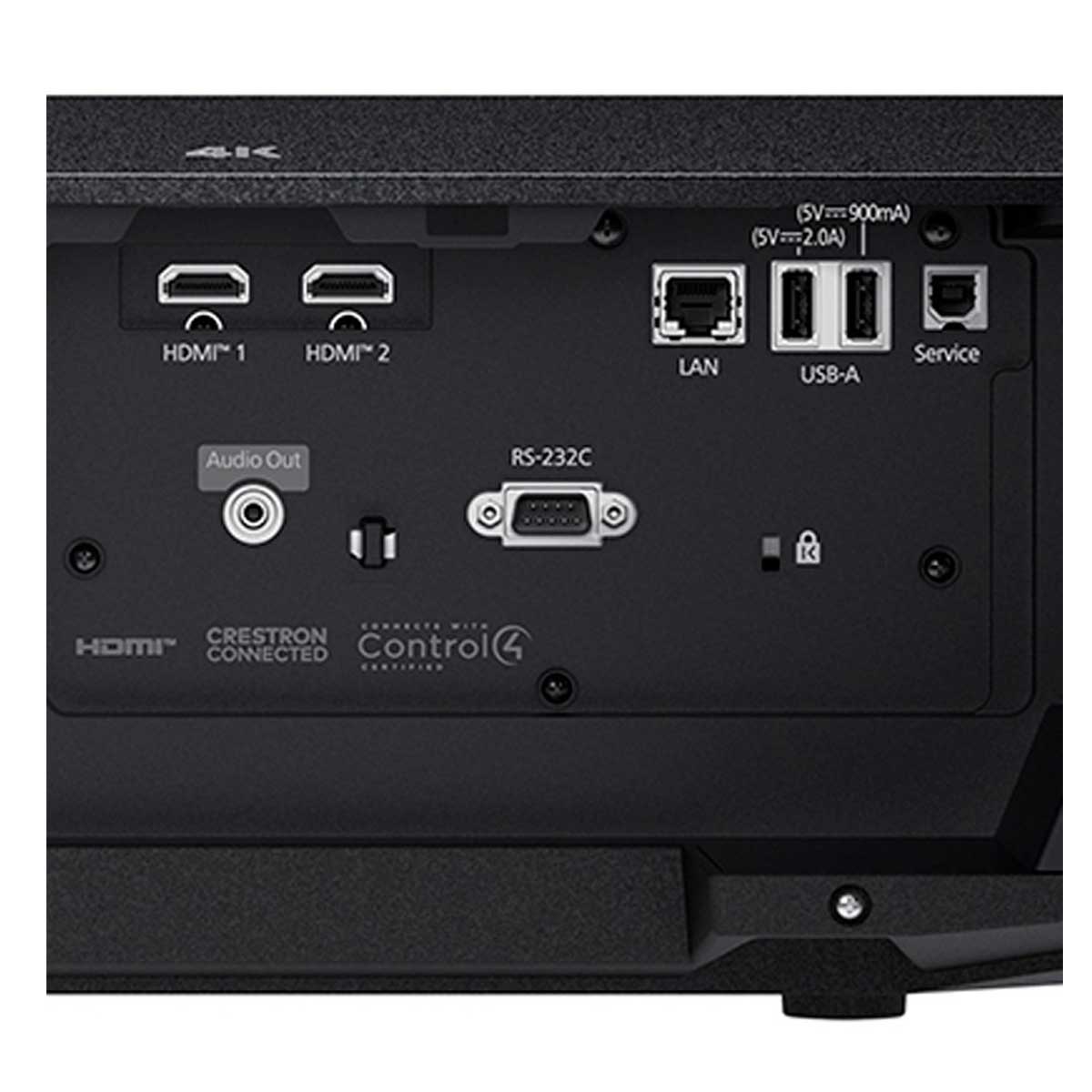

CONNECTIVITY

• Input: Digital: 2 x HDMI (HDCP 2.3)
• Input: Control: 1 x RS232c
• Network: I/O: 1 x RJ45
• USB: I/O: 2 x USB A (for ELPAP12, firmware update, copy OSD settings, or 5V/2A power supply, content playback)
• Output: Audio: 1 x stereo mini

ADVANCED FEATURES

• Content Playback: Yes
• Dynamic Tone Mapping: Yes
• 4K Enhancement1: Yes
• High Dynamic Range – HDR10: Yes
• Hybrid Log Gamma – HLG: Yes
• Advanced Image Processing: Yes
• Super Resolution: Yes (4K compatible)
• Frame Interpolation: Yes (up to 4K 60 fps)
• Auto Contrast Enhancement: Yes
• Scene Adaptive Gamma: Yes
• ALLM support (Auto Low Latency Mode): Yes (4K at 120 fps)
• AV Mute: Yes
• Direct Power On: Yes
• Security: Kensington®-style lock provision, lens lock
• Colour Modes: Dynamic, Vivid, Cinema, Natural
• Lens Position Memory: 10 positions
• Industry / Partner Standard: Crestron Connected V2,
• Crestron Integrated Partner,
• Control4，AMX, PJLink
• Multi-projection: NA
• External Camera Support: NA

GENERAL

• Dimensions D x W x H (Projector Inc Feet): 568 x 568 x 192 mm
• Net Weight (Projector): Approx. 21 kg
• Projector Warranty: 3 Years
• Power Consumption: Normal: 437 W
• Power Consumption: Standby: 2 W
• Noise Level: 28 dB

¹4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification. Epson is the registered trademark of Seiko Epson Corporation. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.
