Description

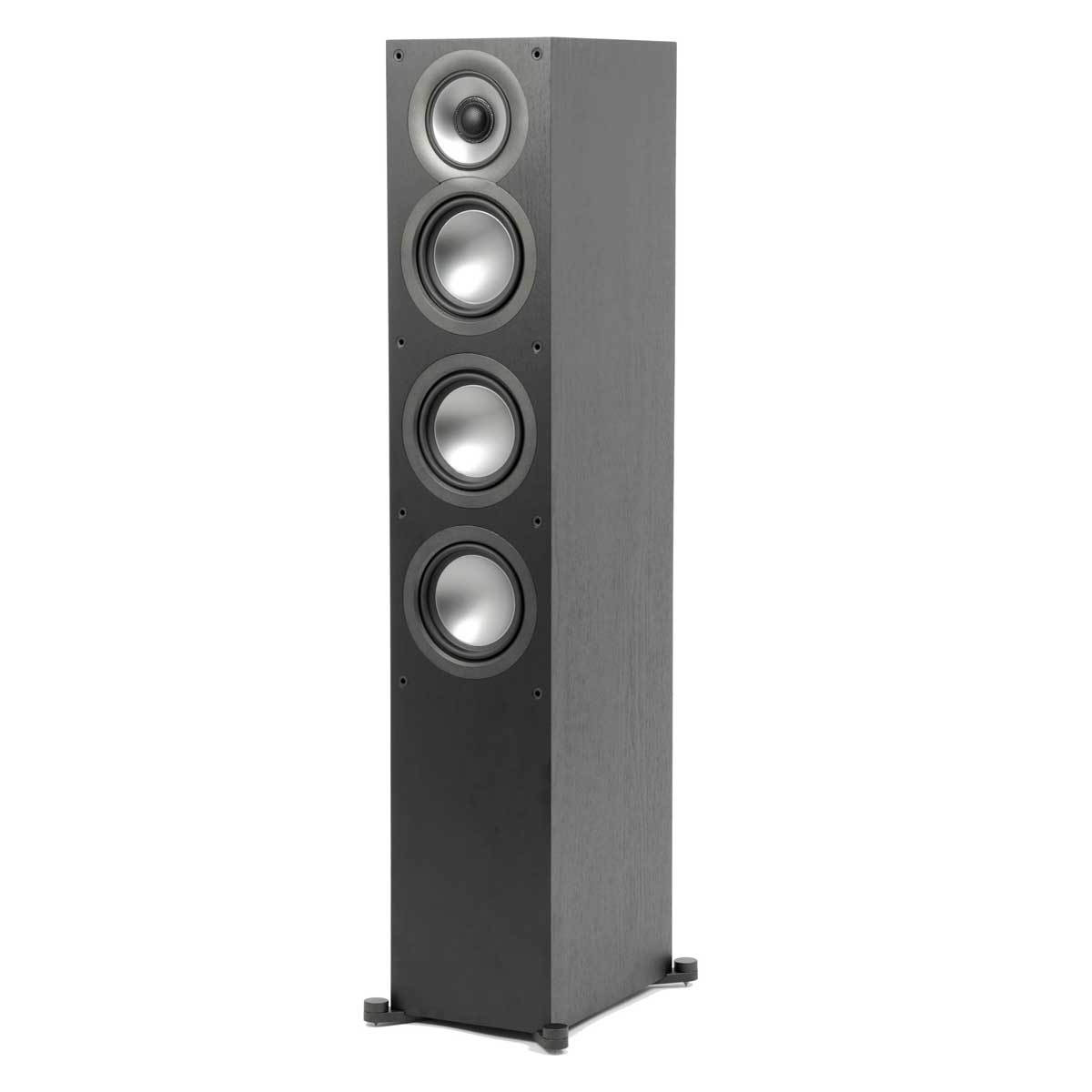

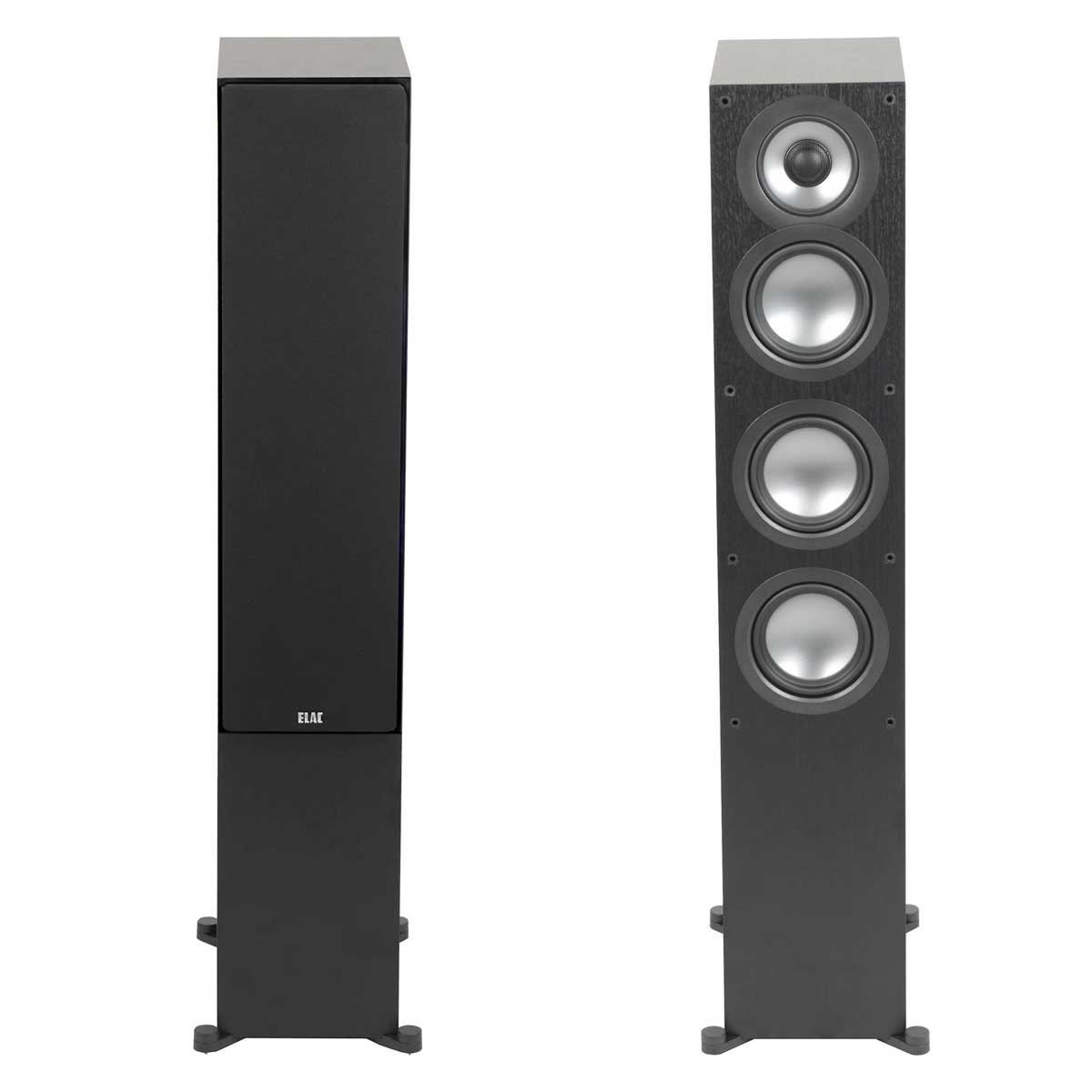

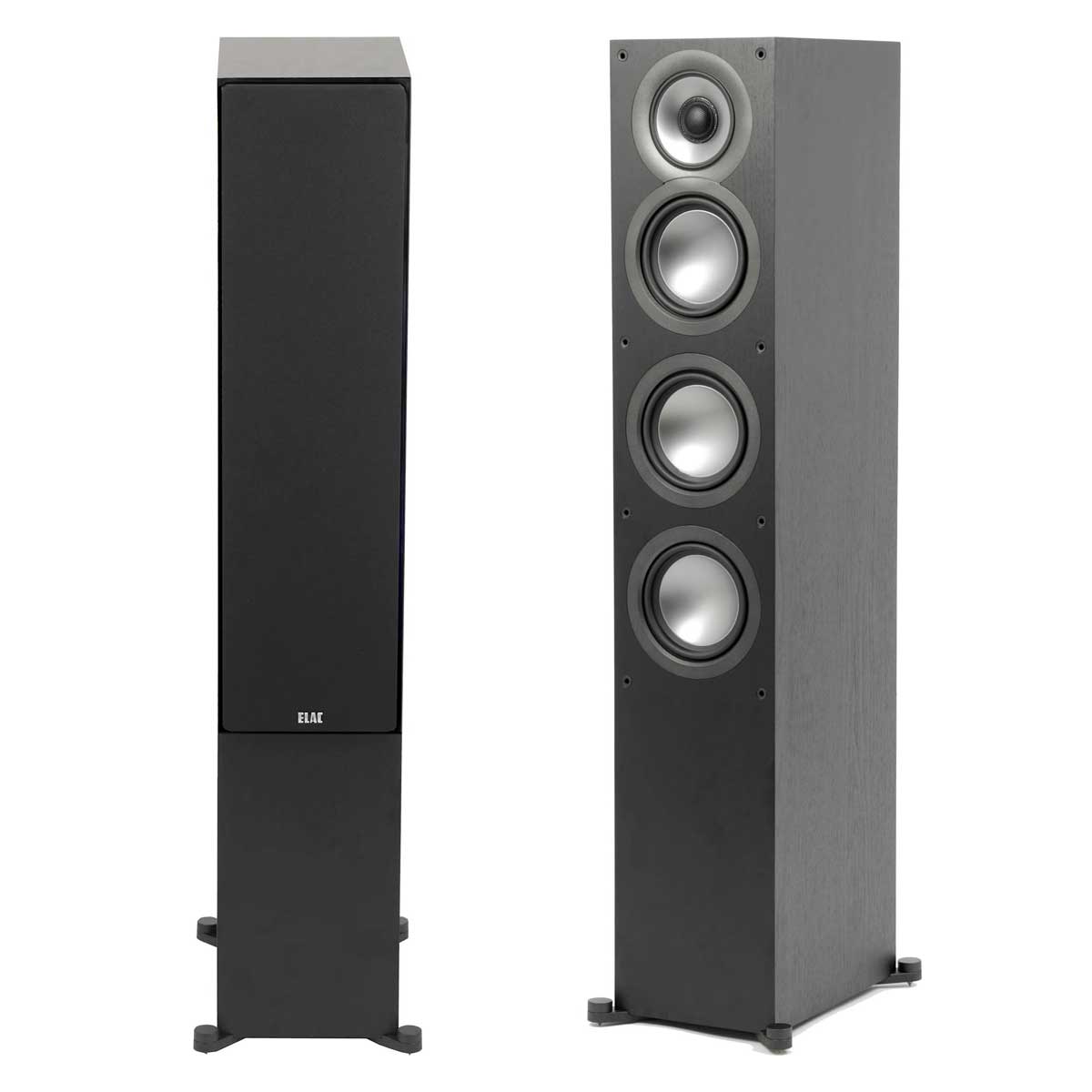

ELAC Uni-Fi 2.0 UF52 Floorstanding Speakers
The ELAC Uni-Fi 2.0 UF52 Floorstanding Speakers have garnered widespread acclaim and recognition for their exceptional sound reproduction, innovative design, and remarkable performance.

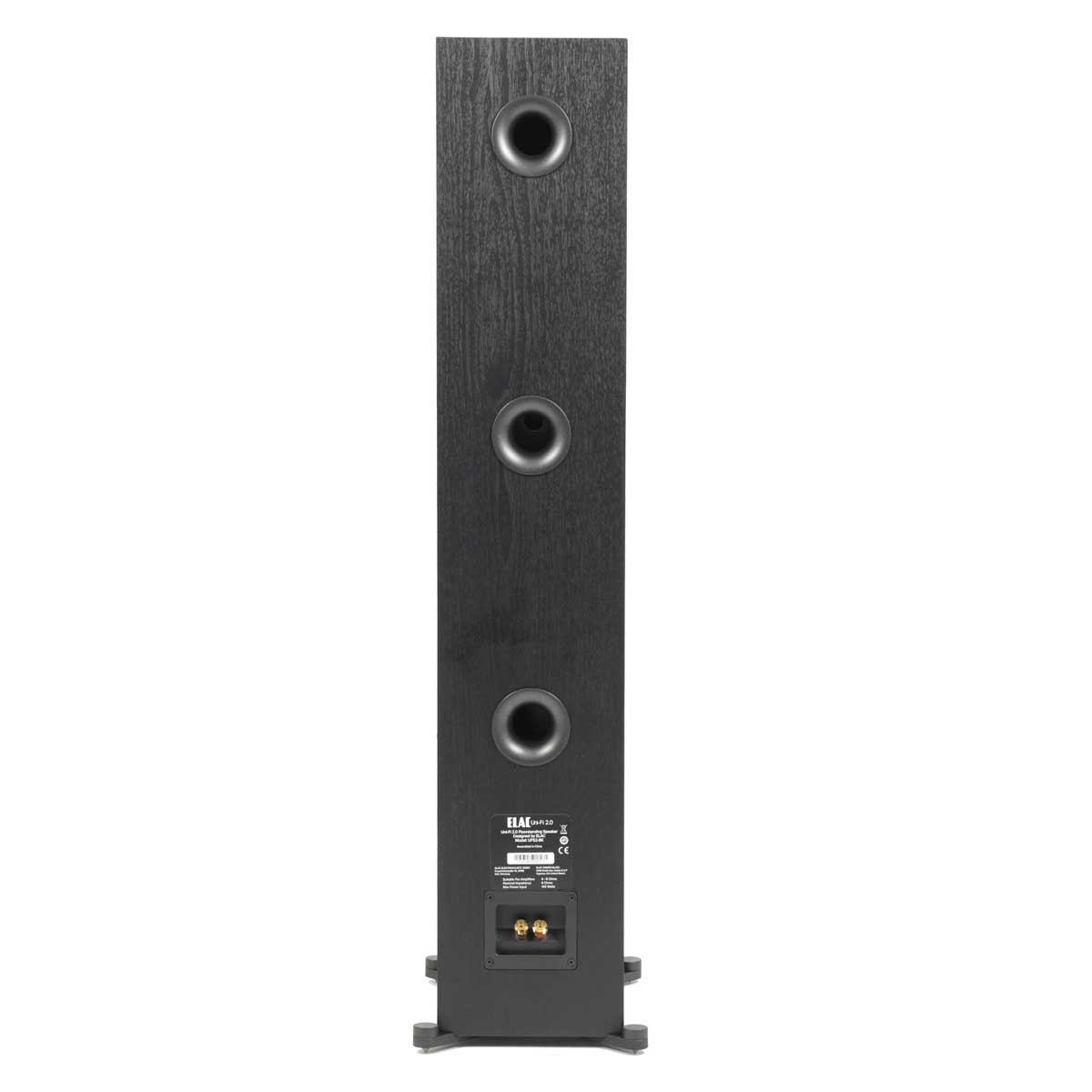

Building on the success of the original UniFi series of speakers, we are introducing the new 2.0 extension! UniFi 2.0 offers a more slender design with front firing port tubes.
Elac’s philosophy of creating products that have great aesthetics and unparalleled performance at a given price point.
Download Specifications >> View Owners Manual >>
Features
Design Goals
The designers goal was to design a 3-way speaker that achieves a performance level not associated at this price point by building on the success of the UniFi series. The key objectives were :
- Complete redesign of the UniFi series
- Improved performance in all aspects
- Improved aesthetics
- Keep in line with Elac’s philosophy
New Design Benefits
Complete new concentric speaker design
- The incredible tweeter from the ELAC Adante series, has been brought into the UniFi price point
- New woofer for improved low frequency performance
- More complex crossover design
- 6 ohm impedance
Concentric Midrange/Tweeter
A new wide-surround tweeter enhances it’s low and high frequency extension allowing for improved blending with the midrange driver. An entirely new mid-range design features a larger diameter voice coil, new aluminum cone profile, new low-profile surround, and an all-new neodymium magnet assembly.
Enhance Bracing
Every Uni-Fi 2.0 enclosure is engineered with thick MDF outer walls and a luxurious black ash vinyl finish. Specially located internal bracing adds stiffness and strength to the cabinet’s outer walls, reducing the cabinet vibration that causes unwanted coloration.
True 3-Way Speaker
A 3-way speaker system offers numerous benefits due to its precise allocation of frequencies to three distinct drivers, each tailored for bass, midrange, and treble.
This meticulous distribution guarantees a precise and detailed rendering of sound throughout the entire spectrum. This design minimizes frequency interference, reduces distortion, and ultimately results in a clearer, more refined audio quality.
Brand New Custom-Designed Concentric Driver
The updated wide-surround tweeter enriches both low and high-frequency extension, facilitating better integration with the midrange driver.
A completely revamped mid-range configuration incorporates a larger diameter voice coil, an updated aluminum cone profile, a redesigned low-profile surround, and a brand-new neodymium magnet assembly. These enhancements contribute to enhanced imaging, broader sound dispersion, and minimized crossover distortion.
Dedicated 5-1/4” Aluminum Bass Woofer
A newly developed single piece aluminum cone results improved stiffness.
Combined with an oversized magnet, larger diameter voice coil, and an extended pole piece these new Uni-Fi 2.0 speakers have significant improvements in accuracy and bass dynamics.
Acoustically Optimized Cabinets
Each Uni-Fi 2.0 enclosure undergoes meticulous engineering, featuring sturdy MDF outer walls and an elegant black ash vinyl finish.
Strategically positioned internal bracing enhances the cabinet’s structural integrity, minimizing vibrations that could otherwise distort the sound and introduce unwanted coloration.
Specification’s
- Speaker Type: 3-way, bass reflex
- Tweeter: 1” Soft Dome
- Mid-Range: 4” Aluminium
- Woofer: 3 x 5-1/4” Aluminium
- Frequency Response: 42 – 35.000 HZ
- Crossover Frequency: 200 / 2000 Hz
- Power Input: 140 W
- Sensitivity: 85 dB @ 2,83 V /1 m
- Nominal Impedance: 6 Ω
- Finish: Black Ash vinyl
- Dimensions (WxHXD): 185 × 980 × 275 mm
