Description
SVS Ultra Centre Speaker

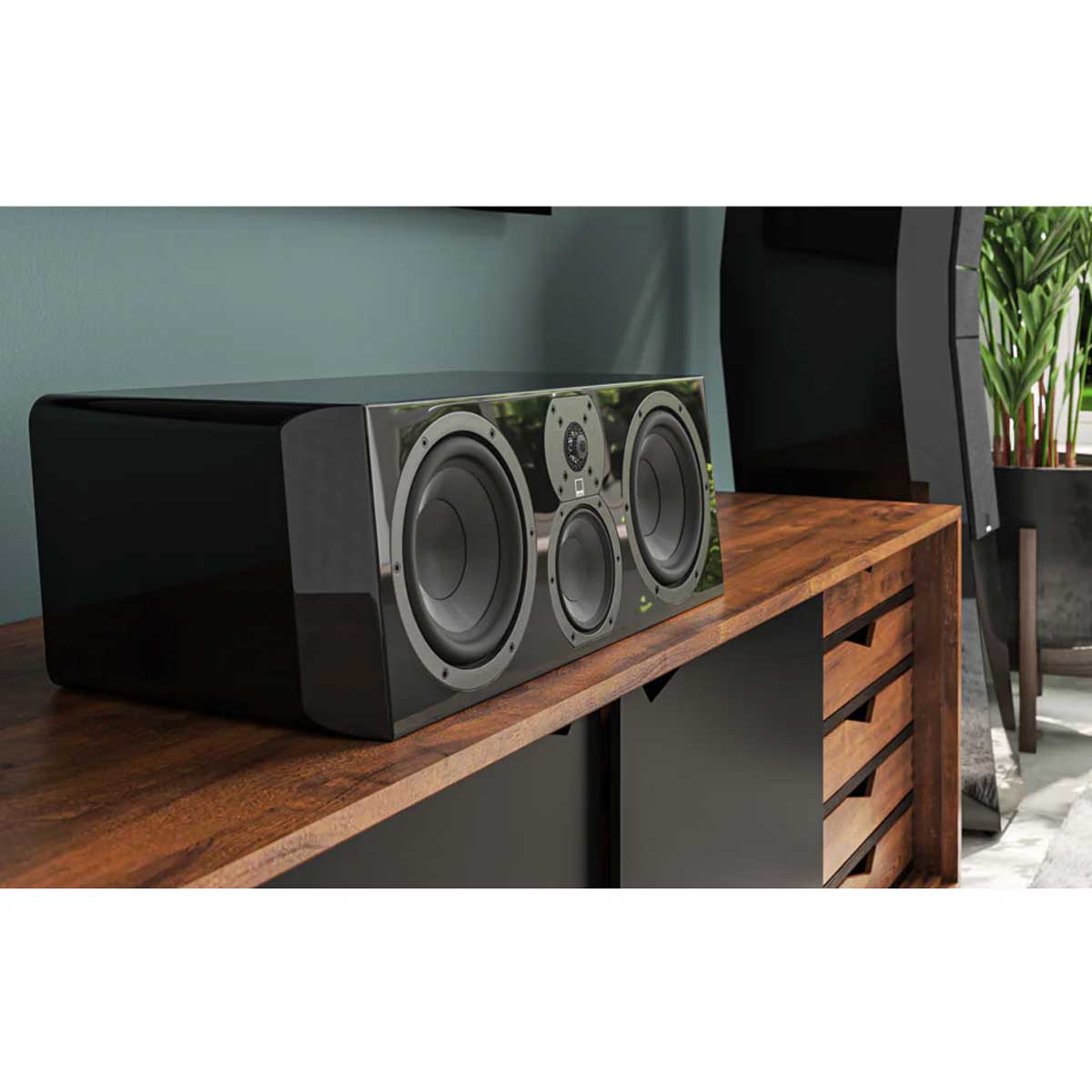

Dramatic Styling Yields Sonic Benefits in the SVS Ultra Centre Speaker. The Ultra Center cabinet design yields numerous sonic benefits. The non-parallel cabinet panels reduce standing waves within the cabinet, effectively eliminating frequency response coloration. The wedge-shaped front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response. Even the grille designn is FEA-optimizedd to maximize acoustic transparency.
SVS Drivers – Extreme Performance and Uncompromised Fidelity

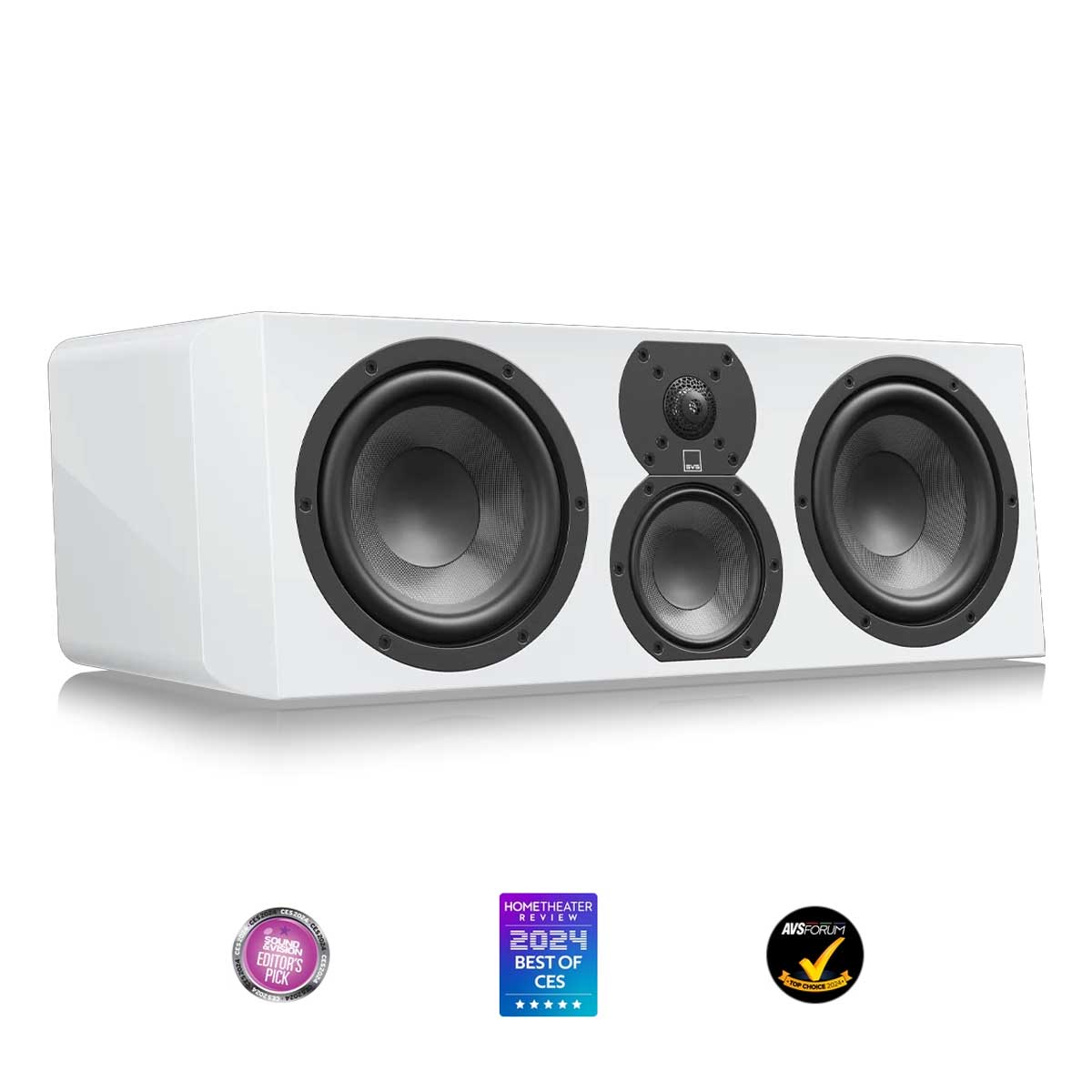

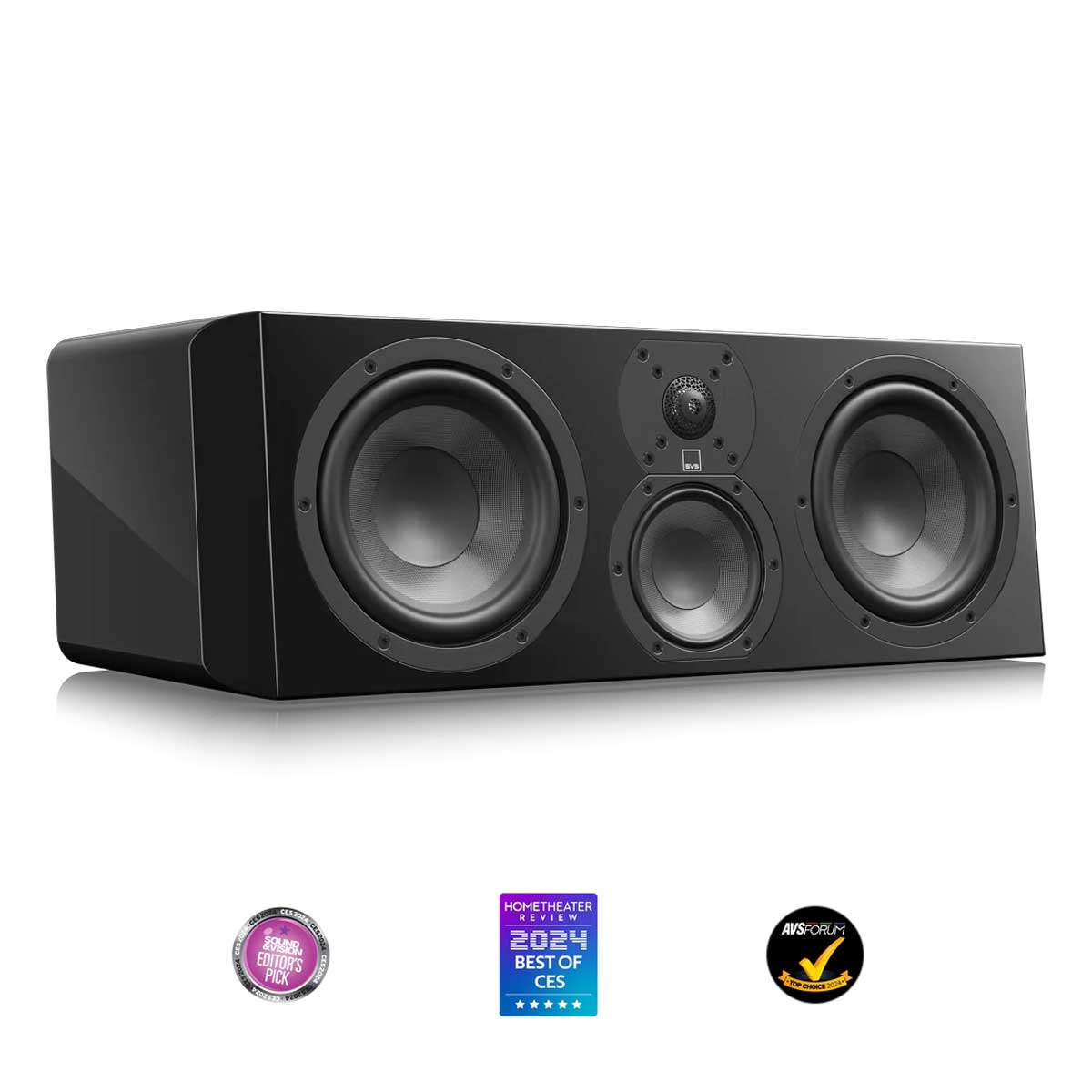

The proprietary SVS drivers utilize the finest materials and design features to ensure the highest sound quality and performance. The Ultra Center driver array features a 1″ aluminum dome tweeter, a 4″ midrange driver, and dual 6.5″ woofers. The vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering for a smooth frequency response and excellent dialogue intelligibility at all listening positions.
The 1″ aluminum dome tweeter utilizes an FEA-optimized diffuser which delivers a very open ‘airy’ presentation and extremely unveiled highs.The 4″ midrange delivers amazing dialogue clarity and detail with powerful and room-filling presence and projection:
- A composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.
- A vented voice coil former to minimize air compression artifacts at high drive levels.
- An aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
- A cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.
The 6.5″ woofer delivers excellent lower midrange clarity, along with remarkably powerful and deep bass response:
- A composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.
- A vented voice coil former to minimize air compression artifacts at high drive levels.
- An aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
- A cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.
SoundMatch Crossover Network – Intelligently Designed for Your Listening Room
The SoundMatch 3-way crossover features premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards to ensure pure signal transmission. Careful selection of the crossover frequency and slopes results in a smooth off-axis polar response, outstanding phase coherency and a stable sound stage.
Specifications
Loudspeaker Physical Description:
Center Channel Loudspeaker
Dimensions: 203mm x 558mm x 254mm | 8″ (H) X 22″ (W) X 10″ (D).
Weight: 14kg | 31 pounds.

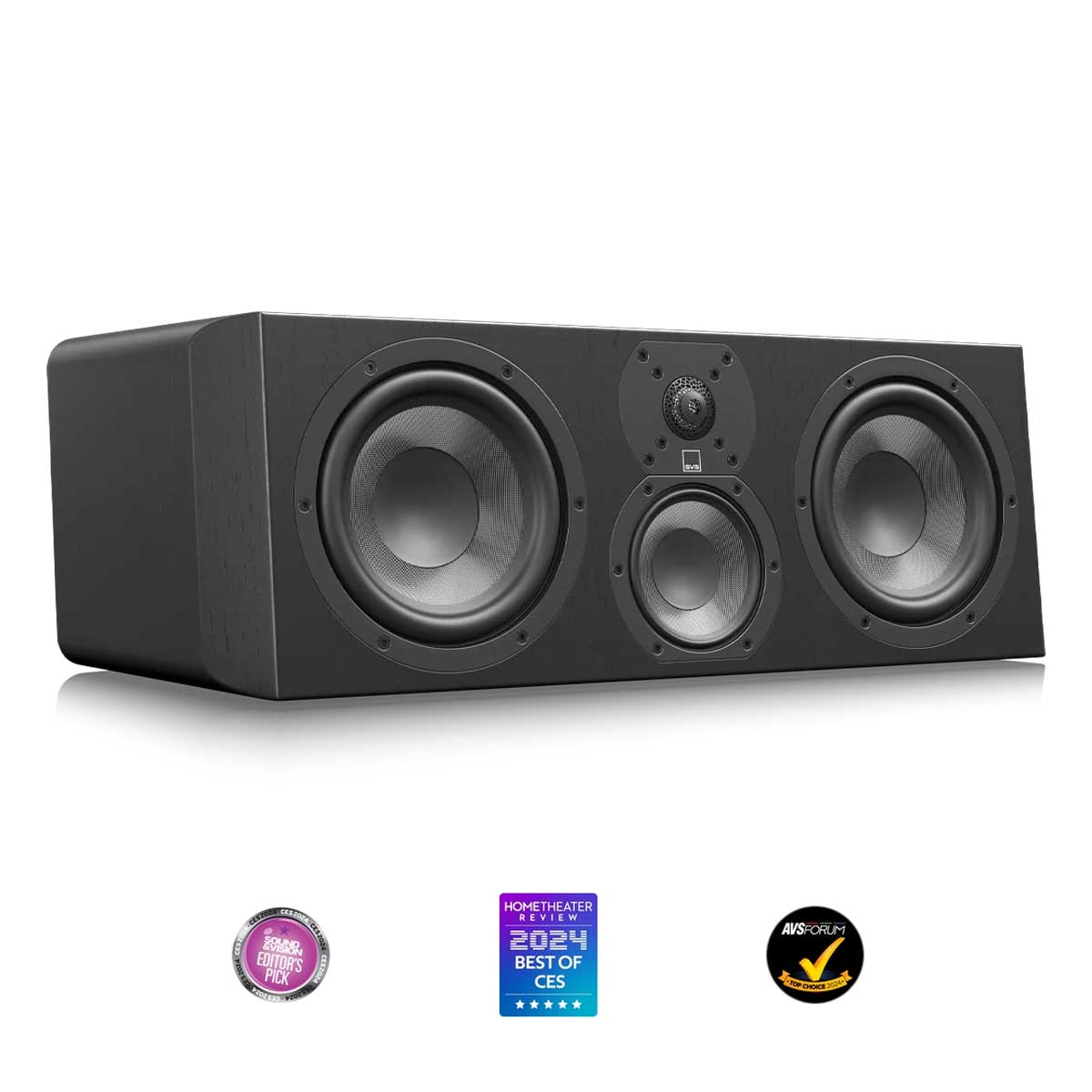

Real black oak veneer and piano gloss black finish options.

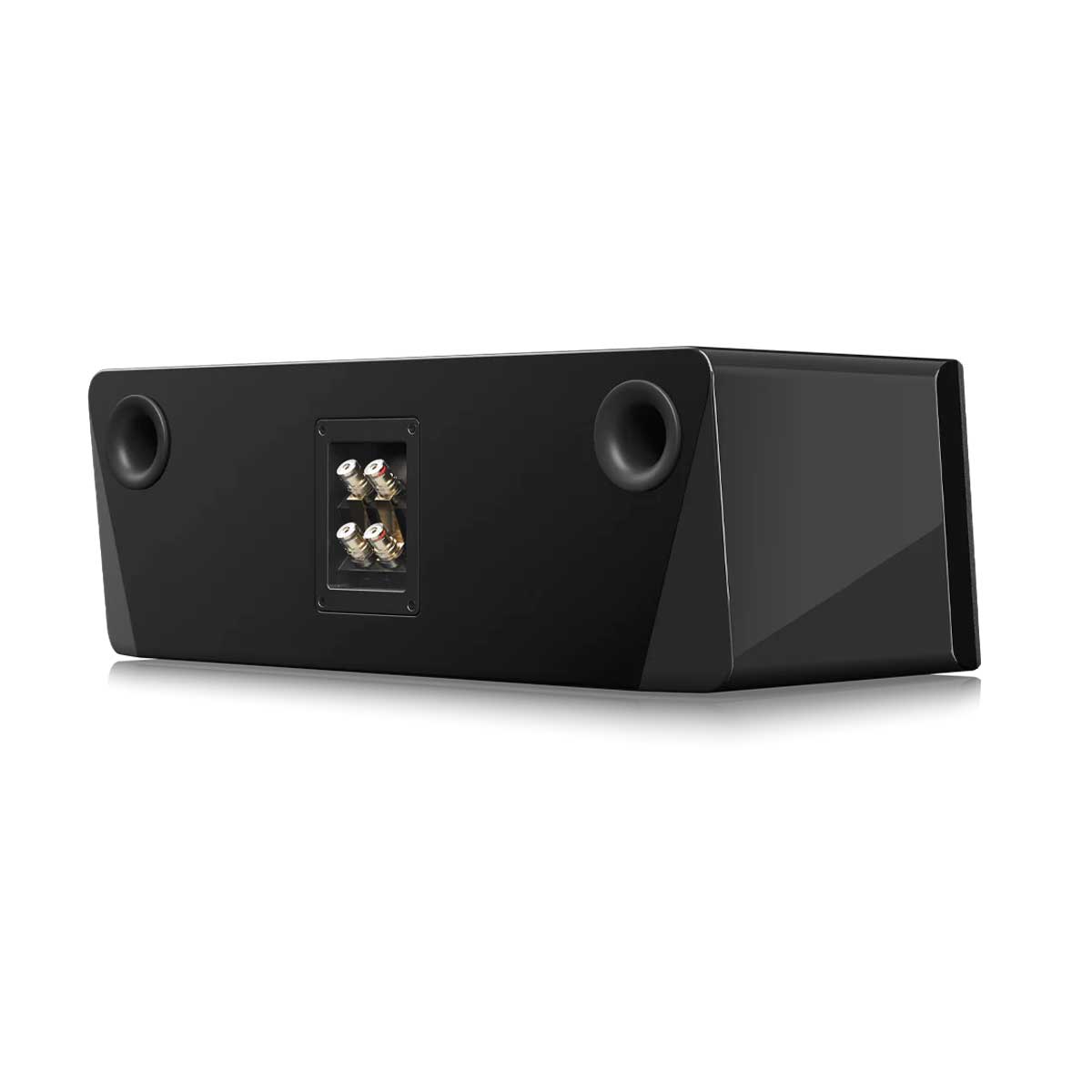

Dual gold-plated 5-way binding posts
Dual 1.7″ wide-flared rear-firing ports.
Cloth grille with pin/cup retention system.
Driver Array and Technical Highlights:
Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering.
1″ tweeter:
FEA-optimized diffuser for unveiled presentation.
Aluminum dome deliver exceptional transient response and exceptional stiffness/mass ratio.
4″ midrange driver:
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response.
Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity.
Vented voice coil former to minimize air compression artifacts at high drive levels.
6.5″ woofers:
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response.
Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity.
Vented voice coil former to minimize air compression artifacts at high drive levels.
Cabinet Construction Technical Highlights:
Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response.
FEA-optimized bracing reduces cabinet resonances.
SoundMatch Crossover Network:
3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
Midrange-to-tweeter crossover: 2.2 kHz.
Midrange-to-woofer crossover: 500 Hz.
Frequency Response and Electro-Acoustic Data:
Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
Nominal impedance: 8 ohms.
Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz).
Recommended amplifier power: 20-225 watts.
