ELAC Debut 3.0 C53 Centre Speaker
The ELAC Debut 3.0 C53 Centre Speaker stands out with their innovative custom drivers and superior cabinet design
To fully envelop yourself in sound, a comprehensive surround system requires a centre channel that rivals its front-channel companions. Introducing the latest Debut 3.0 DC63, it creates an awe-inspiring soundstage that revitalizes cinematic escapades and musical explorations alike
Features
Sealed Design – Centre Channel
The Debut 3.0 center channels feature a sealed design, eliminating any unwanted port noises from the speaker, especially crucial as it handles the majority of dialogue reproduction.
Aramid Woven Woofer – Exceptional strength and rigidity
The latest iteration of the Debut 3.0 speaker series integrates a newly engineered aramid fiber woofer renowned for its superior attributes, including an exceptional strength-to-weight ratio, advanced damping characteristics, and distinctive thermal conductivity .
Coupled with oversized magnets, 1 ½” voice coil this innovative bass driver significantly enhances audio fidelity, ensuring a more precise and immersive listening experience characterized by heightened accuracy and enjoyment.
Aluminum Dome Tweeter – Precise and immersive listening experience
All Debut 3.0 speakers incorporate our proprietary aluminum dome tweeter, specially engineered for enhanced performance. Aluminum is renowned for its stiffness and lightness, enabling the tweeter to accurately reproduce high frequencies with remarkable clarity and detail.
This innovative tweeter delivers exceptionally fast transient response, improved rigidity, and increased power tolerance, thereby elevating the overall audio quality beyond that of preceding iterations.
Internal Bracing – Reinforcing the speaker cabinet
All Debut 3.0 models utilize strategically placed internal bracing reinforcing the cabinet structure, effectively minimizing resonances and unwanted vibrations, thereby improving the clarity and accuracy of sound reproduction. This results in a more accurate reproduction of audio, as it ensures that sound is primarily emitted from the speaker drivers.
Luxurious Cosmetics – DEBUT 3.0
- Magnetic Grilles – The introduction of magnetically attached grilles to the Debut 3.0 line is a standout feature, offering a clean hardware-free for those who prefer the look of exposed drivers.
- Distinguishing Phase Plug – The overall aesthetic is further refined with a sleek cabinet finish, contributing to the speakers’ modern and elegant appearance.
Specifications
- Speaker Type: 2-Way, Sealed
- Frequency Response -6 dB:: 57 to 38Khz
- Nominal impedance: 6 Ω
- Sensitivity @2.83 v/1m: 87.5 dB
- Crossover Frequency: 1900 Hz
- Recommended Ampliifer Power: 120 W
- Peak Power Handling: 60/100 W
- Tweeter: 1 – inch Aluminum dome
- Midrange (aramid-fiber): –
- Woofer (aramid-fiber): 2 x 5 1/4 “
- Cabinet: CARB2 rated 16mm MDF
- Cabinet Finish: Black Ash vinyl, Satin Black Vinyl Front
- Port: Dual Flared

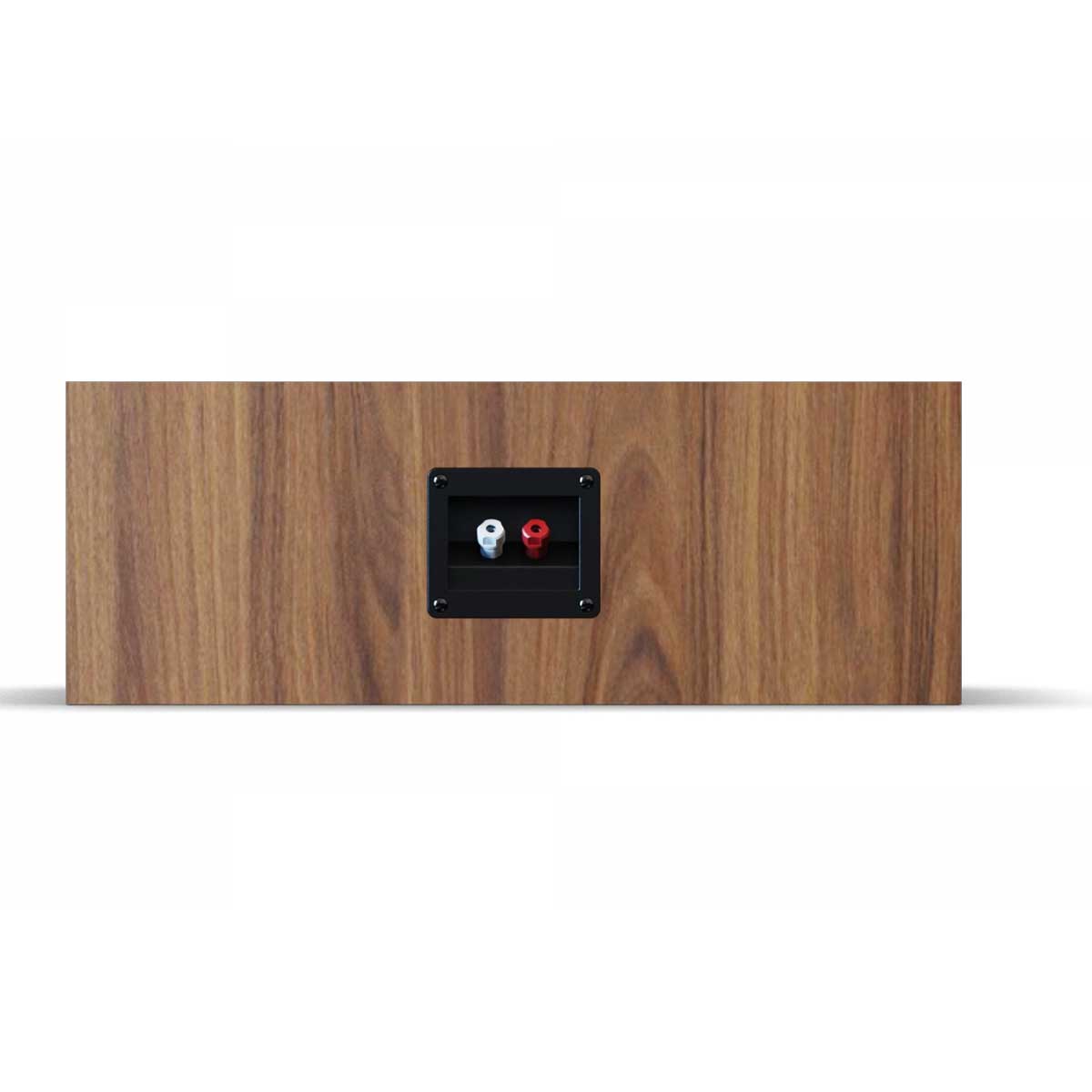

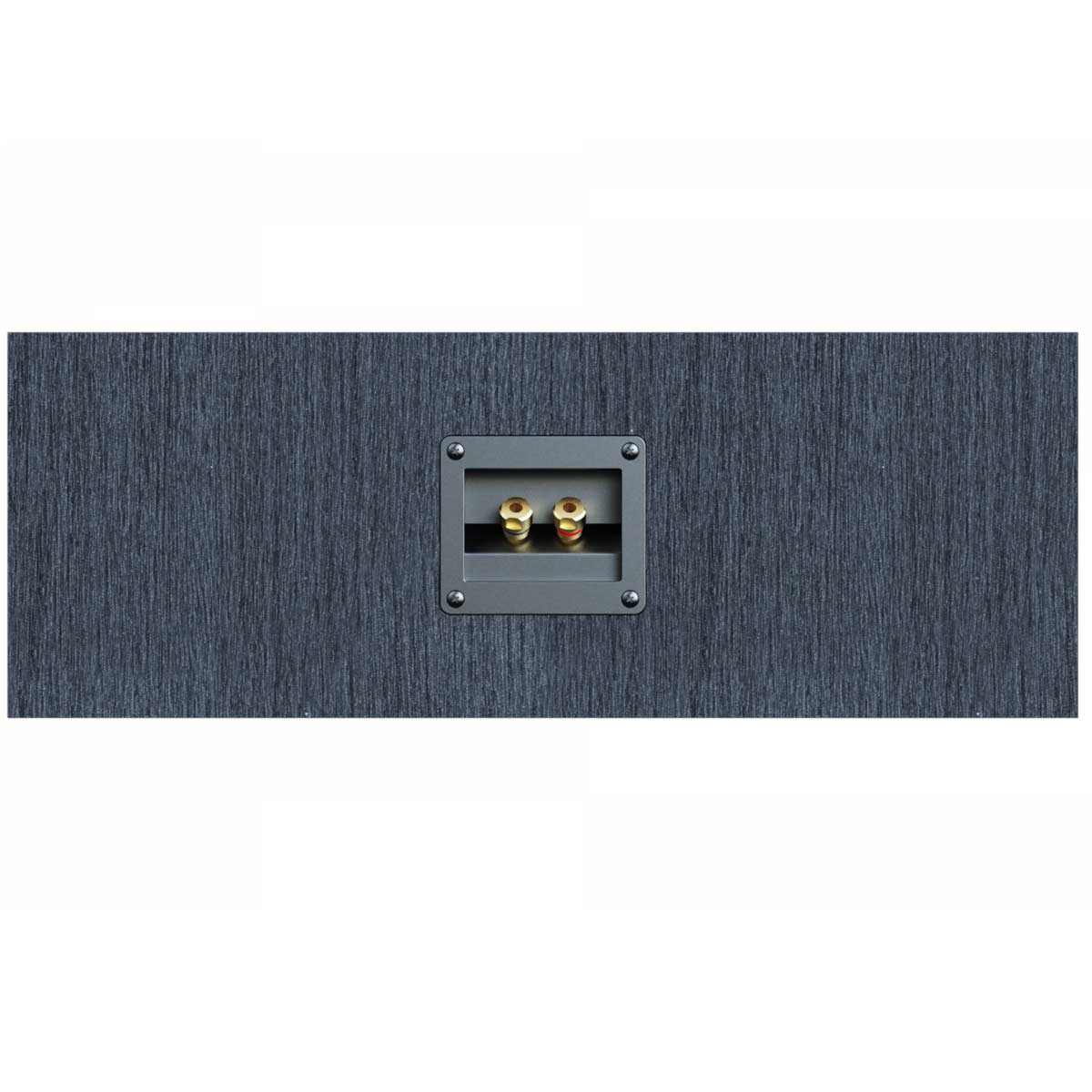

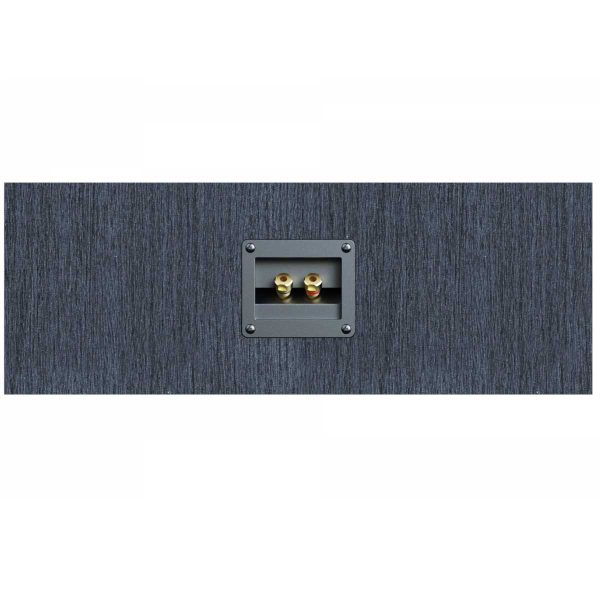

- Binding Post: 5-way metal
- Width (in / mm): 19.0/482
- Height (in / mm): 6.8/172
- Depth (in / mm): 9.2/234
- Net Weight (lbs / KG): 19.2/8.7
