Cayin Jazz 100 Bluetooth Tube Integrated Amplifier

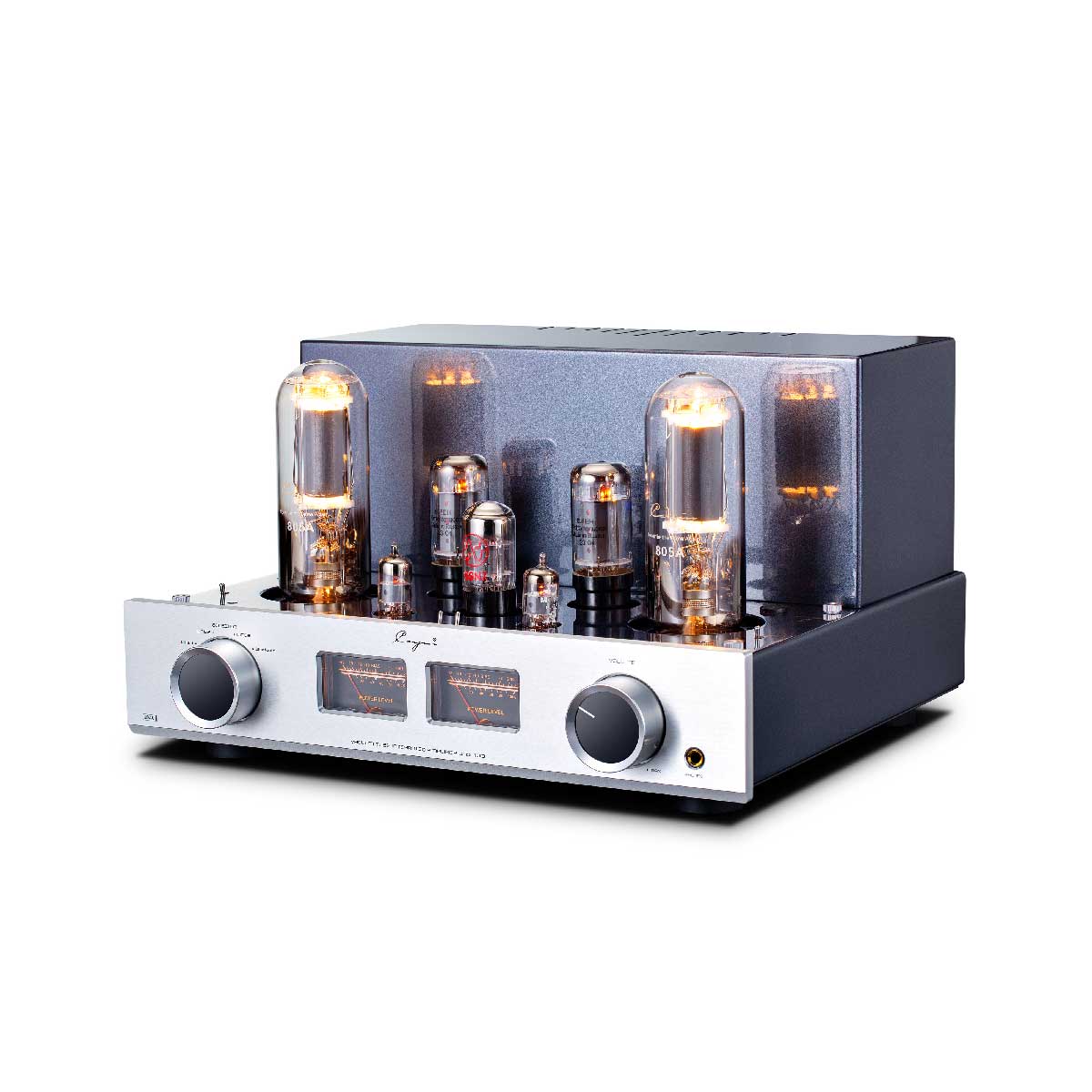

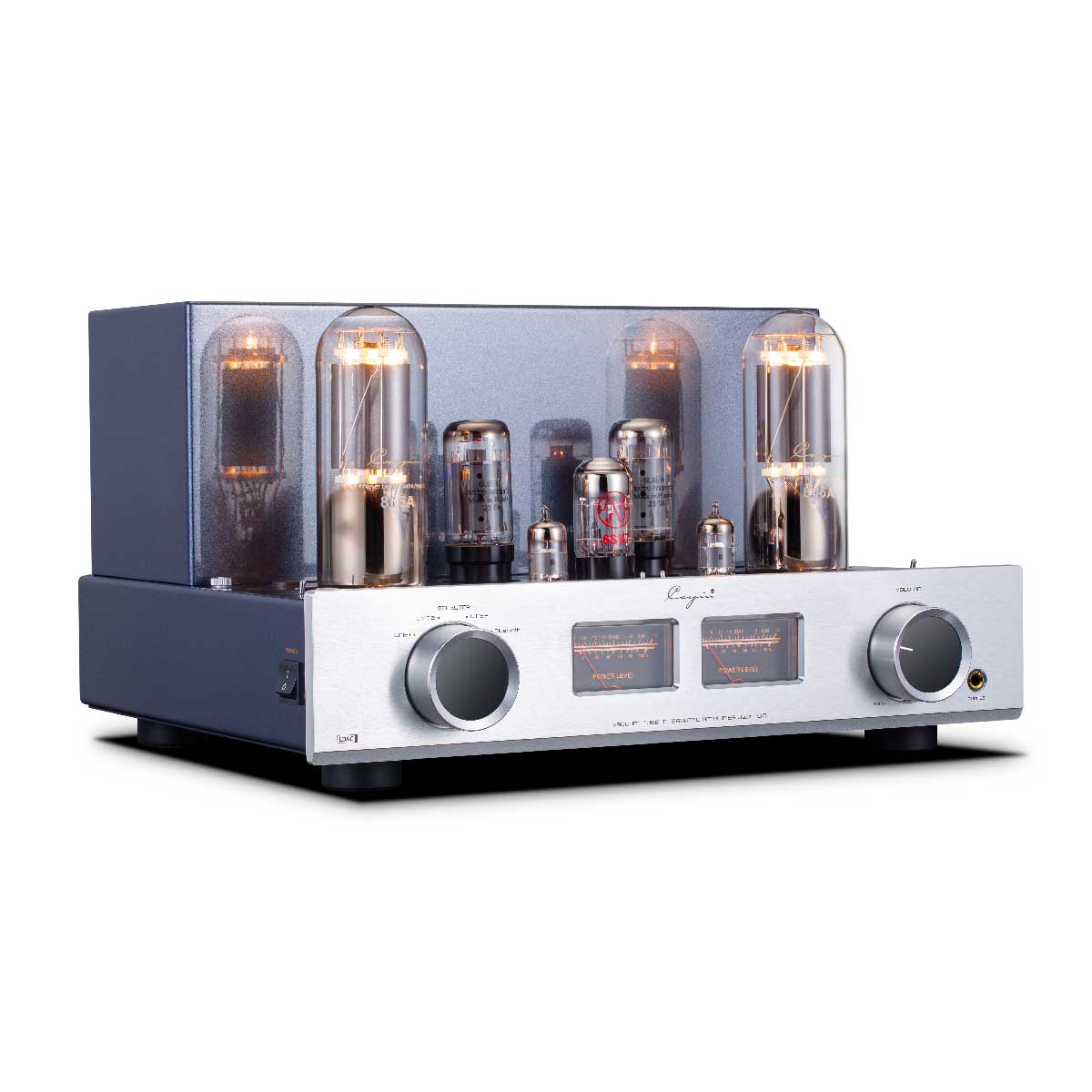

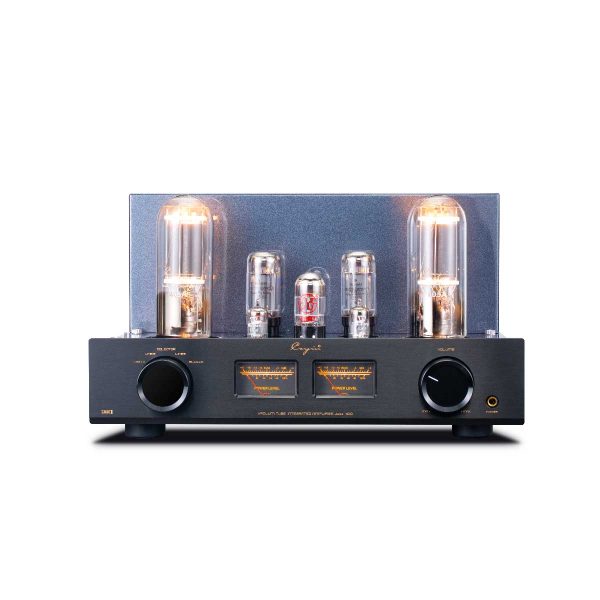

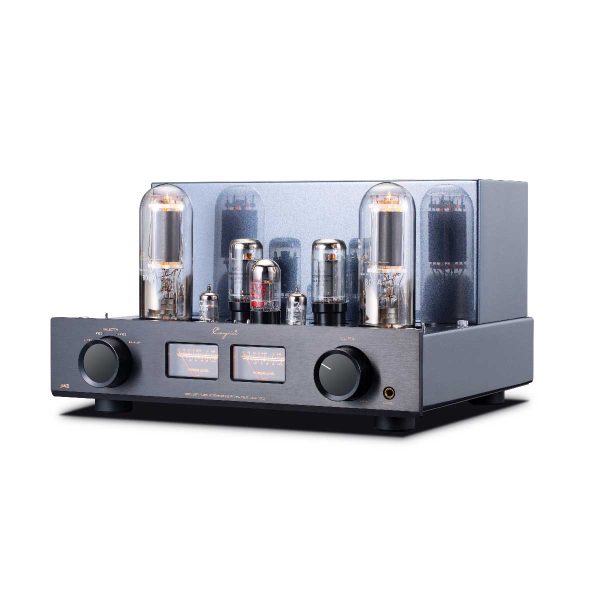

The Cayin Jazz 100 Bluetooth Tube Integrated Amplifier is a tube amplifier featuring a single-ended triode configuration, using 805A tubes to deliver 35 watts per channel in class A.
It combines classic topology with meticulous design, aiming to reproduce the warmth and finesse characteristic of tube circuits. Its connectivity, notably including high-definition Bluetooth, allows for seamless integration into modern audio systems while preserving the qualities sought after by analog listening enthusiasts.
View Cayin Audio Products >>
Features
Sonic Performance
The Jazz 100 stands out for its remarkable audio performance, with an extended frequency response from 12 Hz to 33 kHz (-3 dB) and total harmonic distortion kept to just 0.2% at moderate power. These technical characteristics translate into sound reproduction that is both precise and warm, where every musical nuance is preserved.
Adaptability to different speakers is a major asset of this amplifier. Its dedicated output terminals for 4 and 8 ohm impedances allow for optimal matching with virtually any type of speaker. This flexibility is enhanced by the ability to adjust the level of negative feedback: in the low position, the sound gains openness and expressiveness, while in the high position, it becomes more controlled and precise.
For headphone listening enthusiasts, the Jazz 100 features a dedicated front-panel output powered by a specific transformer. Compatible with headphones ranging from 16 to 300 ohms impedance, this section inherits the sonic qualities of the main amplification and offers a high-level personal listening experience.
FAQ’s
- What type of tubes does the Cayin Jazz 100 use? The Jazz 100 uses high-quality vacuum tubes that deliver warm, detailed, and dynamic sound, giving your music a natural and engaging character.
- Does the Jazz 100 support wireless streaming? Yes, it features Bluetooth connectivity, allowing you to stream music wirelessly from smartphones, tablets, and other compatible devices.
- How powerful is the Cayin Jazz 100? It provides robust output power suitable for a wide range of speakers, ensuring clear and impactful sound even in larger listening rooms.
- Can I connect multiple audio sources? Absolutely. The Jazz 100 includes multiple analog and digital inputs, giving you flexibility to connect turntables, CD players, streamers, and more.
- Is the Jazz 100 suitable for both beginners and audiophiles? Yes – its intuitive controls make it easy for beginners, while its tube-driven design and premium sound quality satisfy experienced audiophiles.
Specifications
Amplification
- Output power:
- 2 × 35 W RMS (THD < 3%)
- 2 × 46 W (THD < 9%)
- Audio performance:
- Frequency response: 12 Hz – 33 kHz (–3 dB)
- Total harmonic distortion: 0.2% at 1 W / 1 kHz (at 90% of rated power)
- Signal-to-noise ratio: 90 dB (A-weighted)
- Input sensitivity: 320 mV
- Input impedance: 100 kΩ

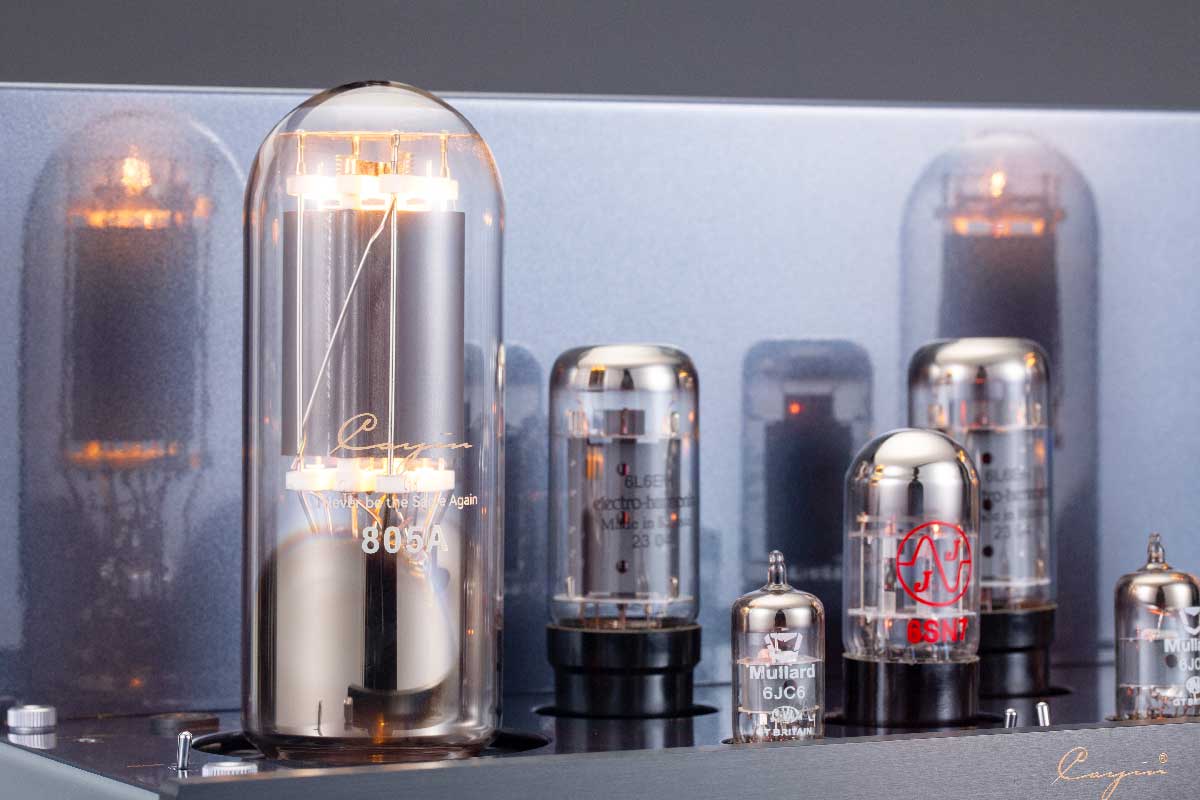

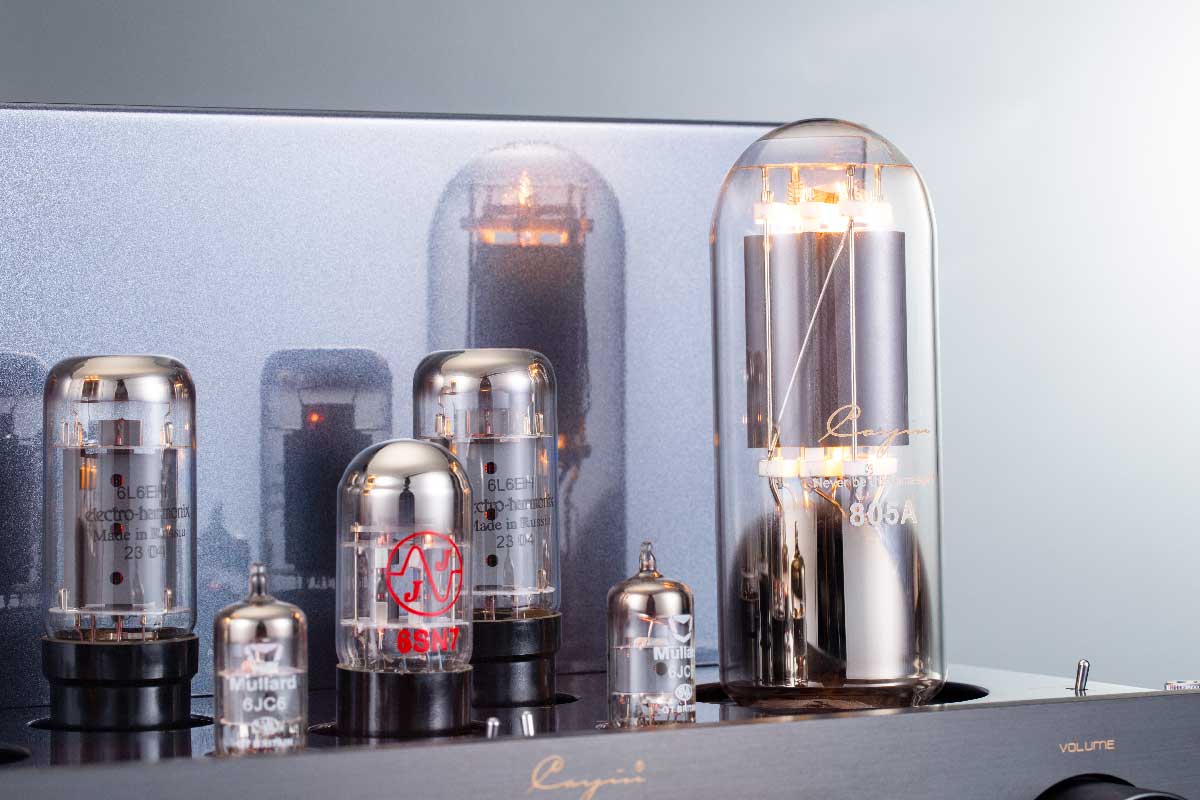

Tube Configuration
- Power tubes: 2 × 805A (triodes – Psvane)
- Driver tubes: 2 × 6L6 (replaceable with EL34, KT88, etc.)
- Preamplification: 1 × 6SN7
- Input amplification: 2 × 6JC6
Features

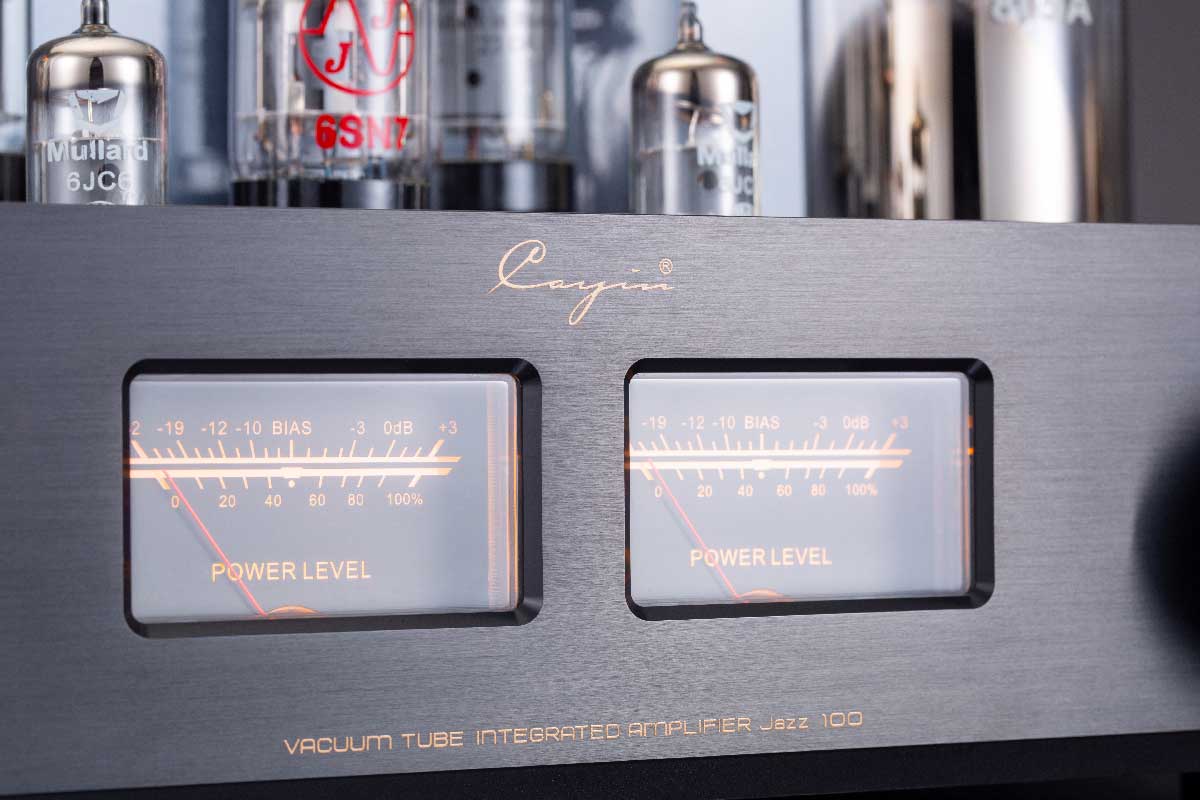

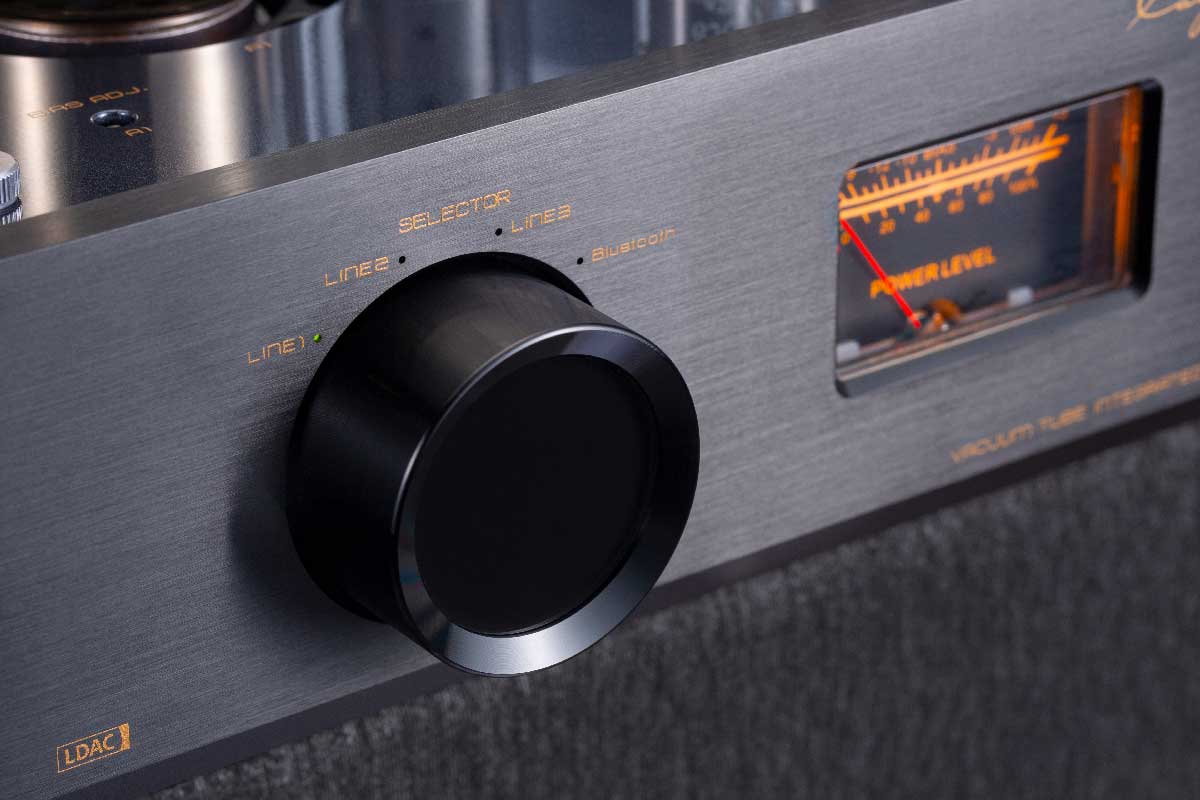

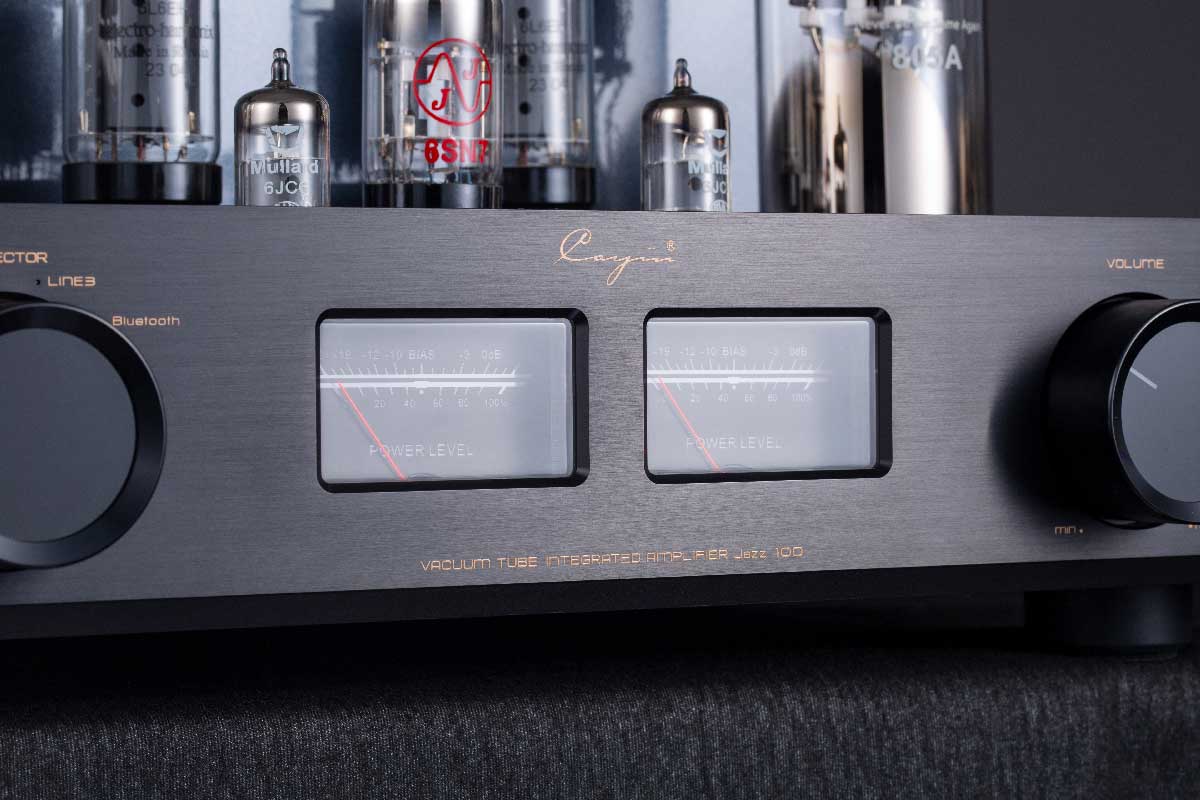

- Front panel analog VU meters (power indication)
- Manually adjustable bias via trimmer (integrated measurement needle)

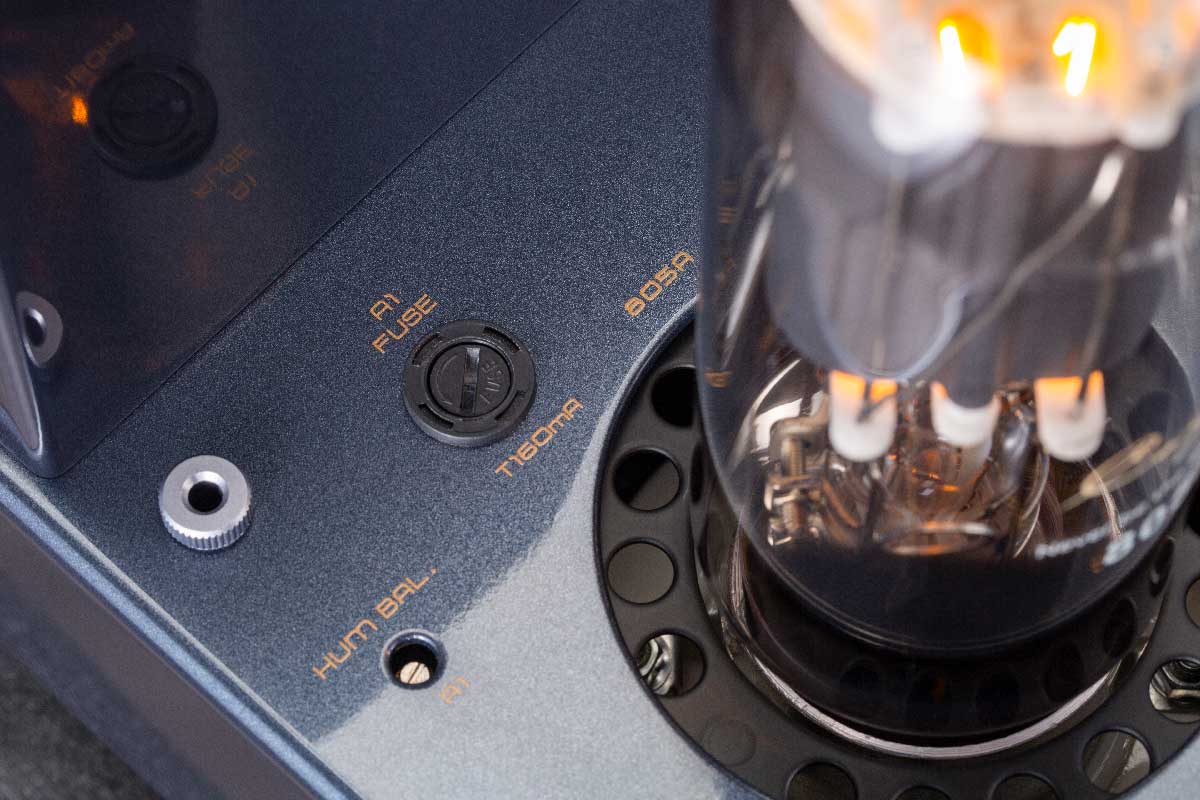

- Hum balancer to minimize background noise
- Adjustable negative feedback level (for a more controlled or open sound)

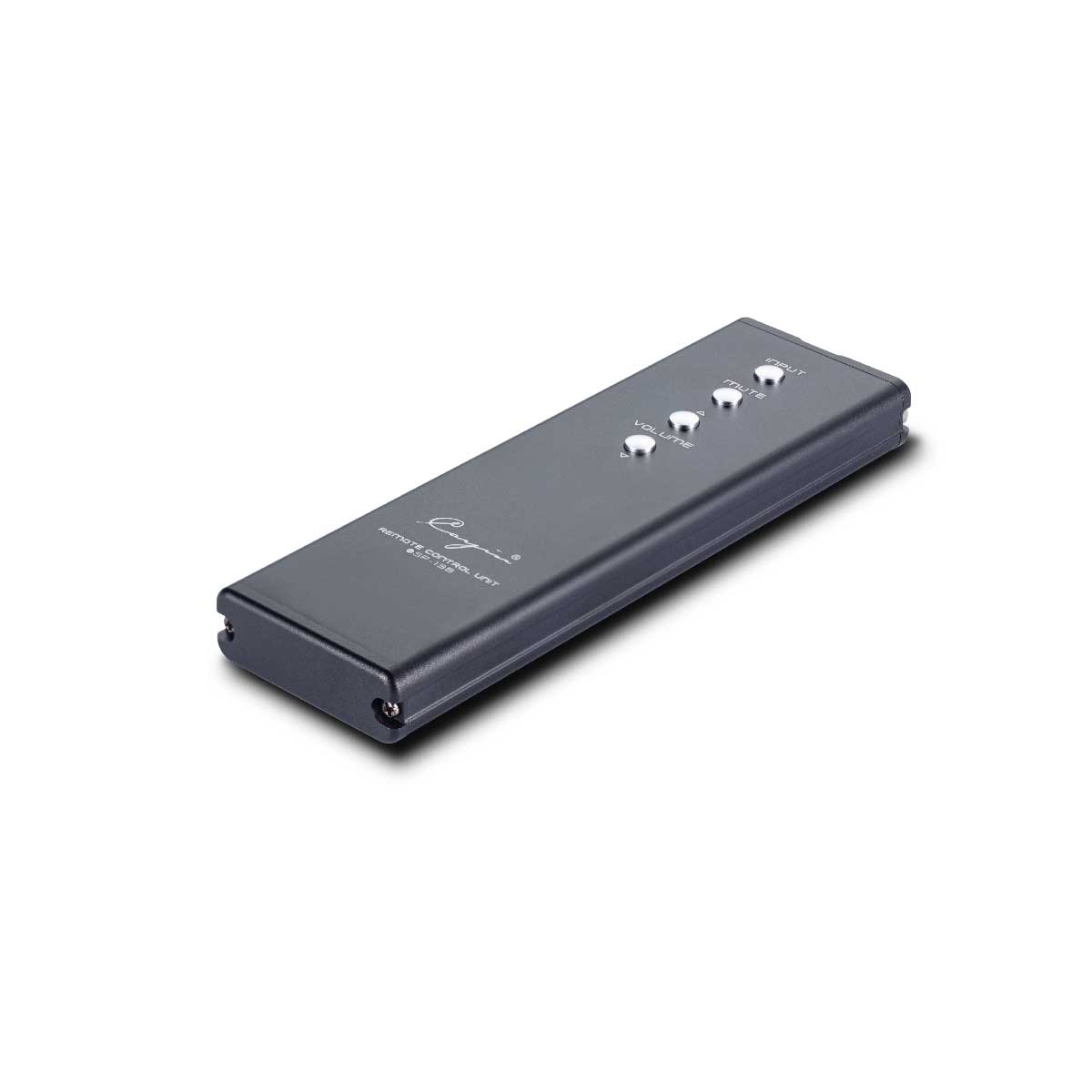

- Robust IR remote control: source selection, volume, mute
- 6L6 tubes can be replaced (compatible with EL34, KT88, etc.)
Construction and Design

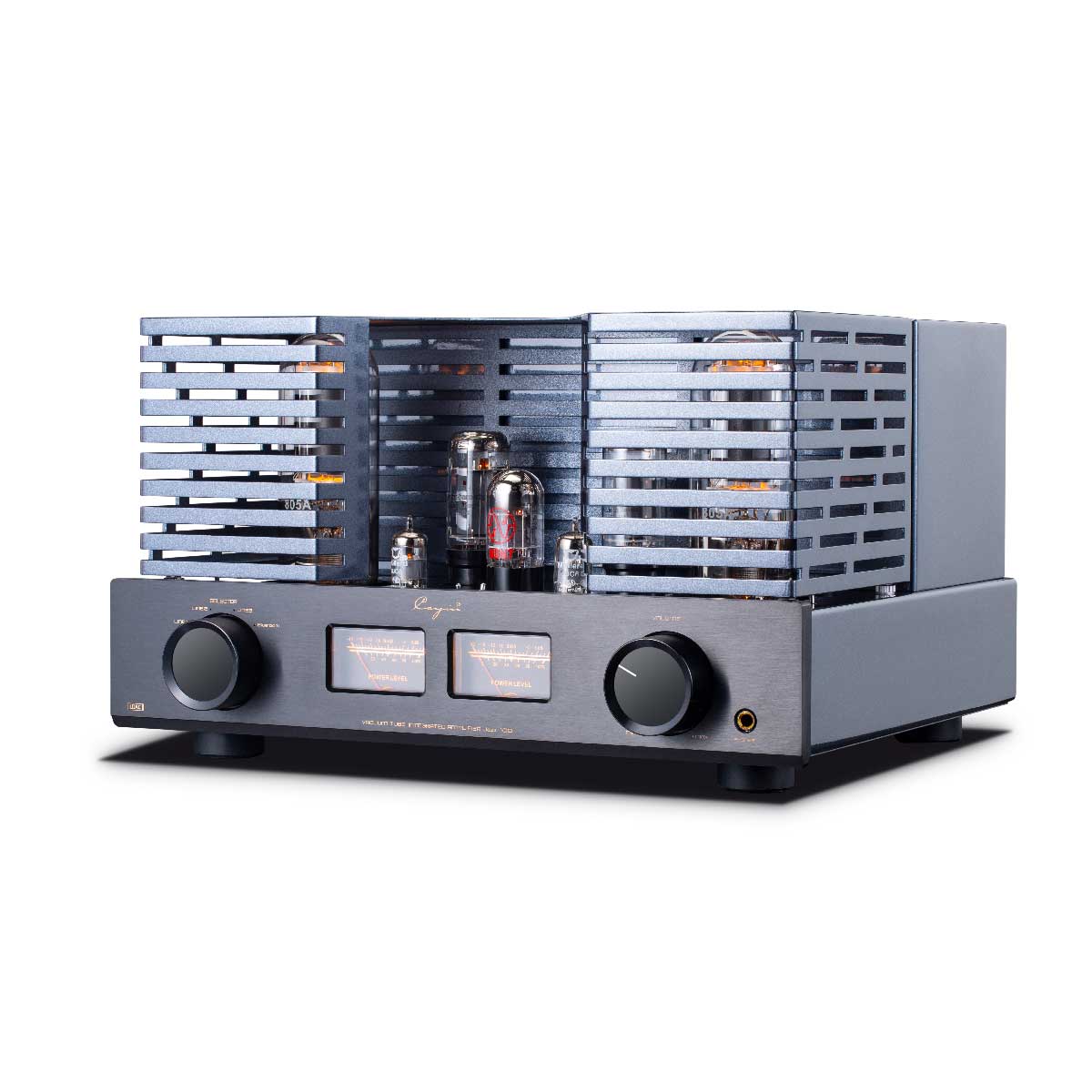

- Solid metal chassis, matte black or silver finish
- Symmetrical design and meticulous internal wiring
- Custom output transformers for stable load, even with demanding speakers

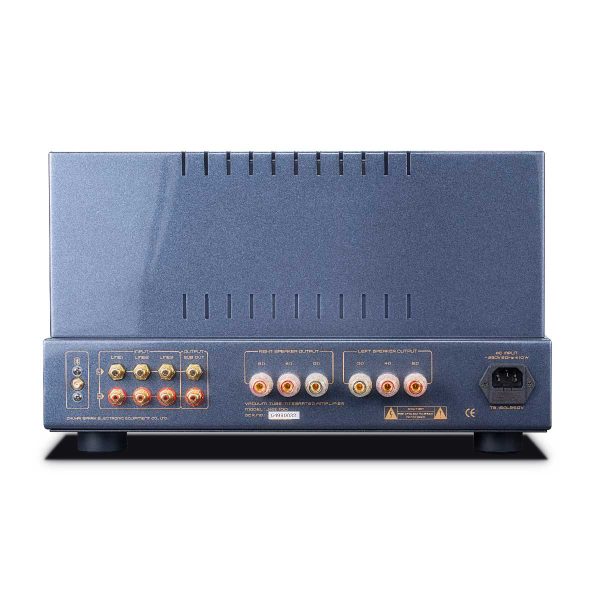

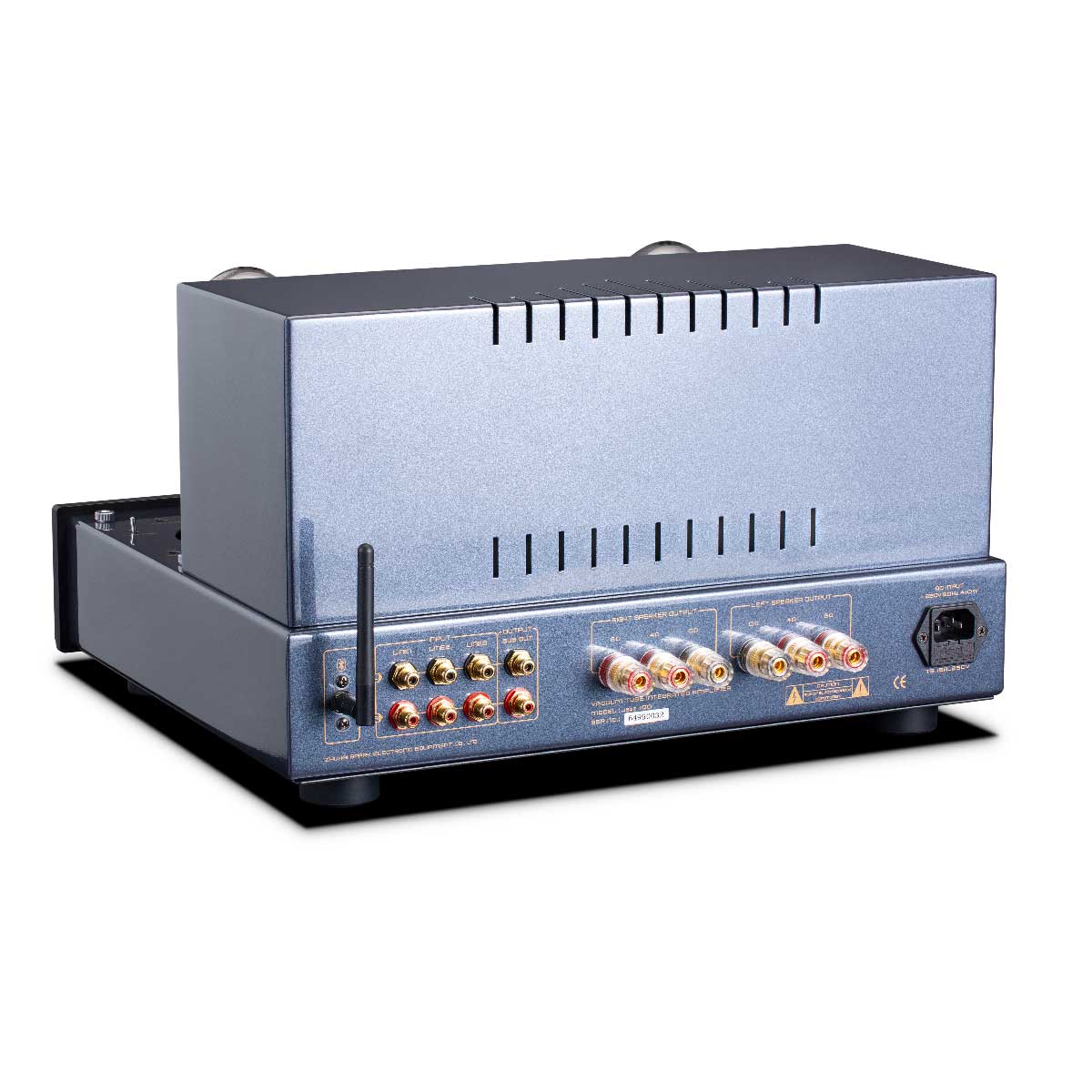

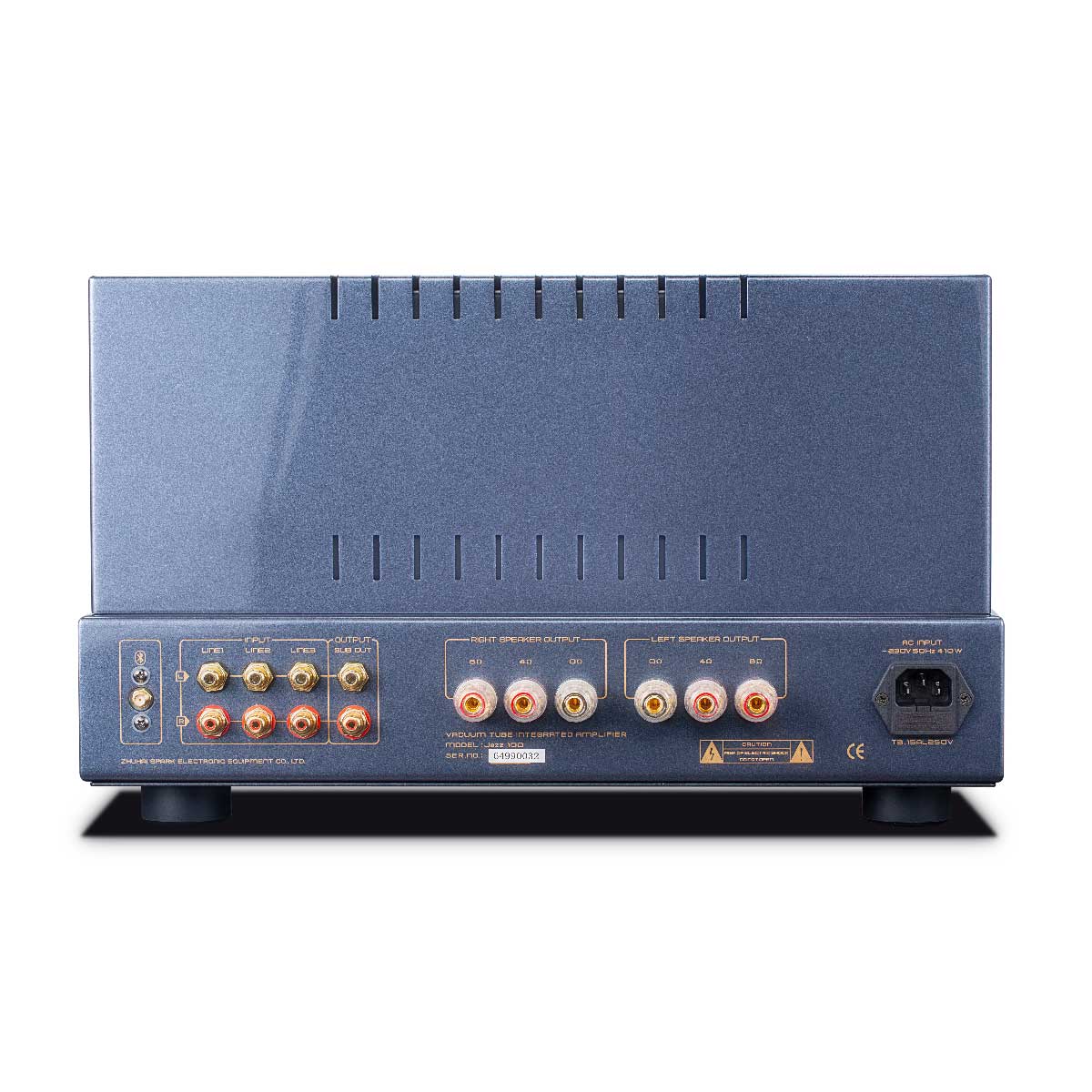

Connectivity

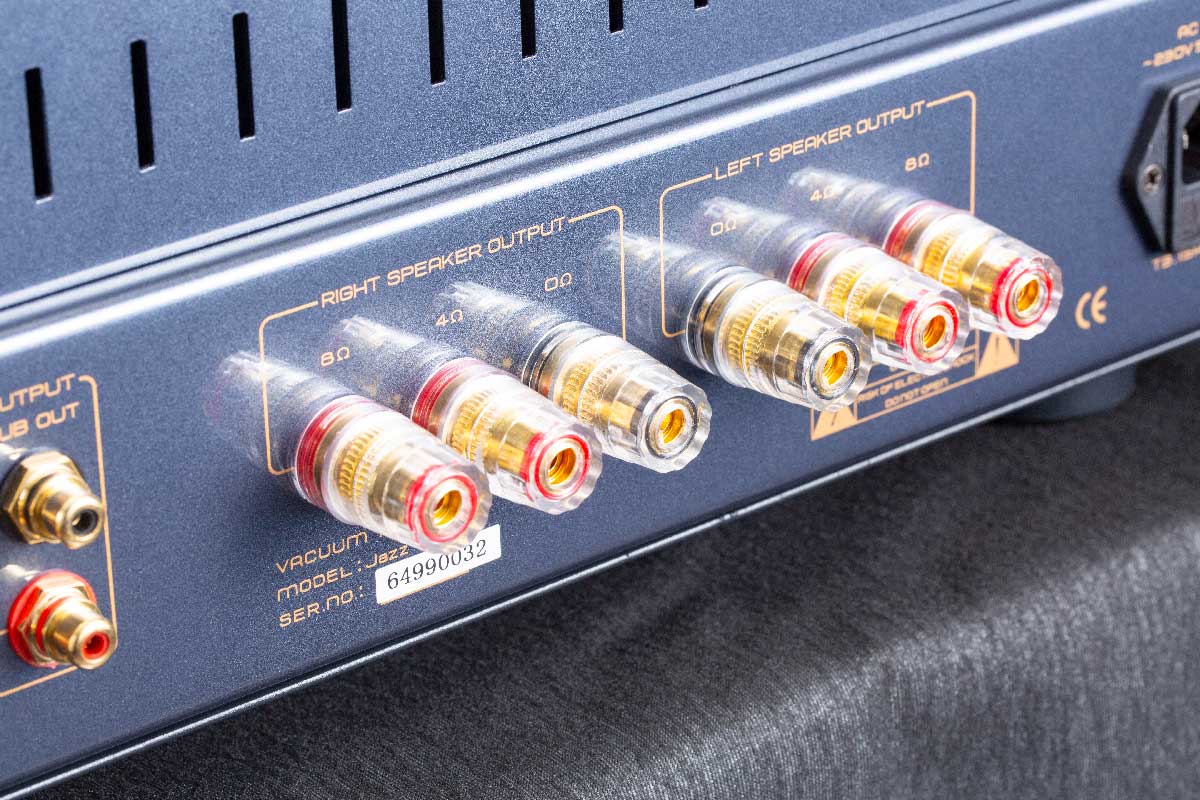

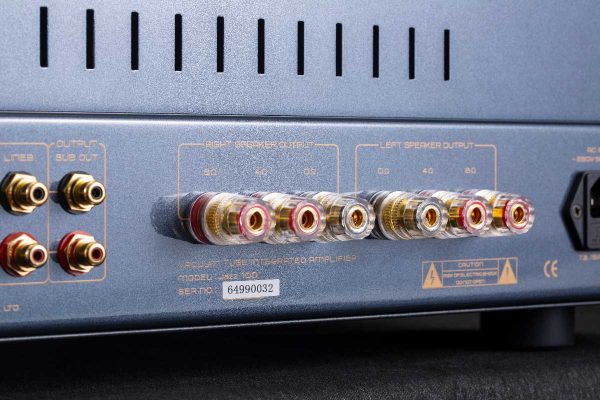

- Speaker outputs: dedicated 4 Ω and 8 Ω terminals
- Headphone output: front jack (compatible with 16–300 Ω)

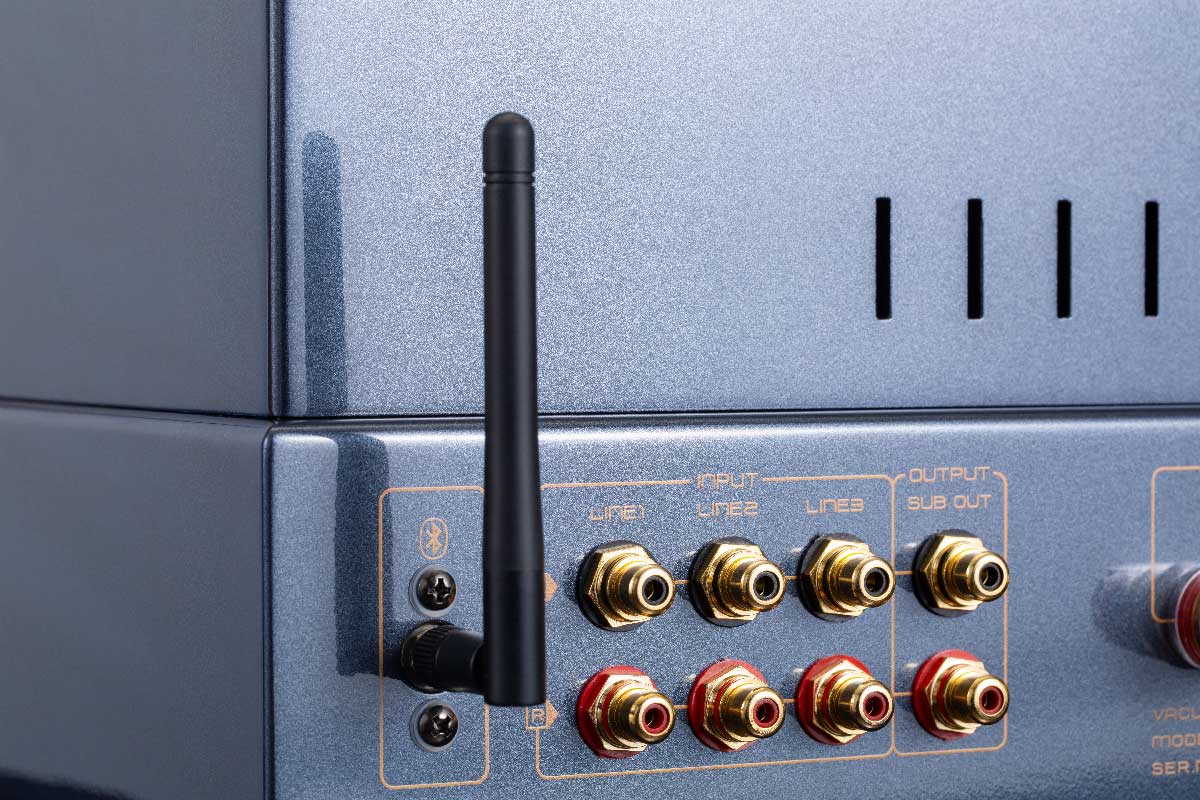

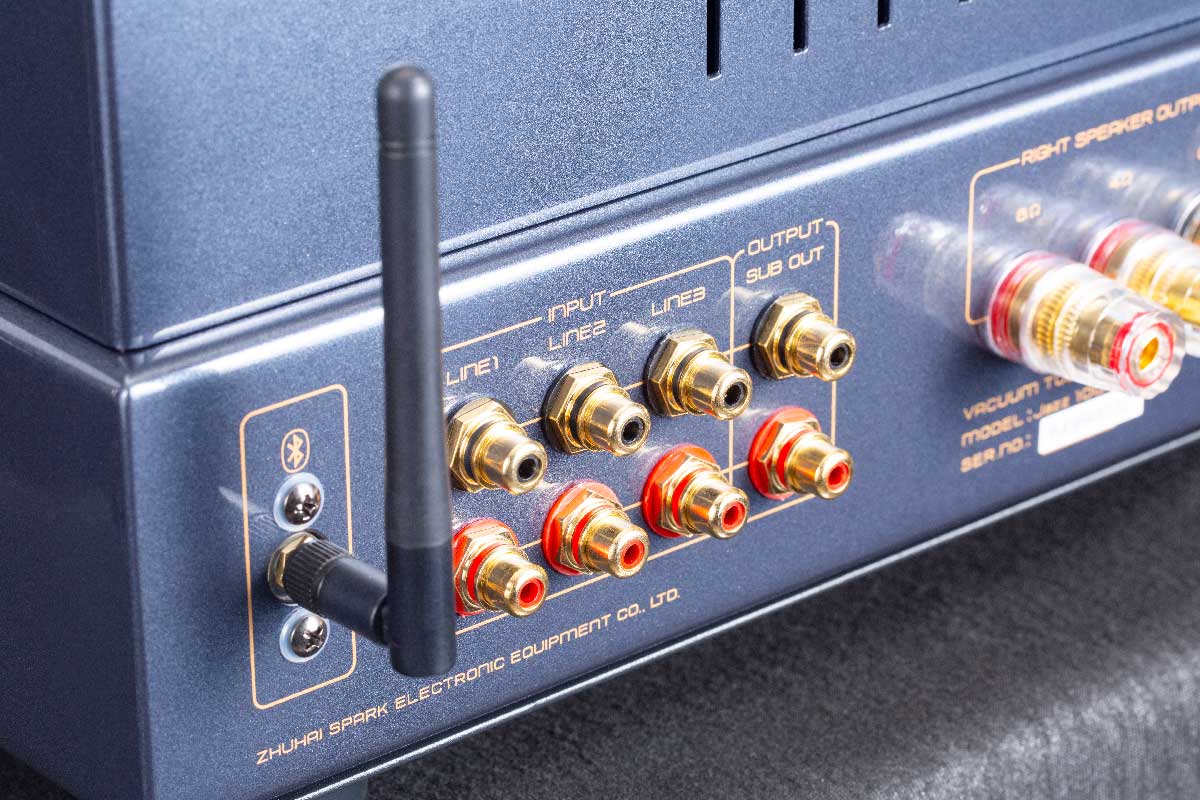

- Analog inputs:
- 3 × RCA (LINE 1, LINE 2, LINE 3)
- 1 × Bluetooth (version 5.0)
Bluetooth Section
- Version: Bluetooth 5.0
- Chipset: Qualcomm QCC5125
- Integrated DAC: ESS SABRE ES9018K2M
- Supported codecs:
- UAT (Ultra Audio Transmission)
- LDAC, aptX HD, aptX, aptX Low Latency
- AAC, SBC
- Effective range: ≤ 10 m
- Device name: Cayin HD BT
Dimensions and Weight
- Dimensions (W × D × H): 420 × 389 × 248 mm
- Net weight: 35 kg
- Power consumption: 410 W
