Description

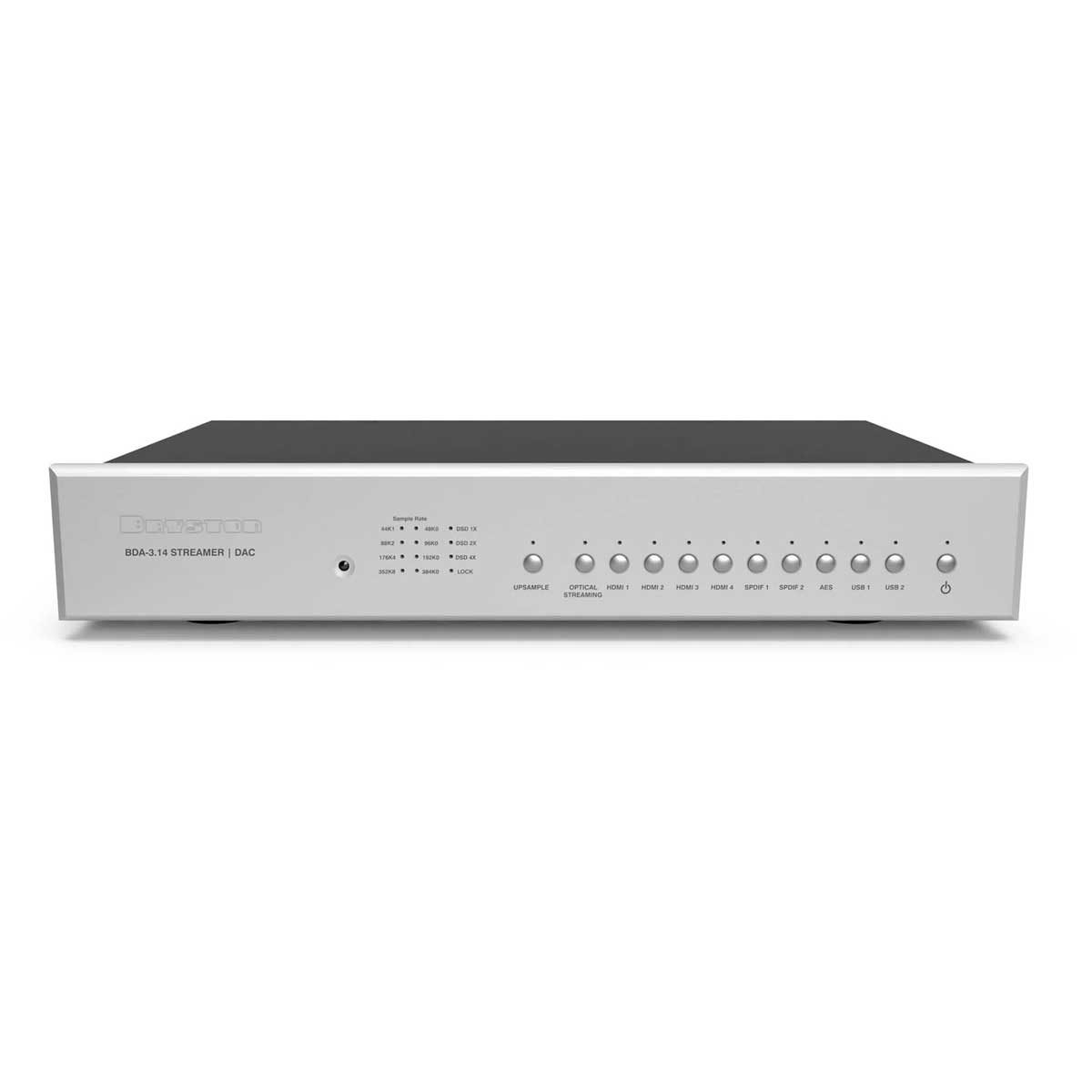

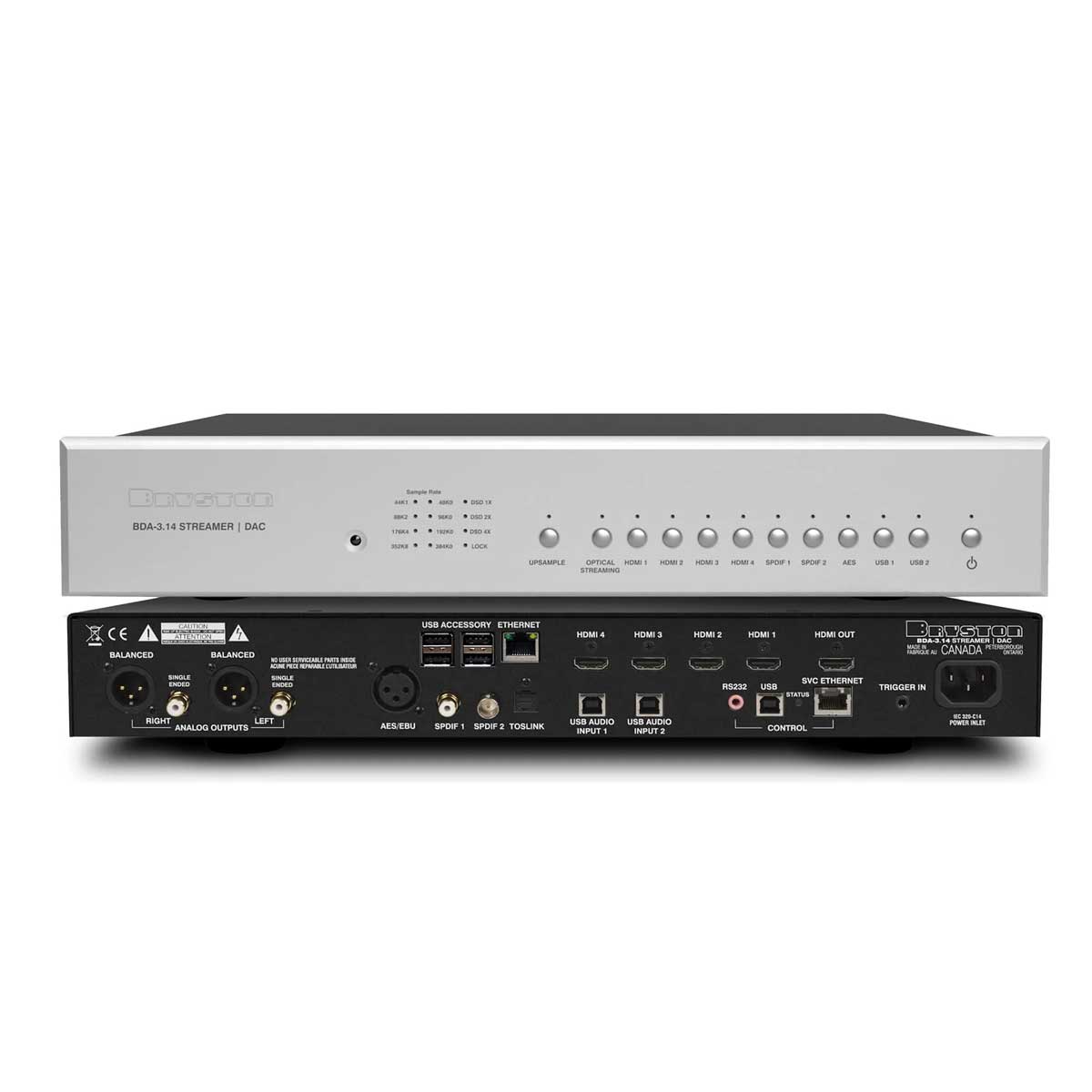

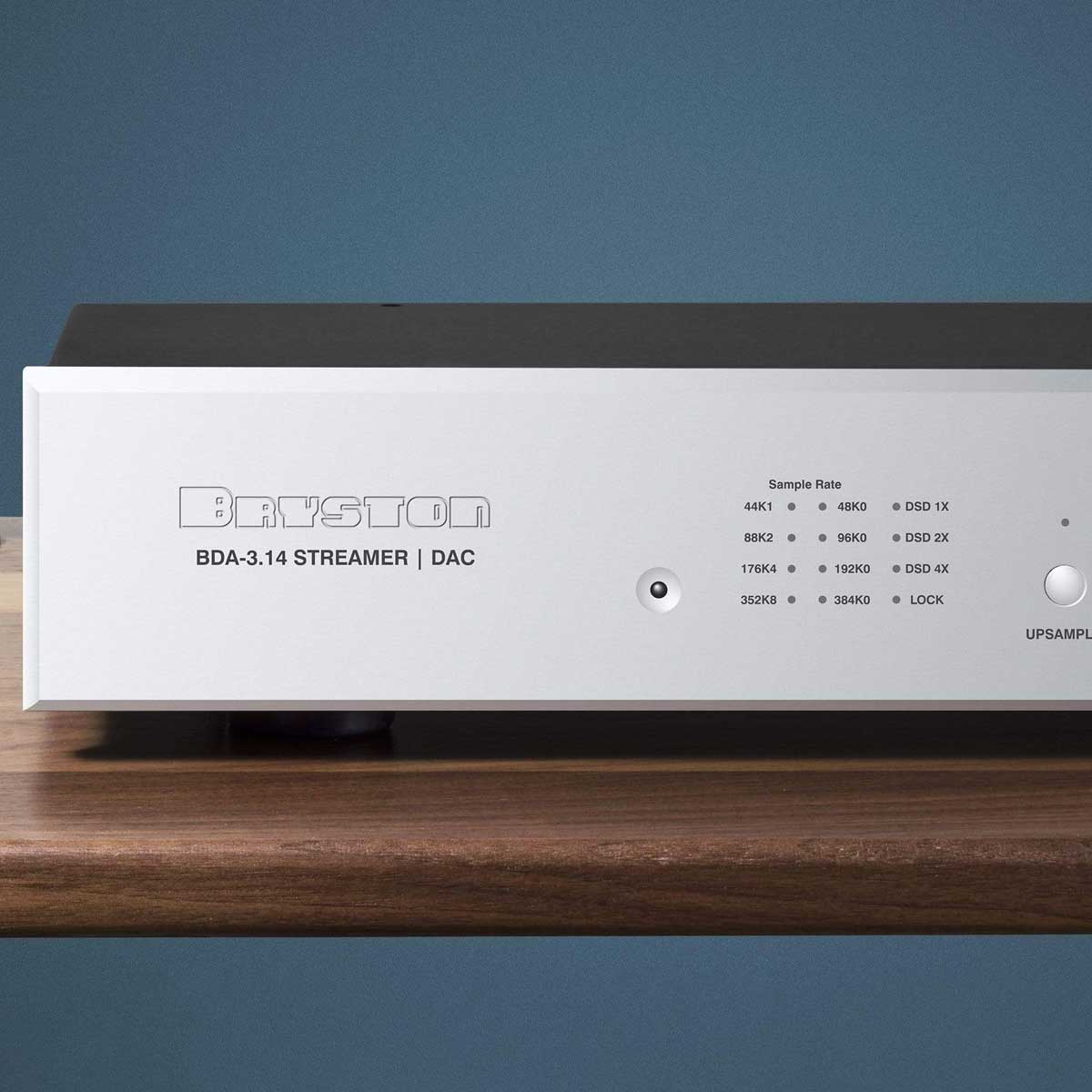

Bryston BDA-3.14 Digital Analogue Converter with Streaming
The digital connectivity in the Bryston BDA-3.14 Digital Analogue Converter with Streaming between the internal music player and the DAC is managed using the I2S protocol, a premium interface standard used for connecting digital audio devices together that preserves audio and clock data with virtually zero error.
The BDA-3.14 also features a digital volume control, enabling users to drive an amplifier directly. An updated version of Bryston’s Manic Moose user interface for phones, tablets and computers provides users with intuitive control overall functionality.
Review
“I had no choice but to buy the review sample, and I recommend that the BDA-3 be listed in Class A+ of Stereophile’s Recommended Components” Larry Greenhill | Stereophile
Features
- Built in streamer features up to 192kHz / 24 bit playback.
- Tidal, Qobuz, Roon, Internet Radio and more
- Connect USB or NAS drive for local library playback.
- Full control via web enabled device

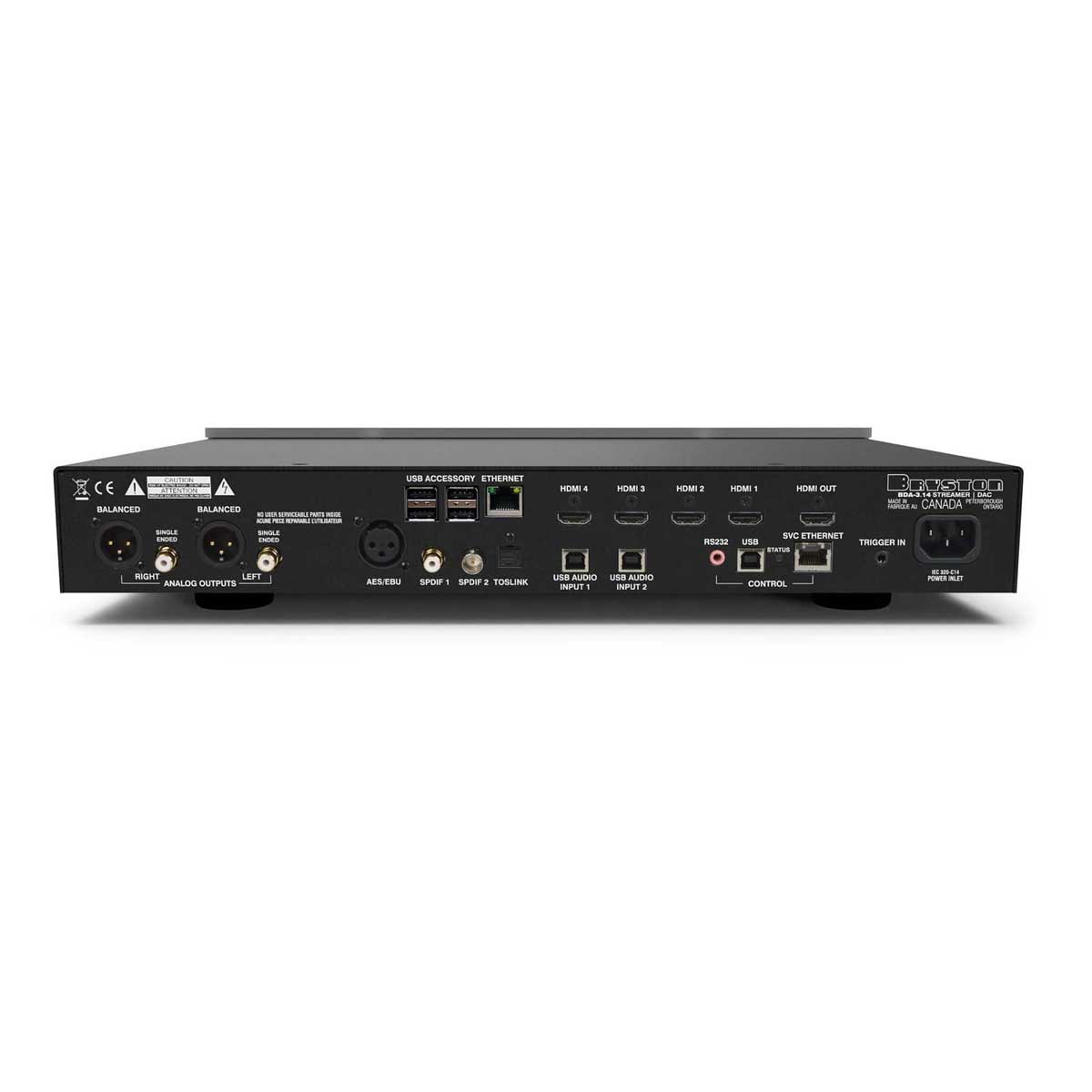

- 10 different inputs including 4 HDMI, 2 USB, AES/EBU, S/PDIF RCA, S/PDIF BNC, and Toslink
- PCM support up to 384 kHz / 32 bit
- DSD support up to DSD-256 (x4)
- User selectable upsampling for some inputs
- Separate power supplies for analog and digital circuitry
- Fully discrete Class-A balanced analog outputs
- Control via IR, RS232, IP, or 12V trigger
- Aluminum chassis and metalwork. Machined and anodized aluminum dress panel.
- Legendary Bryston Warranty
Bryston DAC Technology
The multi-award-winning BDA-3 DAC can decode up to 384 kHz/32-bit PCM music and up to DSDx4 natively. Each format is processed in its native resolution, preserving absolute bit-perfect signals all the way to the analog outputs.
Additionally, Bryston’s ultra-precise re-clocking circuit reduces jitter to nearly unmeasurable levels. Bryston’s proprietary analog section is completely free of integrated circuits (ICs) that limit the bandwidth and dynamic range of so many competitive DACs.
For maximum flexibility, the BDA-3 has an astonishing ten discrete inputs including four 2-channel HDMI, asynchronous USB, AES/EBU, TOSLINK, and digital coax. It also includes Bryston’s network module, which facilitates control via TCP/IP and RS-232—a must for integration with modern smart home platforms.
What Listeners Have Been Asking For
Everyone knows Bryston makes great digital audio players, DACs, and preamplifiers.
With the launch of the BDA3.14, you can have a full digital front-end, all-in-one unit with amazing sound You get all of the features of the BDA-3 plus streaming with built-in Raspberry Pi. The BDA-3.14 runs a modified version of Manic Moose software compatible with Qobuz, Tidal, Roon, and more – plus NAS connectivity, Internet Radio, and you can still connect local drives with loaded music.
The most notable difference between the BDA-2 and BDA-3, in addition to PCM playback capable of 384kHz/32 bit resolution, is that the BDA-3 is fully DSD enabled. The BDA-3 can decode up to DSD-256, through asynchronous USB inputs, and accepts SACD input via HDMI.
The BDA-3 incorporates 10 separate inputs which include four 2-channel HDMI, asynchronous USB, AES/EBU, TOSLINK, and digital coax. Additionally, the network module which facilitates control via TCP/IP and RS-232 makes the BDA-3 a must for modern home automation.
Specifications
- Dimensions Inches: 17 or 19 W x 3.4 H x 12 D
- Weight: 8.5 lbs | 4 kg
- Frequency Response: 20Hz – 20kHz: ±0.1dB
- THD+N (20Hz-20kHz): <0.002%
- Voltage Output: XLR: 4V | RCA: 2V
- Noise: RCA: -134dB
- XLR: -140dB
