Description
Audio-Technica AT-VM95E Dual Moving Magnet Cartridge
The Audio-Technica AT-VM95E Dual Moving Magnet Cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables.

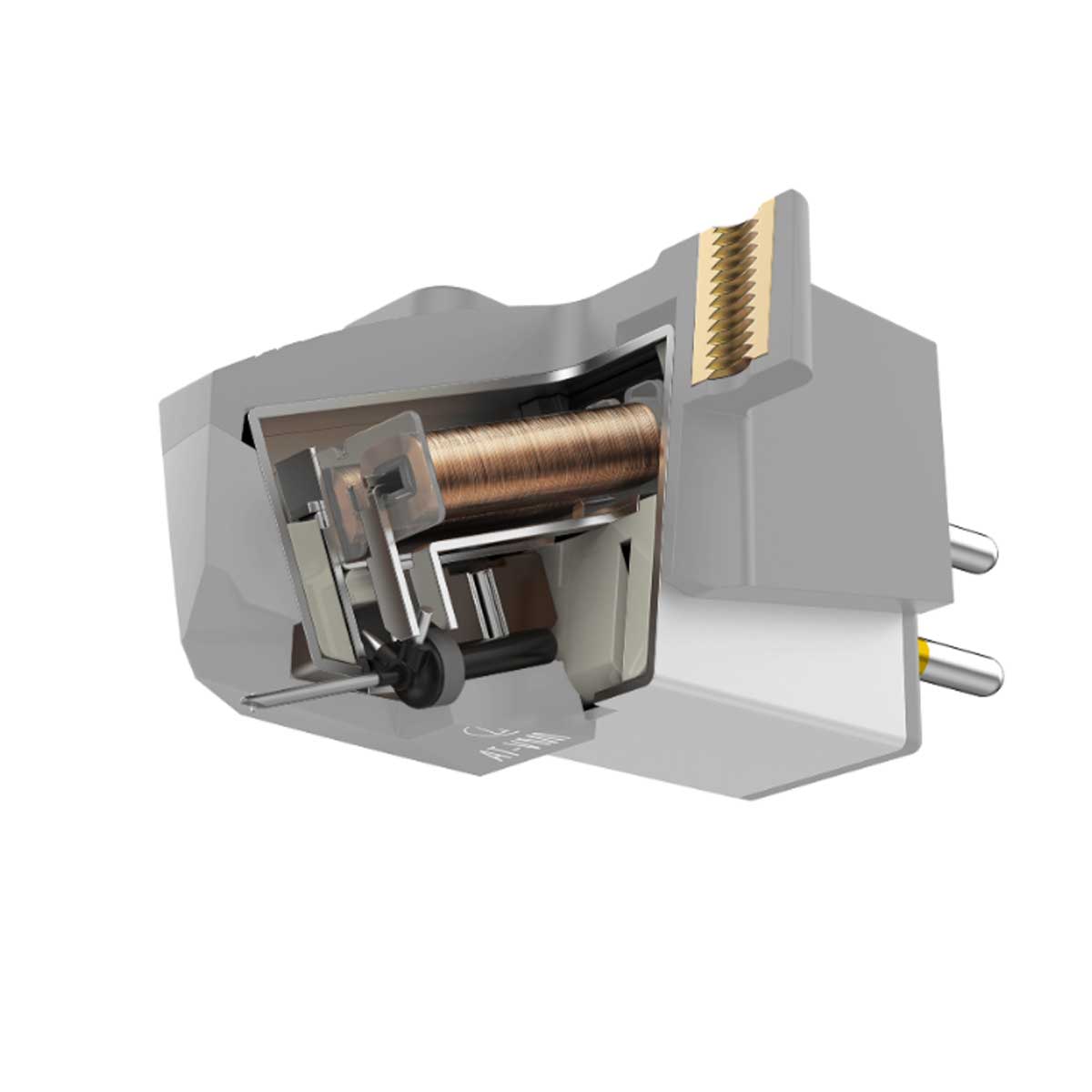

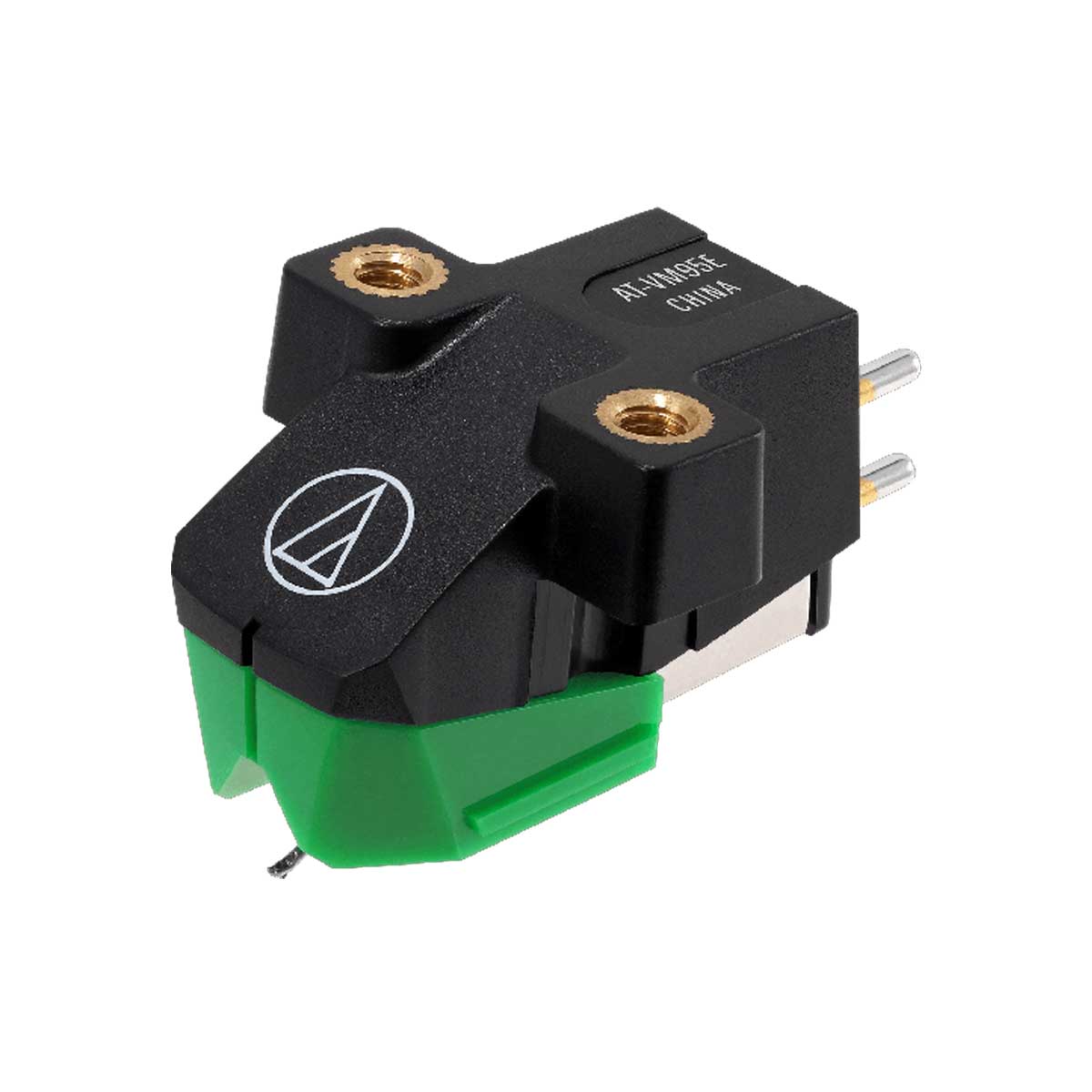

The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required.
And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
View Technical Questions >> View Audio-Technica Products >>
Features
- Dual Moving Magnet (MM) Design for accurate channel separation and detailed audio reproduction

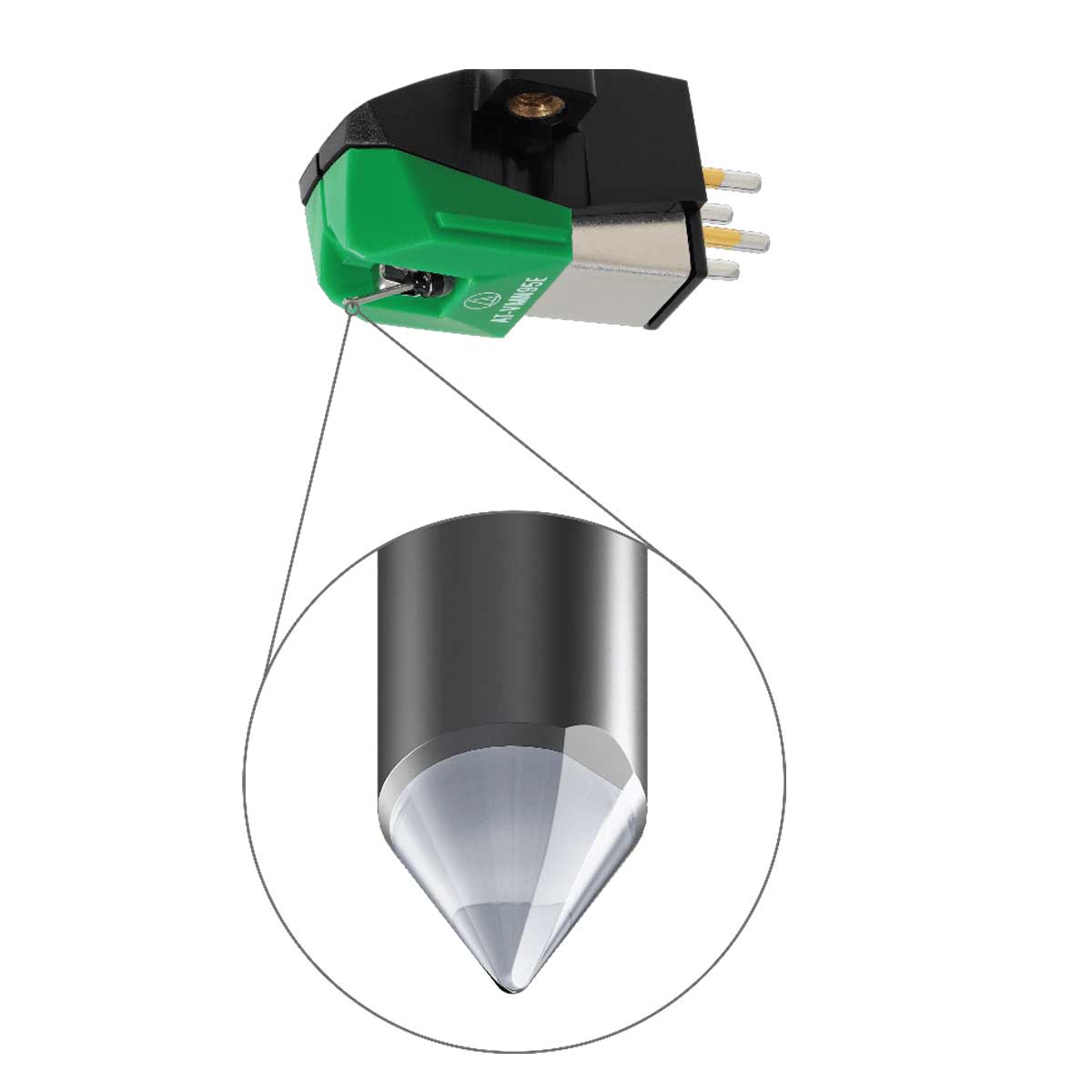

- 0.3 x 0.7 mil Elliptical Stylus for improved tracking and reduced distortion
- Durable, Low-Resonance Housing to minimize vibration and enhance clarity
- Wide Frequency Response (20–22,000 Hz) for full-range sound
- Standard ½-inch Mount compatible with most turntables
- Easy Upgrade Path within the VM95 series—swap to nude elliptical, microlinear, or other stylus types without replacing the cartridge
- Output Level: 4.0 mV for solid performance with most phono preamps
- Replaceable Stylus for long-term, cost-effective use
Specifications
- Frequency Response: 20 – 22,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: Elliptical
- Cantilever: Aluminium Pipe
- Static Compliance: 17 x 10 – 6 cm / dyne
- Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
- Mounting: 1/2” centres
General
- Cartridge Weight: 6.1g
- Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
- Accessories Included: Two 11 mm installation screws;
- Two 8 mm installation screws;
- Two washers
- Model: AT-VM95E
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: AT-VMN95E
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper
