Description
Atoll Electronique AM200 Evolution Power Amplifier
The Atoll Electronique AM200 Evolution Power Amplifier is suitable for most hi-fi and audio-video applications.
Highly adaptable, it can be used alone or in a bi-amp configuration. The amplifier can be bridged into a monoblock via an internal switch.
Furthermore, it is equipped with a 12V trigger input (for direct power-up when connected to a preamp).
View Owners Manual >> View Atoll Electronique Products >>
Features
- Front face in 8 mm brushed, micro-bead blasted and anodized aluminum, high-precision engraving.
- 5 mm steel chassis.
- Two toroidal transformers of 340 VA each.
- High-quality, shielded MKP coupling capacitors.
- Bipolar transistor current sources and LEDs to ensure perfect voltage stability.
- Symmetrical audio stages with discrete components.
- MOS-FET power transistor.
- Class A/B output stage polarization.
- Specific printed circuit board with nickel/gold finish.
- Bridgeable in monoblock form.
- New tellurium copper speaker outlets.
- 12V Trigger Input.

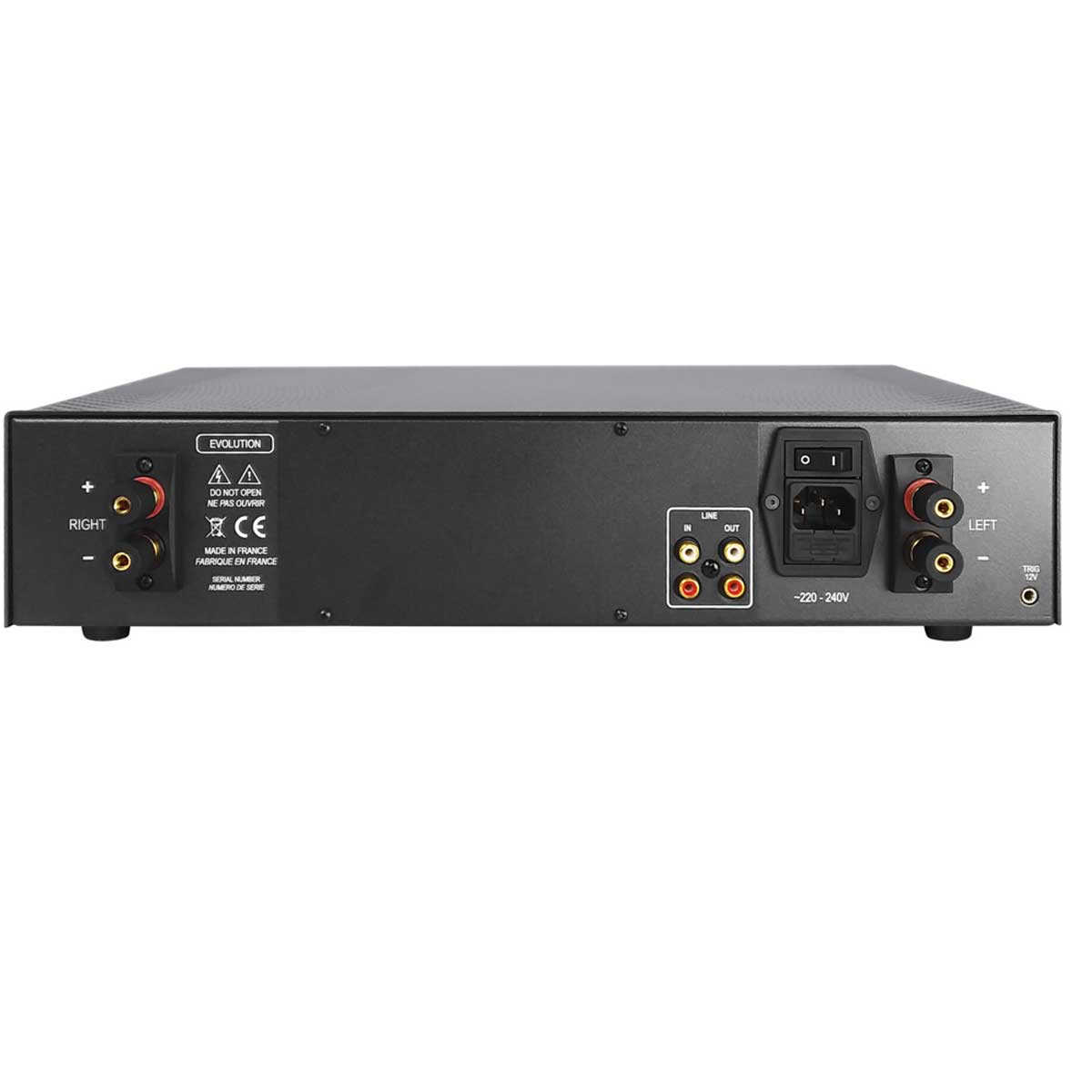

CONNECTIVITY
- 1 RCA stereo analog input.
- 1 RCA stereo analog output.
- 12V Trigger Input.
- Speaker outputs on gold-plated screw terminals.
Technical Specifications
- RMS power/channel/8Ω (230V): 120W
- RMS power/channel/4Ω (230V): 200W
- Peak power/channel: 300W
- Power supply: 2×340VA
- Total capacitance: 59,420 µF
- Number of inputs: 1 RCA
- Power consumption (switch off): 0W
- Power consumption (operating): 20W – 600W
- Input impedance: 220 kΩ
- Sensitivity: 1.77 V
- Signal-to-noise ratio: 100 dB
- Distortion at 1 kHz: 0.05%
- Bandwidth: 5 Hz – 200 kHz
- Rise time: 1.5 µs
- Dimensions: 440×295×95 mm
- Weight: 12 kg
