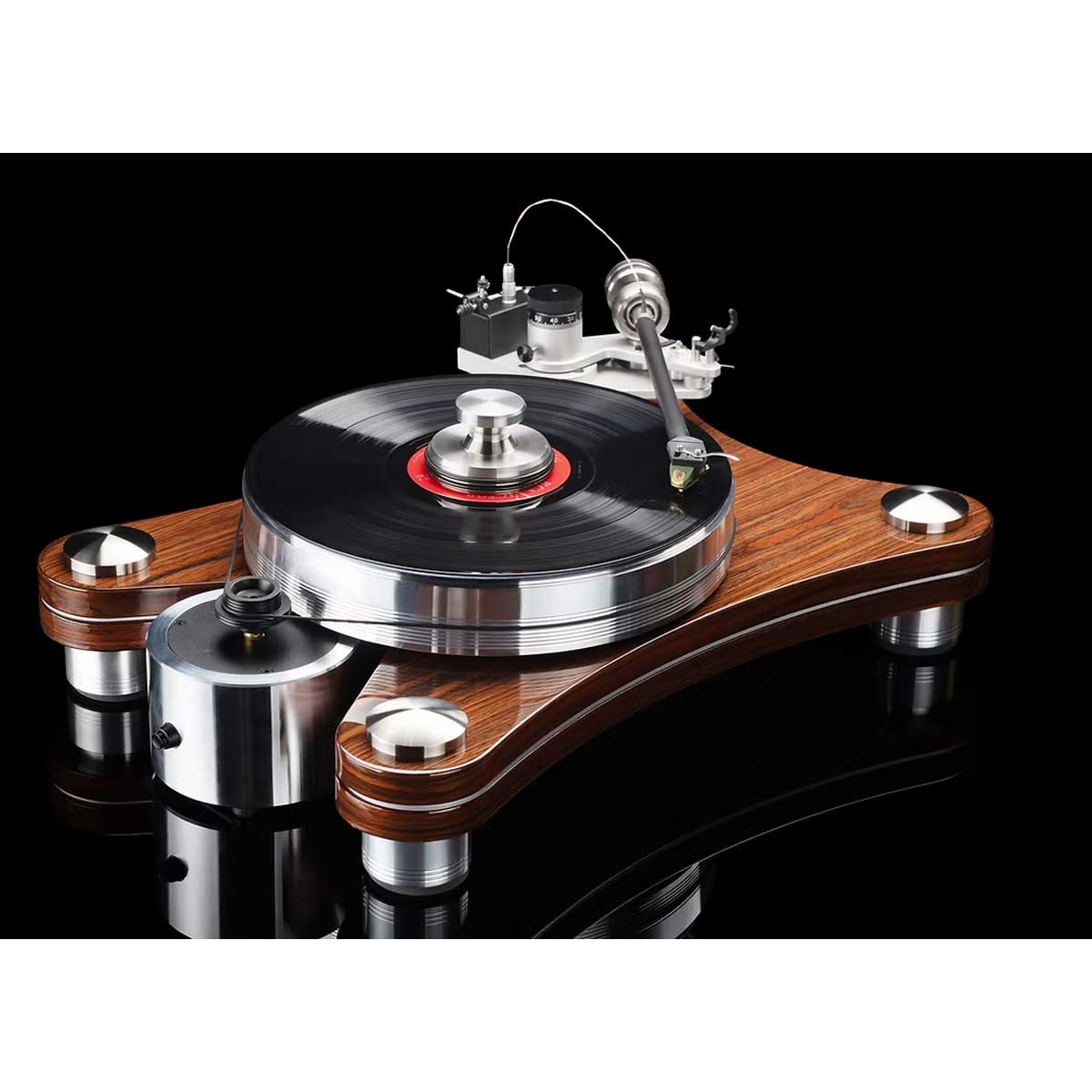

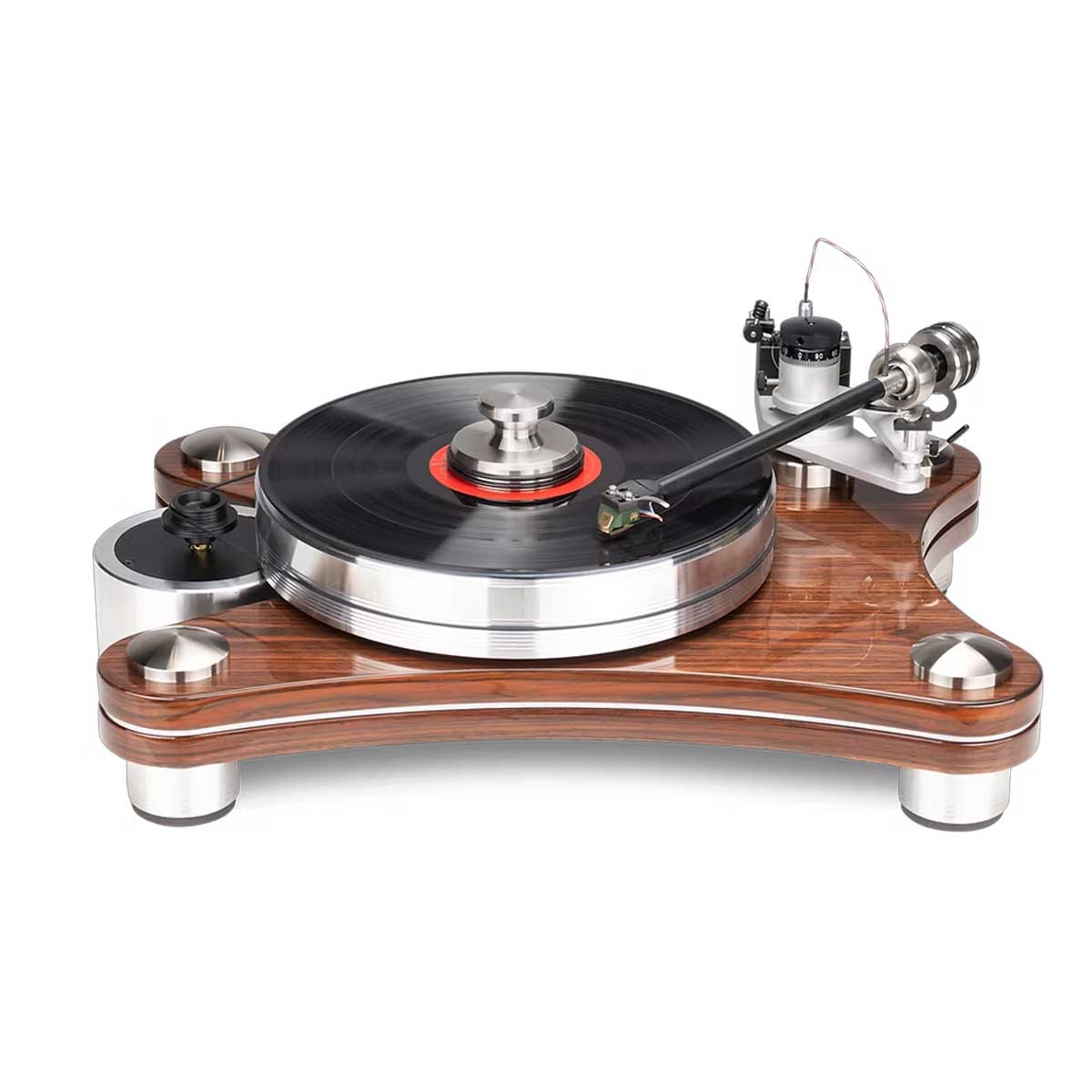

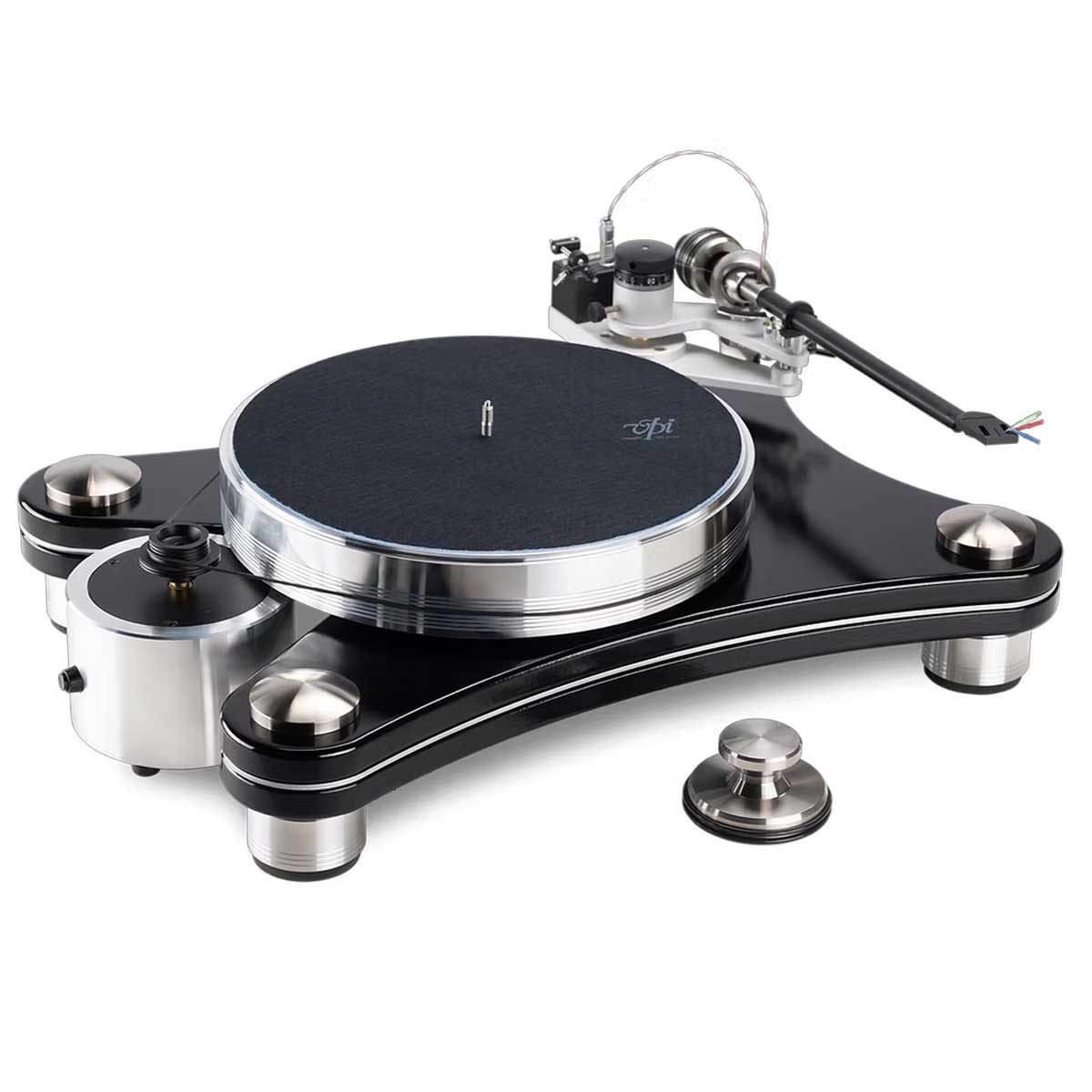

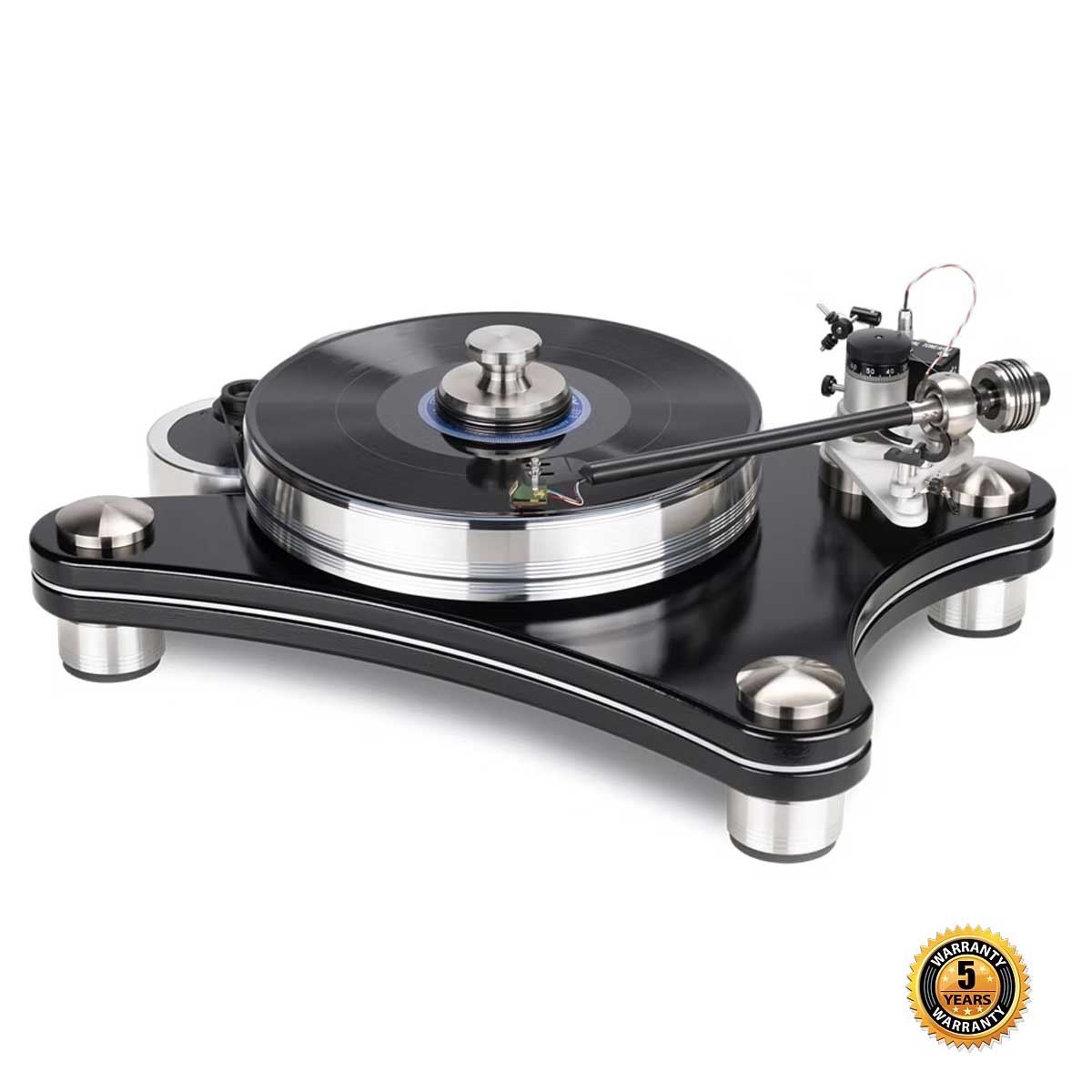

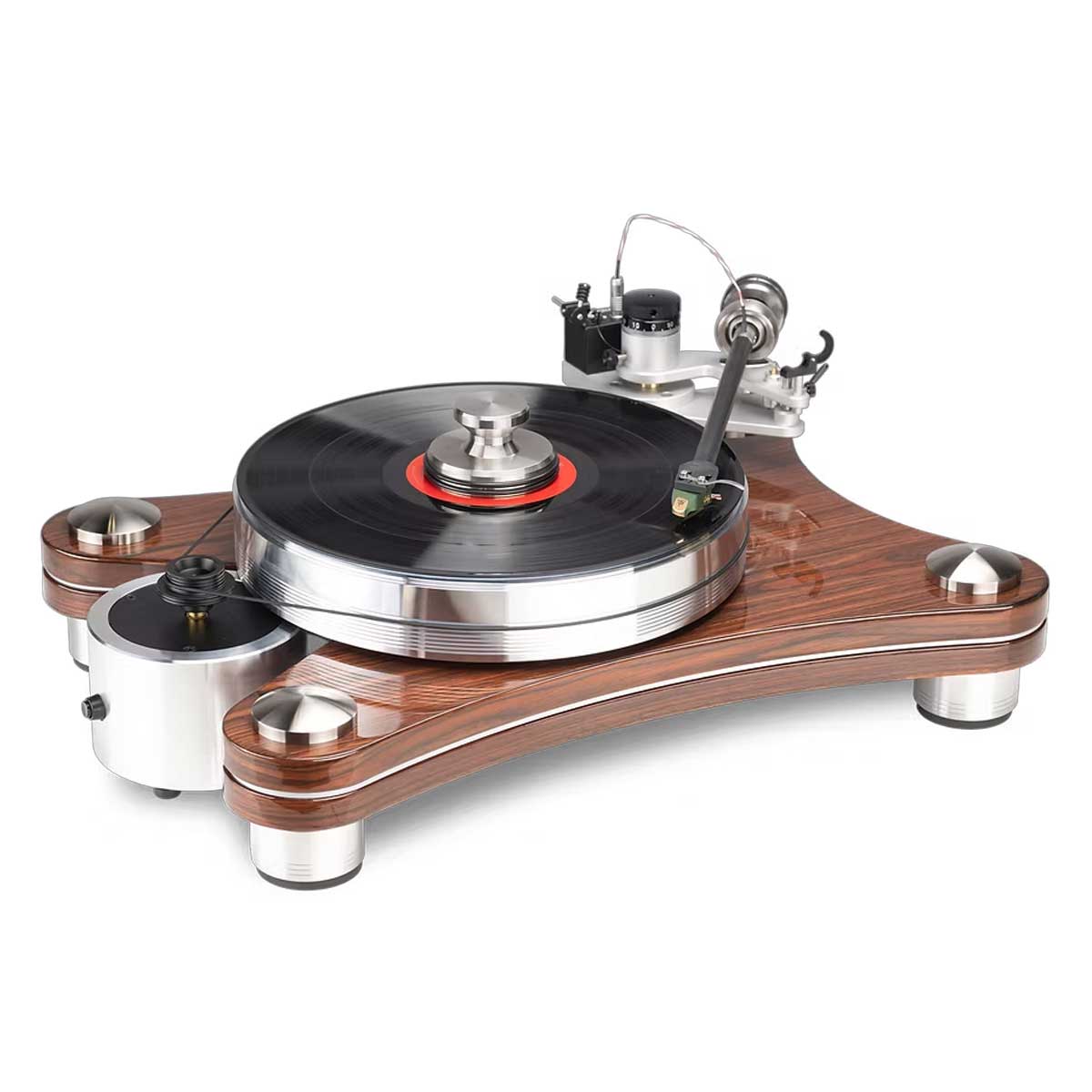

VPI Industries Signature DS Turntable

Description

VPI Industries Signature DS Turntable

The VPI Industries Signature DS Turntable takes the best aspects of their Signature 21 and trickles down the performance in a more affordable package.

Standard with a Gimbal 3D arm, HW-40 isolation feet, Double Stacked chassis with a metal dampening plate.







View Owners Manual >> View VPI Products >>



Reviews

• “By getting out of the way entirely, the VPI Prime simply let the cartridge do its intended job. Most other turntables make this music ‘fall’ out of the speakers, but with the VPI it just sang!”  – Alan Sircom, HiFi
• “The VPI Prime is a solidly built, audiophile quality turntable utilizing modern technology including a remarkable 10” 3D printed tonearm that can accommodate a wide range of cartridges … what more can one ask for?” – Karl Sigman, Audiophilia



Features

• 12” Aluminum Platter
• 10” 3D Gimbal Arm Standard Wiring
• VTA Base on The Fly

Available Upgrades

​​Talk to the team at Rapallo about these upgrade options:

• Periphery Ring Clamp – Improves record warp reduction and the shelf life of your cartridge.
• Analog Drive System (ADS) – Improves accuracy and speed adjustment.
• Reference Feet – Improves isolation and makes it even more quiet between the notes.
• Fatboy Tonearm – Gimbal or Unpivot



Specifications

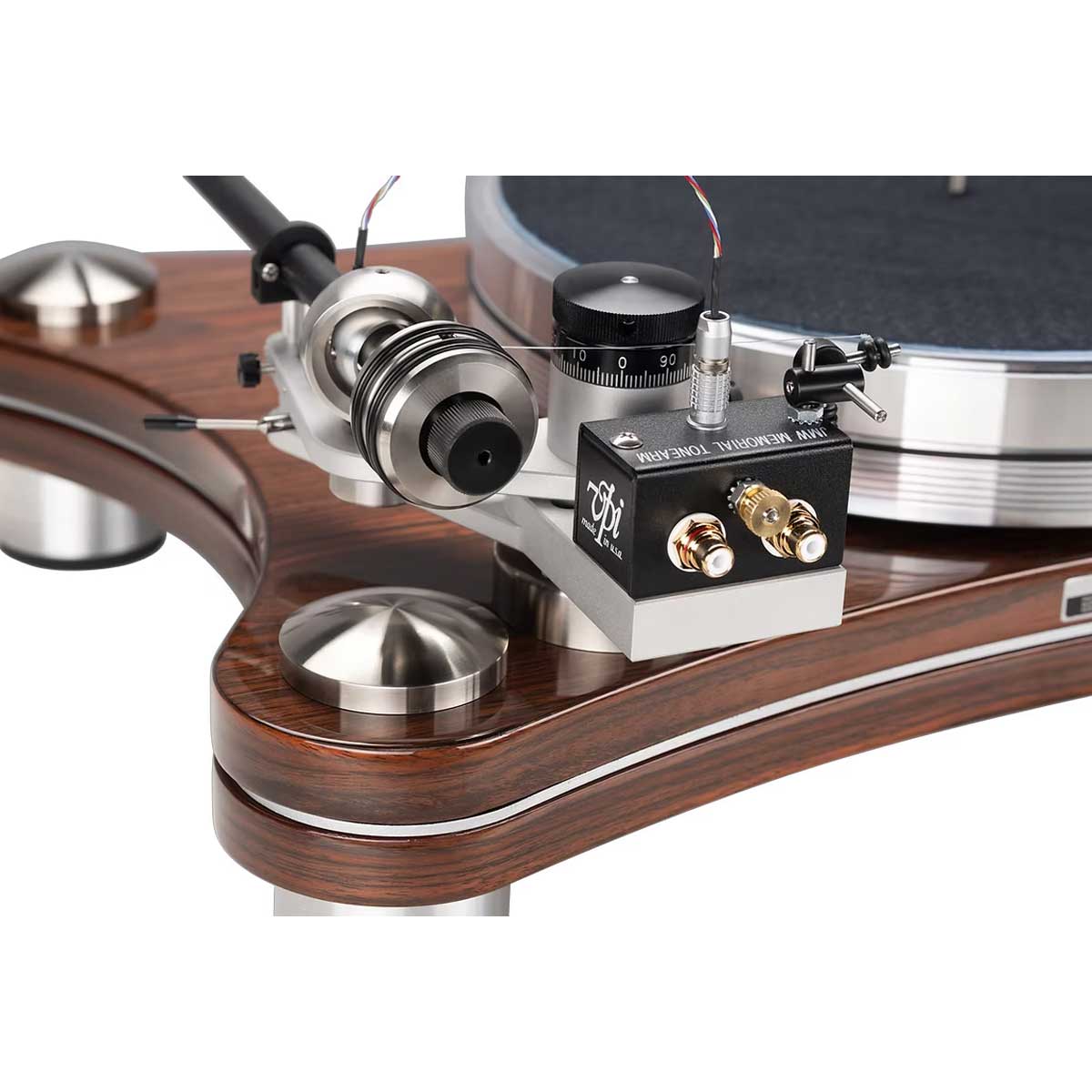

VPI Prime Gimbal 10-3D

• Bearing Type: Full Gimbal Bearing
• Internal Wire: VPI Copper weave
• Pivot to spindle: 258 mm
• Effective length: 4 mm
• Effective mass: 2g.
• Overhang: 4 mm
• Offset angle: 98 degrees
• Average RMS distortion: 31%
• Material: 3D Technology Consisting of but not limited to Epoxy resin and Delrin materials, copper, aluminium and steel
• Product Notes: Adjustable Counterweight, Azimuth side weights, VTA, and Limo Connection

VPI Turntable

• Chassis Composition: Vinyl Wrapped MDF and Steel
• Platter Type & Size: 12″ Aluminum, 20lbs
• Tonearm Included: JMW-10-3D Tonearm
• Motor RPM: 300 RPM
• Motor Pulley Accuracy: +/- .0005″
• Wow and Flutter: .05%
• Speed Accuracy: .05%
• Rumble: 80 db Down
• Footprint: 19 ½” x 13 ¾”
• Overall Size: 21 ⅜” x 15 ¾”
• Total Weight: 44lbs
