Description
Vogels TVM 3645 Full-Motion TV Wall Mount
The Vogels TVM 3645 Full-Motion TV Wall Mount is designed for intensive use, so it is ideal for families with children.
Your TV is guaranteed to be mounted safely and securely. The wall mount is suitable for TVs from 40 to 77 inches and weighing up to 35 kg.
View Instruction Manual >> View Specifications >> View Vogels Products >>
Features
- OneFinger™ Movement – Effortlessly rotate your TV into any position
- Keep your TV always level (horizontally and vertically)
- Cable clips included: Guide your cables from TV to wall
- Easily lock and release with TiltAnchor™
- Turn your TV up to 180° thanks to long arms of 67 cm
Extremely long arms and user-friendly
Positioning your TV at the desired viewing angle is exceptionally easy. The COMFORT Full-Motion+ TV wall mount features Vogel’s unique One-Finger™ Movement technology. As a result, the wall mount rotates very lightly and smoothly. Thanks to the extremely long arms, you can turn your TV a long way. Would you like to know exactly how many degrees? Enter your TV model on this page and immediately see the actual rotation angle of your TV.
Secure mounting
To tilt and fix your TV safely, the wall mount features the TiltAnchor™ system. Soft patches on the wall mount protect the back of your TV from scratches while it is being mounted.
Easy to install
The COMFORT Full-Motion+ TV wall mount is easy to install. A drilling template, screws, Fischer® DuoPower plugs, cable ties and a spirit level are included. Simply mark out the first drill hole with our free DrillRight app. Is your TV slightly crooked? No problem. You can easily make it level, even after installation.
Safety assured
With a COMFORT Full-Motion+ TV wall mount, you can be certain of a safe solution. Each TV wall mount is TÜV certified and tested to three times its maximum weight capacity. There’s a good reason that you get a 10-year warranty.
Consciously designed
The environmental impact of this product is 18,1 kg CO₂ equivalent. At Vogel’s, we think it is important to know your product inside out. This allows us to make the best design choices for the next generation of TV mounts. Want more details on the impact of this product? Then take a look at the ecosheet above.
Specifications
- EAN single box: 8712285347887
- Colour: Black
- screen size (inch): 40
- screen size (inch): 77
- weight load (kg): 35
- Maximum rotation: Full motion (up to 180°)
- Maximum tilt: Tilt up to 20°
- Hole pattern (VESA): 100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm, 500 mm x 200 mm, 500 mm x 300 mm, 500 mm x 400 mm, 600 mm x 200 mm, 600 mm x 300 mm, 600 mm x 400 mm
- distance to the wall (mm): 59
- distance to the wall (mm): 670
- Number of pivot points: 3

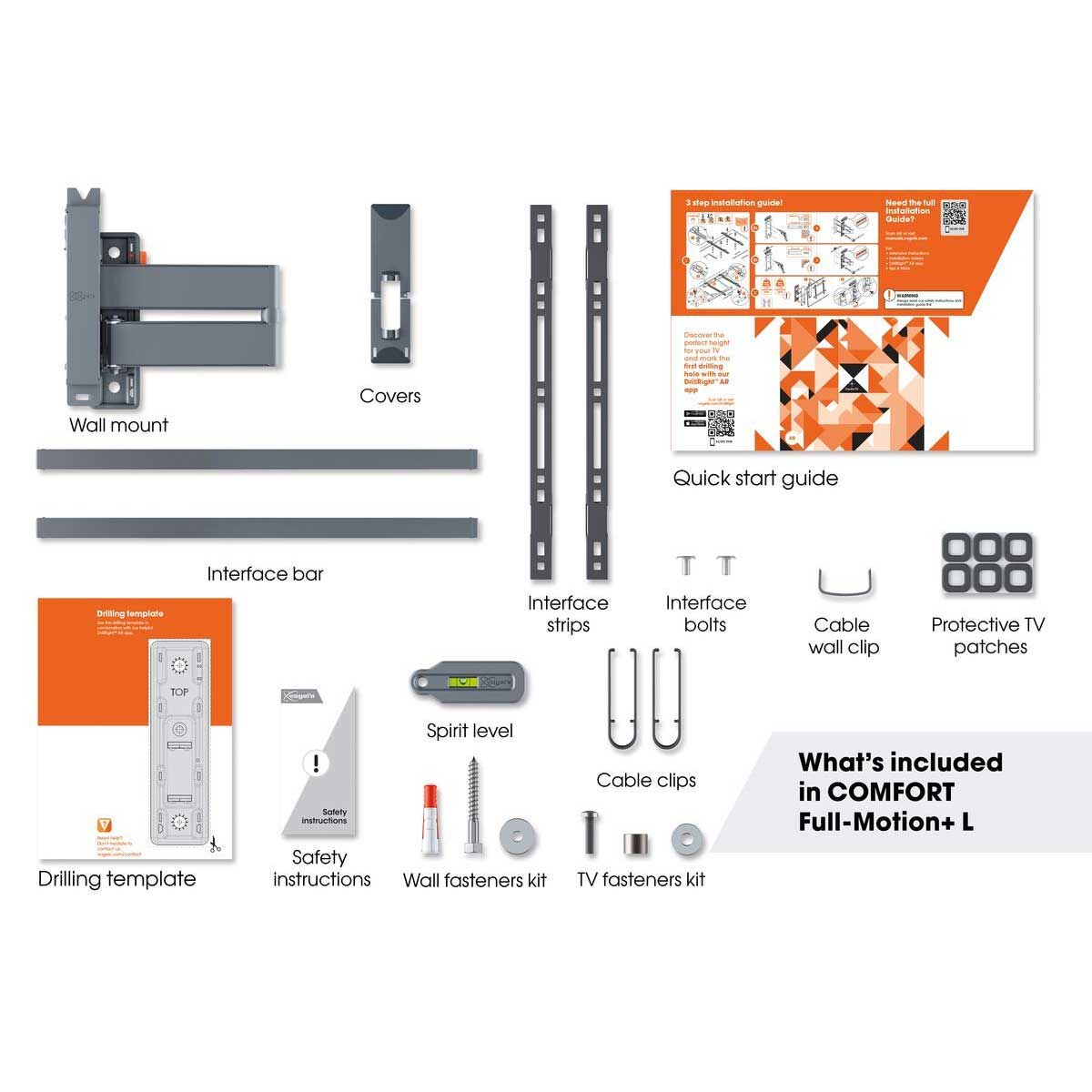

- What’s in the box: Wall mount, Cable clips, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Protective TV patches, Spirit level, Quick Installation Guide, DrillRight app, Drilling template
- Product category: Full-Motion TV Wall Mount
- Product series: COMFORT
- Guarantee: 10 years
