SVS SB-3000 R|Evolution 13-inch Subwoofer

Description

SVS SB-3000 R|Evolution 13-inch Subwoofer

The SVS SB-3000 R|Evolution 13-inch Subwoofer delivers staggering cinematic output with extension down to 17Hz, paired with the musical precision expected from the world’s finest subwoofers.

An all-new 13-inch high-excursion SVS driver and advanced MOSFET amplification produce deep, chest-thumping bass with exceptional speed, control, and tonal accuracy, creating low frequencies that strike with authority while revealing every detail.

FAQ’s

1. What is the main difference between the SVS SB-3000 R|Evolution 13-inch Subwoofer and PB-3000 R|Evolution? The SB-3000 R|Evolution uses a sealed enclosure for tight, controlled, and articulate bass, while the PB-3000 R|Evolution uses a ported design to deliver deeper, louder low frequencies and more room-filling impact. Sealed is often perceived as cleaner and more precise; ported is more powerful in the lowest octaves.
2. Which one is better for music listening? For music lovers who prefer accuracy, detail, and tight bass response, the SB-3000 R|Evolution is typically the better choice. It excels with nuanced bass lines and complex rhythms, maintaining clarity even at lower listening levels. The PB-3000 R|Evolution can still perform well with music, especially bass-heavy genres, but its emphasis is on deeper extension and oomph.
3. Which subwoofer is better suited to movies and home theatre? Both models are excellent, but the PB-3000 R|Evolution tends to create a more dramatic cinematic experience thanks to its stronger bass extension and output. If your priority is room-shaking bass for explosions and special effects, the ported design may be the better fit. The SB-3000 R|Evolution still delivers immersive movie bass with more controlled response.
4. Do they differ in how they integrate with speakers and room acoustics? Sealed subwoofers like the SB-3000 R|Evolution generally blend more smoothly with a wider range of speakers and room types, offering predictable, tight bass that’s less affected by placement. The PB-3000 R|Evolution benefits from some room reinforcement for deeper extension but can require a bit more placement experimentation to optimize low-frequency performance.
5. How do I choose between them based on my room and listening style? Choose the SB-3000 R|Evolution if you want controlled, precise bass that pairs well with music and balanced home theatre listening, especially in smaller to medium rooms. Choose the PB-3000 R|Evolution if your priority is maximum low-end impact and deep, cinematic bass – especially in medium to larger rooms where extra extension can fully develop.

Features

Flagship Technology, Breathtaking Sound

• High-Excursion 13-inch SVS Driver – delivers deep, authoritative low frequencies with exceptional detail, articulation, and tonal accuracy.
• 295MHz Analog Devices DSP – is the most sophisticated processor ever deployed in a subwoofer, allowing it to take control of a room with effortless authority, while vastly expanding tuning and control functions.
• Flat-Edge Wound Split-Wind Voice Coil – Maximizes magnetic force at high excursion to preserve clarity, speed, and control.
• Performance-Enhancing SVS Switch Mode Power Supply – conditions AC line current for optimal performance under any conditions—ensuring clean, stable, and effortless output for the most demanding content.
• 1,200-watt Continuous (4,000+ watt Peak) Class-D Amplifier – with discrete MOSFET output generates immense current while maintaining pristine signal integrity and precise control.
• SVS Subwoofer Control Smartphone App – makes setup enjoyable and straightforward while improving integration, enabling seamless blending with any system for more natural, authoritative bass response.

Reference Subwoofer Performance Hits New Lows.

A subwoofer shouldn’t just be heard, it should be felt, lived, and remembered. The 3000 R|Evolution Series embodies that philosophy. Building on flagship SVS 17-Ultra R|Evolution Series technologies that reshaped the industry, these models are the sweet spot of SVS subwoofers, delivering unrivaled output, extension, and transient response, with nearly unmeasurable distortion.

3000 R|Evolution is the culmination of 20+ years of SVS acoustic breakthroughs – engineering that elevates music, home theater, and gaming into emotionally charged, high-impact experiences. These subwoofers don’t just play bass; they unleash it with precision, musicality, and authority that captivates listeners and reshapes expectations.

SB-3000 R|Evolution combines the most sophisticated SVS subwoofer technology ever developed with trailblazing innovations to set a new standard for sealed subwoofer performance in its class and beyond.

Iron Fist in a Velvet Glove. Breakthrough Driver Architecture.

The beating heart of SVS SB-3000 R|Evolution 13-inch Subwoofer is an all-new high-excursion 13″ driver with groundbreaking voice coil design engineered for immense, effortless output with surgical accuracy.

• Flat-Edge Split-Wind Voice Coil maximizes magnetic force at high excursion while maintaining ultra-low mass for responsiveness and efficiency. The result is room-shaking output with unerring accuracy and a highly visceral experience.
• Two-Piece Toroidal Ferrite Magnet Overhung Motor maintains precise linearity to drive the highest levels of excursion, SPL, and start/stop power for the deepest, most authoritative bass possible from a 13″ driver.
• Rigid 1100 Pure Aluminum Cone is lightweight and neutral for convincing, distortion-free output, even at extreme levels.
• Long-Throw Extreme Excursion SBR Surround maintains ideal pistonic motion while enabling massive driver movement for clean,room-pressurizing low end.

Power with Control. STA-1200D2 MOSFET Amplifier.

Conservatively rated at 1,200 watts Continuous and 4,000+ watts peak power, the STA-1200D2 amplifier maximizes the 13″ driver’s full potential with effortless power and absolute control.

The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels.

• High Current MOSFET Output with Class-D Efficiency allows the STA-1200D2 amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the 13″ driver to fully maximize on its potential with output beyond reference levels with control and accuracy.
• Performance Enhancing SVS Switch Mode Power Supply maximizes system performance and reliability under all operating conditions by monitoring amplifier and AC main output voltage/current as well as multiple temperature sensors.
• Premium Grade 56bit Digital Audio Processing and premium DACs (Digital-to-Analog Converters) with more than 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.

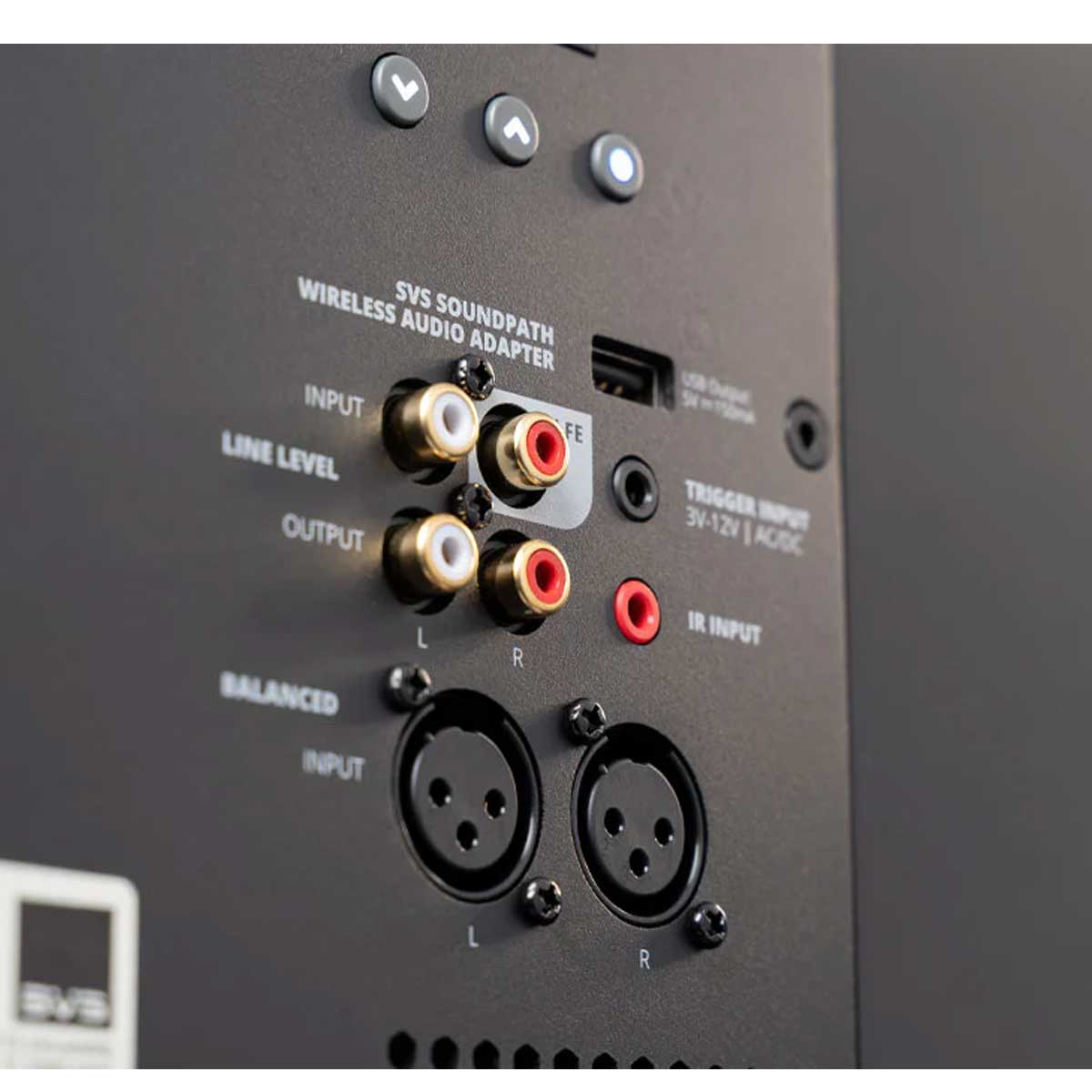

• Balanced XLR Input for pristine audiophile performance and long-distance cable runs. Compatible with consumer and pro audio systems.

The Brains Behind the Brawn. 295 MHz Analog Devices DSP.

Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.

• Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
• Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
• Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
• Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

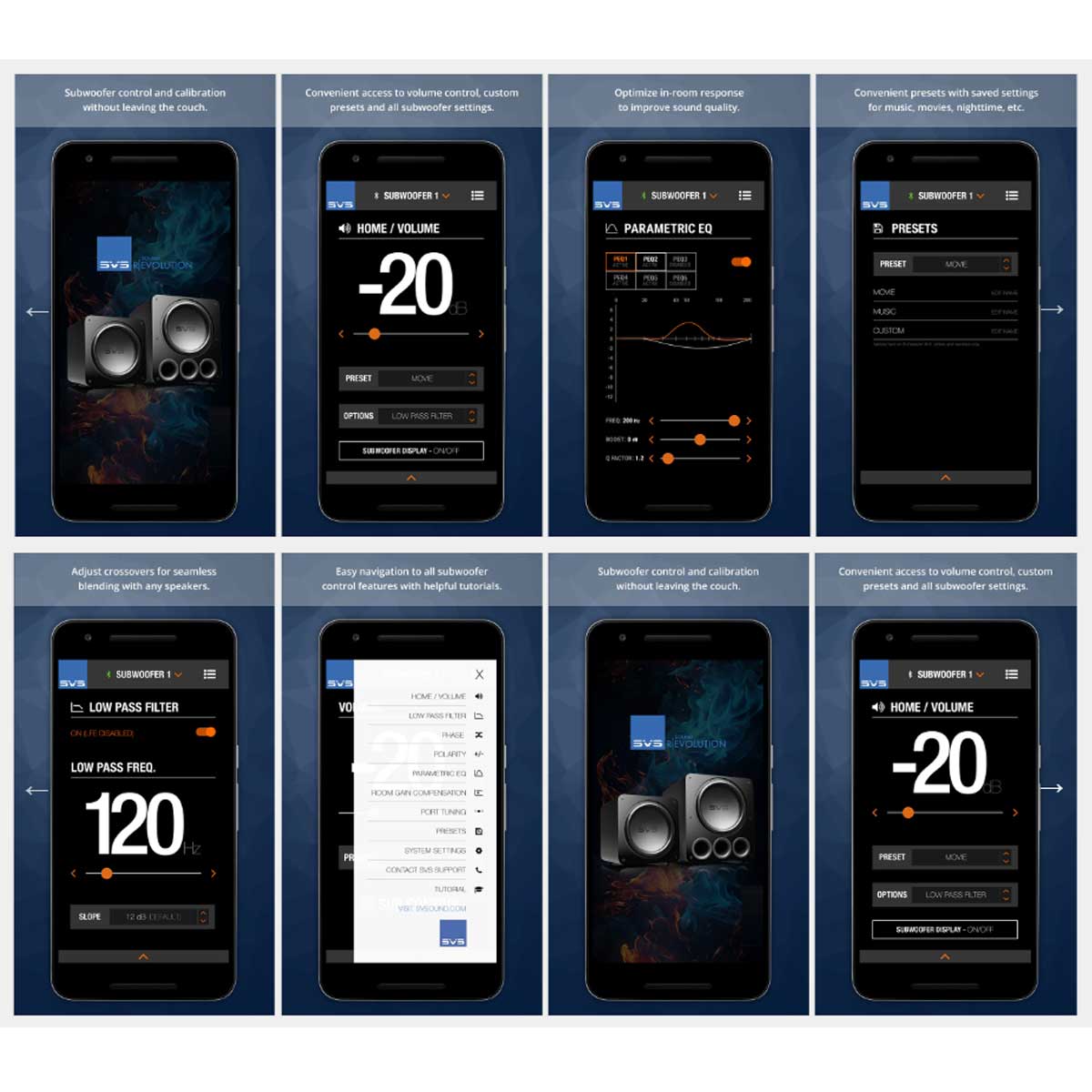

SVS Subwoofer Smartphone Control App

Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.

• Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
• Three memory presets to save system settings matched to your listening preferences – music, movies, night mode, and more.
• SVS Auto Room EQ for optimal in-room performance. Coming soon!

Acoustically Inert, Rigidly Braced Sealed Cabinet Design

Sealed cabinet design yields tighter, more musical bass and makes it significantly more compact than ported-box subwoofers with comparable drivers and amplifiers.

• Rigid MDF front baffle and internal support massive drive unit and ensure an acoustically inert environment.
• Highly reinforced internal design and acoustic insulation eliminate all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.

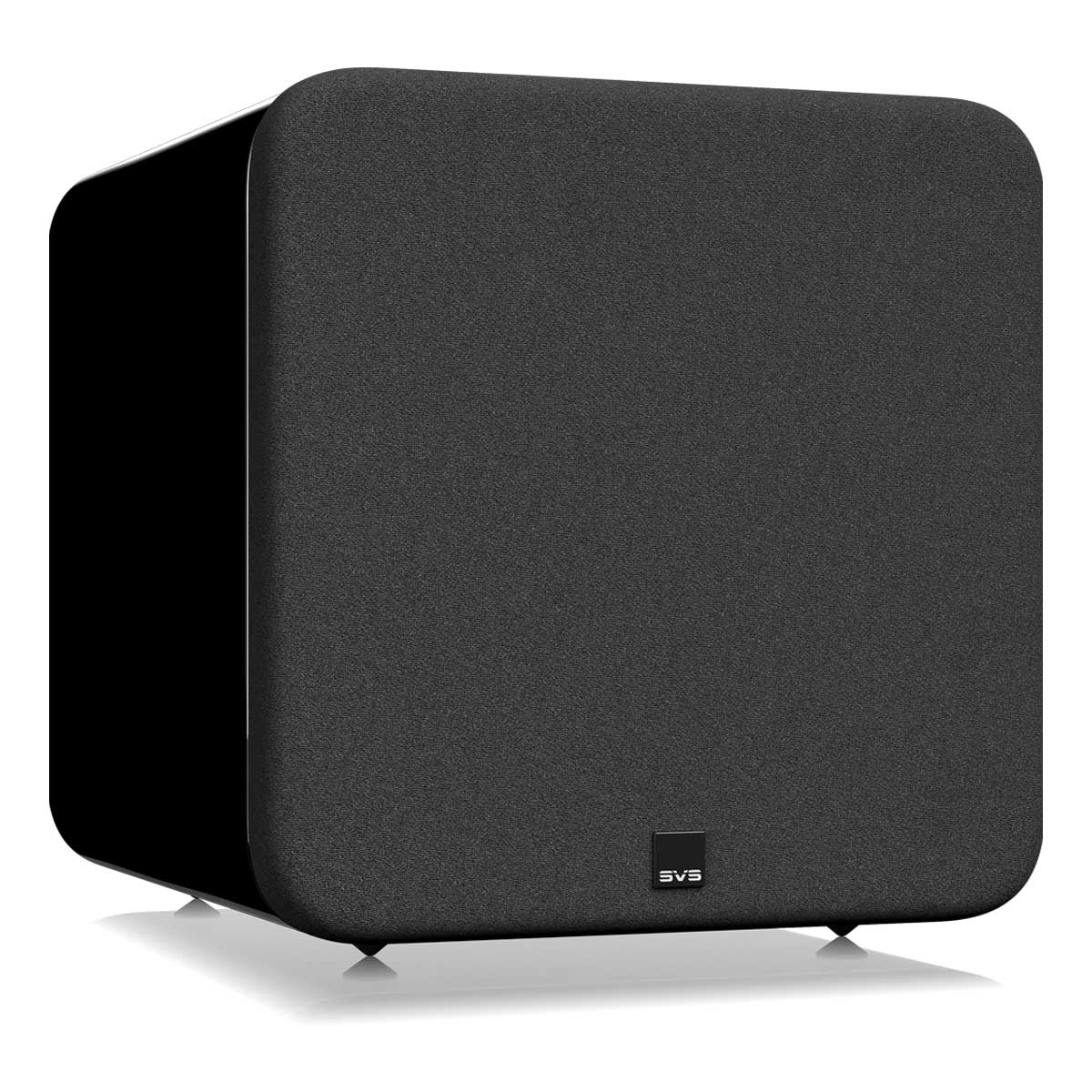

• Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
• Custom elastomer feet reduce noise artifacts within a room.

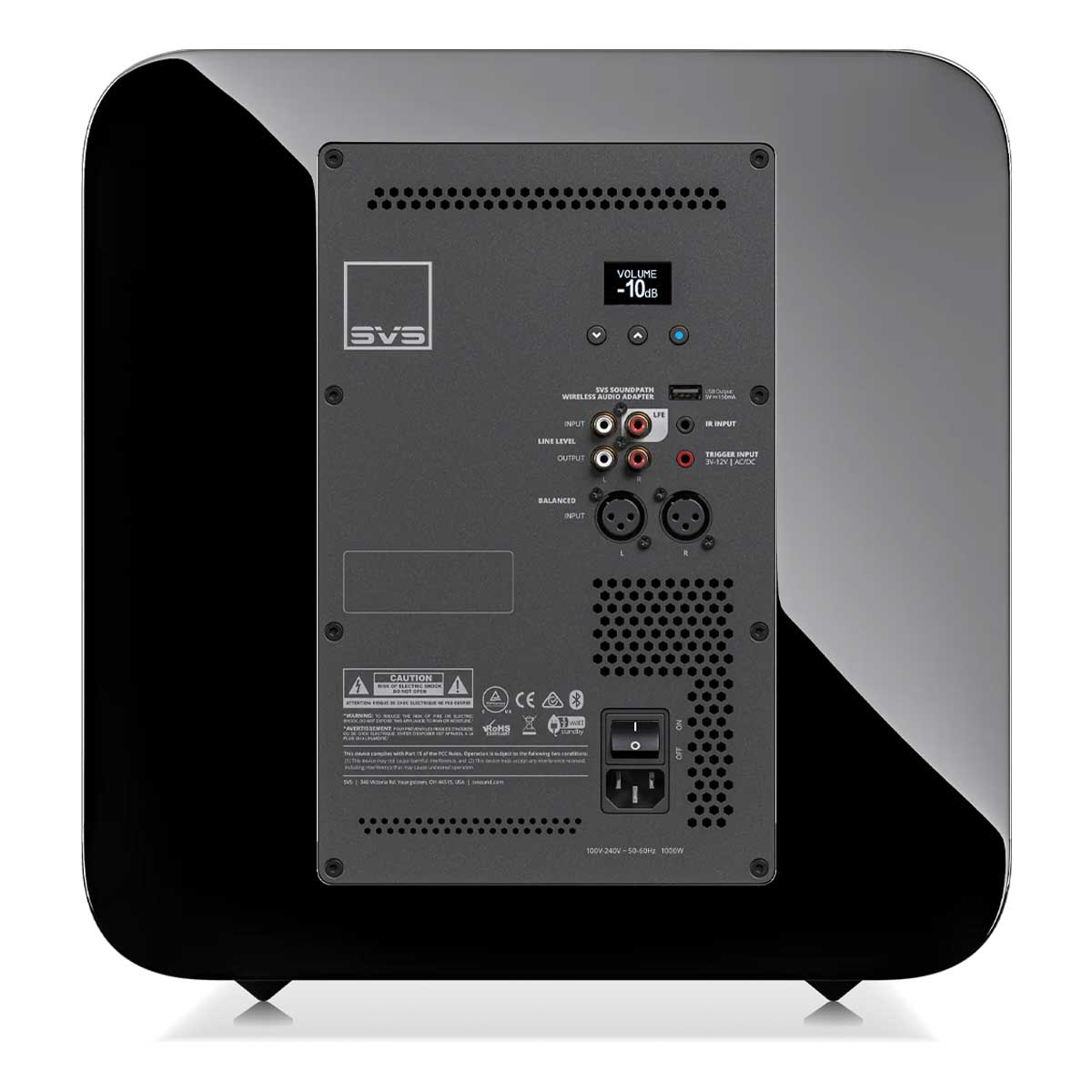

• Rear Panel OLED and Control Interface provide fast and direct control of the most important features. Includes a convenient “Display Flip” function.

Specifications – SVS SB-3000 R|Evolution 13-inch Subwoofer

• 17-230Hz ± 3 dB
• Expect 2-3Hz deeper extension in small to mid-size rooms.
• Roll-off slope specifically optimized to take maximum advantage of available room gain
• 2-meter ground plane away from reflective structures (quasi-anechoic)
• 20% to 60% lower acoustic THD+N in critical low frequency bandwidth compared to previous generation.

Subwoofer Specs:

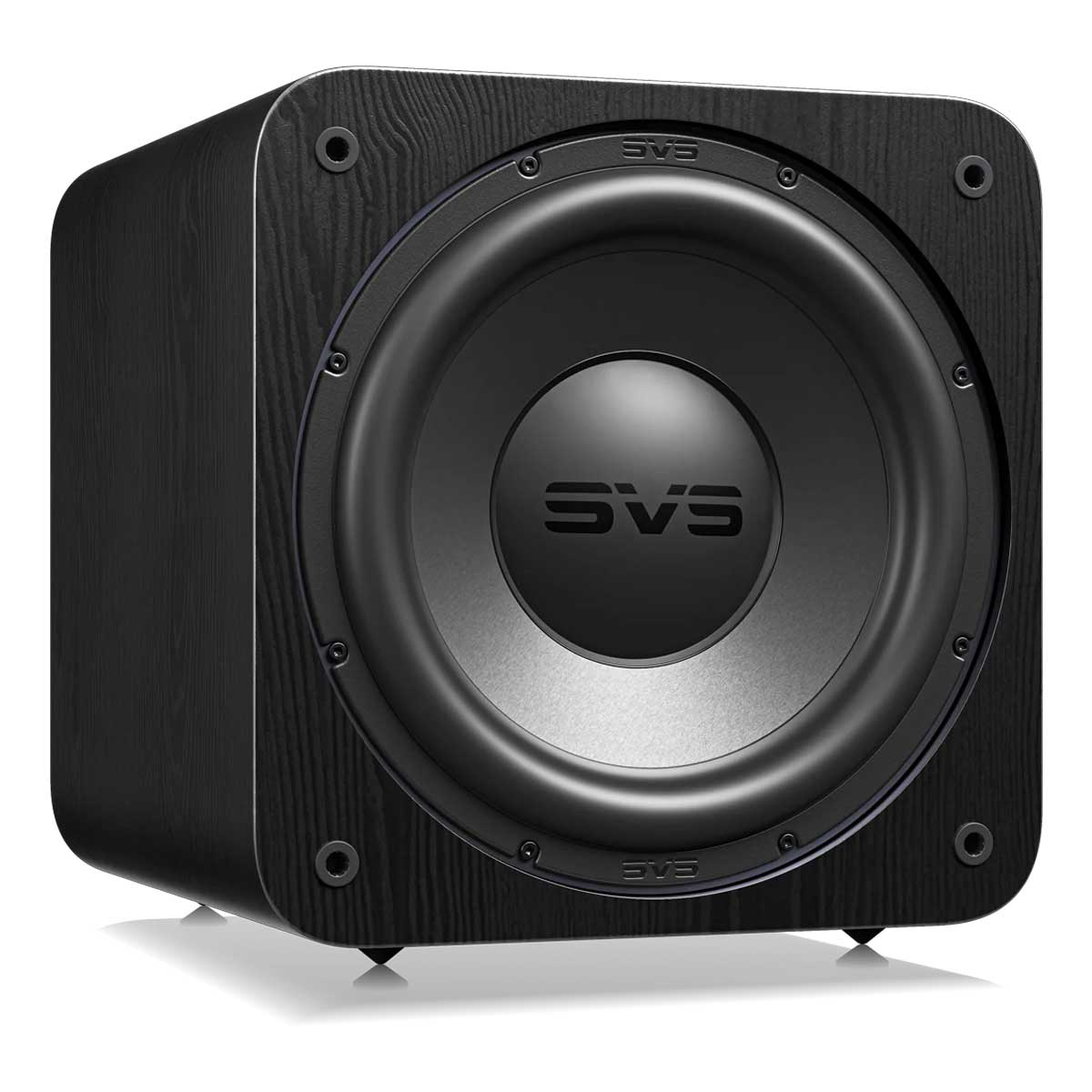

• Piano Gloss Black and Black Ash options
• Front Firing 13-inch high-excursion driver
• Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
• Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
• Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
• Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
• Dimensions (w/ grille): 15.6” (397mm) H X 15.2” (385mm) W X 16.8” (426mm) D
• Dimensions (without grille): 15.6” (397mm) H X 15.2” (385mm) W X 15.6” (397mm) D
• Shipped Dimensions: 21.2” (530mm) H 20.3” (516mm) W X 20.3” (516mm) D
• Weight (unboxed): 54.8 lbs. (24.9 kg)
• Shipped Weight: 66.1 lbs (30.0kg)

Driver Specs:

• Proprietary 13-inch long-throw driver with high-precision tuned overhung motor configuration.
• 24.1lb (10.5kg) pound Woofer with 18.5lb (8.4kg) pounds motor
• 30.1mm Xmax, 72.9mm Xmech precision aligned excursion
• SVS industry leading flat edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency. Built around a premium grade aluminum 2″ former for maximum thermal conductivity
• Two massive, dedicated toroidal Y30 ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
• High density FEA-optimized Powder-coated cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
• Two balanced 24-strand silver plated Litz wire high temperature leads woven through the 6.5″ 2-ply Nomex composite linear spider provide a pristine electrical connection from the amplifier to the voice coil.
• Vented 13″ 1100 Aluminum cone ensures a light, rigid, and neutral radiating surface.
• Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
• Extreme oversized low carbon T07A steel T-yoke and SPHC steel top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
• 6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic linearity.
• Nickel-plated high-tension spring terminals.
• Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control.

Amplifier Specs:

• Massively powerful 1,200-watt continuous Class D design with over 4,000 watts of Peak Power.
• 50% Higher Continuous power output than previous generation
• High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering, with over 5x the processing power of our previous subwoofers, the most advanced subwoofer processor available for perfect audio reproduction.
• The Switch Mode Power Supply (SMPS) employs dual discrete 65Mhz PMUs (Power Management Unit) that work with the DSP to monitor amplifier output voltage and current, AC main input voltage and current, and numerous temperature sensors. This maximizes system performance and reliability under all operating conditions with optimal efficiency.
• DSP runs real time complex power management algorithms, monitoring the real-time power, driver excursion, and current thousands of times per second. This allows the DSP to drive precisely regulated clean voltage, greatest headroom, and maximum current to push the driver’s voice coil with optimized efficiency.
• Advanced audiophile grade 56bit digital audio processing and premium DACs (Digital-to-Analog Converters) with more than 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.
• Discrete Class D amplifiers create effortless and endless power from four massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency while providing effortless power each voice coil, producing SPLs and low frequency output with pristine clarity well beyond reference listening levels.
• All new Switch Mode Power Supply (SMPS) with a high-efficiently resonant LLC ensuring a consistent regulated 160V rail voltage for the amplifier.
• < 0.05% THD+N at rated power (70% to 90% lower than previous generation), ensuring exacting signal integrity at all drive levels.
• New convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, flowing over the amplifier components and internal heat sinks, eliminating the need for an external heatsinks.
• Customer EQ and DSP limiter settings specifically for the 3000 R|Evolution series allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass.
• Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
• Balanced XLR 18kohm input impedance (compatible with consumer and professional audio up to 4Vrms / +14dBu inputs)
• OLED and control interface with easy control of the most important features
• USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.
• Auto/On and Trigger options through App for maximum installation convenience (3.5mm trigger Input 3-12V AC/DC)
• 3.5mm IR input for easy integration with control systems
• Green 0.5-watt low standby power consumption
• RoHS compliant, lead-free construction, world-wide safety certifications.

SVS App Specs:

• Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the industry leading SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls.
• The Analog Devices DSP supports a comprehensive menu of functions, including volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more.
• Includes three convenient memory presets for fast and easy global system adjustments to match listener preferences.
• Subwoofer Auto Room Equalization (Coming Soon) will use your mobile device built-in microphone, or an accessory microphone (Coming Soon) to measure the acoustic performance of your subwoofer in your room and automatically calculate precision equalization filters to optimize the subwoofer and room combined performance at your listening position.
• Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
• Easy-to-follow tutorial provides clear guidance for all functions.

Included Accessories:

• Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
• Iso-elastomer feet
• Extra heavy-duty, high current 6′ power cord
• Quick Start Guide
