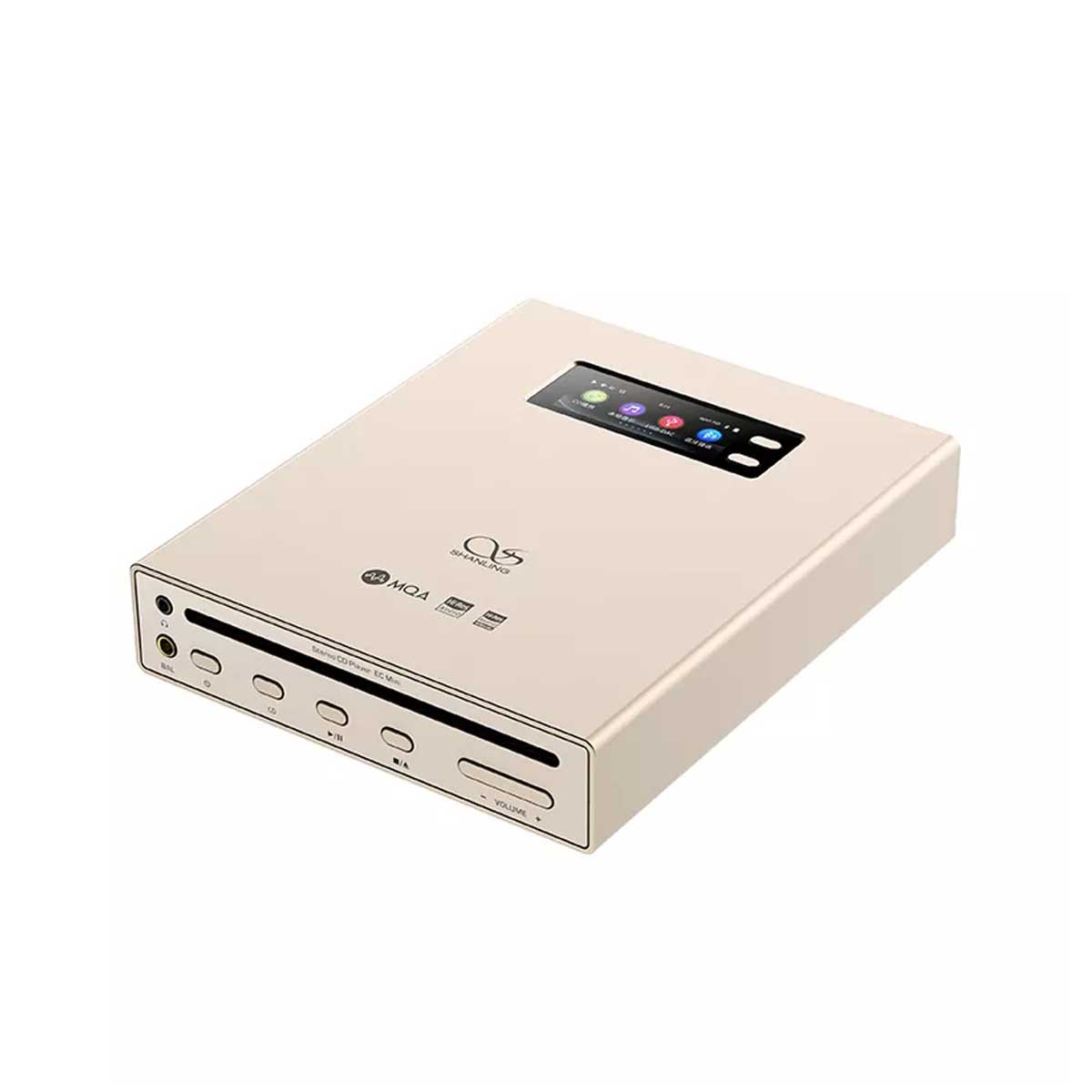

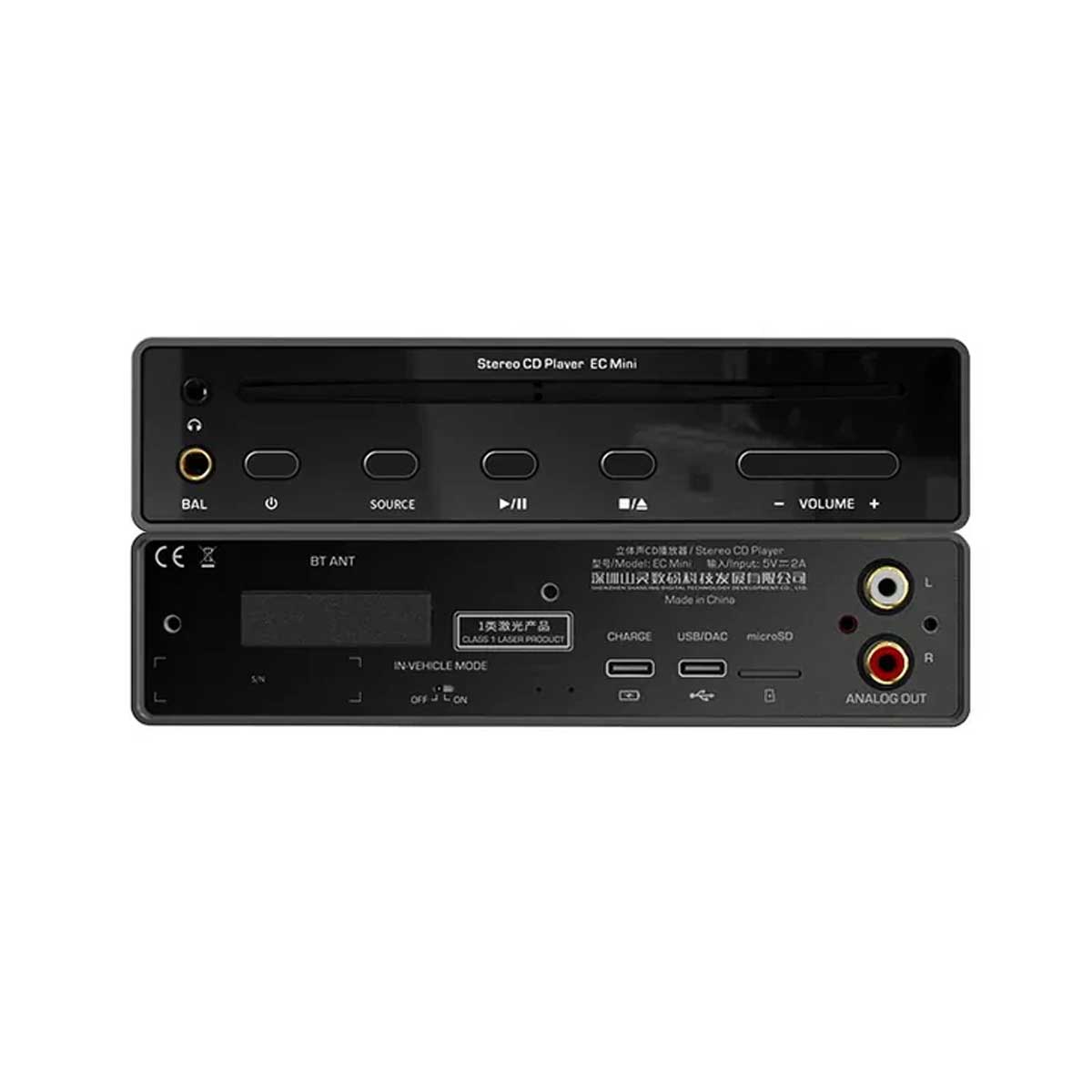

Shanling EC Mini Portable CD Player & DAP
The Shanling EC Mini Portable CD Player & DAP is a brand new transportable CD Player that can also be used as a dedicated digital audio player with MicroSD card playback support and bi-directional USB support as well.
Take a trip of nostalgia with your favourite Audio CD playback or dive deep into the world of the latest music playback everything possible easily on the Shanling EC Mini. The device supports 3.5mm and 4.4mm headphone outputs as well as RCA analog pre-output for easy connectivity options.
Shanling EC Mini is the perfect blend of nostalgic CD Players and modern digital audio players!!
View Shanling products >>
Features
- Transportable CD Player & Digital Audio Player.
- Premium Dual DAC Chipset.
- Dual ES9219 DAC Chips.
- 5mm & 4.4mm Headphone Output Support.
- Strong Output With 248mW@32Ω Output Power.
- Philips CD Drive & Sanya HD860 Laser.
- MQA-CD Support.
- Supports Hi-Res Signal Decoding(32-bit/384kHz PCM & Native DSD256).
- LTA 8092 Pre-Amp Out Chipset.
- Dual RT6863 Dedicated Headphone Amplifiers.
- RCA Analog Output Support.
- Bluetooth V5.0 Connectivity.
- MicroSD Card, Bi-Directional USB Support.
- Easy to Access With Touch Screen and Physical Buttons.
- Independent Battery Power With two 18650 Batteries.
Advanced CD Playback Technology
The EC Mini is equipped with high-quality components like a Philips CD drive and Sanyo HD860 Laser, ensuring top-notch CD and MQA-CD reading capabilities. This reflects Shanling’s commitment to using proven, high-quality parts in their audio products

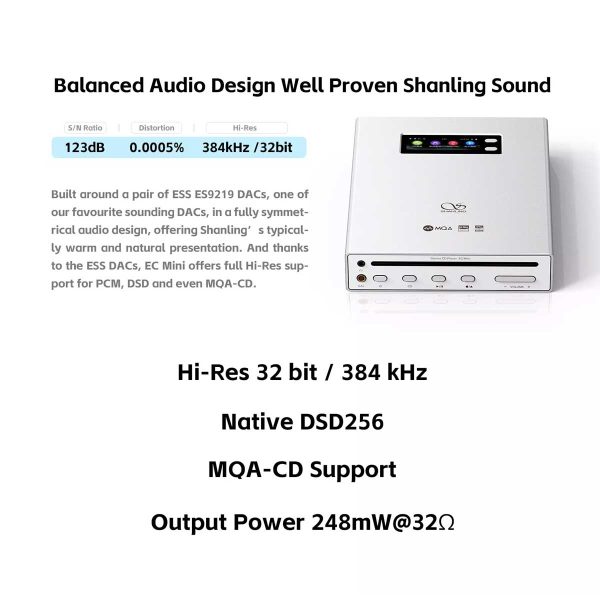

Specialized Audio Decoding System
Featuring a dual DAC setup with two ES9219 ESS Sabre DAC chips, the EC Mini excels in audio decoding. It supports detailed 32-bit/384kHz PCM signals and DSD256, delivering sound with low distortion and high signal-to-noise ratio.
Versatile Digital Audio Player

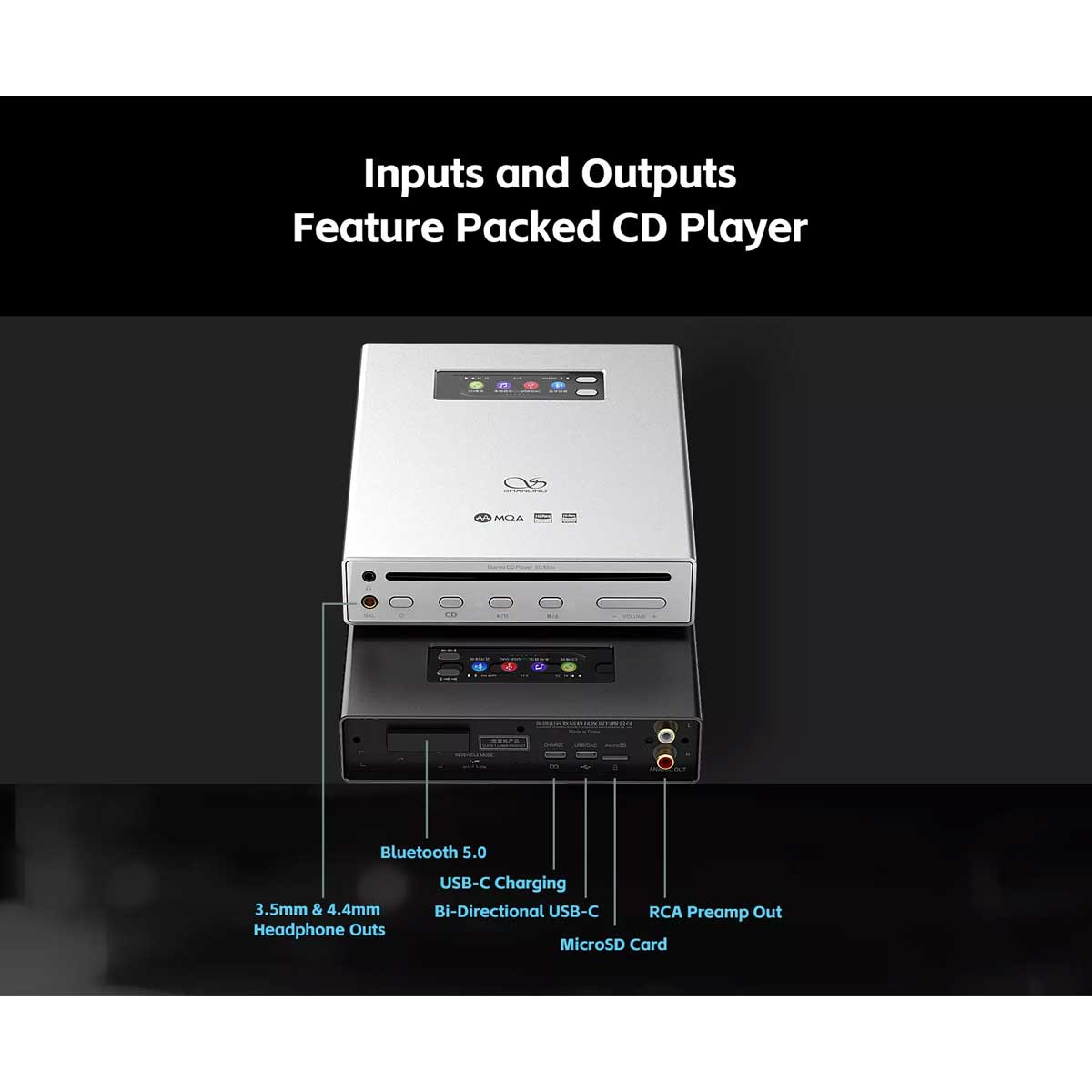

Beyond traditional CD playback, the EC Mini offers extensive digital capabilities. It includes support for up to 2TB microSD cards, Bluetooth V5.0, and bi-directional USB input. The Bluetooth supports high-definition audio protocols such as LDAC and AptX, and the device provides multiple output options including 3.5mm and 4.4mm headphone jacks and RCA analog pre-out.
Remote Control via Shanling App
The EC Mini is compatible with the Shanling Eddict Player app, available on Android and iOS. This feature transforms your smartphone into a remote control for managing CD and MicroSD card playback.

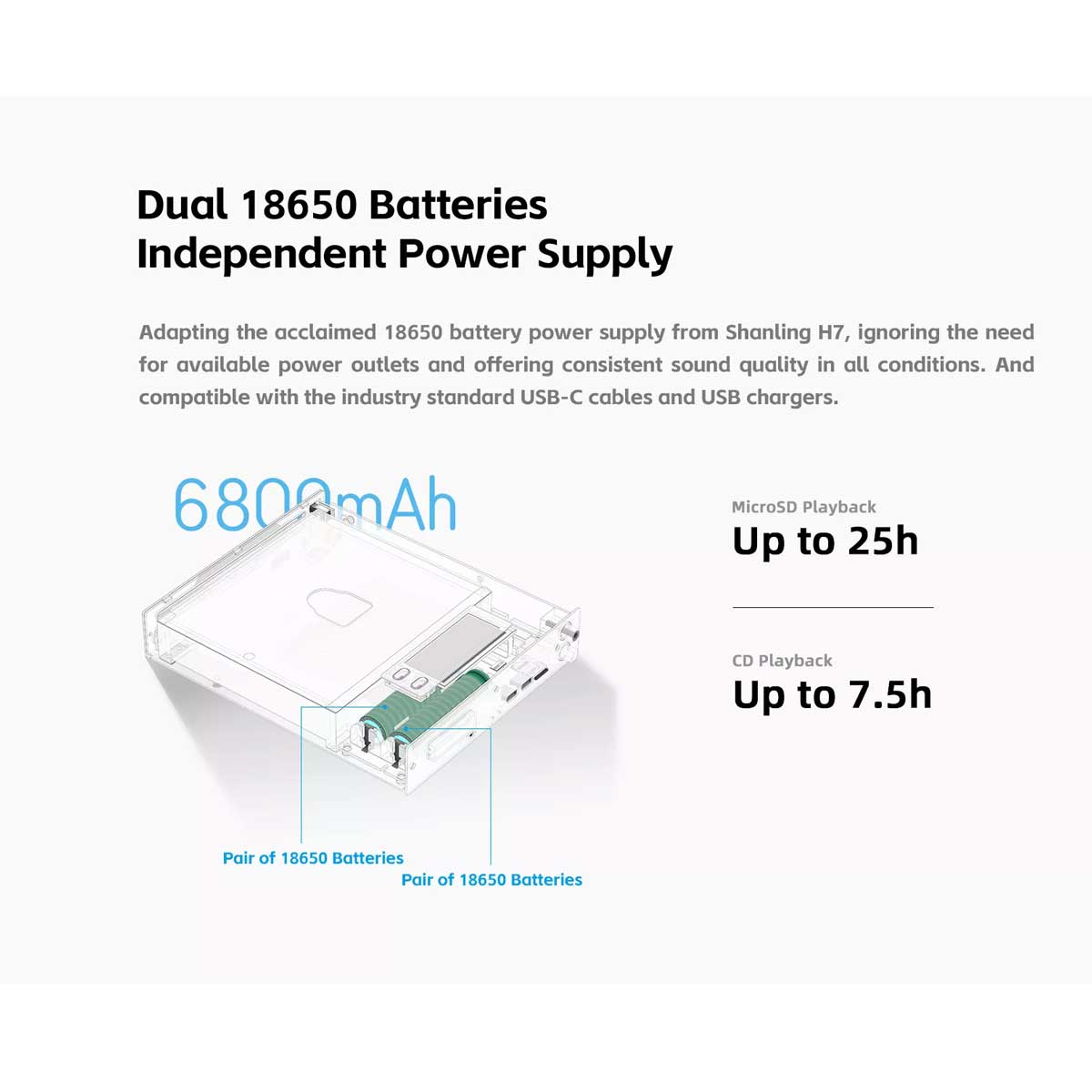

Robust Power Supply
Powered by a 6800mAh 18650 battery, similar to that in the Shanling H7, the EC Mini offers impressive battery life: up to 25 hours for MicroSD playback and 7.5 hours for CDs.

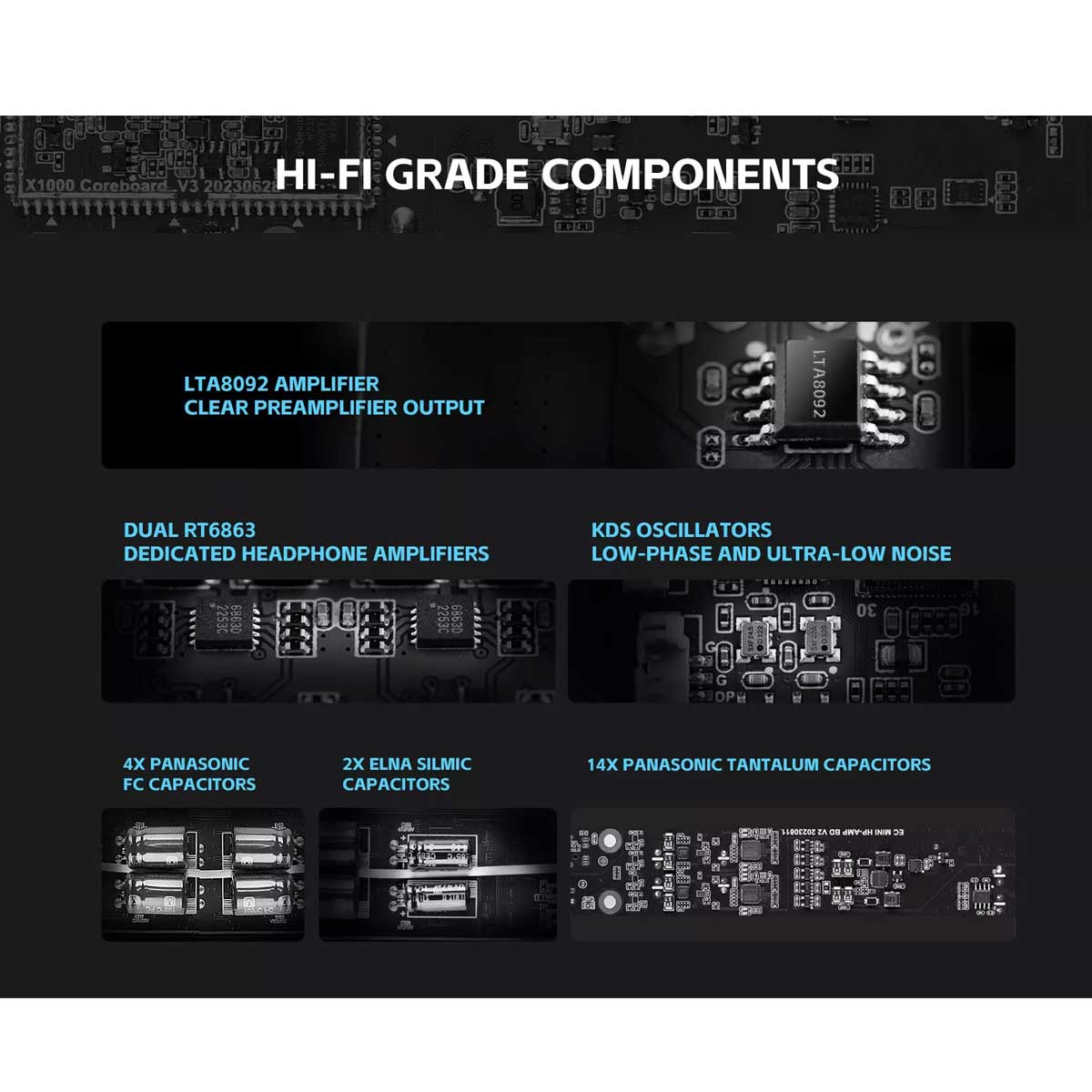

Exceptional Performance with Premium Components
Shanling Audio’s expertise is evident in the EC Mini, which includes a LTA8092 Pre-Amp chipset, Dual RT6863 headphone amplifiers, and high-quality Panasonic and ELNA capacitors. These components ensure a high-quality, immersive listening experience.
Specifications
- Dimensions: 250 X 205 X 52mm
- Weight: 1.2kg
- Screen: 2.33-inch LCD Touch display
- Battery: Two Built-in 18650 batteries, separate USB-C Charging Connector
- Battery Life: Up to 25h with MicroSD card playback, up to 7.5h with CD Playback
- MicroSD Card audio formats: DSD (“.iso”,”.dsf”,”.dff”)/ DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA/ AAC / OGG /ALAC / MP2 / M4A / AC3 / OPUS / TAK / CUE | *DST encoding of ISO is not supported.
- Hi-Res Support: 384kHz/32bit, DSD256
- MicroSD Card Support: Up to 2TB cards
- DAC: Dual ES9219MQ DACs
- Bluetooth Codec Support: Bluetooth Receiver: LDAC / AAC / SBC | Bluetooth Transmitter: LDAC / aptX / AAC / SBC
- RCA Output: Output level: up to 2.1 Vrms | Frequency Response: 20 Hz – 40 kHz (-0.1dB) | THD+N: 0.0005% | Channel Separation: 110 dB | Dynamic range: 114 dB | Signal-to-noise ratio: 114 dB
- 5mm Output: Output power: 140 mW@32n | Frequency Response: 20 Hz – 40 kHz (-0.1dB) | THD+N: 0.0006% | Channel Separation: 76 dB | Dynamic Range: 120 dB | Signal-to-noise ratio: 120 dB | Noise: >113 dB | Output impedance: less than 1Ω
- 4mm Output: Output Power: 248 mW@32Ω | Frequency Response: 20 Hz – 40 kHz (-0.1dB) | THD+N: 0.0005% | Channel Separation: 115 dB | Dynamic Range: 123 dB | Signal-to-noise ratio: 123 dB | Noise:>110 dB | Output impedance: less than 1Ω
Inside the Box
- 1 x Shanling EC Mini
- User Manual
