Rotel RMB-1555 Multi-Channel Power Amplifier
The Rotel RMB-1555 Multi-Channel Power Amplifier, although offering slightly less power than its big brother, it retains a very robust power supply and delivers 5 x 120 Watts per channel of amplification.
View Owners Manual >> View Specifications >> View Rotel >>
Features
- 5 x 120 Watts of robust power
- Class AB amplifier design
- High-quality slit foil capacitors made in Britain
- Rack ears included
- 12 volt trigger input
The RMB-1555 is a remarkable multichannel amplifier with power output conservatively rated at 120 Watts per channel into 8 ohms (all channels driven!).
With all but the most demanding speakers located in extraordinarily large rooms, the RMB-1555 exerts the kind of precise control that presents both nuance and bombast correctly from the faintest flute overtones to the subterranean rumble of an approaching apocalypse.

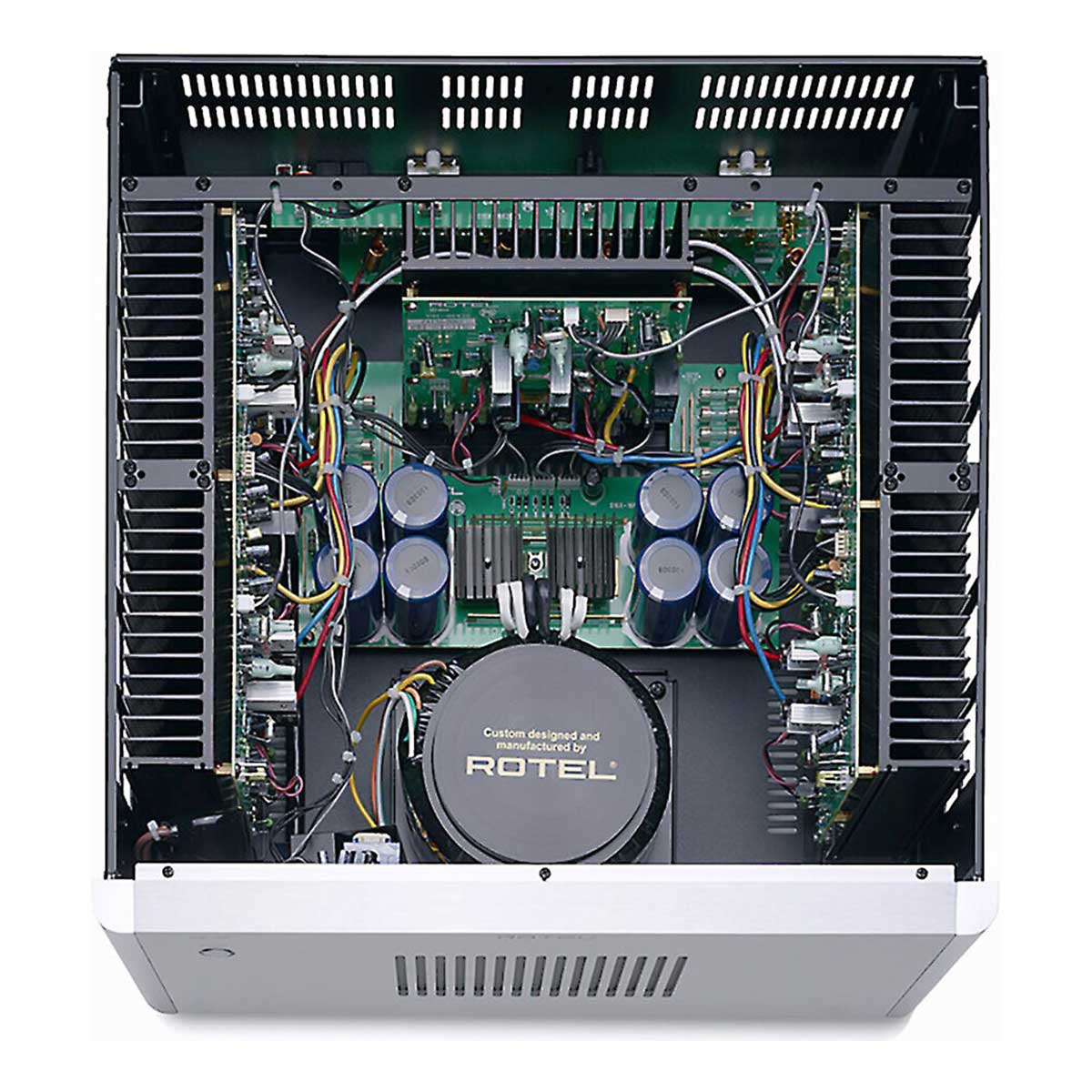

The RMB-1555 employs a high current, toroidal transformer matched to discrete output transistors with their higher thermal stability and freedom from the designed-in compromises that characterize their integrated circuit cousins. The Class AB amplifier configuration assures the best balance between power output and thermal efficiency.
Specifications
- Dimensions (W × H × D): 431 × 188 × 454mm
- Front Panel Height: 4U / 176.8mm (7″)
- Power Requirements: 230V, 50Hz
- Power Consumption: 650W
- Standby Power Consumption: 0.5W
- Net Weight: 21.8kg (48lbs.)
- BTU Rating (4Ω, 1/8th power): 1683 BTU/h
- Power Output
- 120W/Ch (5 channels driven, 8Ω)
- 170W/Ch (5 channels driven, 4Ω)
- Total Harmonic Distortion (THD): (20Hz–20kHz) <0.03%
- Frequency Response: 10Hz – 100kHz +0.5, -3dB
- S/N Ratio (IHF “A” Weighted): 116dB
- Gain: 26.5dB
