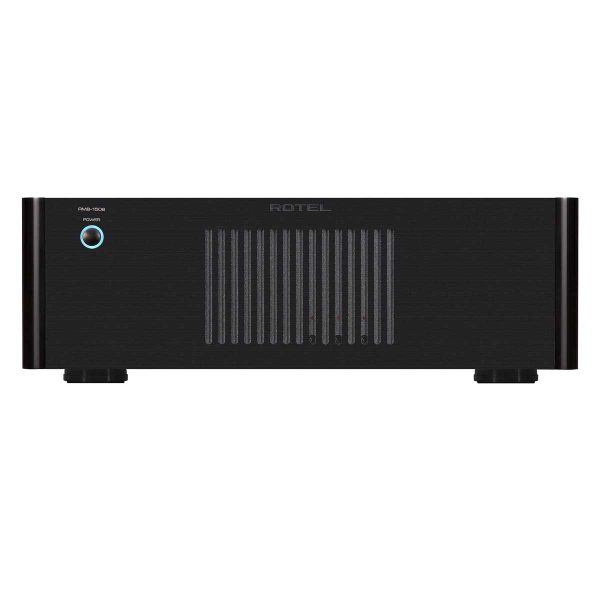

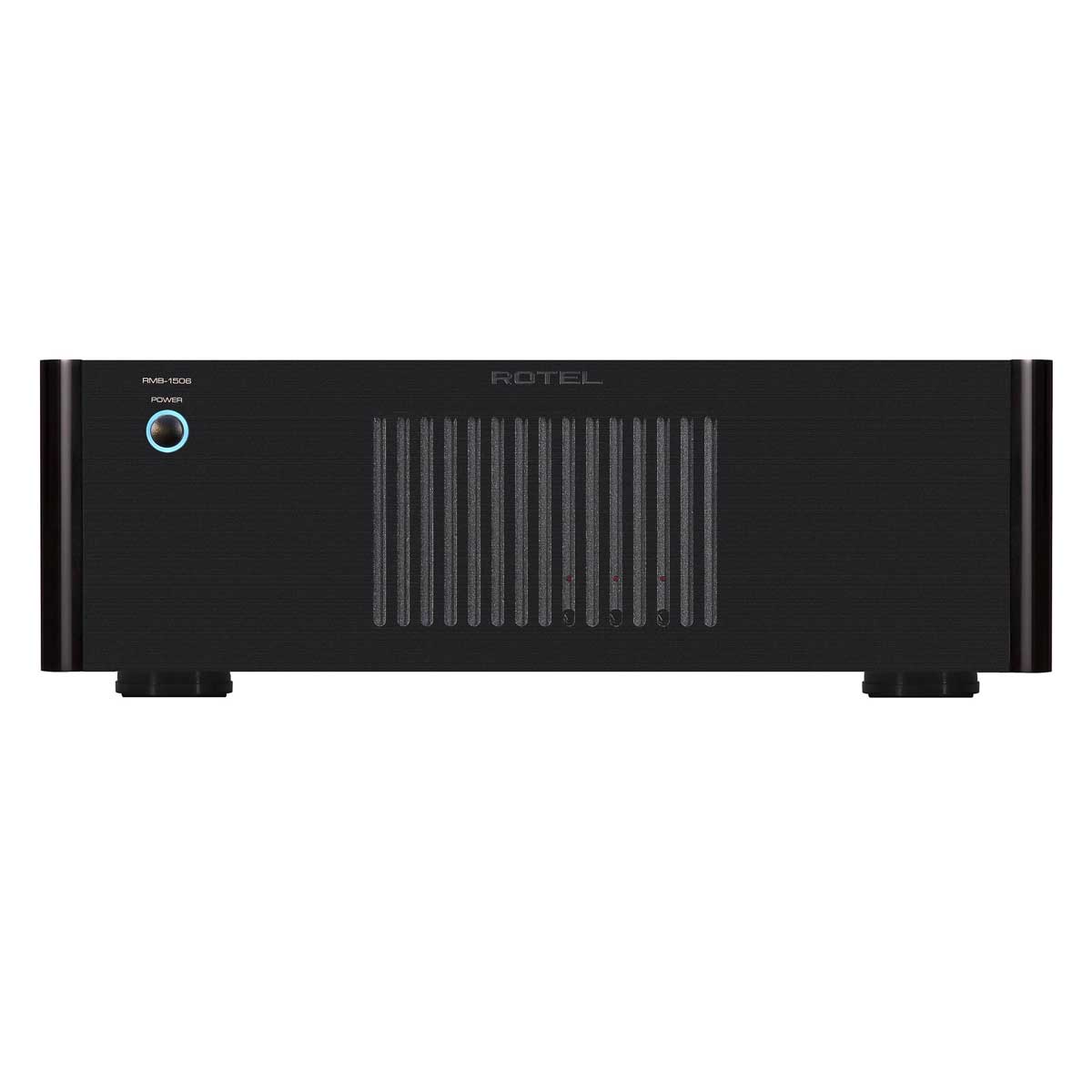

Rotel RMB-1506 Distribution Power Amplifier
The Rotel RMB-1506 Distribution Power Amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home.
You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.
*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.
View Owners Manual >> View Specifications >> View Rotel >>
Features
- 6 x 50 Watts of robust power
- Class AB amplifier design
- Rack ears included
- Automatic signal sensing
- 12 volt trigger input
Specifications
- Dimensions (W × H × D): 431 × 144 × 424mm
- Front Panel Height: 3U / 132.6mm (5.25″)
- Power Requirements: 120V, 60Hz
- Power Consumption: 450W
- Standby Power Consumption: 2.6W
- Net Weight: 15.3kg (34lbs.)
- BTU Rating (4Ω, 1/8th power): 1680 BTU/h
- Continuous Power Output
- 50W/Ch (All channels driven, 8Ω)
- 80W/Ch (All channels driven, 4Ω)
- Total Harmonic Distortion (THD): (20Hz–20kHz) <0.03%
- Frequency Response: 10Hz – 100kHz ±1dB
- S/N Ratio (IHF “A” Weighted): 115dB
- Gain: 26dB
