Description

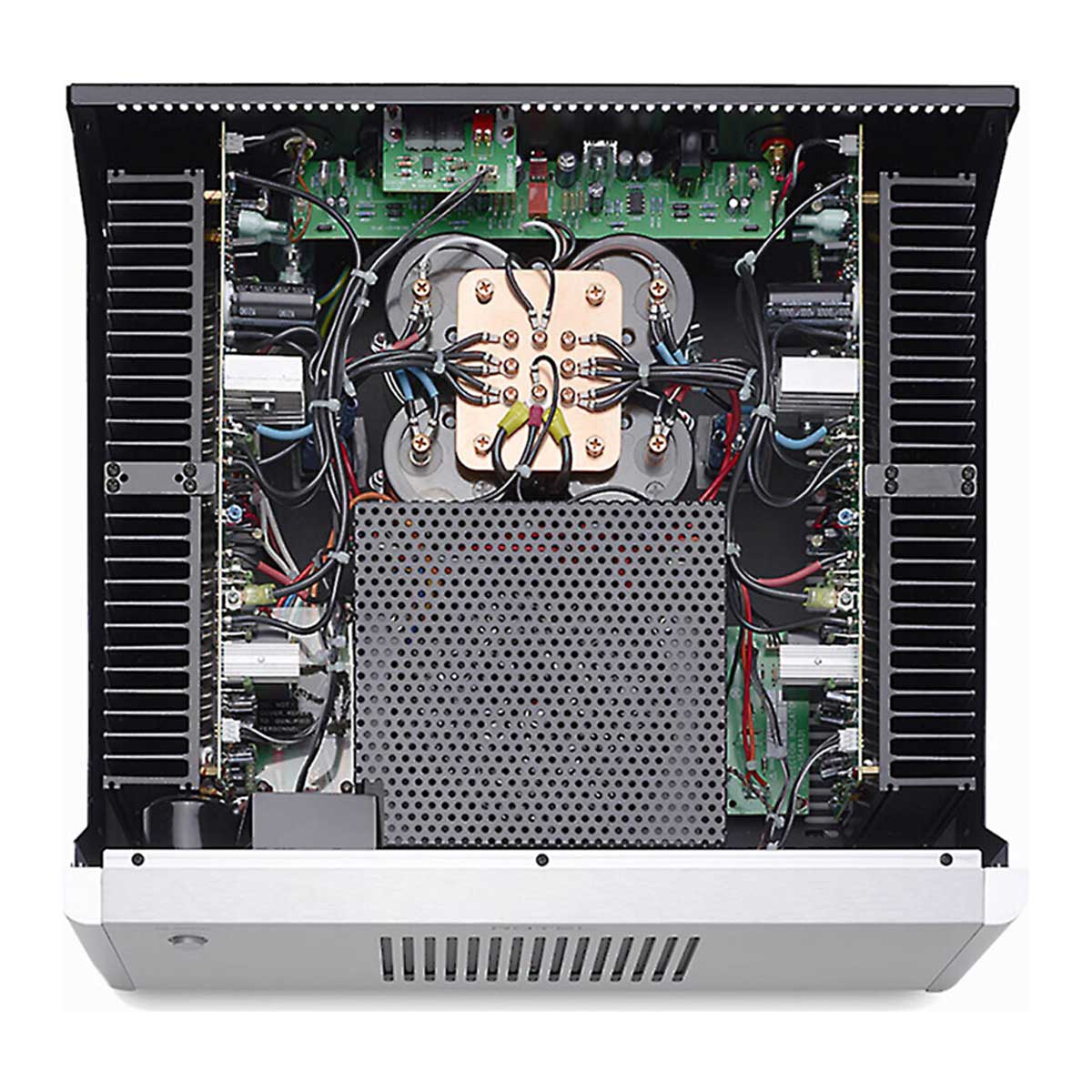

The RB-1582 MkII’s high-end performance begins with an extremely large toroidal transformer combined with a total of 60,000µF storage capacity in special “slit foil” capacitors to provide completely stable power to the output stage. Slit foil capacitors have the ability to charge and discharge extremely quickly, thereby ensuring signal fidelity during orchestral crescendos or repetitive kick-drum impacts, for example. Both left and right channel construction are laid out in a mono block design (after the toroidal transformer) and all grounding is terminated in a star pattern on a copper grounding plate to ensure low signal to noise. The output stage is a discrete design that consists of 10 high current bipolar transistors per channel. Input options consist of both balanced XLR and unbalanced RCA connectors.
The RB-1582 MkII stereo power amplifier is yet another outstanding example of Rotel’s Balanced Design Concept and will form the heart of a very impressive stereo or home theatre system for years to come.
- 2 x 200 Watts of robust power
- Class AB amplifier design
- High-quality slit foil capacitors made in Britain

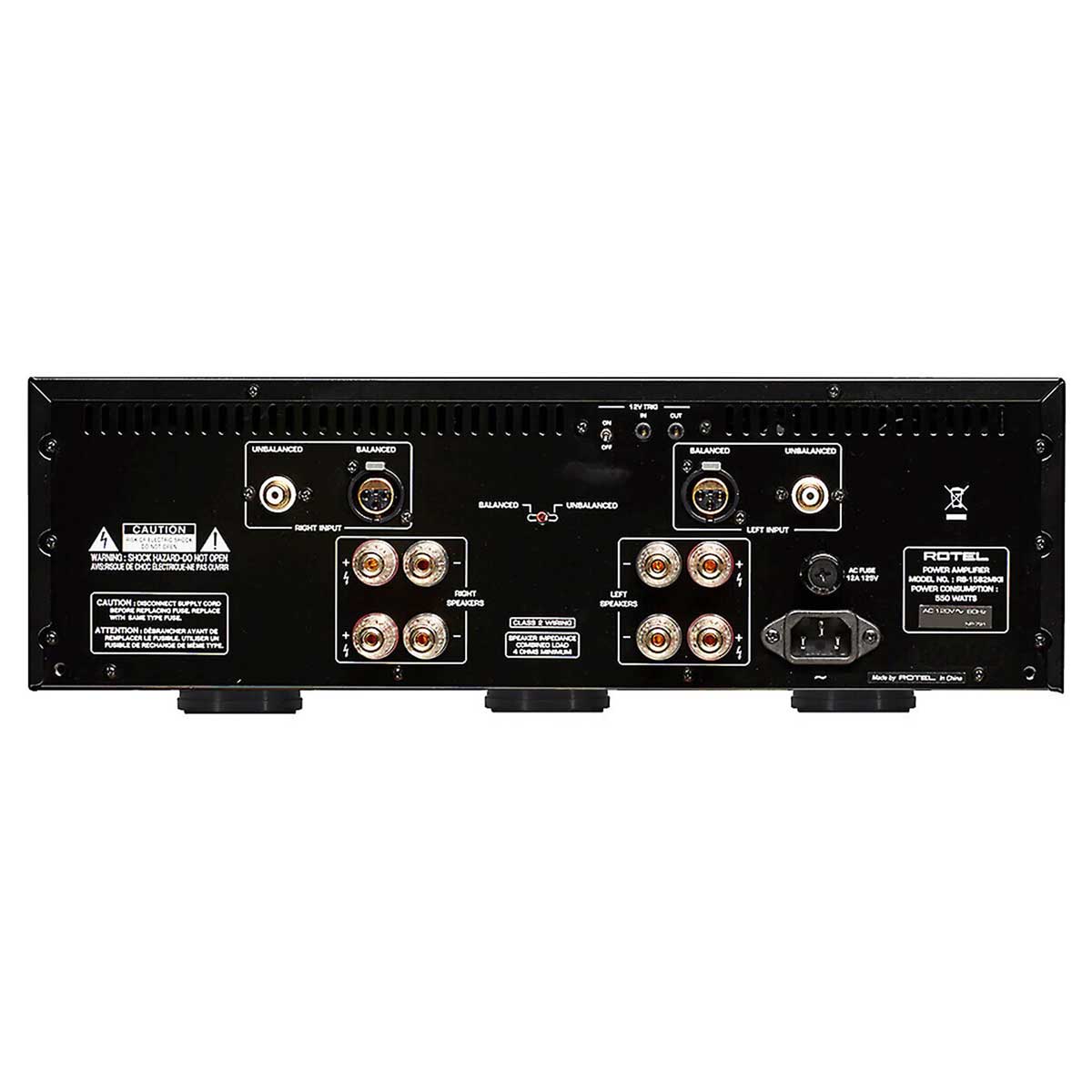

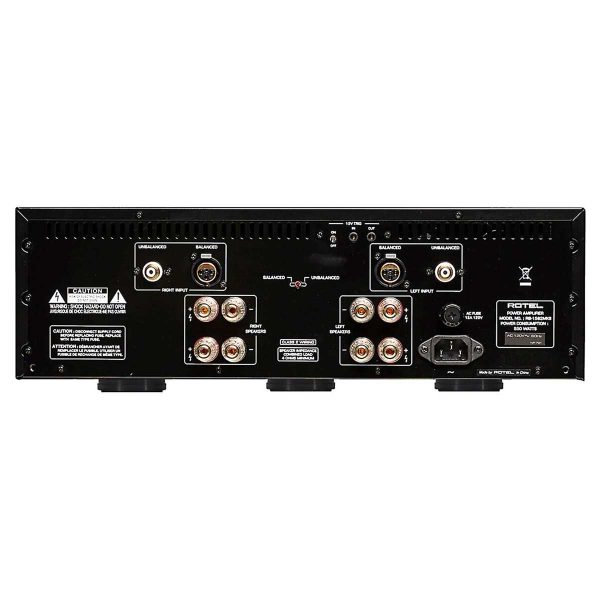

- Balanced XLR inputs
- 12 volt trigger input
SPECIFICATIONS
DIMENSIONS (W × H × D)
431 × 144 × 407mm
17″ × 5.7″ × 16″
FRONT PANEL HEIGHT
3U / 132.6mm (5.25″)
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
550W
STANDBY POWER CONSUMPTION
0.5W
NET WEIGHT
17.6kg (39lbs.)
BTU RATING
(4O, 1/8th power)1104 BTU/h
CONTINUOUS POWER OUTPUT
200W/Ch (All channels driven, 8O)
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%
FREQUENCY RESPONSE
10Hz – 100kHz ±0.5dB
S/N RATIO (IHF “A” Weighted)
116dB GAINRCA: 26.5dBXLR: 22.5dB
