Description

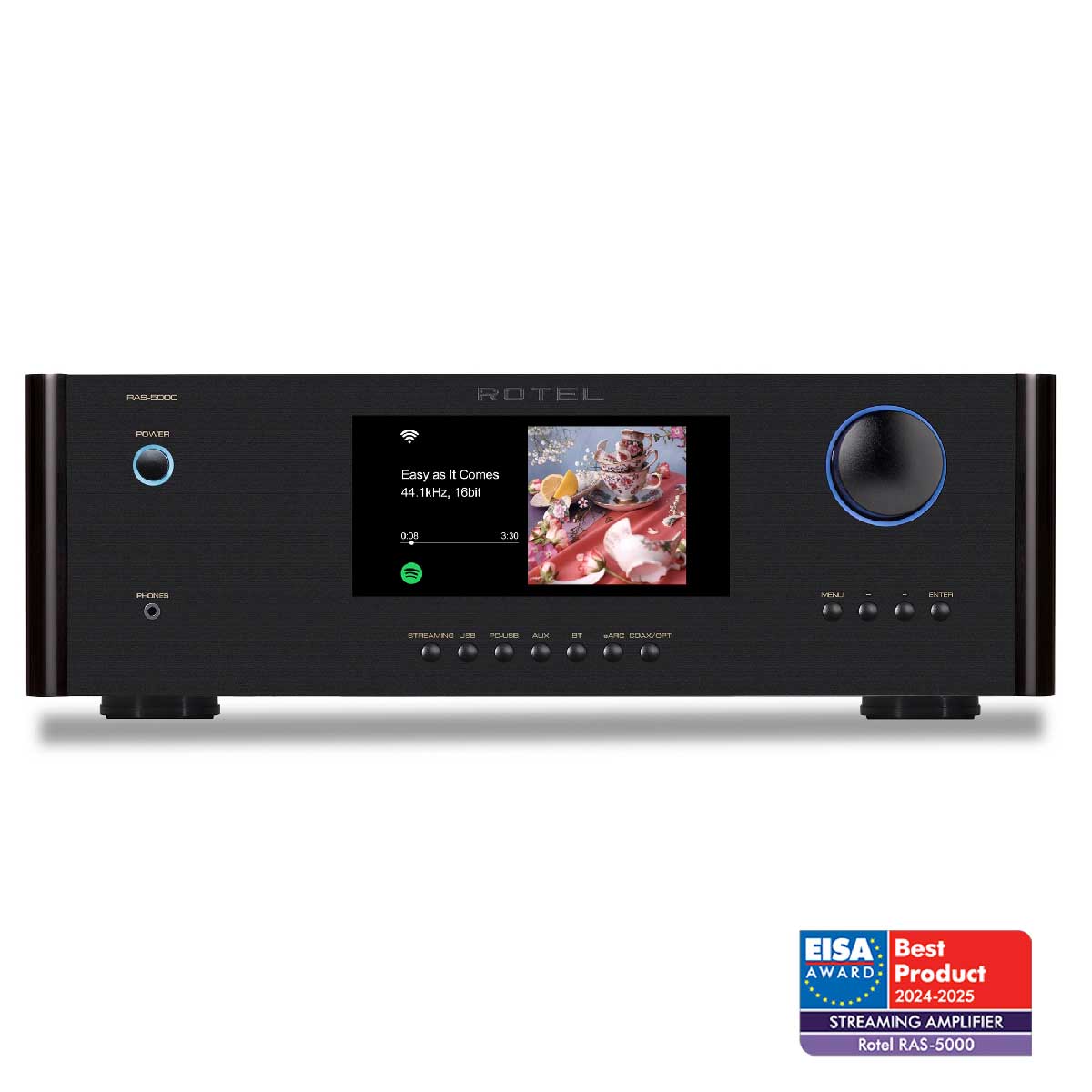

Rotel RAS-5000 Integrated Streaming Amplifier
Simplicity and performance meet in the Rotel RAS-5000 Integrated Streaming Amplifier, designed to effortlessly fit into your lifestyle and elevate your entertainment experience.
Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.
The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
View Owners Manual >> View Specifications >> View Rotel >>
Award

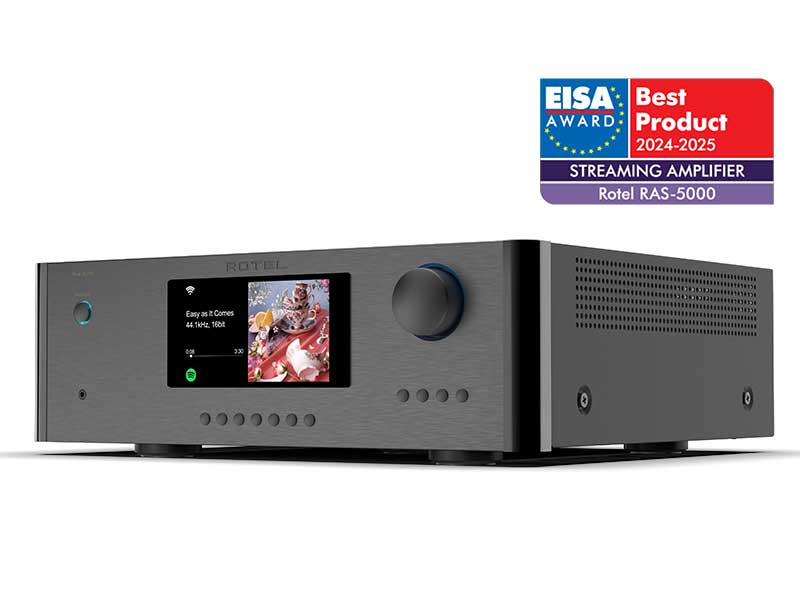

Rotel RAS-5000 wins the Prestigious EISA Streaming Amplifier 2024-2025 Award
Tokyo, Japan (August 15th, 2024) – Rotel has consistently received the highest-level of professional recognition for outstanding product performance, quality and design. This industry acknowledgment now extends to a new product category for the company with the announcement that EISA’s expert judges have awarded the RAS-5000 the EISA Streaming Amplifier 2024 – 2025.
Features
- 2 x 220 Watts of robust
- Class AB power, 4 Ohms
- ESS premium 32-bit Digital to Analog Converter
- Wireless aptX™ HD and AAC Bluetooth
A legendary brand with modern sensibilities
Rotel has been in the business of great sound since 1961. Their latest offering, the RAS-5000 streaming integrated amplifier, takes that heritage and blends it with the latest technology.
Select songs using the Spotify® or TIDAL app on your phone (subscriptions required). Or connect via AirPlay 2 or Chromecast built-in to play content from a wide range of other apps and services.
A premium ESS DAC serves up pristine sound, while the front-panel display shows track information and album art.
Digital and analog connectivity with clean power
You get an array of digital music source inputs plus an HDMI eARC port for connecting your TV.
A stereo line-level input lets you hook up an analog source. No phono stage is built-in, though, so if you want to spin vinyl, you’ll need a separate phono preamp.
The amplifier features a custom Rotel toroidal power supply and Class AB amplification for loads of volume and clarity.
It’s four-ohm stable for driving demanding speakers. Bass lovers will appreciate the mono subwoofer output to connect a powered subwoofer. Plus, there’s a line-level preamp output if you want to use the RAS-5000 to feed an external amplifier.
Specifications
- DIMENSIONS (W × H × D) – 431 x 144 x 425 mm
- FRONT PANEL HEIGHT 132.6 mm
- POWER REQUIREMENTS 120V, 60Hz
- POWER CONSUMPTION 380W
- STANDBY POWER CONSUMPTION <0.5W
- NET WEIGHT 15.7 kg, 34.6 lbs
- BTU RATING (4Ω, 1/8th power) 1027 BTU/h
- POWER OUTPUT 220 Watts / ch (4 Ohms) or 140 Watts / ch (8 Ohms)
- TOTAL HARMONIC DISTORTION(THD) <0.03%
- FREQUENCY RESPONSE
- Line Level Inputs:10Hz – 100kHz, ±0.5dB
- Digital Inputs:10 Hz – 70k Hz, (±3 dB, MAX)
- S/N RATIO (IHF “A” Weighted)
- Line Level Inputs: 103dB
- Digital Inputs: 105dB
