Description

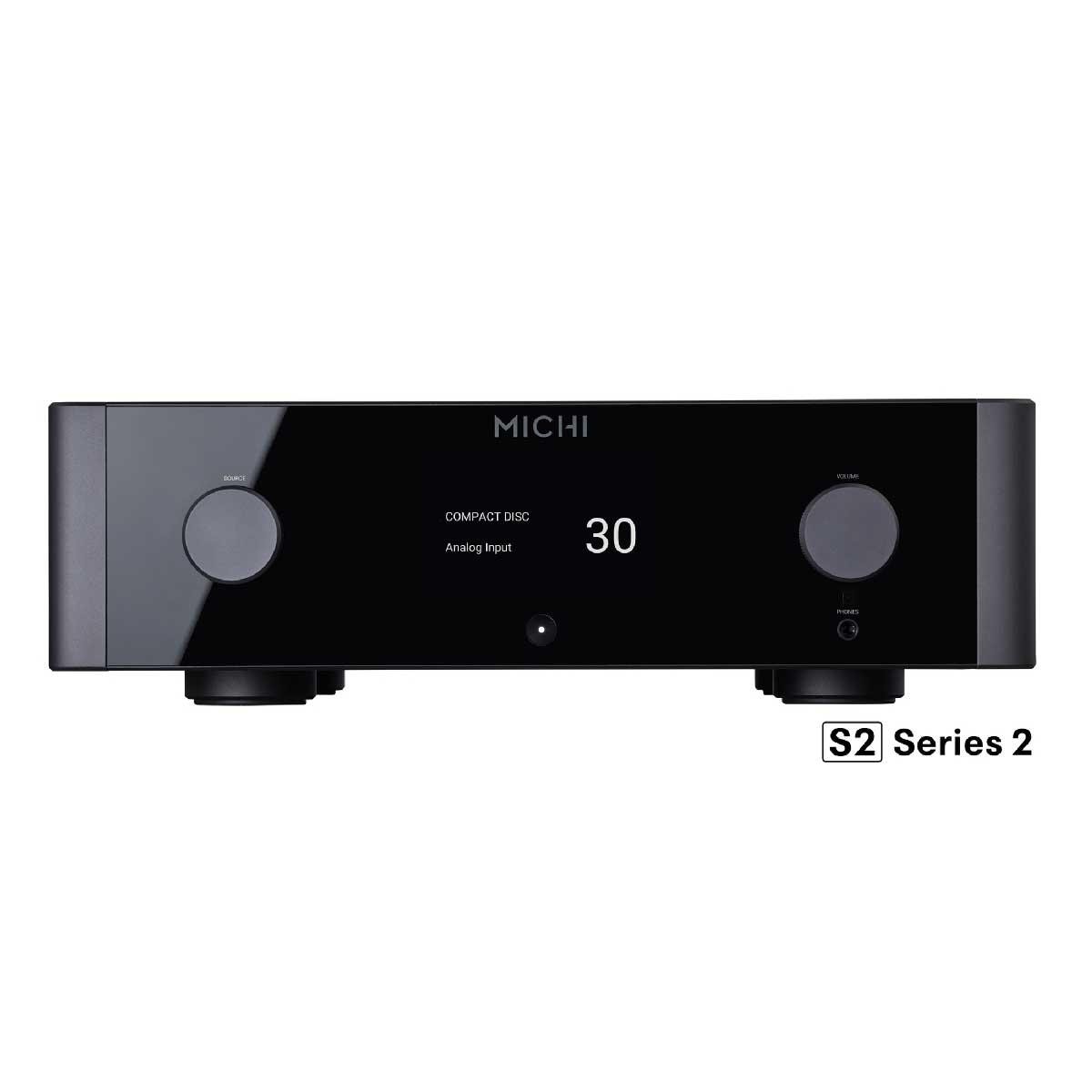

Rotel Michi X3 Series 2 Integrated Amplifier
The Rotel Michi X3 Series 2 Integrated Amplifier offers an unparalleled listening experience with musical refinement, and breathtaking detail.
Digital audio is rendered utilising a precision 8-channel ESS SABRE ES9028PRO DAC configured to dedicate 4 channels each to the left and right recorded tracks lowering the noise floor, reducing distortion, and creating an expansive, wide soundstage.
Michi, expectations amplified.
View Owners Manual >> View Specifications >> View Rotel Products >>
Features
- ESS SABRE ES9028PRO 8-Channel DAC (32-bit 768kHz) Configured for STEREO
- Coaxial (3), Optical (3) and Analog RCA (3) inputs
- PC-USB with DSD 4X decoding and MQA rendering
- Bluetooth with aptXTM HD and AAC
- Moving Magnet Phono Stage input
- XLR Balanced input
- Custom engineered toroidal transformer
- Dimmable front panel TFT high resolution display
- IP and RS232 2-way communication for control system integration
- Michi remote control
The elegant industrial design of the Michi X3 Series 2 fits comfortably in any living space while still producing a robust 350 watts into 4 ohms or 200 watts into 8 ohms from your favourite music sources including Analogue RCA and XLR Balanced, Moving Magnet Phono, aptXTM HD Wireless Bluetooth, Coaxial, and Optical.
The PC-USB input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) music files with full MQA hardware decoding up to 24-bit 384kHz.
Michi X3 Series 2 is built for music lovers and audiophiles alike with every aspect of its design, engineering, and manufacturing meticulously refined to deliver exceptional performance. An oversized in-house manufactured toroidal transformer powers isolated digital, analogue, and high current amplifier circuits further reducing electrical noise and interference.
Operation and setup of the X3 Series 2 is done with ease utilising the included custom Michi IR remote, front panel controls and large graphic display.

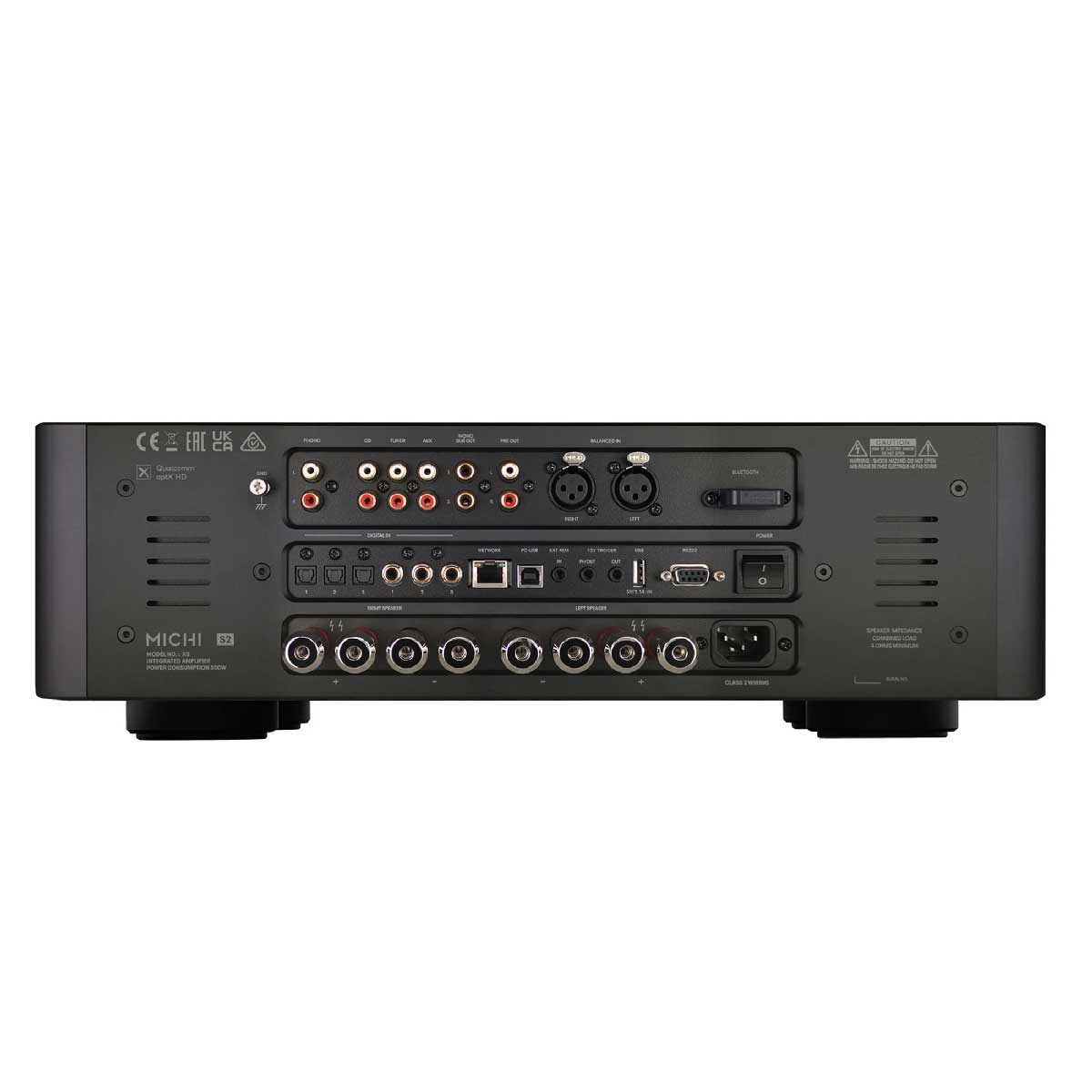

Dual Michi-engineered platinum plated speaker binding posts allow bi-wire and traditional speaker connections. A full size 1⁄4” (6.35mm) front panel headphone connection is available for private listening sessions. RS232 and Ethernet connections ensure simple connection with automation and control systems.
Specifications
- Dimensions (W × H × D) 485 x 150 x 452mm
- Front Panel Height 132 mm (5.25″)
- Power Requirements 120V, 60Hz
- Power Consumption 500W
- Standby Power Consumption Normal: <0.5W
- Network Wakeup: <2W
- Net Weight 9kg (63.7 lbs.)
- BTU Rating 1303 BTU/h
- Maximum Power Output 350W/Ch (4Ω)
- Continuous Power Output 200W/Ch (8Ω)
- Total Harmonic Distortion (THD) <0.008%
- Frequency Response
- Line Level Inputs: 10Hz – 100kHz (+0dB, -0.4dB)
- Digital Inputs: 20Hz – 20kHz (0 ± 0.4dB)
- Phono Input: 20Hz – 20kHz (+0dB, +0.4dB)
- S/N Ratio (IHF “A” Weighted)
- Line Level Inputs: 102dB
- Digital Inputs: 102dB
- Phono Input: 80dB
