Description

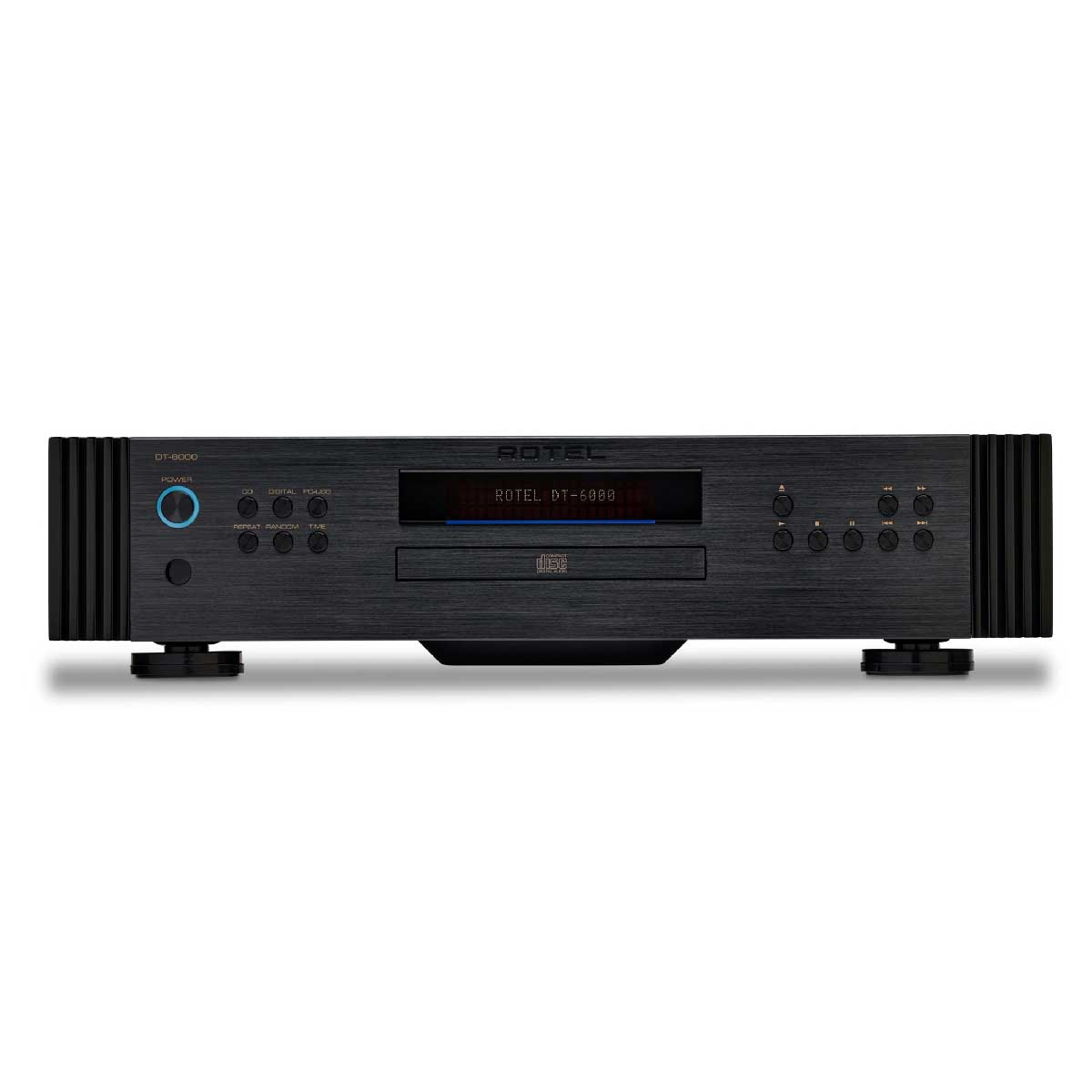

Rotel DT-6000 DAC Transport
The Rotel DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.
View Owners Manual >> View Specifications >> View Rotel >>
An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

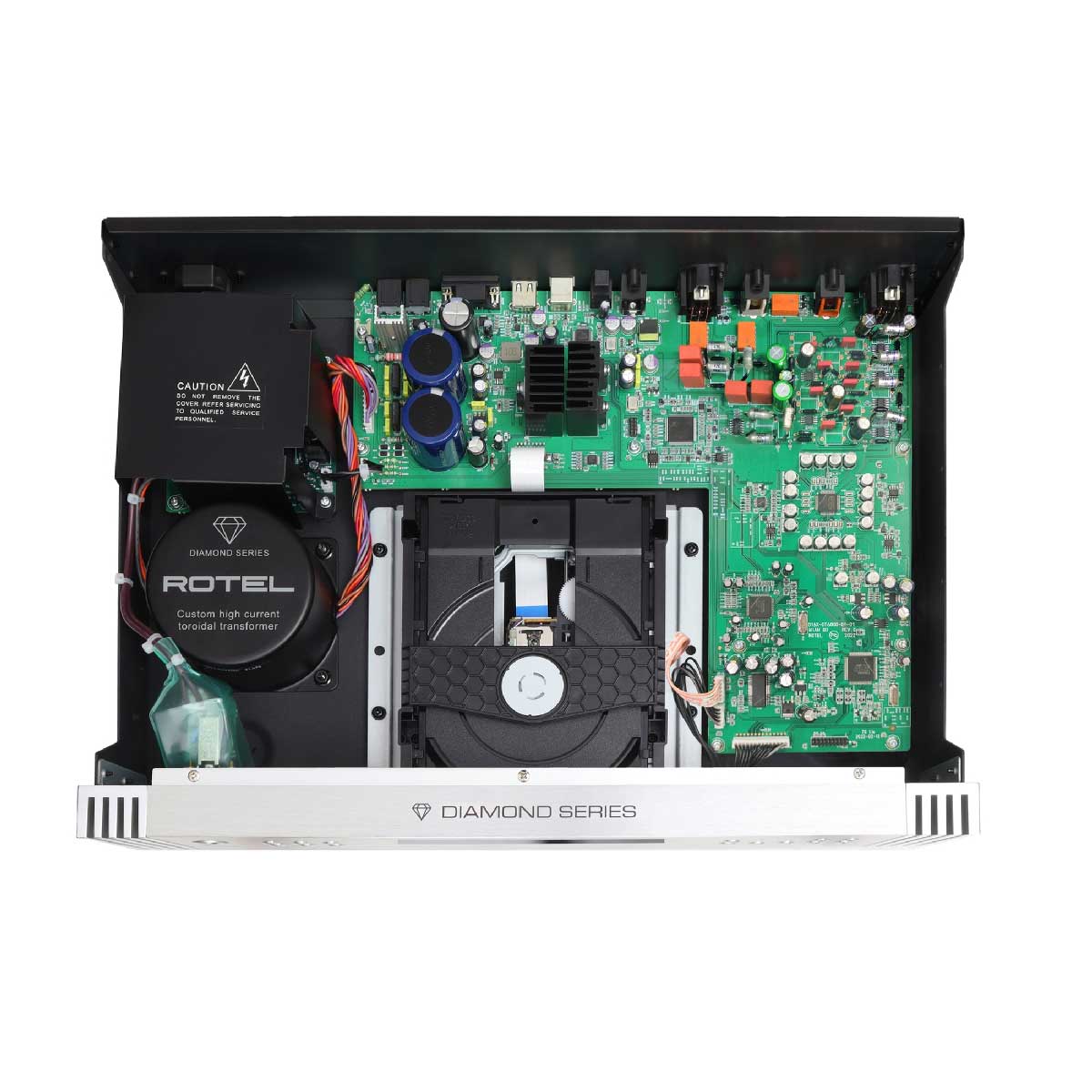

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.
The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.
The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

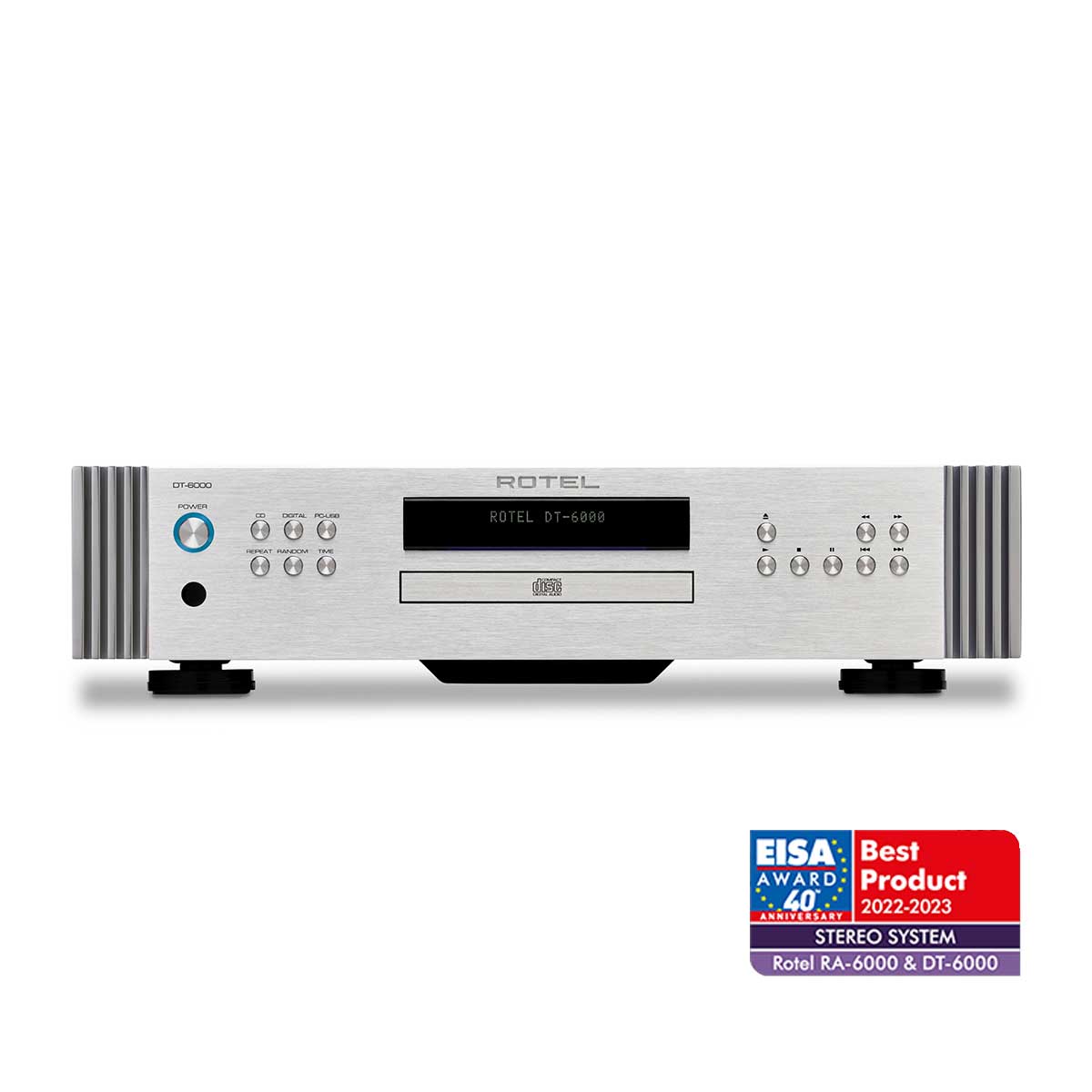

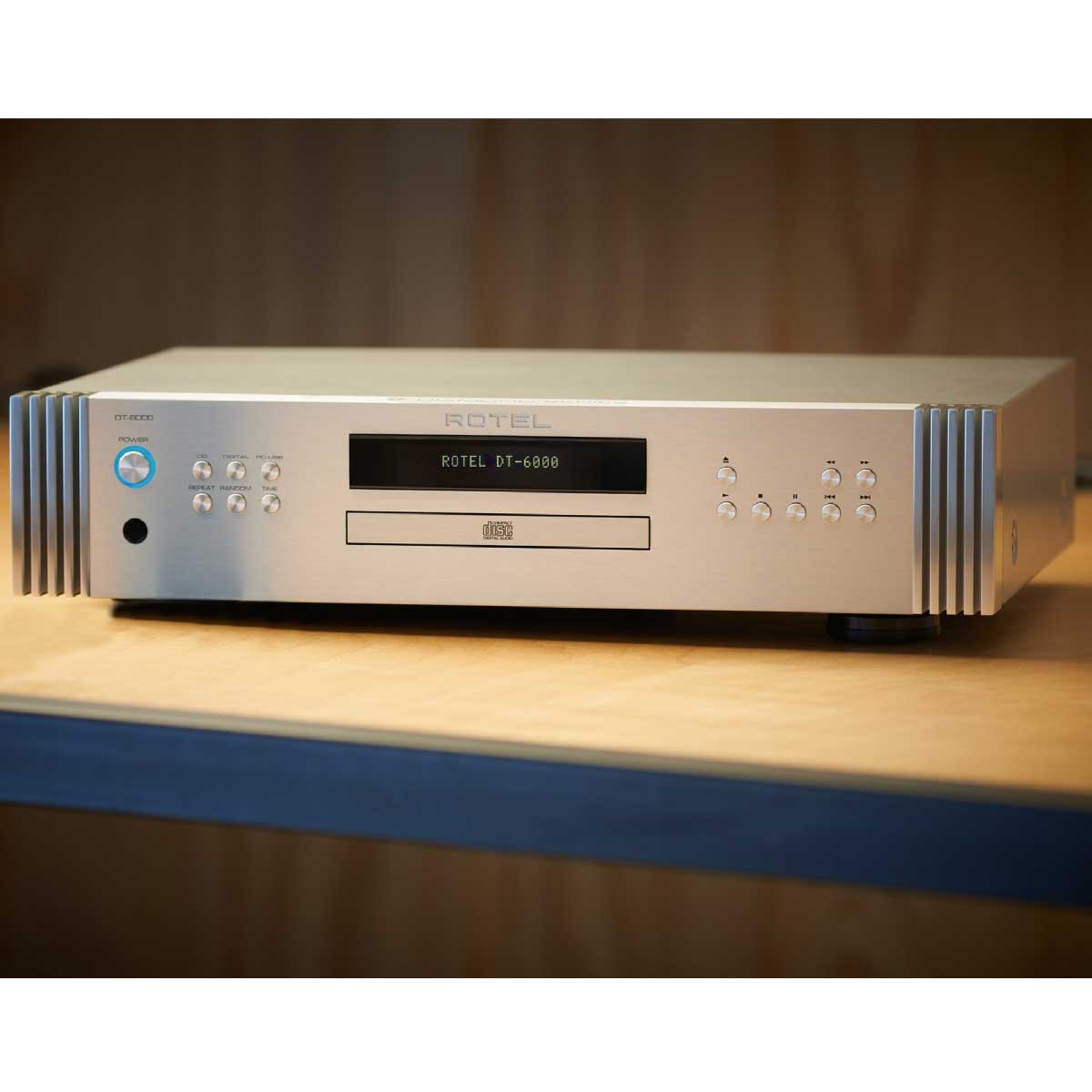

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

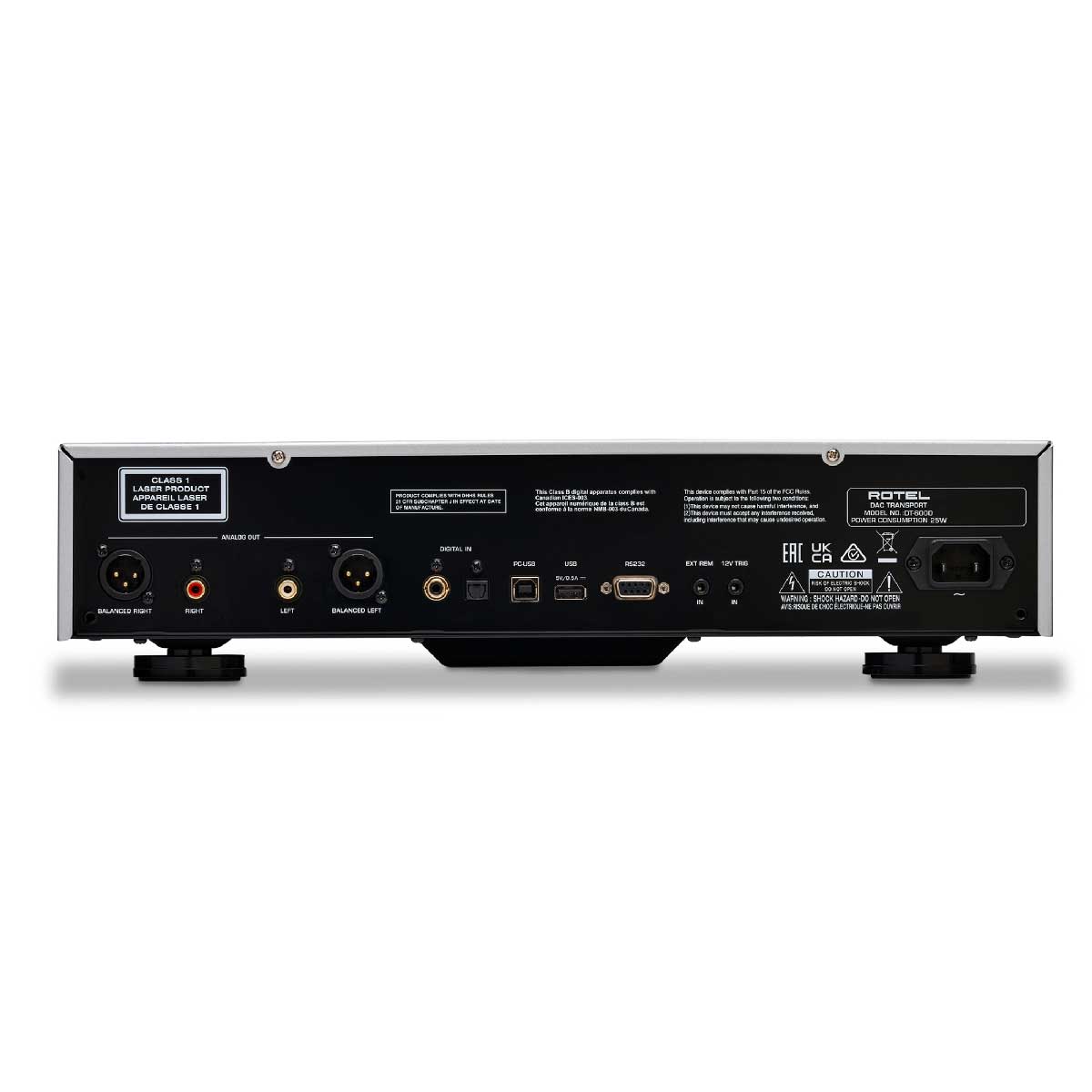

RS232, 12V trigger and external remote input ensure integration with control systems.

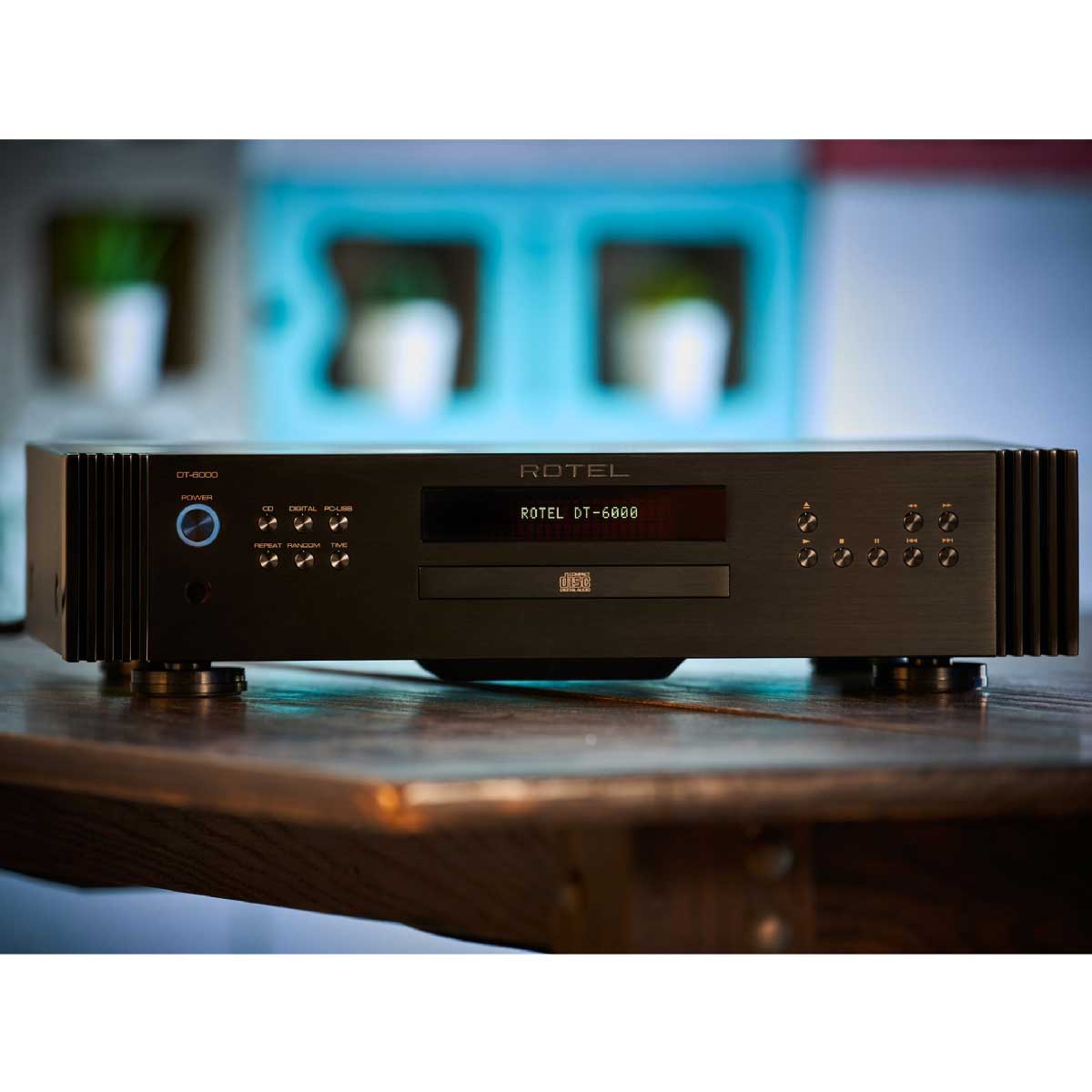

The DT-6000 is available in silver and black colors.
Specifications
- DIMENSIONS (W × H × D)
431 × 104 × 320mm
17″ × 4″ × 12.6″ - FRONT PANEL HEIGHT
2U / 88.1mm (3.5″) - POWER REQUIREMENTS
230V, 50Hz - POWER CONSUMPTION
25W - STANDBY POWER CONSUMPTION
<0.5W - NET WEIGHT
8.11kg (17.88lbs.) - TOTAL HARMONIC DISTORTION (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012% - FREQUENCY RESPONSE
20Hz – 20kHz, +0, -0.15dB
10 Hz – 70kHz, +0, -3dB - S/N RATIO (“A” Weighted)
>115dB - DYNAMIC RANGE
>99dB - DIGITAL TO ANALOG CONVERTERS
ESS 32-Bit/768kHz DAC - CHANNEL BALANCE
± 0.5dB - CHANNEL SEPARATION
>115dB @ 10kHz
