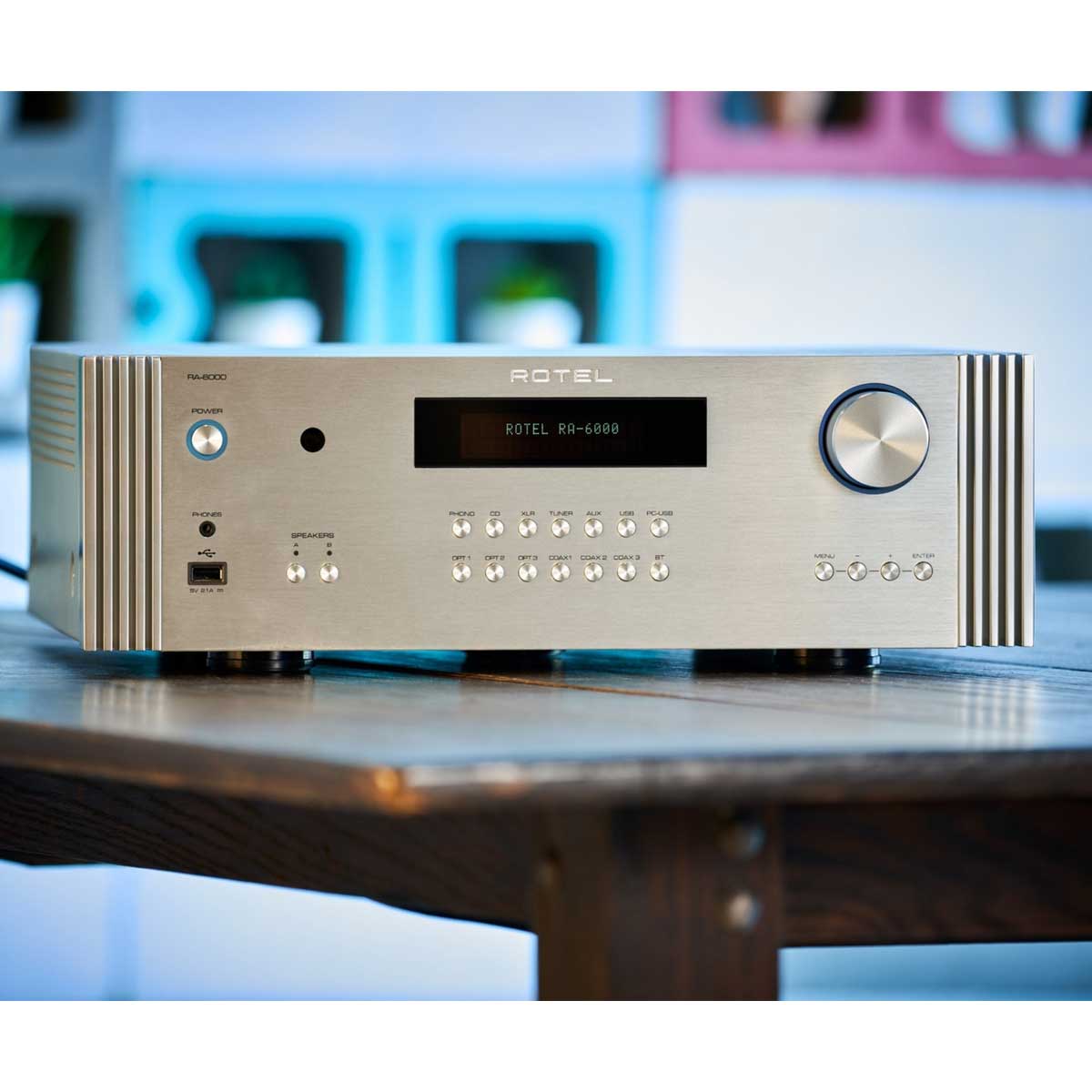

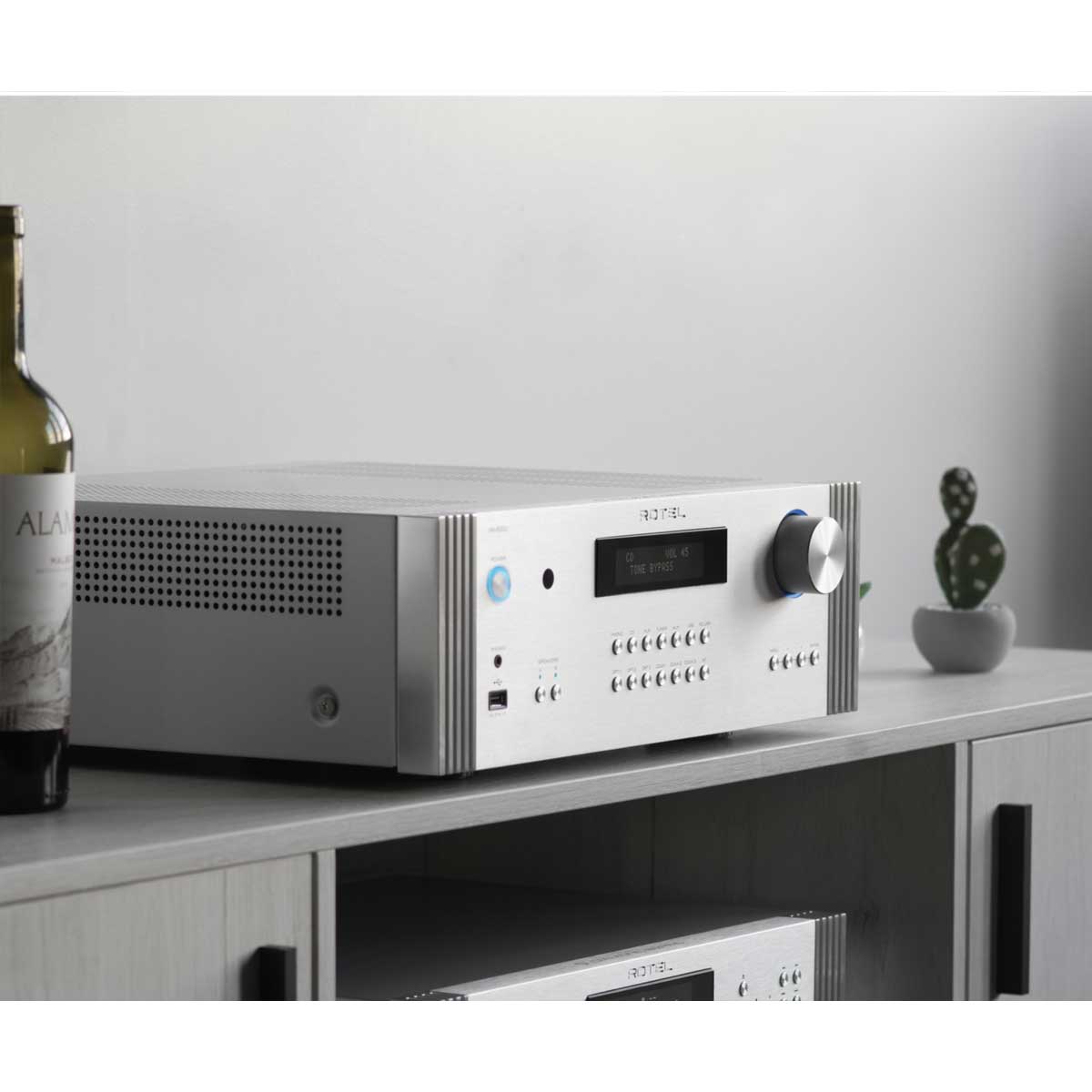

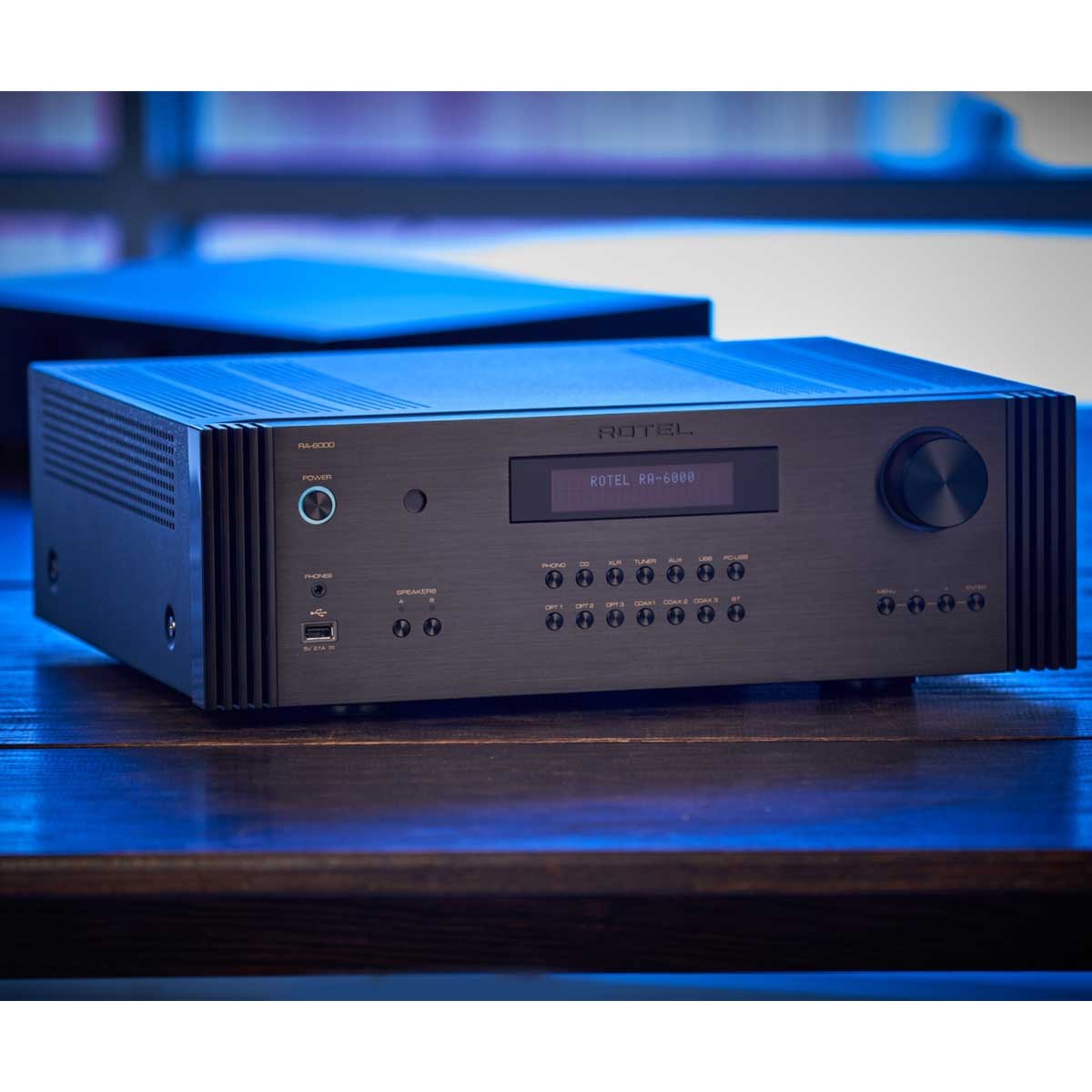

Rotel Diamond Series RA-6000 Stereo Integrated Amplifier
The Rotel Diamond Series RA-6000 Stereo Integrated Amplifier supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.
View Owners Manual >> View Specifications >> View Rotel >>
Reviews
Features
- aptX™ Bluetooth receiver
- Class AB amplification
- ES9028PRO DAC
- Moving Magnet phono stage
- Optical SPDIF
- RCA
- Remote control included
- Robust Rotel toroidal transformer
- Roon Tested
- Supports MQA
- XLR inputs
Heritage
The Rotel Diamond Series RA-6000 Integrated Amplifier celebrates 60-Years of heritage and tradition delivering performance, passion, and value synonymous with the brand’s iconic Japanese heritage.

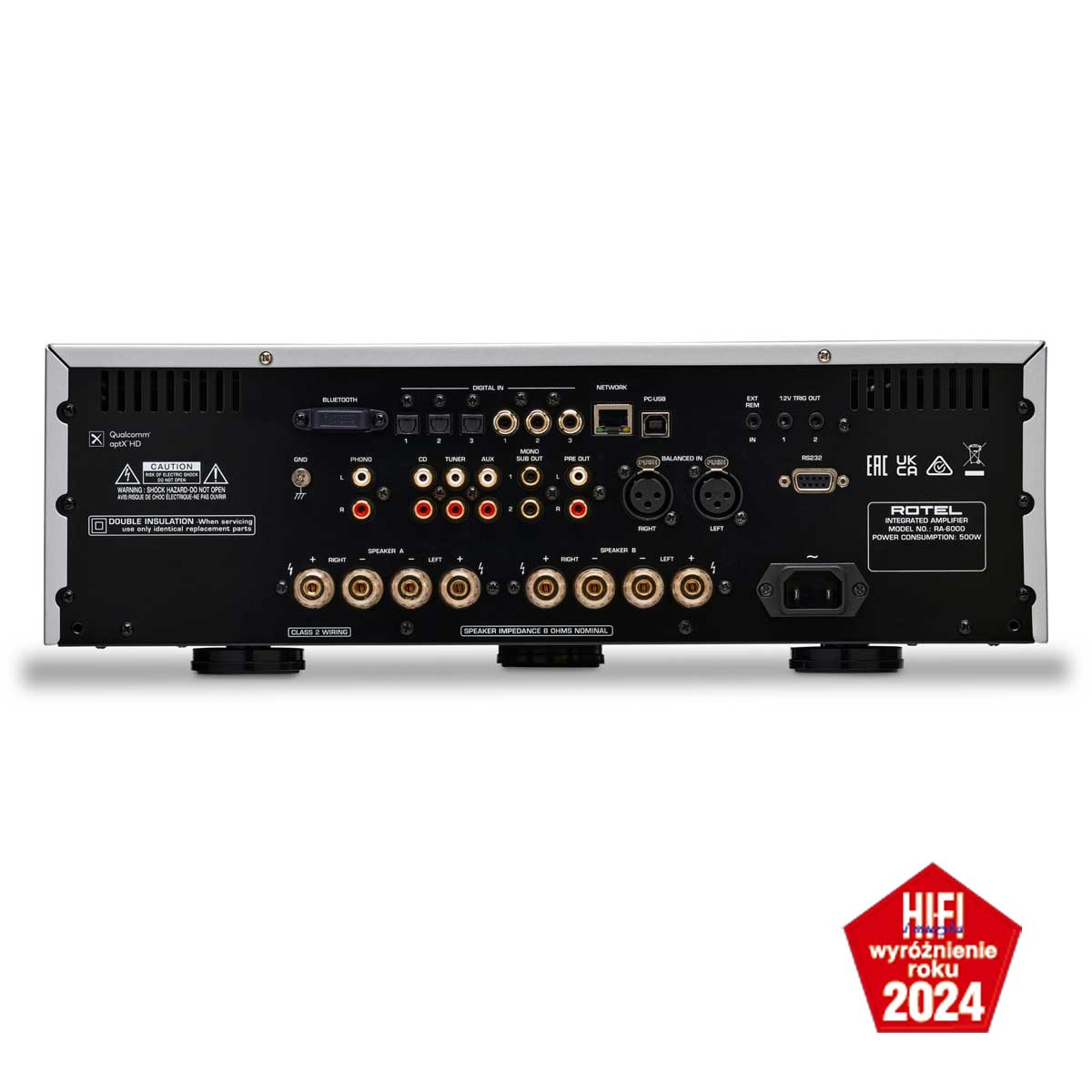

The RA-6000 supports an exceptional array of modern and legacy sources with RCA (3), XLR, Moving Magnet Phono stage for vinyl fans, aptXTM HD and AAC wireless Bluetooth, Coaxial (3), Optical (3), and asynchronous PC-USB inputs.
Power
Conveniently packaged in the elegant Diamond Series industrial design the RA-6000 delivers 350 watts of robust, Class AB output power into 4 ohm speakers.

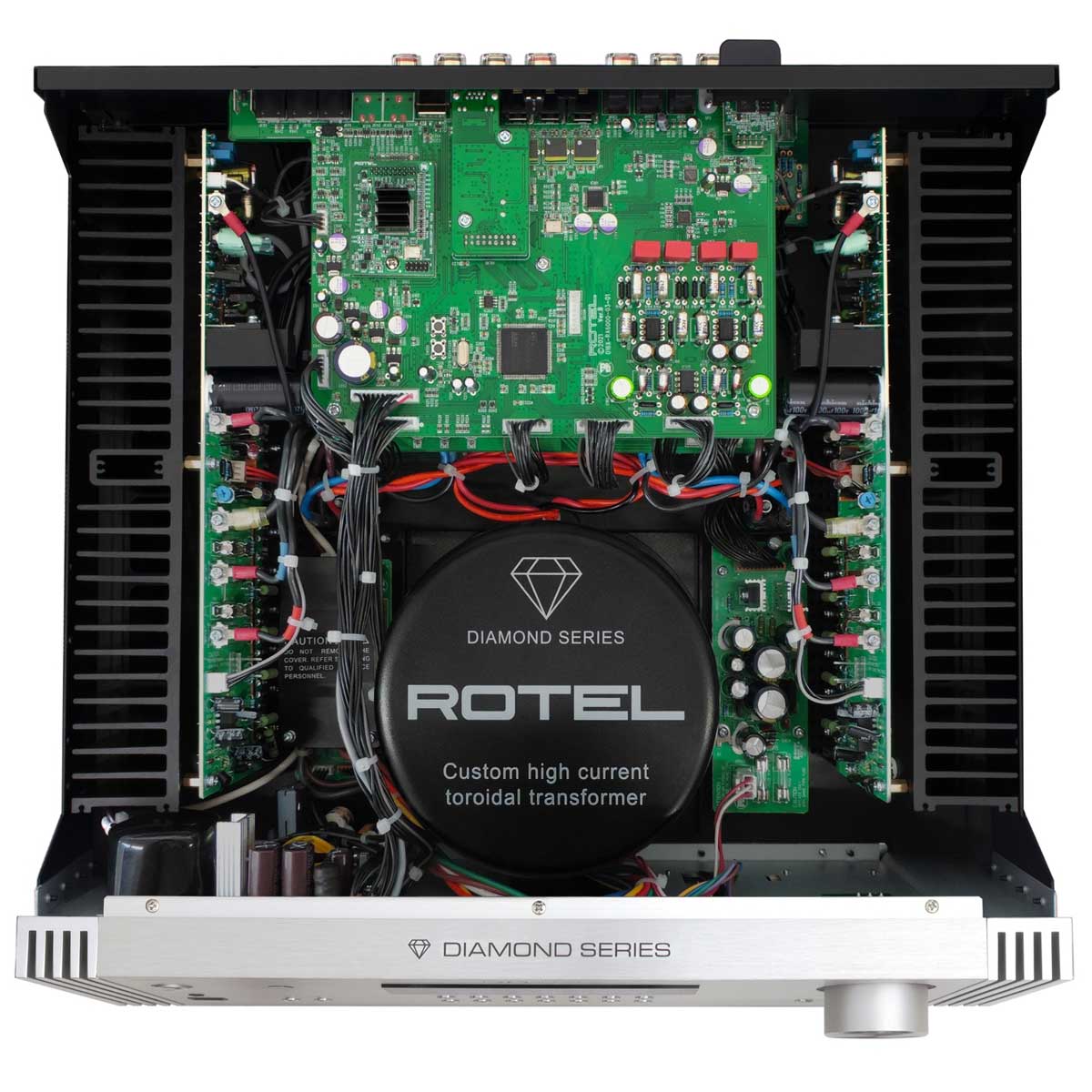

An in-house manufactured toroidal transformer feeds dedicated power to all critical circuits utilising high efficiency, low ESR slit-foil smoothing capacitors delivering an abundance of ripple free, reserve power and current with exceptional control of rich, deep bass energy.
Physical and electrical isolation techniques are utilised in the digital and high gain amplifier circuits reducing noise in the highly sensitive analog stages further lowering the noise floor and reducing distortion.
Digital
Digital sources are processed via a premium 32-bit/384kHz Texas Instruments Digital-Analog converter extracting the finest of details portrayed on an immersive sound stage. Coaxial and Optical inputs support 24-bit/192kHz PCM audio.
The PC-USB input renders up to 32-bit/384kHz high resolution music files, unfolds and renders MQA and MQA Studio, and is fully certified Roon Tested for the highest compatibility with Roon software.

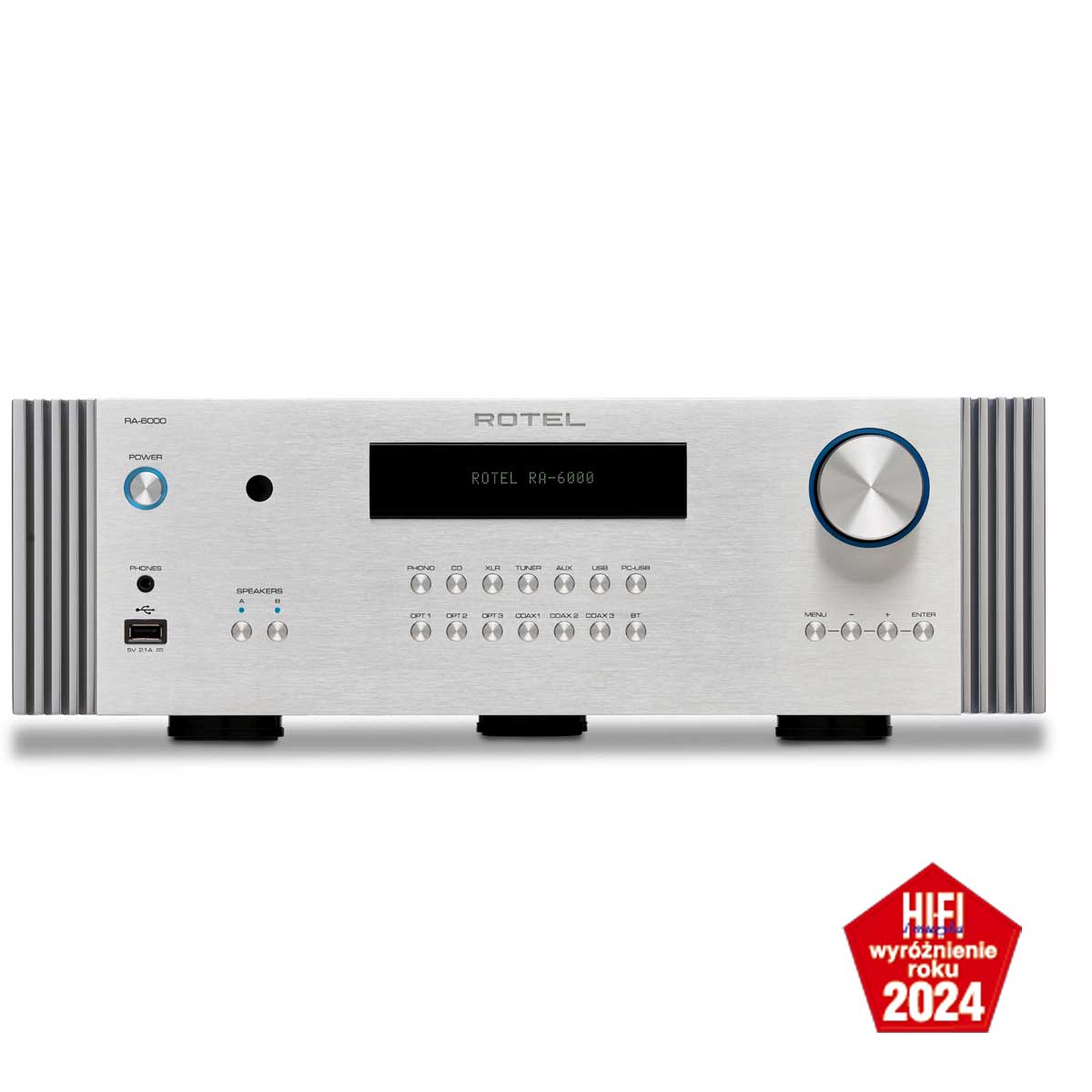

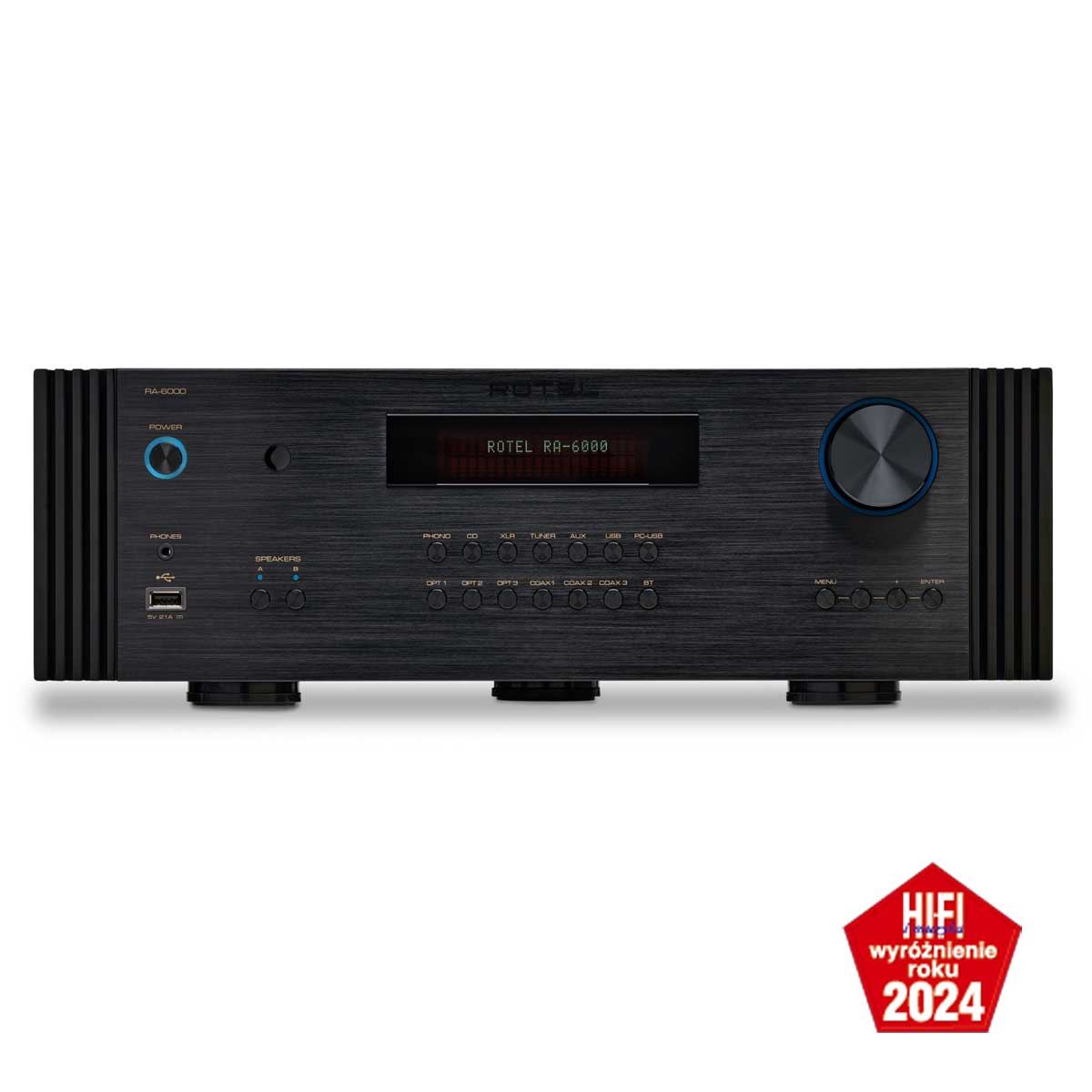

Front panel controls, a back-lit IR remote control and 2-line display provide intuitive operation of the unit. Ethernet, RS232,12V trigger and external remote input ensure simplified integration with all popular control systems.
Specifications
- Maximum Power Output: 350 watts/ch (4 ohms)
- Continuous Power Output: 200 watts/ch (8 ohms)
- Total Harmonic Distortion: < 0.0075%
- Intermodulation Distortion (60 Hz : 7kHz, 4:1): < 0.03%
- Frequency Response
- Phono Input 20 Hz – 20k Hz, 0 ± 0.5 dB
- Line Level Inputs 10 Hz – 100k Hz, 0 ± 0.5 dB
- Damping Factor 600 (20 Hz – 20 kHz, 8 ohms)
- Input Sensitivity / Impedance
- Phono Input (MM) 5.2 mV / 47k ohms
- Line Level Inputs (RCA) 340 mV / 5.6k ohms
- Line Level Inputs (XLR) 540 mV / 100k ohms
- Signal to Noise Ratio (IHF A-weighted)
- Phono Input (MM) 80 dB
- Line Level Inputs 103 dB
- Digital to Analog Converters: Texas Instruments
Digital Section
- Frequency Response: 10 Hz – 90k Hz (0 ± 2 dB, Max)
- Signal to Noise Ratio (IHF A-weighted): 102 dB
- Input Sensitivity/Impedance: 0 dBfs / 75 ohms
- Preamplifier Output Level: 1.43 V (at -20 dB)
- Coaxial/Optical Digital Signals: SPDIF LPCM (up to 24-bit / 192k Hz)
- PC-USB:
- USB Audio Class 2.0 (up to 32-bit / 384k Hz) (Driver installation required)
- Support MQA and MQA Studio (up to 24-bit / 384k Hz )
- Roon Tested
