Rotel A12 MKII Integrated Amplifier
The Rotel A12 MKII Integrated Amplifier stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms.
This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.
View Owners Manual >> View Specifications >> View Rotel Products >>
Features
- 2 x 60 Watts of robust Class AB power
- Moving Magnet Phono Input for Turntable connection
- Wireless aptX™ Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Certified Roon Tested

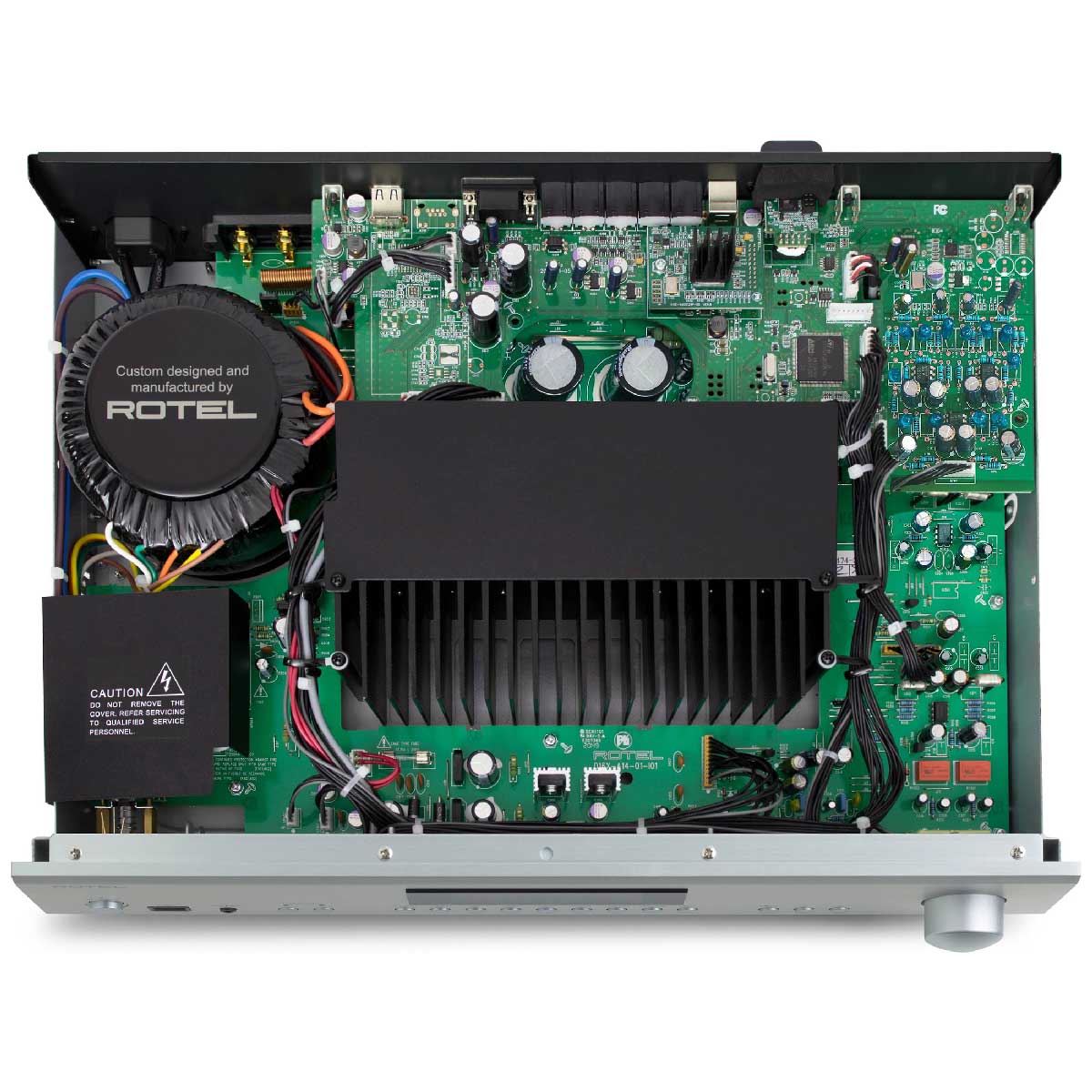

Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

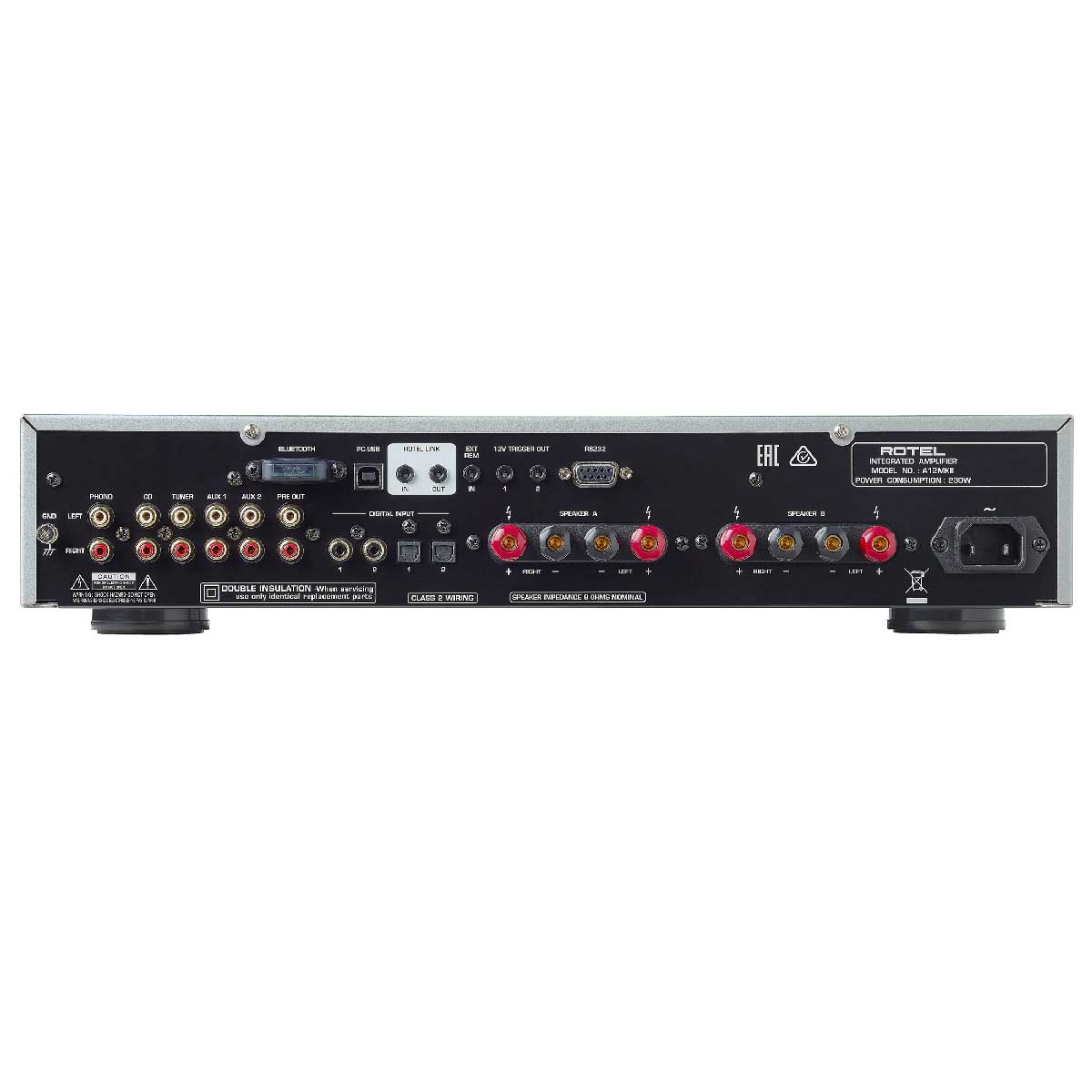

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources.
The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.
Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.
Specifications
- Dimensions (W × H × D) 430 × 93 × 345mm
- Front Panel Height: 80mm (3.15″)
- Power Requirements: 120V, 60Hz
- Power Consumption: 230W
- Standby Power Consumption: <0.5W
- Net Weight: 8.76kg (19.31lbs.)
- BTU Rating (4Ω, 1/8th power): 632 BTU/h
- Maximum Power Output: 120W/Ch (4Ω)
- Continuous Power Output: 60W/Ch (8Ω)
- Total Harmonic Distortion (THD): <0.018%
- Frequency Response:
- Line Level Inputs: 10Hz – 100kHz, 0±0.5dB
- Digital Inputs: 10Hz – 90kHz, 0±2dB
- Phono Input: 20Hz – 20kHz, 0±0.5dB
- S/N Ratio (IHF “A” Weighted)
- Line Level Inputs: 100dB
- Digital Inputs: 103dB
- Phono Input: 90dB
