Description
About the Ortofon Hi-Fi MC Vertex Moving Coil Cartridge

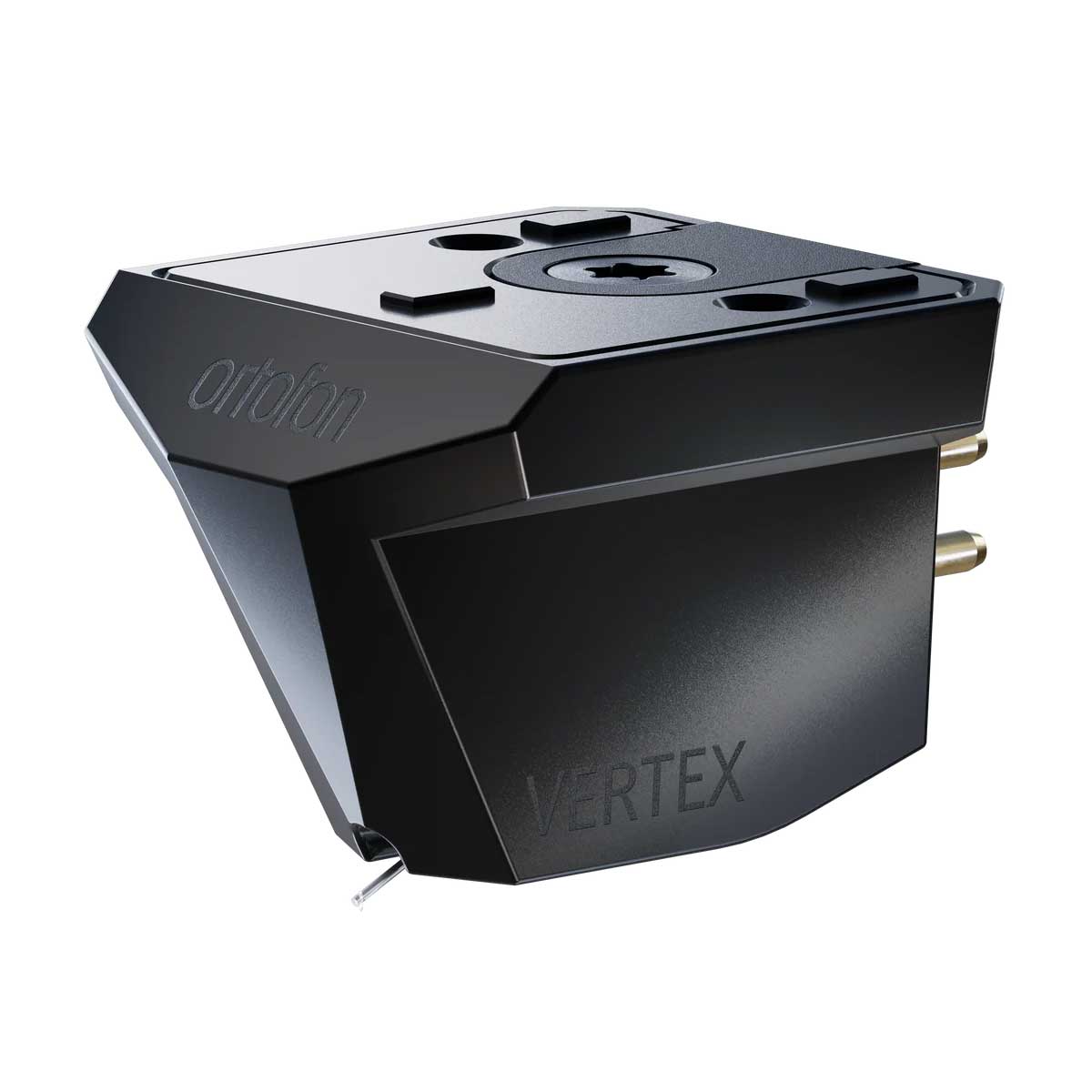

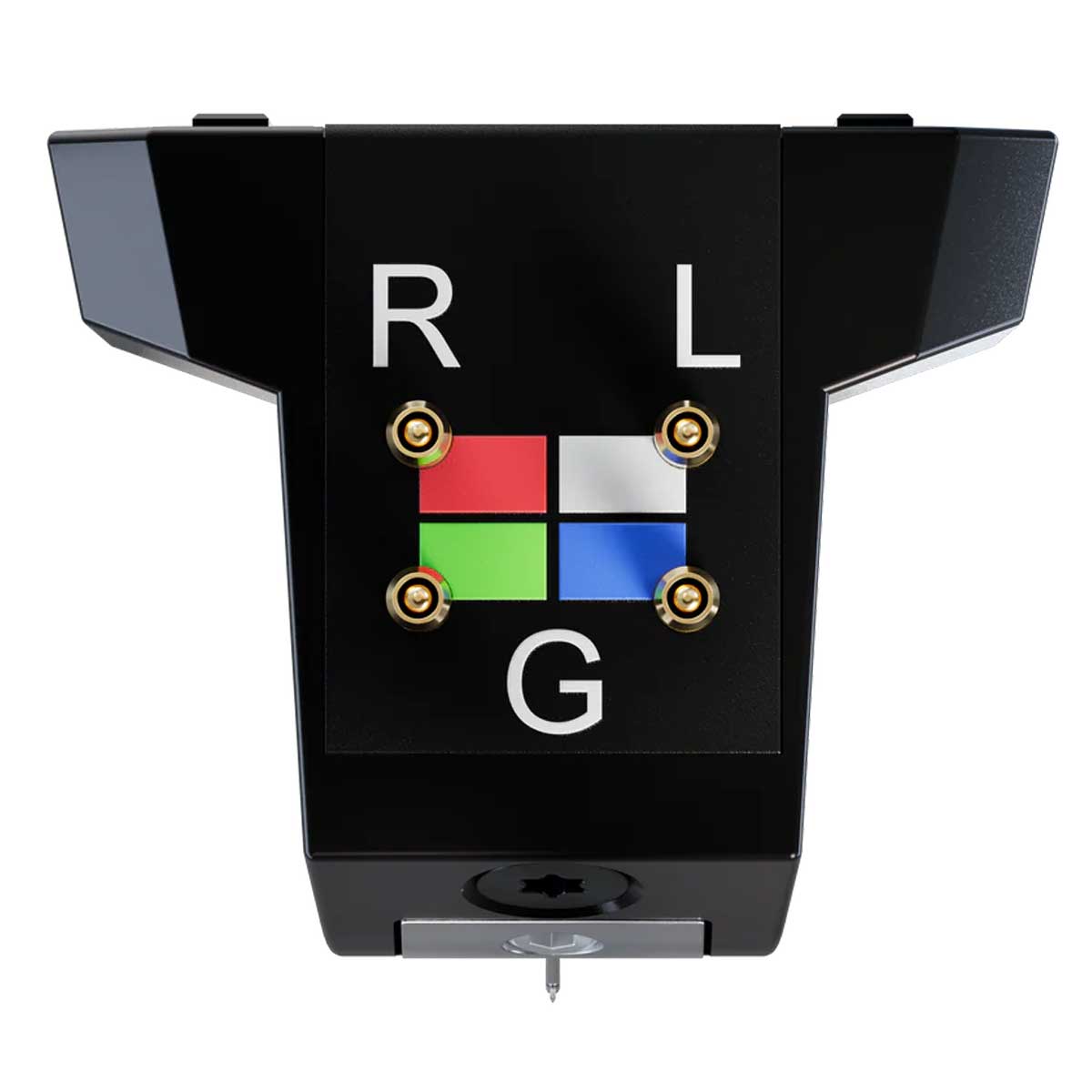

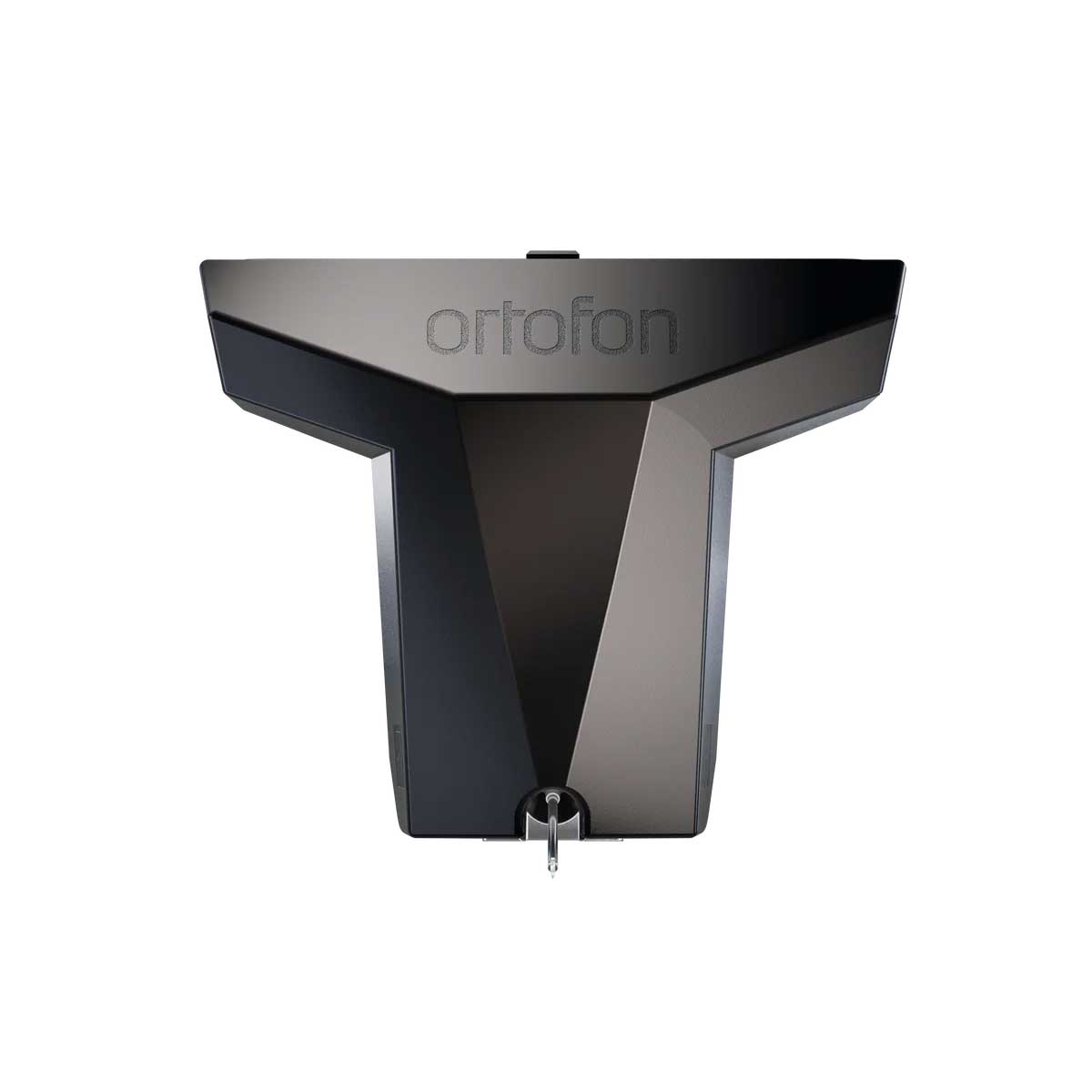

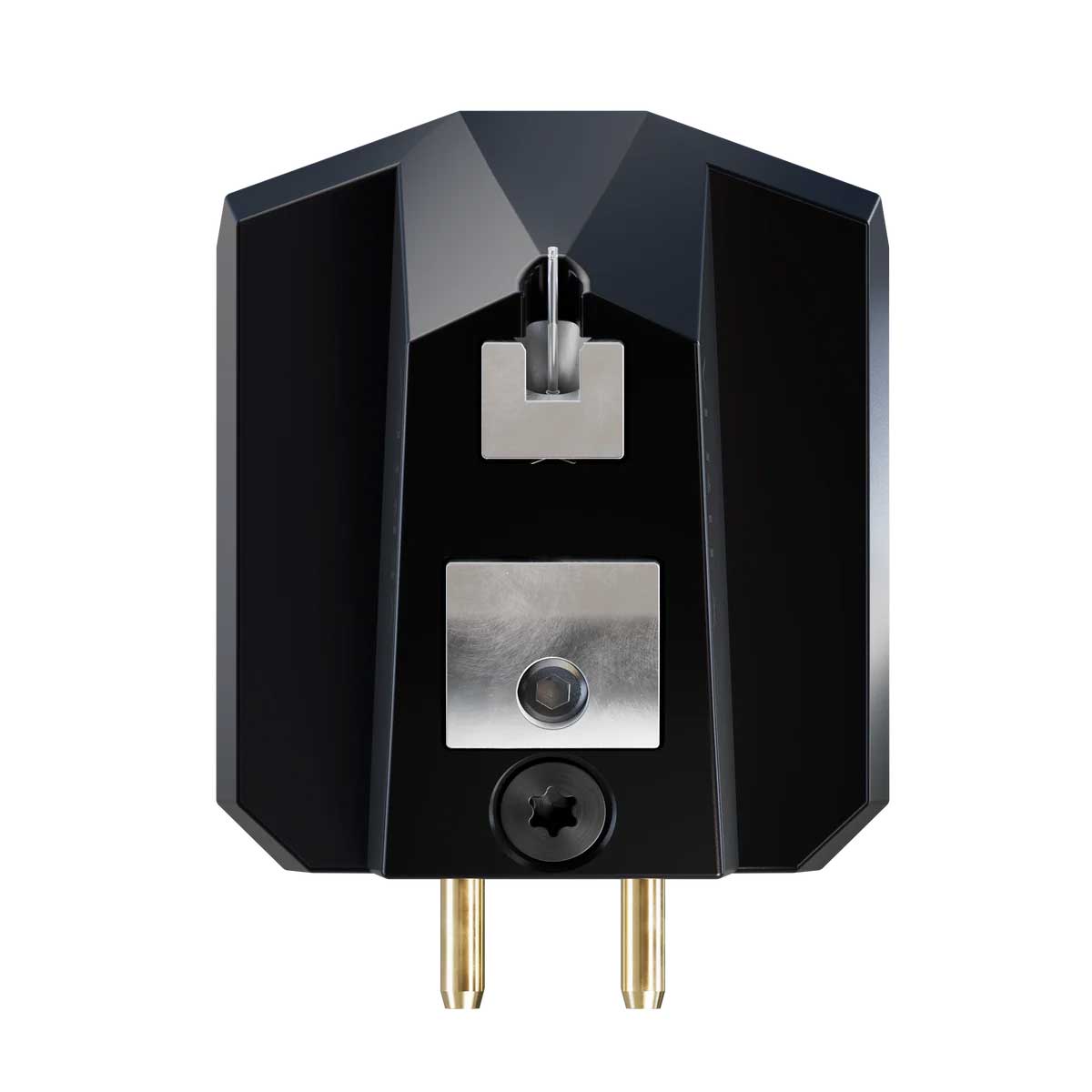

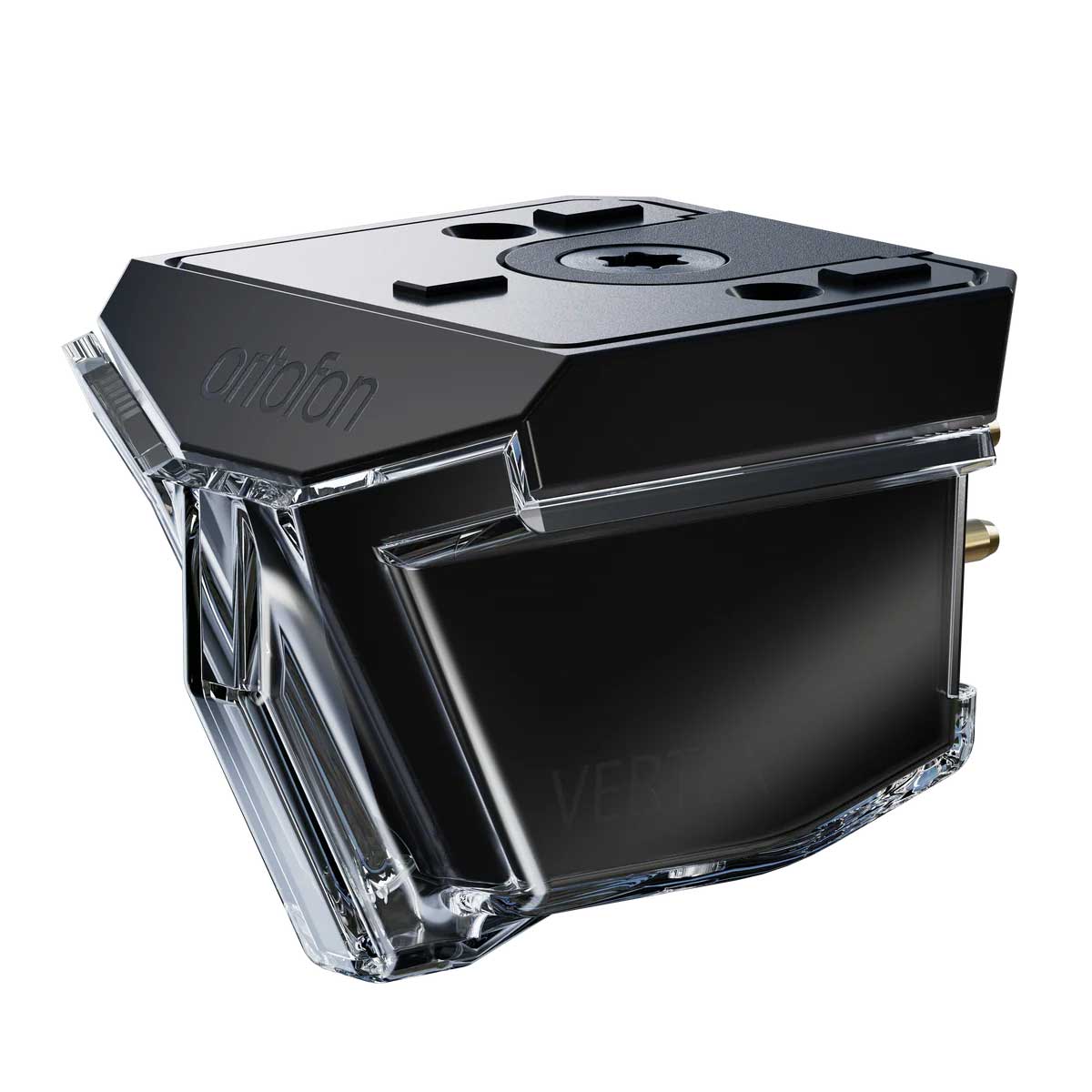

The Ortofon Hi-Fi MC Vertex Moving Coil Cartridge is a fully integrated cartridge design. The diamond profile, solid diamond cantilever, titanium body, coil system, magnetic system, and damping are all designed to work together as one complete structure. The goal is accurate groove tracing, low distortion, stable tracking, and precise signal generation.
The MC Vertex uses a new Vertex Diamond stylus profile, a laser-polished solid diamond cantilever, high-purity silver coils, SLM titanium body with DLC coating, non-magnetic armature, and Ortofon’s Wide Range Damping system. It has a low 0.3mV output, so it needs a high-quality moving coil phono stage.
What We Think
At Rapallo, the Ortofon MC Vertex is not just another cartridge upgrade. It is a serious reference-level analogue component for customers with the turntable, tonearm, phono stage, and system resolution to make the most of it.
The standout feature is the new Vertex Diamond. Ortofon has developed a line-contact profile with a 4µm scanning radius and 110µm contact radius. This gives the stylus a very fine tracing edge and a large contact area along the groove wall. As a result, it is designed to retrieve fine groove detail while spreading pressure more evenly across the record surface.
We also like the solid diamond cantilever. This is a rare and highly advanced design choice. It gives the stylus and cantilever a very rigid, low-mass structure, which helps transfer groove movement to the generator system with less unwanted flex or stored energy.
This cartridge needs the right platform. We would pair it with a high-end turntable such as a Pro-Ject Signature, RPM 10 Carbon, Xtension 10 Evolution, Technics SL-1200G / SL-1300G, VPI, or another serious arm and deck combination. It also needs a very quiet MC phono stage with suitable gain and loading. Ortofon recommends a load impedance of greater than 100 ohms.
For NZ customers building a top-tier vinyl system, the MC Vertex is a cartridge to consider when the rest of the system is already highly capable. It is designed for precision, control, and transparency, not for casual plug-and-play use.
The Ortofon Hi-Fi MC Vertex Moving Coil Cartridge Is Ideal For
- Reference-level vinyl systems
- Serious analogue listeners
- High-end moving coil cartridge upgrades
- Customers with a quality MC phono stage
- Turntables with precise tonearm adjustment
- Systems where imaging, detail, and groove tracing matter
- Listeners wanting Ortofon’s most advanced MC cartridge platform
What the Experts Say
- StereoNET reported that the MC Vertex launched globally at High End Vienna 2026 and described it as Ortofon’s most advanced moving coil cartridge to date. It highlighted the Vertex diamond profile, solid diamond cantilever, titanium structure, revised magnetic system, Wide Range Damping, and key specifications.
- What Hi-Fi? reported that the MC Vertex was unveiled at High End Vienna 2026 and highlighted its £12,999 UK price, 4µm / 110µm Vertex diamond profile, solid diamond cantilever, titanium structure, non-magnetic armature, high-purity silver coils, and Wide Range Damping system.
Frequently Asked Questions
- What is the Ortofon MC Vertex?
The Ortofon MC Vertex is a flagship low-output moving coil cartridge designed for reference-level vinyl playback. It uses a Vertex Diamond stylus, solid diamond cantilever, titanium body, silver coils, and Ortofon Wide Range Damping. - Is the MC Vertex a moving magnet or moving coil cartridge?
The MC Vertex is a moving coil cartridge. It has a low output of 0.3mV and requires a suitable MC phono stage. - What output voltage does the MC Vertex have?
The MC Vertex has an output voltage of 0.3mV at 1kHz, 5cm/sec. - What is the Vertex Diamond?
The Vertex Diamond is Ortofon’s advanced line-contact stylus profile. It has a 4µm scanning radius and an extended 110µm contact radius for precise groove tracing and improved contact with the groove wall. - What cantilever does the MC Vertex use?
The MC Vertex uses a laser-polished solid diamond cantilever. This creates a very rigid, low-mass path between the stylus and generator system. - What tracking force should I use with the MC Vertex?
Ortofon recommends a tracking force of 2.5g. - What load impedance does the MC Vertex need?
Ortofon recommends a load impedance greater than 100 ohms. A quality MC phono stage with adjustable loading is strongly recommended. - What type of tonearm suits the MC Vertex?
The MC Vertex should be used with a high-quality tonearm that allows precise tracking force, anti-skate, azimuth, VTA, and alignment adjustment. Its 15g cartridge weight should be checked against your tonearm and counterweight range. - Can the MC Vertex be used with a built-in phono stage?
Only if the built-in phono stage supports low-output moving coil cartridges with suitable gain and loading. In most high-end systems, a separate MC phono stage will be the better match. - Is the MC Vertex suitable for entry-level turntables?
No, it is best used with high-end turntables and tonearms. It needs a stable platform and a quiet phono stage to show what it can do. - How is the MC Vertex different from Ortofon Cadenza or Quintet cartridges?
The MC Vertex is a more advanced flagship cartridge. It uses a newly developed Vertex Diamond, solid diamond cantilever, SLM titanium body, high-purity silver coils, and Wide Range Damping. - Who is the Ortofon MC Vertex best suited to?
It is best for serious vinyl listeners with a high-end turntable, capable tonearm, quality MC phono stage, and resolving hi-fi system. It is designed for precision, detail, imaging, and low-distortion groove tracing.
Key Features
Flagship Moving Coil Design

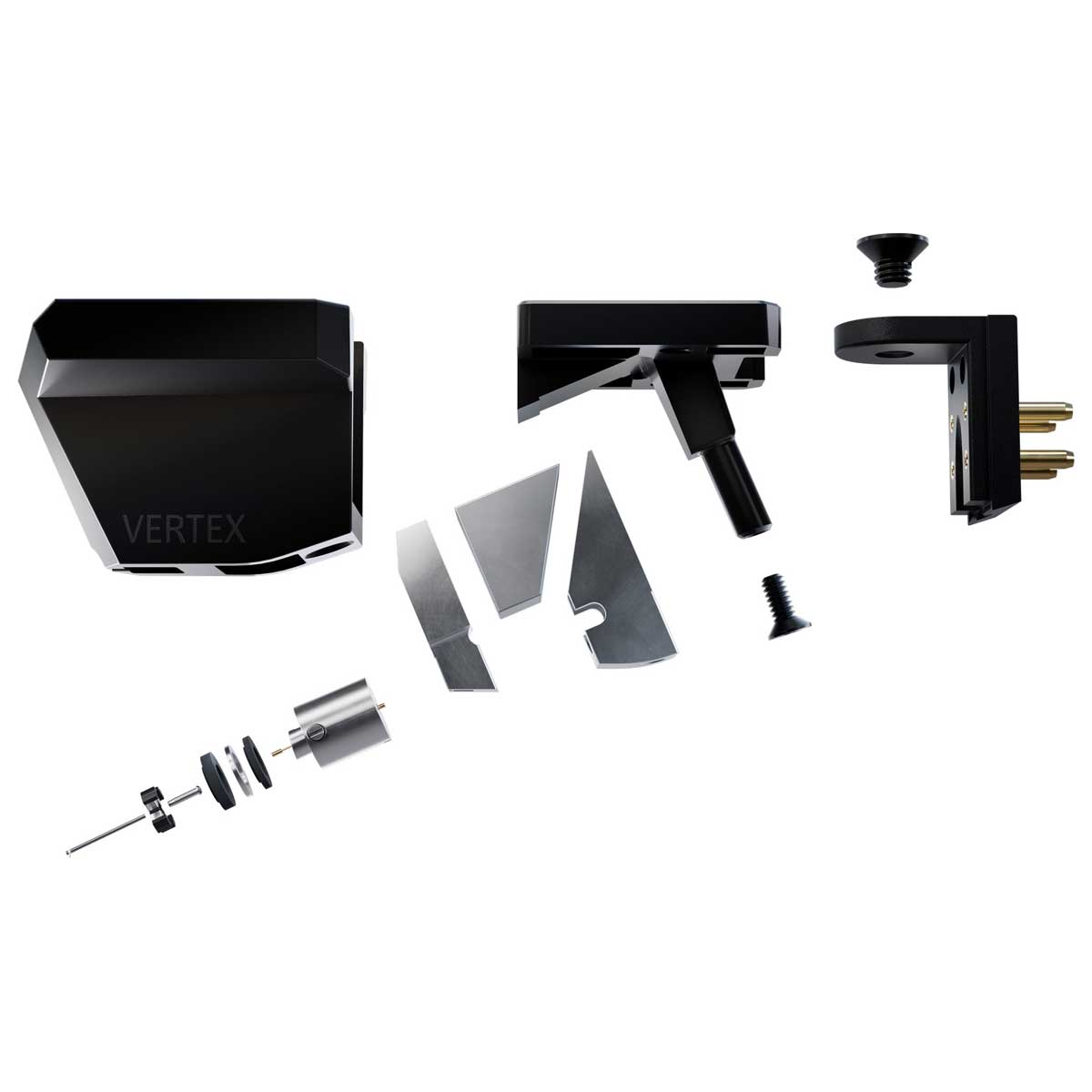

The MC Vertex is described by Ortofon as its most advanced moving coil cartridge to date. It is designed as a complete system, where the diamond, cantilever, body, damping, coils, and magnetic structure are all developed together.
New Vertex Diamond Stylus
The Vertex Diamond uses an advanced line-contact geometry with a 4µm scanning radius and 110µm extended contact radius. This allows precise groove tracing while distributing contact force more effectively along the groove wall.
Solid Diamond Cantilever
The stylus is mounted into a laser-polished solid diamond cantilever. This diamond-on-diamond construction creates a very rigid and lightweight mechanical path from the record groove to the generator system.
High-Purity Silver Coils
The coil system uses high-purity silver coils. These are designed to support accurate conversion of mechanical movement into an electrical signal, with strong channel separation and precise tracking across the frequency range.
Non-Magnetic Armature
The MC Vertex uses a non-magnetic armature. This helps reduce moving mass and avoid unwanted magnetic interaction, while supporting stable and linear signal generation.
SLM Titanium Body
The cartridge body and internal core use titanium made with Selective Laser Melting, or SLM. This allows Ortofon to control geometry, mass distribution, and internal damping more precisely. The body also uses a DLC coating.
Wide Range Damping
Ortofon’s patented Wide Range Damping system uses a platinum disc between two proprietary rubber dampers. It is designed to control resonance across the audible frequency range while preserving dynamic response.
Excellent Channel Matching
The MC Vertex is specified with 0.1dB channel balance at 1kHz and 30dB channel separation at 1kHz. This supports precise stereo imaging, stable centre focus, and strong spatial detail.
Low-Output MC Performance
With 0.3mV output at 1kHz, 5cm/sec, the MC Vertex is a low-output moving coil cartridge. It should be paired with a high-quality MC phono stage that offers suitable gain, low noise, and flexible loading.
Reference-Level Tracking Setup
The recommended tracking force is 2.5g, with a tracking angle of 23 degrees. Proper tonearm setup, alignment, tracking force, anti-skate, VTA, and azimuth are important for best performance.
Perfect System Match
A perfect system match would be the Ortofon MC Vertex fitted to a high-end turntable with a rigid, accurate tonearm and a very quiet MC phono stage.
For a Pro-Ject-focused system, pair it with the Pro-Ject Signature 12.2 or RPM 10 Carbon, then use a high-quality MC phono stage such as the Pro-Ject Phono Box RS2 or Tube Box DS3 B. For a Technics system, pair it with an SL-1200G, SL-1210GME, or SL-1300G and a phono stage with good gain and loading control.
Because this is a very high-performance cartridge, professional installation and setup are strongly recommended.
Product Comparison Snapshot
| Model | Best For | Key Difference |
| Ortofon Quintet Black S | Premium MC cartridge systems | Nude Shibata stylus, more accessible price point |
| Ortofon Cadenza Black | High-end analogue systems | Nude Shibata stylus and boron cantilever |
| Ortofon MC X50 | Modern premium MC systems | Nude Micro Ridge stylus and boron cantilever |
| Ortofon MC Vertex | Reference-level vinyl systems | Vertex Diamond, solid diamond cantilever, SLM titanium body, silver coils |
| Ortofon MC Diamond | Ultra high-end Ortofon systems | Diamond cantilever platform with different design approach |
Specifications
Brand: Ortofon
Model: MC Vertex
Product Type: Low-Output Moving Coil Cartridge
Cartridge Type
Moving Coil, MC
Output Voltage
0.3mV at 1kHz, 5cm/sec
Channel Balance
0.1dB at 1kHz
Channel Separation
30dB at 1kHz
Frequency Response
20Hz to 20kHz, ±1dB
Dynamic Compliance
9µm/mN, lateral
Cantilever Material
Laser-polished solid diamond
Stylus Type
Vertex Diamond
Stylus Profile
Advanced line-contact profile
Stylus Tip Radius
r/R 4/110µm
Coil System
High-purity silver coils
Armature
Non-magnetic armature
Damping System
Ortofon Wide Range Damping
Platinum disc between proprietary rubber compounds
Recommended Tracking Force
2.5g
Tracking Angle
23 degrees
Internal Impedance / DC Resistance
19 ohms
Recommended Load Impedance
Greater than 100 ohms
Cartridge Body Material
SLM titanium with DLC coating
Mounting Type
Half-inch mount
Cartridge Weight
15g, listed by StereoNET launch coverage
Finish
Black DLC-coated titanium body
Phono Stage Requirement
Moving coil phono stage required
Rapallo Product Data
MPN: MC VERTEX
SKU: ORTOFON-MC-VERTEX
EAN / UPC / GTIN: Not publicly confirmed
