Description

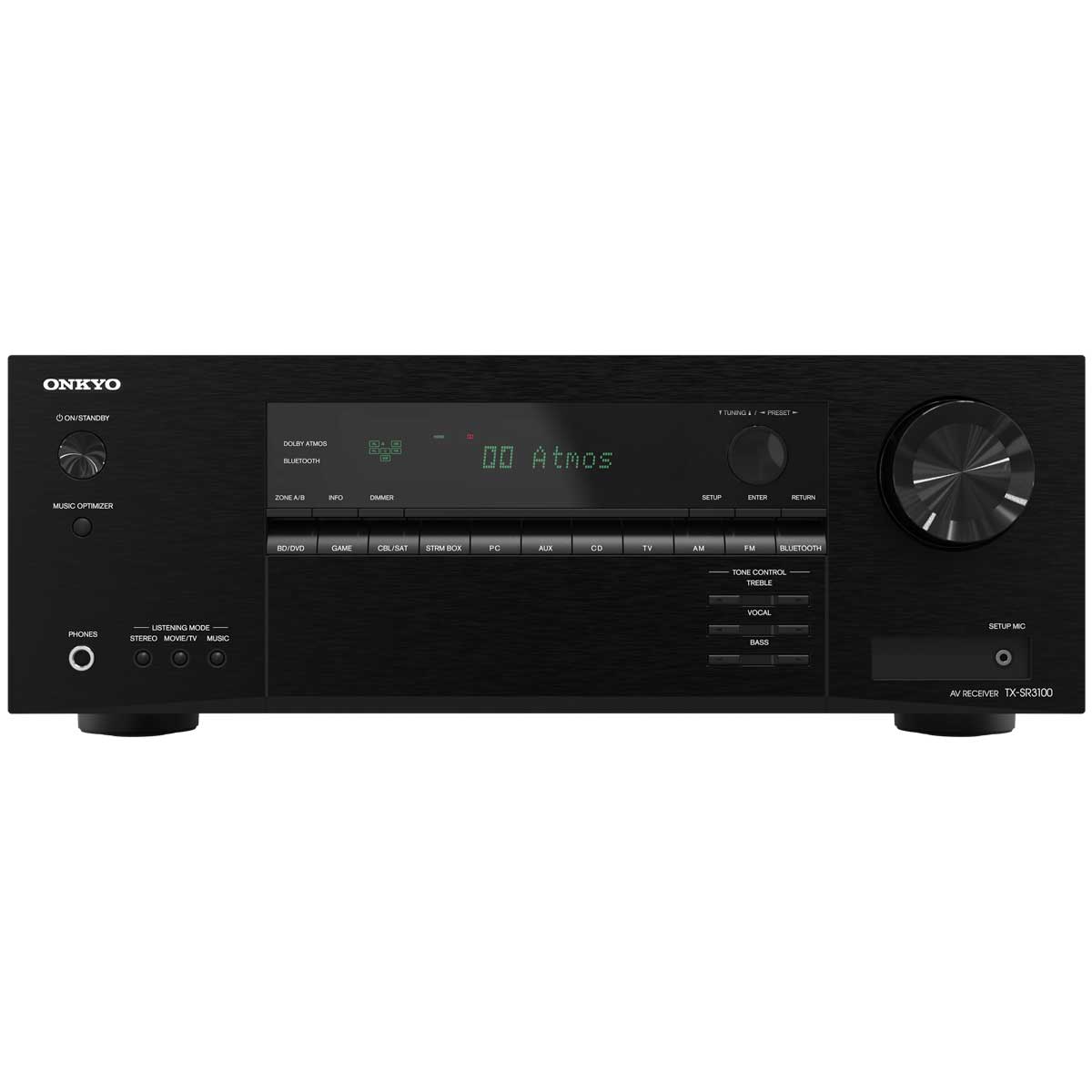

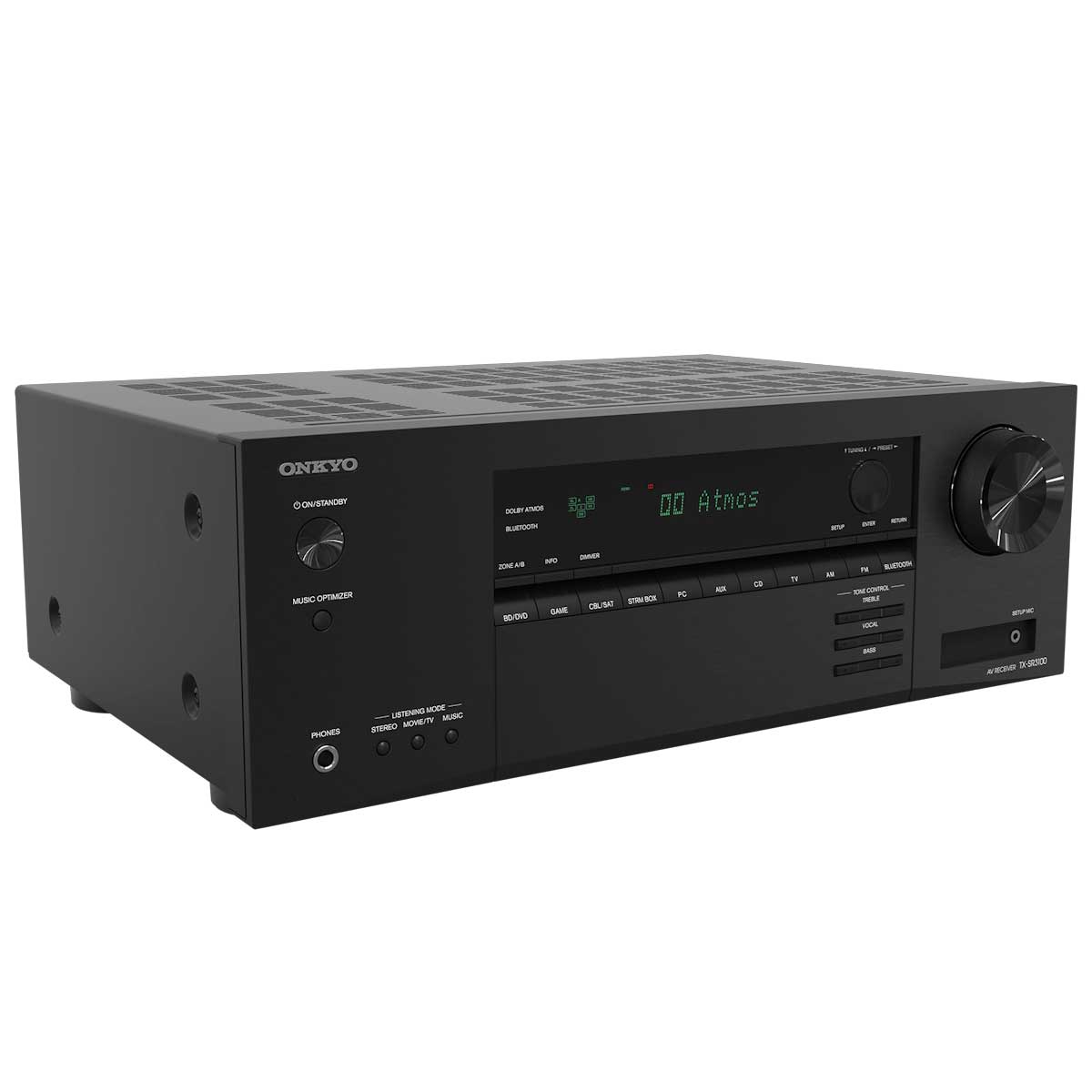

Onkyo TX-SR3100 5.2-Channel AV Receiver
The Onkyo TX-SR3100 5.2-Channel AV Receiver powers epic movie nights, much-needed sessions, gaming marathons, and more with the most immersive and sought-after AV tech of the day.
View Owners Manual >> View Specifications >> View Onkyo >>
FAQ’s
- Does the Onkyo TX-SR3100 support modern surround sound formats? Yes, it supports Dolby TrueHD and DTS-HD Master Audio for high-resolution surround sound in 5.2 setups.
- Can the TX-SR3100 handle 4K and HDR video? Yes, it includes HDMI 2.1 inputs and output with support for 4K/120 Hz, HDR10, Dolby Vision, and eARC for high-quality video passthrough.
- Is this receiver suitable for gaming consoles? Absolutely, HDMI 2.1 features like ALLM and VRR improve responsiveness and smoothness when connected to the latest gaming systems.
- What speaker configurations does the TX-SR3100 support? It’s designed for a standard 5.2 speaker setup, supporting five channels of amplification plus dual subwoofers for deep bass.
- Does the TX-SR3100 include room calibration? Yes, it features AccuEQ room calibration to optimize audio performance based on your speaker placement and room acoustics.
Features
- Klipsch Optimize Mode – With Klipsch Optimize Mode, integrate Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
- 8K/4K Ultra HD – 8K/4K Ultra HD delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels.
- Bluetooth wireless technology –
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
A stellar combination for wraparound sound
Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, meaning effects can move from speaker to speaker all around the room to wrap your audience in the latest films and games or with your favorite classic titles.
Smooth, sharp action
HDMI 2.1a supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. Combined, 60Hz refresh rate enable smooth and sharp viewing of high-speed action, and HDMI 2.1a with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Clarity and color like you’ve never seen
See images on-screen with new clarity and vivid color. Dolby Vision and HDR10+ technology will level-up your favorite content so you can relax and enjoy the newest content with crisp, clear visuals and dynamic colors, all from the comfort of your couch.
Perfect positioning without the effort
AccuEQ Room Calibration streamlines the initial setup of your home theater by ensuring your receiver and speakers are properly calibrated to the room they’re in. This technology compensates for differences in speaker size and distance to equalize response so you get exceptional audio playback no matter the space you’re in.
Hear every whisper
Emphasize dialogue and vocals with the TX-SR3100’s Vocal Enhancer technology. By adding the Center element to your Front Left and Front Right speakers, it allows you to more clearly pick up on conversations during action scenes with loud explosions or quiet moments in heady dramas—no matter what where the volume is set.
Hear the musical nuance
Our Music Optimizer DSP listening mode reconstructs data that can be lost when audio files are compressed (which can happen with WMA, AAC and MP3 formats). This technology brings audio files back to their original lossless quality by creating new signals to restore minor details left out during the compression process.
Virtually immersive
When playing any Dolby format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers. Sounds that should be coming from up high and far off will sound like they really are.
Specification
POWER AND AMPLIFICATION
- 155w (1kHz, 10% THD, 1ch @ 6 ohms) 80w (20-20kHz, 0.08% THD, 2ch @ 8 ohms – FTC)
- Class AB Amplifier
- 2 or 3.2.2 channels (5 amplified)
HDMI AND VIDEO INPUTS
- 4 In / 1 Out (eARC)
- 8K/4K Ultra HD
- Dolby Vision, HDR10+
- 8K/4K Ultra HD, Dolby Vision, HDR10+, HDCP2.3, HDMI2.1a VRR, QFT, Dynamic HDR, ALLM, DSC, SBTM

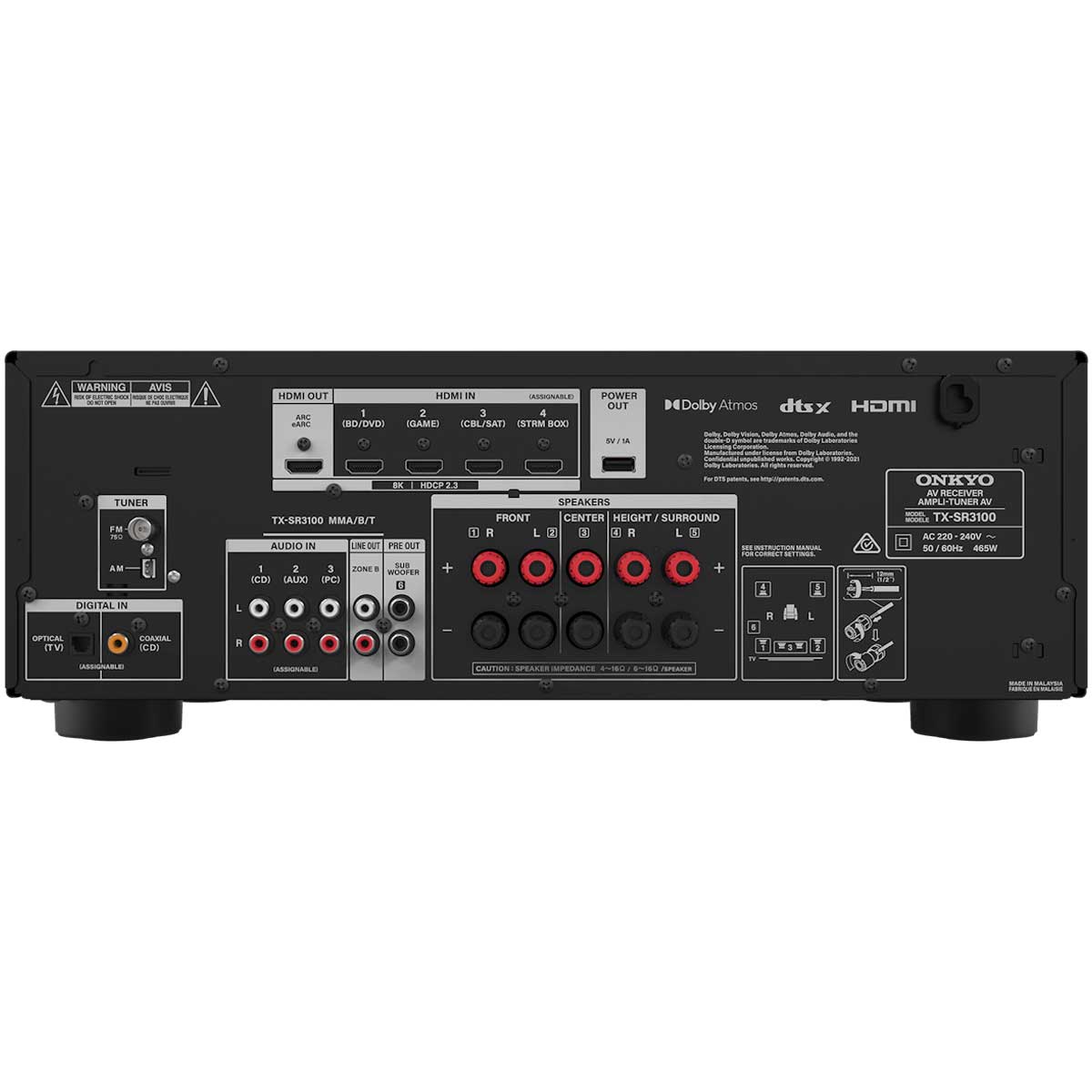

AUDIO IN/OUT
- 4 HDMI, 3 RCA, 1 Opt, 1 Coax inputs
- 2 preout subwoofer
- Zone B stereo RCA lineout
SURROUND MODES
- Dolby Atmos, Dolby Surround
- DTS:X, Neural:X
- Dolby Atmos Height Virtualizer and DTS Virtual:X
KEY FEATURES
- 80 w/ch x 5ch, High current amplifier
- Dolby Atmos®, DTS:X®
- HDMI 2.1a – 8K/4K, HDCP2.3, Dolby Vision, HDR10+, SBTM
- 2ch or 3.2.2ch processing with Dolby Atmos height/surround virtualizer
- Bluetooth®
- DTS:X, DTS Virtual:X, Neural:X
- AccuEQ Room Calibration
- Klipsch Optimized Mode
- Music Optimizer
DIMENSIONS
- Size: 435mm (17 1/8”) 160mm (6 5/16”) 328mm (12 15/16”)
- Weight: 8.4 kgs
- EAN CODE 4573211155600
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. Some services are not selectable or not available in some areas.
