Musical Fidelity Nu-Vista Vinyl S Phono Stage

Description

About the Musical Fidelity Nu-Vista Vinyl S Phono Stage

The Musical Fidelity Nu-Vista Vinyl S Phono Stage uses fully balanced, discrete Class A circuitry, Nuvistor valve technology, three gain stages, split-passive equalisation, two RCA phono inputs, two balanced XLR phono inputs, RCA and XLR outputs, selectable gain, cartridge loading, EQ curves, and subsonic filtering. Musical Fidelity’s manual confirms that each input can be configured for moving magnet or moving coil cartridges, with both RCA and XLR outputs available for system connection.

The Nu-Vista Vinyl S is designed for listeners who want a serious analogue front end with the flexibility to run multiple cartridges, turntables, or tonearms.

What We Think

The Musical Fidelity Nu-Vista Vinyl S is the kind of phono stage we would recommend when the turntable and cartridge are already at a high level.

A good cartridge only works properly when the phono stage gives it the right gain, loading, noise performance, and equalisation. The Nu-Vista Vinyl S gives you a lot of control here. It supports both MM and MC cartridges, provides gain options from 40dB to 49dB for MM and 60dB to 69dB for MC, and allows MC input impedance adjustment from 5 ohms to 47k ohms. MM capacitance is also adjustable from 50pF to 400pF.

We also like that it is not just flexible, it is built like a true high-end component. Musical Fidelity uses a fully balanced, discrete Class A circuit with a Nuvistor stage, separate boards for each channel, RCA and XLR outputs with individual output stages, and a heavy aluminum chassis that acts as a Faraday cage against interference.

For NZ customers using cartridges from Ortofon, Hana, Audio-Technica, Pro-Ject, or higher-end MC models, the Nu-Vista Vinyl S is a serious upgrade path. It is especially useful if you run more than one cartridge or want to fine-tune loading for the best balance of detail, noise, bass, and musical flow.



View Musical Fidelity >>



The Musical Fidelity Nu-Vista Vinyl S Is Ideal For

• High-end vinyl systems
• Moving coil cartridge users
• Moving magnet cartridge users wanting a serious upgrade
• Customers running multiple cartridges or tonearms
• Turntables with balanced phono output
• Systems using balanced XLR input
• Record collectors needing RIAA, Decca and Columbia EQ curves
• Customers wanting fine gain, loading and subsonic control
• Premium Musical Fidelity Nu-Vista systems
• Serious analogue listeners who want adjustability and low noise



What the Experts Say

• AnalogPlanet described the Nu-Vista Vinyl S as a slightly simplified version of the flagship Nu-Vista Vinyl 2, but still “bristling with useful features.” It highlighted its flexibility for people running several turntables, tonearms and cartridges.
• StereoNET reported that the Nu-Vista Vinyl S brings Nu-Vista Vinyl 2-style Nuvistor technology into a more compact and more attainable model, with MM / MC assignment per input, gain from 40dB to 69dB, JFET-switched loading and Musical Fidelity’s Super Silent transformer design



Frequently Asked Questions

1. What is the Musical Fidelity Nu-Vista Vinyl S?
   The Musical Fidelity Nu-Vista Vinyl S is a high-end phono stage for moving magnet and moving coil cartridges. It uses fully balanced discrete Class A circuitry, Nuvistor valve technology, adjustable gain, adjustable loading, multiple EQ curves and RCA / XLR connectivity.
2. Does the Nu-Vista Vinyl S support both MM and MC cartridges?
   Yes. Each input can be configured for MM or MC use, which makes it suitable for a wide range of cartridges and turntables.
3. How many turntables can I connect?
   You can connect up to four phono sources, with two RCA phono inputs and two balanced XLR phono inputs. This is ideal for customers running multiple tonearms, turntables or cartridges.
4. Does the Nu-Vista Vinyl S have balanced inputs?
   Yes. It has two balanced XLR phono inputs for turntables or tonearms with balanced phono output.
5. Does the Nu-Vista Vinyl S have balanced outputs?
   Yes. It has a balanced XLR line-level output and an RCA line-level output. Both outputs can be used at the same time.
6. What gain settings does the Nu-Vista Vinyl S offer?
   For MM cartridges, gain is selectable at 40dB, 43dB, 46dB and 49dB. For MC cartridges, gain is selectable at 60dB, 63dB, 66dB and 69dB.
7. Can I adjust cartridge loading?
   Yes. MM capacitance is selectable from 50pF to 400pF. MC impedance is selectable from 5 ohms to 47k ohms, which gives excellent flexibility for different moving coil cartridges.
8. What EQ curves does it support?
   It supports RIAA, Columbia and Decca equalisation curves. This is useful for collectors with older records that were cut before RIAA became the standard.
9. Does it have a subsonic filter?
   Yes. The subsonic filter can be set to Off, Mild IEC, or Standard at 20Hz with 18dB/octave slope.
10. Is the Nu-Vista Vinyl S suitable for low-output MC cartridges?
    Yes. With MC gain up to 69dB and adjustable impedance down to 5 ohms, it is well suited to many low-output moving coil cartridges.
11. What kind of system suits the Nu-Vista Vinyl S?
    It suits high-end vinyl systems with quality turntables, cartridges and amplifiers. It is especially well matched with Musical Fidelity Nu-Vista integrated amplifiers and other high-resolution hi-fi systems.
12. Is it better than a built-in phono stage?
    In most serious systems, yes. The Nu-Vista Vinyl S offers far more gain, loading, noise control and circuit sophistication than most built-in amplifier phono stages.
13. Does it need ventilation?
    Yes. Musical Fidelity’s manual notes that the unit dissipates heat during operation and should be well ventilated. It should not be enclosed where the ventilation holes are blocked.
14. Who is the Musical Fidelity Nu-Vista Vinyl S best suited to?
    It is best for serious vinyl listeners who want a flexible, low-noise, high-end phono stage for MM and MC cartridges, especially where cartridge matching and balanced connections matter.



Key Features

High-End Nu-Vista Phono Technology

The Nu-Vista Vinyl S uses Musical Fidelity’s Nuvistor-based phono technology, developed from the larger Nu-Vista Vinyl 2 platform. Musical Fidelity says the S version preserves the essence of the Nu-Vista experience while reducing size and cost through PCB and chassis refinements.

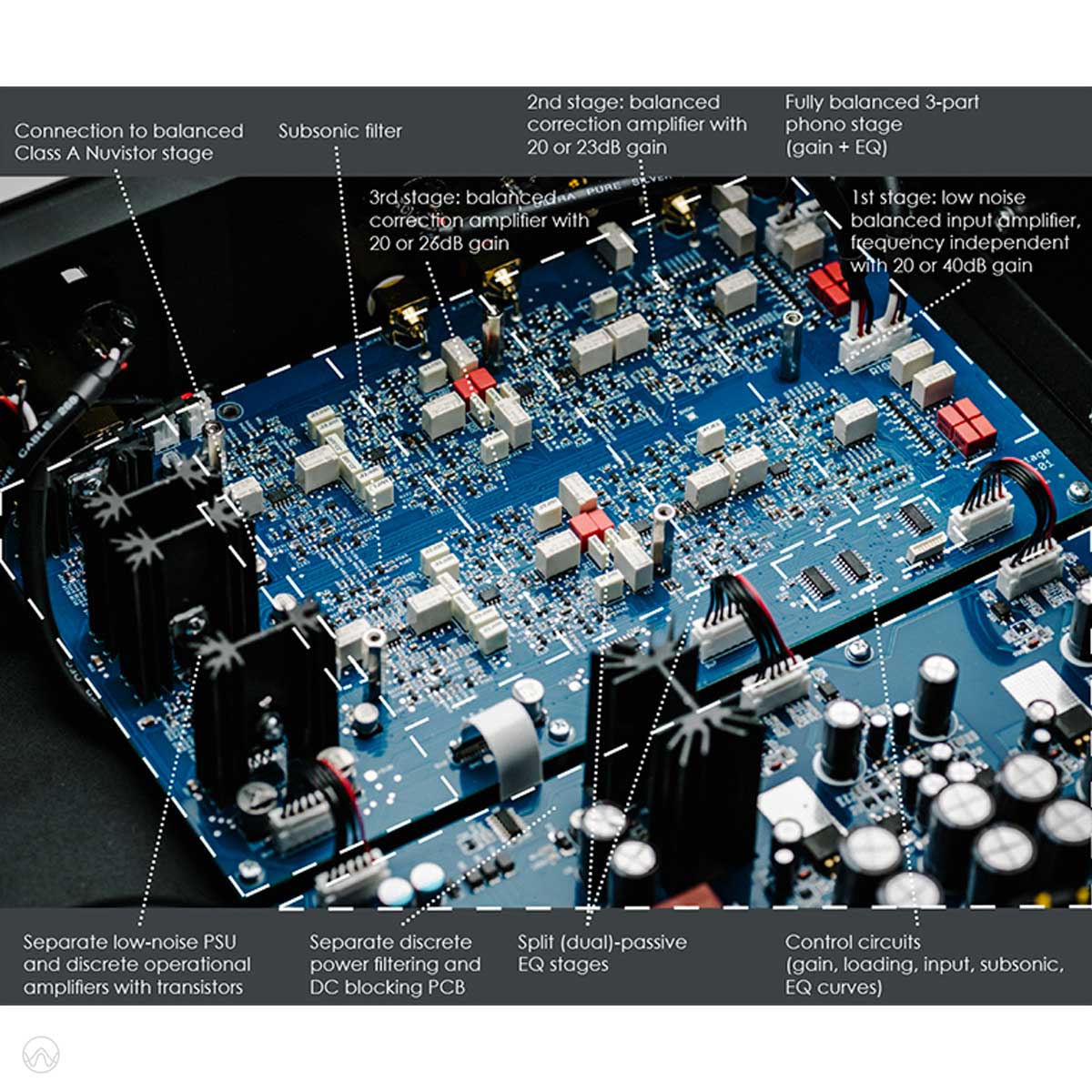

Fully Balanced, Discrete Class A Circuitry

Inside, the Nu-Vista Vinyl S uses fully balanced and discrete audio circuitry. The phono preamplification uses three gain stages in fully Class A discrete transistor circuitry, followed by a balanced discrete Class A Nuvistor stage.

Nuvistor Valve Stage

The Nuvistor valve stage is a key part of Musical Fidelity’s Nu-Vista design. It is used here to deliver the brand’s smooth, low-noise, low-distortion analogue character while keeping the signal path highly controlled.

MM and MC Cartridge Support

Each input can be configured for MM or MC cartridge use. This makes the Nu-Vista Vinyl S suitable for a wide range of turntables and cartridges, from high-output moving magnet designs through to low-output moving coil cartridges.

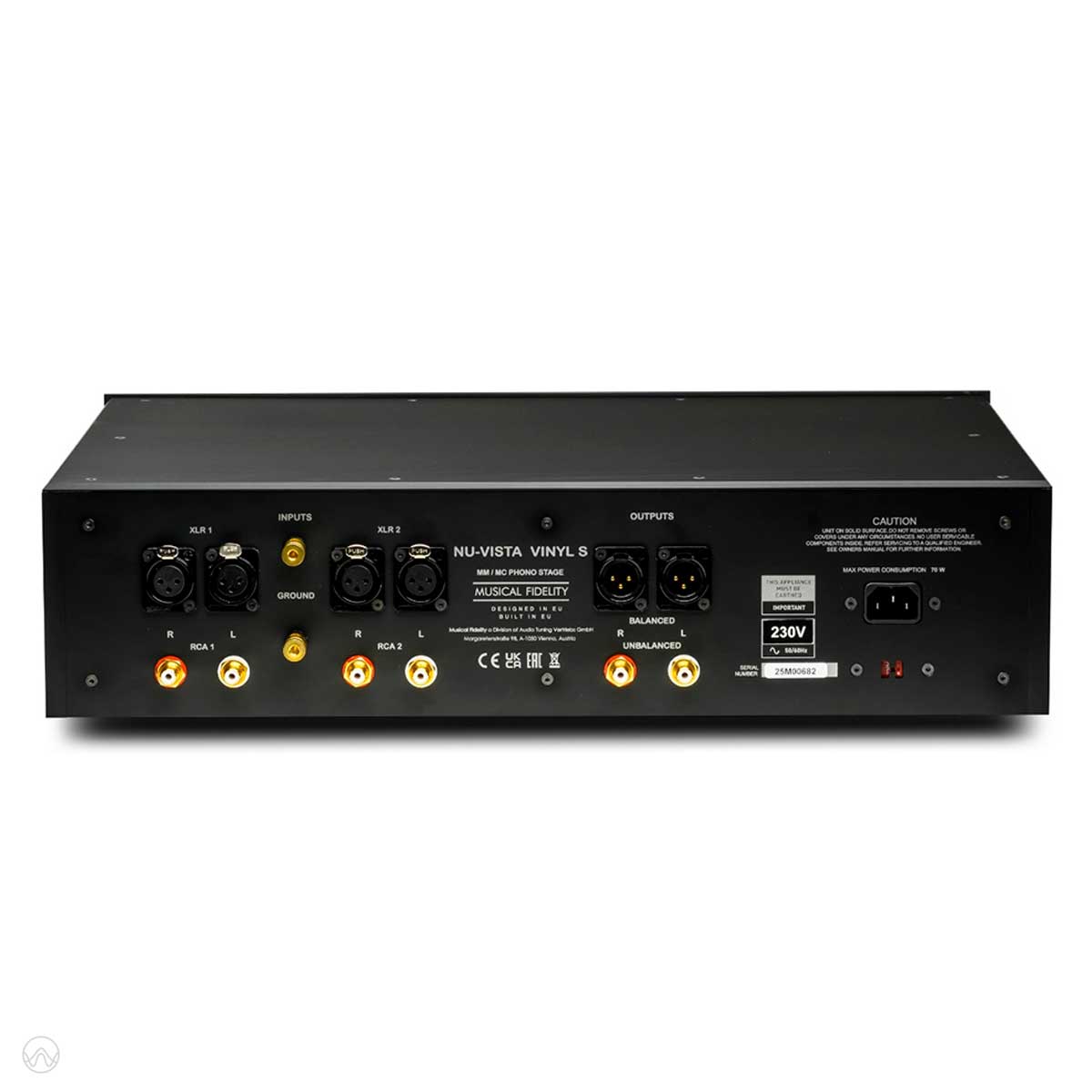

Two RCA and Two XLR Phono Inputs

The Nu-Vista Vinyl S includes two single-ended RCA phono inputs and two balanced XLR phono inputs. This gives excellent flexibility for customers using multiple turntables, tonearms, or cartridge setups.

Independent RCA and XLR Outputs

Both RCA and balanced XLR outputs are included. Musical Fidelity states that each output has its own individual stage and that RCA and XLR outputs can be used simultaneously.

Adjustable MM Gain

For moving magnet cartridges, the gain at the XLR outputs is selectable at 40dB, 43dB, 46dB, or 49dB. This makes it easier to match different MM cartridge outputs and amplifier input sensitivities.

Adjustable MC Gain

For moving coil cartridges, gain is selectable at 60dB, 63dB, 66dB, or 69dB. This gives useful flexibility for low-output MC cartridges, including premium models that need a quiet and well-matched phono stage.

Flexible Cartridge Loading

The MM input impedance is 47k ohms, with selectable capacitance from 50pF to 400pF. The MC input impedance is adjustable from 5 ohms to 47k ohms, with fixed 400pF capacitance. This helps fine-tune cartridge performance.

RIAA, Columbia and Decca EQ Curves

The Nu-Vista Vinyl S includes RIAA, Columbia and Decca equalisation curves. This is useful for collectors who play older records that were not mastered to the modern RIAA curve.

Split-Passive Equalisation

Musical Fidelity uses split-passive equalisation in two stages. The company says this approach allows better impedance matching and lower deviation from the ideal EQ curve.

Two-Stage Subsonic Filter

The Nu-Vista Vinyl S includes a subsonic filter with Off, Mild IEC, and Standard at 20Hz with 18dB/octave settings. This helps manage low-frequency rumble, warped records, and unwanted woofer movement.

Super Silent Power Supply Design

Musical Fidelity uses its Super Silent Power Transformer design with EMI filtering, DC blocking, and an encapsulated toroidal transformer. Each channel also benefits from its own symmetrical low-noise power supply.

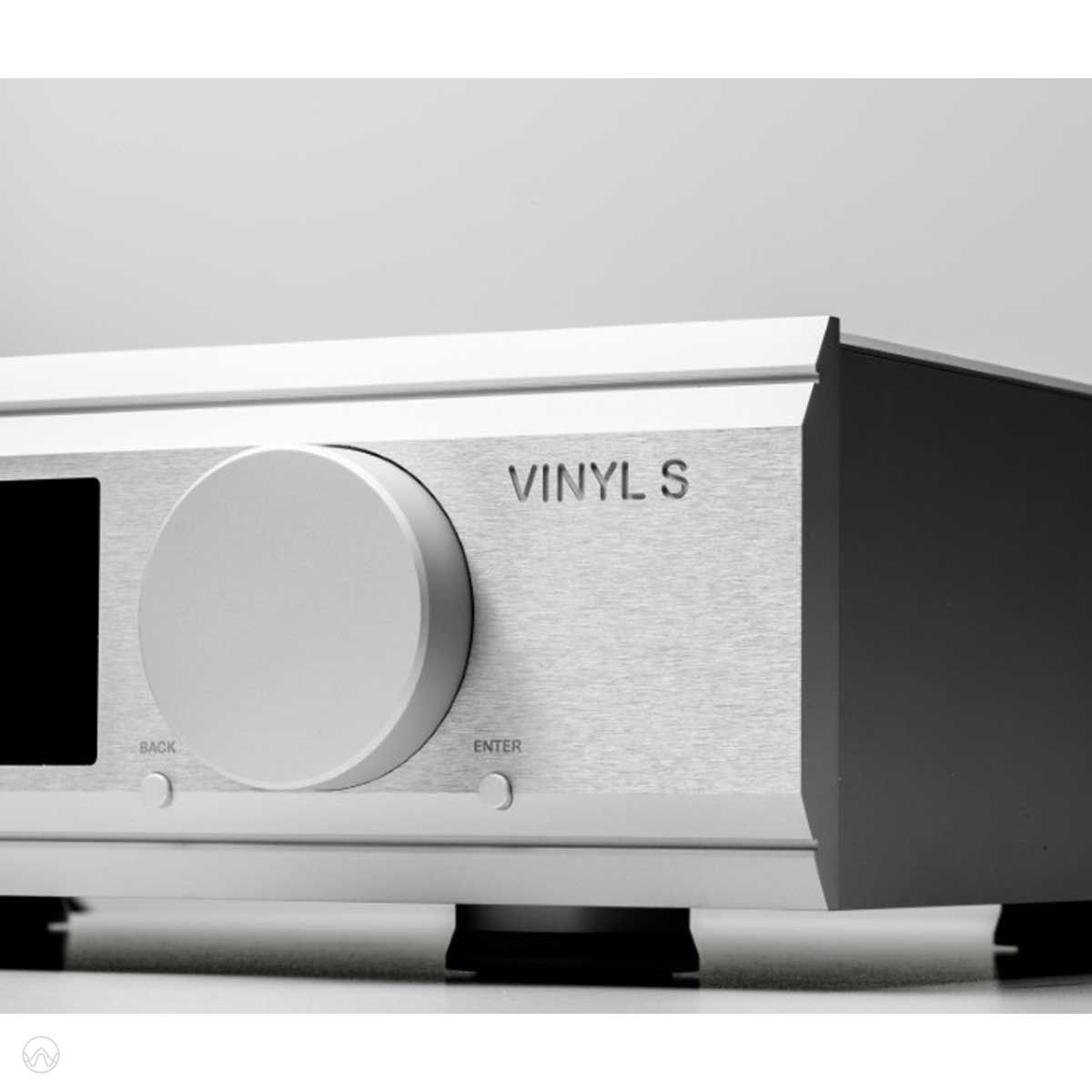

Heavy Aluminium Chassis

The front and side panels are milled from extruded aluminium. Musical Fidelity says the chassis helps protect the sensitive phono circuitry from vibration and electromagnetic interference.

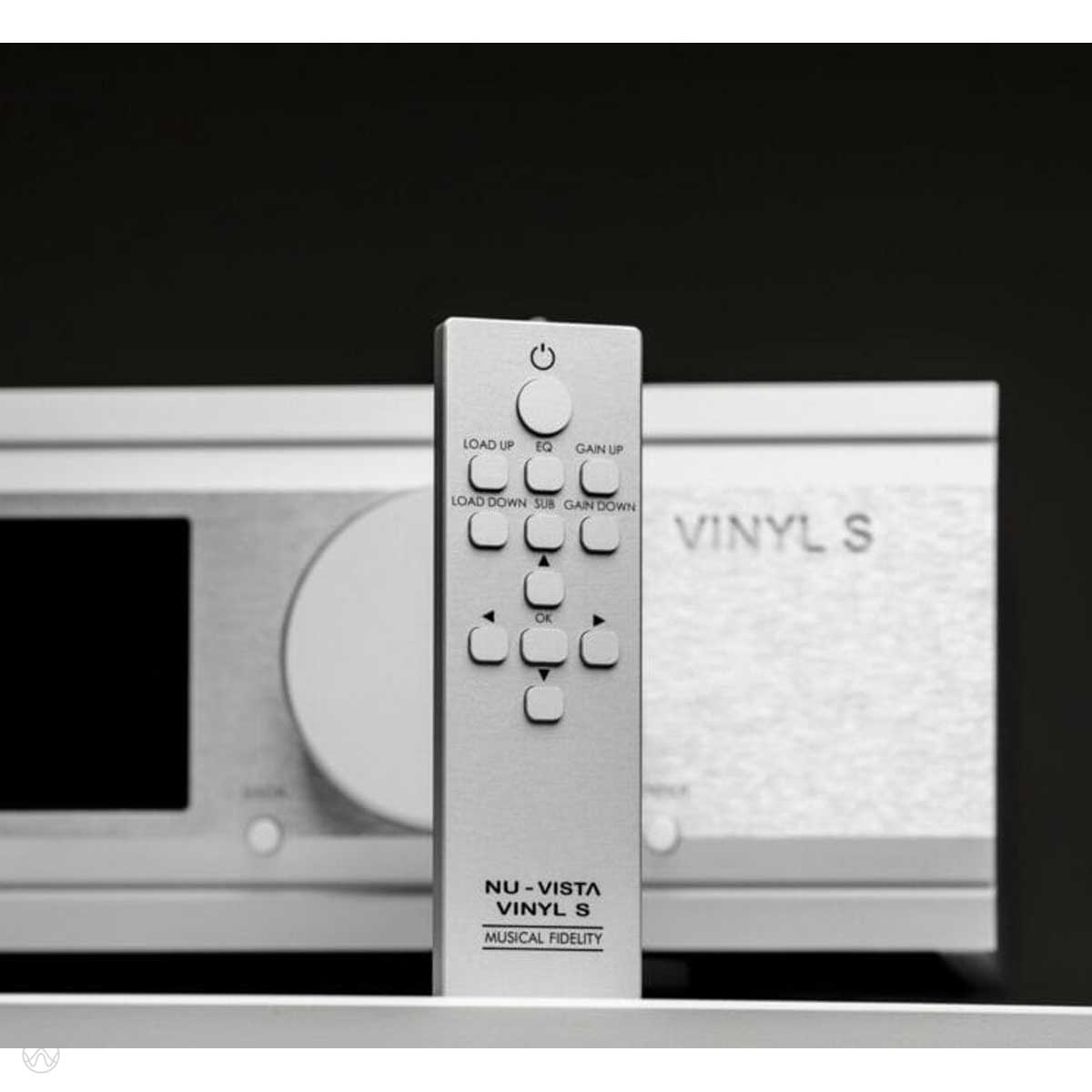

Remote Control Included

The Nu-Vista Vinyl S includes a matching Nu-Vista remote control. This gives easier access to settings from the listening position.

---

A Suggested Match

A good match would be the Musical Fidelity Nu-Vista Vinyl S, a high-end turntable, a premium MC cartridge, and a Musical Fidelity Nu-Vista or M-Series amplifier.

For a reference-style Pro-Ject system, pair it with a Pro-Ject Signature 12.2, Signature 10, or RPM 10 Carbon. Add a quality MC cartridge such as the Ortofon MC X50 or MC Vertex, then use the Nu-Vista Vinyl S to fine-tune gain and loading.

For a Musical Fidelity system, pair it with a Nu-Vista 600.2 or Nu-Vista 800.2 integrated amplifier. Musical Fidelity positions the Vinyl S as a natural analogue companion for these Nu-Vista integrated amplifiers.

---

Product Comparison Snapshot

Model	Best For	Key Difference
Musical Fidelity MX-VYNL	Compact MM / MC vinyl systems	Smaller, more affordable, balanced-capable phono stage
Musical Fidelity M6x Vinyl	Serious MM / MC cartridge matching	Flexible, high-performance solid-state phono stage
Musical Fidelity Nu-Vista Vinyl S	High-end Nu-Vista vinyl systems	Fully balanced discrete Class A design, Nuvistor stage, RCA/XLR inputs, wide cartridge loading
Musical Fidelity Nu-Vista Vinyl 2	Reference Nu-Vista analogue systems	Larger flagship model, higher price and larger chassis
Pro-Ject Phono Box RS2	Balanced Pro-Ject analogue systems	Compact balanced phono stage with extensive cartridge settings



Specifications

Brand: Musical Fidelity

Model: Nu-Vista Vinyl S

Product Type: MM / MC Phono Stage

Circuit Design
Fully balanced, discrete audio circuitry
Class A discrete transistor gain stages
Balanced Nuvistor stage

Gain Stages
Three phono gain stages

Equalisation
Split-passive EQ
RIAA
Columbia
Decca

Inputs
2 x RCA single-ended phono inputs
2 x XLR balanced phono inputs

Outputs
1 x RCA line-level output
1 x XLR balanced line-level output

Output Use
RCA and XLR outputs can be used simultaneously

MM Gain
40dB
43dB
46dB
49dB

MC Gain
60dB
63dB
66dB
69dB

MM Frequency Response
+0.25dB / -0.25dB

MC Frequency Response
+0.3dB / -0.3dB

MM Input Sensitivity
5mV in for 500mV out
At 40dB, 1kHz

MC Input Sensitivity
500µV in for 500mV out
At 60dB, 1kHz

MM Input Impedance
47k ohms

MM Input Capacitance
50pF to 400pF selectable

MC Input Impedance
5 ohms to 47k ohms selectable

MC Input Capacitance
400pF fixed

MM THD at 1kHz
Less than 0.005%

MC THD at 1kHz
Less than 0.008%

Overload Margin
32dB

MM Signal-to-Noise Ratio
Greater than 101dB A-weighted
At 40dB gain

MC Signal-to-Noise Ratio
Greater than 82dB A-weighted
At 60dB gain

Subsonic Filter
Off
Mild IEC
Standard at 20Hz with 18dB/octave

Line-Level RCA Output
500mV nominal
10V maximum

Balanced XLR Output
1V nominal
20V maximum

Power Requirement
115 / 230V AC, 50 / 60Hz, factory pre-set
100V AC, 50 / 60Hz, alternative

Power Consumption
Less than 0.5W standby
40W maximum

Dimensions (W x H x D)
483 x 131 x 404mm
With connectors

Weight
14kg unboxed
18.6kg shipping box

Included Accessories
IEC mains lead
Nu-Vista Vinyl S remote control
Remote battery
Spike feet
Spike foot cups
Spike foot screws
Felt pads

Finish Options
Black
Silver

Rapallo Product Data

MPN: NU-VISTA-VINYL-S

SKU: MUSICAL-FIDELITY-NU-VISTA-VINYL-S

EAN / UPC / GTIN: Not publicly confirmed
