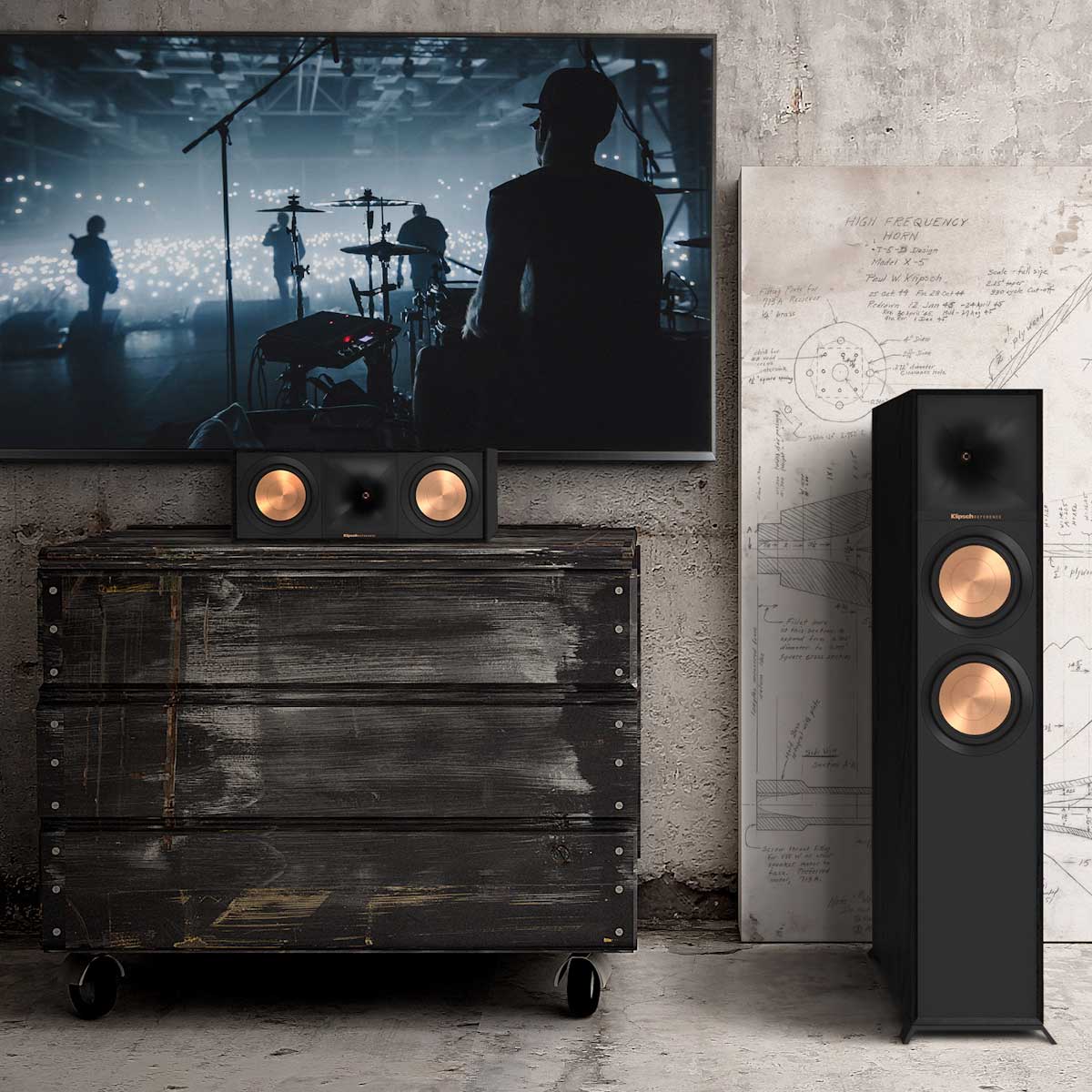

Klipsch Reference R-605FA Floorstanding Atmos Speaker
The Klipsch Reference R-605FA Floorstanding Atmos Speaker is one of the newer tower speakers in the line, and it’s the only one that has a built-in upward-firing Atmos speaker.

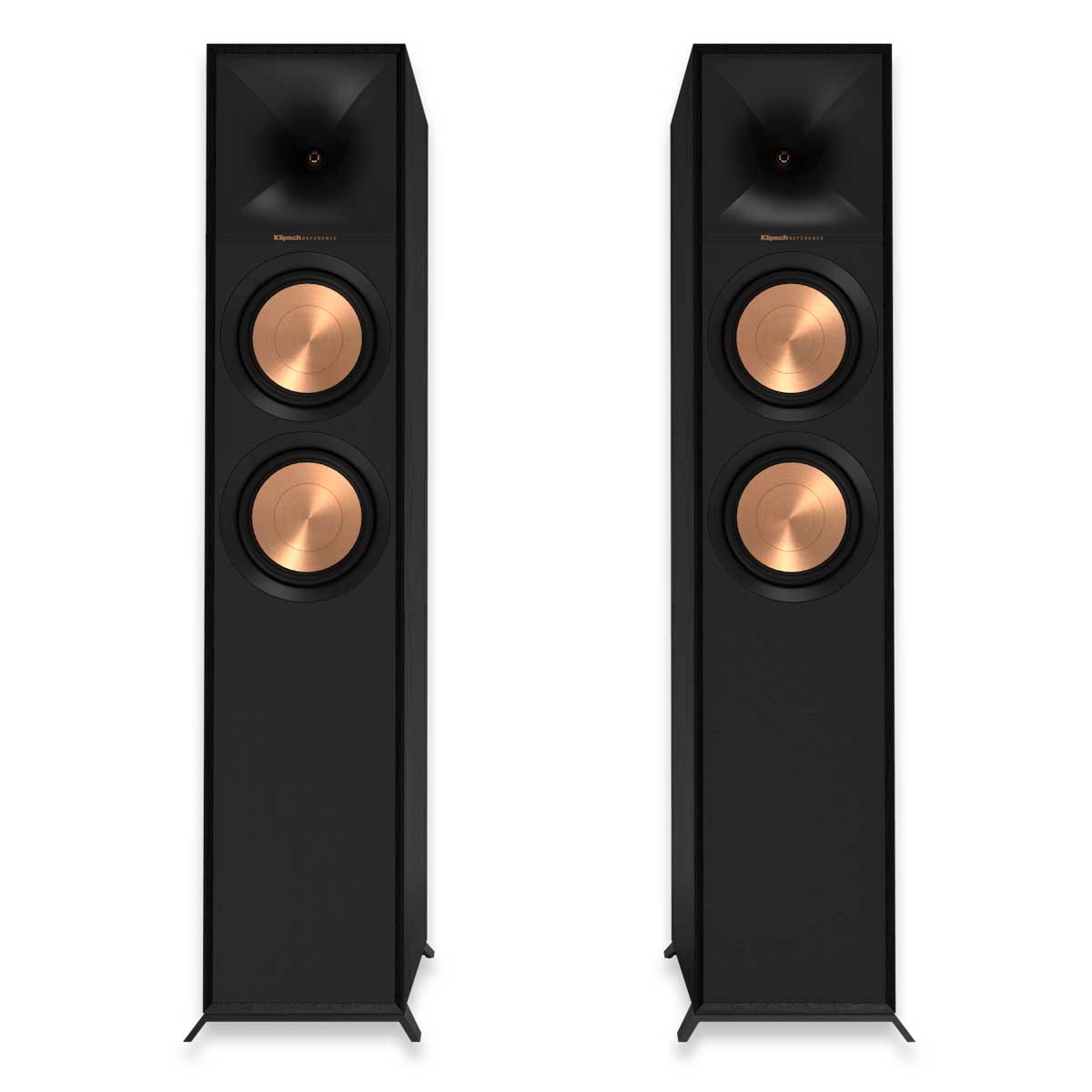

The main cabinet houses two 6-1/2″ woofers and a horn-loaded 1″ LTS (Linear Travel Suspension) tweeter. The Atmos-enabled speaker uses a 5-1/2″ driver and a 1″ LTS tweeter. These next-gen drivers use trickle-down technology to deliver room-filling, immersive sound for Home Theatre.
View Manual >> View Specifications >> View Klipsch products >>
Features

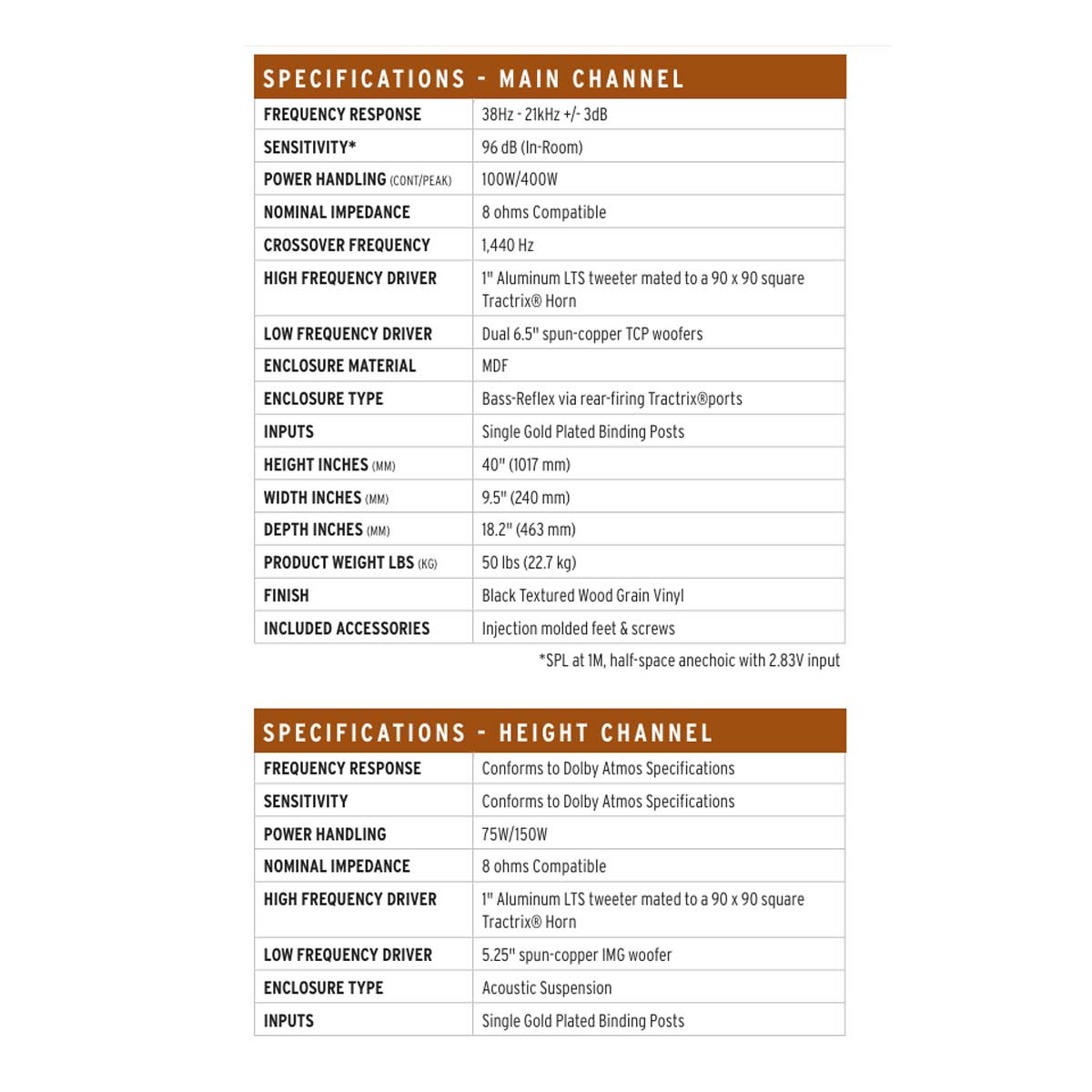

Main channel specifications:
- 1″ LTS (Linear Travel Suspension) aluminum diaphragm tweeter with Tractrix® horn
- two 6-1/2″ spun-copper TCP (thermoformed crystalline polymer) cone woofer
- frequency response: 38-21,000 Hz (± 3dB)
- sensitivity: 96 dB
- power handling: up to 100 watts RMS
- impedance: 8 ohms
- bass-reflex design with a single rear-firing Tractrix port
- magnetic grille protects drivers and looks stylish
- scratch-resistant textured wood grain vinyl finish
- single pair of gold-plated binding post speaker terminals
Height channel specifications:
- 1″ LTS (Linear Travel Suspension) aluminum diaphragm tweeter with Tractrix® horn
- 5-1/2″ spun-copper TCP (thermoformed crystalline polymer) cone woofer
- power handling: up to 75 watts RMS
- sealed (acoustic suspension) cabinet design
- single pair of gold-plated binding post speaker terminals
Seek New Heights
Immersive sound comes alive from all directions, including overhead, with these Dolby Atmos® enabled speakers. Add them to any monitor or tower speaker, or use as surround speakers for a hemisphere of rich, detailed sound.

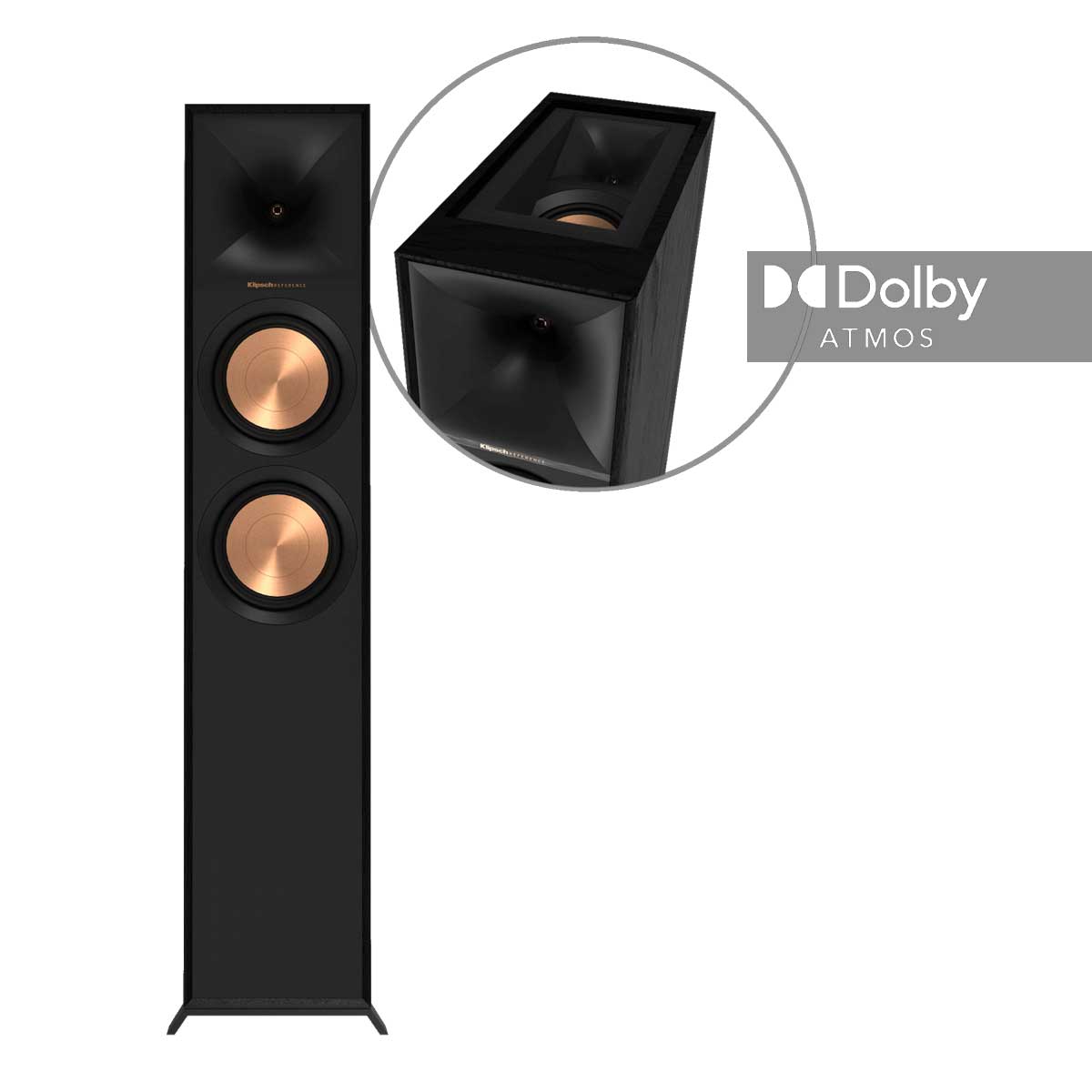

Elevation Built-In

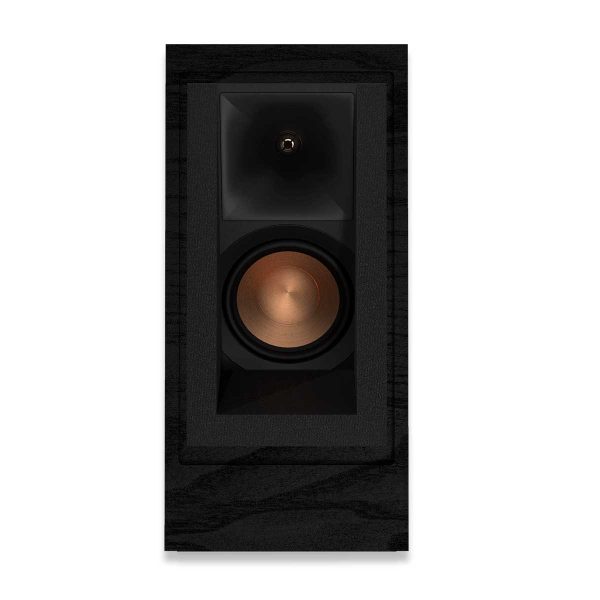

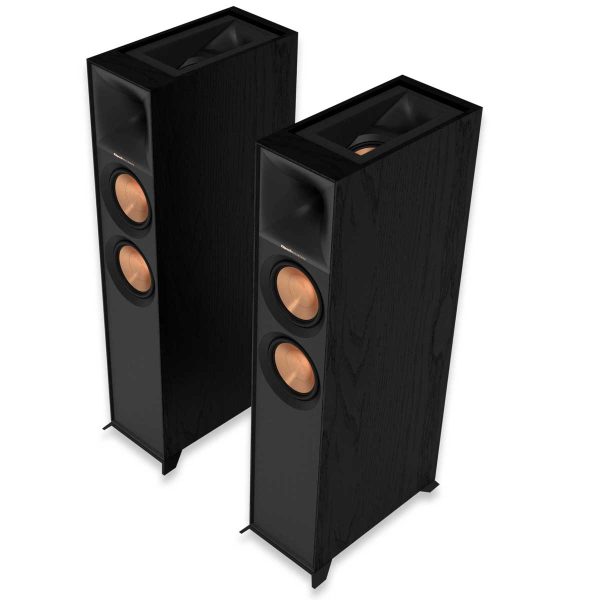

Not just your typical full-range tower speaker, the R-605FA features a high performance up-firing Dolby Atmos speaker integrated in the top for an enveloping soundstage. It’s a perfectly matched setup that virtually disappears.
All New 90° x 90° Tractrix® Horn
An updated horn design, including increased outer horn dimensions, will deliver more power and emotion to your music and movies. Bigger definitely means better, with directivity control over a larger bandwidth of frequencies, resulting in a more accurate sound stage.
Linear Travel Suspension (LTS) Aluminum Tweeter
A hallmark of Klipsch speakers, the exclusive 1″ LTS with Kapton Suspension tweeter minimizes distortion for more detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency.
Spun-Copper Thermoformed Crystalline Polymer Woofers
Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference Premiere series of speakers, the 8″ TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency.

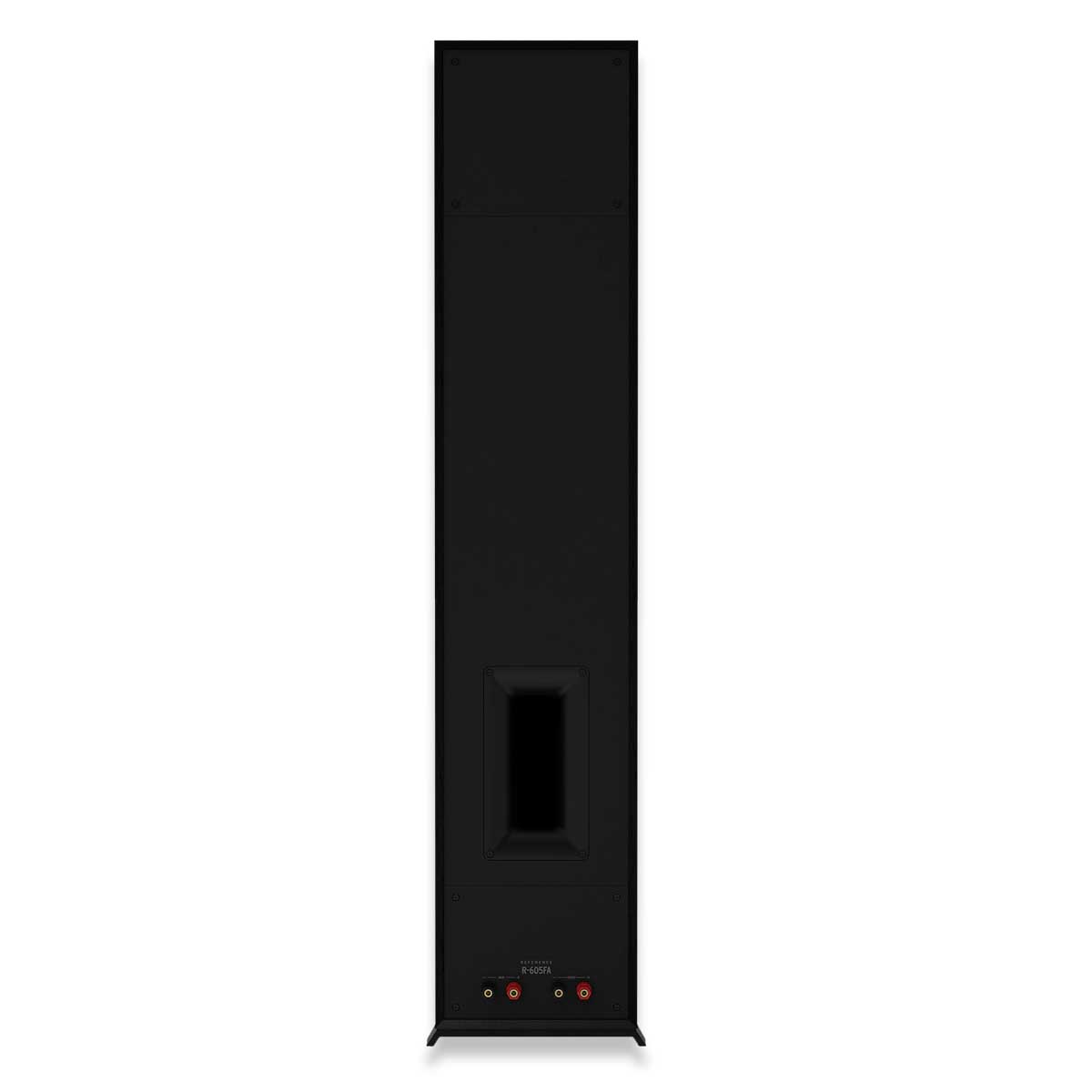

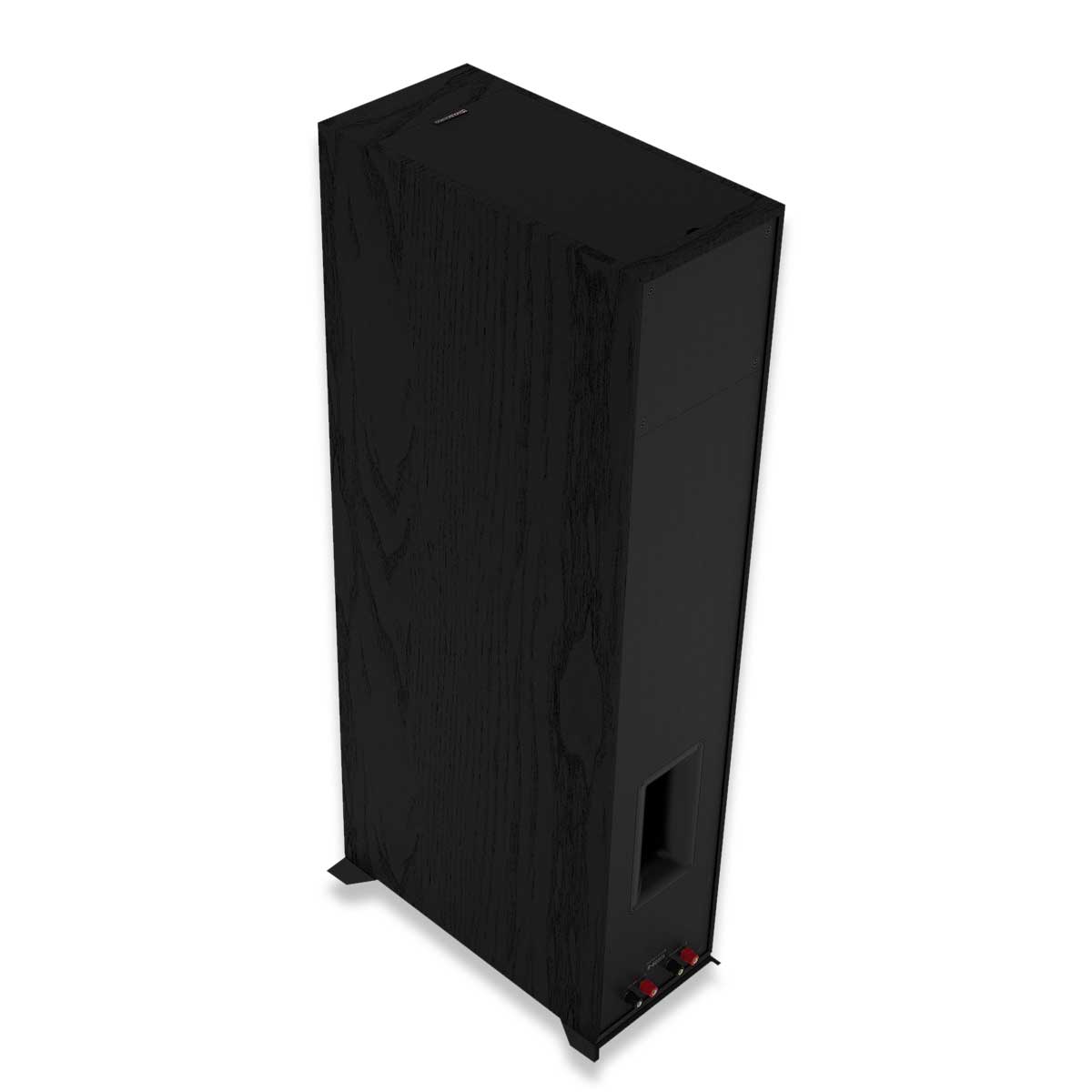

Rear Tractrix Port
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
High-Quality Cabinet Design & Appearance

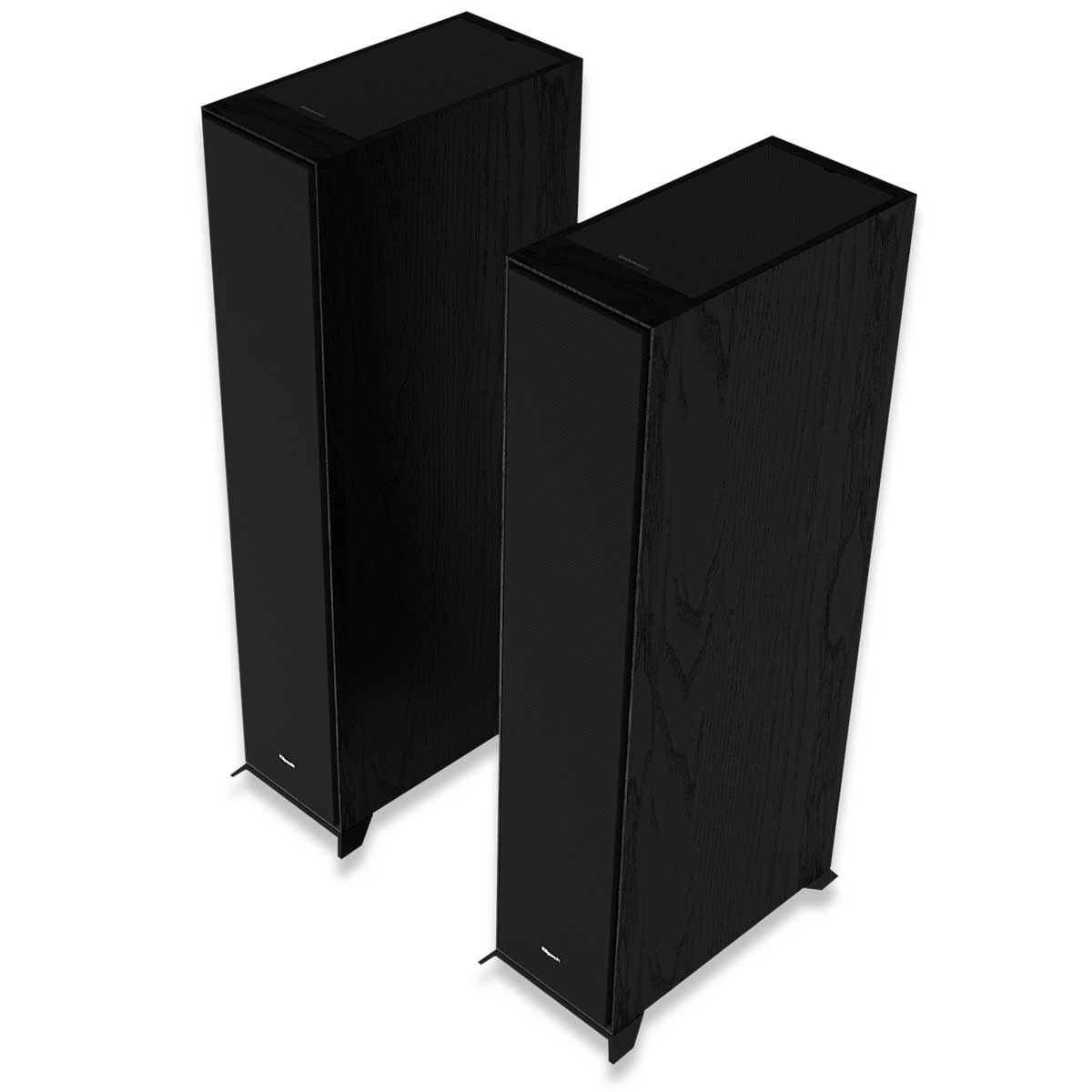

Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance. MDF cabinets with scratch-resistant, textured wood grain to fit right into your home décor.
