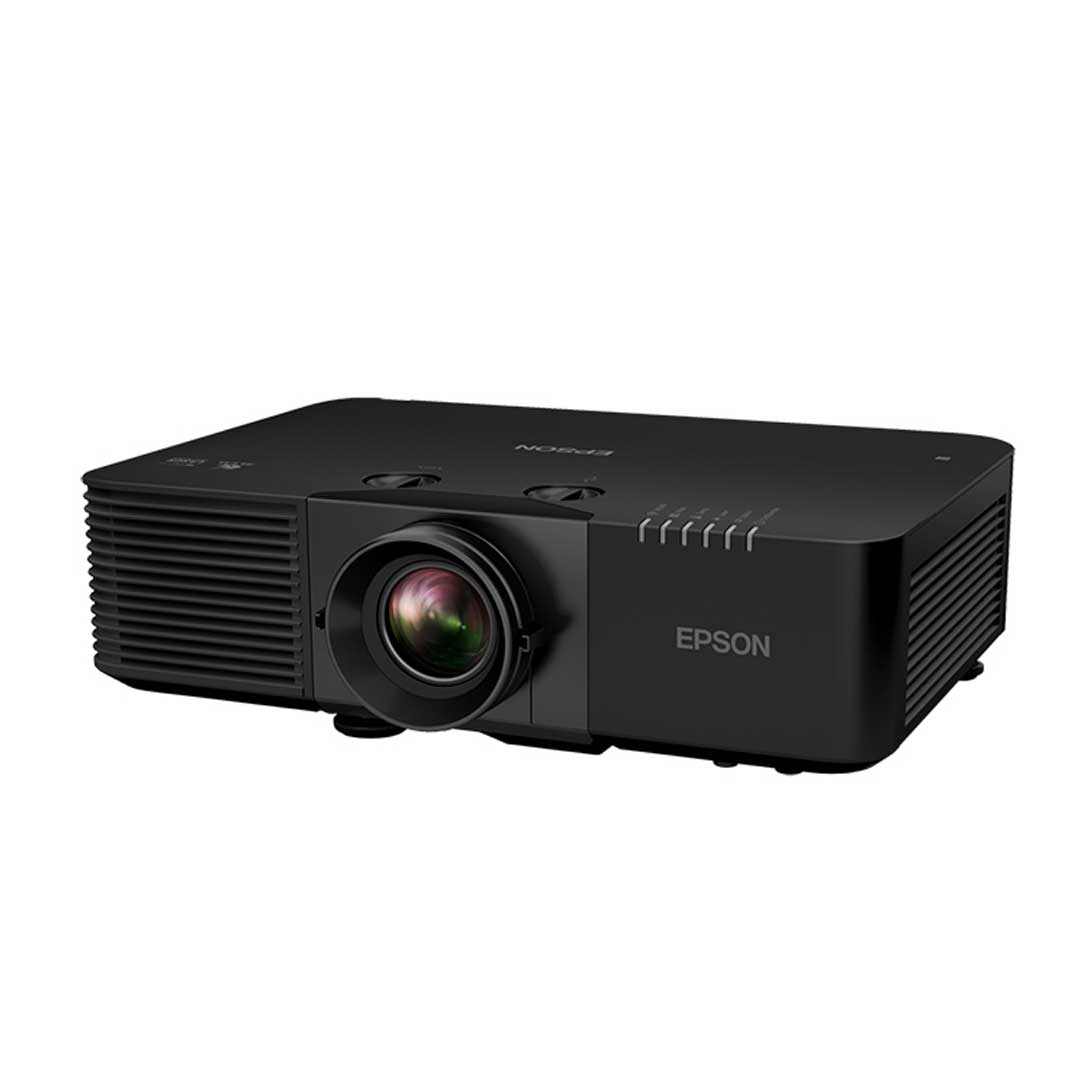

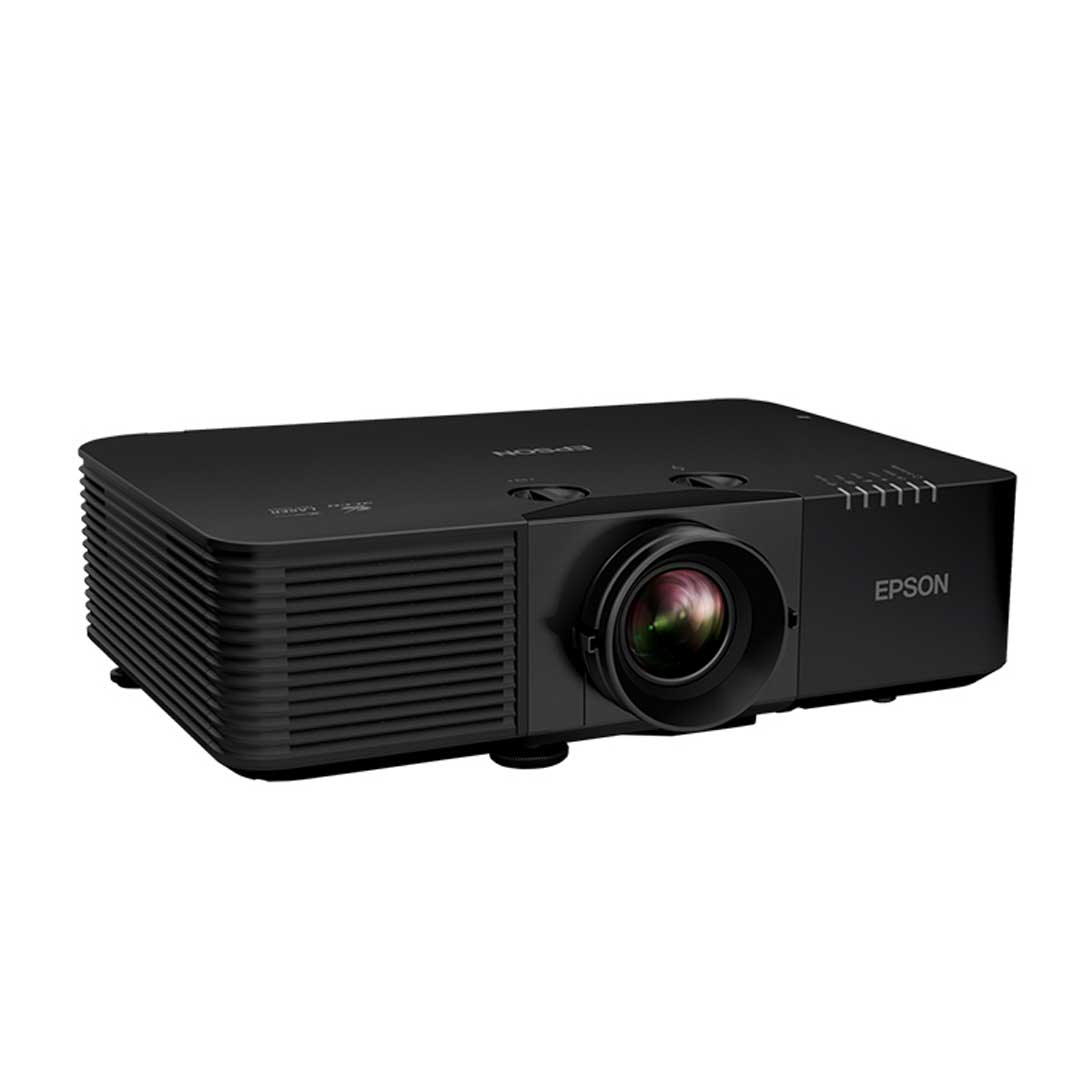

Epson EB-L895U 8000lm WUXGA 3LCD Laser Projector

Description

Epson EB-L895U 8000lm WUXGA 3LCD Laser Projector

The Epson EB-L895U 8000lm WUXGA 3LCD Laser Projector is a powerful WUXGA laser installation projector designed for professional environments that demand exceptional brightness, clarity, and reliability.

With an impressive 8,000 lumens and Epson’s advanced 3LCD technology, it delivers vibrant, colour-accurate images even in high-ambient-light spaces. Its native WUXGA resolution, enhanced with 4K Enhancement Technology, ensures crisp fine detail, making it ideal for auditoriums, lecture theatres, corporate venues, museums, and large-scale digital displays.

Built for flexible and robust installation, the EB-L895U supports 360-degree orientation, extensive motorised lens shift, and compatibility with a wide range of interchangeable lenses, allowing integrators to adapt it to almost any environment.

Its 20,000-hour maintenance-free laser light source reduces operating costs while ensuring long-term performance. Combined with modern connectivity options—including HDBaseT, DisplayPort, and advanced network control—the EB-L895U provides a reliable, feature-rich solution for demanding professional AV applications.





View User Manual >> View Dimensions >> View Epson >>



Features

• Up to 3x brighter colours, and reliable performance¹ – 3LCD, 3-chip technology
• WUXGA high definition resolution – enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
• Amazing colour brightness – up to 8,000 lumens colour brightness and 8,000 lumens white brightness
• Large, versatile display options – easily create a display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
• Simplified installation – compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
• Split screen – project from two different image sources for flexible options in the workplace
• Wireless networking and content sharing – Wi-Fi^® 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
• Built-in NFC – reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool App
• Virtually maintenance-free operation² – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours
• Enhanced connectivity – HDBaseT^® and HDMI^® two in and one out for daisy-chaining and signal monitoring
• Up to 5 year projector warranty³– enjoy peace of mind

Brighter, vivid projection

White brightness alone cannot bring the true colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and true colours to create vibrant and realistic images with 3LCD technology across every projector model.

3LCD technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously.

Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3 x brighter colours with Epson projectors

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don’t force a trade-off between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors.

If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.

HIGH IMAGE QUALITY

• Brilliant images in any setting –Powered by 3LCD technology and Epson’s laser optical engine, the Epson L895U series is capable of producing white light and colour light output of 8,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue.
• Light Weight – While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.
• Large image size – While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500″, your audience can easily read and understand the information you’re sharing.
• Super-resolution with detail enhancement – Get a crisper and sharper image with advanced image features on the Epson L895U. Super-resolution defines edges for standard and HD content, while detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.

• Scene adaptive gamma correction – The Epson L895U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes..

ADVANCED INSTALLATION FEATURES

HDBaseT and diverse connectivity

Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

NFC functionality

NFC functionality enables communication with smart devices even when the projector is switched off and can be configured and checked easily from the Epson Projector Config Tool on a smart device.

This means initial configuration can be carried out at the warehouse before transportation, reducing the work hours needed for installation and helping to reduce adjustment time when multiple projectors are being installed.

Manual lens shift, zoom and focus

The manual lens shift2 covers a wide range, offering a great deal of flexibility when installing the projector.

360 degree projection

The Epson L895U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Compact design

Weighing around 9 kg, the Epson L895U series projectors boast a compact and lightweight design. They offer exceptional flexibility and easy installation.

Multi projection

Edge blending

Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

Point correction

Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.

Epson Projector Professional Tool (EPPT)

Setup multiple projectors straight out of the box with new large venue application software. Epson Projector Professional Tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

Epson Projector Management Connected support

The Epson L895U supports the software Epson Projector Management Connected, which provides a range of monitoring, notification and control functions for the projector.

Colour uniformity

Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.

Enhanced connectivity

Universal ceiling mounts



FAQ’s

1. What is the brightness of the Epson EB-L895U? The EB-L895U delivers 8,000 lumens of colour and white brightness, providing clear, vivid images in bright environments.
2. What resolution does the projector support? It offers native WUXGA resolution with 4K enhancement, ensuring sharp, detailed visuals suitable for professional installations.
3. How long does the laser light source last? The long-lasting laser engine is rated for up to 20,000 hours of maintenance-free operation.
4. Does the EB-L895U support flexible installation? It offers 360-degree installation, motorised lens shift, and compatibility with a wide range of optional lenses for versatile setups.
5. What connectivity options does the projector include? The EB-L895U supports HDMI, HDBaseT, DisplayPort, and network control, making integration simple in modern AV environments.



Specifications

Projector

• Product Name: Epson EB-L895U
• Product Code: V11HB27153

Technology

• Projection System: 3LCD
• LCD Panel: 0.67-inch
• Light Source: Laser Diode


• Colour Light Output: 8,000 Lumens
• White Light Output: 8,000 Lumens
• ECO Mode Light Output:
• 5,600 lumens
• Resolution: WUXGA
• Native Aspect Ratio: 16:10
• Contrast Ratio: 5,000,000:1
• Colour Reproduction: Up to 1.07 billion colours
• Colour Processing: 10 bit

Optical

• Zoom: 1 – 1.6 (optical zoom)
• Screen Size: 50″ to 500″ [1.44 m to 14.76 m]
• Projection Distance: 80″ screen 2.33 m – 3.78 m
• Throw Ratio: 1.35 (Zoom: Wide)
• 20 (Zoom: Tele)
• Lens F Number: 1.5 – 1.7
• Lens Focal Length: 20.0 mm – 31.8 mm
• Focus Method: Manual

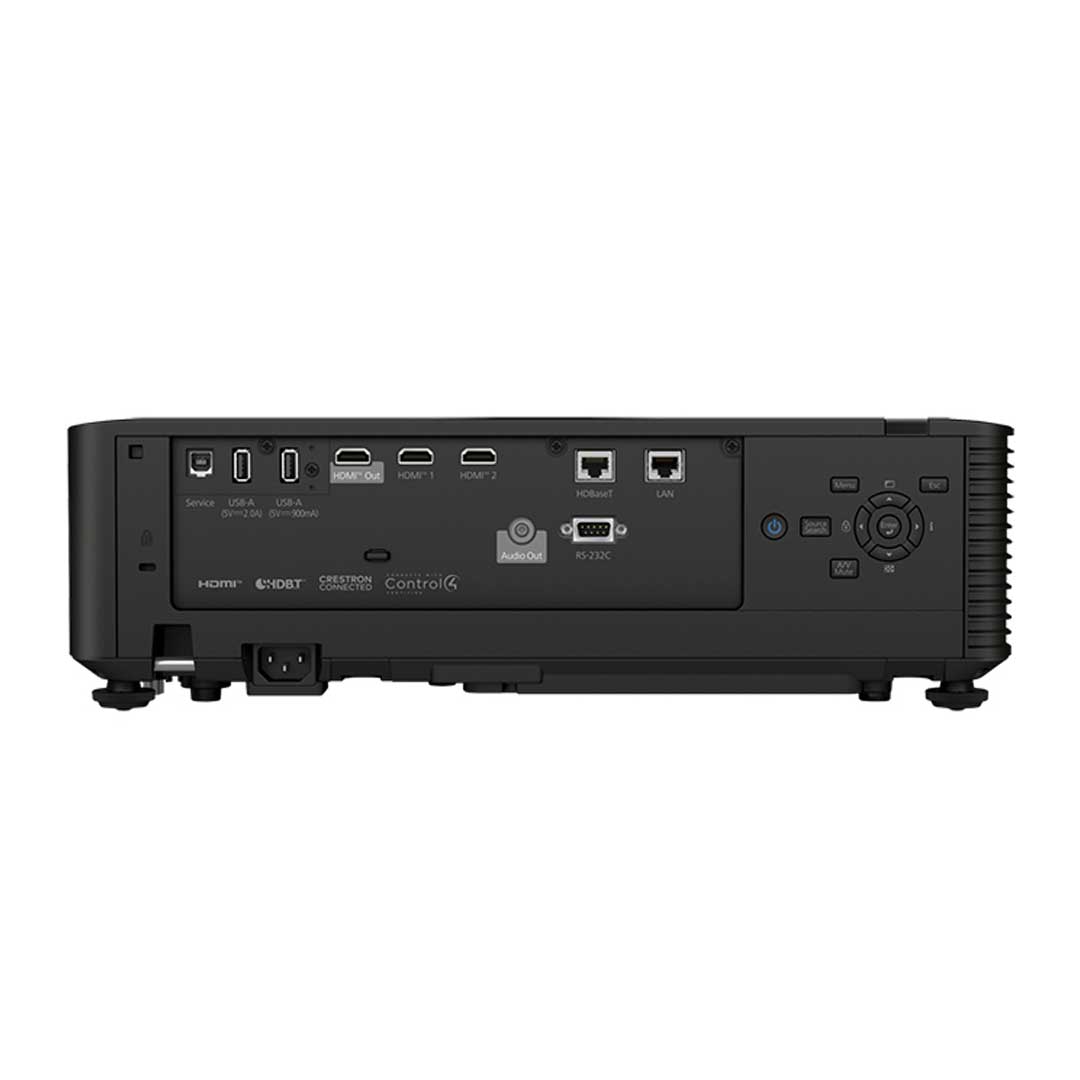

Connectivity

• Input: Digital: 2 x HDMI, 1 x HDBaseT
• Control: I/O: 1 x RS-232C
• USB:
  • 2 x USB type A (for PC free, document camera)
  • 1 x USB type B (firmware update)
• Network: I/O: 1 x RJ45
• HDBaseT: Yes
• Wireless Connectivity: Built-in
• Output: Digital: 1 x HDMI
• Output: Audio: 1 x Stereo mini

Advanced Features

• Built-in Speaker: 10 W
• EPSON Projector Management (Network & Control): Yes
• EPSON iProjection (Multi-PC Projection): Yes
• EPSON Projector Professional Tool: Yes
• EPSON Projector Content Manager: Yes
• EPSON Projector Management Connected: Yes
• ELPEC01 external camera functionality: Yes
• Scene Adaptive Gamma: Yes
• Wireless LAN Enterprise Security: Yes
• NFC: Yes
• Airplay: Yes
• Miracast: Yes
• Split Screen: Yes
• Edge Blending: Yes
• Detail Enhancement: Yes
• 360 Degress Projection: Yes
• Content Playback: Yes
• Instant Off: Yes
• Direct Power On: Yes

Security

• Kensington® – style lock provision
• Wireless LAN Unit Lock
• Padlock & security cable hole

Colour Modes

• Dynamic
• Presentation
• Cinema
• 709
• Natural
• DICOM SIM
• Multi-Projection

General

• Dimensions D x W x H (Including Feet): 340 x 440 x 138 mm
• Weight: Approx. 8.5 kg
• Projector Warranty: 5 years
• Power Consumption (Normal/Energy Saving):: 450 W / 0.4 W
• Noise Level: Normal / Eco: 36 dB / 26 dB
• What’s in the box: EB-L895U projector, 3m power cable, remote control, 2 x AA batteries, User’s Guide
