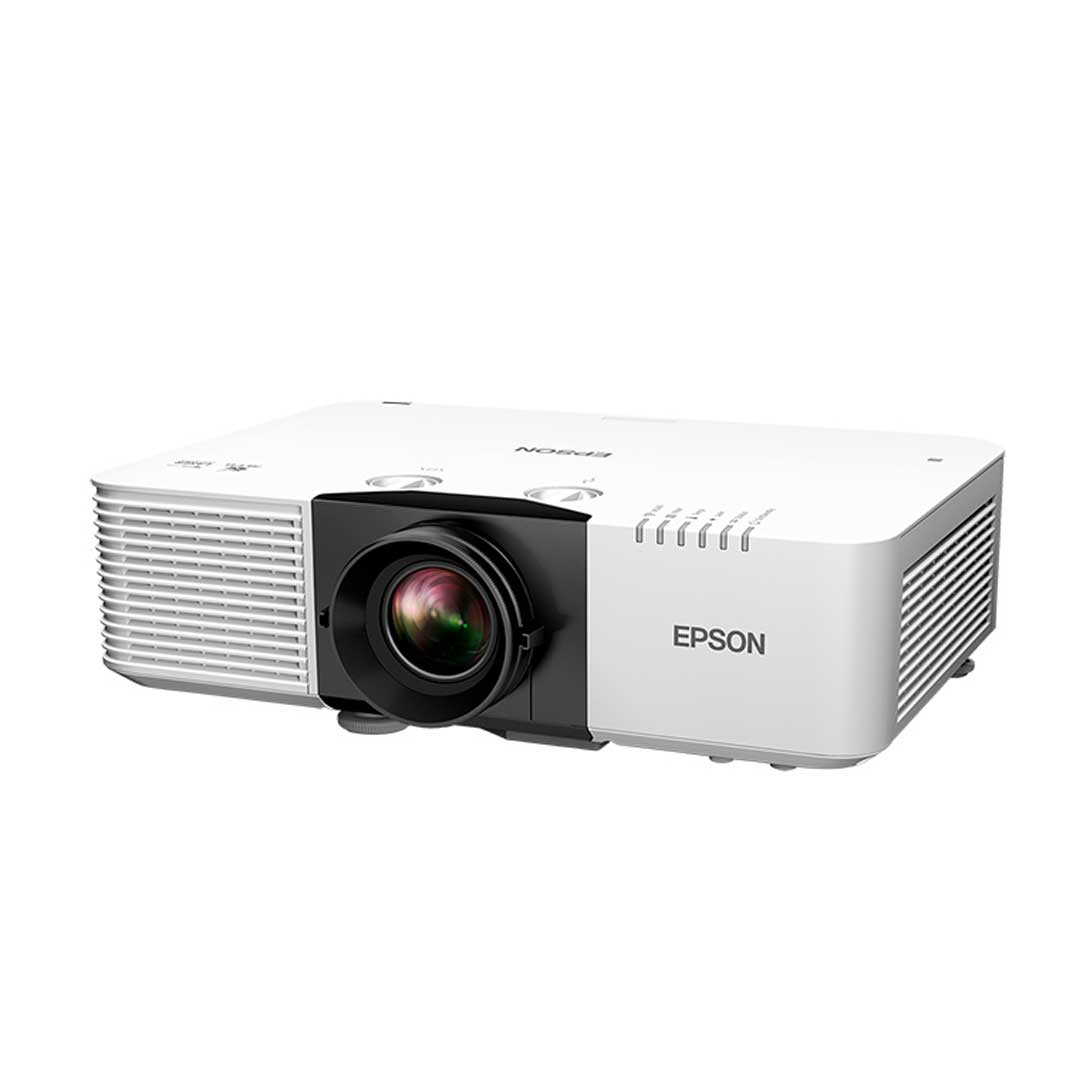

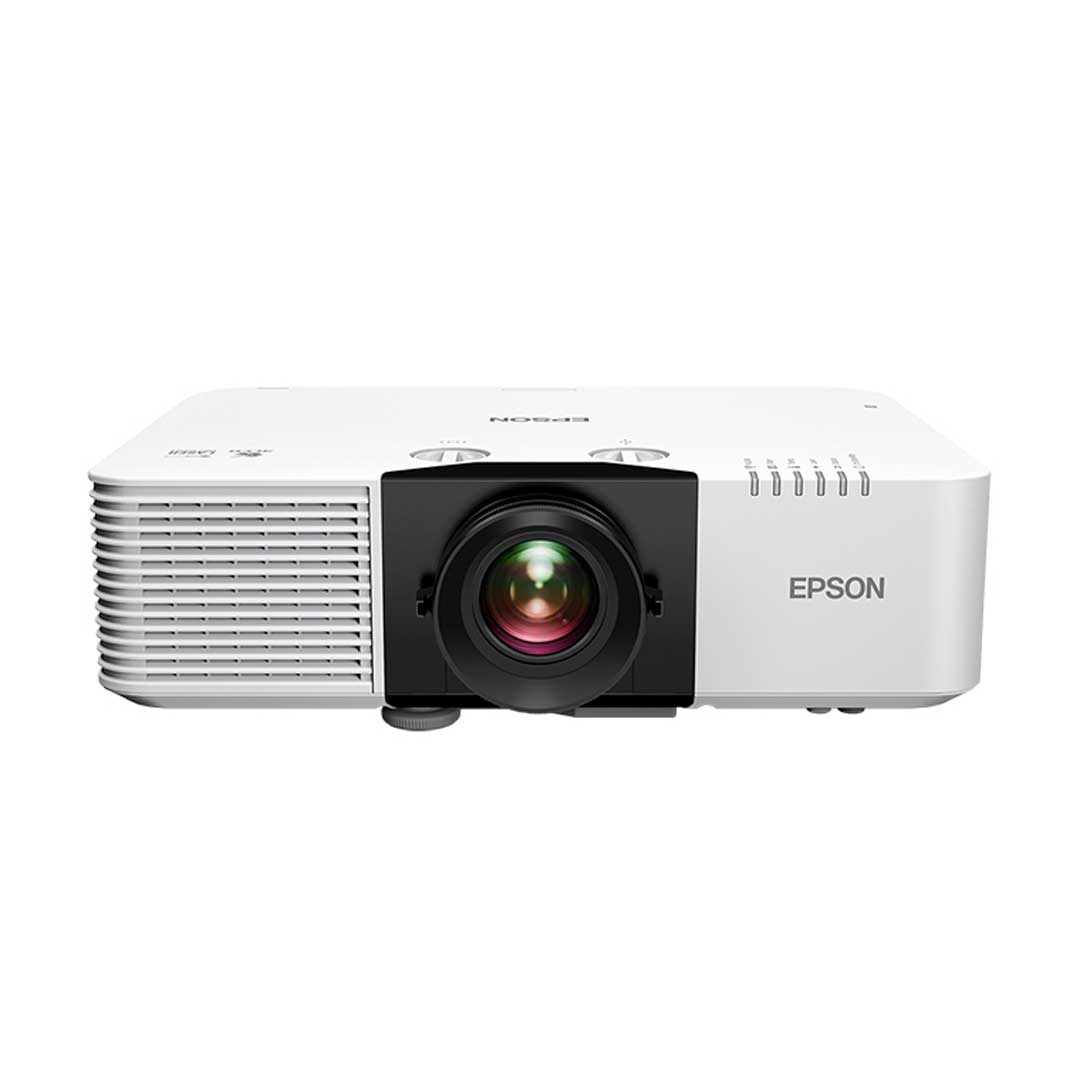

Epson EB-L690U WUXGA Projector

Description

Epson EB-L690U WUXGA Projector

The Epson EB-L690U WUXGA Laser Projector is engineered to deliver outstanding visual performance in professional spaces ranging from conference rooms and lecture halls to retail displays and large venues.

With an impressive 6,000 lumens of both colour and white brightness, it produces vivid, true-to-life imagery even in well-lit environments. Its WUXGA resolution ensures crystal-clear detail, while Epson’s advanced 3LCD technology eliminates colour breakup and provides consistently rich, balanced visuals.

Whether presenting data, showcasing video content, or creating immersive digital signage, this projector offers the clarity and vibrancy needed for impactful communication.

Designed for long-term reliability and flexible installation, the EB-L690U features a laser light source rated for up to 20,000 hours, reducing maintenance and ensuring dependable operation. Its versatile 2.0x optical zoom, wide lens shift range, and 360-degree installation support make it easy to position the projector in challenging spaces.

With modern connectivity options—including HDBaseT, HDMI, and wireless capabilities—integration into existing systems is seamless. Combining high performance, durability, and adaptability, the Epson EB-L690U is an ideal solution for organisations wanting professional-grade projection with minimal upkeep.





View User Manual >> View Dimensions >> View Epson >>



Features

• Up to 3x brighter colours, and reliable performance¹ – 3LCD, 3-chip technology
• WUXGA high definition resolution – enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
• Amazing colour brightness – up to 6,500 lumens colour brightness and 6,500 lumens white brightness
• Large, versatile display options – easily create a display up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
• Simplified installation – compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
• Split screen – project from two different image sources for flexible options in the workplace
• Wireless networking and content sharing – Wi-Fi^® 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
• Built-in NFC – reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool App
• Virtually maintenance-free operation² – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours
• Enhanced connectivity – HDBaseT^® and HDMI^® two in and one out for daisy-chaining and signal monitoring
• Up to 5 year projector warranty³ – enjoy peace of mind

Brighter, vivid projection

White brightness alone cannot bring the true colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors’ white light output, Epson ensures that its projectors combine brightness and true colours to create vibrant and realistic images with 3LCD technology across every projector model.

3LCD technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3 x brighter colours with Epson projectors

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don’t force a trade-off between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors.

If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.

HIGH IMAGE QUALITY

• Brilliant images in any setting – Powered by 3LCD technology and Epson’s laser optical engine, the Epson L690U series is capable of producing white light and colour light output of 6,500 lumens in WUXGA resolution, delivering captivating images in virtually any venue. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.
• Large image size – While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500″, your audience can easily read and understand the information you’re sharing.
• Super-resolution with detail enhancement – Get a crisper and sharper image with advanced image features on the Epson L690U. Super-resolution defines edges for standard and HD content, while detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.
• Scene adaptive gamma correction – The Epson L690U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.

ADVANCED INSTALLATION FEATURES

• Manual lens shift, zoom and focus – The manual lens shift2 covers a wide range, offering a great deal of flexibility when installing the projector.
• HDBaseT and diverse connectivity – Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.
• NFC functionality – NFC functionality enables communication with smart devices even when the projector is switched off and can be configured and checked easily from the Epson Projector Config Tool on a smart device. This means initial configuration can be carried out at the warehouse before transportation, reducing the work hours needed for installation and helping to reduce adjustment time when multiple projectors are being installed.
• 360 degree projection – The Epson L690U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.
• Compact design – Weighing around 9 kg, the Epson L690U series projectors boast a compact and lightweight design. They offer exceptional flexibility and easy installation
• Multi projection – Powered by cutting-edge 4KE technology, the Epson L690U series projectors deliver stunning image quality with seamless blending, precise stacking, and advanced colour calibration – perfect for creating immersive visual experiences.
• Edge blending – Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.
• Point correction – Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.
• Colour uniformity – Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.
• Epson Projector Professional Tool (EPPT) – Setup multiple projectors straight out of the box with new large venue application software. Epson Projector Professional Tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending by pairing with ELPEC01 external camera. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

Epson Projector Management Connected support

The L690U supports the software Epson Projector Management Connected, which provides a range of monitoring, notification and control functions for the projector.

Enhanced connectivity

The Epson L690U Series supports daisy-chaining via HDMI connectivity, allowing multiple devices to be connected to a single display or projector. This feature offers a convenient solution for presentations, video conferencing, and various other applications.

Universal ceiling mounts

The Epson L690U is compatible with two different ceiling mount options: the ELPMB22 for height-adjustable mounting and the ELPMB30 for low-profile installations

• ELPMB22 – Standard ceiling
• ELPMB30 – Low profile ceiling mount

Casting

• Apple Airplay – Sharing information has been made easier with Apple Airplay. Stream high quality video, music, photos, and presentation from your iPhone or iPad wirelessly.
• Epson iProjection – Wirelessly project from your PC and mobile device with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously.
• Miracast – Miracast has simplified the process of sharing information3. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.

Wireless LAN Enterprise security

WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so that projectors can connect to an integrated environment over a secure network.



FAQ’s

1. What is the brightness level of the Epson EB-L690U? The projector delivers 6,500 lumens of colour and white brightness, making it suitable for bright rooms and large venues.
2. How long does the laser light source last? The EB-L690U features a maintenance-free laser light source rated up to 20,000 hours, ensuring long-term reliability without lamp replacements.
3. Can the projector be installed at any angle? Yes. Its 360-degree installation flexibility allows it to be mounted in virtually any orientation for creative setups and challenging spaces.
4. Does the Epson EB-L690U support wireless connectivity? Yes. With optional wireless adapters or network integration, the projector can support wireless content sharing and remote management.
5. What type of connections are available on the EB-L690U? It includes a wide range of inputs, such as HDMI, HDBaseT, USB, and Ethernet, ensuring compatibility with modern AV systems and devices.



Specifications

PROJECTOR

• PRODUCT NAME: Epson EB-L690U
• PRODUCT CODE: V11HB29053

TECHNOLOGY

• Projection System: 3LCD
• LCD Panel: 0.67-inch
• Light Source: Laser Diode


• Colour Light Output: 6,500 Lumens
• White Light Output: 6,500 Lumens
• ECO Mode Light Output: 4,550 Lumens
• Resolution: WUXGA
• Native Aspect Ratio: 16:10
• Contrast Ratio: 5,000,000:1
• Colour Reproduction: Up to 1.07 billion colours
• Colour Processing: 10 bit

OPTICAL

• Zoom: 1 – 1.6 (optical zoom)
• Screen Size: 50″ to 500″ [1.44 m to 14.76 m]
• Projection Distance: 80″ screen 2.33 m – 3.78 m
• Throw Ratio:
  • 1.35 (Zoom: Wide)
  • 20 (Zoom: Tele)
• Lens F Number: 1.5 – 1.7
• Lens Focal Length: 20.0 mm – 31.8 mm
• Focus Method: Manual

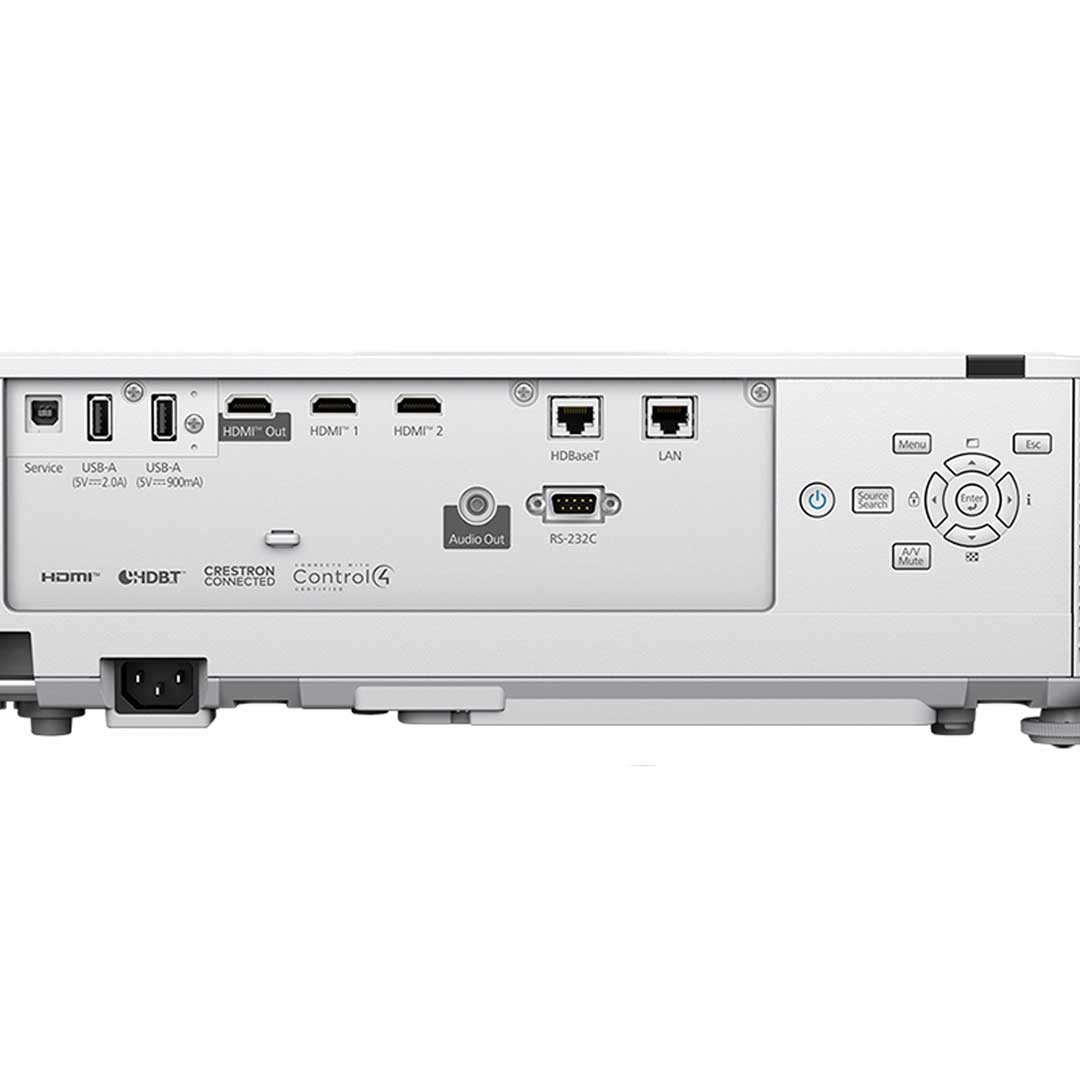

CONNECTIVITY

• Input: Digital: 2 x HDMI, 1 x HDBaseT
• Control: I/O: 1 x RS-232C
• USB:
  • 2 x USB type A (for PC free, document camera)
  • 1 x USB type B (firmware update)
• Network: I/O: 1 x RJ45
• HDBaseT: Yes
• Wireless Connectivity: Built-in
• Output: Digital: 1 x HDMI
• Output: Audio: 1 x Stereo mini

ADVANCED FEATURES

• Built-in Speaker: 10W
• EPSON Projector Management
• (Network & Control): Yes

EPSON iProjection

• (Multi-PC Projection): Yes
• EPSON Projector Professional Tool: Yes
• EPSON Projector Content Manager: Yes
• EPSON Projector Management Connected: Yes
• ELPEC01 external camera functionality: Yes
• Scene Adaptive Gamma: Yes
• Wireless LAN Enterprise Security: Yes
• NFC: Yes
• Airplay: Yes
• Miracast: Yes
• Split Screen: Yes
• Edge Blending: Yes
• Detail Enhancement: Yes
• 360 Degress Projection: Yes
• Content Playback: Yes
• Instant Off: Yes
• Direct Power On: Yes
• Security:
  • Kensington® – style lock provision
  • Wireless LAN Unit Lock
  • Padlock & security cable hole
• Colour Modes:
  • Dynamic
  • Presentation
  • Cinema
  • 709
  • Natural
  • DICOM SIM
  • Multi-Projection

GENERAL

• Dimensions D x W x H (Including Feet): 340 x 440 x 138 mm
• Weight: Approx. 8.2 kg
• Projector Warranty: 5 years
• Power Consumption (Normal/Energy Saving):: 399 W / 0.4 W
• Noise Level: Normal / Eco: 32 dB / 25 dB
• What’s in the box: EB-L690U projector, 3 m power cable, remote control, 2 x AA batteries, User’s Guide
• Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited



1. colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for January 2022 to December 2022.
2. ±50% vertically, ±20% horizontally for EB-L690U.
3. Laptops or mobile devices must support Miracast.
