Epson EB-810E 5000lm 1080p Super Short Throw 3LCD Laser Projector
The Epson EB-810E 5000lm 1080p Super Short Throw 3LCD Laser Projector is a powerful 5,000-lumen super short throw laser projector designed to elevate productivity and communication in modern office environments.
Its ability to produce a large, bright Full HD image from just centimetres away makes it ideal for small meeting rooms, huddle spaces, and collaborative work areas where wall space is limited.
Epson’s 3LCD technology ensures vivid colours and sharp detail, even with overhead lighting, so presentations, video calls, and shared content remain clear and engaging throughout the workday.
For offices looking to simplify their tech setup, the EB-810E offers seamless integration and low-maintenance performance. The 20,000-hour laser light source eliminates lamp changes, while wireless screen sharing allows teams to connect laptops, tablets, and phones effortlessly.
Flexible installation options—wall-mounted, on furniture, or close to the projection surface—make it easy to fit into any workspace layout. Reliable, bright, and user-friendly, the EB-810E provides a future-ready display solution for collaborative and fast-paced office environments.
View User Manual >> View Epson >>
FAQ’s
- Can the EB-810E display a large image in small meeting rooms? Its super short throw design creates big, bright images from extremely close to the wall, perfect for compact conference rooms and huddle spaces.
- Is the projector bright enough for meetings with the lights on? With 5,000 lumens, the EB-810E maintains clear, vibrant visuals even in well-lit office environments.
- Does it support wireless presentations? The projector offers wireless screen sharing, making it easy for teams to present from laptops, tablets, or phones without cables.
- How easy is it to install in an office setting? Very easy. Its flexible placement, super short throw distance, and minimal shadowing allow for clean, space-efficient installation on walls, shelves, or furniture.
- What maintenance does the laser light source require? The EB-810E uses a 20,000-hour maintenance-free laser, reducing downtime and long-term costs for busy office environments.
Features
- Up to 3x brighter colours and reliable performance – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
- Lamp-free laser technology – provides up to 30,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
- 4KE resolution – 1080p with 4K Enhancement for stunning image clarity in presentations, videos, images, digital signage and more
- Amazing colour brightness – up to 5,000 lumens colour brightness and 5,000 lumens white brightness
- Miracast support – project your smartphone or tablet screens without a cable connection
- Large image size – can deliver an image up to 160″ diagonal, 4.5 times larger than a 75″ flat panel
- Astonishing image quality – innovative frame interpolation, HDR and scene adaptive gamma image processing provides visibly smooth and more detailed picture quality
- Flexible display options – 16:9 native aspect ratio with additional support for ultra-wide 16:6 and 21:9 for an equitable conferencing experience in meeting rooms
- Multi-projection capabilities – install multiple EB-810E projectors and utilise edge blending technology for versatile, breathtaking displays
- Captivating sound – enjoy a built-in stereo 16 W speaker for life-like sound
- Simple set-up – digital zoom and image shifting make image alignment easy for desktop or wall mounted displays, and Epson’s Setting Assist app ensures easy installation by automatically smoothing edges and corners
- Split screen – project from two different image sources for flexible options in the workplace
- Connectivity options – multiple HDMI ports, built-in wired/wireless networking, HDBaseT, RS-232C connectivity and Miracast
- Up to 3-year projector warranty – enjoy peace of mind
EB-810E 3LCD Extreme Short Throw Lamp-Free Laser Display With 4K Enhancement
The seamless display solution for classrooms and meeting rooms that goes beyond the limits of ordinary flat panels.
Stunning colour and impactful image quality with 3-chip 3LCD technology
Virtually glare-free from anywhere in the room, unlike flat panels; 5,000 lumens of colour and white brightness.
Astonishingly smooth display with 4K Enhanced resolution
Epson’s advanced pixel-shifting technology combined with innovative frame interpolation, HDR and scene adaptive gamma image processing provides visibly smooth and more detailed picture quality. (Product is shown with optional wall mount)
Built-in flexible digital canvas for easy integration
16:9 native aspect ratio with additional support for ultra wide 16:6 and 21:9 for equitable conferencing experience in meeting rooms
Extreme short throw – large, up to 160″ diagonal image
Project an 80” image from just 3 cm away from the wall, or 100” from 10 cm away; at under 13 kg, this lightweight projector can deliver an image up to 160” diagonal, 4.5 times larger than a 75” panel.
Lamp-free technology
Laser diode technology combined with a sophisticated re-engineered cooling system offers up to 30,000 hours of virtually maintenance-free operation2.
Complex tasks made easy
With time-saving tools such as wake on signal, multiple EDID settings with digital image correction for ease of installation for nearly any image size / aspect ratio, and support for Epson® Content Management software.
Streamlined setup
Digital zoom and image shifting make image alignment easy for desktop or wall-mounted display, and Epson’s Setting Assistant app ensures easy installation by automatically smoothing edges and corners.
Fully loaded to support your latest needs
Multiple HDMI® ports, built-in wired/wireless networking, HDBaseT®, RS-232c connectivity, and dynamic dual speaker sound system to fill virtually any room.
Specifications
PROJECTOR
- PRODUCT NAME: EB-810E
- PRODUCT CODE: V11HA99053
TECHNOLOGY
- Projection System: 3LCD
- LCD Panel: 0.62-inch
- Light Source: Laser diode
- Resolution: 1080p
- Colour Light Output: 5,000 lm
- White Light Output: 5,000 lm
- Native Aspect Ratio: 16:9
- Contrast Ratio: 2,500,000:1
- Colour Reproduction: Up to 1.07 billion colours
- Colour Processing: 10 bit
- Quick Corner: Yes
- Refresh Rate: 192 Hz – 240 Hz
OPTICAL
- Zoom: 1 – 1.35 (Digital)
- Screen Size (Standard Lens): 60″ to 160″ @ 16:9 / 60″ to 150″ @ 21:9
- Projection Distance (Standard Lens): 90″ screen 0.32 m
- Throw Ratio: 0.16 (Zoom:Wide) / 0.22 (Zoom:Tele)
- Projection Lens F Number: 1.8
- Projection Lens Focal Length: 2.3 mm
- Focus Method: Manual Focus
- Offset: 7.11: -1

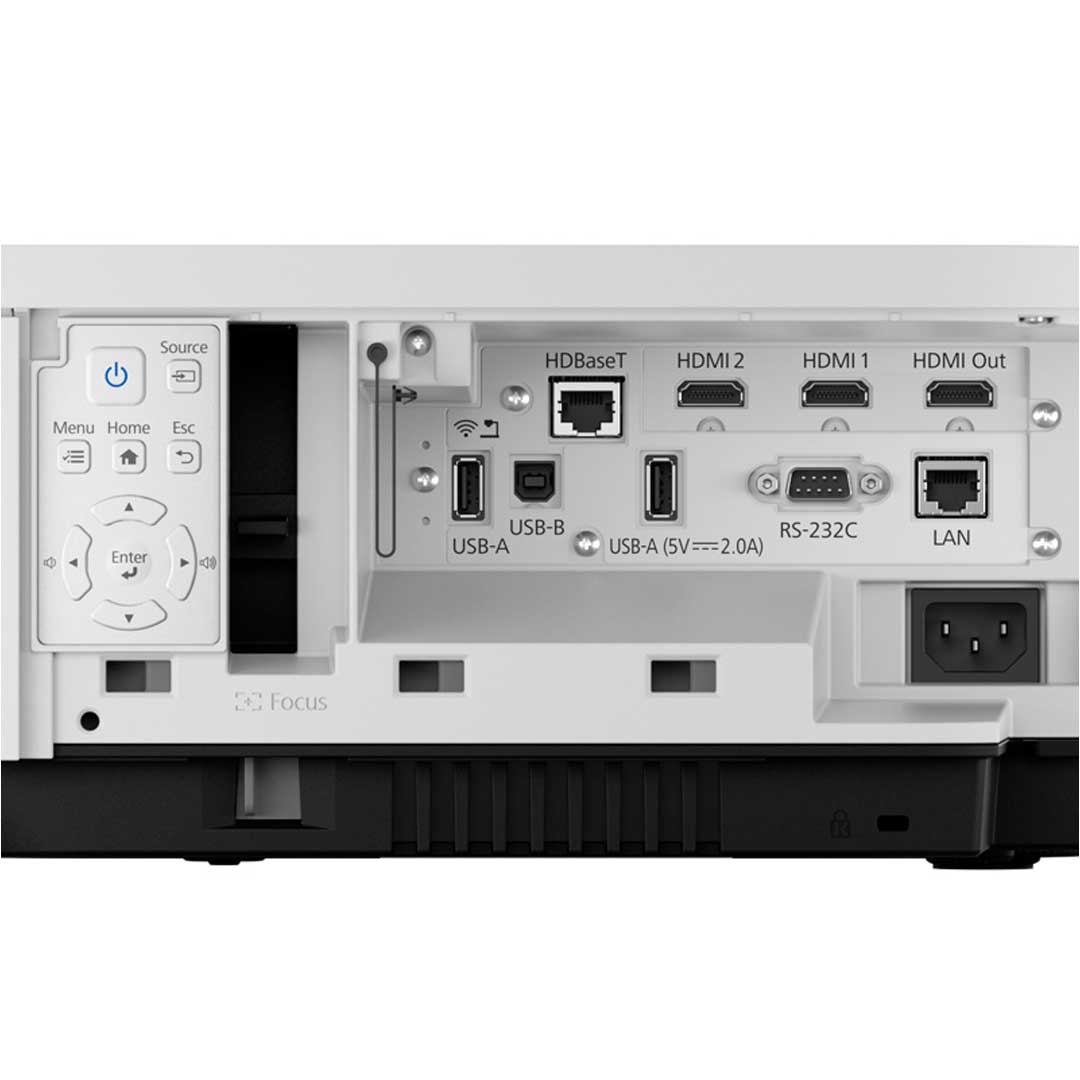

CONNECTIVITY
- Input: Digital: 2 x HDMI, 1 x HDBaseT
- Control: I/O: 1 x RS232C
- USB: I/O: 2 x USB 2.0 Type A1 /1 x USB Type B (for Firmware update, Copy OSD Settings)
- Network: I/O: 1 x RJ45, 1 x USB 2.0 Type A for optional wireless LAN ELPAP112
- HDBaseT: Yes
- Wireless Connectivity: Included
- Output: 1 x HDMI
ADVANCED FEATURES
- 4K Enhancement: Yes
- Built-in Speaker: 2 x 8 W Speakers (16 W total)
- Epson Setting Assistant App: Yes
- Miracast: Yes
- Auto Power On (power on trigger): Yes
- High Dynamic Range (HDR): Yes (HDR10)
- Hybrid Log Gamma: Yes
- Frame Interpolation: Yes
- Image Shift: Yes
- Wireless LAN Security: WPA2/WPA3-PSK, WPA2/WPA3 EPA
- Split Screen: Yes (two screens)
- Content Playback: Yes
- Edgeblending: Yes
- Super Resolution: Yes
- Scene Adaptive Gamma: Yes
- Auto Contrast Enhancement: Yes
- Instant Off: Yes
- Direct Power On: Yes
- Security: Kensington® – lock provision / Padlock & security cable hole / Wireless LAN unit lock / Password protect function
- Colour Modes: Dynamic / Presentation /Cinema / Natural /BlackBoard / DICOM SIM / Multi-Projection / Face Brightness
SOFTWARE
- Epson Projector Management (Network & Control): Yes
- Epson iProjection (Multi-PC Projection): Yes
- Epson Projector Content Manager: Yes
- Epson Creative Projection: Yes
GENERAL
- Dimensions D x W x H (including feet): 341 x 695 x 156 mm
- Weight: 12.5 kg
- Light Source Life (Normal/Eco): 20,000 hrs / 30,000 hrs
- Power Consumption: Lamp/LD On: 380 W
- Power Consumption: Standby: 2.0 W
- Noise Level (Normal / Eco): 35 / 26 dB
- Projector Wall Mount: Optional – ELPMB75 (new)
- Projector Ceiling Mount: Optional – ELPMB22, ELPMB30
WHAT’S IN THE BOX
- Main Unit: EB-810E Projector
- Power Cable: 1.8 m
- Remote Control: Yes
- Battery for Remote Control: 2 x AA
- Quick Start Guide: Yes
- 1 x USBA for PC Free, Firmware update, Copy OSD Settings, ELPAP11
- 1 x USBA for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply
- With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode)
