Description
Epson EB-760Wi 4100lm WXGA Ultra Short Throw 3LCD Laser Projector
The Epson EB-760Wi 4100lm WXGA Ultra Short Throw 3LCD Laser Projector
View User Manual >> View Epson >>
FAQ’s
- Can the EB-760Wi be used for interactive teaching or collaboration? The projector is interactive-ready, supporting touch and pen interactivity when paired with compatible accessories, making it ideal for classrooms and group work.
- Is the EB-760Wi bright enough for rooms with the lights on? With 4,100 lumens, it delivers clear, vivid images even in bright learning or meeting environments.
- Does the projector reduce shadows when writing on the board? Its ultra short throw design minimises shadows and glare, allowing teachers and presenters to stand close to the display without obstructing the image.
- What devices can connect to the EB-760Wi? It supports HDMI, USB, and wireless connectivity (with optional modules), enabling easy connection to laptops, tablets, and classroom tech systems.
- How long does the laser light source last? The EB-760Wi offers up to 20,000 hours of virtually maintenance-free laser performance, reducing long-term operating costs for schools and businesses.
Features
- Up to 3x brighter colours and reliable performance – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
- Lamp-free laser light source – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
- 16:10 WXGA resolution – for true-to-life images; supports 4:3 and 16:9 aspect ratios for presentations, videos, images, digital signage and more
- Amazing colour brightness – up to 4,100 lumens colour brightness and 4,100 lumens white brightness
- Miracast support – project your smartphone or tablet screens without a cable connection
- Large image size – displays large true-to-life images up to 150″ in a convenient ultra short throw design
- Touch-enabled interactivity – turn on the projector and start writing using your finger or the included pens (finger touch unit is optional)
- Captivating sound – enjoy a built-in stereo speaker up to 16 W for life-like sound
- Up to 3-year projector warranty – enjoy peace of mind
EB-760Wi WXGA 3LCD interactive lamp-free laser display
Lamp-free interactive display projects easy-to-read images for collaborative classrooms
True-to-life images
With 3-chip 3LCD technology and 4,100 lumens of colour and white brightness
No lamps to replace ever
A solid-state, 20,000-hour, virtually maintenance-free laser light source
Large, easy-to-read images
16:10 WXGA resolution for true-to-life images. Also supports 16:9 and 4:3 aspect ratios
Interactive display up to 100″
Provides up to 85 percent more interactive space than a 75″ interactive panel, for a low cost per square inch.
Multi-user capability for easy collaboration
Dual-pen-enabled interactivity; optional slim-design touch module allows up to eight users to collaborate at once
Easily replaceable
Use the existing mount and touch module
Time-saving installation
With automatic image alignment and pen calibration
PC-free digital whiteboard
Draw, save, print and email without a PC; share whiteboard content with other networked projectors
Connect and cast from up to 50 devices
Free downloadable Epson iProjection software makes it easy to cast wirelessly from Chromebooks, iOS and Android devices, Mac computers or PCs. Never lose control of displayed content with the moderator feature.
Specifications
PROJECTOR
- PRODUCT NAME: EB-760Wi
- PRODUCT CODE: V11HA80053
TECHNOLOGY
- Projection System: Epson 3LCD, 3-chip technology
- LCD Panel: 0.59-inch (C2fine)
- Resolution: WXGA
OPTICAL
- Zoom: 1 – 1.35 (Digital)
- Screen Size: 60″ to 150″ [33.7 cm to 92.8 cm] @ 16:10
- Projection Distance: 74.3″ screen at 43.3 cm
- Throw Ratio: 0.27 (Zoom:Wide) / 0.37 (Zoom:Tele)
- Projection Lens F Number: 1.6
- Projection Lens Focal Length: 3.7 mm
- Focus Method: Manual
- Offset: 5.8: -1
- Light Source: Laser diode
- Colour Light Output: 4,100 lumens
- White Light Output: 4,100 lumens
- Native Aspect Ratio: 16:10
- Contrast Ratio: Over 2,500,000:1
- Colour Reproduction: Up to 1.07 billion colours
- Colour Processing: 10 bit
- Keystone Correction: Vertical: -3 to +3 degrees
- Horizontal: -3 to +3 degrees
- Quick Corner: Yes (Auto & Manual)
- Auto Setup: Yes
- Split Screen: Yes
- Refresh Rate: 100 Hz / 120 Hz

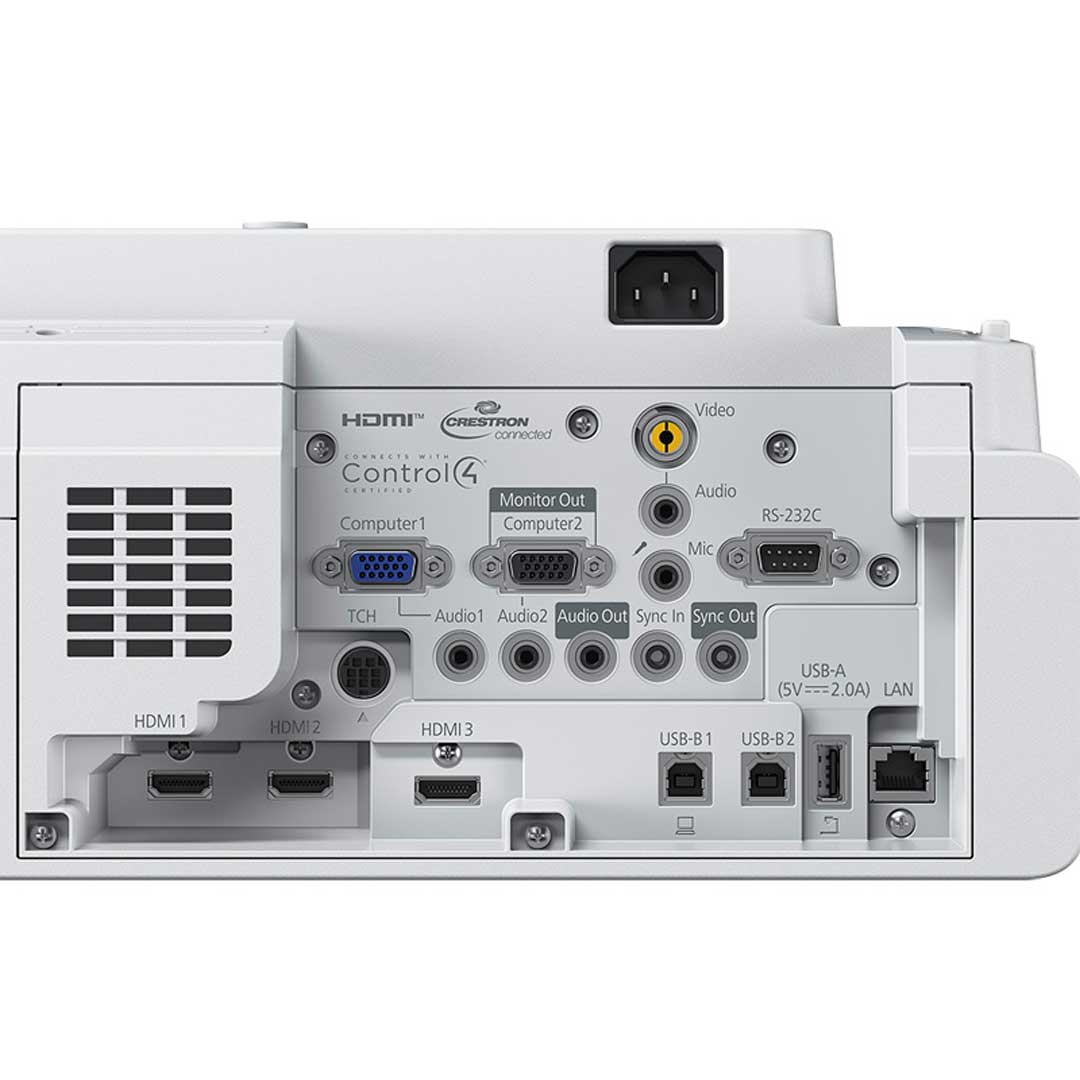

CONNECTIVITY
- Video I/O – Input:
- 2 x RGB D-sub 15-pin
- 1x RCA Composite
- Video I/O – Output:
- 1 x RGB D-sub 15-pin (shared)
- Digital Input: 3 x HDMI
- Audio I/O – Input:
- 3 x Stereo mini
- 1 x Mic-In Stereo Mini
- Audio I/O – Output: 1 x Stereo mini
- Control: I/O: 1 x RS232C (D-sub 9-pin)
- Interactive sync Stereo mini – 1 x In, 1 x Out
- Touch Unit Control – Mini DIN 8-pin
- USB: I/O:
- 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1)
- 2 x Type B (Firmware update, Copy OSD Settings, USB display)
- Network: I/O: 1 x RJ45, 1 x USB Type A for optional wireless LAN2
- Touch Interactive: Min DIN 8-pin
- Wireless Connectivity: Included
- Speaker Output: 1 x 16 W Stereo
ADVANCED FEATURES
- Miracast: Yes
- Super Resolution: Yes
- Detail Enhancement: Yes
- Scene Adaptive Gamma Correction: Yes
- Partner Standards: Crestron Integrated Partner, Crestron Connected, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
- Wireless LAN Security: WPA2/WPA3-PSK, WPA2/WPA3-EAP
- Instant Off: Yes
- Direct Power On: Yes
- Auto Power On: Yes
- PC Interactive Tool: Multiple pen support: Yes (up to 2) with Easy Interactive Tools
- Finger touch support: Optional (ELPFT01)
- PC-free Annotation Tool: Multiple pen support: Yes (up to 2)
- Finger touch support: Optional (ELPFT01)
- Whiteboard function
- Screen Sharing
- Security: Kensington® – lock provision / Padlock & security cable hole / Wireless LAN unit lock / Password protection
- Colour Modes: Dynamic / Presentation / Cinema / sRGB / BlackBoard /
- Wall Mount: Optional (ELPMB62)
Finger Interactive Unit: Optional (ELPFT01)
- Dimension: 422 x 40 x 65 mm (WxHxD)
- Weight: 600 g
- Technology: Infrared Laser (Class 1)
- Adjustment: Auto
- Control I/O: 1 x Mini DIN 8-pin
- Security: Kensington® – lock provision, Padlock and security cable hole
EPSON SOFTWARE
- Epson Projection Management Software: Yes Ver 5.43 (Windows)
- Epson iProjection Software: Yes Ver 3.32 (Windows) / Ver 3.31 (mac OS) / Ver 3.3.1 / iOS/Android) / Ver 2.1.0 (Chrome)
- Easy Interactive Tools: Ver 5.10 (Windows) / Ver 5.04 (Mac OS)
- Firmware Update: Network via LAN cable, Network via Wireless LAN, USB A via USB thumb drive, USB B via USB cable
- Copy OSD settings: Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
GENERAL
- Dimensions D x W x H (including feet): 395 x 357 x 165 mm
- Weight: 6 kg
- Projector Warranty: 3 Years
- Power Consumption: Projector on: 263 W
- Power Consumption: Standby: 2.0 W
- Noise Level (Normal / Eco): 37 / 27 dB
WHAT’S IN THE BOX
- Main Unit: EB-760Wi Projector
- Power Cable: 1.8 m
- USB Cable Cable: 5 m
- Remote Control: Yes
- Battery for Remote Control: 2 x AA
- Projector Feet: Yes
- Easy Interactive Pen: 2 Pens
- Battery for Easy Interactive Pen: 2 x AA
- Pen Stand: Yes
- Pen Tip (Soft): x 4
- Pen Tip (Hard): x 2
- Corner markers for auto setup: Yes
- Magnet for corner markers: Yes
- Quick Start Guide: Yes
- 5V/2A power supply only via rear USB A port
- With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode)
