Chord Electronics Prima Five Input Choral Preamplifier

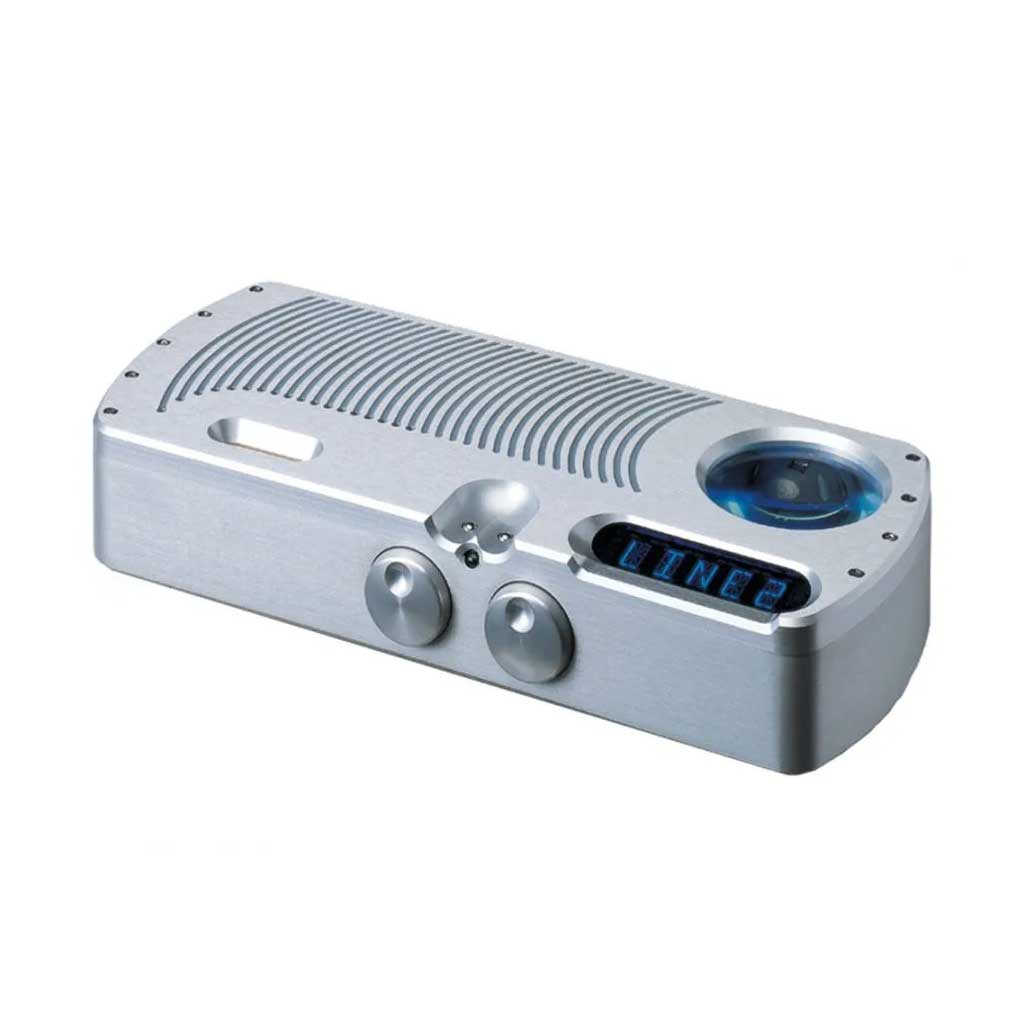

The Chord Electronics Prima Five Input Choral Preamplifier is precision-machined from solid aircraft-grade aluminum billet. It offers both remote control and front panel operation.
Prima’s fascia offers volume and balance controls while its push-button controls atop the unit, offer input selection and tape line selection, the latter enabling its tape outputs to be selected for recording from source components.
Further design features include a top panel display, offering input choice and volume information, plus a clever porthole which enables the internal circuit board to be seen.
The Prima also benefits from our legendary proprietary Ultra-High-Frequency power supply, which is common to all Chord amplifiers. Prima offers fully balanced circuitry throughout and useful flexibility with five inputs, four unbalanced RCA and one balanced XLR, plus a balanced XLR output and a tape output.
For added versatility, Prima’s audio circuit offers six independent input gain adjustments for the five inputs and low impedance outputs.
View Product Specifications >>

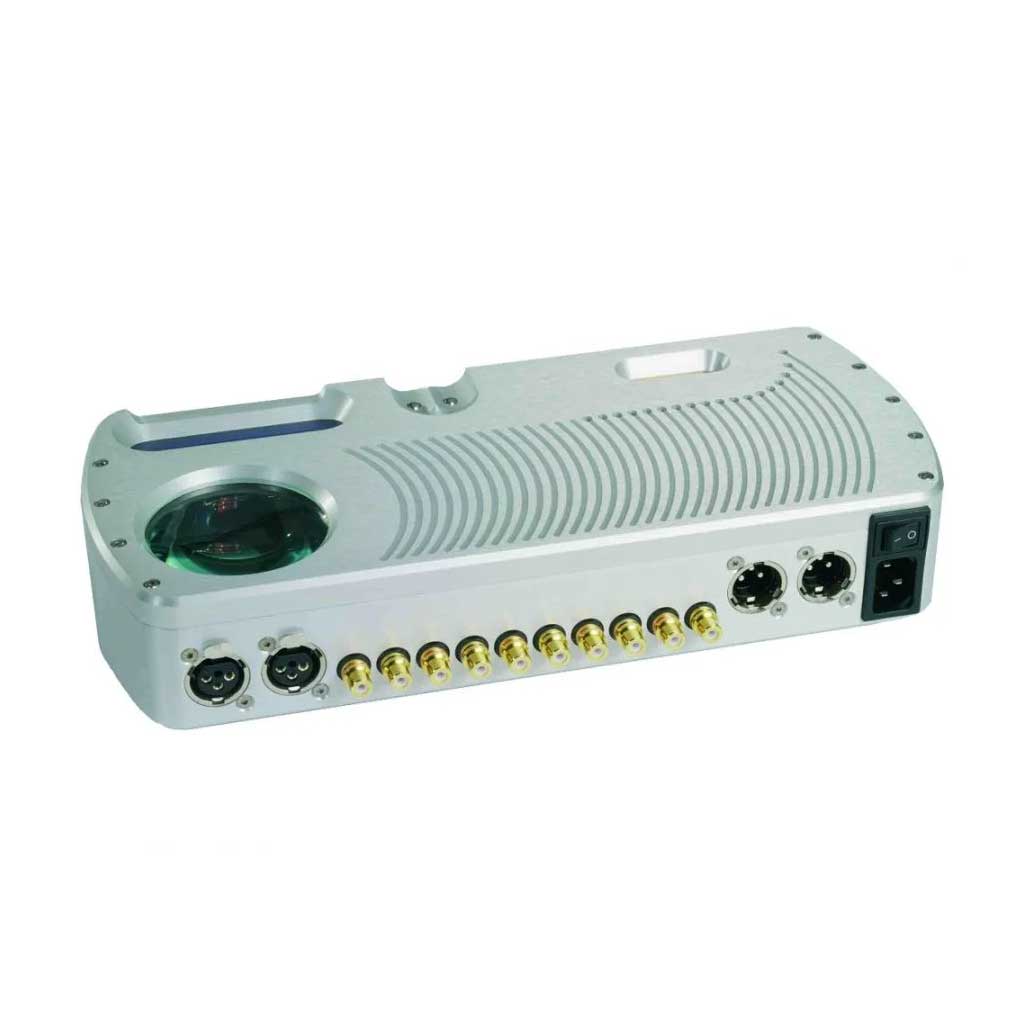

Inputs & Outputs
5 Stereo Inputs and 1 Stereo Output
- 1x Stereo Balanced XLR Input – Main Line 1
- 4x Stereo Unbalanced RCA Inputs – Line In 2, Line In 3, Line In 4, and Line In
- 1x Stereo Balanced XLR Output – Output 1
- 1x Stereo Unbalanced RCA Tape Output – Tape Output
Features
- HF Switch Mode Power Supply
- Blue Velvet ALPS Potentiometer
- -93dB Signal to Noise Ratio
- Fully Balanced Circuitry
- Analogue Signal Path
- Input/Output Buffering
- 4x Stereo RCA Inputs
- 1x Stereo XLR Input
- 1x Stereo RCA Tape Output
- 1x Stereo XLR Output
- Convection Cooled
- Solid Aluminum Chassis
Specifications
- Frequency Range: 5Hz – 200kHz +/- 3dB
- Output Impedance: 100Ω (Short Circuit Protected)
- Operating Voltage: 50v – 260v AC (50Hz – 60Hz) Auto Switching
- Power consumption: 30W
- Dimensions: 335mm (w) x 170mm (d) x 65mm (h)
- Weight: 8kG
